Alliance Laundry Systems H370I User manual

Installation
www.comlaundry.com
Frontload Washers
H370I
H370I
NOTA: El manual en
españolaparecedespués
del manual en inglés.
Part No. 801516
April 2003
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright 2003, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
801516 1
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Replacement Parts.............................................................................. 3
Installation........................................................................................... 5
Dimensions and Specifications............................................................. 5
Before You Start................................................................................... 6
Tools ................................................................................................ 6
Electrical .......................................................................................... 6
Water................................................................................................ 6
Accessories Bag............................................................................... 6
Installing the Washer ............................................................................ 7
Step 1: Position Washer Near Installation Area .............................. 7
Step 2: Connect Water Inlet Hoses .................................................. 7
Step 3: Connect Drain Hose to Drain Receptacle............................ 8
Step 4: Position and Level the Washer ............................................ 10
Step 5: Remove the Shock Sleeves and Shipping Brace ................. 11
Step 6: Wipe Out Inside of Washer Drum....................................... 11
Step 7: Plug In the Washer............................................................... 11
Step 8: Check Installation ................................................................ 12
Moving Unit to a New Location ...................................................... 12
Electrical Requirements........................................................................ 12

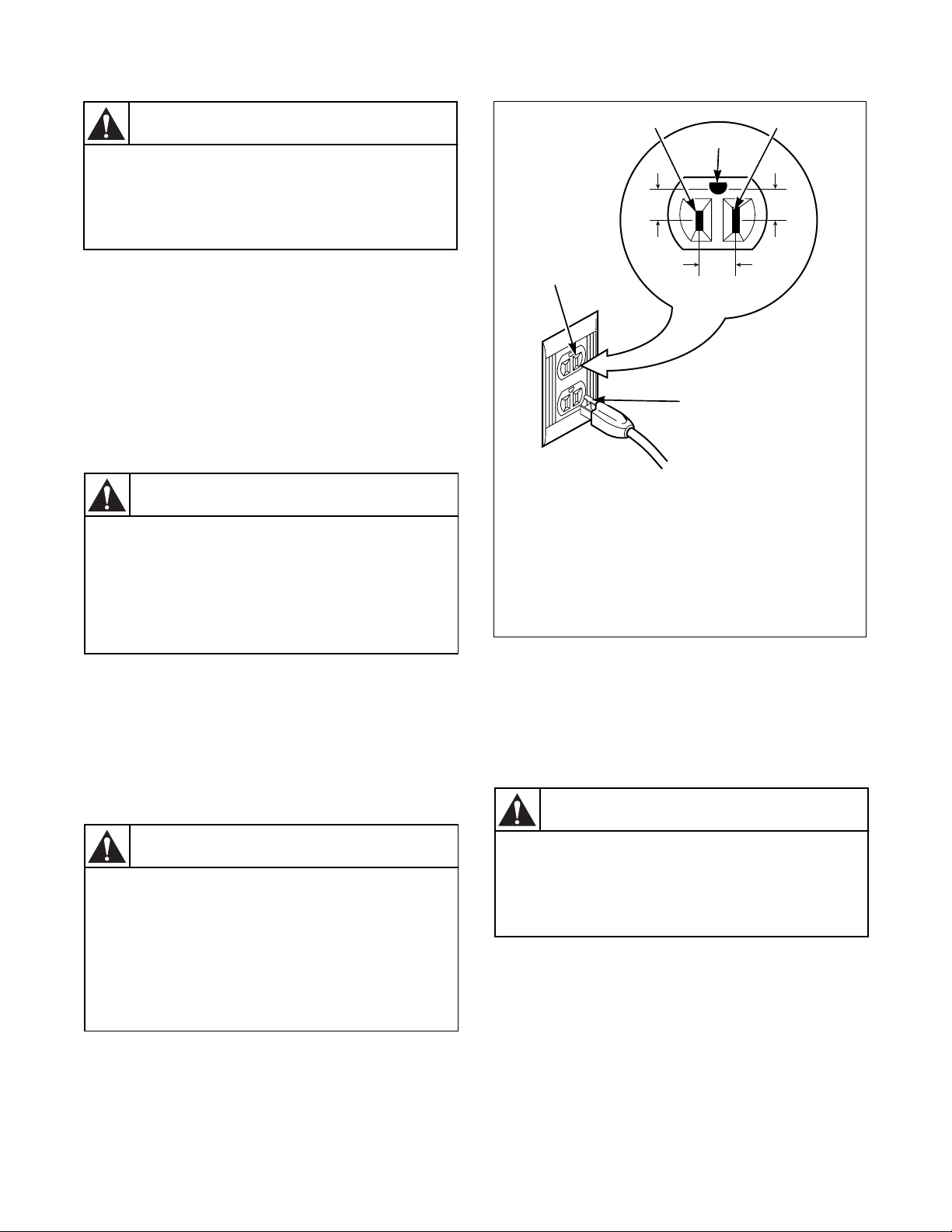

Grounding Instructions .................................................................... 13
Water Supply Requirements................................................................. 14
Water Temperature .......................................................................... 14
Water Pressure ................................................................................. 14
Risers................................................................................................ 14
Information for Handy Reference......................................................... 15
Installer Checklist................................................................ Back Cover

2801516
© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Notes

3
801516 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Replacement Parts
If replacement parts are required, contact the source
from which you purchased your washer, or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
for the name and address of the nearest authorized
parts distributor.

801516
4© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Notes

5
801516 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installation
Dimensions and Specifications
FLW1989N
FLW1957N
28 in.
(71.1 cm)
2 in. (5.1 cm)
17.5 in.
(44.8 cm)
31.1 in. (79 cm)
14.9 in.
(37.9 cm)
29.6 in. (75.1 cm)
26.9 in.
(68.3 cm)
43 in. (109.2 cm)
36.6 in. (93 cm)

Installation
801516
6© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Before You Start

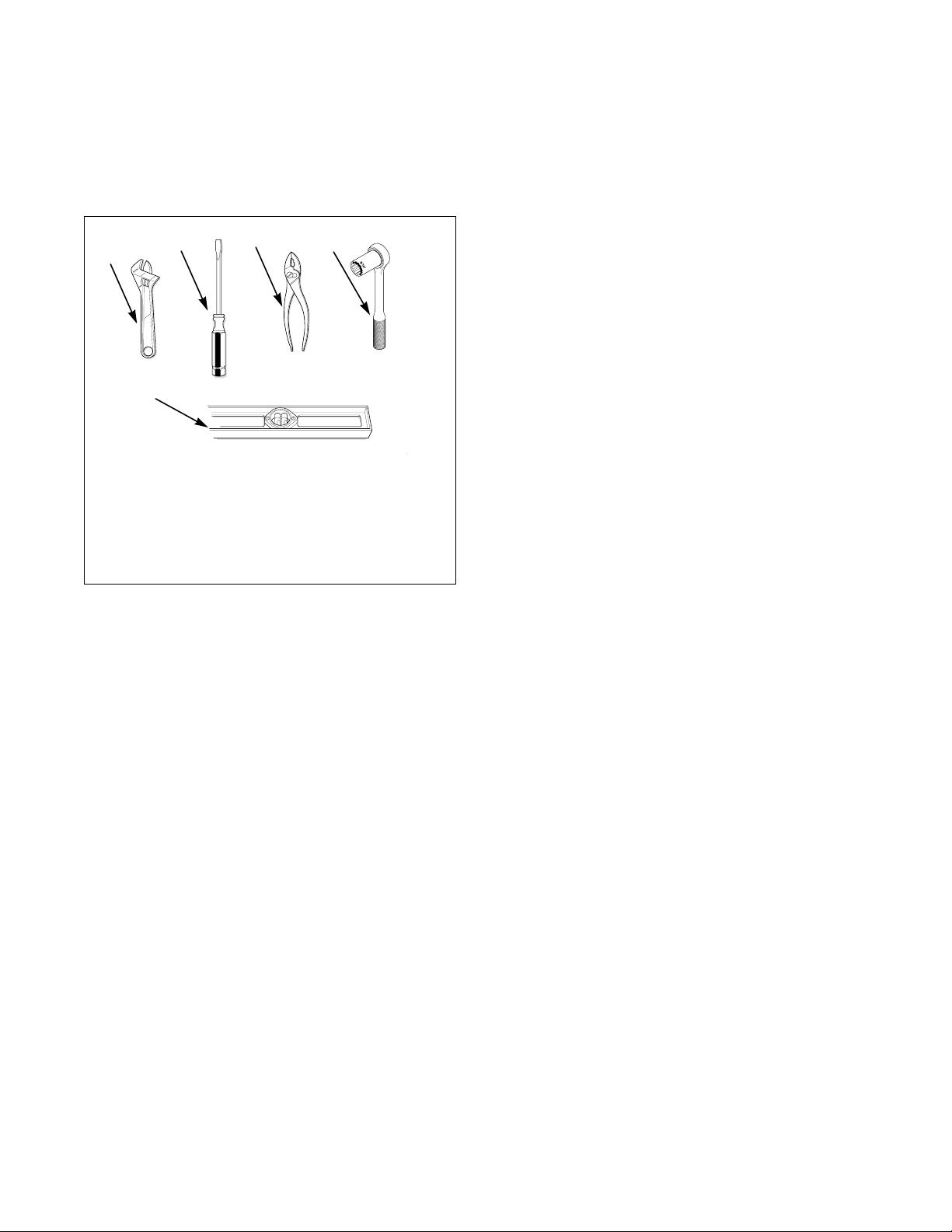

Tools
For most installations, the basic tools you will need
are:
Figure 1
Electrical
Refer to serial plate for specific electrical
requirements. For more detailed information refer to
section on Electrical Requirements.
Water
Washer needs two standard 3/4 in. (19.1 mm) water
supply faucets with a pressure between 20 and
120 pounds per square inch (138 to 827 kPa). For
more detailed information refer to section on Water
Supply Requirements.
Accessories Bag
An accessories bag has been shipped inside your
washer. It includes:
●Two inlet hoses with washers. Refer to step 2 of
Installation.
●Four rubber feet. Refer to step 4 of Installation.
●Beaded tie-down strap. Refer to step 3 of
Installation.
●Installation instructions.
●Use and Care Guide.
●Operating insert.
●Warranty bond.
●Helpful Hints insert.
●Bag for storing shipping materials.
D820I
1Wrench
2Screwdriver
3Pliers
4Socket Wrench
5Level
1234
5

Installation
7
801516 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Installing the Washer
NOTE: If the washer is delivered on a cold day
(below freezing), or is stored in an unheated room
or area during the cold months, do not attempt to
operate it until the washer has had a chance to
warm up.
Step 1: Position Washer Near Installation
Area
IMPORTANT: Install dryer before washer. This
allows room for attaching exhaust duct.
Move washer as close to the desired area of
installation as possible.
Figure 2
Step 2: Connect Water Inlet Hoses
NOTE: Refer to section on Water Supply
Requirements before connecting water inlet hoses.
Remove the four plain rubber washers from accessories
bag, and install them according to Figure 3.
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
IMPORTANT: Thread hose couplings onto valve
connections finger-tight, then approximately
1/4 turn with pliers. DO NOT cross thread or
overtighten couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.
Figure 3
Figure 4
D772I
D772I
H091I
1Rubber Washer (Plain)
2Inlet Hose
FLW1990N
1Water Supply Faucets
2Cold Water Connection
3Hot Water Connection
4Water Inlet Hoses
H091I
1
2
FLW1990N
123
WATER
MIXING
VALVE
4

Installation
801516
8© Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Step 3: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp and by removing shipping tape.
Find the instructions, on the following pages, that are
appropriate for your type of drain receptacle
(standpipe, sink, wall, or laundry tub). Follow these
instructions to properly install the drain hose.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/4 inch (3.2 cm) outside
diameter drain hose.
Figure 5
Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. This will
prevent the drain hose from dislodging from drain
receptacle during use.
Figure 6
Sink Installation
For this type of installation, use the beaded tie-down
strap (supplied in accessories bag) or use a large wire
tie (available from your local hardware store), and
secure the drain hose to the cabinet top hinge (refer to
Figure 7). This will prevent the drain hose from
dislodging during use.
Figure 7
FLW1991N
1Retainer Clamp
1
FLW1992N
124 in. to 36 in. (91.44 cm recommended
height)
2Standpipe –2 in. (5.08 cm) or 1-1/2 in.
(4 cm)
3Beaded Tie-Down Strap
FLW1993N
1Drain Hose
2Tie-Down Strap (Wire tie or tape if
necessary)
FLW1992N
1
23
FLW1993N
1
2

Installation
9
801516 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

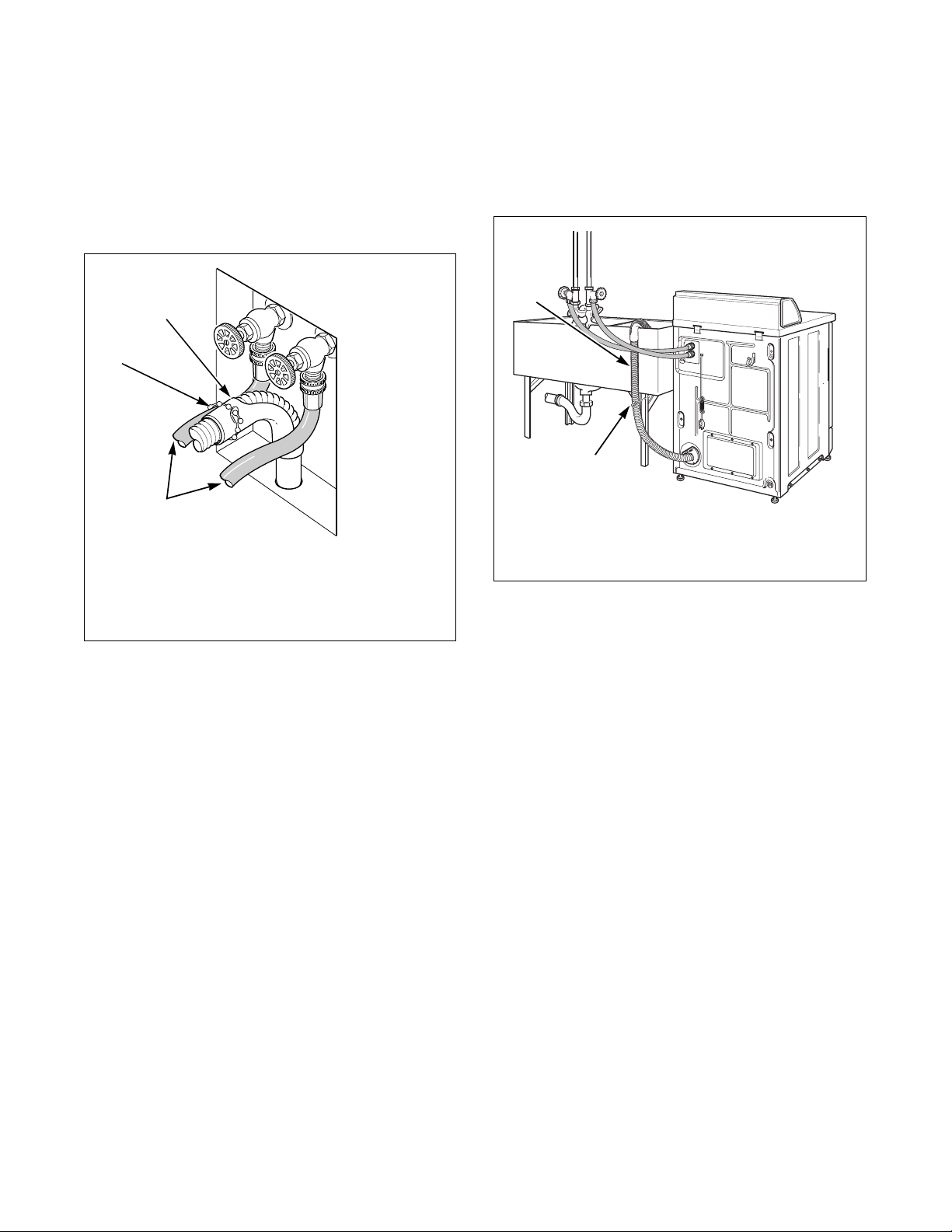

In-the-Wall Installation
For installations of this type, the drain hose MUST be
secured to one of the inlet hoses using the beaded tie-
down strap from accessories bag.
NOTE: End of drain hose must not be below 24 in.
(61 cm).
Figure 8
Laundry Tub Installation
For this type of installation, the drain hose MUST be
secured to the stationary tub to prevent hose from
dislodging during use. Use the beaded tie-down strap
(supplied in accessories bag) to secure hose.
Figure 9
H023I
1Drain Hose
2Tie-Down Strap (Tape if necessary)
3Inlet Hoses
2
3
1
FLW1994N
1Drain Hose
2Tie-Down Strap (Tape if necessary)
1
2

Installation
801516
10 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

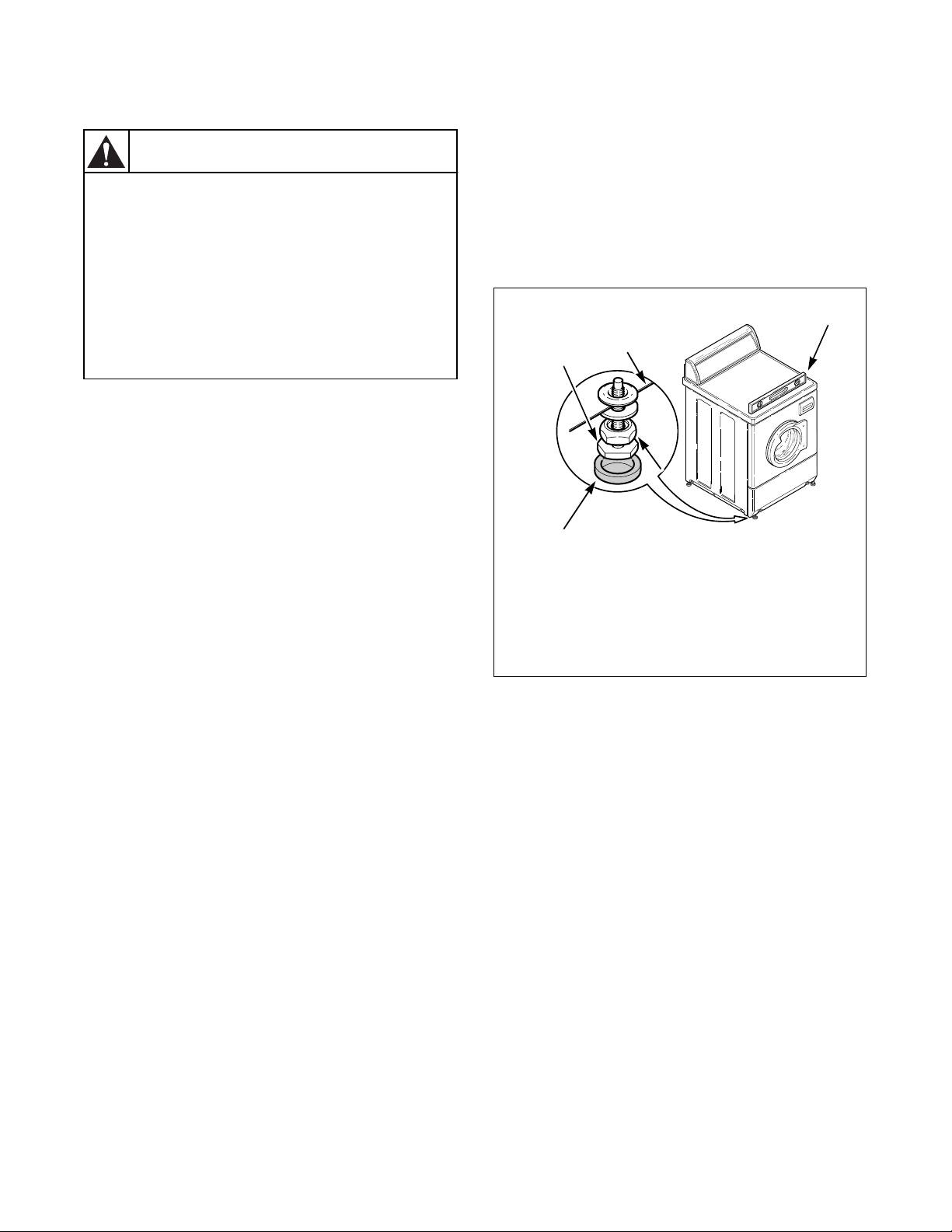

Step 4: Position and Level the Washer
Place washer in position on a clean, firm and
reasonably level floor. Installing the washer on any
type of carpeting is not recommended.
Loosen 7/8 in. locknut and adjust the front and rear
leveling legs until the washer is level from side to side
and front to back (using a level). Washer should not
rock.
NOTE: Level must rest on raised portion of top
panel. Refer to Figure 10.
Tighten the locknuts securely against the washer
base using the 7/8 in. wrench. If the locknuts are not
tight, washer will move out of position during operation.
NOTE: DO NOT slide washer across floor if the
leveling legs have been extended, as legs and base
could become damaged.
NOTE: Use of the dispenser drawer or washer door
as a handle in the transportation of the washer may
cause damage to the dispenser or door.
Remove rubber feet from accessories bag and place on
all four leveling legs.
Figure 10
Washers elevated above floor level must be
anchored to that elevated surface, base or
platform. The material used to elevate the
washer should also be anchored to the floor
to ensure that the washer will not walk or
that the washer can not be physically
pulled, tipped or slid from its installed
position. Failure to do so may result in
conditions which can produce serious
injury, death and/or property damage.
W306
WARNING
H381I
1Leveling Leg
2Washer Base
3Level
4Locknut
5Rubber Foot
1
3
4
5
2

Installation
11
801516 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

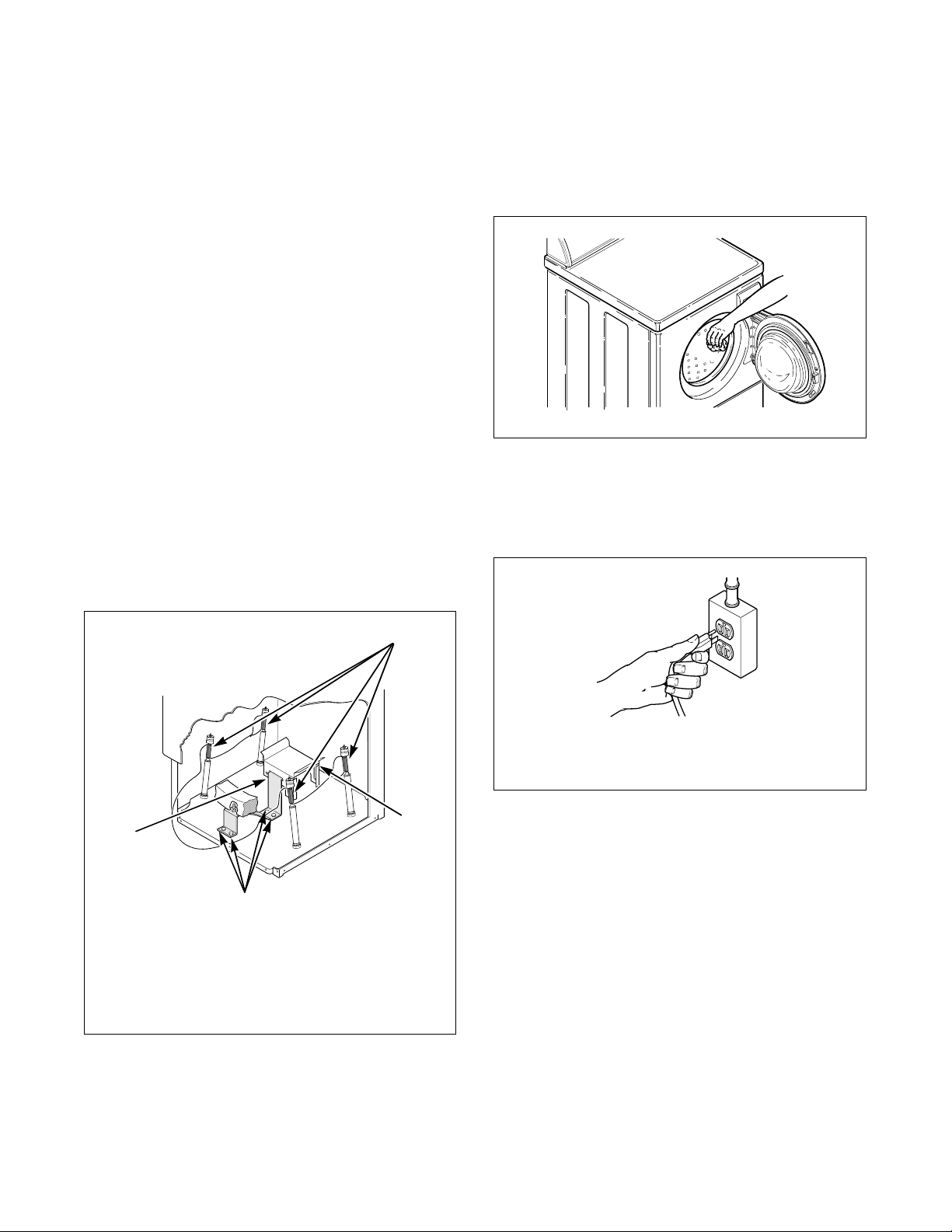

Step 5: Remove the Shock Sleeves and
Shipping Brace
Remove front access panel by removing the two
screws.
Remove bolts and lockwashers from shipping brace
with 9/16 in. wrench and remove brace. Remove shock
sleeves by pulling on the yellow rope.
Remove label from front side of front access panel and
place on backside of front access panel.
NOTE: The shipping brace, bolts, lockwashers and
shock sleeves should be saved and MUST be
reinstalled whenever the unit is moved more than
four feet. Do not lift or transport unit from front or
without shipping materials installed.
Store the shipping materials in the bag provided in the
accessories bag. Save materials for use whenever the
unit is moved.
NOTE: The shipping materials MUST be reinstalled
whenever the unit is moved. Refer to Moving Unit
to a New Location section for proper instructions on
reinstalling the shipping materials.
Reinstall front access panel.
Figure 11
Step 6: Wipe Out Inside of Washer Drum
Before using the washer for the first time, use an all-
purpose cleaner, or a detergent and water solution, and
a damp cloth to remove shipping dust from inside the
drum.
Figure 12
Step 7: Plug In the Washer
Refer to section on Electrical Requirements and connect
the washer to an electrical power source.
Figure 13
H336I
1Shock Sleeves
2Motor Mount
3Bolts and Lockwashers
4Hooked End of Shipping Brace
2
1
4
3
H337I
D254I
D254I
Plug cord into separately fused 15 Amp circuit.

Installation
801516
12 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Step 8: Check Installation
Refer to Installer Checklist on the back cover and
make sure that unit is installed correctly.
Moving Unit to a New Location
Disconnect washer from electrical supply.
To prevent damage while moving the unit, the
shipping materials MUST BE reinstalled.
Reinstallation of Shipping Materials
Remove front access panel by removing two screws.
Place the shock sleeves on all four shock absorbers.
Refer to Figure 14.
Insert hooked end of shipping brace into the open slot
of the motor mount. Attach with bolts and lockwashers.
Refer to Figure 14.
Reinstall front access panel.
Figure 14
Refer to step 5 for proper procedures whenever the
unit is moved.
Electrical Requirements
(120 Volt, 60 Hertz with 3-Prong Grounding Plug)
NOTE: The wiring diagram is located in the
control hood.
Figure 15
The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current) circuit
protected by a 15 Ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 110/120 Volts
AC (alternating current) 15 Amps. Refer to Figure 16
to determine correct polarity of the wall receptable.
H336I
1Shock Sleeves
2Motor Mount
3Bolts and Lockwashers
4Hooked End of Shipping Brace
2
1
4
3
D009I
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code, ANSI/
NFPA No. 70, and such local regulations as
might apply. It is the customer’s
responsibility to have the wiring and fuses
checked by a qualified electrician to make
sure the laundry room has adequate
electrical power to operate the washer.
W227
WARNING
DO NOT OVERLOAD
CIRCUITS
DO NOT USE AN
ADAPTER
DO NOT USE AN
EXTENSION CORD

Installation
13
801516 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Grounding Instructions
The washer must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. The washer is equipped
with a cord having an equipment-grounding conductor
and a 3-prong grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
DO NOT modify the plug provided with the washer –
if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that illustrated, the
qualified electrician should correct the problem.
Figure 16
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT. DO NOT OVERLOAD
CIRCUITS!
Do not operate both a washer and gas dryer on the
same circuit. Use separately fused 15 Amp circuits.
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the washer to the
electric power source.
W082
WARNING
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk of
electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the washer is properly
grounded.
W216
This unit is equipped with a three-prong
(grounding) plug for your protection
against shock hazard and should be
plugged directly into a properly grounded
three-prong receptacle. Do not cut or
remove the grounding prong from this
plug.
W213
WARNING
D799I
1L1
2Ground
3Neutral Side
4Round Grounding Prong
5Neutral
13
4
2
120 ± 12
V.A.C.
0
V.A.C.
120 + 12
V.A.C.
STANDARD 120 VOLT, 60 HERTZ, 3-WIRE
EFFECTIVELY GROUNDED CIRCUIT
5
To reduce the risk of electric shock or fire,
DO NOT use an extension cord or an
adapter to connect the washer to the
electrical power source.
W031
WARNING

Installation
801516
14 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT

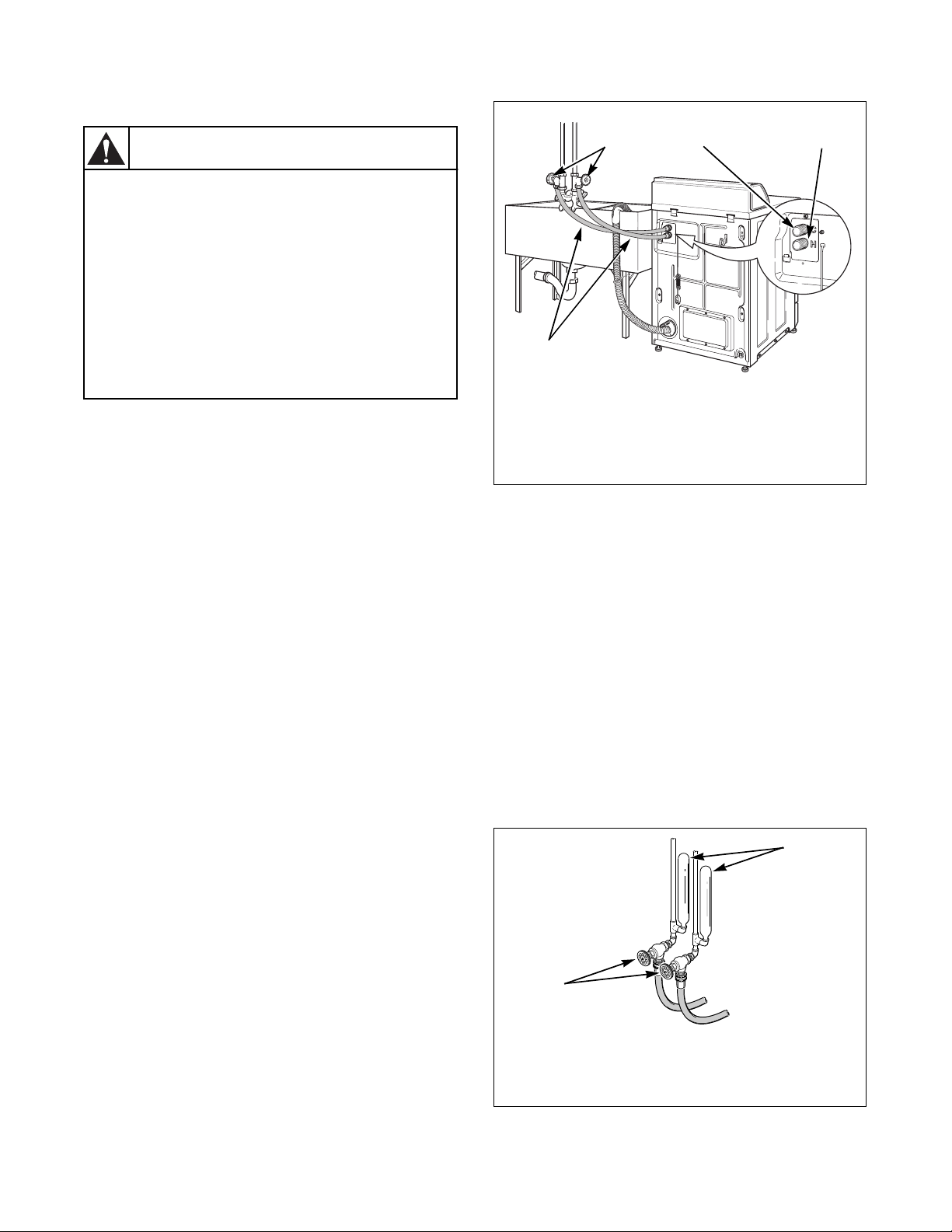

Water Supply Requirements
NOTE: Water supply faucets must fit standard
3/4 in. (19.1 mm) female garden hose couplings.
DO NOT USE SLIP-ON OR CLAMP-ON
CONNECTIONS.
NOTE: Water supply faucets should be readily
accessible to permit turning them off when washer
is not being used.
Water Temperature
Cold:
Recommended cold water temperature is 60° to
80°Fahrenheit (16°to 27°Celsius).
Hot:
Recommended hot water temperature is 120°to
140°Fahrenheit (49°to 60°Celsius).
Warm:
Mixture of hot and cold water (warm water
temperature is dependent upon the water temperature
and the pressure of both the hot and cold water supply
lines).
IMPORTANT: Turn off water supply faucets after
check-out and demonstration. Owner should turn
off water supply whenever there will be an
extended period of non-use.
NOTE: Longer inlet hoses are available (as
optional equipment at extra cost) if the hoses
(supplied with the washer) are not long enough for
the installation. Order hoses as follows:
No. 20617 Inlet Hose (8 ft.) (2.44 m)
No. 20618 Inlet Hose (10 ft.) (3.05 m)
Figure 17
Water Pressure
Pressure must be a minimum of 20 to a maximum of
120 pounds per square inch (138 to 827 kPa) static
pressure measured at the faucet.
NOTE: Water pressure under 20 pounds per
square inch (138 kPa) will cause an extended fill
time in the washer and may not properly flush out
the detergent dispenser.
Risers
Risers (or air cushions) may have to be installed if the
pipes knock or pound when flow of water stops. The
risers are more efficient when installed as close as
possible to the water supply faucets (refer to Figure 18).
Figure 18
Under certain conditions, hydrogen gas may
be produced in a hot water system that has
not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot
water system has not been used for such a
period and before using the washer, turn on
all hot water faucets and let the water flow
from each for several minutes. This will
release any accumulated hydrogen gas. The
gas is flammable. Do not smoke or use an
open flame during this time.
W029
WARNING
FLW1990N
1Water Supply Faucets
2Cold Water Connection
3Hot Water Connection
4Water Inlet Hoses
W005I
1Water Supply Faucets
2Risers (Air Cushions)
FLW1990N
123
WATER
MIXING
VALVE
4
W005I
2
1

Installation
15
801516 © Copyright, Alliance Laundry Systems LLC –DO NOT COPY or TRANSMIT
Information for Handy Reference
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
Phone: [phone]
Date Purchased
Model Number Serial Number
Dealer’s Name
Dealer’s Address Phone Number
Service Agency
Service Agency Address Phone Number
NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on
the nameplate.

Instalación
www.comlaundry.com
Lavadoras con
carga frontal
H370I
H370I
Pieza No. 801516
Abril 2003
Guarde estas instrucciones para referencia en el futuro.
(Si la lavadora cambia de dueño, asegúrese de que vaya acompañada de estas instrucciones).
