Alliance Laundry Systems F232148 Guide

Installation/Operation Supplement
www.comlaundry.com
Washer-Extractors
Cabinet Freestanding Installation and Operating Instructions
Part No. F232148R2EN
December 2007

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
© Copyright 2007, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
F232148 (EN) 1
Installation/Operation Supplement
Table of
Contents
Safety Information.............................................................................. 2
Important Safety Instructions ............................................................... 2
Installation........................................................................................... 4
General Specifications .......................................................................... 4
V-Computer ..................................................................................... 4
WE-6 Computer ............................................................................... 6
Dimensional Clearances ....................................................................... 10
V-Computer ..................................................................................... 10
WE-6 Computer ............................................................................... 10

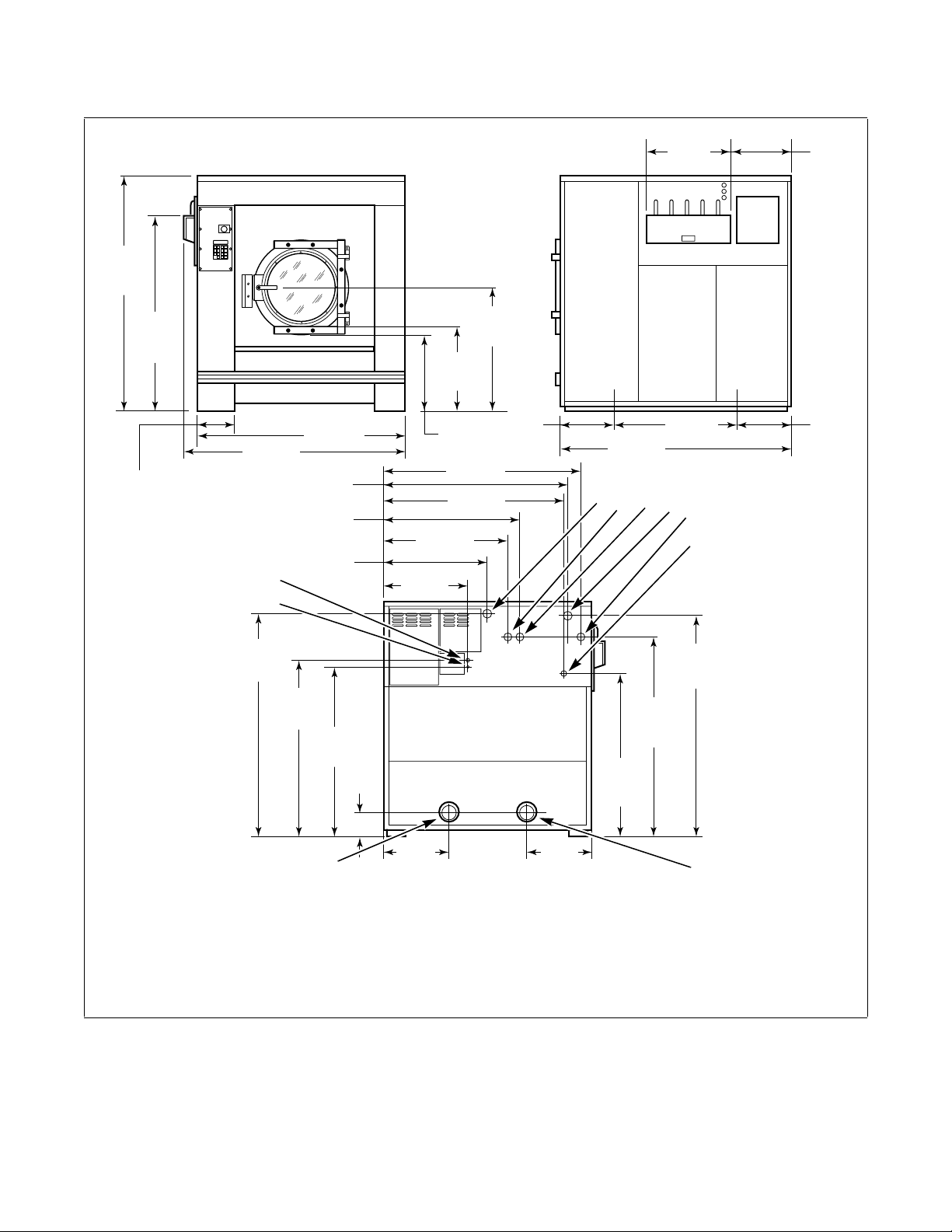

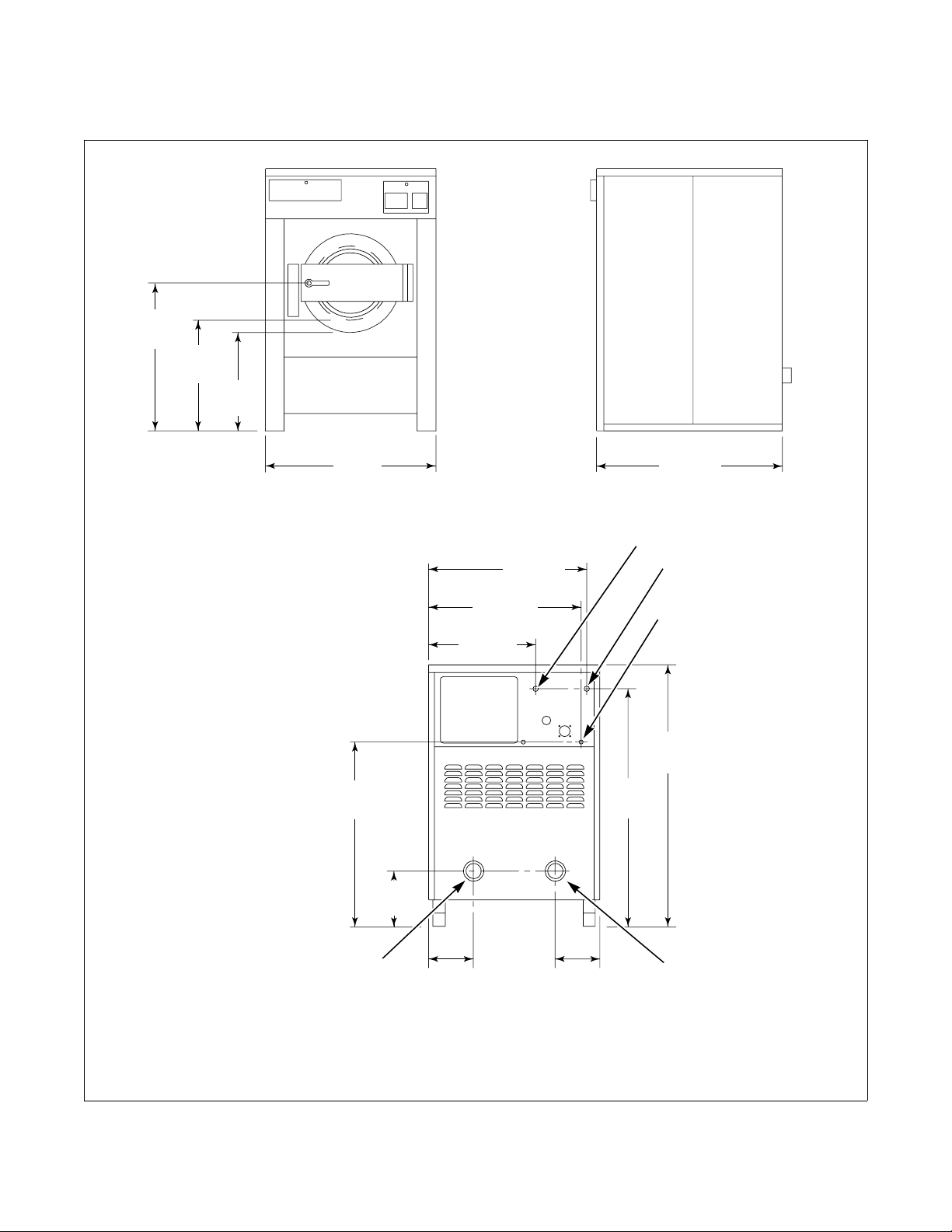

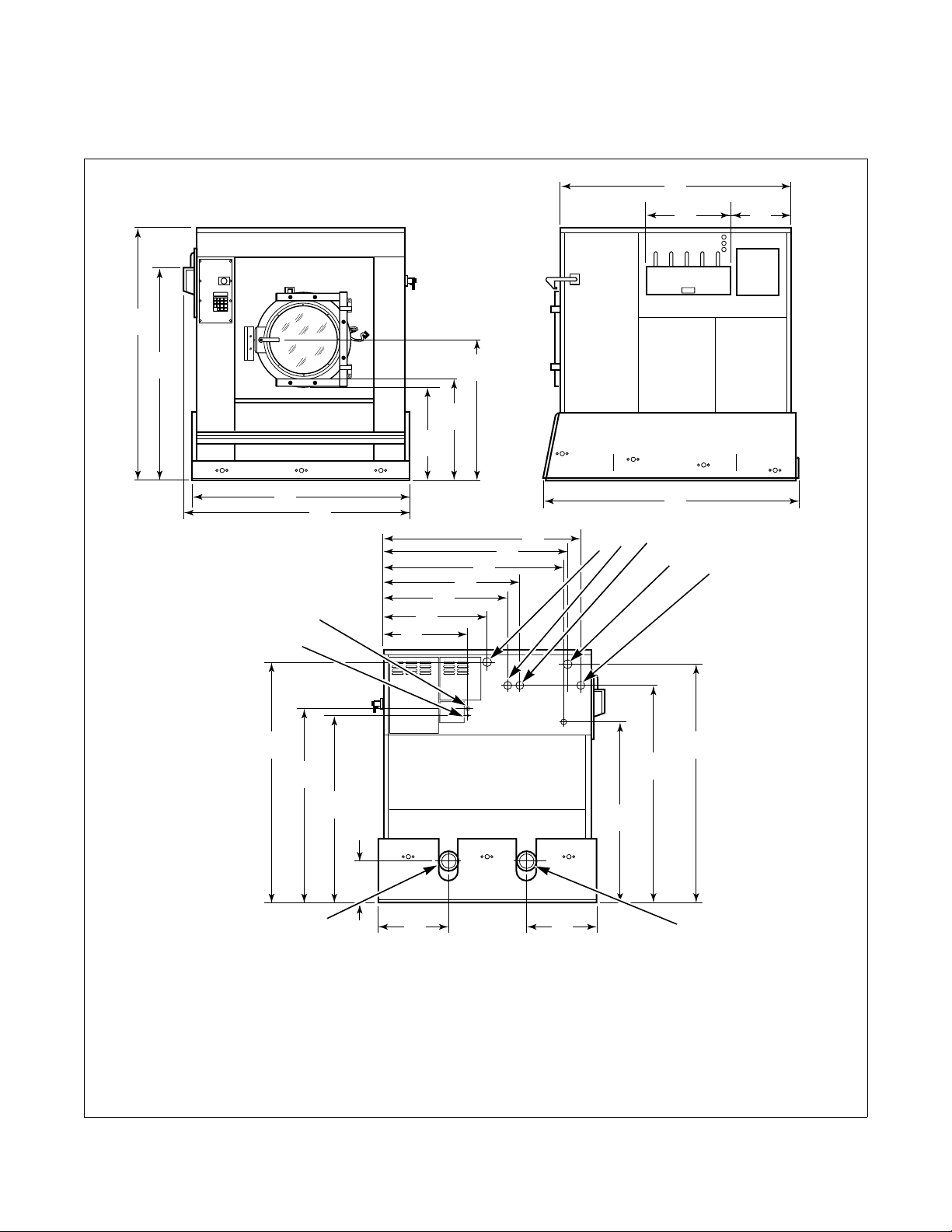

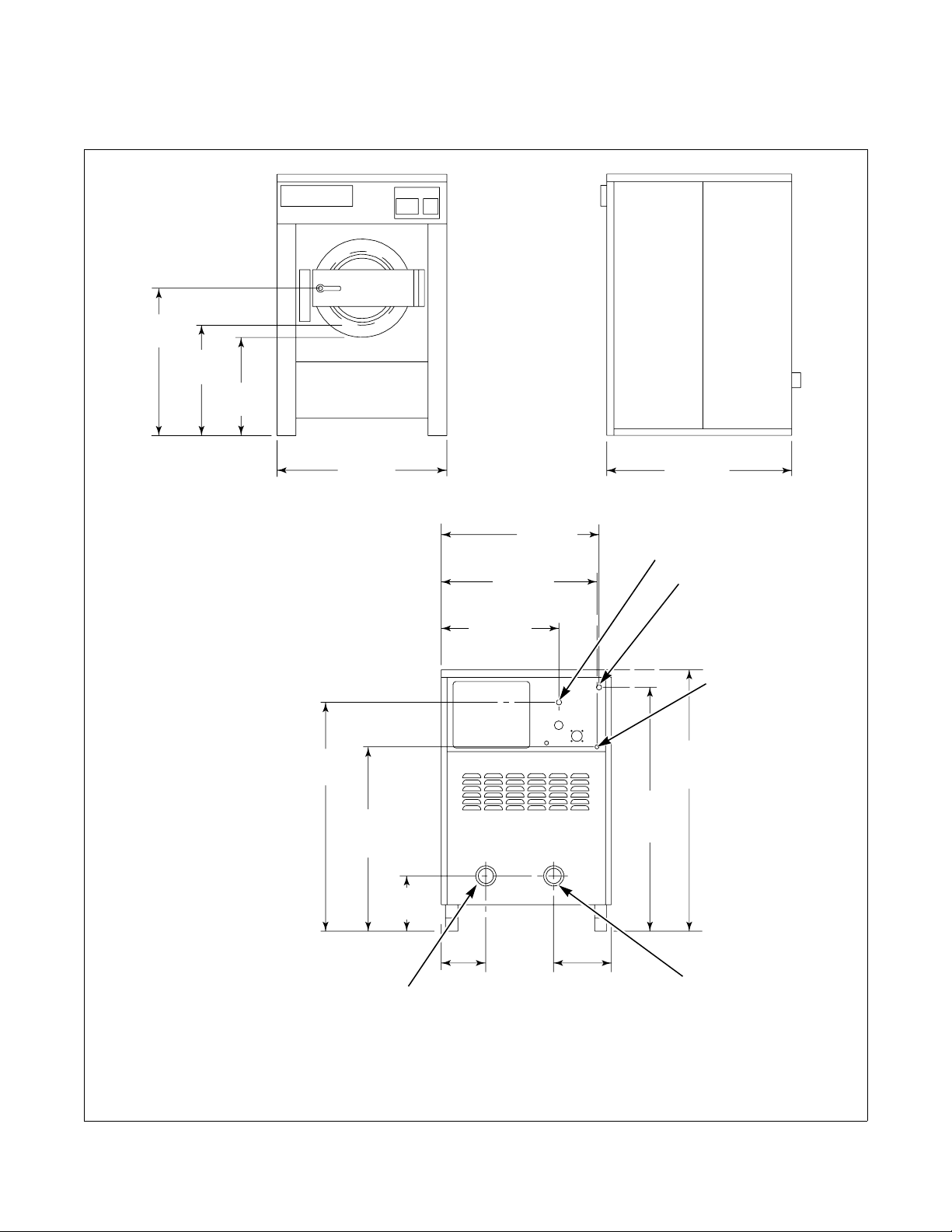

Dimensions ........................................................................................... 11
V-Computer ..................................................................................... 11
WE-6 Computer ............................................................................... 13
Operation............................................................................................. 21
V-Computer .......................................................................................... 21
WE-6 Computer.................................................................................... 23
Loading Using Tilt Option............................................................... 24
Unloading Using Tilt Option ........................................................... 24
Disposal of Unit ................................................................................... 25

F232148 (EN)
2© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
Safety Information
Precautionary statements (“DANGER,” “WARNING,”
and “CAUTION”), followed by specific instructions,
are found in this manual and on machine decals. These
precautions are intended for the personal safety of the
operator, user, servicer and those maintaining the
machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable; do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023
WARNING

Installation/Operation Supplement
3
F232148 (EN) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance instructions
or in published user-repair instructions that the
user understands and has the skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power source.
13. Use washer only for its intended purpose,
washing textiles.
14. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
15. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required.
16. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc. or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
17. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
18. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a qualified
service person.
19. Replace worn power cords and/or loose plugs.
20. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
21. Loading door MUST BE CLOSED anytime the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
22. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
23. Always follow the fabric care instructions
supplied by the textile manufacturer.
24. Never operate the washer with any guards and/or
panels removed.
25. DO NOT operate the washer with missing or
broken parts.
26. DO NOT bypass any safety devices.
27. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

F232148 (EN)
4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation/Operation Supplement
Installation
General Specifications
V-Computer
SF18VNV, SF25VNV, UF18VNV, and
UF25VNV Models
Refer to Table 1.
18 Pound 25 Pound
Overall Dimensions
Overall width, mm (in.) 737 (29.0) 813 (32.0)
Overall height, mm (in.) 1168 (46.0) 1232 (48.5)
Overall depth, mm (in.) 833 (32.8) 940 (37.0)
Weight and Shipping Information
Net weight, kg (lbs.) 250 (550) 318 (700)
Domestic shipping weight, kg (lbs.) 250 (550) 341 (750)
Domestic shipping volume, m3(ft3) 0.98 (34.6) N/A
Export shipping weight, kg (lbs.) 272 (600) 363 (800)
Export shipping volume, m3(ft3) 1.17 (41.44) N/A
Wash Cylinder Information
Cylinder diameter, mm (in.) 533 (21.0) 610 (24.0)
Cylinder depth, mm (in.) 349 (13.75) 406 (16.0)
Cylinder volume, l (ft3) 78 (2.76) 119 (4.19)
Perforation size, mm (in.) 4.77 (0.188) 4,77 (0.188)
Perforation open area, % 23 23
Load capacity (dry cloth weight), kg (lbs.) 8.16 (18) 11.34 (25)
Door Opening Information
Door opening size, mm (in.) 305 (12.0) 364 (14.345)
Height of door bottom above floor, mm (in.) 518 (20.4) 511 (20.1)
Water Consumption
Average water consumption
per cycle, l (gal.)
HOT 87 (23) 106 (28)
COLD 42 (11) 49 (13)
Table 1 (Continued)

Installation/Operation Supplement
5
F232148 (EN) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table 1 (Continued)
18 Pound 25 Pound
Power Consumption
Average power used per cycle, kWh 0.2 0.3
Nominal sound emission, dBA 58 Data not available
Average HVAC load, kcal/hr (Btu/hr) 101 (400) 113 (450)
Drive Train Information
Number of motors in drive train 1 1
Drive motor power, kW (HP) 0.75 (1.0) 1.50 (2.0)
Cylinder Speeds
Low wash/reverse speed, RPM 29 27
Normal wash/reverse speed, RPM 52 49
Distribution speed, RPM 86 73
Extract l, RPM 534 500
Extract 2, RPM 685 641
Extract 3, RPM 1080 1011
Centrifugal Force Data
Low wash/reverse centrifugal force, Gs 0.25 0.80
Normal wash/reverse centrifugal force, Gs 0.80 0.80
Distribution centrifugal force, Gs 2.20 1.80
Extract 1 centrifugal force, Gs 85 85
Extract 2 centrifugal force, Gs 140 140
Extract 3 centrifugal force, Gs 348 348
Load Balancing
Balance detection system AC drive AC drive
Direct Steam Heating (Optional)
Steam inlet connection size, mm (in.) DN15 (1/2 NPT) DN15 (1/2 NPT)
Number of steam inlets 1 1
Steam required to
raise bath temperature
10 °C, kg (10 °F, lb.)
LOW 0.81 (1.13) 1.05 (1.46)
MED 0.90 (1.25) 1.16 (1.61)
HIGH 1.04 (1.45) 1.33 (1.85)
Average steam use per cycle, kg (bhp) 11.7 (0.75) 15 (0.96)

Installation/Operation Supplement
F232148 (EN)
6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
WE-6 Computer
SF35PV, SF50PV, SF85PV, UF35PV,
UF50PV, and UF85PV Models
Refer to Table 2.
35 Pound 50 Pound 85 Pound
Overall Dimensions
Overall width, mm (in.) 889 (35) 990 (39) 1181 (46.5)
Overall height, mm (in.) 1407 (55.4) 1514 (59.6Z) 1781 (70.1)
Overall depth, mm (in.) 992 (39) 1049 (41.3) 1270 (50)
Weight and Shipping Information
Net weight, kg (lbs.) 550 (1212) 726 (1600) 1362 (3000)
Domestic shipping weight, kg (lbs.) 572 (1260) 749(1650) 1407 (3100)
Domestic shipping volume, m3(ft3) 1.80 (63.6) 2.26 (80) 3.46 (123)
Export shipping weight, kg (lbs.) 580 (1275) 1750 (795) 3200 (1453)
Export shipping volume, m3(ft3) 1.85 (65.3) 2.36 (83.5) 3.86 (137)
Wash Cylinder Information
Cylinder diameter, mm (in.) 668 (26.25) 762 (30) 914 (36)
Cylinder depth, mm (in.) 467 (18.375) 508 (20) 61 (240)
Cylinder volume, l (ft3) 164 (5.79) 232 (8.19) 400 (14.1)
Perforation size, mm (in.) 0.188 (4.77) 0.188 (4.77) 4.77 (0.188)
Perforation open area, % 23 23 23
Door Opening Information
Door opening size, mm (in.) 354 (13.9) 413 (16.25) 445 (17.5)
Height of door bottom above floor, mm (in.) 636 (25) 23 (585) 32.7 (831)
Water Consumption
Average water consumption per cycle, l (gal.) HOT 47 (178) 216 (57) 407 (108)
COLD 79 (21) 98 (26) 190 (50)
Average hot water consumed per hour, l (gal.) 276 (73) 322 (85) 579 (153)
Power Consumption
Average power used per cycle, kWh 0.4 0.6 0.9
Average HVAC load, kcal/hr (Btu/hr) 125 (500) 213 (850) 300 (1200)
Nominal sound emission, dBA 70 76 75
Background noise level, dBA 54 49 55
Drive Train Information
Number of motors in drive train 1 1 1
Drive motor power, kW (HP) 2.2 (3) 3.7 (5.0) 5.6 (7.5)
Table 2 (Continued)

Installation/Operation Supplement
7
F232148 (EN) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table 2 (Continued)
35 Pound 50 Pound 85 Pound
Cylinder Speeds
Gentle wash/reverse speed, RPM 26 26 26
Wash/reverse speed, RPM 43 40 41
Distribution/drain speed, RPM 77 73 65
Medium extract speed, RPM 325 305 280
High extract speed l, RPM 475 445 410
High extract speed 2, RPM 610 575 525
High extract speed 3, RPM 960 900 825
Centrifugal Force Data
Gentle wash/reverse centrifugal force, Gs 0.25 0.29 0.345
Wash/reverse centrifugal force, Gs 0.69 0.68 0.858
Distribution/drain centrifugal force, Gs 2.2 2.3 2.16
Medium extract centrifugal force, Gs 40 40 40
High extract 1 centrifugal force, Gs 85 84 85.8
High extract 2 centrifugal force, Gs 140 141 141
High extract 3 centrifugal force, Gs 345 345 348
Balance Detection
Vibration safety switch installed Standard Standard Standard
Direct Steam Heating (Optional)
Steam inlet connection size, mm (in.) DN15 DN15 (0.5) DN15 (0.5) DN15 (0.5)
Number of steam inlets 1 1 1
Steam required to raise bath temperature
10°C, kg (10°F, lb.)
LOW 2.22 (1.6) 2.91 (2.42) 3.8 (5.2)
MED 2.52 (1.81) 2.42 (3.46) 4.3 (5.9)
HIGH 2.84 (2.04) 2.73 (3.80) 4.9 (6.9)
Average steam use per cycle, kg (bhp) 1.47 (23) 1.95 (30.6) 54.9 (3.5)
Electric Heating (Optional)
Total electric heating capacity, kW 15.6 23.4 31.2
Number of electrical heat elements 6 9 12
Electrical heat element size, kW 2.6 2.6 2.6
Time required to raise bath temperature
10°C, min. (10°F, min.)
LOW 3.9 (2.6) 3.6 (2.4) 3.1 (4.8)
MED 4.5 (2.9) 4.2 (2.7) 3.5 (5.4)
HIGH 5.0 (3.3) 4.7 (3.1) 6.4 (4.1)

Installation/Operation Supplement
F232148 (EN)
8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
SF135PV, SF250PV, UF135PV, and
UF250PV Models
Refer to Table 3.
135 Pound 250 Pound
Standard Standard Forward Tilt
Option
Two-Way
Tilt Option
Overall Dimensions
Overall width, mm (in.) 1803 (71) 1957 (77) 2006 (79) 2006 (79)
Overall height, mm (in.) 1829 (75) 2083 (82) 2235 (88) 2235 (88)
Overall depth, mm (in.) 1537 (60.5) 2235 (88) 2243 (88.3) 2311 91()
Weight and Shipping Information
Net weight, kg (lbs.) 1818 (4000) 3661 (8070) 4000 (8800) 4355 (9600)
Domestic shipping weight, kg (lbs.) 1909 (4200) 3951 (8270) 4000 (8800) 4445 (9800)
Domestic shipping volume, m3(ft3) 6.35 (227) 11.5 (409) 11.5 (409) 11.5 (409)
Export shipping weight, kg (lbs.) 2045 (4500) 3860 (8500) 4227 (9300) 4581 (10,100)
Export shipping volume, m3(ft3) 6.39 (248) 11.5 (409) 11.5 (409) 11.5 (409)
Wash Cylinder Information
Cylinder diameter, mm (in.) 1092 (43) 1321 (52) 1321 (52) 1321 (52)
Cylinder depth, mm (in.) 635 (25) 813 (32) 813 (32) 813 (32)
Cylinder volume, l (ft3) 596 (21.0) 1114 (39.3) 1114 (39.3) 1114 (39.3)
Perforation size, mm (in.) 4.77 (0.188) 4.76 (0.188) 4.76 (0.188) 4.76 (0.188)
Perforation open area, % 23 20 20 20
Door Opening Information
Door opening size, mm (in.) 584 (23) 724 (28.5) 724 (28.5) 724 (28.5)
Height of door bottom above floor, mm (in.) 718 (28.25) 784 (30.9) 937 (36.9) 937 (36.9)
Water Consumption
Average water consumption per cycle, l (gal.) HOT 590 (156) 905 (239) 905 (239) 905 (239)
COLD 437 (116) 424 (112) 424 (112) 424 (112)
Average hot water consumed per hour, l (gal.) 1023 (270) 1355 (358) 1355 (358) 1355 (358)
Power Consumption
Average power used per cycle, kWh 0.9 1.5 (Est.) 1.5 (Est.) 1.5 (Est.)
Average HVAC load, kcal/hr (Btu/hr) 375 (1500) 550 (2200) 550 (2200) 550 (2200)
Nominal sound emission, dBA 75 75 N/A N/A
Drive Train Information
Number of motors in drive train 1 1 1 1
Drive motor power, kW (HP) 7.5 (10) 18.5 (25) 18.5 (25) 18.5 (25)
Table 3 (Continued)

Installation/Operation Supplement
9
F232148 (EN) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table 3 (Continued)
135 Pound 250 Pound
Standard Standard Forward Tilt
Option
Two-Way
Tilt Option
Cylinder Speeds
1/2 Wash/reverse speed, RPM 26 21 21 21
Wash/reverse speed, RPM 36 31 31 31
Distributionspeed,RPM 625454 54
Medium extract speed, RPM 170 140 140 140
High extract speed l, RPM 375 340 340 340
High extract speed 2, RPM 480 435 435 435
High extract speed 3, RPM 715 650 650 650
Centrifugal Force Data
1/2 Wash/reverse centrifugal force, Gs 0.412 0.325 0.325 0.325
Wash/reverse centrifugal force, Gs 0.790 0.708 0.708 0.708
Distribution centrifugal force, Gs 2.34 2.15 2.15 2.15
Medium extract centrifugal force, Gs 17.6 14.7 14.7 14.7
High extract 1 centrifugal force, Gs 85.8 86.9 86.9 86.9
High extract 2 centrifugal force, Gs 141 142 142 142
High extract 3 centrifugal force, Gs 312 318 318 318
Balance Detection
Vibration safety switch installed Standard Standard Standard Standard
Direct Steam Heating (Optional)
Steam inlet connection size, mm (in.) DN19 (0.75) DN25 (1.0) DN25 (1.0) DN25 (1.0)
Number of steam inlets 1 1 1 1
Steam required to raise bath temperature
10 °C, kg (10 °F, lb.)
LOW 3.11 (6.84) 5.23 (11.5) 5.23 (11.5) 5.23 (11.5)
HIGH 4.40 (9.67) 7.91 (17.4) 17.4 (7.91) 17.4 (7.91)
Average steam use per cycle, bhp 4.78 9.0 9.0 9.0
Electric Heating (Optional)
Total electric heating capacity, kW 45 N/A N/A N/A
Number of electrical heat elements 18 N/A N/A N/A
Electrical heat element size, kW 2.5 N/A N/A N/A
Time required to raise bath temperature
10°C, min. (10°F, min.)
LOW 5.0 (3.2) N/A N/A N/A
HIGH 6.4 (4.2) N/A N/A N/A

Installation/Operation Supplement
F232148 (EN)
10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Dimensional Clearances
NOTE: The dimensions shown here are for
planning purposes only. They are approximate and
subject to normal manufacturing tolerances. If
exact dimensions are required for construction
purposes, contact the distributor or manufacturer.
We reserve the right to make changes at any time
without notice.
V-Computer
SF18VNV, SF25VNV, UF18VNV, and
UF25VNV Models
Both single and multiple machine installations require
specified minimum clearances on all sides of each
machine. Tables below show these clearances.
WE-6 Computer
SF35-85PV, UF35-85PV, SF135-250PV, and
UF135-250PV Models
Recommended Minimum Clearances
18 Pound 25 Pound
Minimum rear clearance, mm (in.) 305 (12) 305 (12)
Minimum clearance between machine and wall, mm (in.) 50 (2) 50 (2)
Minimum clearance between machines (side), mm (in.) 25 (1) 25 (1)
Minimum front clearance, mm (in.) 406 (16) 445 (17.5)
Tabl e 4
Recommended Minimum Clearances
35
Pound
50
Pound
85
Pound
135
Pound 250 Pound
Standard Standard
Forward
Tilt
Option*
Two-Way
Tilt
Option*
Minimum rear clearance,
mm (in.)
450 (18) 450 (18) 450 (18) 610 (24) 610 (24) 914 (36) 914 (36)
Minimum clearance between
machine and wall, mm (in.)
150 (6) 150 (6) 150 (6) 457 (18) 457 (18) 457 (18) 457 (18)
Minimum clearance between
machines (side), mm (in.)
25.4 (1) 25.4 (1) 25.4 (1) 457 (18) 457 (18) 457 (18) 457 (18)
Minimum front clearance,
mm (in.)
533 (21) 584 (23) 584 (23) 584 (23) 914 (36) 914 (36) 914 (36)
* Machines equipped with the tilt option require a minimum overhead clearance as well. Refer to Figure 7 for the minimum
overhead clearance for the 250 pound capacity model with tilt option.
Table 5

Installation/Operation Supplement
11
F232148 (EN) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Dimensions
V-Computer
SF18VNV, UF18VNV, SF25VNV, and
UF25VNV Models
Figure 1
CFS425N
CFS452N
Front
Rear
Left Side
A
BC
D
E
FJ
K
I
H
L
M
N
O
S
R
Q
P
G

Installation/Operation Supplement
F232148 (EN)
12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
18 Pound 25 Pound
A659 mm (26 in.) 686 mm (27 in.)
B492 mm (19-13/32 in.) 508 mm (20 in.)
C440 mm (17-5/16 in.) 432 mm (17 in.)
D1161 mm (45-23/32 in.) 1232 mm (48-1/2 in.)
E686 mm (27 in.) 762 mm (30 in.)
F737 mm (29 in.) 813 mm (32 in.)
G18 mm (23/32 in.) 18 mm (23/32 in.)
H1143 mm (45 in.) 1214 mm (47-13/16 in.)
I25 mm (1 in.) 25 mm (1 in.)
J774 mm (30-1/2 in.) 876 mm (34-1/2 in.)
K709 mm (27-15/16 in.) 816 mm (32-1/8 in.)
L33 mm (1-5/16 in.) 38 mm (1-1/2 in.)
M530 mm (20-29/32 in.) 597 mm (23-1/2 in.)
N430 mm (16-29/32 in.) 495 mm (19-1/2 in.)
O1074 mm (42-5/16 in.) 1074 mm (42-5/16 in.)
P173 mm (6-13/16 in.) 211 mm (8-5/16 in.)
Q86 mm (3-13/32 in.) 86 mm (3-13/32 in.)
R1029 mm (40-1/2 in.) 1067 mm (42 in.)
S114 mm (4-1/2 in.) 4-13/16 in. (122 mm)

Installation/Operation Supplement
13
F232148 (EN) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
WE-6 Computer
SF35PV and UF35PV Models
Figure 2
B145I
1Cold Water 476 mm (3 in.) Reuse Drain Outlet
2Hot Water 576 mm (3 in.) Drain Outlet
3Steam Inlet
B145I
Front Side
Rear
1
2
3
4
5
814 mm
(32")
638 mm
(25 1/10")
559 mm
(22")
889 mm
(35")
992 mm
(39")
828 mm
(32 3/5")
813 mm
(32")
606 mm
(23 9/10")
1255 mm
(49 2/5")
1031 mm
(40 3/5")
300 mm
(11 4/5")
209 mm
(8 1/5")
279 mm
(11")
1323 mm
(52 1/10")
1408 mm
(55 2/5")

Installation/Operation Supplement
F232148 (EN)
14 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
SF50PV, UF50PV, SF85PV, and
UF85PV Models
Figure 3
B146I
1Cold Water 476 mm (3 in.) Reuse Drain Outlet
2Hot Water 576 mm (3 in.) Drain Outlet
3Steam Inlet
B146I
Front Side
Rear
A
B
C
D E
F
G
H
N
M
LK
J
I
1
2
3
4
5

Installation/Operation Supplement
15
F232148 (EN) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
50 Pound 85 Pound
A872 mm (34-3/10 in.) 1054 mm (41-1/2 in.)
B26-1/5 in. (666 mm) 831 mm (32-7/10 in.)
C582 mm (22-9/10 in.) 765 mm (30-1/10 in.)
D991 mm (39 in.) 1181 mm (46-1/2 in.)
E1049 mm (41-3/10 in.) 1270 mm (50 in.)
F930 mm (36-3/5 in.) 1107 mm (43-3/5 in.)
G889 mm (35 in.) 1083 mm (42-3/5 in.)
H619 mm (24-2/5 in.) 758 mm (29-9/10 in.)
I1513 mm (59-3/5 in.) 1781 mm (70-1/10 in.)
J1399 mm (55-1/10 in.) 1685 mm (66-2/5 in.)
K260 mm (10-1/5 in.) 254 mm (10 in.)
L260 mm (10-1/5 in.) 197 mm (7-3/4 in.)
M300 mm (11-4/5 in.) 281 mm (11-1/10 in.)
N1136 mm (44-7/10 in.) 1328 mm (52-3/8 in.)

Installation/Operation Supplement
F232148 (EN)
16 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
135 Pound Capacity Models
Figure 4
R012I
1Recirculation Port 6Steam Inlet
2Extra Fill Valve 7Drain Outlet
3Cold Water Inlet 8Reuse Drain Outlet
4Vent 9Main Power
5Hot Water Inlet 10 External Supply Signal
12345
6
7
8
9
10
1664 mm
(65 1/2")
1575 mm
(62")
1803 mm
(71")
718 mm
(28 1/4")
768 mm
(30 1/4")
1060 mm
(41 3/4")
1457 mm
(57 5/16")
1491 mm
(58 11/16")
992 mm
(39 3/32")
913 mm
(35 29/32")
952 mm
(37 1/2")
1376 mm
(54 3/16")
1549 mm
(61")
1905 mm
(75")
529 mm
(20 13/16")
1430 mm
(56 5/16")
1435 mm
(56 1/2")
1468 mm
(57 13/16")
584 mm
(23")
1803 mm
(71")
1715 mm
(67 1/2")
1829 mm
(72")
509 mm
(20 1/16")
521 mm
(20 1/2")
171 mm
(6 3/4")
Front Side
Rear

Installation/Operation Supplement
17
F232148 (EN) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
250 Pound Capacity Models
Figure 5
R070I
1Recirculation Port 6Steam Inlet
2Extra Fill Valve 7Drain Outlet
3Hot Water Inlet 8Reuse Drain Outlet
4Vent 9External Supply Signal
5Cold Water Inlet 10 Main Power
12345
6
7
8
9
10
2083 mm
(82")
1740 mm
(68 1/2")
1957 mm
(77 1/16")
1829 mm
(72")
292 mm
(11 1/2")
829 mm
(32 5/8")
1207 mm
(47 1/2")
784 mm
(30 7/8") 2037 mm
(80 3/16")
1034 mm
(40 11/16")
483 mm
(19")
483 mm
(19")
1744 mm
(68 11/16")
1639 mm
(64 1/2") 1615 mm
(63 5/8")
1198 mm
(47 3/16") 1096 mm
(43 3/16")
712 mm
(28")
1960 mm
(77 3/16")
1763 mm
(69 13/32")
1446 mm
(59 29/32")
721 mm
(28 3/8")
559 mm
(22")
1997 mm
(78 5/8")
1584 mm
(62 3/8")
1530 mm
(60 1/4")
572 mm
(22 1/2")
572 mm
(22 1/2")
218 mm
(8 5/8")
912 mm
(35 29/32")
Front Side
Rear

Installation/Operation Supplement
F232148 (EN)
18 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
250 Pound Capacity Models
with Forward Tilt or Two-Way Tilt Option
Figure 6
R074IE3A
1Recirculation Port 6Drain Outlet
2Extra Fill Valve 7Reuse Drain Outlet
3Hot Water Inlet 8External Supply Signal
4Vent 9Main Power
5Cold Water Inlet
CFS456N
Front
Rear
Side
A
B
C
D
E
F
G
H
I J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
AA
123
45
6
7
8
9
