Alliance Laundry Systems HCT020QC User manual

Programming
Washer-Extractor
Models Through April 2019
Refer to Page 8 for Model Numbers
CHM1794C_SVG
RinseWash Spin Door
Hot Warm Cold
>
Heavy
Hot
Quick
Hot
Delicate
Warm Delicate Cold START
>
>
Quick
Warm
Original Instructions
Keep These Instructions for Future Reference.
CAUTION: Read the instructions before using the machine.
(If this machine changes ownership, this manual must accompany machine.)
www.alliancelaundry.com Part No. F8640601ENR2
May 2019

WARNING
Machine installations must comply with minimum
specifications and requirements stated in the appli-
cable Installation Manual, any applicable municipal
building codes, water supply requirements, electrical
wiring regulations and any other relevant statutory
regulations. Due to varied requirements and applica-
ble local codes, this machine must be installed, ad-
justed, and serviced by qualified maintenance per-
sonnel familiar with applicable local codes and the
construction and operation of this type of machinery.
They must also be familiar with the potential hazards
involved. Failure to observe this warning may result
in personal injury, property damage, and/or equip-
ment damage, and will void the warranty.
W820
NOTE: The WARNINGS and IMPORTANT SAFETY IN-
STRUCTIONS appearing in this manual are not meant
to cover all possible conditions and situations that may
occur. Common sense, caution, and care must be exer-
cised when installing, maintaining, or operating the
machine.
Any problems or conditions not understood should be reported to
the dealer, distributor, service agent or the manufacturer.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
3 Part No. F8640601ENR2

Table of Contents
Introduction........................................................................................... 8
Model Identification........................................................................................8
Serial Plate Location....................................................................................... 8
Replacement Parts ......................................................................................... 9
Customer Service............................................................................................9
Preliminary Information.......................................................................10
About the Control......................................................................................... 10
Glossary of Terms.........................................................................................10
Communications...........................................................................................10
Infra-red Communications..........................................................................10
Control Identification............................................................................11
Select Cycle Keypads.................................................................................... 11
Display Identification............................................................................13
Light Emitting Diodes (LEDs)....................................................................... 13
Six 7-Segment Digits.................................................................................... 13
Heating/Cool Down Display Sequence (Heat Models)......................................13
Special Features....................................................................................14
Programming the Control.............................................................................. 14
Collecting Audit Information......................................................................... 14
Testing the Machine Using Diagnostic Functions............................................. 14
Rapid Advance Feature................................................................................. 14
Clearing the Vend Feature .............................................................................14
How to Clear Vend.................................................................................... 14
Coin Drop.................................................................................................... 14
Start Pulse Operation.....................................................................................14
Top Cover and Coin Vault Openings............................................................... 14
Temperature Display..................................................................................... 14
Suds Removal Routine.................................................................................. 14
Power Fail Recovery..................................................................................... 15
Machine Operation...............................................................................16
Power Up.....................................................................................................16
System Check Mode..................................................................................... 16
Ready Mode.................................................................................................16
Partial Vend Mode........................................................................................ 16
© Copyright 2019, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
4 Part No. F8640601ENR2

Additional Vend Mode.................................................................................. 16
Start Mode................................................................................................... 16
Door Locking Mode......................................................................................16
Door Unlocking Mode...................................................................................17
End of Cycle Mode....................................................................................... 17
Run Mode.................................................................................................... 17
Signals.........................................................................................................17
Changing Cycles...........................................................................................17
Pause Mode..................................................................................................17
Closing Washer Door.................................................................................... 18
Overflow Mode............................................................................................ 18
OPL Mode................................................................................................... 18
Out of Order Mode........................................................................................18
Error Display Mode...................................................................................... 18
Communications Mode..................................................................................18

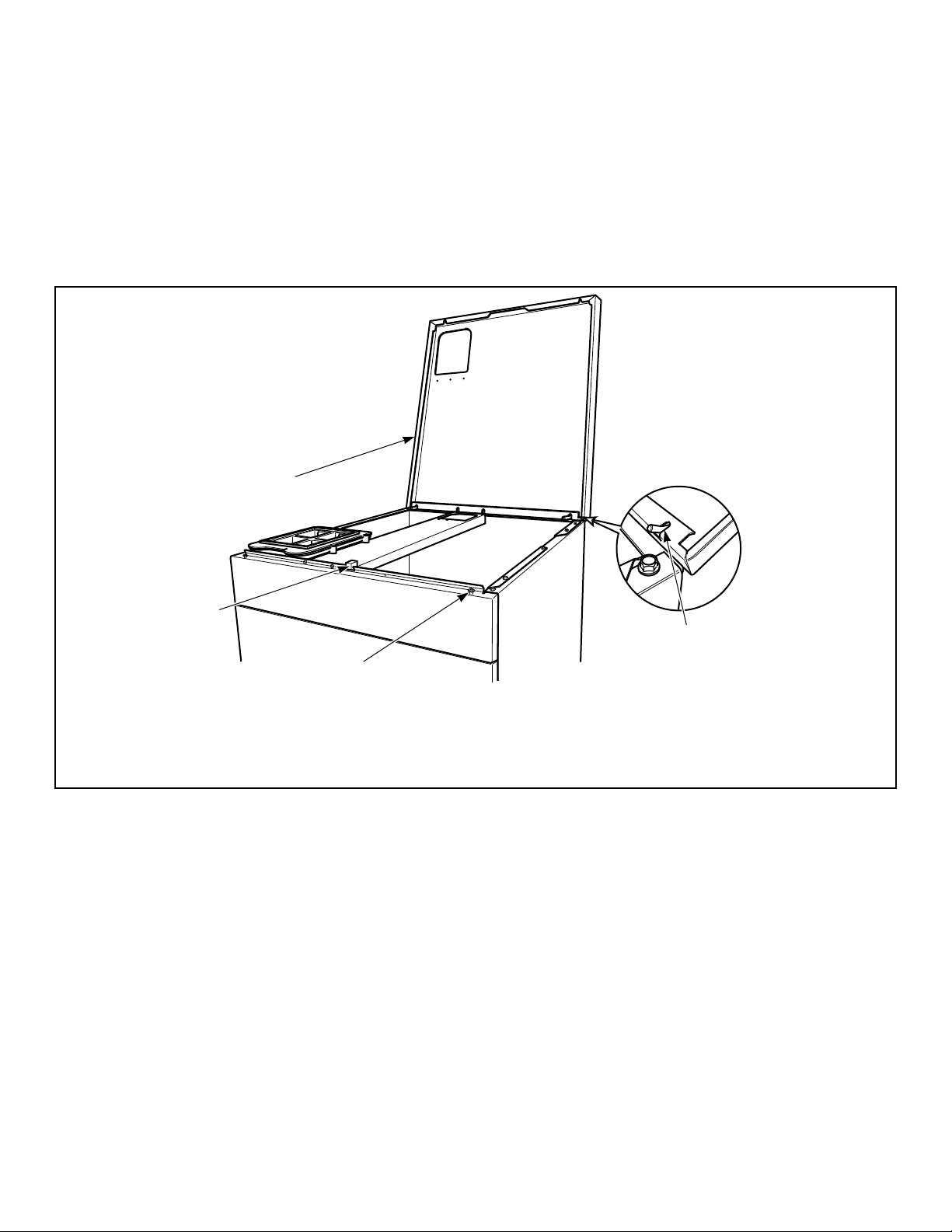

Opening the Top Cover......................................................................... 19
Entering the Manual Mode................................................................... 20
How to Enter Manual Programming Mode...................................................... 20
How to Exit Manual Mode.............................................................................20
Manual Mode Navigation.............................................................................. 20
Programming Control...........................................................................22
What Can Be Programmed?........................................................................... 22
Programmable Options Available................................................................... 22
Manual Programming Navigation...................................................................27
Vend Price AtS ............................................................................................ 33
Vend Price Decimal Point Ats dP....................................................................33
Coin #1 Value dEn 1..................................................................................... 33
Coin #2 Value dEn 2..................................................................................... 33
Start Pulse Value PLSE..................................................................................34
Start Pulse Mode PLSNod............................................................................. 34
Programmable Output Type AtyPE.................................................................34
Default Cycle dFtCyC .................................................................................. 35
Audio Signal AUdio......................................................................................37
How to Read Audio Signal Chart................................................................ 37
Error Programming Error-..............................................................................38
How to Read the Days Enable Value Table...................................................... 41
Temperature Fahrenheit/Celsius tP F C .......................................................... 46
Hot Water Temperature (Heat Models) FL Hot ................................................47
Warm Water Temperature (Heat Models) FL HC .............................................47
Cold Water Temperature (Heat Models) FL CLd .............................................48
Cool Down Water Temperature (Heat Models) CooLdn ...................................48
Flush Out Time for Fill Steps (Models with Pump Drain) FLSH t......................48
Tub Fill Delay (If Equipped) tUbFLd..............................................................49
No Refill After Time norF t............................................................................49
Real-Time Clock Menu rtC-...........................................................................49
Daylight Savings Option Menu dLS-.............................................................. 49
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
5 Part No. F8640601ENR2

How to Enter Cycle Programming CyCLE-..................................................... 50
Cycle Programming CyCLE-......................................................................51
Hold Step Custom Messages Menu CNESS-................................................... 63
Programmable Cycle Time Display Enable PCyCtd......................................... 64
No Cycle Time Display nCyCtd .................................................................... 64
Number of Balance Attempts bAL At............................................................. 65
Cycle Pause Resume CyCPAU....................................................................... 65
IR Access Enable irA En............................................................................... 66
Manual Rapid Advance Enable rAPdEn..........................................................66
Manual Diagnostics Enable diAgEn................................................................67
Factory Test Enable Ft En..............................................................................67
Machine Configuration Parameters Menu MCP- ............................................. 68
Heating Indicator Decimal Point Enable (Heat Models) Ht dP...........................68
Temperature Display Enable (Heat Models) tP diS...........................................69
Speed Units SUnitS.......................................................................................69
Vend Price Display Override AtS do............................................................... 70
OPL Parameters oPL-....................................................................................70
OPL Mode Enable oPL 1........................................................................... 70
OPL Delayed Start oPL 2...........................................................................71
OPL Display Power Save oPL 3................................................................. 71
Out of Order oUt...........................................................................................72
Collecting Audit Information................................................................ 73
Entering the Audit Feature by Manual Mode................................................... 73
Entering the Audit Feature with the Coin Vault Open....................................... 73
How to Read Audit Data................................................................................73
How to Exit Audit Feature............................................................................. 73
Manual Reset........................................................................................74
How to Enter Manual Reset........................................................................... 74
Machine Diagnostic Functions.............................................................. 75
How to Enter Diagnostic Testing Feature........................................................ 75
How to Start Tests.........................................................................................75
How to Exit Diagnostic Testing Feature.......................................................... 75
Diagnostic (Testing) Mode – Quick Reference Chart........................................ 75
Diagnostics.................................................................................................. 77
Diagnostic Test Descriptions..........................................................................79
Control Software Version # Test d 1............................................................ 79
Input/Output Board Software Version Test d 2 .............................................79
Drive Board Software Version Test d 3 ....................................................... 79
Drive Parameter Version Test d 4................................................................ 79
Service Door Opening Test d 8................................................................... 79
Coin Vault Opening Test d 9.......................................................................79
Coin Drop #1 Input Test d 10......................................................................79
Coin Drop #2 Input Test d 11......................................................................79
Vend Header Present Status Test d 12.......................................................... 80
Start Pulse Test d 13.................................................................................. 80
Door Switch Input Test d 15....................................................................... 80
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
6 Part No. F8640601ENR2

Door Lock Input Test d 16..........................................................................80
Show Fill Time Test d 17........................................................................... 80
Show Drain Time Test d 18........................................................................ 80
Temperature Sensor Display Test (Heat Models) d 19 .................................. 80
12.5 VDC Voltage Test d 20....................................................................... 80
24 VDC Voltage Test d 21.......................................................................... 80
Frame Balance Switch Input Test d 22.........................................................80
External Output Test d 23...........................................................................81
Water Purge Test d 24................................................................................ 81
Water Leak Detection Test d 25.................................................................. 81
Water Level Test d 26................................................................................ 81
DC Bus Voltage Test d 27...........................................................................82
AC Mains Voltage Test d 28....................................................................... 82
Machine Configuration #1 Display Test d 29................................................82
Machine Configuration #2 Display Test d 30 ...............................................85
Machine Configuration #3 Display Test d 31 ...............................................86
Machine Configuration #4 Display Test d 32 ...............................................96
Machine Configuration #5 Display Test d 33..............................................107
Low Level Pressure Switch Test (Heat Models) d 43...................................107
Factory Test Cycle................................................................................... 107
Error Codes........................................................................................ 112
Manual Rapid Advance.......................................................................122
How to Enter Rapid Advance....................................................................... 122
How to Exit Rapid Advance Feature............................................................. 122
Default Cycles.....................................................................................123
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
7 Part No. F8640601ENR2

Introduction
Model Identification
Information in this manual is applicable to these models:
Models
20 Pound [9 Kg] HCT020QC
HCT020QD
HCT020QE
HCT020QF
HCT020QH
HCT020QL
HCT020QQ
HCT020QT
HCT020QV
HCT020QX HCT020QY
30 Pound [13.6 Kg] HCT030QC
HCT030QD
HCT030QE
HCT030QF
HCT030QH
HCT030QL
HCT030QQ
HCT030QT
HCT030QV
HCT030QX HCT030QY
40 Pound [18.1 Kg] HCT040QC
HCT040QD
HCT040QE
HCT040QF
HCT040QH
HCT040QL
HCT040QQ
HCT040QT
HCT040QV
HCT040QX HCT040QY
60 Pound [27.2 Kg] HCT060QC
HCT060QD
HCT060QE
HCT060QF
HCT060QH
HCT060QL
HCT060QQ
HCT060QT
HCT060QV
HCT060QX HCT060QY
80 Pound [36.3 Kg] HCT080QC
HCT080QD
HCT080QE
HCT080QF
HCT080QH
HCT080QL
HCT080QQ
HCT080QT
HCT080QV
HCT080QX HCT080QY
100 Pound [45.4
Kg]
HCT100QC
HCT100QD
HCT100QE
HCT100QF
HCT100QH
HCT100QL
HCT100QQ
HCT100QT
HCT100QV
HCT100QX HCT100QY
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
8 Part No. F8640601ENR2

Serial Plate Location
The serial plate is located on the rear panel and inside the door of
the machine.
Always provide the machine’s serial number and model number
when ordering parts or when seeking technical assistance. Refer
to Figure 1 .
Model Example of Serial Plate Location
1. Serial Plate on Panel
2. Serial Plate on Door Frame
Figure 1
Replacement Parts
If literature or replacement parts are required, contact the source
from which the machine was purchased or contact Alliance Laun-
dry Systems at [phone] for the name and address of
the nearest authorized parts distributor.
Customer Service
For technical assistance, contact your local distributor or contact:
Alliance Laundry Systems
Shepard Street
P.O. Box 990
Ripon, WI 54971-0990
U.S.A.
www.alliancelaundry.com
Phone: [phone] Ripon, Wisconsin
Introduction
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
9 Part No. F8640601ENR2

Preliminary Information
About the Control
This control is an advanced, programmable computer that allows
the owner to control most machine features by pressing a se-
quence of keypads. Refer to page 12.
The control allows the owner to program custom cycles, set vend
prices, retrieve audit information, run diagnostic tests and other
programmable features. Refer to Programming Control for a list
of features. Machines shipped from the factory have a default cy-
cle built in, however, the owner can change the default cycle, or
any cycle, as needs permit.
The default cycle is Cold.
IMPORTANT: In the event of a power failure, the control
will not have to be reprogrammed. It is designed with a
memory system that will remember how it was pro-
grammed until the electrical power is restored.
IMPORTANT: It is extremely important that the machine
has a good ground connection and that all mechanical
and electrical connections to the control are made be-
fore applying power to or operating the machine.
Glossary of Terms
The following are a few terms and abbreviations to learn. These
are referred to throughout the instructions.
Display – This term refers to the window area of the control that
displays words and values.
LED (Light Emitting Diode) – This term refers to the lights next
to the keypads and status words of the control.
IrDA – Infra-red External Device
FEC – Front End Control
I/O Board – Input/Output Board
OPL – On Premises Laundry
Communications
The control may be programmed manually or by infra-red com-
munication with an external device. A limited number of features
can be programmed by a card reader.
Infra-red Communications
If enabled (refer to IR Access Enable irA En) an external device,
such as a PDA, allows the owner to program and retrieve infor-
mation from the control as well as start and stop various diagnos-
tic tests without using the keypad. An external device greatly ex-
pands the programming options available to the owner.
An external device is not required to program and operate the
machine. The operation of an external device and the advanced
features available are covered separately in the instructions in-
cluded with the external device software. Contact Alliance Laun-
dry Systems for a list of approved PDAs and other external devi-
ces.
How to Begin Communications with an External
Device
The control will switch the display to show -C- until the com-
munication is complete. If an error occurs that terminates com-
munication, the display will show EIXX (XX represents the error
code).
NOTE: The Infra-red Communications option must be
turned on.
Preliminary Information
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
10 Part No. F8640601ENR2

Control Identification
Select Cycle Keypads
(Refer to Figure 2 )
Select Cycle keypads are used to select the specific machine cy-
cle. These keypads include Hot, Warm, Cold, Heavy/Hot, Deli-
cate/Warm, Delicate/Cold, Quick/Hot and Quick/Warm and allow
the user to select a cycle other than the default cycle ( Cold). The
Select Cycle keypads are not active after the first Fill Step of the
cycle. The selected cycle is indicated by the light (LED) on the
keypad. Pressing the flashing START (enter) keypad will confirm
the selection and the cycle will begin. When the card reader is
used, pressing the START (enter) keypad will start the cycle and
deduct the vend price from the card.
Control Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
11 Part No. F8640601ENR2

CHM1794C_SVG2
3
7
4
1
6
8
9
10
11
5
12
13
14
17
16
15
18
2
RinseWash Spin Door
Hot Warm Cold
>
Heavy
Hot
Quick
Hot
Delicate
Warm Delicate Cold START
>
>
Quick
Warm
1. LED Status Lights
2. Select Cycle keypads
3. Heavy/Hot
4. Hot
5. Wash
6. LED Light
7. Six 7-Segment Digits
8. Display
9. Door
10. Spin
11. Rinse
12. Cold
13. START (enter)
14. Quick/Warm
15. Delicate/Cold
16. Delicate/Warm
17. Warm
18. Quick/Hot
Figure 2
Control Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
12 Part No. F8640601ENR2

Display Identification
Light Emitting Diodes (LEDs)
Light Emitting Diodes (LEDs) are used to indicate the chosen cy-
cle, cycle status, and door lock information. See below for infor-
mation on each LED.
CYCLE LED
Cycle LED will remain lit the entire cycle.
WASH LED
Wash LED is lit at the beginning of a wash portion of the cycle
and will remain lit until the wash is complete.
RINSE LED
Rinse LED is lit at the beginning of a rinse portion of the cycle
and will remain lit until the rinse is complete.
SPIN LED
Spin LED is lit during the final spin portion of the cycle.
DOOR LED
Door LED is lit whenever the door is locked. The door can’t be
opened when this LED is lit.
Six 7-Segment Digits
The 7-Segment Digits are used to display the time remaining in a
cycle, vend price, error messages and descriptive codes. During
diagnostic testing or manual programming of the control, these
digits will display descriptive codes and values (as described in
Entering the Manual Mode).
Heating/Cool Down Display Sequence
(Heat Models)
For models with heat, a series of dashes appear on the display to
indicate either heating or cool down during a wash cycle step.
When the machine is heating during an agitate step (refer to Pro-
gramming the Agitate Step Type) or a soak step (refer to Pro-
gramming the Soak Step Type), the cycle time pauses and the dis-
play shows dashes appearing from left to right. The ascending
dash sequence repeats until the water has reached the program-
med temperature. This display only shows durring the initial
heating process.
When the machine is in a cool down step (refer to Programming
the Cool Down Step Type), the cycle time pauses and the display
shows dashes disappearing from left to right. The descending
dash sequence repeats until the water has reached the program-
med temperature.
Display Identification
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
13 Part No. F8640601ENR2

Special Features
Programming the Control
The control allows the owner to program the control with the use
of the keypad. Cycle and vend options may be programmed, audit
information may be viewed and diagnostic tests may be run by
pressing combinations of keypads.
For details on programming select cycle and vend options, refer
to Programming Control.
Collecting Audit Information
The control will store audit information in its memory that can be
retrieved by pressing various combinations of Select Cycle Key-
pads. The control will record coins entered, total machine cycles,
total start pulses and total rapid advance cycles.
For more information on the audit features, refer to Collecting
Audit Information.
NOTE: Additional audit information is retrievable with
an external device using Infra-red Communications, or
Card Reader Communications (Card Models). Refer to the
appropriate instruction manual.
Testing the Machine Using Diagnostic
Functions
Special diagnostic features built into the control allow the owner
to run specific diagnostic tests. By opening and closing the serv-
ice door and then pressing various sequences of Select Cycle Key-
pads or by external device (refer to Communications), the owner
may perform diagnostic tests.
For detailed information on running diagnostic tests, refer to Ma-
chine Diagnostic Functions.
Rapid Advance Feature
If enabled (refer to Manual Rapid Advance Enable rAPdEn), this
feature allows the owner to manually advance through active cy-
cles or advance into a cycle from the Ready Mode without enter-
ing vend. This feature is useful when tests must be performed im-
mediately on a machine currently in an active cycle. In this case,
the owner can manually advance through the cycles to Ready
Mode. At this point, the owner can perform the required tests and
then return the machine to the point it was interrupted.
For detailed information on using the Rapid Advance feature, re-
fer to Rapid Advance Feature.
Clearing the Vend Feature
This feature allows the owner to return the control back to the
Ready Mode if the full vend price has not yet been satisfied,
while in Partial Vend Mode.
How to Clear Vend
1. Open the top cover. Refer to Opening the Top Cover.
2. While pressing and holding the Heavy/Hot keypad with one
hand, press the Warm keypad with the other hand. The control
will reset to the Ready Mode and clear out the current vend
that has been entered.
Coin Drop
The control will accept pulses from a single or dual coin drop to
satisfy vend price. Each coin drop will have the ability to satisfy
the vend.
Start Pulse Operation
The control will accept pulses from optional payment systems.
The machine can be programmed to receive a single start pulse or
multiple start pulses, or the Start Pulse Option can be turned off.
The Start Pulse Mode allows the machine to go from the Ready
Mode to the Start Mode after a single or multiple pulses are re-
ceived.
Top Cover and Coin Vault Openings
The control will capture the times and dates of the openings of
the Coin Vault and the Top Cover. The information is saved in
memory. An open top cover combined with various keypad
presses allows the control to enter manual modes of operation if
the Break-In Alarm is not on. These modes include Manual Pro-
gramming, Audit Collection and Diagnostics.
Temperature Display
This feature allows the owner to view the water temperature on
the display of a machine by pressing any cycle keypad during an
agitate or soak step of the cycle.
The temperature display is turned off by default. The feature can
be turned on by programming the control with an external device
(refer to Communications) or manually.
For details on programming the Temperature Display, refer to
Temperature Display Enable (Heat Models) tP diS.
Special Features
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
14 Part No. F8640601ENR2

Suds Removal Routine
If enabled (refer to Error Programming Error-), while in an ex-
tract step, the control may go into a special routine designed to
help eliminate suds if excessive suds are detected.
During this routine, suds removal rotation sequence is repeated
twice. If the Suds Removal Routine Extra Time parameter is en-
abled, the cycle time is paused while in a Suds Removal Routine.
If the Suds Removal Routine Extra Time parameter is disabled,
the cycle time will continue to count down while in a Suds Re-
moval Routine.
Power Fail Recovery
If a cycle is in process and the power fails, the cycle status is
saved in memory. When the power recovers, the machine will re-
sume into the previously active cycle, by pressing the START
(enter) keypad. If the power failure occurs while the control is in
a fatal error mode, it will return to Ready Mode upon recovery.
If the power failure lasted less than 5 seconds and the door is
locked, the cycle will resume without requiring the user to press
the START (enter) keypad to restart.
If the power failure lasted longer than 5 seconds, the door is un-
locked and the START (enter) keypad will flash until it is pressed
and the cycle will restart from the point it left off.
If the power failure occurs while the control is in a fatal error
mode, it will return to Ready Mode upon recovery.
Special Features
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
15 Part No. F8640601ENR2

Machine Operation
Power Up
When power is applied to the machine, the control becomes ac-
tive and will display its software version as SXXX (XXX is the
version number) for one (1) second.
System Check Mode
This mode is entered after Power Up unless the next mode to be
entered after System Check Mode is Run Mode . The next mode
is determined in Power Up . The purpose of this mode is for the
FEC to verify that the correct I/O Board is connected. Once all
required conditions are confirmed, the control will automatically
exit System Check Mode and proceed to the next mode. In addi-
tion to checking the I/O Board System Check Mode, the control
will initialize a drive power up check if the door is closed. After
System Check Mode is exited, the control may lock the door and
power up the drive to verify that the correct drive is installed. If
the door is opened at any time, the drive power up check is can-
celed until the next time the door is locked. The display will
show the software version number similar to Power Up .
Ready Mode
In this mode of operation the control indicates the current select-
ed cycle by lighting the LEDs. The full current vend price for the
cycle appears in the display.
The user will be able to select a different cycle by pressing a cy-
cle keypad when the machine is in Ready Mode.
Partial Vend Mode
The control enters this mode when part of the vend price has been
entered, but not enough vend is entered to satisfy the vend price.
The remaining vend price needed to start the cycle appears in the
display.
The user will be able to select a different cycle by pressing a cy-
cle keypad when the machine is in Partial Vend Mode.
Additional Vend Mode
The control enters this mode if a higher priced cycle or a cycle
modifier is selected while the machine is in Start Mode or Run
Mode, but before the first Fill Step has completed. If the vend
price is not satisfied within one (1) minute, the control will go
back to the first selection and the cycle will continue if it was
paused. After the first Fill Step, all key presses will be ignored al-
lowing the machine to go through the complete cycle.
The control enters this mode if a higher priced cycle is selected
while the machine is in Start Mode or Run Mode, but before the
first Fill Step has completed. If the vend price is not satisfied
within one (1) minute, the control will go back to the first selec-
tion and the cycle will continue if it was paused. After the first
Fill Step, all key presses will be ignored allowing the machine to
go through the complete cycle.
Start Mode
The control enters this mode when the full vend price is satisfied,
the vend price is zero (0) or the control is in OPL Mode. START
(enter) keypad LED will flash one (1) second on and one (1) sec-
ond off. If Start Mode is entered because the vend price is satis-
fied or the control is in OPL Mode, the display will show PUSH
for one (1) second, Strt for one (1) second and the current cycle
time for one (1) second. If Start Mode is entered because the
vend price is zero (0), the display will show FrEE. When first
entering Start Mode, a signal will sound for one (1) second on
and one (1) second off for 10 seconds if Signal for Start is ena-
bled.
After pressing the START (enter) keypad if the door is closed,
Door Locking Mode will be entered and the cycle will begin.
If the door is not closed when the vend price is satisfied, CLoSE
and door will be displayed until the door is closed. Once door is
closed, the START (enter) keypad must be pressed to lock door
and start the cycle.
Machine Operation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
16 Part No. F8640601ENR2

Door Locking Mode
The control enters this mode after the START (enter) keypad is
pressed in Start Mode or Pause Mode to start or resume a ma-
chine cycle. The control will stay in Door Locking Mode until the
loading door is closed and locked. The display shows a single
moving LED and the Door Lock LED flashes one (1) second on/
off.
Once the door is locked, the control will exit Door Locking Mode
and will enter Run Mode. If the door is opened prior to being
locked, the control will return to Start Mode.
An error will be displayed if the door fails to lock after the third
attempt. The machine will attempt to lock for one (1) additional
minute. If the door fails to lock, the control will return to Start
Mode.
If the door locks, the door lock error will clear and the cycle will
continue normally. The door can be opened to clear the door lock
error as well.
Door Unlocking Mode
This mode is entered when there is no time left in the cycle or
when pausing the cycle while in Run Mode. The door will unlock
after the basket stops spinning. The display will continue to flash
the remaining cycle time every second or if the next mode is End
of Cycle Mode, it will flash 01 every second. If the next mode is
Pause Mode, the display will flash PAUSE every second. If the
drive board determines that the water temperature is too hot to
drain or unlock the door, the display will flash Hot in addition to
the other displays.
Door Unlocking Mode will proceed once the water temperature
drops below 120° F [49° C] .
The machine will always drain water down to an empty level be-
fore attempting to unlock the door. If after draining, the water
level is still not low enough, the control will enter Machine Error
Mode with a drain error, if enabled. Otherwise the control will
continue to drain until it sees the machine empty.
The START (enter) keypad can be pressed while in this mode as
long as Machine Error Mode or End of Cycle Mode is not the
next mode. If the START (enter) keypad is pressed and the next
mode is Pause Mode or Start Mode, the next mode entered will
be Door Locking Mode. Otherwise the press is invalid. All other
keys are invalid while in this mode. Once Door Unlocking Mode
is exited, the control will enter the next mode.
End of Cycle Mode
When a cycle is complete, the control will display OPEN for one
(1) second and DOOR for one (1) second until the washer is
opened, a keypad is pressed, or a coin/card is entered. When one
(1) of these options occur, the display will revert back to the
Ready Mode.
Run Mode
The control enters this mode when a cycle is running. The time
remaining appears in the display, the status LEDs are lit and the
loading door is locked.
Upon the start of a cycle, the display shows a single moving LED
until the machine is ready to rotate the basket. Once the machine
is ready to rotate the basket, the display showes the total cycle
time. The appropriate LEDs will light while the machine passes
through different cycle steps.
Signals
The options for when a signal can be used during the machine op-
eration are listed below:
1. End of Cycle Signal - By default, this signal is turned off. If
turned on, the signal sounds for three (3) seconds at the end of
a cycle.
2. Signal On Keypad Depression - By default, this signal is
turned on and sounds for a quarter of a second each time a
keypad is pressed.
3. Signal On Coin Input/Card Insertion - By default, this sig-
nal is turned on and will sound for a quarter of a second each
time a coin or card is entered.
4. Signal for Card Removal (Card Models Only) - By default,
this signal is turned on and will sound one (1) second on and
one (1) second off when the control is prompting for card re-
moval.
5. Signal for Start - By default, this signal is turned on and will
sound one (1) second on and one (1) second off for 10 sec-
onds after vend price has been satisfied.
NOTE: Refer to Programming Control to program signal
options.
Changing Cycles
Selecting a higher priced cycle will pause the first Fill Step, and
the Vend Price will flash one (1) second on and one (1) second
off until the vend price has been satisfied. After the vend price
has been satisfied, the cycle will continue with the new selec-
tions. If the vend price is not satisfied within one (1) minute, the
machine control will go back to the previously set cycle.
Cycles can be changed anytime during the first Fill Step. After
the first Fill Step, all cycle keypad presses are ignored.
Machine Operation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
17 Part No. F8640601ENR2

Pause Mode
Pause Mode is entered when the START (enter) keypad is press-
ed three (3) times within five (5) seconds during the first three (3)
minutes of a running machine cycle. This mode is only manually
accessible if the Pause/Resume Mode (Enable/Disable) parameter
is programmed to Enabled and if the control is in Run Mode or
Door Locking Mode . Pause Mode is unavailable during Rapid
Advance and while the machine is in OPL Mode.
If this mode is entered the control will pause the cycle, enter
Door Unlocking Mode, and drain/pump the water out. After the
machine is confirmed to be empty and not rotating, the control
will unlock the door. The control will then enter Pause Mode.
The user may then restart the machine by pressing the START
(enter) keypad, where the machine will enter Door Locking Mode
and once the door locks, the cycle will resume from where it left
off.
NOTE: The display will show PUSH and StArt, the Cy-
cle Selection LEDs will be lit, and if the door is locked,
the door lock LED will be lit.
Closing Washer Door
If the door is not closed when the vend price is satisfied, CLoSE
and door will be displayed until the door is closed. Once the
door is closed, the START (enter) keypad must be pressed to lock
the door and start the cycle. E dL1 will be displayed, indicating
a door lock error, on the third attempt. The machine will attempt
to lock for one additional minute. If the door fails to lock, the
control will return to Start Mode.
If the door locks, the door lock error will clear and the cycle will
continue normally. The door can be opened to clear the door lock
error as well.
Overflow Mode
If the control is not running a cycle, in Door Locking Mode or in
Door Unlocking Mode, then the overflow level is set at the basket
of the machine. In Overflow Mode, if the door is closed, the door
will lock, the pump will turn on, and the gravity drain will open
until the water level is below the overflow reset level if running a
cycle, otherwise the machine will drain until the drum is seen
empty.
If Overflow Mode Display is disabled and the control is in Run
Mode when it exits, the display will show the default Run Mode
display, otherwise in all other cases, the display will show oFLo.
If the door locks and the overflow level is no longer being met
within five (5) minutes of first detecting the overflow, the cycle
will continue as normal and the control will go back to the mode
it was previously in. If the control continues to see an overflow
level after five (5) minutes has been reached with the door
locked, the control will enter Machine Error Mode with an Over-
flow Error.
OPL Mode
This feature allows the user to start a cycle without satisfying the
vend price.
When in OPL Mode, press and hold the Heavy/Hot and Delicate/
Warm keypads to terminate the cycle and enter Door Unlocking
Mode and then End of Cycle Mode.
For details on enabling OPL Mode, refer to OPL Parameters
oPL-.
Out of Order Mode
This feature allows the owner to program Out of Order Mode
which can be used to show the owner that the machine is not
available to use. The control will accept coins and increment the
appropriate audit counters but the vend entered will not count to-
wards a cycle purchase, the coin audio will not work, and no cy-
cle will run while Out of Order Mode is active.
Refer to Out of Order oUt.
Error Display Mode
In Error Display Mode, the display shows machine errors when
they occur. The display only shows one error at the time if there
are multiple errors. Once the highest priority error is cleared, the
next highest priority error will be displayed.
Refer to Error Codes for more on error details, displays, and pri-
orities.
Communications Mode
This feature allows the control to communicate with an IrDA or
card reader. This allows the owner to program the control and
read control data without using the keypad.
For more detailed information on using the Communications
Mode feature, refer to Communications.
Machine Operation
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
18 Part No. F8640601ENR2

Opening the Top Cover
To manually program the control, the top cover (located on the
top of the machine) must be unlocked and opened. Opening and
closing the top cover trips a switch which allows access to vari-
ous programming options. Once opened, it may be closed imme-
diately.
After opening and closing the top cover, the owner has 4 minutes
and 15 seconds to begin programming. If the appropriate keypads
have not been pressed in that time, the control will not accept
owner programming. Should this happen, opening and closing the
top cover will once again trip the switch which allows access to
the programming options.
CHM1357R_SVG
4
3
2
1
1. Top Cover Lock
2. Top Cover
3. Top Cover Hinge
4. Peg
Figure 3
Opening the Top Cover
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
19 Part No. F8640601ENR2

Entering the Manual Mode
For programming, testing, and retrieving information from the
control, it is often necessary to enter the Manual Mode by follow-
ing the steps below.
For an overview the Manual Mode, refer to Manual Program-
ming Navigation .
How to Enter Manual Programming
Mode
1. If accessing Diagnostic Tests, be sure the machine is in the
Ready Mode. If the machine is in an active cycle, rapid ad-
vance through the cycle. Refer to the Rapid Advance Feature.
If coins or a card has been entered, refer to Clear Vend Fea-
ture.
2. Open the top cover. Refer to Opening the Top Cover.
NOTE: The coin vault switch must be closed to en-
ter Manual Mode.
3. Press the Hot and Heavy/Hot keypads at the same time.
4. The display will show rAPid.
5. Press the Cold (∧) or the Delicate/Cold (∨) keypad to scroll
through the options until the desired option appears in the dis-
play.
6. Press the START (enter) keypad.
NOTE: After entering Manual Mode, if no keypads
are pressed for 4.25 minutes, the control will return
to the previous mode of operation.
How to Exit Manual Mode
Press the Delicate/Warm (<) keypad until the control returns to
the mode that was active before Manual Mode was entered.
Manual Mode Navigation
Manual Mode is broken into three (3) groups: Manual Program-
ming, Manual Rapid Advance and Manual Diagnostics. Manual
Programming has three (3) subsets: Manual Programming, Man-
ual Read Audit and Manual Reset. Manual Programming can on-
ly be turned on or off with an external device (refer to Communi-
cations). Manual Rapid Advance and Manual Diagnostics can be
turned on and off using an external device or by manual program-
ming (refer to Manual Rapid Advance (Enable/Disable) rAEn
and Manual Diagnostics (Enable/Disable) dAEn of Programming
Control).
By default, all groups are turned on.
The manual features available in each group are as follows (the
menu displayed on the display in this mode is in parentheses).
•Manual Programming
•Manual Programming (Prog)
•Manual Read Audit (AUdit)
•Manual Reset (rESEt)
•Manual Rapid Advance
•Rapid Advance (rAPid)
•Manual Diagnostics
•Manual Diagnostic Tests (diAg)
If a group is turned off, the display will change from the selected
feature to oFF when the START (enter) keypad is pressed and an
audio signal will sound for one (1) second. The display will then
return to the selected feature. The features in the group cannot be
entered.
Entering the Manual Mode
© Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
20 Part No. F8640601ENR2
