Alliance Laundry Systems FLW1526C Original operating instructions

Installation/Operation
www.comlaundry.com
Frontload Washers
Metered Commercial
FLW1526C
Part No. 803148R1
March 2009
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
NOTA: Para bajar una copia de
estas instrucciones en español,
visite www.comlaundry.com.

803148 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover
all possible conditions and situations that may occur. It must be understood that common sense, caution,
and carefulness are factors which cannot be built into these washers. These factors MUST BE supplied by
the person(s) installing, maintaining, or operating the washer.
Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not
understand.
Failure to install, maintain, and/or operate this machine according to the manufacturer's
instructions may result in conditions which can produce bodily injury and/or property
damage. W030
WARNING

© Copyright 2009, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
803148
2© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Table of
Contents
Safety Information.............................................................................. 3
Explanation of Safety Messages........................................................... 3
Important Safety Instructions ............................................................... 3
Installation........................................................................................... 5
Dimensions and Specifications............................................................. 5
Before You Start................................................................................... 6
Tools ................................................................................................ 6
Installing the Washer............................................................................ 7
Step 1: Position Washer Near Installation Area .............................. 7
Step 2: Connect Fill Hoses............................................................... 7
Step 3: Connect Drain Hose to Drain Receptacle............................ 9
Step 4: Position and Level the Washer............................................ 10
Step 5: Remove the Shock Sleeves and Shipping Brace ................. 11
Step 6: Wipe Out Inside of Wash Drum.......................................... 11
Step 7: Plug In the Washer............................................................... 12
Step 8: Check Installation................................................................ 13
Vending................................................................................................. 13
Meter Case ....................................................................................... 13
Models Prepped for Card Reader..................................................... 13
Operation............................................................................................. 14
Operation Instructions .......................................................................... 14
Step 1: Load Laundry....................................................................... 14
Step 2: Close Loading Door............................................................. 14
Step 3: Add Laundry Supplies......................................................... 15
Step 4: Set Fabric Selector............................................................... 15
Step 5: Set Wash Temperature......................................................... 15
Step 6: Set Soil Level....................................................................... 16
Step 7: Insert Coin(s) or Card.......................................................... 16
Step 8: Start Washer......................................................................... 16
Indicator Lights................................................................................ 17
Maintenance........................................................................................ 18
User-Maintenance Instructions............................................................. 18
Cold Weather Care........................................................................... 18
Care of Your Washer ....................................................................... 18
Cleaning Glass Sealing Area ........................................................... 18
Replacing Hoses............................................................................... 18
Filter Screens ................................................................................... 18
Vacations and Extended Non-Use ................................................... 18
Reinstallation of Shipping Materials ............................................... 19
Cleaning Foreign Object Trap ......................................................... 19
Troubleshooting.................................................................................. 20
Contact Information........................................................................... 22
Installer Checklist................................................................ Back Cover

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3
803148
Safety Information
Explanation of Safety Messages
Throughout this manual and on machine decals, you
will find precautionary statements (“DANGER,”
“WARNING,” and “CAUTION”) followed by specific
instructions. These precautions are intended for the
personal safety of the operator, user, servicer, and
those maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE” is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
(Save These Instructions)
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas
is flammable, do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
Indicates an imminently hazardous
situation that, if not avoided, will cause
severe personal injury or death.
DANGER
Indicates a hazardous situation that, if not
avoided, could cause severe personal
injury or death.
WARNING
Indicates a hazardous situation that, if not
avoided, may cause minor or moderate
personal injury or property damage.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions: W023
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Safety Information
803148
4
11. Do not repair or replace any part of the washer,or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that you understand and have the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power
source.
13. Use your washer only for its intended purpose,
washing clothes.
14. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
15. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required. Do
not do it yourself unless you know how!
16. To reduce the risk of fire, clothes which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc. or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
17. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
18. Keep your washer in good condition.Bumping or
dropping the washer can damage safety features.
If this occurs, have your washer checked by a
qualified service person.
19. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.
20. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
21. Loading door MUST BE CLOSED any time the
washer is to fill, tumble or spin. DO NOT bypass
the loading door switch by permitting the washer
to operate with the loading door open.
22. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
23. Always follow the fabric care instructions
supplied by the garment manufacturer.
24. Never operate the washer with any guards and/or
panels removed.
25. DO NOT operate the washer with missing or
broken parts.
26. DO NOT bypass any safety devices.
27. Failure to install, maintain, and/or operate this
washer according to the manufacturer’s
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Always contact your dealer, distributor, service agent
or the manufacturer about any problems or conditions
you do not understand.

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5
803148
Installation

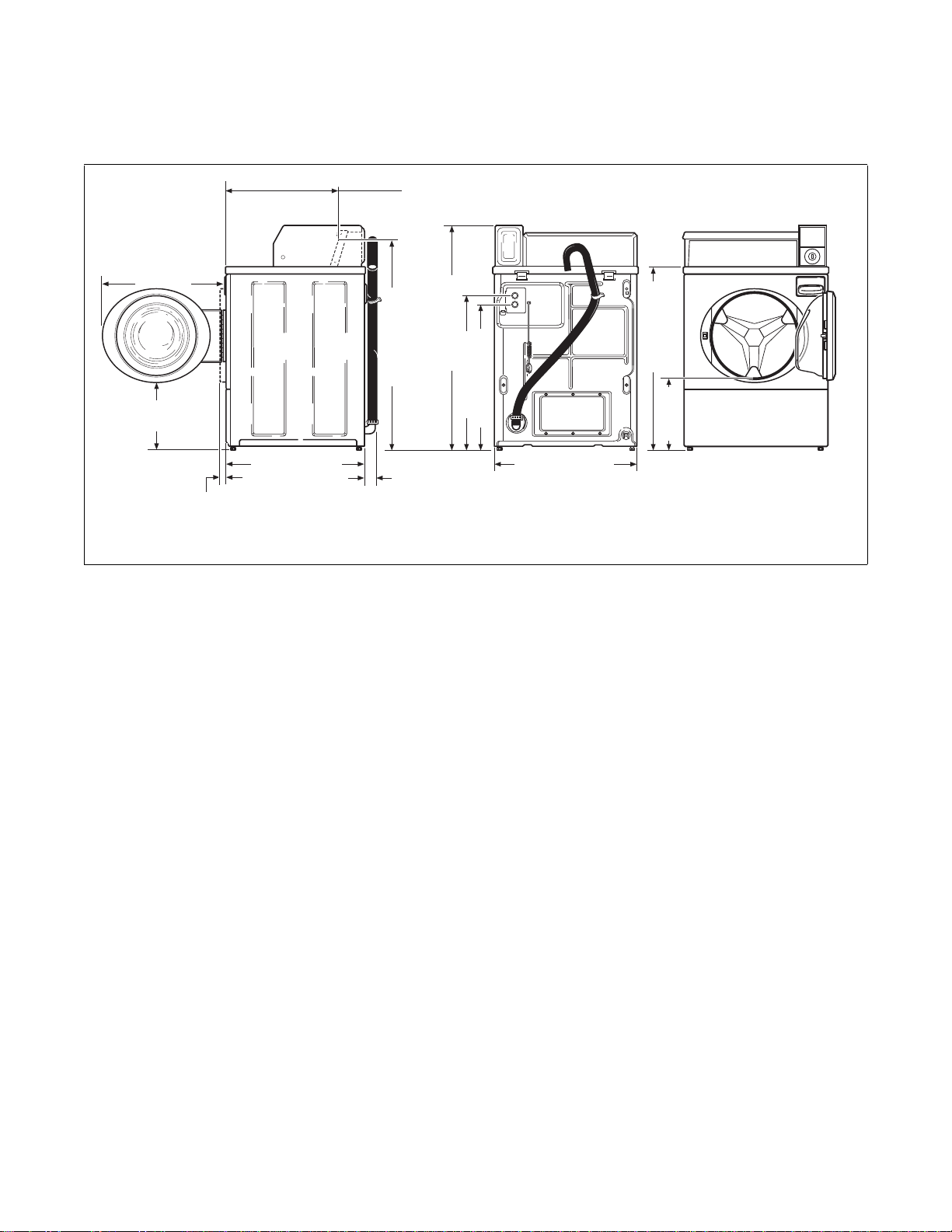

Dimensions and Specifications
FLW2209N
FLW2209N
43 in. (109.2 cm)
28 in. (71.1 cm)
24 in.
(61.0 cm)
26.9 in. (68.3 cm)
13.1 in.
(33.3 cm)
31.1 in. (79 cm)
2 in.
(5.1 cm)
36 in. (91.44 cm)
14.6 in.
(37.08 cm)
38.19 in. (97 cm)
22.06 in. (56.03 cm)
29.6 in. (75.1 cm)
1.5 in.
(3.8 cm)

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
803148
6
Before You Start
Tools
For most installations, the basic tools you will need
are:

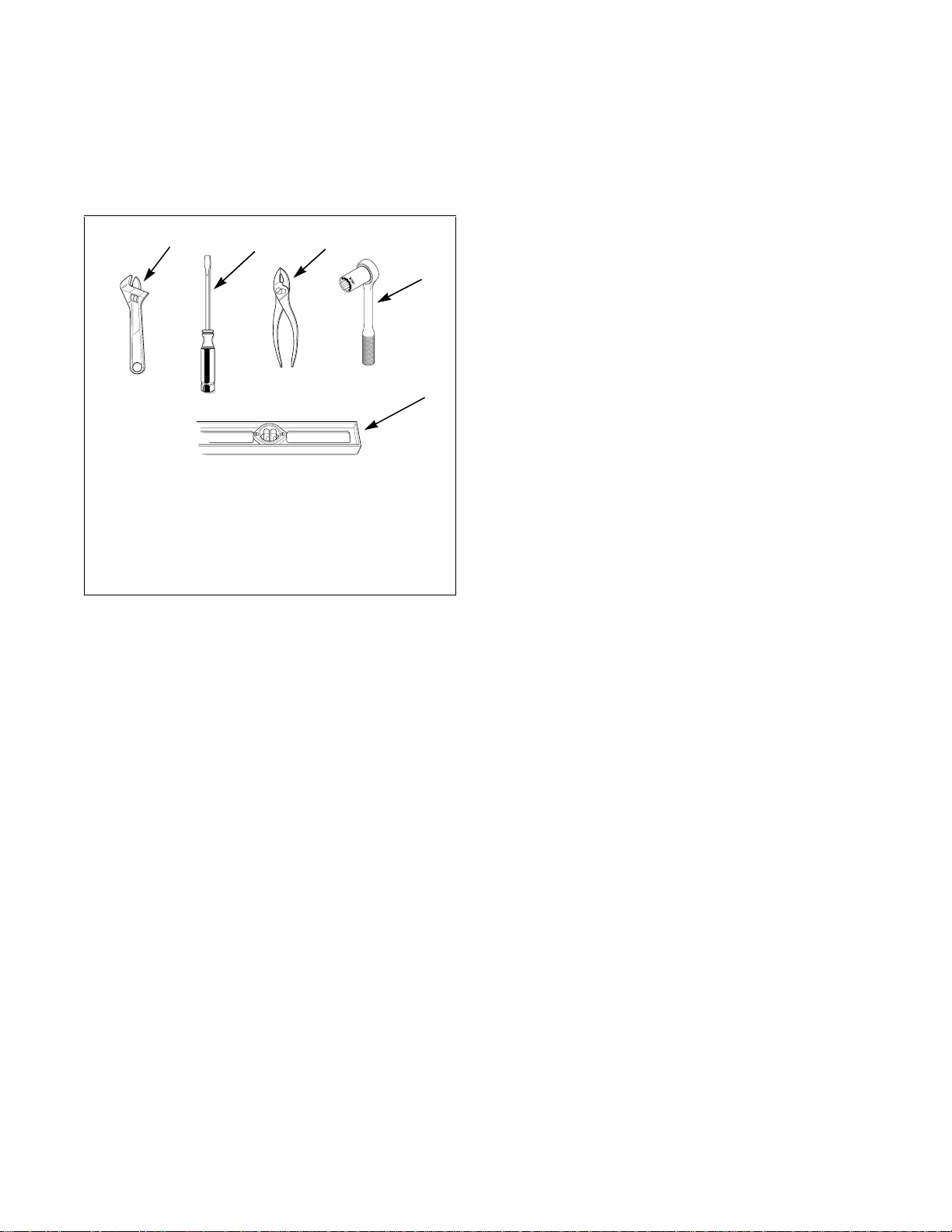

Figure 1
NOTE: If the washer is delivered on a cold day
(below freezing), or is stored in an unheated room
or area during the cold months, do not attempt to
operate it until the washer has had a chance to
warm up.
NOTE: Install dryer before washer. This allows
room for attaching exhaust duct.
NOTE: Some moisture in the wash drum is normal.
Water is used during testing at the manufacturer.
D074I
1Wrench
2Screwdriver
3Pliers
4Socket Wrench
5Level
123
5
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
7
803148
Installing the Washer
Step 1: Position Washer Near Installation
Area
Move washer so that it is within 4 feet (1.2 meters) of
the desired area of installation.
NOTE: For best performance and to minimize
vibration or movement, install washer on a solid,
sturdy and level floor. Some floors may need to be
reinforced, especially on a second floor or over a
basement. Do not install the washer on carpeting,
soft tile, a platform or other weakly supported
structures.
Figure 2
Step 2: Connect Fill Hoses
Water Supply
Water supply faucets must fit standard 3/4 inch
(19.1 mm) female garden hose couplings. DO NOT
USE SLIP-ON OR CLAMP-ON CONNECTIONS.
Water supply faucets should be readily accessible to
permit turning them off when washer is not being
used.
Recommended cold water temperature is 60° to 80°
Fahrenheit (16° to 27° Celsius). Recommended
maximum hot water temperature is 125° Fahrenheit
(51°Celsius). Warm water is a mixture of hot and cold
water. Warm water temperature is dependent upon
water temperature and pressure of both the hot and
cold water supply lines.
Water pressure must be a minimum of 20 to a
maximum of 120 pounds per square inch (138 to 827
kPa) static pressure measured at the faucet.
NOTE: Water pressure under 20 pounds per
square inch (138 kPa) will cause an extended fill
time in the washer and may not properly flush out
the detergent dispenser.
H135I
H135I
Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If
the hot water system has not been used
for such a period and before using the
washer, turn on all hot water faucets and
let the water flow from each for several
minutes. This will release any
accumulated hydrogen gas. THE GAS IS
FLAMMABLE, DO NOT SMOKE OR USE
AN OPEN FLAME DURING THIS TIME. W029
WARNING
To prevent personal injury, avoid contact
with inlet water temperatures higher than
125°Fahrenheit (51°Celsius) and hot
surfaces. W748
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
803148
8
Turn on the water supply faucets and flush the lines for
approximately two minutes to remove any foreign
materials that could clog the screens in the water
mixing valve.
NOTE: When installing in newly constructed or
renovated building, it is very important to flush the
lines since build-up may have occurred during
construction.
Connecting Hoses
Insert each filter screen into the end of each fill hose
that will connect to the water supply faucet. The screen
must be facing outward. Refer to Figure 3.
Insert each plain rubber washer into the other end of
each fill hose that will connect to the water mixing
valve at the rear of the washer. Refer to Figure 3.
Thread hose couplings onto valve connections finger-
tight, then approximately 1/4 turn with pliers.
IMPORTANT: DO NOT cross thread or
overtighten couplings.
Turn water on and check for leaks. If leaks are found,
retighten the hose couplings. Continue tightening and
rechecking until no leaks are found.
Figure 3
IMPORTANT: Hoses and other natural rubber
parts deteriorate after extended use. Hoses may
develop cracks, blisters or material wear from the
temperature and constant high pressure they are
subjected to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hoseshowing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
Figure 4
IMPORTANT: Turn off water supply faucets after
check-out and demonstration. Owner should turn
off water supply whenever there will be an
extended period of non-use.
NOTE: Longer fill hoses are available (as optional
equipment at extra cost) if the hoses supplied with
the washer are not long enough for the installation.
Order hoses as follows:
No. 20617 Fill Hose (8 feet) (2.44 m)
No. 20618 Fill Hose (10 feet) (3.05 m)
TLW1976N
1Faucet
2Fill Hoses
3Plain Rubber Washer
4Filter Screens
HOT
COLD
2
1
3
4
FLW1977N
1Water Supply Faucets
2Hot Water Connection
3Cold Water Connection
4Fill Hoses
2
13
4
WATER
MIXING
VALVE

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
9
803148
Risers
Risers (or air cushions) may have to be installed if the
pipes knock or pound when flow of water stops. The
risers are more efficient when installed as close as
possible to the water supply faucets (refer to
Figure 5).
Figure 5
Step 3: Connect Drain Hose to Drain
Receptacle
Remove the drain hose from its shipping position on
the rear of the washer by removing the shipping tape.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-3/8 inch (3.5 cm) outside
diameter drain hose.
Figure 6
Standpipe Installation
Place the drain hose into the standpipe.
Remove the beaded tie-down strap from accessories
bag and place around standpipe and drain hose and
tighten strap to hold hose to standpipe. Refer to
Figure 7. This will prevent the drain hose from
dislodging from drain receptacle during use.
Figure 7
W005I

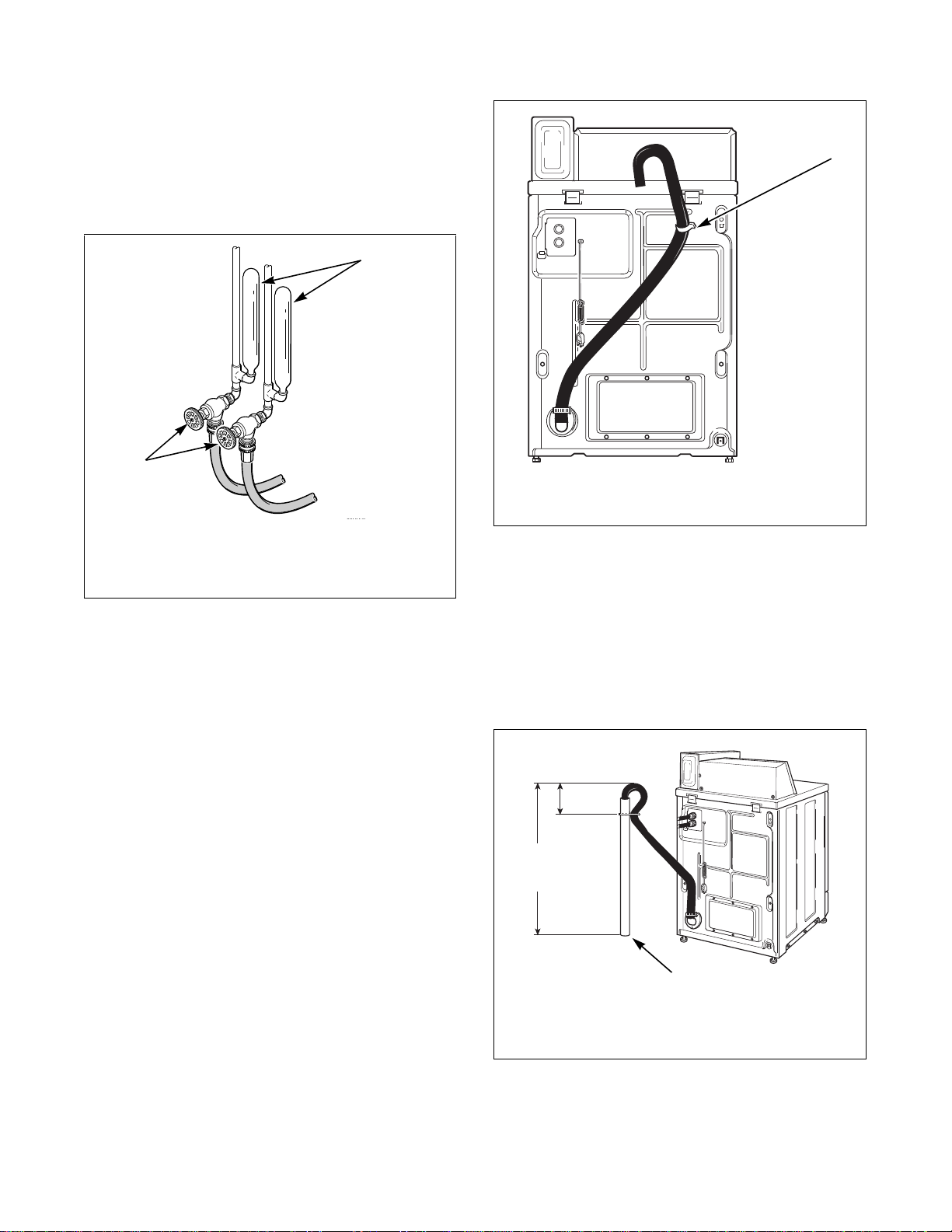

1Risers (Air Cushions)
2Water Supply Faucets
W005I
2
1
FLW1978N
1Shipping Tape
FLW1979N
1Standpipe 2 in. (5.08 cm) or 1-1/2 in. (4 cm)
1
FLW1979N
1
24 TO 36 in.
(61 TO 91.44 cm)
RECOMMENDED
HEIGHT

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
803148
10
Step 4: Position and Level the Washer
Position washer so it has sufficient clearance for
installation and servicing.
NOTE: Use of the dispenser drawer or washer door
as a handle in the transportation of the washer may
cause damage to the dispenser or door.
Place washer in position on a solid, sturdy and level
floor. Installing the washer on any type of carpeting,
soft tile, a platform or other weakly supported
structures is not recommended.
Place a level on the cabinet top and check if the
washer is level from side to side and front to back.
NOTE: Level must rest on raised portion of top
panel. Refer to Figure 8.
If washer is not level, tilt washer to access the front
and rear leveling legs. For easier access to leveling
legs, prop up washer with a wooden block. Refer to
Figure 8. Loosen 7/8 in. locknut and adjust legs until
the washer is level from side to side and front to back
(using a level). Washer should not rock.
Tighten the locknuts securely against the washer
base using the 7/8 in. wrench. If the locknuts are not
tight, washer will move out of position during
operation.
NOTE: DO NOT slide washer across floor if the
leveling legs have been extended, as legs and base
could become damaged.
Remove rubber feet from accessories bag and place on
all four leveling legs.
Verify that unit doesn’t rock.
Figure 8

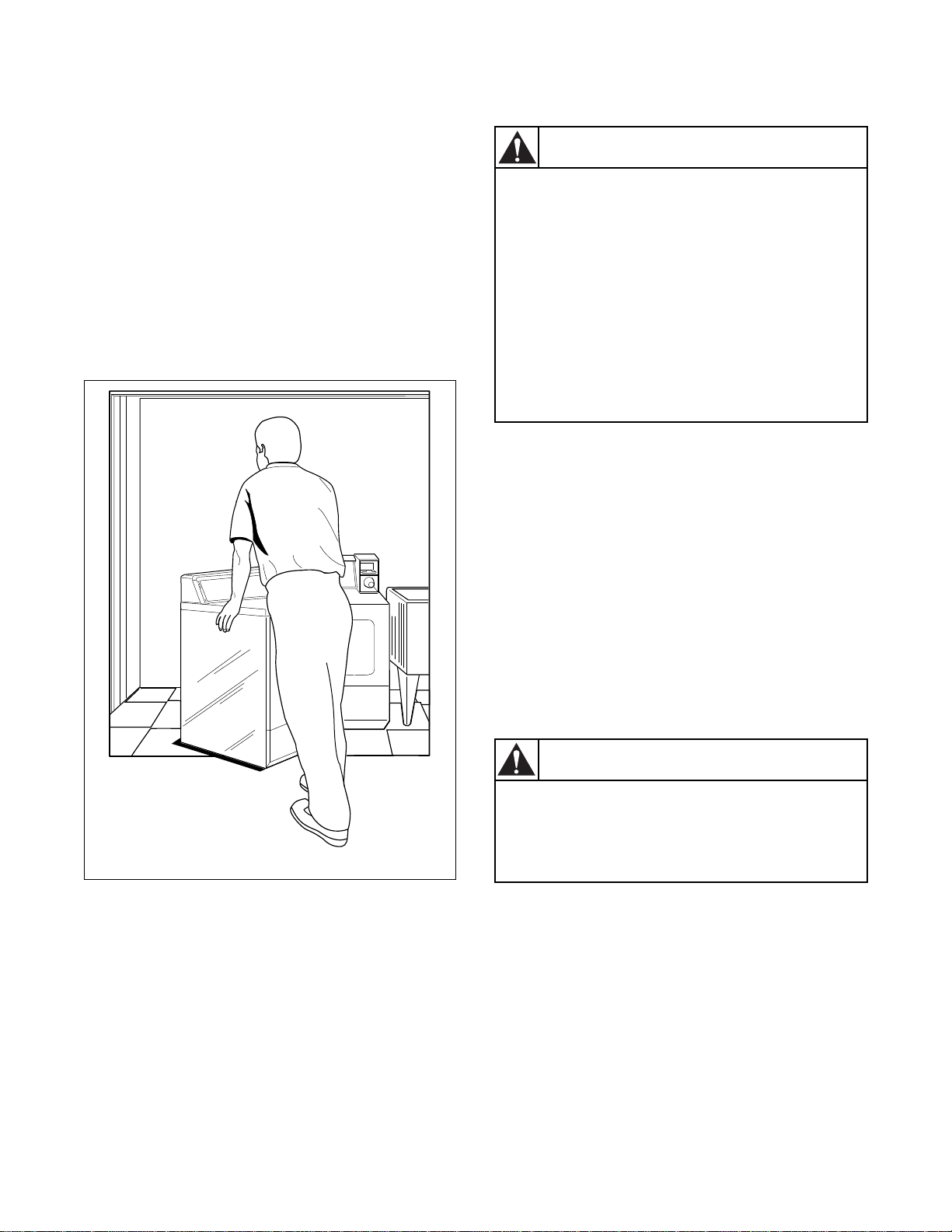

Washers elevated above floor level must
be anchored to that elevated surface,
base or platform. The material used to
elevate the washer should also be
anchored to the floor to ensure that the
washer will not walk or that the washer
can not be physically pulled, tipped or
slid from its installed position. Failure to
do so may result in conditions which can
produce serious injury, death and/or
property damage. W306
WARNING
FLW2125N
1Leveling Leg
2Washer Base
3Level
4Wood Block
5Locknut
6Rubber Foot
FLW2125N
2
1
3
5
6
4

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
11
803148
Step 5: Remove the Shock Sleeves and
Shipping Brace
Remove front access panel by removing the two screws
at the bottom of the panel.
Remove the five bolts and lockwashers from shipping
brace with 9/16 in. wrench and remove brace. Refer to
Figure 9. Four bolts are located on the washer base
and one is holding the brace to the weight. Remove all
four shock sleeves by pulling on the yellow rope.
Remove label from front side of front access panel and
place on backside of front access panel for future
reference.
NOTE: The shipping brace, bolts, washers and
shock sleeves should be saved and MUST be
reinstalled whenever the washer is moved more
than 4 feet (1.22 m). Refer to User-Maintenance
section for instructions. Do not lift or transport
washer from front or without shipping materials
installed.
Store the shipping materials in the accessories bag.
Save materials for use whenever the washer is moved.
Reinstall front access panel.
IMPORTANT: DO NOT tip washer more than
6 inches (152.4 mm) in any direction after shipping
brace has been removed. Shock absorbers may
separate and damage to washer may result. For
leveling purposes, the washer may be tilted a
maximum of 6 inches (152.4 mm) in any direction.
Figure 9
Step 6: Wipe Out Inside of Wash Drum
Before using washer for the first time, use anall-purpose
cleaner, or a detergent and water solution, and a damp
cloth to remove shipping dust from inside wash drum.
Figure 10
FLW2124N
1Shock Sleeves
2Motor Mount
3Hooked End of Shipping Brace
4Bolts and Lockwashers
FLW2126N
FLW2124N
2
1
4
3
FLW2126N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
803148
12
Step 7: Plug In the Washer
Electrical Requirements
(120 Volt, 60 Hertz with 3-Prong Grounding Plug)
NOTE: The wiring diagram is located in the
control hood.
When plugging in the washer:
•DO NOT overload circuits.
•DO NOT use an extension cord.
•DO NOT use an adapter.
•DO NOT operate other appliances on the same
circuit. Use separately fused 15 Amp circuits.
The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current), circuit
protected by a 15 ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 110/120 Volts
AC (alternating current) 15 Amps. Refer to Figure 11
to determine correct polarity of the wall receptacle.
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA No. 70, and such local
regulations as might apply. It is the
customer’s responsibility to have the
wiring, fuses and circuit breakers
installed by a qualified electrician to make
sure adequate electrical power is
available to the washer. W518
WARNING

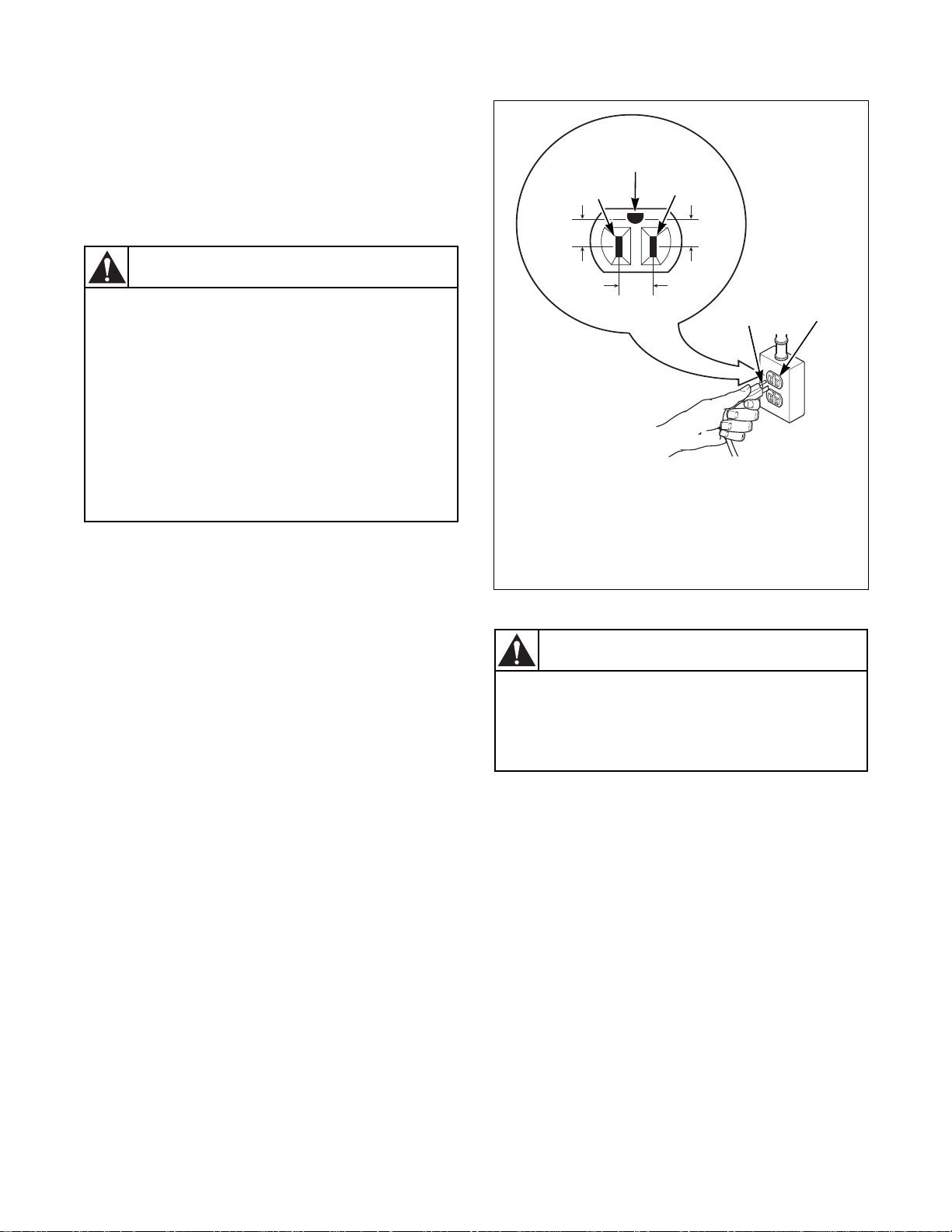

DRY2022N
1 L1
2Ground
3Neutral Side
4Round Grounding Prong
5Neutral
Figure 11
1
2
3
45
Standard 120 Volt, 60 Hertz
3-Wire Effectively
Grounded Circuit
0 V.A.C.
120±12
V.A.C.
120±12
V.A.C.
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the washer to the
electric power source. W082
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Installation
13
803148
Grounding Instructions
The washer must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current.
The washer is equipped with a cord having an
equipment-grounding conductor and a three-prong
grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
DO NOT modify the plug provided with the washer –
if it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
NOTE: Have a qualified electrician check the
polarity of the wall receptacle. If a voltage reading
is measured other than that in Figure 11, the
qualified electrician should correct the problem.
Step 8: Check Installation
Refer to Installer Checklist on the back cover of this
manual and make sure that washer is installed
correctly.
Run washer through one complete cycle to make sure
it is operating properly.
Vending
Meter Case
The factory mounted coin meter case does not include
the service door lock, coin drawer, coin drawer lock or
keys. These parts must be ordered (at extra cost)
according to the purchaser’s requirements direct from
the manufacturer of your choice.
NOTE: You have the option of using a screw type
lock or a 1/4 turn lock on the meter case service
door. If you choose to use a screw lock, then the
special bracket (located inside the meter case) must
be used. DO NOT use the special bracket if a 1/4
turn lock is used.
Coin Drawer Security – For additional security, drill
out the two pilot holes on each side of the front of the
meter case to 1/4 or 5/16 inch (6.4 or 7.9 mm) holes
and install a bicycle lock through these holes.
NOTE: An 8 in. (20.32 cm) coin drawer is required.
Models Prepped for Card Reader
The machine is shipped from the factory with the
Electronic Control Diagnostic Harness Assembly
unplugged. To avoid unauthorized manual
programming or vending, perform the following steps.
1. Open control panel. Refer to Figure 12.
2. Locate diagnostic harness on electronic control.
3. Plug connectors for “white/black” wire and “red/
blue” wire together.
Figure 12
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service person if you are in
doubt as to whether the washer is
properly grounded. W327
WARNING
FLW6R
1Control Panel
1

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 803148
14
Operation
Operation Instructions
IMPORTANT: Prior to first wash, use an all-
purpose cleaner, or a detergent and water solution,
and a damp cloth to remove shipping dust from
inside of washtub.
IMPORTANT: Remove all sharp objects from
laundry to avoid tears and rips to items during
normal machine operation.
Step 1: Load Laundry
Load items loosely into wash drum.
NOTE: Small items such as baby socks may get
caught around the door. Place these articles inside a
mesh garment bag.

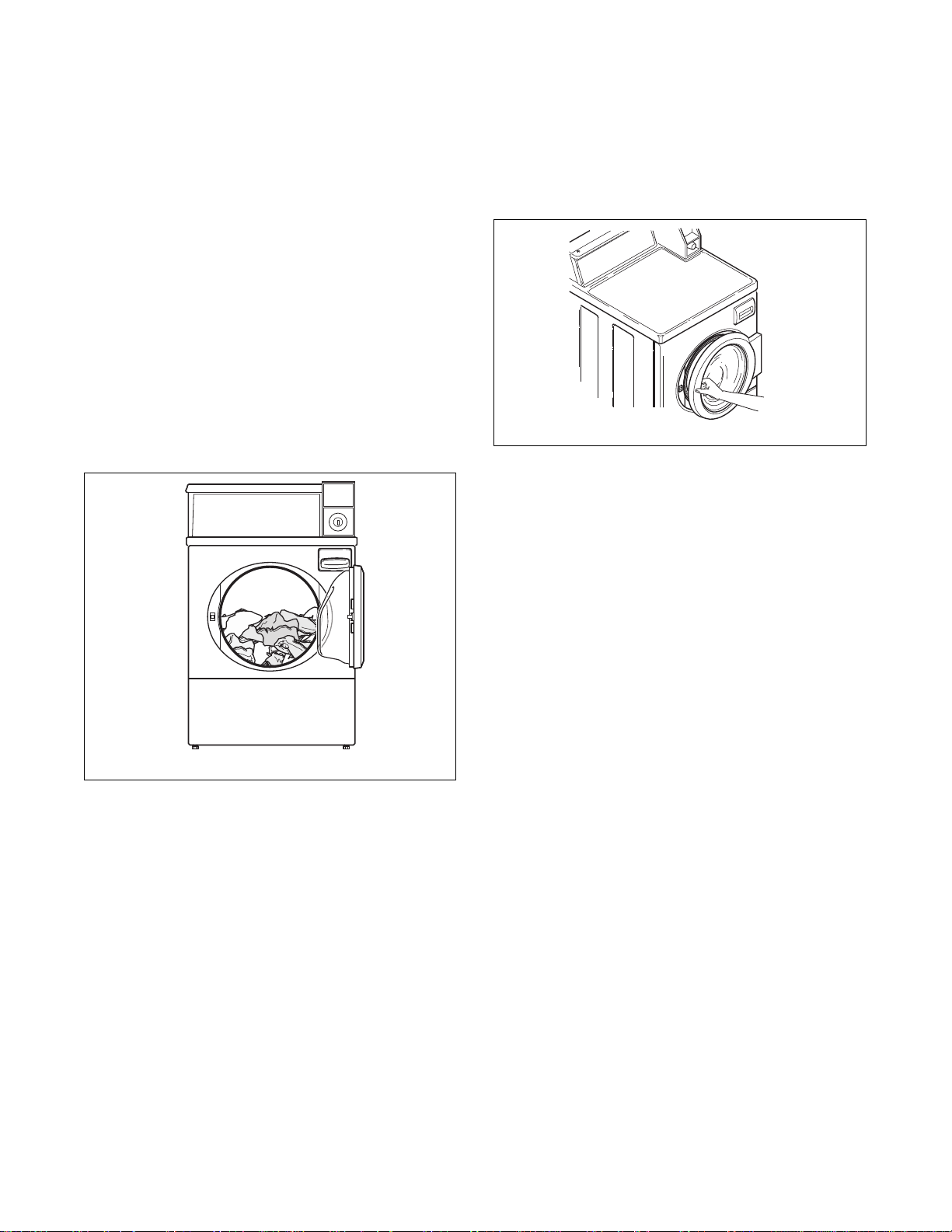

Figure 13
When washing bulky items such as blankets and
comforters, use the DELICATES/BULKY cycle. The
cycle includes agitation and final spin speeds that
maintain the load’s balance and minimize wear to the
articles.
Step 2: Close Loading Door
Close loading door tightly. The washer will not
operate with the loading door open.
Figure 14
FLW2131N
FLW2132N

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
15
803148
Step 3: Add Laundry Supplies
Open dispenser drawer. Measure and add low sudsing,
high efficiency (HE) detergent (1), bleach (2) and
fabric softener (3) to the dispenser drawer (refer to
Figure 15). Close dispenser drawer.
IMPORTANT: If using non-HE detergent, avoid
oversudsing by using 1/2 of the detergent
manufacturer’s recommended amount.
Figure 15
Step 4: Set Fabric Selector
Push touchpad for NORMAL, PERM PRESS or
DELICATES/BULKY cycle. Light indicates
selection.
NOTE: Changes can be made to Fabric Selector
setting up until the first fill is complete.
Step 5: Set Wash Temperature
Push touchpad for HOT, WARM or COLD. Light
indicates selection.
NOTE: Always follow manufacturer’s care labels.
FLW2130N
1Detergent
2Bleach
3Fabric Softener
FLW2130N
1
3
2
Dispenser drawer requires a special tool
for removal. Contact a service person if
removal is necessary. W236
CAUTION
FLW2228N
Figure 16
FLW2229N
Figure 17

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
803148
16

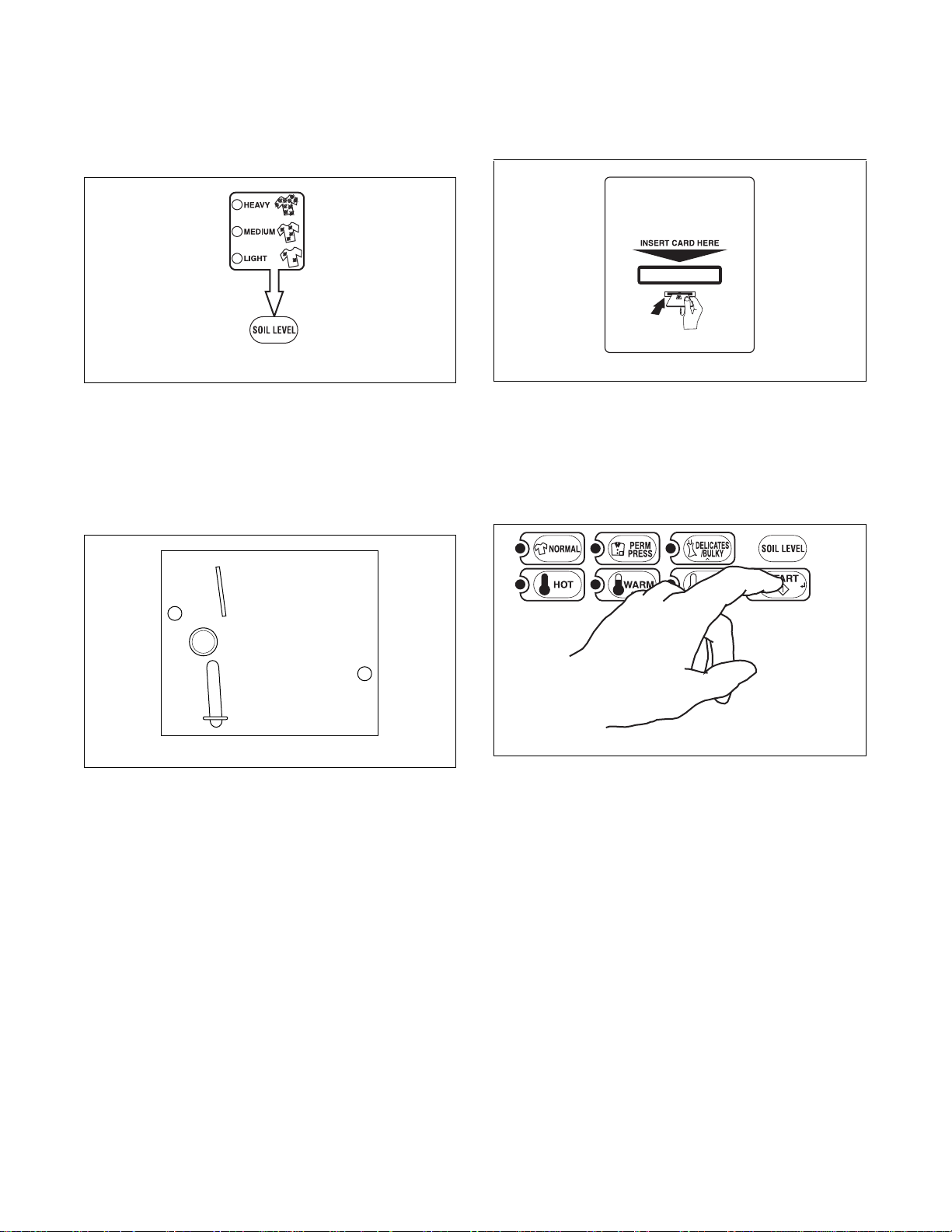

Step 6: Set Soil Level
Push Soil Level touchpad to select LIGHT, MEDIUM
or HEAVY. Light indicates selection.
Step 7: Insert Coin(s) or Card
To Insert Money
Insert coin(s) in coin slot. Check pricing as seen on
digital display.
Figure 19
To Insert Card
Insert card into opening.
Figure 20
Step 8: Start Washer
After vend price has been satisfied, push the START
pad. DOOR MUST BE CLOSED TO START
WASHER.
FLW2230N
Figure 18
W387I
FLW2230N
DRY1927N
FLW2231N
Figure 21

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Operation
17
803148
Indicator Lights
INSERT COINS/CARD
INSERT COINS/CARD is lit to prompt the user to
insert coins or card to satisfy the vend price. When
INSERT COINS/CARD is lit, the digits show the vend
price remaining to be satisfied.
WASH
WASH is lit during the WASH portions of the cycle.
RINSE
RINSE is lit during the RINSE portions of the cycle.
SPIN
SPIN is lit during the final spin portion of the cycle.
DOOR
DOOR is lit whenever the door is locked. The door
cannot be opened when this light is on.
LIGHT
LIGHT is lit when the LIGHT soil level is selected.
MEDIUM
MEDIUM is lit when the MEDIUM soil level is
selected.
HEAVY
HEAVY is lit when the HEAVY soil level is selected.
IMPORTANT: If washer fails to operate properly
after installation, make sure electrical service and
water supply faucets are turned on. Are all the
controls properly set? Have a qualified service
person refer to the wiring diagram (located inside
of washer control cabinet) and check for broken,
loose or incorrect wiring.
NOTE: Once a cycle has started, the door can only
be opened by first unplugging the power cord and
waiting one minute.
To reduce the risk of bodily injury, do not
remove laundry from washer until all
lights are out, and all moving parts have
stopped. W092
WARNING

© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 803148
18
Maintenance
User-Maintenance Instructions
Cold Weather Care
If the washer is delivered on a cold day (below
freezing), or is stored in an unheated room or area
during the cold months, do not attempt to operate it
until the washer has had a chance to warm up.
Care of Your Washer
Use only a damp or sudsy cloth for cleaning the
control panel. Some cleaning product sprays may
harm the finish on the control panel or damage the
interior of the hood.
Wipe the washer cabinet as needed. If detergent,
bleach or other washing products are spilled on the
cabinet, wipe immediately. Some products will cause
permanent damage if spilled on the cabinet.
Do not use scouring pads or abrasive cleansers.
The wash drum will need no particular care although it
may need rinsing or wiping after an unusual load has
been washed.
The outside of the door window can be cleaned with
household window cleaner.
Running an occasional rinse cycle with bleach will
help to avoid a musty smell in the wash drum.
Cleaning Glass Sealing Area
In order to assure that the door properly seals against
water leaks, the following surfaces should be wiped
off periodically:
•The outside perimeter of the door glass where the
seal contacts the glass
•The front surface of the door seal lip
Usually a mild soap solution will work. If there is an
extreme build-up of minerals from a hard water
supply, the surfaces may need to be cleaned with a
lime removal chemical.
Replacing Hoses
Hoses and other natural rubber parts deteriorate after
extended use. Hoses may develop cracks, blisters or
material wear from the temperature and constant high
pressure they are subjected to.
All hoses should be checked on a monthly basis for
any visible signs of deterioration. Any hose showing
the signs of deterioration listed above should be
replaced immediately. All hoses should be replaced
every five years.
Filter Screens
Check the filter screens in the fill hoses for debris or
damage annually. Clean or replace them if necessary.
If the washer is filling with water slower than normal,
check the filter screens. Clean or replace them if
necessary.
Order filter screen Part No. F270300 from the nearest
authorized parts distributor.
Vacations and Extended Non-Use
IMPORTANT: To avoid possible property damage
due to flooding, turn off the water supply to the
washer whenever there will be an extended period
of non-use.
Leave the loading door open during extended periods
of non-use to allow the wash drum to dry out and
avoid a musty smell.
