Alliance Laundry Systems UM202 Series Owner's manual

Installation/Operation/Maintenance
Washer-Extractor
Top Loading
Refer to Page 3 for Model Identification
U140R
NOTA: El manual en
español aparece después
del manual en inglés.
Part No. F232113R0
October 2000
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)

© Copyright 2000, Alliance Laundry Systems LLC
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any
means without the expressed written consent of the publisher.
F232113 1
Table of
Contents
Introduction......................................................................................... 3
Model Identification ............................................................................. 3
Nameplate Location.............................................................................. 3
Replacement Parts ................................................................................ 3
Customer Service.................................................................................. 3
Safety Information.............................................................................. 5
Important Safety Instructions ............................................................... 5
Specifications and Dimensions........................................................... 7
Installation........................................................................................... 11
Dimensional Clearances ....................................................................... 11
Machine Foundation ............................................................................. 11
Machine Anchoring .............................................................................. 11
Electrical Installation............................................................................ 12
Drain Connection.................................................................................. 14
Water Connection ................................................................................. 15
Control Function Test........................................................................... 16
Operation............................................................................................. 17
Control Panel ........................................................................................ 17
Operating Instructions .......................................................................... 18
Maintenance ........................................................................................ 21
Daily ..................................................................................................... 21
Weekly.................................................................................................. 21
Monthly................................................................................................. 21

2F232113
Notes

3
F232113
Introduction
Model Identification
Information in this manual is applicable to these
models:
Nameplate Location
The nameplate decal is located at the rear of the
machine. Always provide the machine’s serial number
and model number when ordering parts or when
seeking technical assistance.
Replacement Parts
If literature or replacement parts are required, contact
the source from whom the machine was purchased or
contact Alliance Laundry Systems LLC at [phone]
for the name and address of the nearest authorized
parts distributor.
Customer Service
For technical assistance, call any of the following
numbers:
[phone]
[phone]
Marianna, Florida
[phone]
Ripon, Wisconsin
UM100
UM202
U151I
1Nameplate
U151I
1

F232113
4
Notes

5
F232113
Safety Information
Precautionary statements (“CAUTION,”
“WARNING,”and “DANGER”), followed by specific
instructions, are found in this manual and on machine
decals. These precautions are intended for the personal
safety of the operator, user, servicer, and those
maintaining the machine.
Additional precautionary statements (“IMPORTANT”
and “NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT”is used
to inform the reader of specific procedures where
minor machine damage will occur if the procedure
is not followed.
NOTE: The word “NOTE”is used to communicate
installation, operation, maintenance or servicing
information that is important but not hazard
related.
Important Safety Instructions
1. Read all instructions before using the washer.
2. Refer to the GROUNDING INSTRUCTIONS in
the INSTALLATION manual for the proper
grounding of the washer.
3. Do not wash textiles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other
flammable or explosive substances as they give
off vapors that could ignite or explode.
4. Do not add gasoline, dry-cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
5. Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE. If the hot water system has not
been used for such a period, before using a
washing machine or combination washer-dryer,
turn on all hot water faucets and let the water
flow from each for several minutes. This will
release any accumulated hydrogen gas. The gas is
flammable, do not smoke or use an open flame
during this time.
6. Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. This is a safety
rule for all appliances.
7. Before the washer is removed from service or
discarded, remove the door to the washing
compartment.
8. Do not reach into the washer if the wash drum is
moving.
DANGER indicates the presence of a
hazard that will cause severe personal
injury, death, or substantial property
damage if the danger is ignored.
DANGER
WARNING indicates the presence of a
hazard that can cause severe personal
injury, death, or substantial property
damage if the warning is ignored.
WARNING
CAUTION indicates the presence of a
hazard that will or can cause minor
personal injury or property damage if the
caution is ignored.
CAUTION
To reduce the risk of fire, electric shock,
serious injury or death to persons when
using your washer, follow these basic
precautions:
W023E
WARNING

Safety Information
F232113
6
9. Do not install or store the washer where it will be
exposed to water and/or weather.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the washer, or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or in published user-repair
instructions that the user understands and has the
skills to carry out.
12. To reduce the risk of an electric shock or fire, DO
NOT use an extension cord or an adapter to
connect the washer to the electrical power source.
13. Use washer only for its intended purpose,
washing textiles.
14. ALWAYS disconnect the washer from electrical
supply before attempting any service. Disconnect
the power cord by grasping the plug, not the cord.
15. Install the washer according to the
INSTALLATION INSTRUCTIONS. All
connections for water, drain, electrical power and
grounding must comply with local codes and be
made by licensed personnel when required.
16. To reduce the risk of fire, textiles which have
traces of any flammable substances such as
vegetable oil, cooking oil, machine oil,
flammable chemicals, thinner, etc. or anything
containing wax or chemicals such as in mops and
cleaning cloths, must not be put into the washer.
These flammable substances may cause the
fabric to catch on fire by itself.
17. Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
18. Keep washer in good condition. Bumping or
dropping the washer can damage safety features.
If this occurs, have washer checked by a qualified
service person.
19. Replace worn power cords and/or loose plugs.
20. Be sure water connections have a shut-off valve
and that fill hose connections are tight. CLOSE
the shut-off valves at the end of each wash day.
21. Always read and follow manufacturer’s
instructions on packages of laundry and cleaning
aids. Heed all warnings or precautions. To reduce
the risk of poisoning or chemical burns, keep
them out of the reach of children at all times
(preferably in a locked cabinet).
22. Always follow the fabric care instructions
supplied by the textile manufacturer.
23. Never operate the washer with any guards
and/or panels removed.
24. DO NOT operate the washer with missing or
broken parts.
25. DO NOT by-pass any safety devices.
26. Failure to install, maintain, and/or operate this
washer according to the manufacturer's
instructions may result in conditions which can
produce bodily injury and/or property damage.
NOTE: The WARNING and IMPORTANT
SAFETY INSTRUCTIONS appearing in this
manual are not meant to cover all possible
conditions and situations that may occur. Common
sense, caution and care must be exercised when
installing, maintaining, or operating the washer.
Any problems or conditions not understood should be
reported to the dealer, distributor, service agent or the
manufacturer.

7
F232113
Specifications and Dimensions
Specification UM100 UM202
Overall Dimensions
Overall width, in. (mm)
Overall depth, in. (mm)
Overall height, in. (mm)
40 (1016)
29-1/2 (749)
40 (1016)
60 (1524)
29-1/2 (749)
40 (1016)
Weight & Shipping Information
Net weight, lb. (kg) 400 (181) 510 (232)
Wash Compartment Information
Width, in. (mm)
Length, in. (mm)
Depth, in. (mm)
Volume, cu. ft. (liter)
Dry weight capacity, lb. (kg)
20-1/4 (514)
22-1/4 (565)
11-3/4 (298)
2.74 (77.6)
12 (5.45)
20-1/4 (514)
22-1/4 (565)
11-3/4 (298)
2.74 (77.6)
12 (5.45)
Extractor Basket Information
Basket volume, cu. ft. (liter)
Basket diameter, in. (mm)
Basket depth, in. (mm)
Basket dry weight capacity, lb. (kg)
Perforation open area, %
1.09 (30.9)
16-1/16 (409)
9-1/4 (235)
12 (5.45)
1.5
1.09 (30.9)
16-1/16 (409)
9-1/4 (235)
12 (5.45)
1.5
Drive Train Information
Number of motors in drive train
Wash motor power, hp (kw)
Extract motor power, hp (kw)
1
1 x 0.33 (0.25)
1 x 1.0 (0.75)
2
2 x 0.33 (0.25)
1 x 1.0 (0.75)
Operating Speeds
Wash speed, reversals per minute
Extract speed, rpm
60
1725
60
1725
Drain Information
Drain connection size, in. (mm)
Number of drain outlets
Drain flow capacity, gallons (liters) per min.
Recommended drain pit size, cu. ft. (liter)
2 (50)
1
27 (101)
5.1 (145)
2 (50)
1
27 (101)
7.7 (219)
Water Supply Information
Water inlet connection size, in. (mm)
Number of water inlets (1 hot, 2 cold)
Inlet flow capacity, gallons (liters) per min.
3/4NH (G3/4)
3
26 (98)
3/4NH (G3/4)
3
26 (98)
Water Consumption
Average water consumption Hot
per cycle, gallons (liters) Cold
Average hot water consumption
per hour of operation, gallons (liters)
10 (38)
32 (121)
50 (189)
20 (76)
85 (322)
80 (303)
Power Consumption
Average power consumption per cycle, kW-hr
Average HVAC load, BTU/hr (kcal/hr)
0.15
140 (36)
0.25
200 (51)
Centrifugal Force Data
Extract centrifugal force, G’s678678

Specifications and Dimensions
F232113
8
Machine Capacity Dimensions, in. (mm)
Refer to Figure 1
UM100 UM202
A40 (1016) 60 (1524)
B24 (609.6) 24 (609.6)
C18-3/8 (466.7) 18-3/8 (466.7)
D17 (431.8) 17 (431.8)
E16-1/2 (419.1) 16-1/2 (419.1)
F29-1/2 (749.3) 29-1/2 (749.3)
G20-1/2 (520.7) 20-1/2 (520.7)
H40-1/2 (1028.7) 40 (1016)

Specifications and Dimensions
9
F232113
Figure 1
Y045I
1Faucet
2Agitator
3Extractor Basket
4Control Panel
Y045I
1
4
3
2
C
B
A
DE
A
H
G
F

Specifications and Dimensions
F232113
10
U149I
1Cold Water Inlets
2Electrical Connection
3Drain Outlet
4Hot Water Inlet
5(1) Hot Water and (1) Cold Water Inlets, Wash
6(1) Cold Water Inlet, Rinse
7Drain Outlet
Rear View Side View
6
4
5
1
UM202
1
3
2
Rear View Side View
5
6
7
4
UM100
Utility Connection Dimensions, in. (mm)
U148I
6-3/4 (171)
5-3/32 (129)
3-7/8 (98)
23-11/16
(602)
29-7/8
(759)
27-7/8
(708)
20-1/2
(521)
13-13/16
(351)
5-1/2
(140)
9-3/4
(248)
11 (279)
8-7/32
(209)
4 (102)
7
2
3
34-1/2
(876)
11 (279)
23-11/16
(602)
29-7/8
(759)
27-7/8
(708)
13-13/16
(351)
8-7/32
(209)
4 (102)
6-3/4 (171)
5-3/32 (129)
3-7/8 (98)
20-9/16
(522)
9-2/3
(248)

11
F232113
Installation
Dimensional Clearances

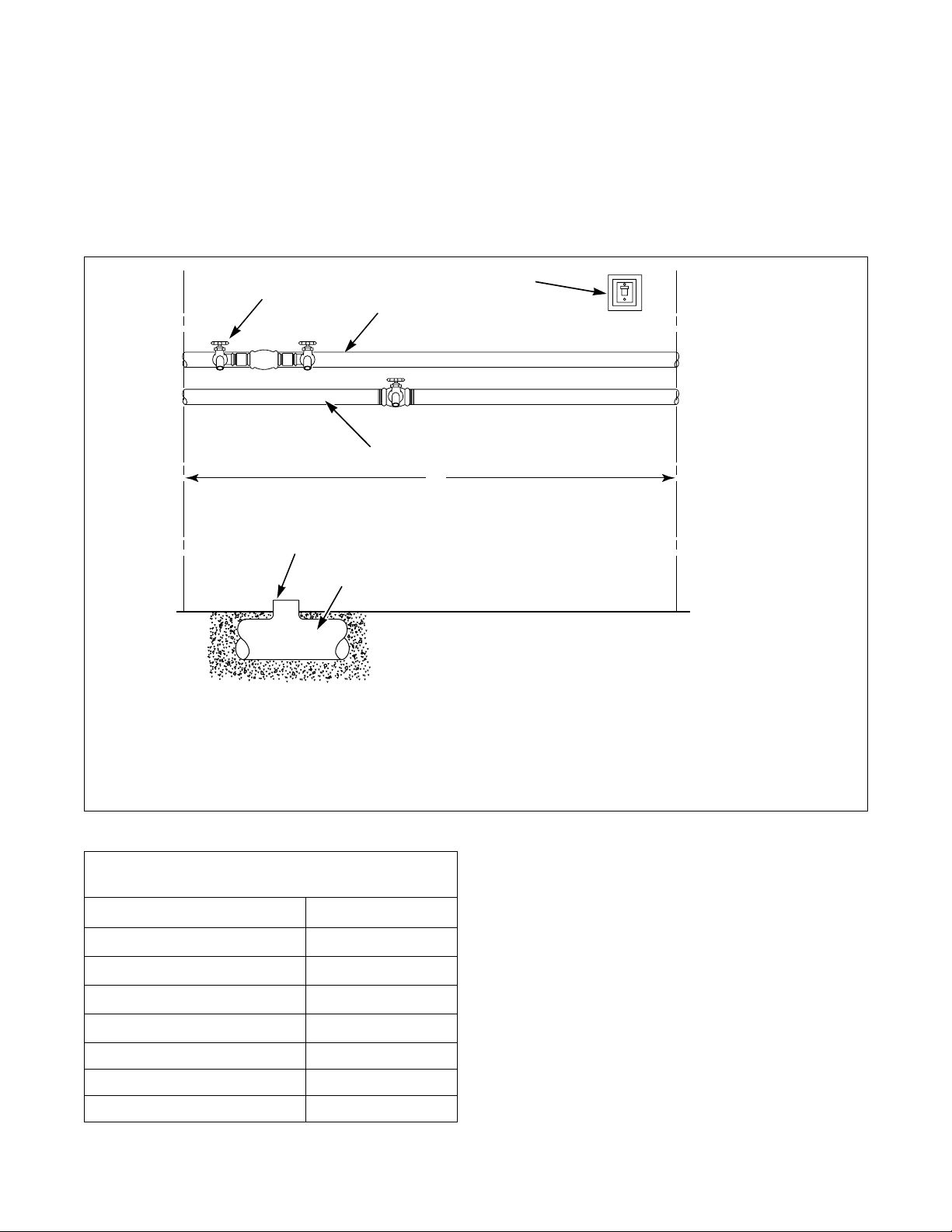

Refer to Figure 2 for recommended dimensional
clearances.
Figure 2
Machine Foundation
The machine may be placed on any level floor as long
as floor will hold the weight of the machine.
Position the machine and level with shims or grout
under the corners.
Refer to Table 1 for static loads on the floor.
Machine Anchoring
Bolting to floor is optional. To bolt down the machine,
use 3/8" bolt holes located on the frame at the bottom
of each corner. One quarter inch machine anchors
should be used.
U141I
6"
(152 mm)
1/2"
(13 mm)
6"
(152 mm)
40"
(1016 mm)
29-1/2"
(749 mm)
Floor Load Data
Specification UM100 UM202
Static floor load, lbs (kN) 643 (2.9) 840 (3.7)
Static pressure, lbs-ft2
(kN-m2)
78.5 (3.8) 68 (3.3)
Table 1

Installation
F232113
12
Electrical Installation
Input Voltage Requirements
The washer-extractor is designed for 4-wire, 208-240
Volt, 60 cycle, three-phase service. The control voltage
is 115 Volt.
If a delta supply system is used, the high leg must be
connected to the L3A lead at the J-box.
NOTE: Rotation of the extractor basket should be
clockwise as indicated by the arrow on the lid. To
change direction of extractor rotation, interchange
the L1A and L2A leads.
IMPORTANT: Improper connections will result in
equipment damage and will void the warranty.
Connection Specifications
IMPORTANT: Connection must be made by a
qualified electrician using wiring diagram provided
with machine.
Grounding
For personal safety and proper operation, the machine
must be grounded in accordance with state and local
codes. If such codes are not available, grounding must
conform with National Electric Code, article 250-95.
The ground connection must be to a proven earth
ground at the location service panel and/or to a
grounded metal cold water pipe.
Do not connect the ground to the neutral (white or
blue wire) leg at the J-box. If the machine is intended
for 4-wire service, neutral leg must be provided by
the power company. Do not connect the neutral leg to
the ground wire or green wire.
Use wire size indicated in Electrical Specifications
table for runs up to 50 feet. Use next larger size for
runs of 50 –100 feet. Use TWO sizes larger for runs
greater than 100 feet. This protects against voltage
drop which would result in a reduction of starting
torque.
Phase Adder
If three-phase service is not available and a Roto-
Phase or other phase adder is used, the artificial leg
must be connected to the L3A lead.
WARNING
Turn off power and water before attempting
any maintenance, repairs, or service, or
before opening any service panel or door.

Installation
13
F232113
IMPORTANT: Installation shall conform with local
codes or, in absence of local codes, with the
National Electric Code ANSI/NFPA No. 70-1981.
Overloaded or undersized lines, or any low voltage
condition will burn out motors and solenoid
windings.
Electrical Specifications
Voltage Designation Standard
Model Code Voltage Cycle Phase Wire Full Load
Amps Breaker AWG mm2
100/202
A 208-240 60 3 4 5 15 14 4 x 2.5
C 380-450 50 3 4 3 15 14 4 x 2.5
D 220-240 50 3 3 5 15 14 3 x 2.5
F 440-480 60 3 3 3 15 14 3 x 2.5
G 440 50 3 3 3 15 14 3 x 2.5
H 380 60 3 3 3 15 14 3 x 2.5
I 346 50 3 3 3 15 14 3 x 2.5
J 200 50 3 3 5 15 14 3 x 2.5
K 200 60 3 3 5 15 14 3 x 2.5
O 208-240 60 3 3 5 15 14 3 x 2.5
NOTE: Wire sizes shown are for copper, THHN, 90°conductor per NEC article 310.
WARNING
Without proper grounding, personal injury
from shock may occur and machine
malfunctions may be evident. Ensure that
a ground wire from a proper earth ground
is connected to the ground lug near the
input power block on this machine. SW008

Installation
F232113
14
Drain Connection
Figure 3 shows plumbing for UM machines.
A flexible connection must be made to a vented drain
system to prevent damage to rigid drain pipes. Drain
should be vented to ensure proper flow and prevent
siphoning. If proper drain size is not available or
practical, a surge tank is required. A surge tank along
with a sump pump should be used when gravity
drainage is not possible, such as in below-ground-level
installations.
Refer to General Specifications and Table 2 for drain
information.
Figure 3
Y043I
130 Amp –three-phase Circuit Breaker 540" Required for 100, 60" Required for 202
23/4" Water Outlet 62" min. Waste Line Tee
33/4" min. Cold Water Supply Line 74" min. Waste Line
43/4" min. Hot Water Supply Line
1
23
5
4
6
7
UM100/UM202
(Rear View)
Drain Line Sizing
Minimum Drain ID in. (mm)
Number of Machines 100/202
12(51)
23(76)
34(102)
44(102)
54(102)
64(102)
7 –10 6 (152)
Table 2

Installation
15
F232113
Water Connection
Refer to General Specifications for water supply
information.
Rigid pipe connections are not recommended.
Connections should be supplied by a hot and a cold
water line of at least the sizes shown in the Water
Supply Line Sizing table. Installation of additional
machines will require proportionately larger water
lines. Refer to Table 3.
To connect water service to machine with rubber
hoses, use the following procedure:
1. Before installing hoses, flush the water system
for at least two minutes.
2. Check filters in the machine’s inlet hoses for
proper fit and cleanliness before connecting.
3. Hang hoses in a large loop; do not allow them to
kink.
If additional hose lengths are needed, use flexible
hoses with screen filters.
Each hose is connected to a hot or cold water faucet
with a 3/4" hose bib.

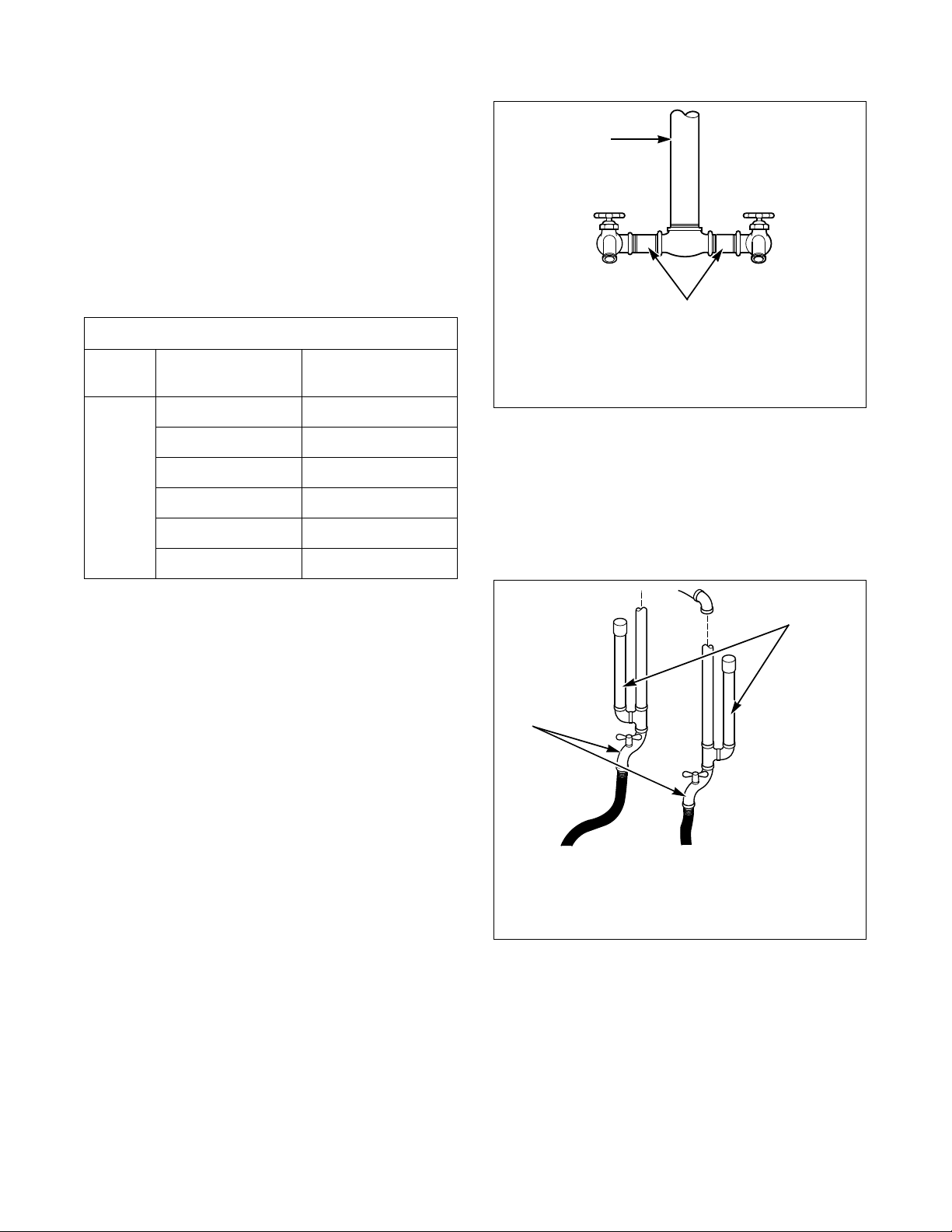

Install vacuum breakers and check valves when
required by local codes.
Figure 4
Install a screen filter in each hose to keep rust and
other foreign particles out of the solenoid valves.
Suitable air cushions should be installed in supply
lines to prevent “hammering”(Figure 5). If the water
pressure is above 60 psi, flexible copper tubing should
be used in place of the rubber hoses.
Figure 5
Water Supply Line Sizing
Model Number of
Machines Supply Line Size in. (mm)
100/202
13/4(19)
21(25)
3 1-1/4 (32)
4 1-1/2 (38)
5 1-1/2 (38)
6 –10 2 (50)
Table 3
Y041I
13/4" Cold Water Supply Line
21/2" Faucet Lines
Y042I
1Water Supply Faucets
2Risers (Air Cushions)
Y041IE3A
1
2
Y042I
2
1

Installation
F232113
16
Control Function Test
The machine should be cleaned after the installation is
complete. A function test should then be executed on
the unloaded machine:
1. Check the power supply for correct voltage,
phase, and cycles to be sure they are correct for
the machine.
2. Open manual shut-off valves to the machine.
3. Turn on electric power.
4. Check the lid interlock before starting operation:
a. Open the lid to the extract-rinse compartment.
b. Attempt to start the machine with the lid open.
The machine should not start with the lid
open.
c. Close the lid without locking it and attempt to
start the machine. The machine should not
start with the lid unlocked.
d. Close and lock the lid and start a cycle.
Attempt to open the lid while the cycle is in
progress. The lid should not open.
If the lid lock and interlock are not functioning
properly, call a service technician.
5. Run a complete cycle, checking operation of
water inlet valves, drain, and extract functions.
6. Check that cylinder rotation is clockwise in the
extract step. If rotation is not clockwise in the
extract step, disconnect power and have a
qualified electrician reverse lines L1 and L2 at
the J-box.

17
F232113
Operation
Control Panel

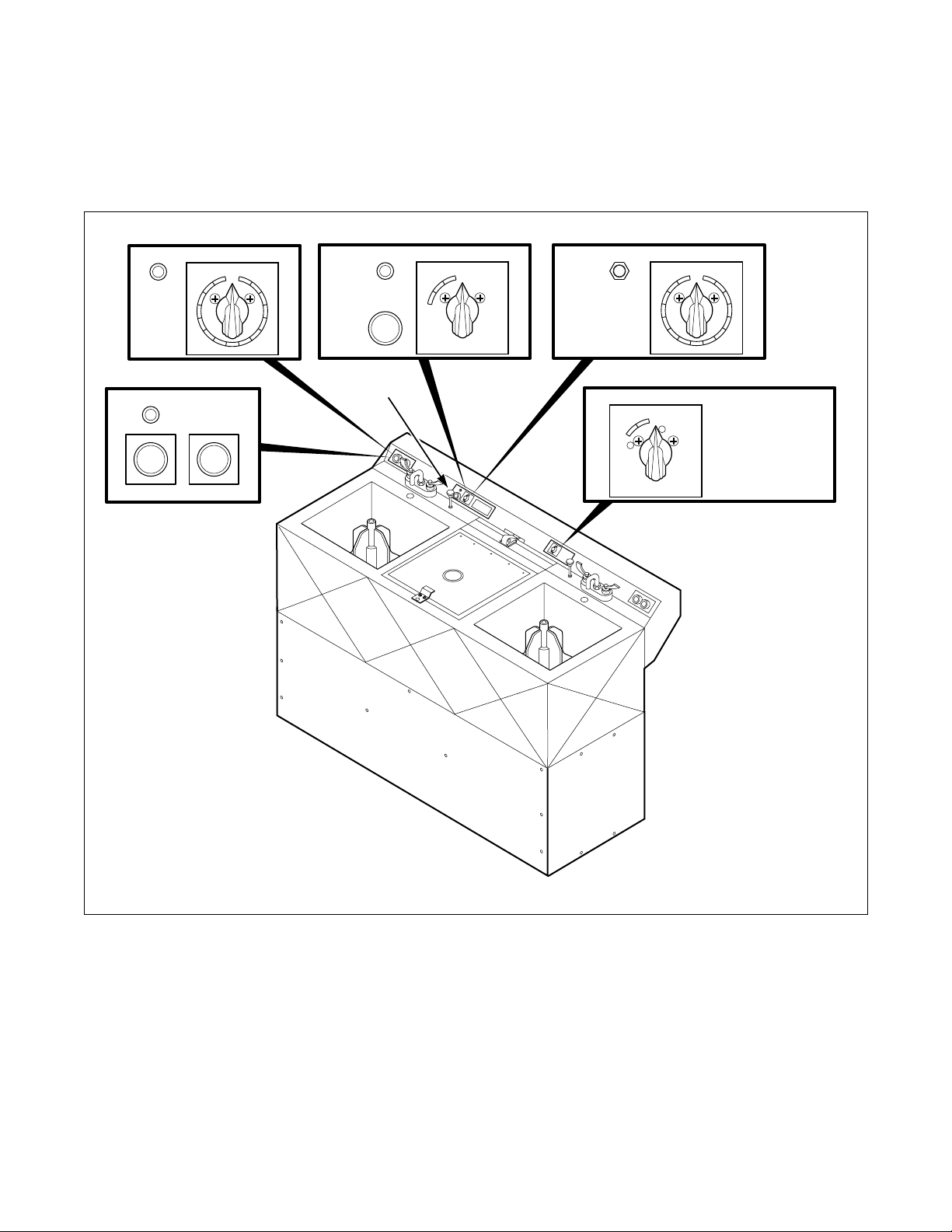

Figure 6 shows the control panel for both standard and
car wash top-loading machines.
Figure 6
The RUN indicator light indicates a wash cycle is in
progress.
The WA S H t i m e r (standard models) can be set to up
to 15 minutes for wash cycle times. Machine will start
automatically after timer is set.
The START and STOP buttons (car wash models)
allow the operator to start and stop wash cycle.
The LID LOCKED indicator light indicates when
the lid is properly closed on the extract-rinse
compartment.
After extract-rinse basket stops spinning, pressing the
LID RELEASE button unlocks the extract-rinse
compartment’s lid.
The EXTRACT and RINSE timers allow operator to
set the amount of time for extract and rinse cycles.
Machine will start automatically after timers are set.
U150I
U150I
1
2
0
OFF
LID LOCKED
LID RELEASE
EXTRACT
1
2
0
OFF
MINUTES
MINUTES
OFF
LID RELEASE EXTRACT
RINSE
15
1
2
3
4
6789
11
12
13
14
0
510
3
OFF
15
1
2
3
4
6789
11
12
13
14
0
510
RUN WASH
WASH
RUN
START STOP
Standard Car Wash Standard
Car Wash Drain

Operation
F232113
18
Operating Instructions

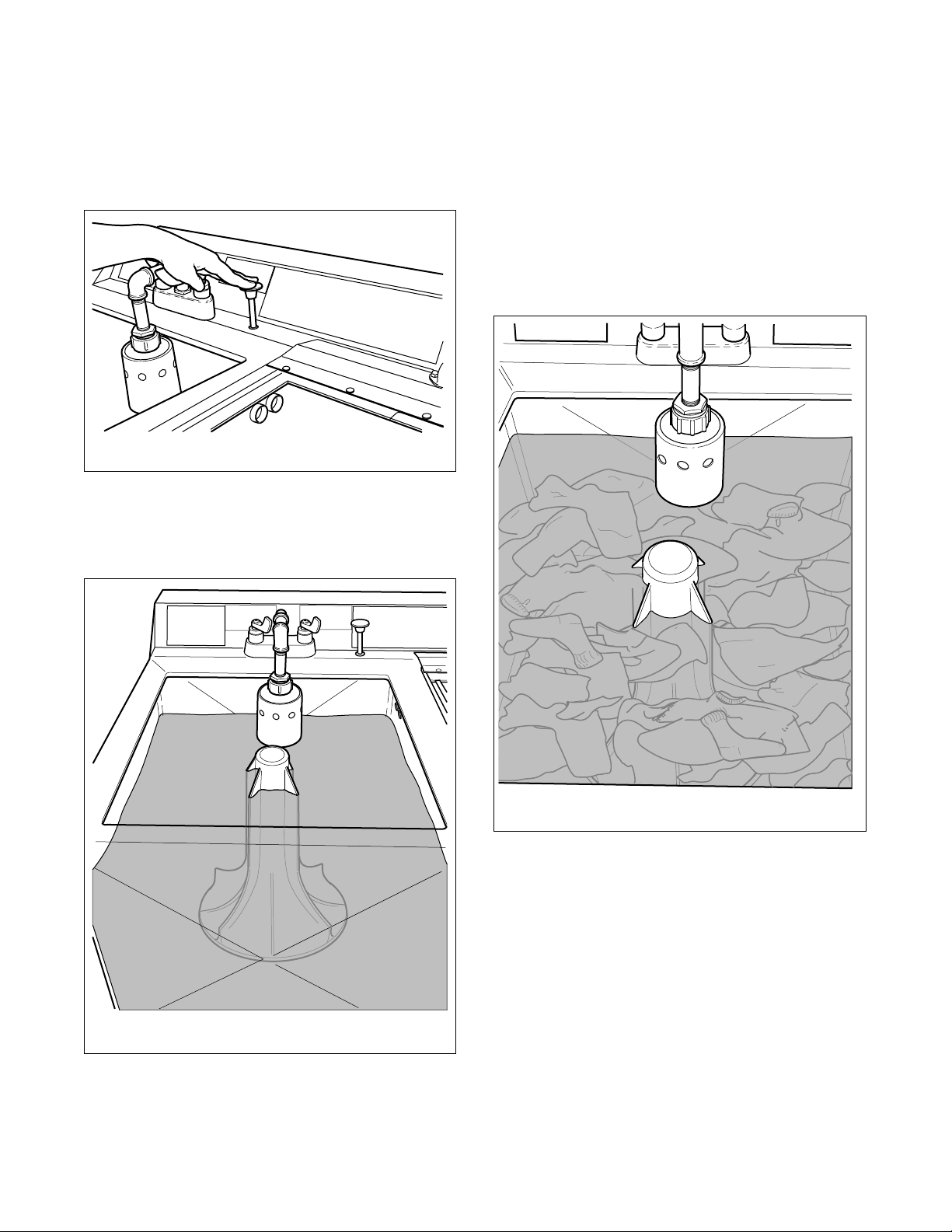

1. Turn on the main power source (circuit breaker).
2. Close drain of wash compartment to be used.
Refer to Figure 7.
Figure 7
3. Turn on hot and cold water faucets to desired
temperature and fill compartment to top of
agitator fins. Refer to Figure 8.
Figure 8
4. Add detergent and bleach, if desired, to water.
Use ONLY liquid bleach.
5. On standard models, set wash timer for 1/2
minute to allow detergent/bleach to mix
thoroughly with water.
On car wash models, press START button and
allow wash cycle to run until detergent/bleach is
mixed thoroughly with water (about 1/2 minute).
6. Place washables in compartment. Distribute
evenly around agitator. Refer to Figure 9.
Figure 9
NOTE: Place stringy items such as mop heads in
laundry net to prevent blockage of drains.
U142I
U143I
U144I
