Alogic Smartbox User manual

Charge and store up to 5 laptops and tablets
Notebook/Chromebook & Tablet
Charging Locker (5 Bays)
- Includes Digital Number Lock

Contents
The product is designed to allow you to easily store, secure, charge up to
5 devices per unit.
1. Product Specification .......................................................................... P.1
2. Introduction ......................................................................................... P.02
Package Contents .................................................................... P.02
Cabinet Diagram ...................................................................... P.02
Interior View .............................................................................. P.03
3. Quick Start Guide ................................................................................ P.03
4. Adminstration Software ....................................................................... P.05
4-1 For Windows OS User ....................................................................... P.05
4-2 For Mac OS User ............................................................................... P.09
5. Safety ………...................................................……..…………………... P.17

1. Product Specification
Cabinet Dimension
Product Spec
Capacity
Support Device
(H)109.22 x (W)325.12 x
(D)452.12mm
Laptop/Chromebook/Tablet
up to 17" sreen size
5 Bays
Compartment
Dimension
(H)574.04 x (W)444.5 x (D)482.6mm
Cart Dimension
(H)683.26 x (W)576.58 x
(D)619.76mm
Packaging
Dimension
Weight
Lock Type
C100~125V/9A,
AC200~240V/10A(50/60Hz)
USB DC5V/2.4A
Electronic type:
Digital Key Lock
Mechanical type:
3-Dial Lock
N.W: 21kg
G.W.: 26kg
Power
Specification
Support AU types AC power
outlet x 1pc
USB Charging Port x 1pcs (MAX
2 ports)
Australia/N.Z.: AS/NZS CISPR 22,
AS/NZS 60950-1
Charging Type
Regulation/
Certification
1
A pair of optional bracket kit must be ordered separately for
joining the lockers when they are being stacked on top of each
other. A daisy chain power cable is also included in the kit for
connecting the lockers. (Do not stack over 2 lockers in AC110V
environment or over 4 lockers in AC220V environment.
Optional Accessory
DAISY-CHAIN KIT
444.5mm
574.04
482.6mm
DAISY-CHAIN Power Cable
Bracket Kit

2. Package Contents
2
SB-CL05D x 1
Power cable x 1
User manual x 1
Package Contents
Cabinet Diagram
(Side View)
Interior View
(Rear View)(Front view)
One AC Port
One USB Port
(Max 2 USB Ports)

3. Quick Start Guide
3
Identification of LED Indicators
Code Status of Door Lock
Solid Red: Door is locked with code
Solid Green: Door is locked without code, press to open
Blink Green: Able to insert the code
Keypad Indicator
Red: lights when key buttons are pressed
Door indicator
Red: when door is closed
Green: when door is opened
USB charging indicator
Red: USB port is charging
Green: USB device is fully charged

4
How To Start Quickly
- Plug in the power cord
- Press to open the door
(code indicator will flash GREEN)
- Close door and insert 4 digital code when code indicator is ashing
(Re-press button if indicator becomes SOLID GREEN)
- Press button after the code is entered
- Ensure the code has been successfully entered and accessed . After this
the code indicator will turn Red.
- Insert the code as set by user then press button to open

4-1. Software Installation Guide
Double click “SingleLockerHostApp” to start the software installation
Press “Next” after the Setup Wizard pop up
Simply press “Install” to start the software installation, then Setup Wizard will come out with the
processing status of installation.
Installation is complete, press “Finish” to close the pop up window
Choose the target drive/folder to place
software then press “Next” to go to next stage
a. Software about administration platform
(For Windows OS only)
5

6
Before you start to use this administration platform, please make sure your “SingleLockerHostApp”
has been successfully installed on your laptop or refer to “Software Installation Guide” and
“SingleLockerHostApp” we have provided.
Please use a Micro USB cable to connect your computer with the charging locker. The Micro USB
port on the charging locker is placed at left bottom corner next to the keypad.
Double click the shortcut of “KeyLockerUSBHostApp” on windows desktop. Software will run
automatically.
After software opens, you will see the administration
platform on the right.
b. Administration User Guide
Operation guidance for administrator
(For Windows OS only)

Administrator Guidance
Unlock by administrator
Unlock & Reset by administrator
Select 1st option (Inspect,
Unlock Door Only (User Password Reserved)) »
Insert “Inspect Code” »Press “RUN” to proceed.
Door will open after “Successful” message pop up.
Tip: Default Inspect Code is 12345678
Select 2nd option (Reset,
Empty User Password And Reset Status To
Available) »Insert “Reset Code” » Press “RUN” to
proceed.
Door will open after “Successful” message pops
up, user’s personal code will be deleted and the
device will be reset to the default settings. (Doors
will open by pressing unlock button in default
setting)
Tip: Default Reset Code is 12345678
Allows you to open the locker and delete/reset the code that was set by the user to
default.
Unlock the door without user’s personal code
7

Inspect Code Set up by administrator
8
Select 3rd option (Set Inspect Code (MaxLen: 8,
Default: 12345678)) » Insert “Current Inspect
Code” » Insert “New Inspect Code” and “Confirm
Inspect Code” » Press “RUN” to proceed.
“Successful!” message will pop up after the code
has been configured successfully. Notice! You
may not set more than 8 digits for the code.
Tip: Default Inspect Code is 12345678
Select 4th option (Set Reset Code (MaxLen: 8,
Default: 12345678)) » Insert “Current Reset Code”
» Insert “New Reset Code” and “Confirm Reset
Code” » Press “RUN” to proceed.
“Successful!” message will pop up after the code
has been configured successfully. Notice! You
may not set more than 8 digits for the code.
Tip: Default Inspect Code is 12345678. It’s an
important code to reset code back to default
setting (refer to 2nd function option), suggest
administrator to take a note to avoid code missing.
Setting your own Inspect Code for confidentiality concern
Reset Code Set up by administrator
Setting your own Reset Code for confidentiality concern

4-2. For Mac OS Version
Before you start to use the Administration App
(Application)and work with your locker, you
will need to install the App on your mac.
a.Application Installation Guide
LockerAdmin
1. Open your Finder and go to the location where you saved the App file we have provided.
Tips: The file is named as (LockerAdmin).
How to install App
9

10

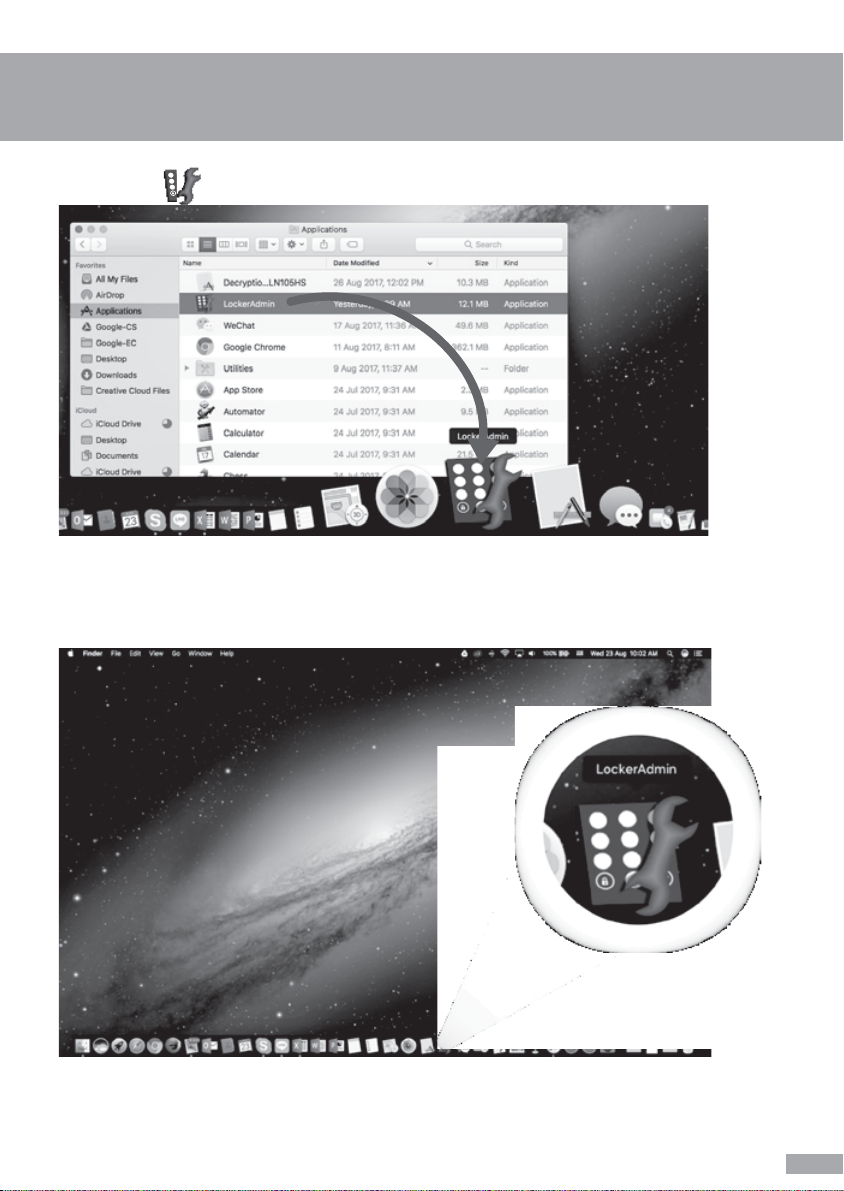

2. Open another New Finder Window (right click on Finder icon) then go to Application
Window.
3. After you have opened above two Finder Windows, you have to copy “ LockerAdmin”
then past to anywhere inside the “Application Window”.

4. Dropping “ LockerAdmin” into Dock as a short cut to open the application.
Your administration application has been installed successfully into your Mac, you are now
able to manage each compartment of your locker.
11

12
How To use the App
We suggest the App should be treated as a confidential
program and never be disclosed to any third party or
end-user. It will be more convenient for administrator to
manage lockers by using this specific App.
LockerAdmin
Please always remember to OPEN LockerAdmin before you connect your Mac to target compartment.
Administration Window will pop up after you OPEN LockerAdmin from Dock, then connect your Mac to
the target compartment. App will detect the connection status and indicate the USB connection status in
the status window automatically. Meanwhile, you need to check and ensure the “Bootload Ver.: XXXX”
has been detected and shown on the left bottom of the window. (See figure 1)
NOTICE! App is unable to run if “Bootload Ver.” is undetected, please confirm you are using correct USB
Cable (not only for power but also for data) and is connected properly. Or try to reconnect the USB
Cable.
IMPORTANT!

Function Options
Allows administrator to unlock and open each
compartment without user’s own code.
Door Unlock Only
This function is usually in use when users forget the
personal code they had set. This function allows
administrator to unlock the door and clear the code
which was set by the user.
Door Unlock and Code Clearing
Inspection Password is mainly used for Door Unlock Only function and starts with the default
password setting before you change it. Administrators are allowed to set their own Inspection
Password, but if the password is forgotten, you will need to reset all your passwords back to
the default setting. (See what to do if you forget INSPECTION/RESET Password)
Inspection Password Setting
(Max.: 8 Digits)
Reset Password is mainly used for Door Unlock and Code Clearing function and starts with
the default password setting before you change it. Administrators are allowed to set their own
Reset Password, but if the password is forgotten, you will need to reset all your passwords
back to the default setting. (See what to do if you forgot INSPECTION/RESET Password)
Reset Password Setting
(Max.: 8 Digits)
13

- Door Unlock Only
Select Door Unlock Only from Function
Option, insert Inspection Password then
press RUN to proceed with this function.
Tips: Default Inspection Password: 12345678
- (See figure 2)
- Door Unlock & Code Clearing
Select Door Unlock and Code Clearing
from Function Option, Insert Reset
Password then press RUN to proceed with
this function.
Tips: Default Reset Password: 12345678
- (See figure 3)
- INSPECTION Password Setting
Select Inspection Password Setting (Max.: 8 Digits) from
Function Option, Insert Current Inspection Password (start
with default), New Inspection Password and Confirm
Inspection Password then press RUN to proceed with the
change.
Tips: For strict security concerns, we recommend
administrators to set their own Inspection Password from the
beginning (before users start to use).
- (Max.: 8 Digits)(See figure 4)
- Reset Password Setting
Select Reset Password Setting (Max.: 8 Digits) from Function
Option, Insert Current Reset Password (start with default),
New Reset Password and Confirm Reset Password then
press RUN to proceed with the change.
Tips: For strict security concerns, we recommend
administrators to set their own Reset Password from the
beginning (before users start to use).
- (Max.: 8 Digits)(See figure 5)
14

What to do if you forget INSPECTION/RESET Password
If you unfortunately forget the password you have set, you can follow the below steps to reset your
password back to factory settings.
15

1. Select Reset Password Setting (Max.: 8 Digits).
2. Insert HOW DO into Current Reset Password column.
(The words you insert has to be in capital letter with space between words)
3. Insert YOU TURN into New Reset Password column.
(The words you insert has to be in capital letter with space between words)
4. Insert THIS ON into Confirm Reset Password column.
(The words you insert has to be in capital letter with space between words)
5. Press RUN to continue the progress.(See figure 6)
6. A set of MAC Address will be generated after you press RUN, please provide
this MAC Address set to your vendor contact person. (See figure 7)
7. Vendor will provide three sets of password to you and you will need to insert
separately into Current Reset Password, New Reset Password and Confirm
Reset Password.
8. Press Factory Reset to complete the procedure.
(All passwords will back to default setting including Inspection Password)
NOTICE!
1. This process will erase all the passwords and set them back to factory setting.
2. Ensure the passwords are inserted correctly.
3. Ensure to proceed within one day after your vendor has provided three sets
of password.
16

17
4. Safety
This product must only be used for its intended purpose in accordance with these operating
instructions. Failure to observe the following notices can result in fire, injury, death by
electric shock or equipment damage.
．Always turn OFF the power to the product before plugging IN or OUT.
．Do not unplug the power cord from the outlet when your hands are wet.
．Do not use cables that are damaged.
．Do not unplug by pulling on the cable.
．Do not plug the cable into an extension cable.
．Keep the door closed and locked when in use.
．This product is designed to be used indoors only.
．This product is not designed to be operated by a child or student.
．Please move this product only under adult operation and supervision.
．Do not allow anyone to set, stand, or climb on the product.
．Move the product with caution.
．Keep the product away from water.
．Keep the ventilation holes unblocked for air circulation.
．Do not place TV or monitor on top of the product.
．Do not use the product to store liquids or cleaning supplies.
．Keep the door closed and locked when in use.
．Disconnect the power cable from the wall before relocate the main unit.
WARNING:
ELECTRIC SHOCK
Operate Carefully

© ALOGIC. All rights reserved. Reproduction in whole or in part without permission is
prohibited. All other trademarks are the properties of their owners. Tested to comply
with FCC and CE Standards.
HOME OR OFFICE USE.
Alogic is the trademark of Alogic Corporation
