Alpha Professional Tools Ecocutter ECC-125 User manual

Part No: ECC-125
ECC-STAND
ECC-TABLE
103 Bauer Drive, Oakland, NJ 07436 • 800-648-7229 • Fax: [phone]
www.alpha-tools.com
Alpha®Ecocutter
Dry Tile Cutting System
Instruction Manual
MANUAL
Version 5

2
TABLE OF CONTENTS
Introduction................................................................................................................ 3
About the Symbols............................................................................................... 3
Safety Instructions ............................................................................................... 3
Ecocutter Stand......................................................................................................... 6
Components.......................................................................................................... 6
Assembly of Ecocutter Stand.............................................................................. 7
Caster Installation................................................................................................. 8
Ecocutter Stand Schematic and Parts List ........................................................... 10
Ecocutter Table........................................................................................................ 12
Components........................................................................................................ 12
Instructions on Removing Ecocutter Table from Box..................................... 13
Instructions on Handling Ecocutter Table........................................................ 14
Recommended Method ...................................................................................... 15
Assembling Table to Stand................................................................................ 17
Installation of the Hose Holder to the Saw Base ............................................. 20
Installation of the Angle and Rip Guide............................................................ 22
Ecocutter Table Schematic..................................................................................... 24
Ecocutter Table Parts List ...................................................................................... 25
Installation of Ecocutter to Saw Base ................................................................... 26
Stabilizer................................................................................................................... 28
Blade Height Adjustment........................................................................................ 29
Table Side Extension Support................................................................................ 32
Ecocutter Dust Hose and Bag Installation............................................................ 33
Ecocutter Schematic............................................................................................... 36
Ecocutter Parts List................................................................................................. 37

3
INTRODUCTION
Thank you for purchasing theAlpha®Ecocutter Dry Tile Cutting System. Please read this
instructionmanual thoroughly to ensure safe andcorrect use of theEcocutter Dry TileCut-
ting System. Keep this manual in a place where operators can access it easily whenever
necessary.
ABOUT THE SYMBOLS
According to the hazard level, all safety notes in this manual are classied into “DANGER”,
“WARNING”, and “CAUTION”.
DANGER! Death or serious personal injury is imminent when handling this
stone cutter incorrectly.
WARNING! There is a possibility of death or serious personal injury when
handling this stone cutter incorrectly.
CAUTION! Thereis apossibilityofpersonalinjury or propertydamagewhen
handling this stone cutter incorrectly.
Note: In some situations, failing to observe WARNING notes could result in death or
serious personal injury. Be sure to read and observe the safety notes to ensure
safe and correct use of the stone cutter.
CAUTION!
The following are important notes for products, operation, and maintenance applicable to
this stone cutter.
SAFETY INSTRUCTIONS
Read all these instructions before attempting to operate this product.
WARNING!
When using electric tools, basic safety precautions should always be followed to reduce the
risk of re, electric shock, and personal injury, including the following.

4
For Safe Operation
1. Keep work area clean
Cluttered areas and benches invite injuries.
2. Consider work area environment
Do not expose power tools to rain. Do not use power tools in damp or wet locations
without GFCI protection. Keep work areas well lit. Do not use the tool in presence of
ammable liquids or gases.
3. Guard against electric shock
Prevent body contact with grounded surfaces. For example: pipes, radiators, ranges,
and refrigerator enclosures; use grounded outlets.
4. Keep children and visitors away
Do not let visitors contact tool or extension cord. All visitors should be kept away from
work area. Keep out of reach of children.
5. Tool Storage
When not in use, tools should be stored in a secure dry location. A locked storage area
or high shelf out of children’s reach is ideal.
6. Do not force the tool
It will do the job better and be safer at the rate for which it was intended.
7. Use the right tool
Do not force a small tool or attachment to do the job of a heavy-duty tool. Do not use
the tool for purposes it is not designed for – (for example – do not use stone cutter for
cutting tree limbs or logs.)
8. Dress properly
Do not wear loose clothing or jewelry. Items such as these can be caught in moving
parts. Rubberglovesandnon-skidfootweararerecommendedwhenworkingoutdoors.
Wear protective hair covering to contain long hair.
9. Use safety equipment
Always wear safety glasses and if necessary, a face shield, dust mask and hearing
protection.
10. Do not abuse the electrical cord
Never carrythe toolby theelectrical cordor pullit todisconnect fromreceptacle. Keep
the electrical cord away from heat, oil and sharp edges.
11. Secure workpiece
Use clamps or a vise to hold workpiece rather than using your hands.
12. Do not overreach
Keep proper footing and balance at all times.
13. Maintain tools with care
Keep tools sharp and clean for better and safer performance. Follow instructions for
lubricating and changing accessories. Inspect the electrical cord periodically and
if damaged, have it repaired by authorized service facility. Inspect extension cords
periodically and replace if damaged. Keep handles dry, clean and free from oil and
grease.

5
14. Disconnect tools
Disconnectthetoolfromthepowersupplywhennotinuse,beforeservicing,andwhen
changing accessories, such as blades, bits, cutters.
15. Remove adjusting keys and wrenches
Check to see that keys and adjusting wrenches are removed from the tool before
turning it on.
16. Avoid unintentional starting
Do not carry a plugged-in tool with nger on switch. Be sure the switch is off when
plugging in.
17. Outdoor use extension cords
When tool is used outdoors, use only extension cords intended for use outdoors and
so marked.
18. Stay alert
Use caution and do not operate tool when you are tired or on medication.
19. Check for damaged parts
Beforeusingthetooleachday,aguardorotherpartthatisdamagedshouldbecarefully
checked to determine that it will operate properly and perform its intended function.
Check for alignment of moving parts, breakage of parts, mounting, and any other
conditions that may affect its operation.A guard or other part that is damaged should
be properly repaired or replaced by an authorized service center unless otherwise
indicated elsewhere in this instruction manual. Have defective switches replaced by
authorized service center. Do not use the tool if it cannot be turned on and off by the
switch.
20. Warning
The use of any other accessory or attachment other than recommended in this
instruction manualor the catalogmay present arisk of personalinjury and couldvoid
the warranty.
21. Only qualied technicians should repair this tool
This electric tool is manufactured in accordance with the standard safety rules. Only
experts may carry out the repair of electric tools; otherwise, it may cause considerable
danger for the operator.

6
ALPHA® ECOCUTTER STAND (ECC-STAND)
COMPONENTS:
1. 2 Bolts and Hardware (for folding leg assembly) (Part No. 200026)
2. 8 Bolts and Hardware (for casters)
3. 2 Locking Casters
4. 2 Legs (Front Saw Stand, Part No. 200020 — Rear Saw Stand, Part No. 200021)
5. 2 Wing Screws (Part No. 200024)
After removalof allcutting table basecomponents frompacking, check foreach itemlisted
below:





Figure-1
(Part No. 200022)

7
ASSEMBLY OF ECOCUTTER STAND
The following tools will be needed to assemble this base section of the cutting table for
the Ecocutter.
2 - 14mm wrenches
1 - 11mm wrench
1 - 10mm wrench
1. Position the two legs to create a scissor
conguration as shown in Figure 2.
Figure-2
2. Turn assembly on its side and align the
holes located at the center of each leg.
Insert one of the two large bolts (Part No.
200026) using a at washer on each side
followed by the nylon insert lock nut as
shown in Figure 3 and Figure 4.
Figure-3
Nylon Lock Nut
Figure-4

8
3. Tighten bolts until a slight gap remains
between the two legs. See Figure 5 and
Figure 6.
4. Legs mustmove freelyin ascissor motion
(See Figure 6). Note: an over tightened
condition will cause binding of the legs.
Figure-5
Figure-6
Air Gap

9
CASTER INSTALLATION

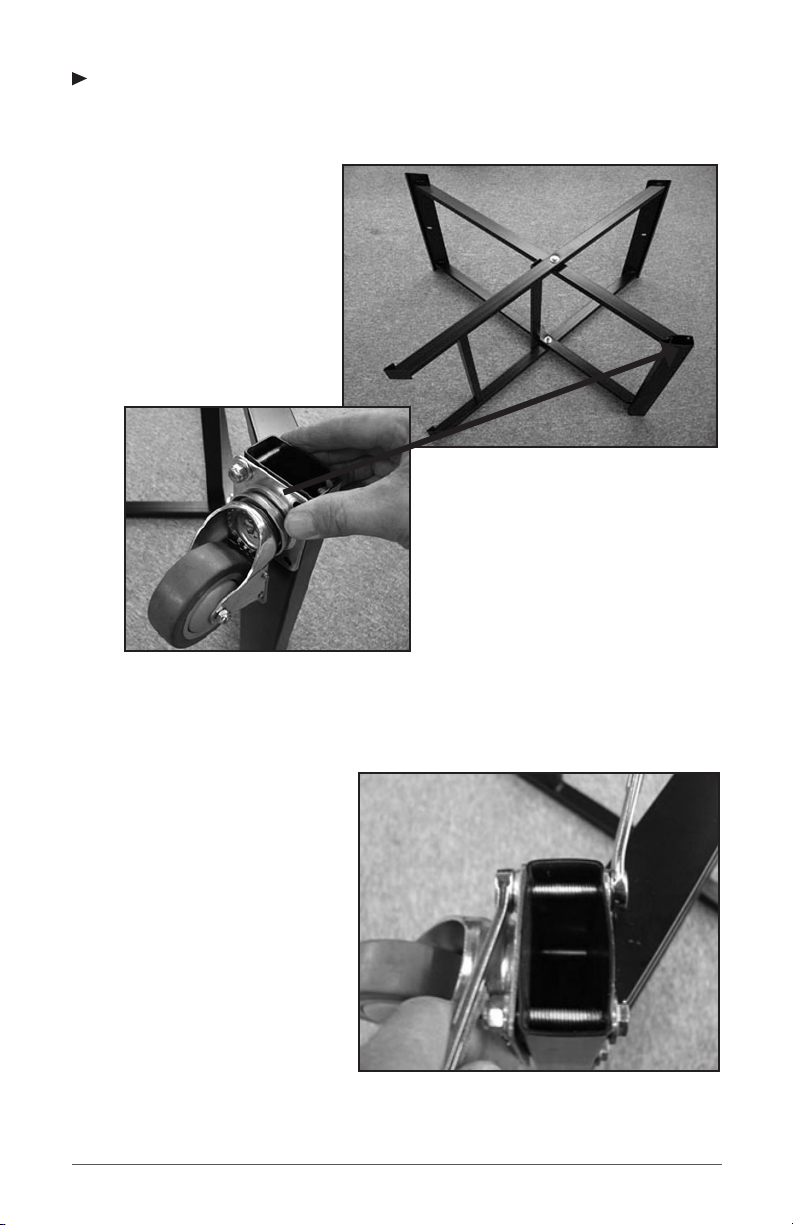

1. Place and align caster mounting plate with mounting holes on base
of stand leg as shown in Figure 7 and Figure 8.
2. Insert the four bolts for the
casters with washers on each
side and lock nut as shown in
Figure 9.
3. Tighten until snug.
Figure-7
Figure-8
Figure-9

10
5. See Figure 11 for complete assembled
base stand in the opened position.
6. See Figure 12 for complete assembled
base stand in the folded position used
for transport.
4. Repeat process for second caster as
shown in Figure 10.
Figure-10
Figure-11
Figure-12

11

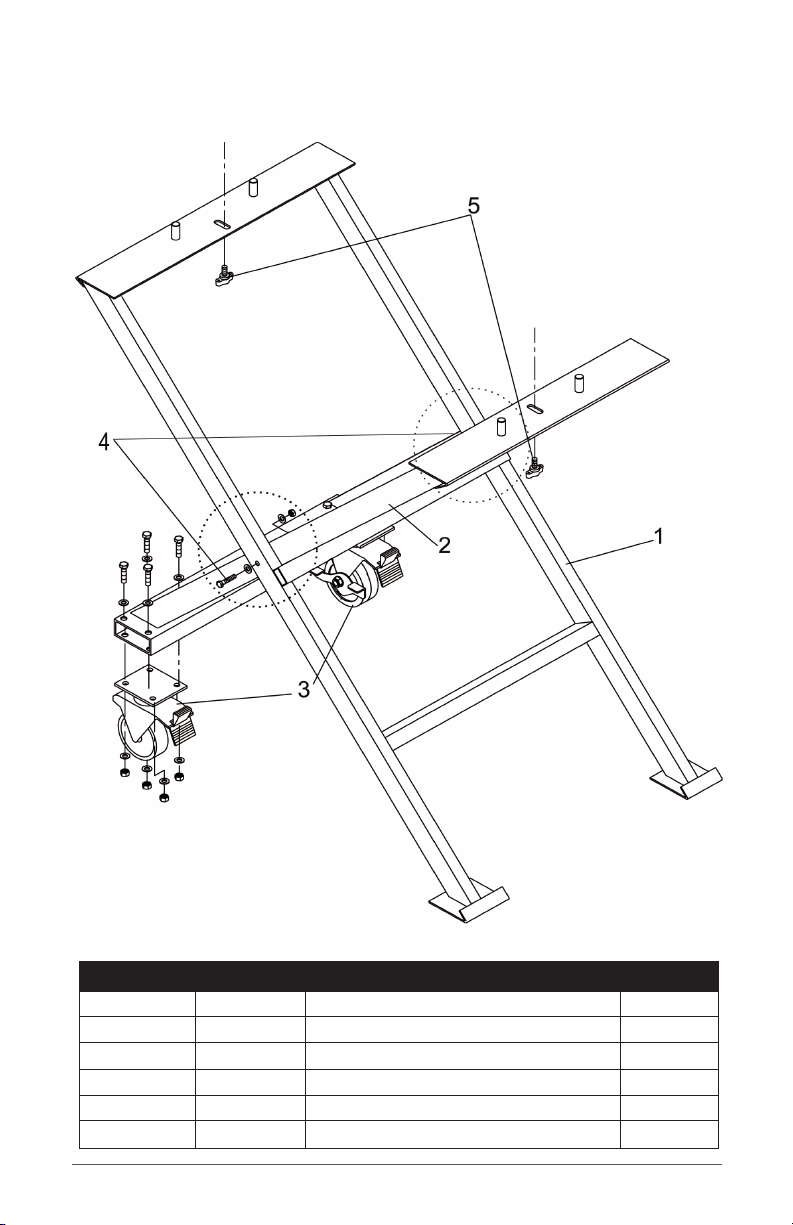

ALPHA® ECOCUTTER STAND SCHEMATIC (ECC-STAND)
DRAWING NO. PART NO. DESCRIPTION QUANTITY
1 200020 Front Saw Stand 1
2 200021 Rear Saw Stand 1
3 200022 Wheel/Brake Assembly 1
4 200026 Saw Stand Screw Set 1
5 200024 Wing Screw (2 pc set) 1
—200023 Saw Stand Assembly ALL

12




ALPHA® ECOCUTTER TABLE (ECC-TABLE)
After removal of all cutting table components from packing, check for each item listed
below:
COMPONENTS:
1. Assembled Table (Part No. 200013)
2. Angle Guide Assembly (Part No. 200018)
3. Rip Guide Assembly (Part No. 200017)
4. Hose Holder Assembly (Part No. 200001)
5. Universal Wrench (Part No. 200019)
6. Brush (Part No. 200025)

Figure-13
CAUTION!
WHEN REMOVING ECOCUTTER TABLE FROM CARTON,
DO NOT LIFT BY RAIL TUBE. ALWAYS USE SIDE HANDLE.
See page 13 for details.


13
INSTRUCTIONS ON REMOVING THE ECOCUTTER TABLE FROM BOX

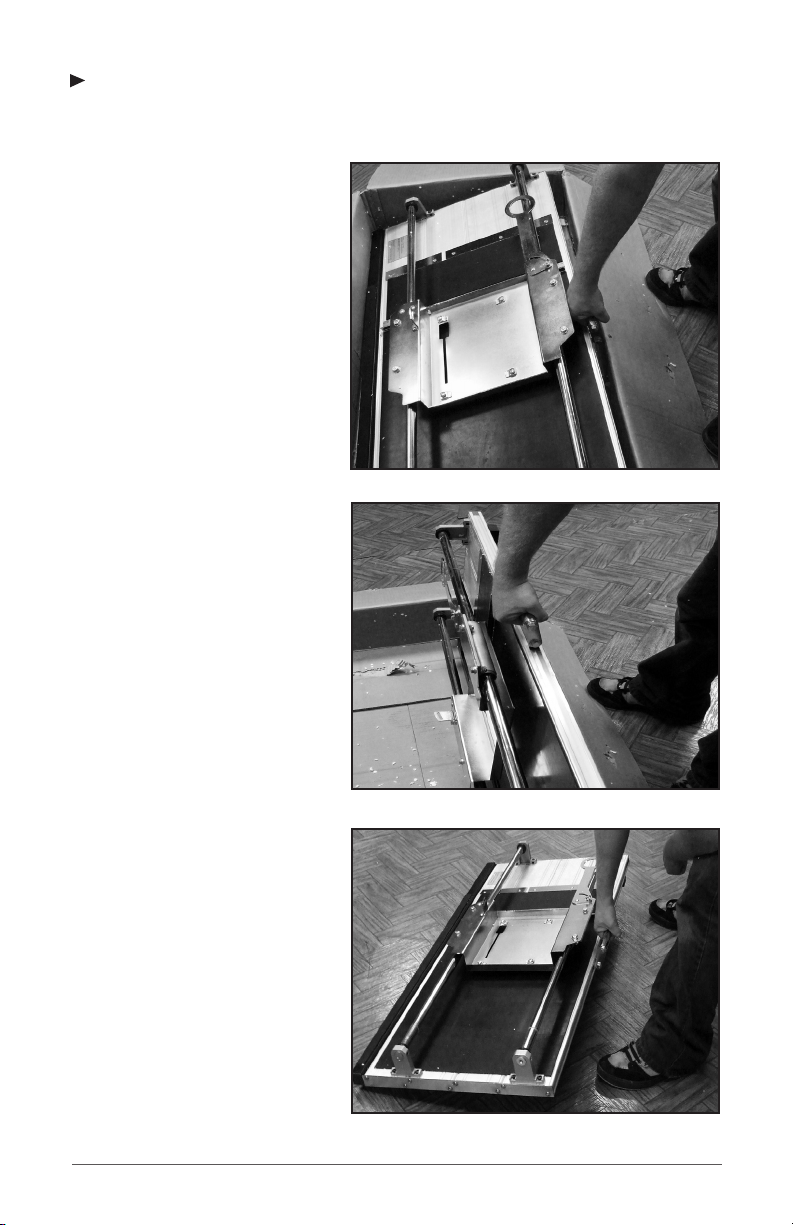

Step 1.
Step 2.
Figure-14
Figure-15
Figure-16
Step 3.
RECOMMENDED METHOD

14

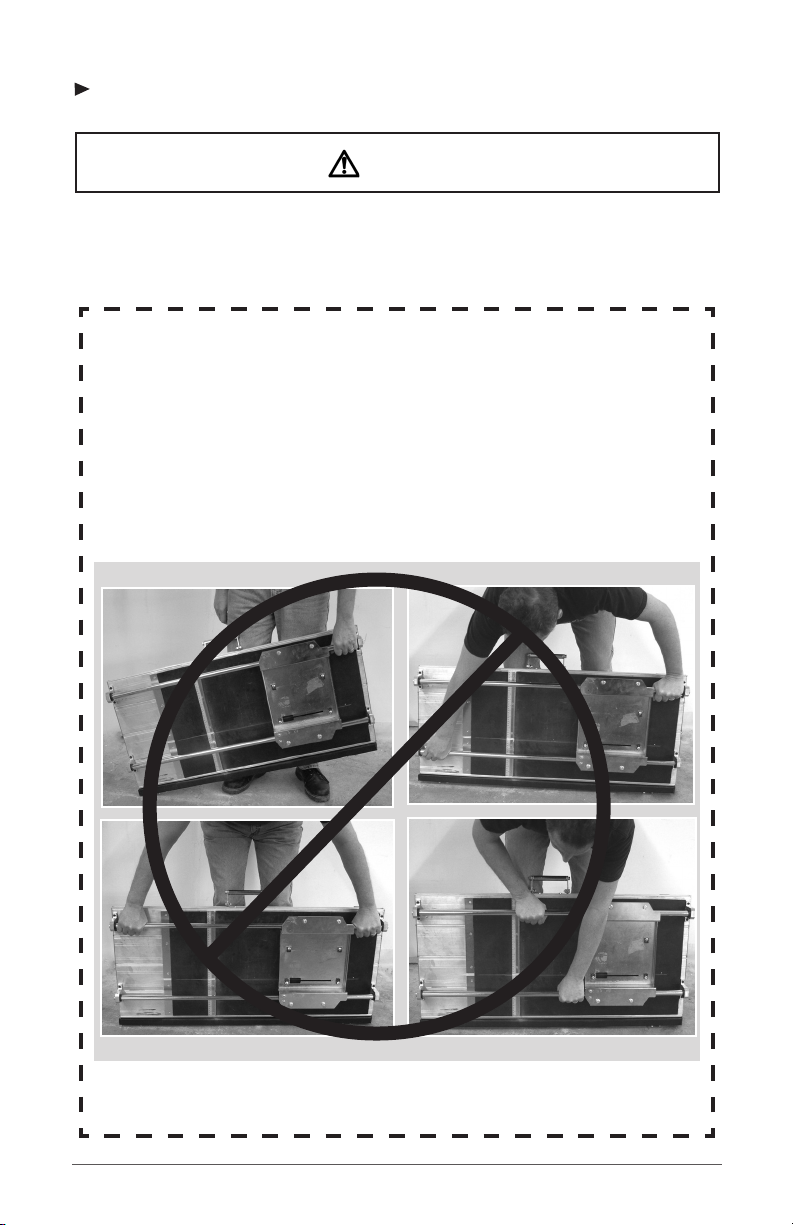

CAUTION!
NON-RECOMMENDED METHODS
Please note the following illustrations carefully before assembling table to stand.
DO NOT LIFT TABLE BY RAIL TUBE.
TABLE WILL BE DAMAGED
IF HANDLED IMPROPERLY.
INSTRUCTIONS ON HANDLING THE ECOCUTTER TABLE
Figure-17

15
RECOMMENDED METHOD
Step 1.
Step 2.
Figure-18
Figure-19

16
Step 3.
Step 4.
RECOMMENDED METHOD
Figure-20
Figure-21

17
ASSEMBLING TABLE TO STAND

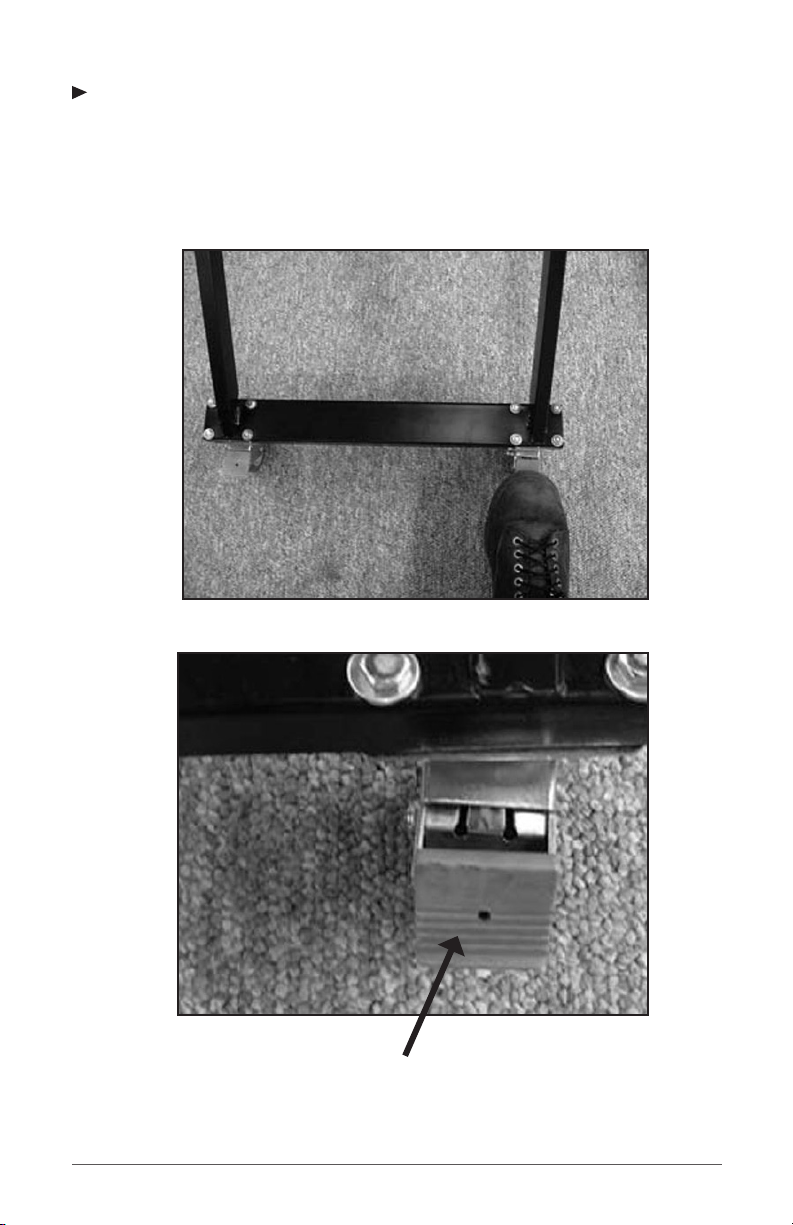

1. Place stand in open position.
Set caster wheel locks to the locked position by pressing latch down as shown in Figure
22 and Figure 23.
Figure-22
Locked Position
Figure-23

18
Wing Screw Clearance Hole
Location Pins
Stand
Figure-26
2. Pick up table by sides and place on stand.
Figure-24 Figure-25
* Follow the recommended steps on pages 15 and 16

19
3. After placement of the table onto the
stand, adjust table so the side extension
support slider tube ts outside of the
location pins of both sides of the stand
as shown in Figure 27.
Figure-27
Location Pins
Side Extension Support Slider Tube
4. Alignwingscrewclearanceholewith
threadedholeoftablecrosssupport.
(See Figure 28).
5. Insert and tighten wing screw to a hand
tight condition as shown in Figure 29.
6. Repeat process for opposite side to
complete the stand assembly.
Figure-28
Figure-29

20

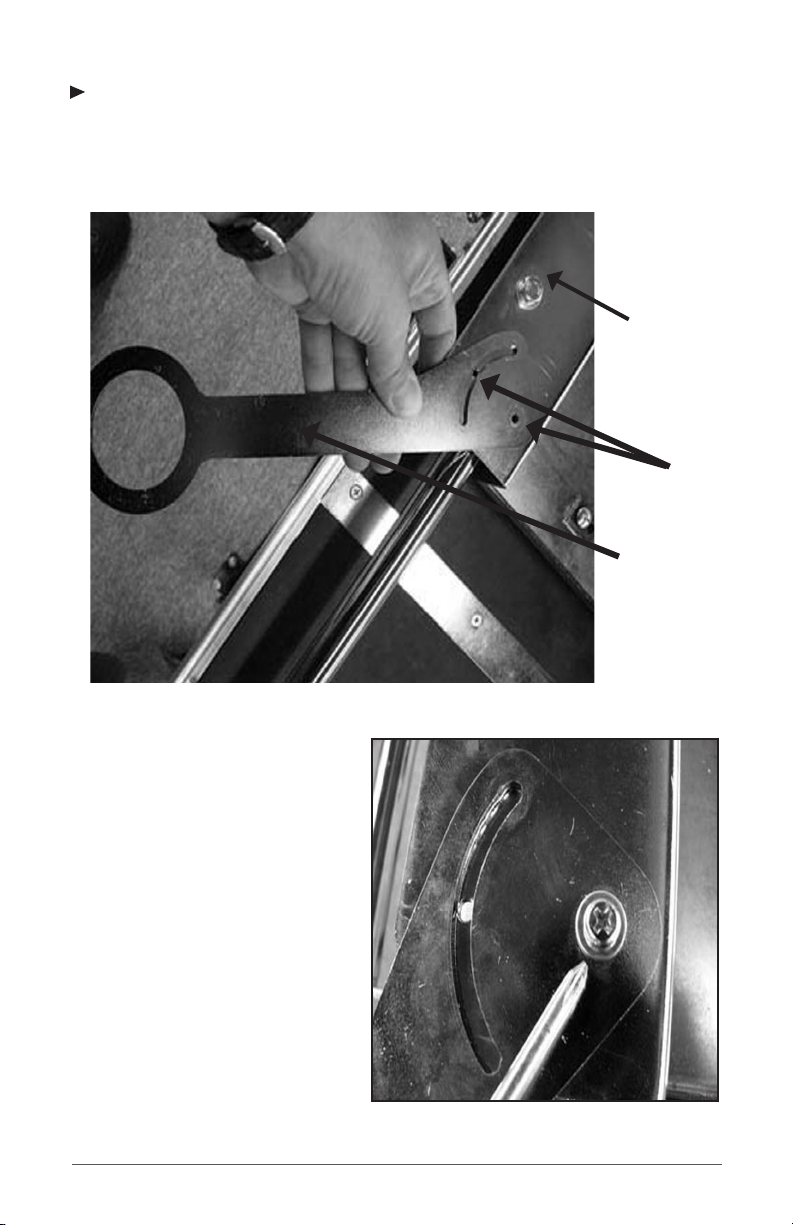

INSTALLATION OF THE HOSE HOLDER TO THE SAW BASE
1. Position and align the hose holder to the saw base as shown in Figure 30, making note
of the threaded hole locations.
Saw Base
Threaded Holes
Hose Holder
Figure-30
Figure-31
2. Install supplied phillips screw
and washer and hand tighten
with screw driver as shown in
Figure 31.
