Alpha APP 9005C User manual

APP 9005C Service Power Supply
Installation and Operation Manual
E󰀨ective: August 2019
O 2
4
6
8
10
A
~
CLASS 2.5
DH-50

Safety Notes
Alpha considers customer safety and satisfaction its most important priority. To reduce the risk of
injury or death and to ensure continual safe operation of this product, certain information is presented
di󰀨erently in this manual. Alpha tries to adhere to ANSI Z535 and encourages special attention and
care to information presented in the following manner:
There may be multiple warnings associated with the call out. Example:
ATTENTION provides specic regulatory/code requirements that may a󰀨ect the placement of
equipment and /or installation procedures.
ATTENTION:
NOTICE provides additional information to help complete a specic task or procedure.
NOTICE:
ELECTRICAL HAZARD WARNING provides electrical safety information to PREVENT
INJURY OR DEATH to the technician or user.
WARNING! ELECTRICAL HAZARD
FUMES HAZARD WARNING provides fumes safety information to PREVENT INJURY OR
DEATH to the technician or user.
WARNING! FUMES HAZARD
FIRE HAZARD WARNING provides ammability safety information to PREVENT INJURY OR
DEATH to the technician or user.
WARNING! FIRE HAZARD
This WARNING provides safety information for both Electrical AND Fire Hazards.
WARNING! ELECTRICAL & FIRE HAZARD
CAUTION provides safety information intended to PREVENT DAMAGE to material or
equipment.
CAUTION!
GENERAL HAZARD WARNING provides safety information to PREVENT INJURY OR
DEATH to the technician or user.
WARNING! GENERAL HAZARD

3016-562-B0-001, Rev. A (08/2019)
APP 9005C Service Power Supply
Installation and Operation Manual
016-562-B0-001, Rev. A
E󰀨ective Date: August 2019
© 2019 by Alpha Technologies Services, Inc.
Disclaimer
Images contained in this manual are for illustrative purposes only. These images may not match your
installation.
Operator is cautioned to review the drawings and illustrations contained in this manual before
proceeding. If there are questions regarding the proper operation of this power supply, please contact
Alpha Technologies Services, Inc. or your nearest Alpha representative.
Alpha shall not be held liable for any damage or injury involving its enclosures, power supplies,
generators, batteries, other hardware, or software if used or operated in any manner or subject to any
condition not consistent with its intended purpose or is installed or operated in an unapproved manner
or improperly maintained.
Contact Information
Sales information and customer service in USA
(7AM to 5PM, Pacic Time): 360 392 2217
Complete technical support in USA
(7AM to 5PM, Pacic Time or 24/7 emergency support): 800 863 3364
Website: www.alpha.com

4016-562-B0-001, Rev. A (08/2019)
Table of Contents
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Utility Power Connection Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.0 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1 Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 APP Service Power Supply Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 APP 9005C Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.0 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1 Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Returns, Repair, and Parts Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figures
Fig. 1-1, APP 9005C Service Power Supply, Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Fig. 2-1, APP 9005C Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tables
Table 1-1, Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Table 3-1, Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

5016-562-B0-001, Rev. A (08/2019)
Safety Precautions
• The APP Service Power Supply must be installed and serviced by qualied personnel.
• Always use proper lifting techniques whenever handling units, modules or batteries.
• Verify the voltage requirements of the equipment to be protected (load), the AC input voltage to the power supply
(line), and the output voltage of the system prior to installation.
• When powered from AC mains, the utility service panel must be equipped with a properly rated circuit breaker for
use with this power supply.
• When powered from Generator other than the Honda EU2000, the generator output must be overload and short-
circuit protected.
• Do NOT exceed the output rating of the power supply when connecting the load.
• Use a bucket truck or suitable climbing equipment, such as safety harness and spikes, whenever installing or
servicing pole-mount installations.
Utility Power Connection Notes
DO NOT unplug output connector while unit is in operation! Circuit breaker must be turned
o󰀨 rst.
WARNING! ELECTRICAL HAZARD
Installation must be performed by qualied personnel only, and in compliance with local
electrical codes. Connection to utility power must be approved by the local utility before
installing the power supply.
WARNING! ELECTRICAL HAZARD
A “high magnetic” trip breaker must be used in order to accommodate the high inrush
currents normally associated with the start-up of ferroresonant transformers (400 Amp,
no-trip, rst-half cycle). Do not replace this breaker with a conventional service entrance
breaker. Alpha recommends only Airpax breakers because of increased reliability in this
powering application.
WARNING! ELECTRICAL HAZARD

6016-562-B0-001, Rev. A (08/2019)
1.0 Introduction
The APP 9005C Service Power Supply (SPS) is a portable device used to provide temporary power to a remote PHY unit
for up to 8 hours while the existing node is being optimized on site prior to connecting it to the network and carrying tra󰀩c.
The APP 9005C SPS contains a front panel ammeter to measure the output current to the load, dual 90V outputs with an
auto-seize mechanism, and an “Output” indicator to verify AC output power.
APP 9005C Specications
Input Voltage (VAC) 120 ± 15%
Input Frequency (Hz) 60
Input Current (A) 5 Max
Output Voltage (VAC) 90 ± 5%
Output Current (A) 4
Output Power (VA)
(Continuous) 360
Output Current Limit 150% of Output Rating
E󰀩ciency 90% typical @ rated load
Finish Flat Black Durable Powder Coat
Operating Temperature -40° to 122°F
(-40° to 50°C)
Dimensions (in/mm)
(H x W x D)
10.38" x 9.5" x 17.75"/
264 x 241 x 451
Weight (lbs/kg) 31.5 / 14.3
Enclosure Type CSA NEMA3R
Table 1-1, Specications
1.1 Theory of Operation
The APP 9005C SPS contains a ferroresonant transformer and a capacitor. During AC LINE operation, utility power
is fed into the primary winding of the ferroresonant transformer. An AC capacitor becomes the resonant circuit of the
ferroresonant transformer which provides noise and spike attenuation, short circuit current limiting, and output voltage
regulation.
Note: The ferroresonant transformer produces a “quasi” square wave output which resembles a rounded square wave.
120V AC power enters the Service Power Supply where it is regulated to 90 VAC, and passed onto the remote PHY unit
via coax cable connected to Output 1 or 2.
Use only a true RMS AC voltmeter. Non-RMS reading meters are calibrated to respond to pure
sine waves and will not provide an accurate reading when measuring a quasi-square wave
output.
NOTICE:
DO NOT unplug output connector while unit is in operation! Power switch must be turned
o󰀨 rst.
WARNING! ELECTRICAL HAZARD

1.0 Introduction, continued
7016-562-B0-001, Rev. A (08/2019)
1.2 APP Service Power Supply Features
Output Current (Ammeter)
The Ammeter displays output current owing from the power module to the load. When there is no load at the output, the
Ammeter reads zero.
Output Power Indicator
The Output Power Indicator displays the presence of output AC voltage.
Power Switch
The AC power switch turns on or shuts o󰀨 power to the APP 9005C SPS. If the unit does not turn ON when power is
applied, rst verify that the unit is plugged into the convenience outlet and that all circuit breakers are in the ON position.

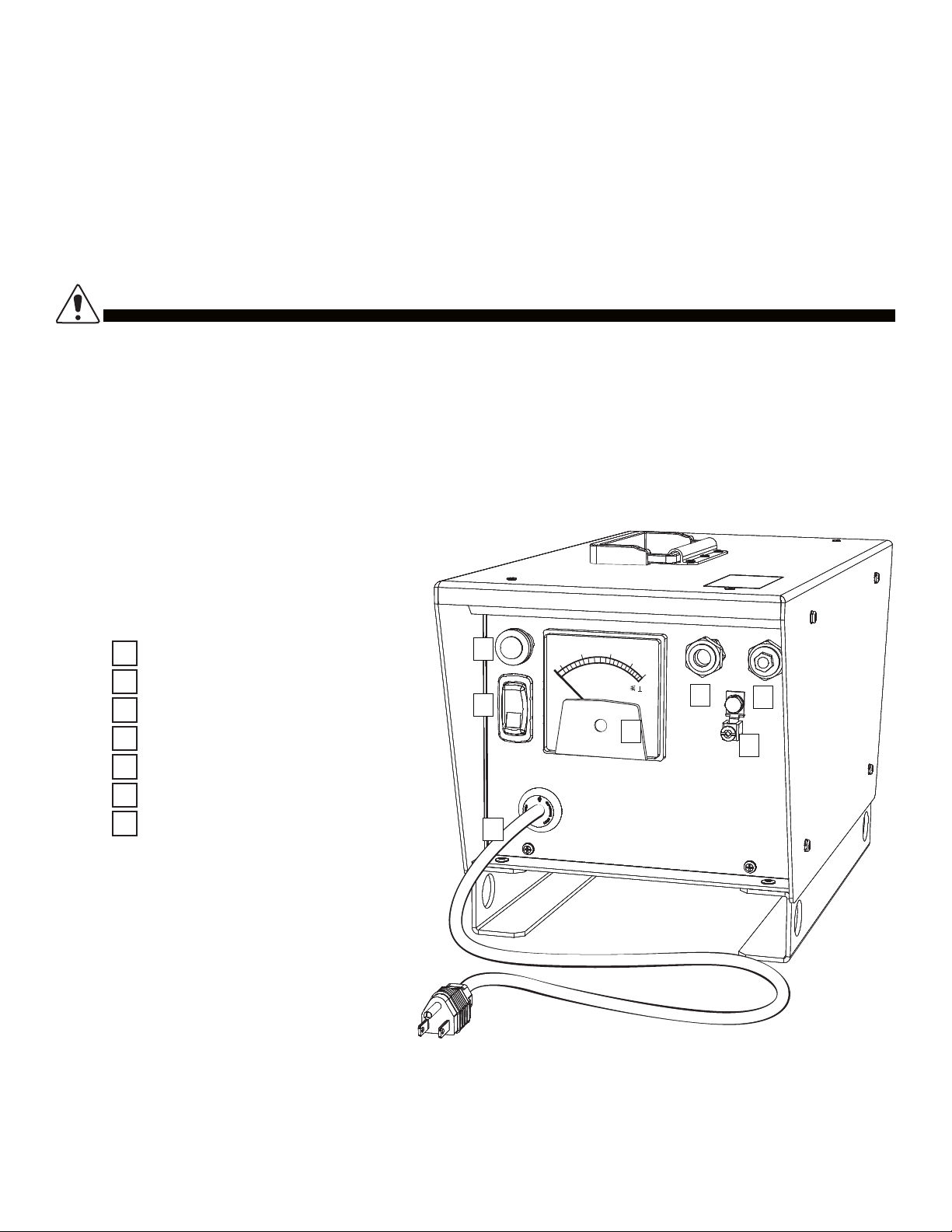

Fig. 1-1, APP 9005C Service Power Supply, Front Panel
O 2
4
6
8
10
A
~
CLASS 2.5
DH-50
1
6
7
1
2
3
4
56
7
1 Output Current
2 Output Power Indicator
3 Power Switch
4 5 ft. 120VAC 15A Line Cord
5 90V Output Connector 1
6 90V Output Connector 2
7Ground Lug
If the Output Power Indicator illuminates when the Power Switch is in the OFF position, this
indicates there is power back-feeding from the Output Connector. Disconnect the services
power supply and investigate the source of the network power.
CAUTION!

8016-562-B0-001, Rev. A (08/2019)
2.0 Installation
2.1 APP 9005C Installation Procedure
Fig. 2-1, APP 9005C Installation
1
2
3
4
5
Procedure
Installation complete.
Reverse procedure to uninstall the APP 9005C.
O 2
4
6
8
10
A
~
CLASS 2.5
DH-50
Remote
PHY Unit
1
2
3
5
Generator
Connect a 6 AWG ground wire to the Burndy external ground (Fig. 1-1, item 7).
Plug the APP 9005C line cord into a portable generator (Honda EU2200 recommended) or 120VAC utility outlet.
Connect the coax from the remote PHY unit to the APP 9005C (PHY unit not supplied). If the Output Power Indicator
illuminates while the Input Breaker/Power Switch is in the OFF position, this indicates there is power back-feeding
from another power source via the Output Connector. Disconnect the service power supply and investigate the
source of the network power.
Start generator.
Turn on the APP 9005C via the power switch.
4

9016-562-B0-001, Rev. A (08/2019)
3.0 Troubleshooting
3.1 Troubleshooting Guide
This guide is designed to cover typical problems, causes and solutions for troubleshooting the APP 9005C SPS. Alpha
recommends that the power supply maintenance log accompany units brought in for bench service to aid the technician in
troubleshooting the problem.
Troubleshooting Guide
Problem Probable Cause Corrective Action
No output to cable; No AC line
power; Green Output Power
Indicator OFF
AC line cord unplugged Plug in AC line cord
Generator circuit breaker tripped
Reset circuit breaker and use voltmeter
to verify correct voltage (120/240 VAC) at
receptacle
Incorrect output voltage; And/
or Ammeter reads excessive
current (above rated output of
APP SPS)
Wrong type of voltmeter used Use true RMS voltmeter
Under-loaded output (less than 1
Amp) Connect load
Overloaded output Reduce load
Short exists in load Locate and remove short
Table 3-1, Troubleshooting

3.0 Troubleshooting, continued
10 016-562-B0-001, Rev. A (08/2019)
3.2 Returns, Repair, and Parts Ordering
Returns for Repair
For units that must be returned for repair, Alpha requires a Return Material Authorization (RMA). An RMA can be obtained
from Alpha Customer Service, using either method listed below:
• Alpha’s Return Material Authorization Website: rma.alpha.com
• Call [phone] for assistance.
Clearly mark the RMA on the unit’s original shipping container. If the original container is not available, make sure the unit
is packed with at least three inches of shock absorbing material to prevent shipping damage.
In addition to the returned unit, please include a copy of the power supply maintenance log and any information relevant
to the power supply failure.
Returns for Credit
For returns for credit, call [phone].
Parts and Ordering Information
To order parts, contact the Alpha Customer Service Department directly at:
Do not use popcorn-type material. Alpha is not responsible for damage caused by improper
packing on returned units.
NOTICE:
United States and Latin America: [phone]
Canada: [phone]
United Kingdom: 44-279-422110
Germany: 49-9122-997303
Middle East: 357-5-375675
To obtain emergency technical support
(7 days/week, 24 hours/day) call:
1-800-322-5742
(USA)
1-800-667-8743
(Canada)

Alpha Technologies Services, Inc
an EnerSys company
Alpha reserves the right to change specications without notice.
Alpha is a registered trademark of Alpha Technologies Services, Inc.
For more information visit www.alpha.com
© 2019 Alpha Technologies Services, Inc. All Rights Reserved.
016-562-B0-001, Rev. A (08/2019)
