APP60S
Service Power Supply
Operator's Manual
© 1992

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
CAUTION
RISK OF ELECTRICAL SHOCK
CAUTION:TO REDUCE THE RISK OF ELECTRICAL SHOCK, AND ENSURE
THE SAFE OPERATION OF THIS UNIT, THE FOLLOWING SYMBOLS HAVE
BEEN PLACED THROUGHOUT THE MANUAL. WHERE THESE SYMBOLS
APPEAR, SERVICING SHOULD BE PERFORMED ONLY BY QUALIFIED
PERSONNEL.
DANGEROUS VOLTAGE
A DANGEROUS VOLTAGE EXISTS IN THIS AREA OF THE POWER
SUPPLY. USE EXTREME CAUTION.
ATTENTION
IMPORTANTOPERATINGINSTRUCTIONS. THISPROCEDURESHOULD
BE PERFORMED ONLY BY QUALIFIED SERVICE PERSONNEL.
IMPORTANT SAFETY INSTRUCTIONS
CONTAINED IN THIS MANUAL
SAVE THESE INSTRUCTIONS

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
IMPORTANT SAFETY PRECAUTIONS
POWER SUPPLIES SHOULD BE SERVICED ONLY BY QUALIFIED PERSONNEL.
POWER SUPPLIES CONTAIN MORE THAN ONE LIVE CIRCUIT. EVEN THOUGH AC IS NOT
PRESENT AT THE INPUT, IT MAY BE PRESENT AT THE OUTPUT.
WHEN USING AN EXTERNAL SERVICE DISCONNECT, VERIFY THAT IT IS EQUIPPED WITH
A HIGH MAGNETIC CIRCUIT BREAKER PROPERLY RATED (AMPERAGE) FOR USE WITH
THE POWER SUPPLY.
WHEN IN STORAGE, BATTERIES SHOULD BE CHARGED AT LEAST ONCE EVERY THREE
MONTHS TO ENSURE OPTIMUM PERFORMANCE AND BATTERY LIFE.
WEAR EYE PROTECTION, SUCH AS SAFETY GLASSES OR A FACE SHIELD, WHENEVER
WORKING WITH BATTERIES.
USE GLOVES WHEN HANDLING BATTERIES. BATTERY ELECTROLYTE IS ACIDIC AND MAY
CAUSE BURNS.
NEVER SMOKE NEAR BATTERIES. SPARKS, FLAMES OR OTHER SOURCES OF IGNITION
MAY CAUSE A BATTERY EXPLOSION.
ALWAYS CARRY A SUPPLY OF WATER, SUCH AS A WATER JUG, TO WASH THE EYES OR
SKIN IN THE EVENT OF EXPOSURE TO BATTERY ELECTROLYTE.
USE PROPER LIFTING TECHNIQUES WHENEVER HANDLING THE ENCLOSURE, POWER
MODULE OR BATTERIES. GROUP 31 SIZE BATTERIES, USED IN THE MAJORITY OF CABLE
TELEVISION APPLICATIONS, CAN WEIGH AS MUCH AS 70 LBS.
USE A BUCKET TRUCK, OR SUITABLE SAFETY EQUIPMENT SUCH AS A SAFETY HARNESS
AND CLIMBING SPIKES, WHEN SERVICING POLE INSTALLATIONS.
ALWAYS SWITCH THE POWER SUPPLY’S BATTERY CIRCUIT BREAKER TO OFF BEFORE
DISCONNECTING BATTERY CABLES. THIS GREATLY REDUCES THE CHANCE OF SPARK
AND POSSIBLE BATTERY EXPLOSION.
DO NOT ALLOW LIVE BATTERY WIRES TO CONTACT THE ENCLOSURE OR POWER SUPPLY
CHASSIS. POSSIBLE EXPLOSION OR FIRE CAN OCCUR.
BEFORE PLACING A CURRENT LOAD ON THE BATTERIES, (SUCH AS WHEN SWITCHING
THE POWER SUPPLY TO STANDBY), USE THE ENCLOSURE DOOR AS A SHIELD IN THE
EVENT OF A BATTERY EXPLOSION.
INSPECT BATTERIES FOR SIGNS OF CRACKS, LEAKING OR SWELLING.
WHEN REPLACING BATTERIES, ALWAYS USE THOSE OF AN IDENTICAL TYPE. NEVER
INSTALL OLD OR UNTESTED BATTERIES.
CHECK THE BATTERY’S DATE CODE. BATTERIES OLDER THAN SEVERAL YEARS SHOULD
NOT BE USED.
AVOID THE USE OF UNINSULATED TOOLS OR OTHER CONDUCTIVE MATERIALS WHEN
HANDLING BATTERIES OR WORKING INSIDE THE ENCLOSURE.
SPENTORDAMAGEDBATTERIESARECONSIDEREDENVIRONMENTALLYUNSAFE. ALWAYS
RECYCLE USED BATTERIES.

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
Table of Contents
1. INTRODUCTION 1
1.1 The APP60S Service Power Supply
1.2 Theory of Operation
1.3 Specifications
1.4 Unpacking and Inspection
2. APP60S FRONT PANEL 4
2.1 Ammeter
2.2 AC Output Fuse
2.3 AC Input Fuse
2.4 AC LINE Indicator
2.5 30 / 60 VAC Switch
2.6 ON / OFF Switch
2.7 "Jones" Connector
2.8 AC Line Cord
3. INSTALLATION AND OPERATION 6
3.1 APP60S Installation and Power Module Removal
4. TROUBLE-SHOOTING AND REPAIR 8
4.1 Repair Instructions
4.2 Parts Ordering Instructions
4.3 Trouble-shooting Guide
LIST of ILLUSTRATIONS

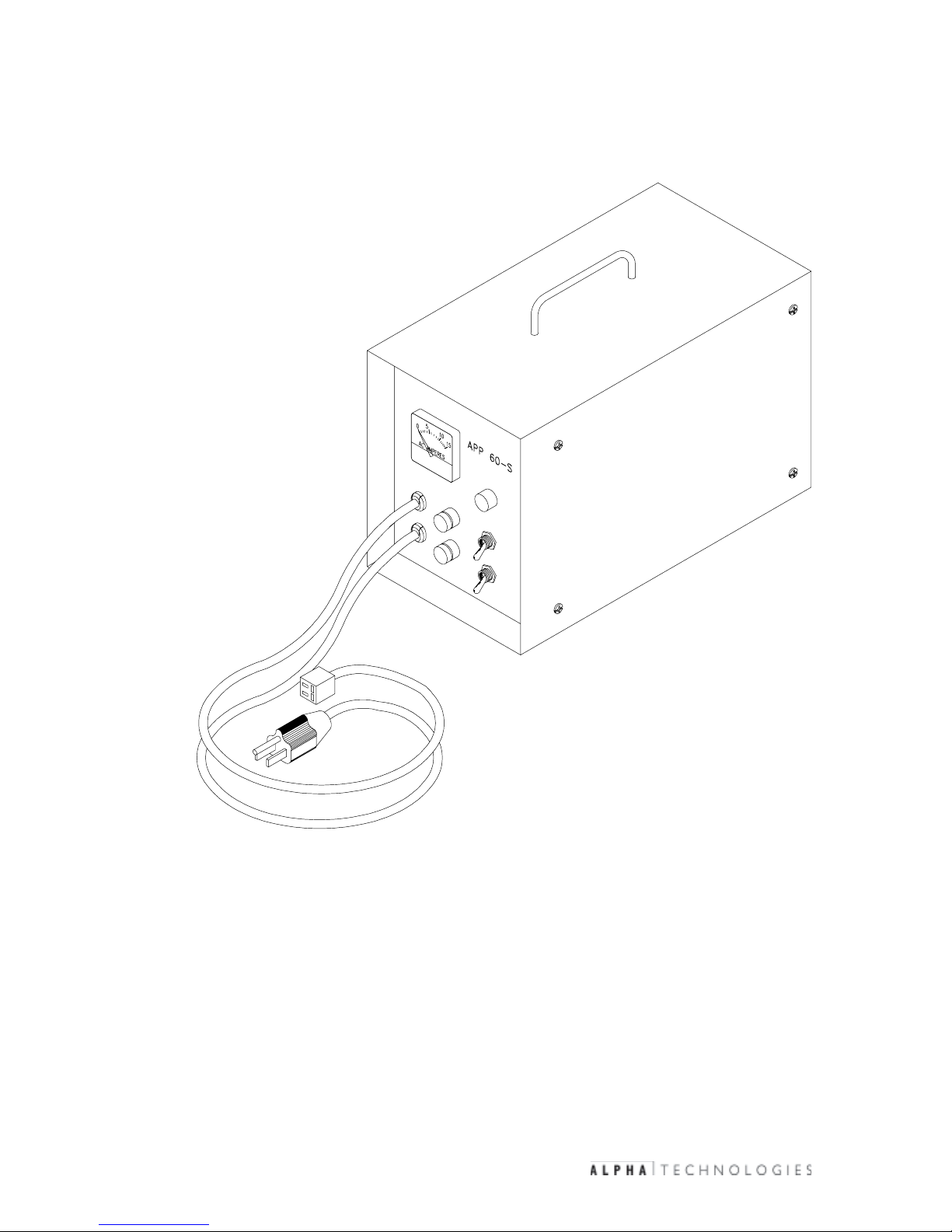

Fig. 1 APP60S Front Panel 4
Fig. 2 PME and PWE Pole-mount Enclosures 6
Fig. 3 UPE and UPE/M Ground-mount Enclosures 6

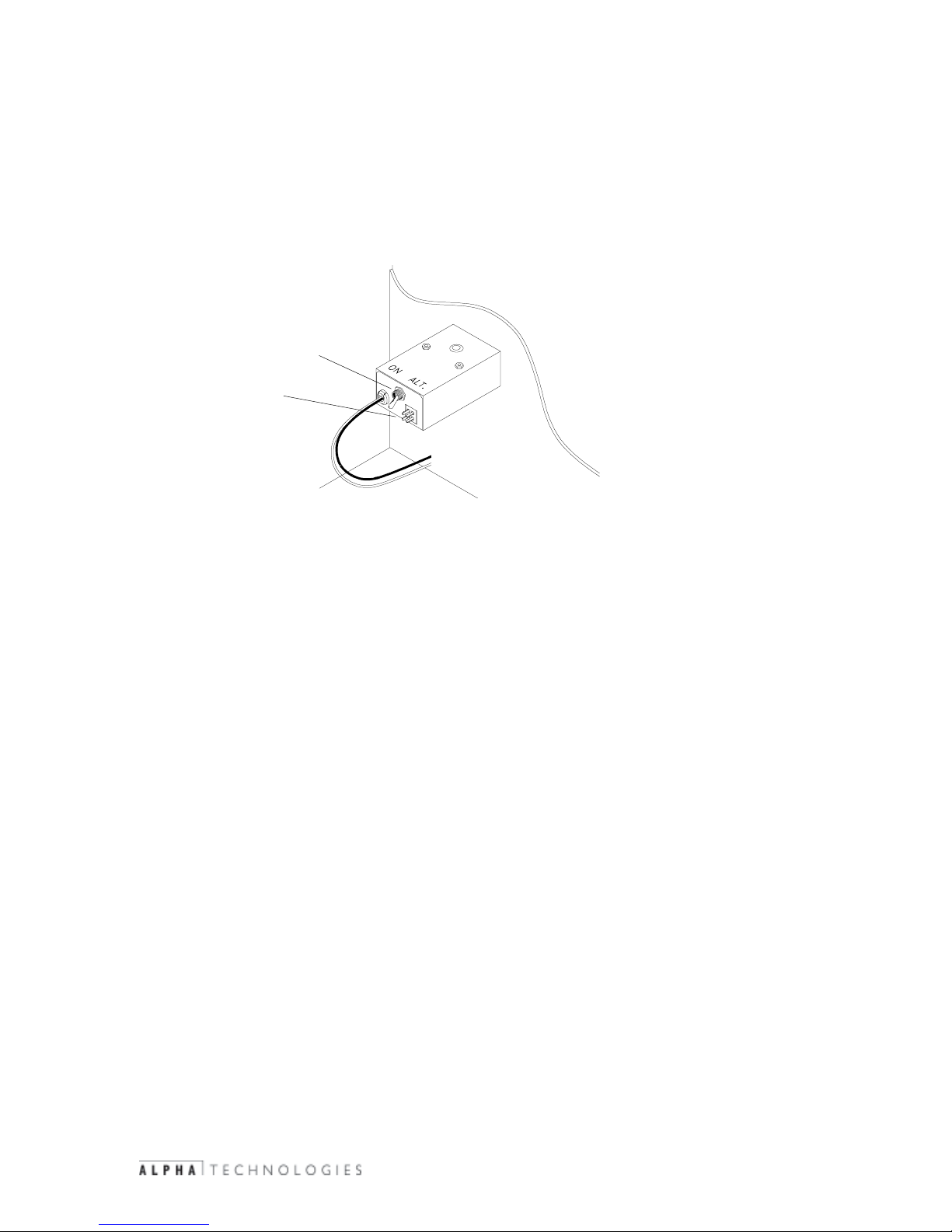

Fig. 4 SPI (Service Power Inserter) 6
Fig. 5 APP60S Installation and Wiring Diagram 7
APP60S Service Power Supply
i

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
The APP60S Service Power Supply is a portable device used to provide temporary power for
Alpha AP Series standby power supplies and XP Series uninterruptible power supplies while
theyarebeingserviced. TheAPP60Scanbeusedineitherpoleorground-mountenclosures
to provide signal processing equipment in Cable Television and Broadband LAN distribution
systems with current-limited, regulated AC power.
The APP60S Service Power Supply contains a front panel ammeter to measure the output
current to the load; an output fuse to protect against excessive short circuit currents; a
"LINE"indicatorto verify AC input power from the utility; an input fusetoprovide additional
voltage protection; and a 30/60 VAC switch for output voltage selection (48/60 for 50 Hz
units).
UL Listed and CSA Approved, the APP60S Service Power Supply is designed to be rugged,
reliable and versatile. Alpha Technologies, recognized as an international market leader in
the field of backup power, offers complete technical support and prompt, reliable service
to ensure that your power supply continues to provide years of trouble-free operation.
1.2 TheoryofOperation
The APP60S Service Power Supply contains a ferroresonant transformer and a resonant
capacitor. During AC LINE operation, utility power is fed into the primary winding of the
ferroresonant transformer, T1. An AC capacitor, C1, forms the resonant circuit of the
ferroresonant transformer which provides excellent noise and spike attenuation, short
circuitcurrent limiting,andoutput voltageregulation. Note:The ferroresonanttransformer
produces a "quasi" square wave output which resembles a rounded square wave.
During LINE operation, AC power enters the APP60S where it is regulated (at the required
outputvoltage) andpassedonto theloadvia theSPI(Service PowerInserter)located inside
the power supply enclosure. A switch, located on the SPI, toggles output power from the
power supply requiring service to the APP60S.
IMPORTANT NOTE :WHEN MEASURING THE OUTPUT VOLTAGE OF
FERRORESONANT TRANSFORMERS, USE ONLY A
TRUE RMS AC VOLTMETER. NON-RMS READING
METERS ARE CALIBRATED TO RESPOND TO PURE
SINE WAVES AND WILL NOT PROVIDE AN ACCU
RATE READING WHEN MEASURING A "QUASI"
SQUARE WAVE OUTPUT.
1
1.INTRODUCTION
1.1 THEAPP60SSERVICEPOWERSUPPLY

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
1.3 Specifications
MODEL APP60S APP60S E APP6014S-J5
Input
Voltage (VAC) 120 ±15% 220/240 ±15% 100/115 ±15%
Frequency (Hz) 60 50 50
Current Max. (A) 9 4.8 12
Output
Voltage (VAC) 60/30 ±5% 60/30 (60/48) ±5% 30/60 ±5%
Current (A) 14 14 14
Power (VA) 840 840 420/840
Output Current Limit 150% of maximum output rating
Efficiency 90% typical @ rated load
Operating Temperature Range -400to +1220F (-400to +500C)
Dimensions 7" W x 10" H x 13" D (170mm x 250mm x 330mm)
Weight 34 lbs. (15 kg)
FinishASA 61 Gray Epoxy Powder Paint
Specifications @ 770F (250C)
1. INTRODUCTION
2

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
1.4 UnpackingandInspection
CarefullyremovetheAPP60Sfromitsshippingcontainer. Makesurethatthefollowingitems
have been included:
1. APP60S Service Power Supply.
2. Operator's Manual.
Inspectthecontents. Ifitems are damaged or missing, contact Alpha Technologies and the
shipping company immediately. Most shipping companies have only a short claim period.
SAVE THE ORIGINAL SHIPPING CONTAINER.
In the event a unit needs to be returned for service, it should be packaged in its original
shipping container. If the original container is not available, make sure the unit is packed
with at least three inches of shock-absorbing material to prevent shipping damage. Note:
Do not use popcorn-type material. Alpha Technologies is not responsible for damage
caused by improper packaging on returned units.
READ THE OPERATOR'S MANUAL.
Become familiar with the APP60S Service Power Supply. Review the illustrations contained
in the manual before proceeding. If you have questions regarding the safe installation or
operation of this unit, contact Alpha Technologies or your nearest Alpha representative.
TO ENSURE OPERATOR SAFETY
1. Powersuppliesshould be serviced only by qualified personnel and always inaccordance
with applicable electrical codes.
2. Use eye protection whenever working around batteries.
3. Useabuckettruck,orsuitableclimbingequipmentsuchasasafetyharnessandclimbing
spikes, whenever installing or servicing pole-mount installations.
1.INTRODUCTION
3

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
2. APP60S
4
2.7
2.8
2.4
2.5
2.6
2.3
2.2
2.1
APP60S Service Power Supply
2.1 Ammeter
2.2 AC Output Fuse
2.3 AC Input Fuse
2.4 AC LINE Indicator
2.5 30 / 60 VAC Switch
2.6 ON / OFF Switch
2.7 "Jones" Connector
2.8 AC Line Cord
3.1 APP60S Installation and Power Module Removal

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
2. APP60S
5
2.1 Ammeter
The front panel ammeter displays output current flowing from the power module into the
load. It is extremely useful in determining the status of the plant during maintenance and
trouble-shooting. When there is no load at the output, the ammeter reads zero. When the
meter reads above the rated output of the APP60S, such as 18 or 20 Amps, an overload or
short circuit condition may exist in the load.
2.2 AC Output Fuse
The 15 Amp AC output fuse protects the load from excessive durations of short circuit
current. If the front panel ammeter reads zero, indicating no output to the load, this fuse
should be checked and replaced if necessary.
2.3 AC Input Fuse
The12AmpACinputfuseprotectstheAPP60Sfromshortcircuitconditions,especiallywhen
itisusedinconjunctionwithageneratorduringoutageconditions. Iftheunitdoesnotcome
ON when power is applied, first verify that the unit is plugged into the convenience outlet
and that the main AC circuit breaker is in the ON position. Then check the input fuse and
replace it if necessary.
2.4 AC LINE Indicator (Green)
The AC LINE indicator displays the presence of utility AC at the input. If the indicator does
not light when the unit is switched ON, first verify that the unit is plugged into the
convenienceoutletandthemainACcircuitbreakerisintheONposition. Ifnecessary,check
the AC input fuse and replace it if necessary.
2.5 30 / 60 VAC Switch
The 30 / 60 VAC switch is used to select the desired output voltage. For 50 Hz applications,
the switch is configured for 48 / 60 VAC.
2.6 ON / OFF Switch
The ON / OFF switch is used to apply or remove power from the APP60S.
2.7 "Jones" Connector
The APP60S "Jones" connector plugs directly into the Service Power Inserter's mating
connector to provide output power to the load. Note: The SPI's "ALT/ON" switch must be
in the "ALT" position to accept power from the APP60S.
2.8 AC Line Cord
The APP60S AC line cord plugs directly into the enclosure’s convenience outlet.
3.1 APP60S Installation and Power Module Removal

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
3.INSTALLATIONANDOPERATION
6
3.1 APP60S Installation and Power Module Removal
POWER MODULES SHOULD BE SERVICED ONLY BY QUALIFIED PERSONNEL.
POWER MODULES CONTAIN MORE THAN ONE LIVE CIRCUIT. EVEN THOUGH AC IS NOT
PRESENT AT THE INPUT, IT MAY BE PRESENT AT THE OUTPUT.
NOTE : Before powering down a module, always switch the battery breaker
OFF (or remove the battery fuse) before removing AC, otherwise the
module will transfer into inverter operation.
Procedure
1. Plug the APP60S "Jones" connector into the enclosure's SPI (Service Power In-
serter).
2. Plug the APP60S power cord into the enclosure's convenience outlet. Set the 30/60
VAC selector switch to the desired voltage and switch the APP60S ON.
3. Toggle the SPI's "ALT/ON" switch to "ALT". This transfers output power from the
module to the APP60S which can now be used to maintain regulated, non-standby
power to the cable plant until a replacement power module has been installed.
4. Switch the battery breaker on the power module OFF (or remove the battery fuse).
5. Unplug the power module's LINE cord from the enclosure's convenience outlet.
6. Wait approximately 1 minute for the power module's capacitors to fully discharge.
7. Disconnect the wires from the side of the power module.
CAUTION: Do not let exposed battery cables come in contact with the
chassis or enclosure.
8. Remove the hold-down screw (AM Series modules only) and carefully slide the
module out of the enclosure.
CAUTION: The ferroresonant transformer generates heat and may cause
burns if handled with bare hands.
9. Reverse this procedure when re-installing a module.
NOTE : Always test the power module for proper operation before
toggling the SPI's "ALT/ON" switch back to the "ON" position.

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
3.INSTALLATIONANDOPERATION
7
3.1 APP60S Installation and Power Module Removal
Plug the AC Line cord into
enclosure's convenienceoutlet
Plug the "Jones" connector into
ServicePower Inserter's mating connector
Selectrequired
outputvoltage Switch the unit ON
Fig. 5
APP60S Installation and Wiring

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
8
3.INSTALLATIONANDOPERATION
Location of SPI and Convenience Outlet
(inside Alpha Enclosures)
Internal Power Box
(with Convenience Outlet)
SPI
(above upper shelf
on right-hand side of
the power box)
PWEPole-mountEnclosurePMEPole-mountEnclosure
Internal Power Box
(with Convenience Outlet)
SPI
(on lower shelf)
3.1 APP60S Installation and Power Module Removal
Convenience Outlet
(on module shelf)
SPI
(beneath battery shelf -
behind front panel)
Convenience Outlet
(on module shelf)
UPEGround-mountEnclosure UPE/MGround-mountEnclosure
SPI
(inside module
compartment
on back wall)

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
9
3.1 APP60S Installation and Power Module Removal
3.INSTALLATIONANDOPERATION
Black and White wires
from power module's
output
"Jones" Connector
accepts mating plug
from APP60S
"ALT/ON" Switch
SPI Service Power Inserter
(shown in PWE and UPE/M enclosures)

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
4.TROUBLE-SHOOTINGANDREPAIR
TROUBLE-SHOOTING AND REPAIR
The trouble-shooting guide is designed to display typical symptoms, causes and solutions,
starting with the most obvious and working systematically through the unit. Alpha
Technologies recommends that the power supply’s maintenance log accompany units
brought in for bench service to aid the technician in trouble-shooting the problem.
4.1 Repair Instructions
On units returned to Alpha Technologies for repair, a Return Material Authorization (RMA)
should first be obtained from Alpha's Customer Service Department. The RMA should be
clearlymarkedontheunit’soriginalshippingcontainer. Iftheoriginal containerisnolonger
available, the unit should be packed with at least 3 inches of shock-absorbent material.
Note: Do not use popcorn type packing material. Returns should be prepaid and insured
(COD and freight collect can not be accepted without prior approval). Note: It is
recommended that any information pertaining to the nature of the power supply failure or
problem, along with a copy of power supply's maintenance log, be included with the
returned unit.
4.2 Parts Ordering Instructions
When ordering parts from Alpha Technologies, contact the Customer Service Department
directly at [phone]; or [phone] (Canada and International).
4.3 TROUBLE-SHOOTING GUIDE
SYMPTOM PROBABLE CAUSE REMEDY
No output to cable; AC Line cord unplugged. Plug in AC Line cord.
No AC line power;
Green “AC LINE” indicator OFF: AC input circuit breaker Reset AC circuit breaker
tripped (or input fuse open). (or replace 12 A fuse).
Utility power outage. Use voltmeter to verify
120 VAC at receptacle.
Connect generator if
extended power outage.
SYMPTOM PROBABLE CAUSE REMEDY
No output to cable; AC output fuse open. Replace 15 A fuse.
AC line power available;
Green “AC LINE” indicator ON; SPI "ALT/ON" switch Move switch to
and/or ammeter reads "0": in wrong position. "ALT" position.
"Jones" connector loose or Checkconnection.
not connected to SPI.
Loose seizure screw inside SPI. Tighten screw.
SYMPTOM PROBABLE CAUSE REMEDY
Incorrect output voltage; 30 / 60 VAC switch in Move switch to
and/or ammeter reads excessive wrong position. required position.
current (above rated output of
APP60S): Wrong type of voltmeter used. Use true RMS meter.
Under-loadedoutput Connect load.
(less than 1 Amp).
Over-loadedoutput. Reduce load.
Short exists in load. Locate and remove short.
MOV shorted in SPI. ReplaceSPI.

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97

016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97016-001-B0-002 6/97
016-001-B0-002 6/97
USA
ASIA PACIFIC
LATIN AMERICA
Alpha Technologies
3767 Alpha Way
Bellingham, WA 98226
Tel: [phone]
Fax: [phone]
Web: www.alpha.com
CANADA
Alpha Technologies
7033 Antrim Ave.
Burnaby, B.C. V5J 4M5
Tel: [phone]
Fax: [phone]
UNITED KINGDOM
Alpha Technologies
Cartel Business Estate
Edinburgh Way
Harlow, Essex CM20 2DU
Tel: [phone]
Fax: [phone]
GERMANY
Alpha Technologies
Hansastrasse 8
D-91126 Schwabach
Tel: [phone]
Fax: [phone]
MIDDLE EAST
Alphatec
P.O. Box 6468
3307 Limassol, Cyprus
Tel: [phone]
Fax: [phone]
AUSTRALIA
Alpha Technologies
8 Anella Ave., Unit 6
Castle Hill, NSW 2154
Tel: [phone]
Fax: [phone]
Due to continuing product
improvements, Alpha reserves the
right to change specifications without
notice. Copyright © 1998
Alpha Technologies Inc.
All rights reserved.
Investigate the of Alpha @www.alpha.com
