Fields of application EN
The applications for this product are domestic
cleaning jobs:
Car, motorbike, boat, caravan, trailer, patio/drive/
flagstones, woodwork, brickwork, barbecue,
garden furniture etc.
Model survey EN
1. On/off switches
2. Water outlet pipe
3. Water inlet pipe
4. Water inlet connector and filter
5. High pressure hose with spray handle incl. of
trigger with lock
6. Adjustable nozzle
7. POWERSPEED nozzle
8. Screw in nozzle adaptor (marked ALTO)
9. Screw in nozzle adaptor
10. Foam sprayer
11. Carrying handle
12. Pulling handle
Specifications: See model tag of machine.
We reserve the right to alter the specifications.
Contents EN
1.0 Preparation................................................... 12
2.0 Operating instructions .................................. 13
3.0 Accessories.................................................. 14
4.0 Maintenance................................................. 16
5.0 Storage......................................................... 16
6.0 Environmental protection.............................. 16
7.0 Trouble shooting guide ................................. 17
8.0 Warranty conditions...................................... 18
We congratulate you on your new ALTO High Pressure Washer
We are confident that the new high pressure washer of ALTO will justify your expectations of quick and
effective cleaning. Now you have a cleaning device which will facilitate your future cleaning tasks and make
them more effective. Many tasks which were previously difficult, can now be solved in a few minutes and
with a much better result.
If, contrary to expectations, problems should arise which cannot be remedied by means of the information
in section 7.0, the ALTO service organization will be at your disposal.
ALTO is a global concern with a comprehensive knowledge within development and manufacturing of ef-
ficient and environmentally friendly cleaning solutions. Our product range comprises cleaning solutions for
selected customer groups - from machines for domestic use to big industrial cleaning systems.
The expertise of ALTO is cleaning focusing on the need of the customer. The key word is confidence - we name
it Total Cleaning Confidence TM . Our wish is that you as a customers should feel quite confident that the
cleaning equipment you buy from us is the most efficient and that it fulfils all of your expectations.
Best regards
ALTO Danmark A/S

12
1.0 Preparation EN
IMPORTANT! Only use water without any impu-
rities. If there is a risk of running sands in the inlet
water (i.e. from your own well), an additional filter
should be mounted.

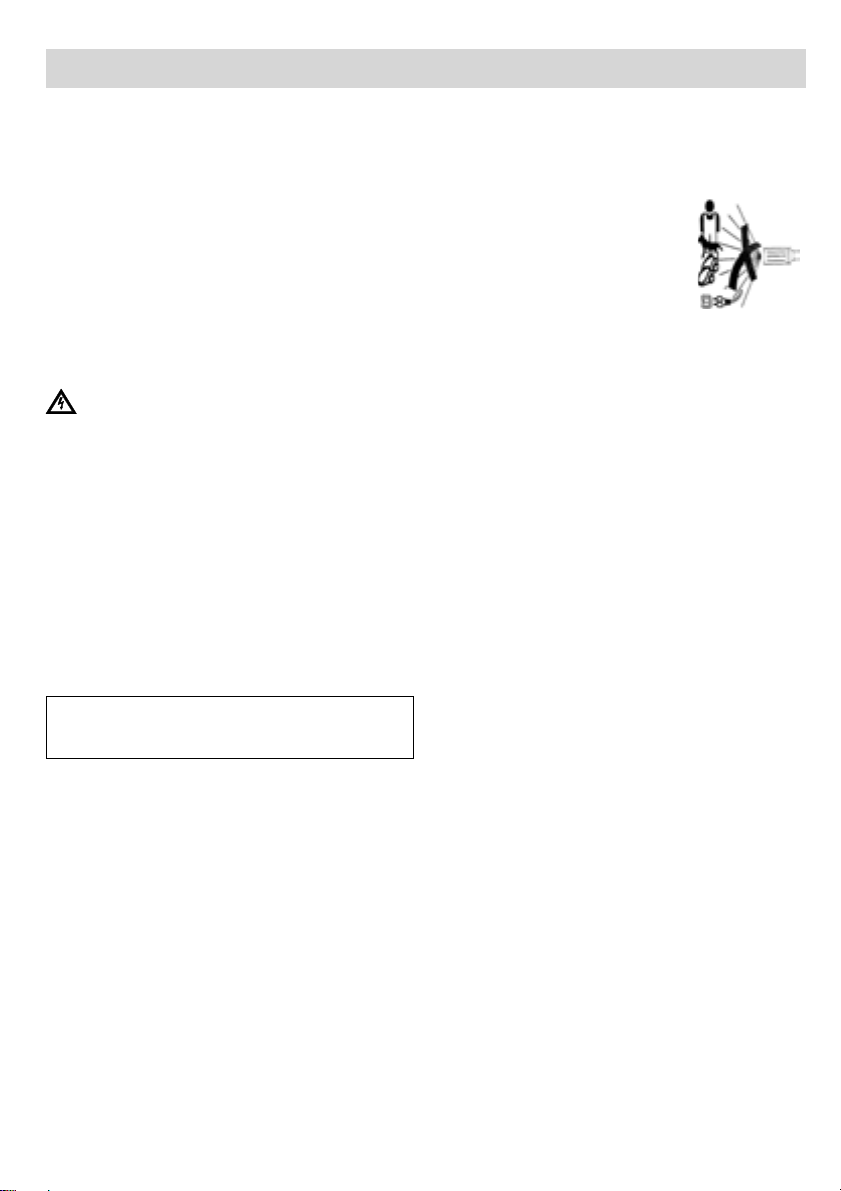

Safety precautions
WARNING! High pressure jets
can be dangerous. Never direct
the water jet at persons, pets, live
electrical equipment or the ma-
chine itself.
The operator and anyone in the
immediate vicinity of the site of cleaning should
take action to protect themselves from being
struck by debris dislodged during operation. Wear
goggles during operation.
Never try to clean clothes or footwear on yourself
or other persons.
Do not let children or people who have not read
the instruction manual operate the machine.
Never use the machine in an environment where
there could be a danger of explosion. If any doubt
arises, please contact the local authorities.
It is not allowed to clean asbestos-containing
surfaces with high pressure.
This high pressure washer must not be used at
temperatures below 0°C.
Safety devices
Locking device on spray handle
The spray handle features a locking device (5a).
When the pawl is activated, the spray handle cannot
be operated.
Thermal sensor
A thermal sensor protects the motor against
overloading.The machine will restart after a few
minutes when the thermal sensor has cooled.
Before starting up your high pressure washer, we
advise you to carefully read through this instruction
manual. Follow all instructions to minimize the risk
of injuries when using the machine.
Prior to operation
Before starting up your machine please check it
carefully for any defects. If you find any, do not start
up your machine and contact your ALTO distributor.
Especially check:
The insulation of the electric cable should be
faultless and without any cracks. If the electric
cable is damaged, it should be replaced by an
authorized ALTO distributor.
Mains power connection
The following should be observed when connecting
the high pressure washer to the electric installation:
Only connect the machine to an installation with
earth connection.
The electric installation shall be made by a cer-
tified electrician.
It is strongly recommended that the electric sup-
ply to this machine should include a residual
current device (GFCI).
Extension cable
Extension cables should be of a watertight con-
struction and comply with the below-mentioned
requirements for length and cable dimensions.
1,0 mm² max 12,5 m
1,5 mm² max 20 m
2,5 mm² max 30 m
Cable connections should be kept dry and off the
ground.
Always uncoil the extension cable completely to
avoid heat damage to the cable.
Water connection
Connect the high pressure washer by means of
the water hose to the water tap (pressure of inlet
water, max. 10 bar - temperature of inlet water, max.
50°C). You may use an ordinary 1/2" garden hose
of min. 5 m and max. 25 m. Attach the hose using a
quick connector.
NOTE: Connection to the public mains according to
regulations.

13
2.0 Operating Instructions EN
2.1 Operating facilities
ON/OFF switches (1).
Trigger with lock (5a).
2.2 Connection
1. Screw the high pressure hose (5) onto the water
outlet pipe (2) by turning it clockwise. Tighten
the hose connection by hand only. Do not use a
spanner, pliers, or the like. Prior to operating the
machine please ensure that the high pressure
hose has been completely uncoiled. Whilst the
machine is in operation the hose MUST NOT
loop.
2. Locate the filter (4a) inside the water inlet pipe
(3).
3. The inlet filter must always be fitted inside the
water inlet pipe to filter out sand, limestone and
other impurities, as they will damage the pump
valves.
CAUTION: Failure to fit the filter will invalidate the
guarantee.
4. Screw the water inlet connector (4) onto the water
inlet pipe (3).
5. Make sure that the trigger is locked in the Off
position (5a) by pulling out the locking lever and
locating it on the tab in the handle grip.
6. Mount the nozzle or any other equipment you
want to use.
7. Connect the machine to the water and power
supplies.
The pressure washer is now ready for operation.
2.3 Start
1. Check that the machine is in horizontal position.
2. Release the trigger lock (5a) .
3. Activate the trigger and let the water run until all
air has escaped from hoses and pump.
4. Press the On/Off switch "I" (1).
2.4 Operation
1. The spray lance is affected by a thrust
during operation - therefore always hold
it firmly with both hands. IMPORTANT:
Point the nozzle at the ground.
2. Activate the trigger of the spray handle.
3. Always adjust the distance and thus the pres-
sure of the nozzle to the surface which is to be
cleaned. NOTE: The spray angle can be adjusted
at the nozzle (6).
NOTE: Do not cover the machine during operation.
If the machine is left or not used for 5 minutes, it
must be switched off on the start/stop switch (Press
the On/Off switch "O".
2.5 End of operation
1. Press the On/Off switch "O" (1).
2. Disconnect the plug from the socket.
3. Shut off the water supply and activate the trigger
to relieve the machine of pressure.
Concerning storage, please refer to section 5.0.
Twist up
Twist down

14
3.0 Accessories EN
Only use original accessories.
3.1 POWERSPEED®nozzle
The pressure washer is supplied with a POWER-
SPEED®nozzle (7). This nozzle has a pencil jet
which rotates through 360° when in use. This gives
increased performance for removing difficult and
stubborn marks. To fit the POWERSPEED®nozzle,
proceed as follows:
1. Screw the screw-in nozzle adaptor (9) into the
spray handle. Screw clockwise.
2. Push the POWERSPEED® nozzle (7) into the
nozzle adaptor (9) and twist it clockwise until it
clicks into place.
3.2 Foam sprayer
1. Screw the screw-in nozzle adaptor (9) into the
spray handle. Screw clockwise.
2. Push the foam sprayer (10) into the nozzle adap-
tor (9) and twist it clockwise until it clicks into
place. Ensure that the clear plastic pipe is fitted to
the attachment.
3. Fill the bottle with a suitable biodegradable de-
tergent.
4. Screw the detergent bottle onto the foam sprayer.
Extra Equipment (use ALTO adaptor (8))
Brushes For cars and other surfaces.
Available in more shapes.
Tube cleaner 15 m long tube cleaner for the
cleaning of tubes and drains.
Water-sand- For removal of paint and rust.
blasting equipment Sand available from do-it-
yourself shops.
Patio Cleaner Equipment for quick
and regular cleaning
of horisontal and
vertical surfaces
(tiles etc.).
Garden brush Rotating brush for cleaning of
wooden surfaces.
Rim brush Rotating brush for cleaning of
wheel rims.

15
Accessories EN
Detergents
Stone & Wood For flagstones, brick- and
Cleaner woodwork.
Suitable for moss and algae.
Plastic Cleaner For plastic and synthetic
materials such as garden
furniture.
Metal Cleaner For cleaning of metal such as
garden tools.
Car Combi Cleaner For cars etc. With rinsing wax.
Alu Cleaner For surfaces of aluminium.
Applied with an atomizer.
Oil & Grease For cleaning of grease and
Cleaner oil on motors for instance.
Applied with an atomizer.
Wood Cleaner For cleaning of wooden sur-
faces incl. of wooden garden
furniture.
“Click & Clean”
By means of an adapter you can use the newly
developed “Click & Clean system of ALTO.
Bayonet / Click & Adapter permitting the use
Clean adapter of the “Click & Clean”
system.
Nozzles To be mounted with the “Click
& Clean” connector system.
TORNADO®Efficient flat jet nozzle.
POWERSPEED®Nozzle with rotating jet
for stubborn dirt on hard
surfaces. Max. effect at a
distance of 10 cm.
Car nozzle Special nozzle for enamelled
surfaces. Marked with a car.
Undercarriage 90oangled special
nozzle nozzle for undercar-
riage and wheel ar-
ches. Integrated guide
shoes.
Multiangle Adjusted in angles from 0o -
adaptor 90o for better working posture
and cleaning of hard to get at
places as for instance barrels
or the underside of the lawn
mower. Fits all “Click & Clean”
nozzles.
Brush For enamelled surfaces. Rub-
ber scraper integrated.
Foam sprayer Equipment for the application
of foam with dosage regu-
lator. Works as a high pres-
sure nozzle when the dosage
is set at 0.

16
4.0 Maintenance EN
WARNING! Always disconnect the plug from the
socket prior to maintenance or cleaning.
To ensure a long and problem free working life,
please take the following advice:
Wash out water hose, high pressure hose, spray
lance and accessories before mounting.
Clean the connectors of dust and sand.
Rinse the detergent spraying attachment after
use.
Any repair should always be made in an authorised
workshop with original spare parts.
4.1 Cleaning of nozzle
A clogging up in the nozzle causes a pump pres-
sure which is too high. This is why cleaning is re-
quired immediately.
1. Stop the machine and disconnect the nozzle.
2. Clean the nozzle. IMPORTANT: The cleaning
tool should only be used when the spray lance is
detached!
3. Flush the spray lance backwards with water.
4.2 Cleaning of water inlet filter
Clean the water inlet filter (4a) regularly once a
month or more frequently according to use. Care-
fully loosen the filter with a screwdriver and clean it.
Check that it is intact before re-mounting it.
The inlet filter must always be fitted inside the water
inlet pipe to filter out sand, limestone and other
impurities, as they will damage the pump valves.
CAUTION: Failure to fit the filter will invalidate the
guarantee.
4.3 Cleaning of machine vents
The machine should be kept clean so as to let cool-
ing air pass freely through the machine vents.
5.0 Storage EN
The machine should be stored in a frost-free
room!
Pump, hose and accessories should always be
emptied of water prior to storing as follows:
1. Stop the machine (press the On/Off switch "O"
and detach water hose and accessory.
2. Restart the machine and activate the trigger. Let
the machine run until no more water runs through
the spray handle.
3. Stop the machine, unplug and detach high pres-
sure hose.
Should the machine by mistake be frozen, it will be
necessary to check it for damage.
NEVER START-UP A FROZEN MACHINE.
Frost damages are not covered by the
guarantee!
6.0 Environmental protection
Recycle unwanted materials instead of disposing
of them as waste. All tools, hoses and
packaging should be sorted, taken to the
local recycling centre and disposed of in
an environmentally safe way.

17
7.0 Trouble shooting guide EN
To avoid unnecessary disappointments, you should check the following before contacting the ALTO service
organisation:
Symptom Cause Recommended action
Machine refuses to start Machine not plugged in Plug in machine.
Defective socket Try another socket.
Fuse has blown Replace fuse. Switch off other machines.
Defective extension cable Try without the extension cable.
Fluctuating pressure Pump sucking air Check that hoses and connections are air
tight.
Valves dirty, worn out Clean and replace or refer to local ALTO
or stuck distributor
Pump seals worn out Clean and replace or refer to local ALTO
distributor.
Motor busses Low voltage or Activate the trigger of the spray handle.
low temperature
Machine stops Fuse has blown Replace fuse. Switch off other machines.
Incorrect mains voltage Check that the mains voltage corresponds to
specification on the model tag.
Thermal sensor activated Leave the washer for 5 minutes to cool down.
Nozzle partially blocked Clean the nozzle (see section 4.1)
Fuse blows Fuse too small Change to an installation higher than the
amp. consumption of the machine.
You may try without the extension cable.
Machine pulsating Air in inlet hose/pump Allow machine to run with open trigger until
regular working pressure resumes.
Inadequate supply of Check that the water supply corresponds to
mains water specifications required (see model tag)
NB! Avoid using long, thin hoses (min. 1/2")
Nozzle partially blocked Clean the nozzle (see section 4.1)
Water filter blocked Clean the filter (see section 4.2)
Hose kinked Straighten out hose.
Machine often starts Pump/spray handle is Contact your nearest ALTO Service Centre.
and stops by itself leaking
Machine starts, but Pump/hoses or accessory Wait for pump/hoses or accessory to thaw.
no water comes out frozen
No water supply Connect inlet water.
Water filter blocked Clean the filter (see section 4.2)
Nozzle blocked Clean the nozzle (see section 4.1)
In case problems other than the above occur, please contact your local ALTO distributor.
Customer services (UK only): ALTO Cleaning Systems Ltd. Phone: [phone]
Gilwilly Industrial Estate
Penrith, Cumbria CA11 9BN
Customer service (AUS): ALTO Overseas Inc. Phone: [phone]
1B/8 Resolution Drive
P.O. Box 797
Caringbah, N.S.W. 2229

18
8.0 Warranty conditions EN
ALTO guarantees high pressure washers for domestic use for 2 years. If your high pressure washer or ac-
cessories are handed in for repair, a copy of the receipt must be enclosed.
Guarantee repairs are being made on the following conditions:
that defects are attributable to flaws or defects in materials or workmanship. (wear and tear as well as
misuse are not covered by the guarantee).
that the directions of this instruction manual have been thoroughly observed.
that repair has not been carried out or attempted by other than ALTO-trained service staff.
that only original accessories have been applied.
that the product has not been exposed to abuse such as knocks, bumps or frost.
that only water without any impurities has been used.
that the high pressure washer has not been used for rental nor used commercially in any other way.
Repairs under this guarantee include replacement of defective parts, exclusive of packing and postage/
carriage. Besides, we refer to your national law of sale.
The machine should be forwarded to one of the service centres of the ALTO organisation with description/
specification of the fault.
Repairs not covered by the guarantee conditions will be invoiced. (I.e. malfunctions due to Possible Caus-
es mentioned in section 7.0 Troubleshooting guide of the instruction manual).

DA Patio Cleaner
EN Patio Cleaner
DE Patio Cleaner
FR Patio Cleaner
NO Patio Cleaner
SV Patio Cleaner
DA Roterende børste
EN Rotating brush
DE Rotierende Bürste
FR Brosse rotative
NO Roterende børste
SV Roterande borste
DA Rørrenser
EN Tube cleaner
DE Rohrreiniger
FR Nettoyeur déboucheur
NO Rørrenser
SV Avlopps-/rørrensare
DA Fælgbørste
EN Rim brush
DE Felgenbürste
FR Brosse pour jantes
NO Felgbørste
SV Fälgborste
DA Garden brush
EN Garden brush
DE Gartenbürste
FR Brosse de jardin
NO Hagebørste
SV Garden brush
Art. no. 106411325
Art. no. 6411150
Art. no. 6410762
Art. no. 6410766
Art. no. 106411326

ALTO Danmark A/S
Industrikvarteret, DK-9560 Hadsund
Tel.: [phone]
www.alto-online.com 6527891 a
Printed in China Copyright © 2003 ALTO Danmark A/S
ALTO high pressure washer
RECEIPT
xx/xx/2003
Total ..... .... €
