Alto 107840 Series User manual

PRODUCT MANUAL
107840 Bluetooth Audio Interface
AV I A T I O N
Size
Doc Type
Drawing Number
Rev
Date
Page
A
PM
107840-XXXX-XXXXXPM
3
04/11/19
1
of
25
107840 Bluetooth Audio Interface
Product Manual
Alto Aviation
86 Leominster Rd
PO Box 399
Sterling, MA 01564
Phone: [phone]
800.814.0123
Fax: [phone]
E-mail: [e-mail]
www.altoaviation.com

PRODUCT MANUAL
107840 Bluetooth Audio Interface
AV I A T I O N
Size
Doc Type
Drawing Number
Rev
Date
Page
A
PM
107840-XXXX-XXXXXPM
3
04/11/19
2
of
25
Revisions
Rev #
ECN
Date
Description
1
NDI
04/03/19
Initial
2
E1904007
04/09/19
Added Section 4.8 Functional Hazard Assessment (FHA)
3
E1904009
04/11/19
Added BT Radio Note in Section 4.1
Copyright/Proprietary Notice
Alto products are continually improved and all specifications are subject to change without notice. Information
and data in this document is confidential and proprietary. Reproduction or disclosure of the information contained
in this publication or any portion thereof, by any means, without the express written permission of
Alto Technologies Corporation is prohibited.
Copyright © Alto Technologies Corporation. All rights reserved

PRODUCT MANUAL
107840 Bluetooth Audio Interface
AV I A T I O N
Size
Doc Type
Drawing Number
Rev
Date
Page
A
PM
107840-XXXX-XXXXXPM
3
04/11/19
3
of
25
Service Bulletin List
Service
Bulletin
Number
Subject
Manual
Revision
Number
Manual
Revision
Date

PRODUCT MANUAL
107840 Bluetooth Audio Interface
AV I A T I O N
Size
Doc Type
Drawing Number
Rev
Date
Page
A
PM
107840-XXXX-XXXXXPM
3
04/11/19
4
of
25
Table of Contents
1.0 General ............................................................................................................................................6
1.1 Equipment Description.....................................................................................................................................6
1.2 Definitions and Acronyms................................................................................................................................7
1.3 107840 Series Overview..................................................................................................................................7
2.0 Components....................................................................................................................................8
2.1 Pairing Switch and LED...................................................................................................................................9
2.2 Headphone Out / Auxiliary Input....................................................................................................................10
2.3 Audio In / Out.................................................................................................................................................11
2.4 Outline Drawings ...........................................................................................................................................12
2.5 Qualification Data ..........................................................................................................................................14
3.0 Operation...................................................................................................................................... 15
3.1 Bluetooth Receiver (Audio Input) Operation..................................................................................................15
3.2 Bluetooth Audio Transmitter Operation..........................................................................................................16
3.3 Notes on Latency...........................................................................................................................................16
4.0 Installation.................................................................................................................................... 17
4.1 BT Radio Emission Installation Note..............................................................................................................17
4.2 General..........................................................................................................................................................17
4.3 Unpacking and Inspection .............................................................................................................................18
4.4 Mounting Considerations...............................................................................................................................18
4.5 Electrical Load Analysis.................................................................................................................................19
4.6 Bonding .........................................................................................................................................................19
4.7 Wire Shielding ...............................................................................................................................................19
4.8 FCC Regulations ...........................................................................................................................................19
4.9 Functional Hazard Assessment (FHA)...........................................................................................................20
5.0 Technical Specifications............................................................................................................. 21
6.0 Connector Specifications ........................................................................................................... 23
7.0 DO-160G Qualification ................................................................................................................ 24

PRODUCT MANUAL
107840 Bluetooth Audio Interface
AV I A T I O N
Size
Doc Type
Drawing Number
Rev
Date
Page
A
PM
107840-XXXX-XXXXXPM
3
04/11/19
5
of
25
Table of Figures
Figure 1: 107840-XXXX-XXXXX Bluetooth Audio Interface ...................................................................6
Figure 2: Block Diagram of Bluetooth Audio Interface............................................................................ 8
Figure 3: Pairing Switch and Indicator.................................................................................................... 9
Figure 4: Bluetooth Transmitter Connection Options (Do not connect both simultaneously) ................ 10
Figure 5: Bluetooth Receiver Connection Options (Do not connect both simultaneously) .................... 10
Figure 6: Bluetooth Transmitter Audio Input Example.......................................................................... 11
Figure 7: Bluetooth Receiver Audio Output Example ........................................................................... 11
Figure 8: Top View, Bottom View, and Left View with Dimensions....................................................... 12

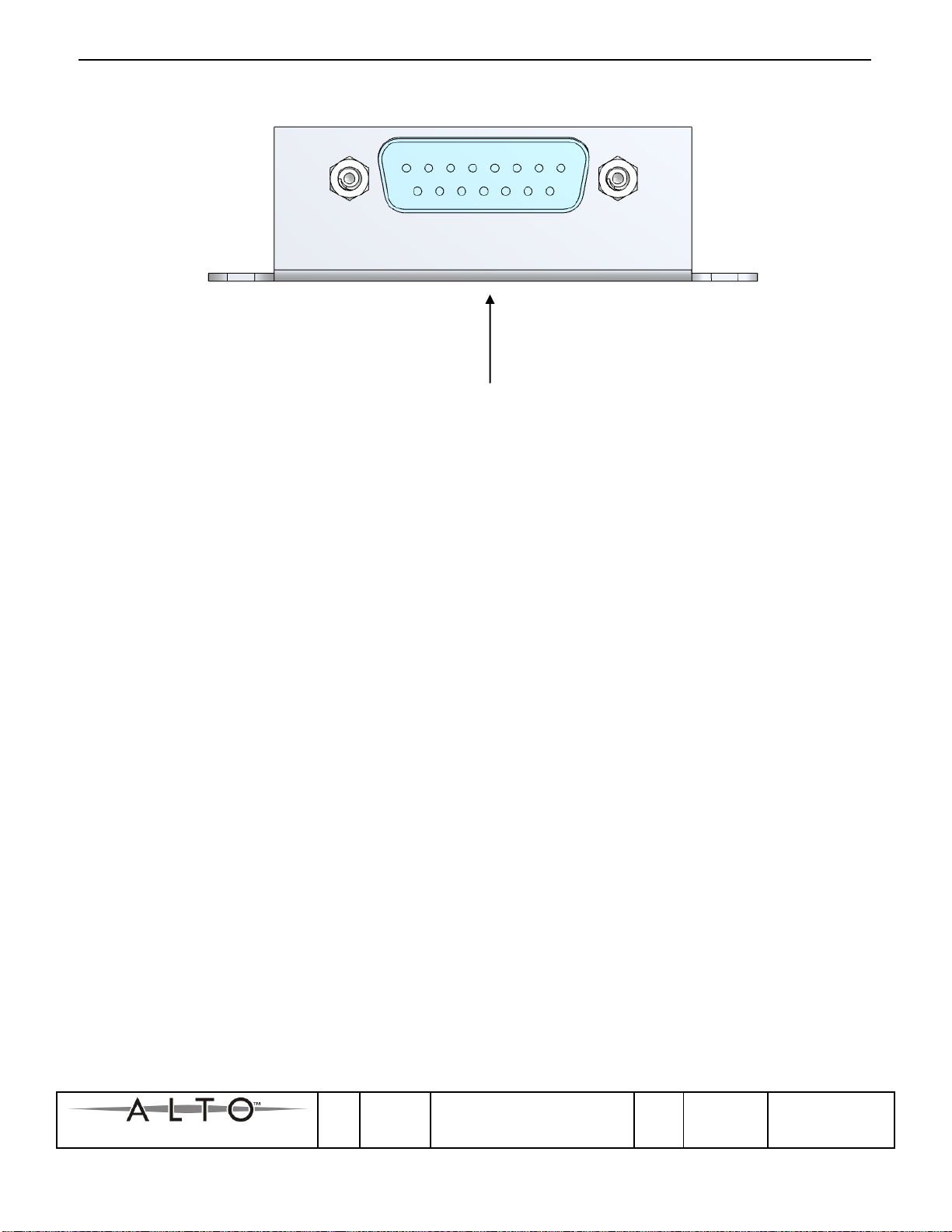

Figure 9: Left End Plate- J1 Connector................................................................................................ 13
Figure 10: Avoid mounting the Bluetooth Audio Interface behind metal skinned or mesh honeycomb
panels.......................................................................................................................................... 18
Table of Tables
Table 1: Bluetooth Audio Interface Models............................................................................................ 6
Table 2: DO-160G Qualification Form –Environmental ...................................................................... 24
Table 3: DO-160G Qualification Form –EMI....................................................................................... 25

PRODUCT MANUAL
107840 Bluetooth Audio Interface
AV I A T I O N
Size
Doc Type
Drawing Number
Rev
Date
Page
A
PM
107840-XXXX-XXXXXPM
3
04/11/19
6
of
25
1.0 GENERAL
This manual contains information about the installation and operation of the ALTO 107840 Bluetooth
Audio Interface. Product information regarding mounting, mechanical, and electrical characteristics is
also detailed.

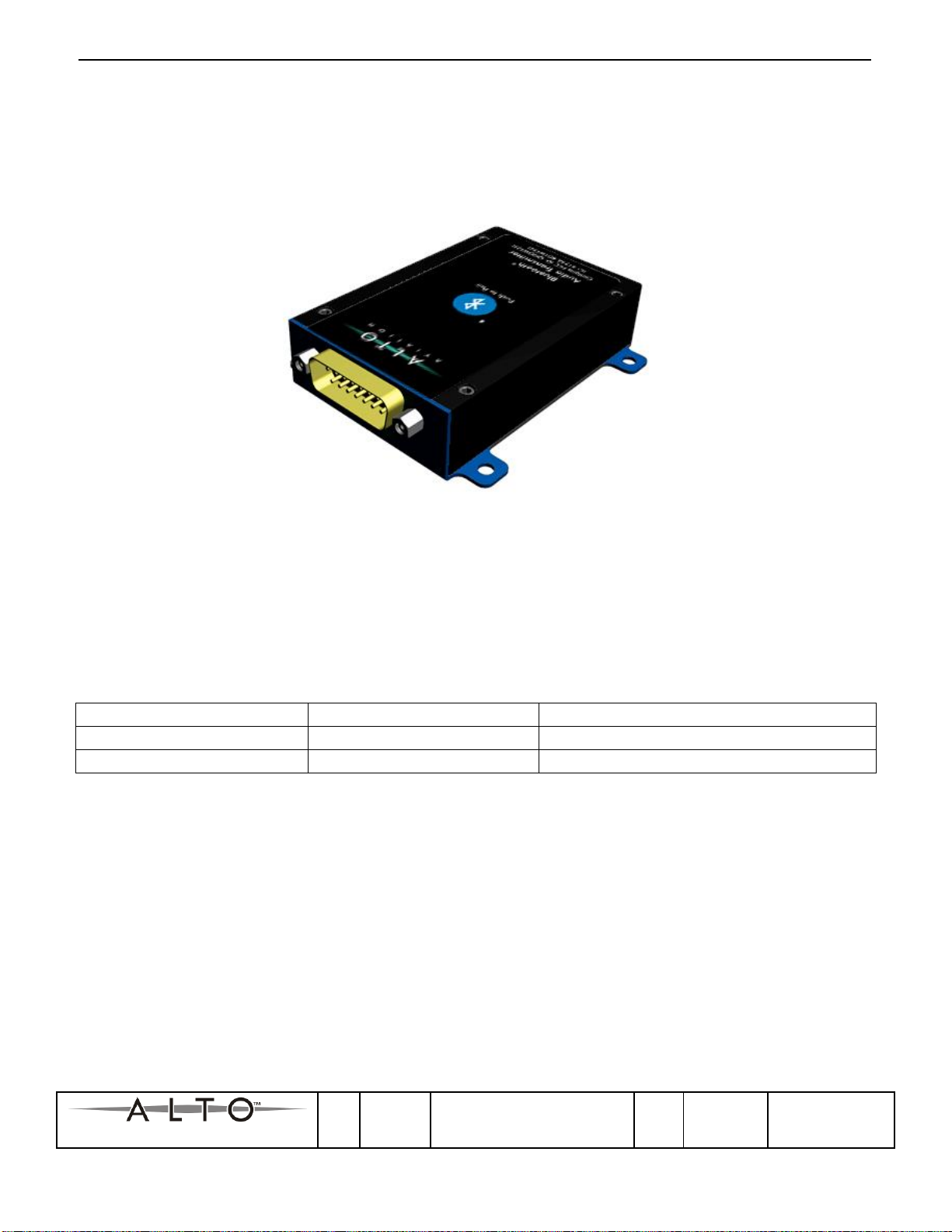

Figure 1: 107840-XXXX-XXXXX Bluetooth Audio Interface
1.1 Equipment Description
The Bluetooth Audio Interface is an independent module that receives or transmits entertainment audio.
The unit can be operated via the button mounted on top, or paired with an external switch and LED for
remote installation.
Models
Part Number
Description
BTR-300
107840-0300-00010
Bluetooth Audio Interface Receiver
BTT-400
107840-0400-00010
Bluetooth Audio Interface Transmitter
Table 1: Bluetooth Audio Interface Models

PRODUCT MANUAL
107840 Bluetooth Audio Interface
AV I A T I O N
Size
Doc Type
Drawing Number
Rev
Date
Page
A
PM
107840-XXXX-XXXXXPM
3
04/11/19
7
of
25
1.2 Definitions and Acronyms
CMS
Cabin Management System
PA
Public Address
BT
Bluetooth
A/V
Audio/Video
BT Sink
The device receives BT audio via RF and outputs analog audio
via wire to an amplifier
BT Source
The device transmits BT audio via RF to a receiver such as BT
Headphones. Analog audio is received via wire from an audio
source
A2DP
Advanced Audio Distribution Profile (A2DP). Enables stereo
audio streaming for the music player (source) to headphones
or speakers (sink)
SBC
Low complexity Sub-band Coding. Provides good audio quality
at medium bit rates while keeping low computational
complexity
AptX
A higher quality alternative to SBC codec used in A2DP.
Adopted to many Android platforms but not Apple OSX devices
AptX-LL
An AptX codec with low latency, around 40mS vs the normal
delay of around 150mS.
LL
Low-Latency
1.3 107840 Series Overview
The 107840 Bluetooth Audio Interface is a small module designed to provide a Bluetooth Audio link to
an aircraft audio system. The unit is available in two configurations:
Bluetooth Audio Receiver (Sink): The device receives a Bluetooth audio stream from a
Bluetooth audio source (i.e. a smartphone or tablet). The audio is decoded and output over an analog
wired connection to an audio amplifier.
Bluetooth Audio Transmitter (Source): The device is used as the source of Bluetooth audio. The
unit receives audio from an analog wired connection, encodes and then streams the audio via A2DP to
a receiver such as wireless Bluetooth headphones.

PRODUCT MANUAL
107840 Bluetooth Audio Interface
AV I A T I O N
Size
Doc Type
Drawing Number
Rev
Date
Page
A
PM
107840-XXXX-XXXXXPM
3
04/11/19
8
of
25
2.0 COMPONENTS
Figure 2: Block Diagram of Bluetooth Audio Interface

PRODUCT MANUAL
107840 Bluetooth Audio Interface
AV I A T I O N
Size
Doc Type
Drawing Number
Rev
Date
Page
A
PM
107840-XXXX-XXXXXPM
3
04/11/19
9
of
25
2.1 Pairing Switch and LED
The Pairing Switch and LED (pin 3 and 4) are located on the top of the Bluetooth Audio Interface. The
LED is blue and indicates current pairing status. If the BT Audio Interface is to be installed remotely,
there are two pins on the connector which can be wired to an external pairing switch and LED. For
more details on LED status and switch functionality, reference Section 3.1.
The pairing switch pin input accepts a momentary ground input and the LED output pin provides a
ground output when active.

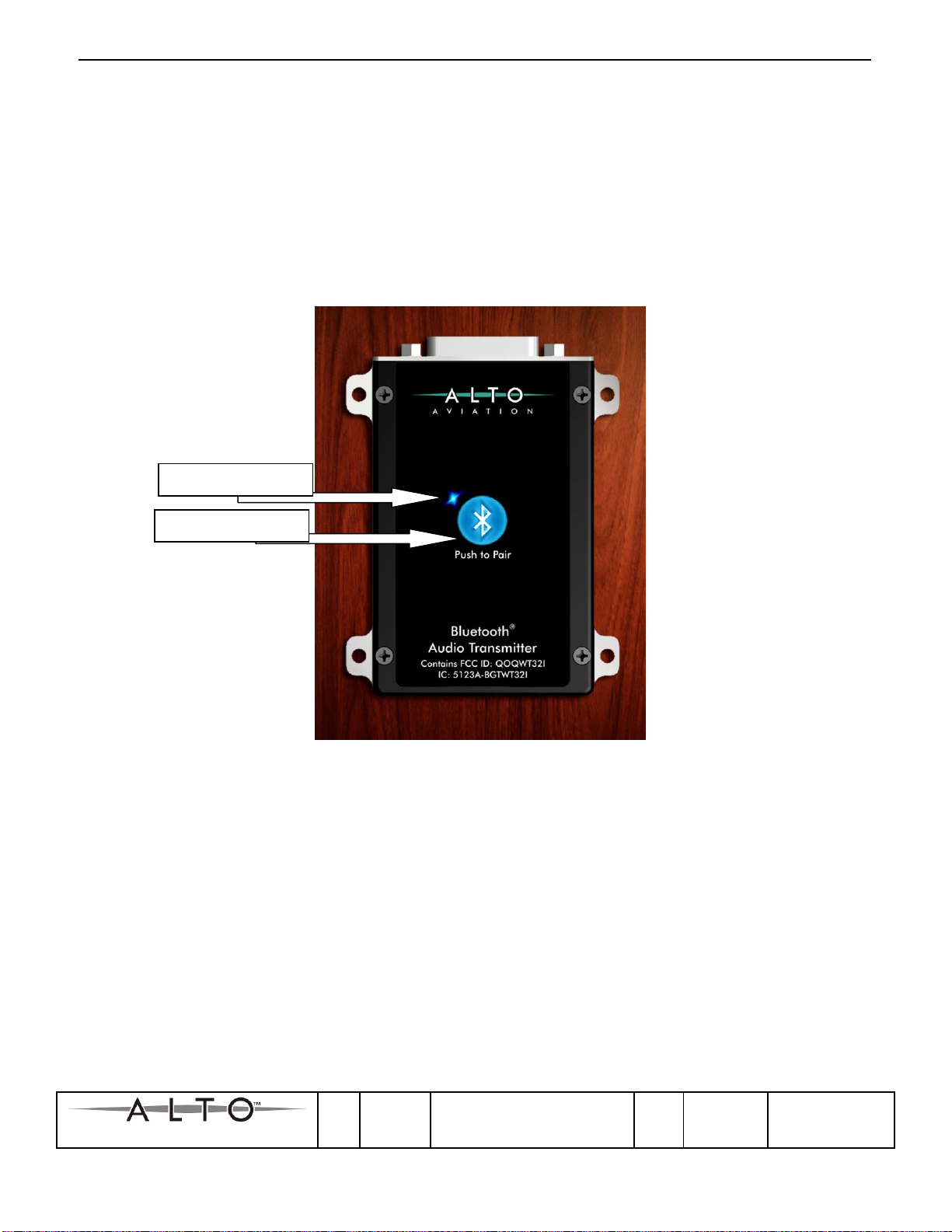

Figure 3: Pairing Switch and Indicator
Pairing Indicator
Pairing Switch

PRODUCT MANUAL
107840 Bluetooth Audio Interface
AV I A T I O N
Size
Doc Type
Drawing Number
Rev
Date
Page
A
PM
107840-XXXX-XXXXXPM
3
04/11/19
10
of
25
2.2 Headphone Out / Auxiliary Input
The Bluetooth Transmitter includes headphone audio output lines (pins 5, 7, and 8), in the event that
the user does not have Bluetooth capable headphones. In this case, the traditional wired headphones
can be connected to a female 3.5mm jack (sold separately) installed adjacent to the pairing switch and
indicator. Wired headphones should not be used while the Transmitter is paired with a device.
The Bluetooth Receiver includes auxiliary audio input lines (pins 5, 7, and 8), in the event that the user
does not have a Bluetooth capable audio streaming device. In this case, the user can connect the
wired, analog audio output from their media device to an auxiliary 3.5mm audio input jack (sold
separately) installed adjacent to the pairing switch and indicator. Any Bluetooth connections should be
un-paired before connecting a wired, analog audio source to the auxiliary input lines otherwise audio
will be mixed from the aux input and the Bluetooth audio stream.
Wired Connection
(pins 5, 7, 8)
Wired Connection
(pins 5, 7, 8)
Wireless Bluetooth Audio Stream
Wireless Bluetooth Audio Stream
Figure 4: Bluetooth Transmitter Connection Options (Do not connect both simultaneously)
Figure 5: Bluetooth Receiver Connection Options (Do not connect both simultaneously)
