AM.PM INSPIRE CCC501700SC User manual

INSPIRE
CCC501700SC ENG • RUS

2
570
370
185
285
320
180
ø55
ø102
400
45
20
446

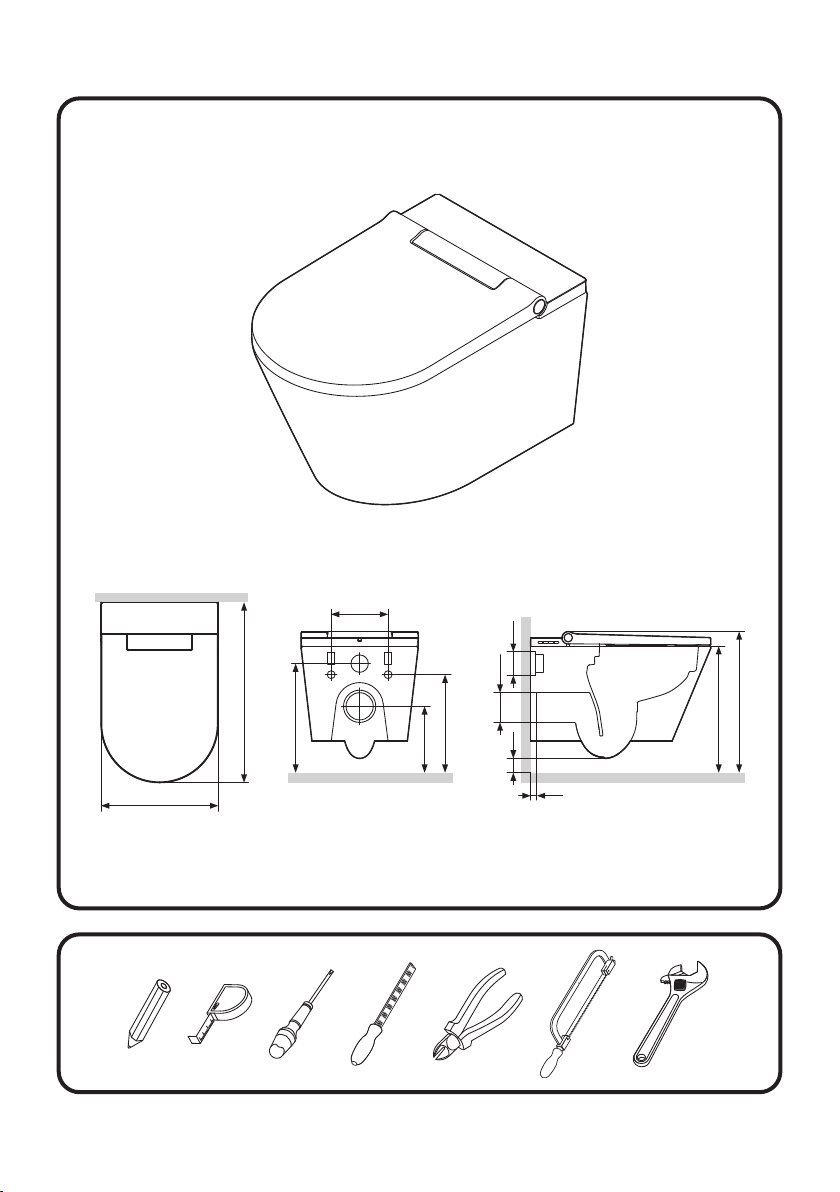

Product size/Размеры унитаза

3
a b c e
f g h j
k m o n
p q r s
Scope of delivery/Комплектующие

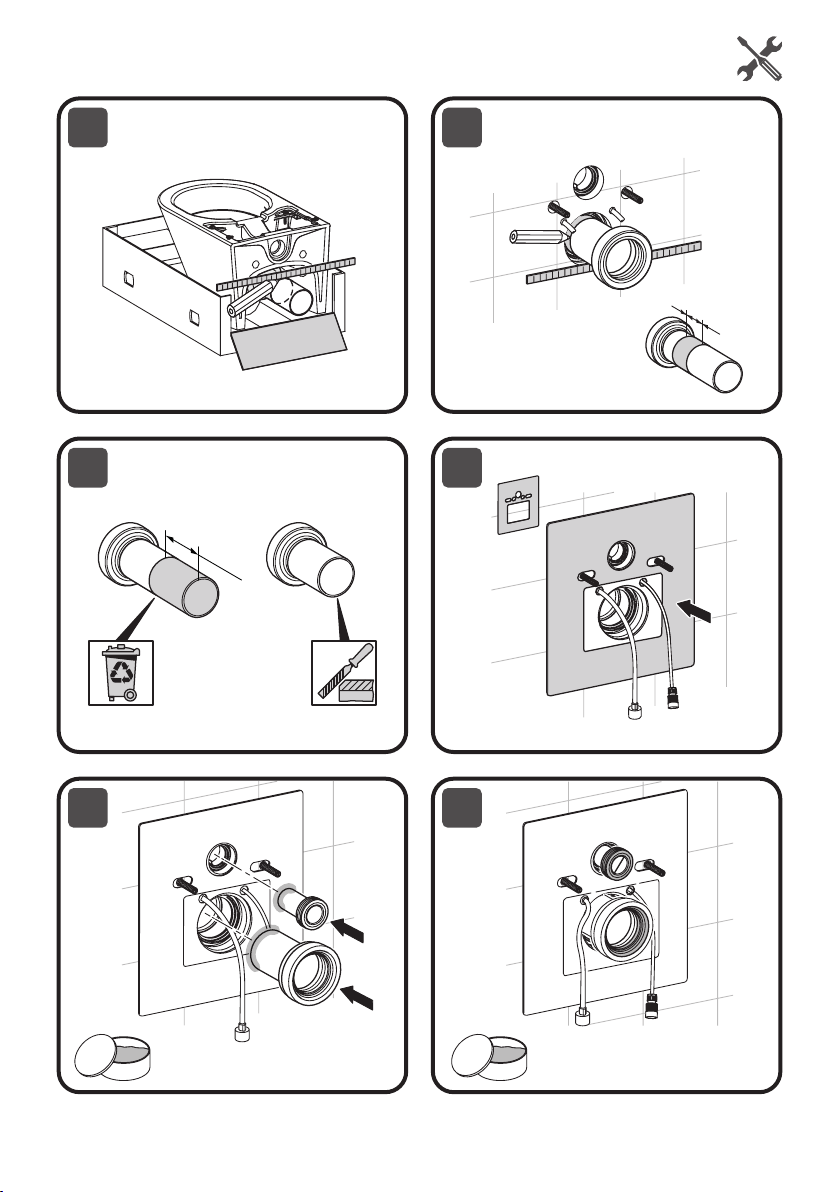

4
55
40
p
g
180
60
40
40 40
150
1
3
2
I 1 2

5
m
5
7
6
8
43

6
u
t
A
Х
Х+3mm
B
2
4
3
II 19
5

7
Y+3mm
сYD
C
D
n

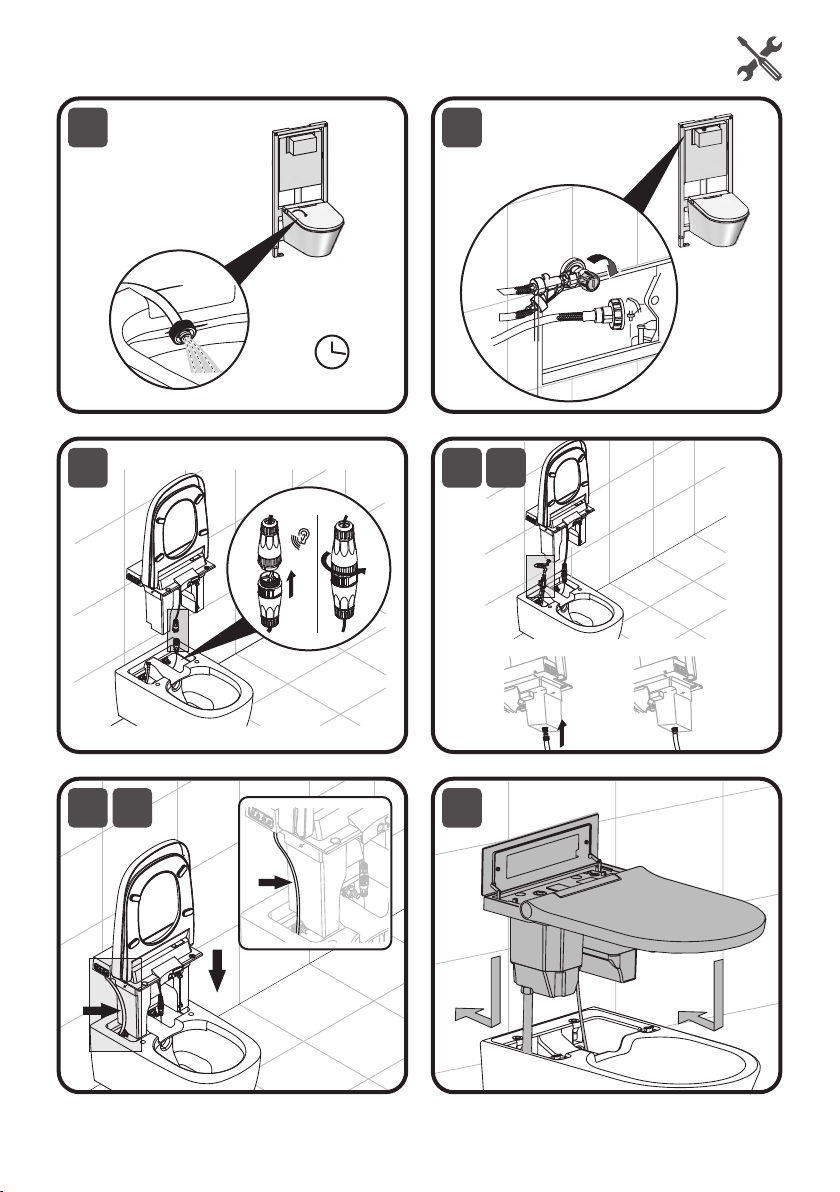

8
10
9
11
76

8
qrs
14
16
15
1312
17

9
10 sec./сек.
1
2
20
IV 1
III 1
2
1918

10
k
j
2
V 13

11
Safety precautions
Please read the instructions carefully before installation and keep them available for
future reference.
Follow all safety precautions and warnings to prevent any personal injury.
Attention Follow all safety precautions and warnings to prevent
any personal injury.
Warning Improper handling can result in death or serious injury.
Designation of the symbols
Symbol Designation
Prohibited actions
Mandatory actions
Attention!
Never disassemble, repair, or make any technical changes to the product
to prevent electric shock.
Do not wash electronic parts and power cord with water or detergents to
prevent re and electric shock.
Do not touch the plug with wet hands to prevent electric shock.
Do not plug other devices into the same outlet.
Please do not bend or warp the nozzle with your hands or tools. This may
result in deterioration or damage to the product.
Please do not bend or warp the nozzle with your hands or tools. This may
result in deterioration or damage to the product.
Please use only tap or drinking water.
Do not let your child stand on the seat cover or place heavy objects on it.
Don't knock on the lid.
Do not damage the power cord or power plug. A defective mains cable
shall be replaced by the manufacturer, service or qualied person to
avoid risk.

12
Safety precautions
Attention!
Please do not bend, twist, or damage the water supply hose. Otherwise, it may
cause leakage.
Stop use of the product, if it is defective. Press power reset button, turn o the
power, and close the water supply valve in the following cases:
- excessive heat, smoke;
- abnormal sound and smell;
- the product is damaged or cracked;
- the product is blocked.
Using a defective product may result in electric shock, personal injury, re or
leakage in the room.
Do not use any polishes, gasoline, detergents, hard brushes or other aggressive
cleaning agents to clean the product lid or other plastic parts. This may cause a
chemical reaction or crack.
Do not move the seat or lid. The product may fall and result in personal injury.
During a thunderstorm, it is strongly recommended to cut the device o.
Mandatory
operations
During installation, repair, disassembly and cleaning of the product, cut o
power and water supply.
This product should be used at voltage 220V-240V, 50/60Hz, and current not
less than 10A. The mains plug shall be provided with an earthing switch or
protection against current leakage, or a similar high-sensitivity switch (normal
current sensitivity up to 10mA).
Provide ventilation equipment in the bathroom to prevent moisture. Do not
install in rooms with high humidity or risk of wetting the product. Otherwise, it
may result in electric shock or re.
In case of any water leakage, close the water supply valve and call for service.
Insert the seat lid into the quick-release console on the front. Gently pull the seat
lid and make sure the lid is installed securely. Following the instructions will help
prevent injury and ensure proper operation of the product.
Disconnect power to the product before removing the lid.

13
Safety precautions
Attention!
Mandatory
operations
If you are not going to use the product for a long time, please turn o the water
supply valve, drain the water and turn o the power. Before using the product
after a break, drain any stagnant water.
Mandatory use of PTR
The outlet shall be installed at least 0,5 m above the floor and away from
the bathtub and shower to prevent leaks.
Disconnect power before cleaning and do not expose it to direct water.
Do not expose the product to direct sunlight.
Keep room temperature to prevent any damage due to freezing.
To prevent burns to users, the seat temperature will automatically decrease
after 15 minutes of use.
Make sure that the power is turned o and that the water valve is shut o before
removing the seat lid.
Pay special attention, if the product is used by a person with heart disease.
The product can be used by children from 8 years of age and older, persons
with limited physical, tactile and mental abilities or with limited experience and
knowledge, if they have been instructed on using the device in safe ways and
are aware of the possible risks.
Do not let children play with the device
Avoid any cleaning and care done by the children without supervision.
A defective network cable shall be replaced by the manufacturer, customer
service, or qualied person to avoid risk.

14
Specications
Power voltage 220-240V~ 50-60Hz 1350W
Water supply
Water input Connect to the pipe directly
Water pressure 0.08MPa - 1MPa
(0.8kgf/cm2-10kgf/cm2)
Wash device
Posterior wash water volume 0.4L/min-0.8L/min
Female wash water volume 0.4L/min-0.8L/min
Type of water heater Instantaneous type
Temperature Room temp./low 33°C/medium 37°C/
high 40°C
Heating power Maximum 1600W
Safety device Floating switch / Temperature fuse
Backow prevention device Air gap (EN1717/ EN13077/ Type AB)
Seat heating device
Temperature Room temp./low 30°C/medium 35°C/
high 40°C
Heating power 24W
Safety device Temperature fuse
Dryer device
Temperature Room temo./low 35°C/medium 45°C/
high 55°C
Heating power 220W
Safety device Temperature fuse
Power cord length 0.25m
Net weight 32kg

15

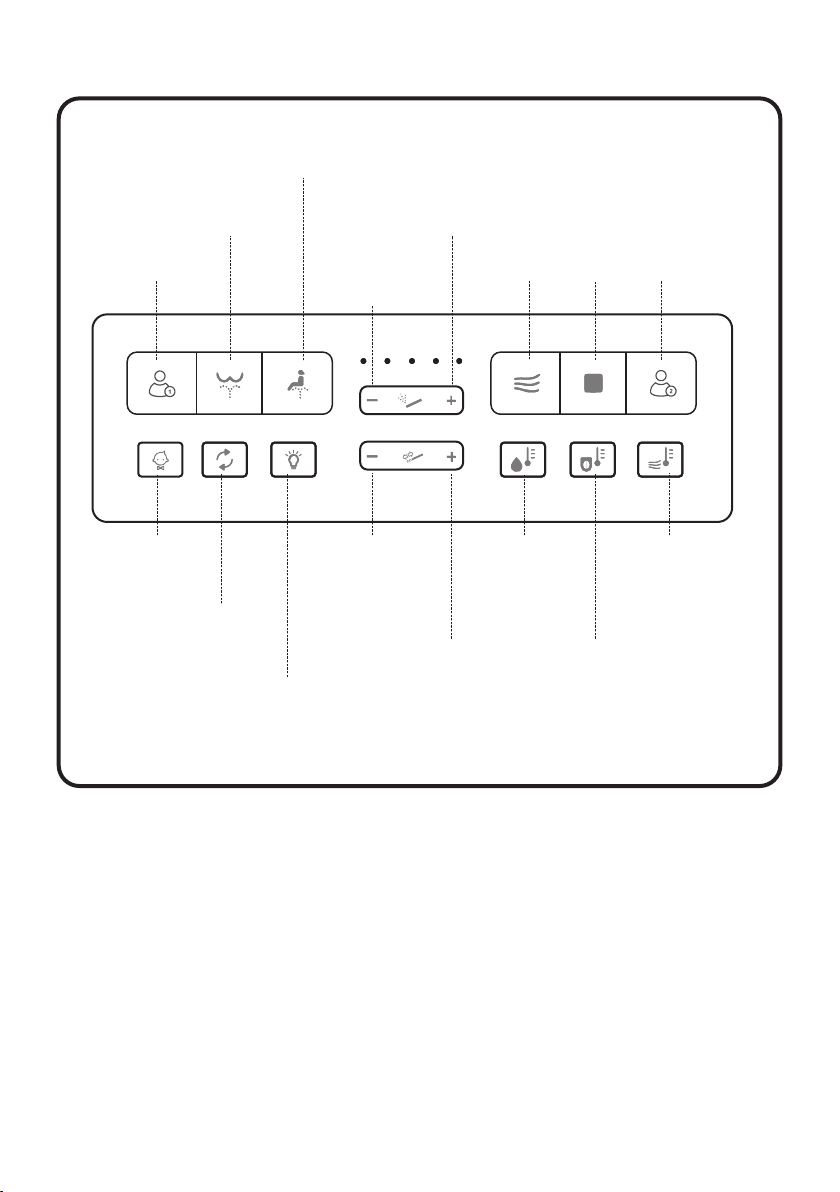

Remote controller
Warning label
Nozzle
Dryer
Dryer Rear wash
Cover
Side button
Ceramic bowl
Side button
Stop Front wash
Description of parts

16
User 1 User 2
Rear wash
Press again,
oscillating
rear wash
Child mode
Long press to
restart Bluetooth
Auto wash mode
Long press to
active descaling Nozzle position
forward
Long press
for alternating wash
Nozzle position
backward
Long press
for pulsating wash
Water temperature
adjustment
Long press to
switch to mute mode
Dryer temperature
adjustment
Long press to
drain water out
(keep cover close)
Seat temperature
adjustment
Long press to
active night mode*
*Night mode: deodorizer and pre-wet will not work and active the mute mode for 8 hours.
Night Light
Front wash
Press again,
oscillating
front wash
Increase water
pressure
Long press to clean
nozzle manually
Decrease water
pressure
Long press to switch
flushing mode
Dryer Stop
Remote controller

17

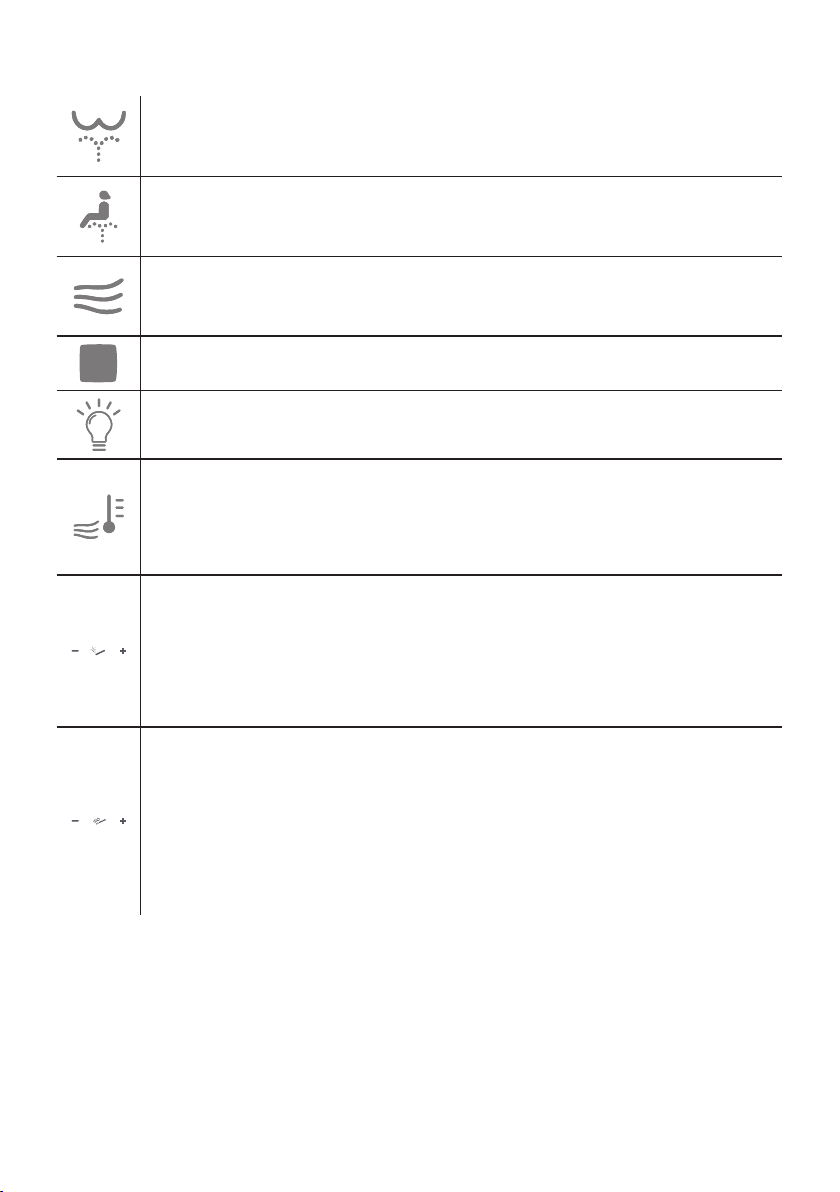

Operation
Rear washing/Oscillating washing
While sitting, press to activate rear washing for 2 minutes.
While washing is activated, press again to initiate oscillating movement of the nozzle.
This moves the nozzle back and forth for more thorough cleansing eect.
Front washing/Oscillating washing
While sitting, press to activate front washing for 2 minutes.
While washing is activated, press again to initiate oscillating movement of the nozzle.
This moves the nozzle back and forth for more thorough cleansing eect.
Dryer
While sitting, press to activate dryer to dry wet parts after washing.
Activates for 5 minutes before automatically stopping. If you wish to stop before 5 minutes
is over, press stop or simply close the cover.
Stop
While sitting, press to stop any ongoing function.
Light
Long press to change night light mode.
Dryer temperature
Press to adjust the dryer temperature as preferred.
There are 4 dryer temperature levels available.
The previous user’s setting applies when no adjustment is made by the current user.
Dryer temperature is adjustable anytime during activation.
Long press to drain out water in the water tank. (Keep the cover close).
Nozzle position
Press to set the level adjustment buttons to nozzle position mode.
Press “-“ and “+” to adjust the nozzle position as preferred.
The nozzle can be ejected in 5 dierent positions.
The previous user’s setting applies when no adjustment is made by current user.
Nozzle position is adjustable anytime during activation.
Long press “-” for pulsating washing
Long press “+” for warm and cold water washing.
Wash pressure
Press to adjust the water pressure as preferred.
There are 3 water pressure level is available.
The previous user’s setting applies when no adjustment made by the current user. Water pres-
sure is adjustable anytime during activation.
Long press “-“ to switch ushing mode. (Optional)
Default ush mode is ush when close the cover;
after switch ush mode, when the dryer starts working, the toilet will ush at
the same time.
Long press “+”to clean nozzle manually.

18
Operation
Water temperature / Switch mute mode.
Press to adjust the water temperature as preferred.
There are 4 water temperature level available.
The previous user’s setting applies when no adjustment is made by the current user.
Water temperature is adjustable anytime during activation.
Long press to switch mute mode.
There will be no any sounds of the toilet when “Mute mode” is ON.
Seat temperature / Night mode
Press to adjust the seat temperature as preferred.
There are 4 seat temperature levels available.
The previous user’s setting applies when no adjustment is made by current user.
Long press to active night mode.
Night mode means deodorizer and pre-wet will not work and active
the mute mode for 8 hours.

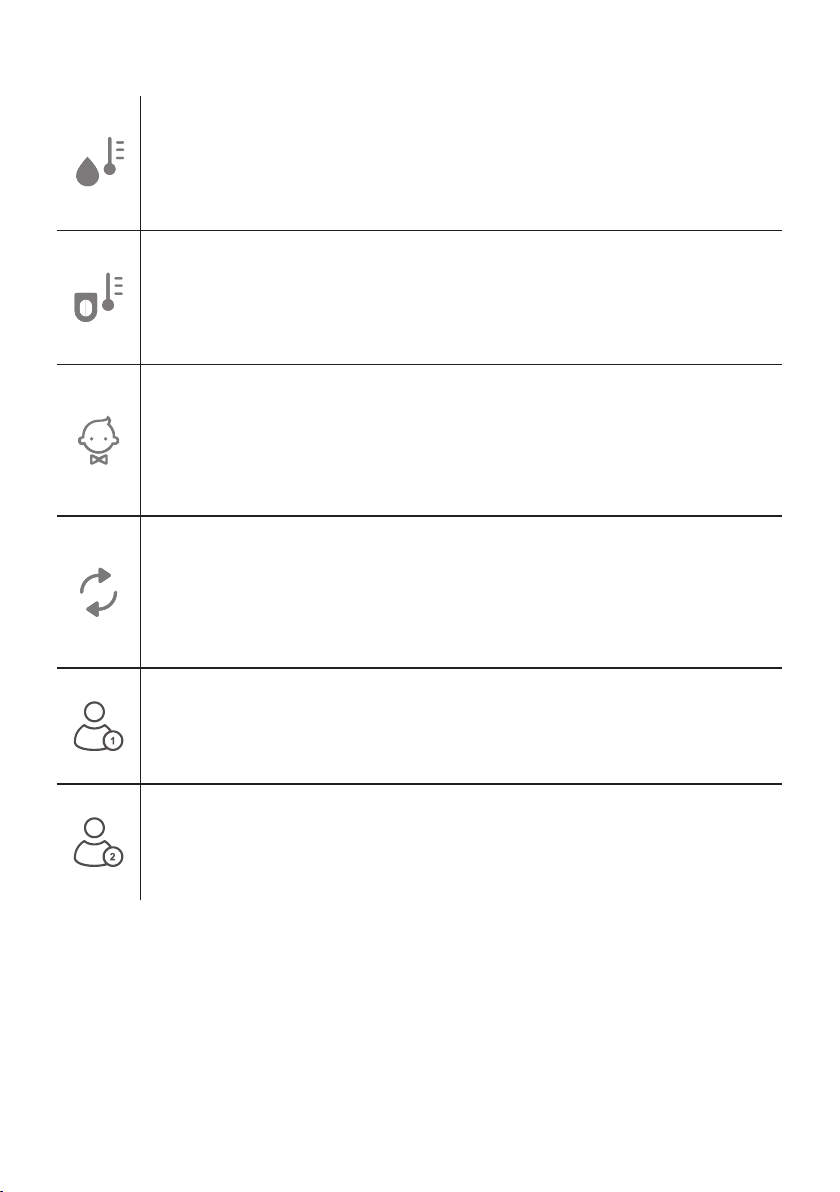

Child auto wash program
Press to active “Child wash auto program”
Rear wash for 15s – rear oscillating wash for 15s – drying for 1 minute
Press “Front wash” rst , then press “Auto” to achieve “Child front washprogram”
Front wash for 15s – Front oscillating wash for 15s – drying for 1 minute
Water temperature, water pressure and dryer temperature in low setting by default
Long press to restart Bluetooth. (Optional)
When the toilet can not be found in app, can restart bluetooth to reconnect.
Auto wash program
Press to achive ”Rear auto wash program”
Rear oscillating wash for 60s - drying for 3 minutes
Press ”Front wash” rst , then press “ Auto” to achieve “Front wash program”
Front oscillating wash for 60s – drying for 3 minute
The previous user’s setting applies when no adjustment is made by the current user for water
temperature, water pressure and dryer temperature.
Long press to active descaling.
Long press the “User 1” button after using the function,
the remote control will record all the current settings of the toilet functions.
(Include Water temperature, water pressure, dryer temperature, seat temperature,
position of spray nozzle.)
Press “User 1” shortly to switch the function currently used to the setting
stored by User 1.
Long press the “User 2” button after using the function,
the remote control will record all the current settings of the toilet functions.
(Include Water temperature, water pressure, dryer temperature, seat temperature,
position of spray nozzle.)
Press “User 2” shortly to switch the function currently used to the setting
stored by User 2.

19
Trial operation
Function conrmation
1. Please check each function according to the manual.
2. Switch on the power and open the cover, the water will be heated as set
temperature and the warm air will work when you press the dry key.
3. The remote has been matched with the toilet in the factory. If you change a remote,
then need to match code again. (Press “User 1 + Stop” on the remote at the same
time until the light on the remote fresh, then switch on the power of the toilet
and wait for 10 seconds then code match nish).

20
Maintenance
Seat Cleaning
Important: Unplug the product from the power source before cleaning or removing
the seat.
Use a soft, damp cloth and mild cleanser to wipe down the seat. DO NOT scrub or use
harsh, abrasive products to clean the product. DO NOT use thinner, benzene, acidic
chemicals, chloride, or hydrochloric acid detergent. This may result in corrosion to the
metal parts or discoloration or scratches to the bidet body.
Nozzle and sprayer clean
1. Please clean the nozzle frequently. Long press
water pressure “+”, the nozzle will come out, remove
spray head. Then clean it with tooth brush or soft cloth.
2. Please do not over pull the nozzle. Press the “stop”
button after nished clean so that the nozzle will go back
automatically.
Long-time non use
1. Close the angle valve
to stop the water supply.
3. Press the power button to
stop the power supply.
2. Long press the “ Dryer Tem-
perature ” button to drain out
water in the water tank.
