Amantii 40-TRV-XL-XT Owner's manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR
40-TRV-XL-XT
50-TRV-XL-XT
60-TRV-XL-XT
72-TRV-XL-XT
88-TRV-XL-XT
SAFETY INFORMATION
WARNING
If theinformationintheseinstructionsare
not followed exactly,afireorexplosion
mayresult causingpropertydamage,
personalinjuryorlossoflife.
Do not storeoruse gasolineorotherflammablevapors
and liquidsinthevicinity ofthisorany otherappliance.
INSTALLER:LEAVETHIS MANUALWITH THE APPLIANCE.
CONSUMER:RETAINTHISMANUALFOR FUTURE REFERENCE.

TABLE OF CONTENTS
Please read and carefully follow all instructions found in this manual. Please pay special attention to
the safety instructions provided in this manual. The instructions included here will assure that you
have many years of dependable and enjoyable service from your Amantii product.
IMPORTANT INSTRUCTIONS ......................................................................................................................................... 3
UNPACKING AND TESTING APPLIANCE ................................................................................................................... 4
GROUNDING APPLIANCE ............................................................................................................................................... 4
LOCATING THE FIREPLACE ........................................................................................................................................... 4
40-TRV-XL-XT ..................................................................................................................................................................... 5
50-TRV-XL-XT ..................................................................................................................................................................... 6
60-TRV-XL-XT ..................................................................................................................................................................... 7
72-TRV-XL-XT ..................................................................................................................................................................... 8
88-TRV-XL-XT ................................................................................................................................................................... ..
SAFETY DRILL SCREW AREA ..................................................................................................................................... 10
HARD-WIRE INSTALLATION ....................................................................................................................................... 10
FOR BATHROOM USE .................................................................................................................................................... 11
OUTDOOR INSTALLATIONS ........................................................................................................................................ 12
INSTALLATION ................................................................................................................................................................ 13
MEDIA OPTIONS .............................................................................................................................................................. 1
OPERATION ....................................................................................................................................................................... 20
INSTALLING WALL THERMOSTAT ........................................................................................................................... 22
REPLACEMENT PARTS .................................................................................................................................................. 23
EXPLODED VIEW ............................................................................................................................................................ 25
WIRING DIAGRAM .......................................................................................................................................................... 26
TROUBLE SHOOTING ..................................................................................................................................................... 27
SERVICE HISTORY .......................................................................................................................................................... 28
WARRANTY ...................................................................................................................................................................... 2
2

IMPORTANT INSTRUCTIONS
PLEASE RETAIN THIS USER GUIDE FOR FUTURE REFERENCE
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:
1) Read all instructions before using this fireplace
2) The fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep
combustible material such as furniture, cushions, bedding, paper, clothes, curtains at least 3 feet from
the front of the unit
3) Extreme caution is necessary when any heater is used near children and whenever the unit is left
operating and unattended
4) Do not operate a fireplace with a damaged cord or plug, or if the heater has malfunctioned, the
fireplace has dropped or damaged in any manner
5) Not all fireplaces are suitable for use in bathrooms or laundry facilities. Please consult with individual
product literature to confirm suitability
6) Do not run the cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange
the cord away from traffic area and where it will not be tripped over
7) Do not modify this fireplace. Use it as described in the manual. Any other use not recommended by
the manufacture may cause fire, shock or injury to persons
8) Do not use this heater with a programmer, timer, separate remote-control system or any other device
that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned
incorrectly
9) Disconnect all power supply before cleaning, maintenance or relocation of the fireplace
10) Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as this
may cause electric shock, fire or damage to the heater
11) Do not immerse the cord, plug or any part of the appliance in water or any other li uid
12) In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must
not be supplied through an external switching device
CAUTION: Procedures and techni ues, which, if not carefully followed, will result in damage to the e uipment.
WARNING: Procedures and techni ues, which, if not carefully followed, will expose the user to the risk of fire, serious
injury, illness or death.
3

UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by plugging the
power supply cord into a conveniently located 120 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all components
operate correctly.
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5 ℃ (41℉) and 35 ℃ (95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.
NOTE: Th r may b trac of odor during th first f w minut s of initial us . This is harml ss,
normal and will n v r occur again.
GROUNDING APPLIANCE
This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as shown in (C)
is available for connecting three-blade grounding type plugs to two-slot receptacles. The green
grounding lug extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is
available.
To disconnect appliance, turn controls to off, then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you install
the fireplace. Before installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3. A 15 ampere, 120 Volt, 60 Hz branch circuit with proper ground must be available at the location.
Preferably a dedicated branch circuit should be provided to avoid circuit breakers to trip of fuses
to blow.
4

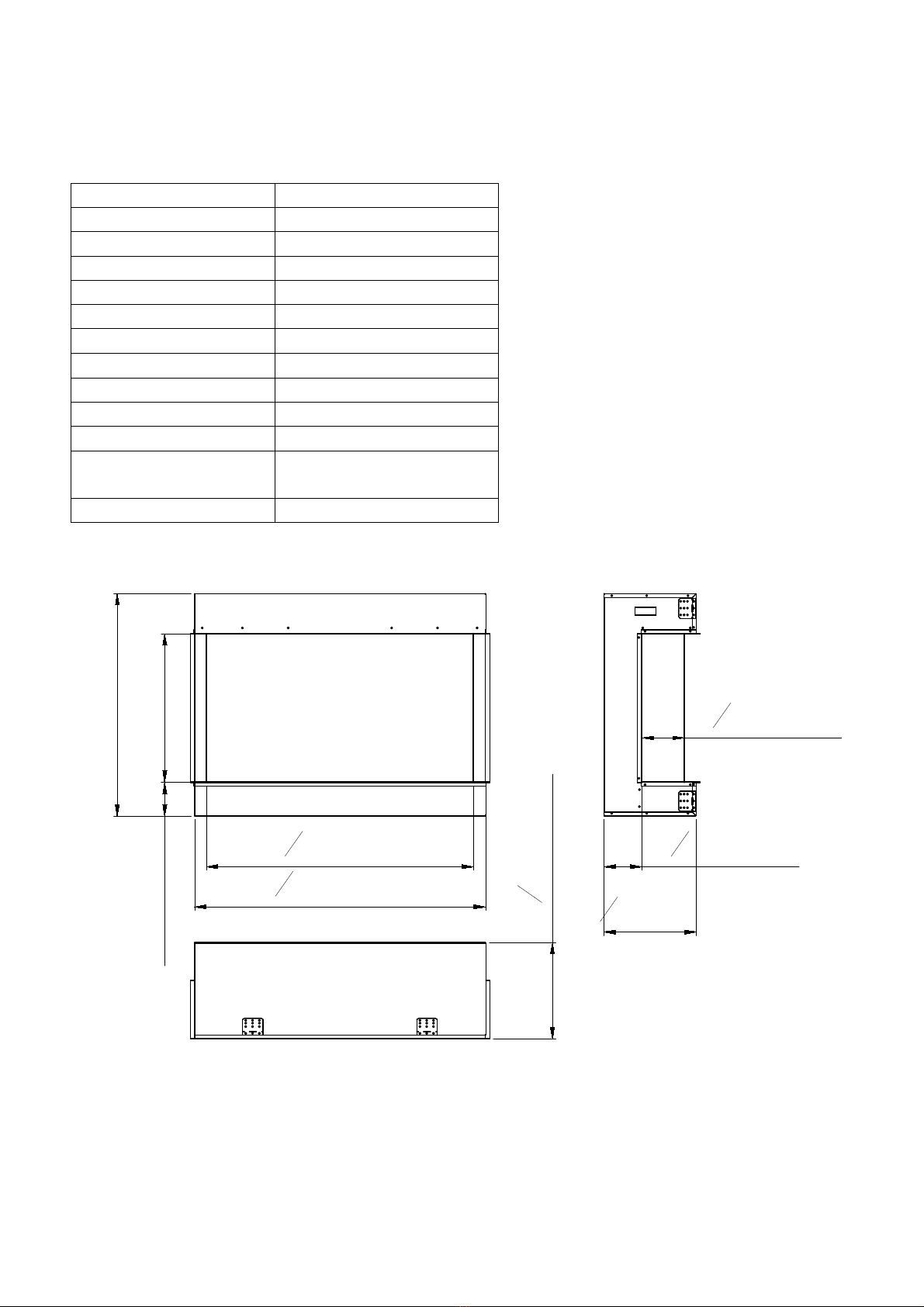

40-TRV-XL-XT
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 43 1/4”or109.8 cm.
ApplianceHeight 33”or83.7 cm
ApplianceDepth 13 3/4”or34.8 cm
Gross Weight 125.7 lbs or 57 kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 43 3/4”34" or
111.1 cm 86.4 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/NFPA70
NationalElectricalCodein theUnited
States.
5
4314" [1097.6mm]
5" [126.8mm] 22" [558.8mm]
33" [837.2mm]
3958" [1007mm]
1334" [348mm]
614" [160mm]
1414" [363mm]
558" [144mm]

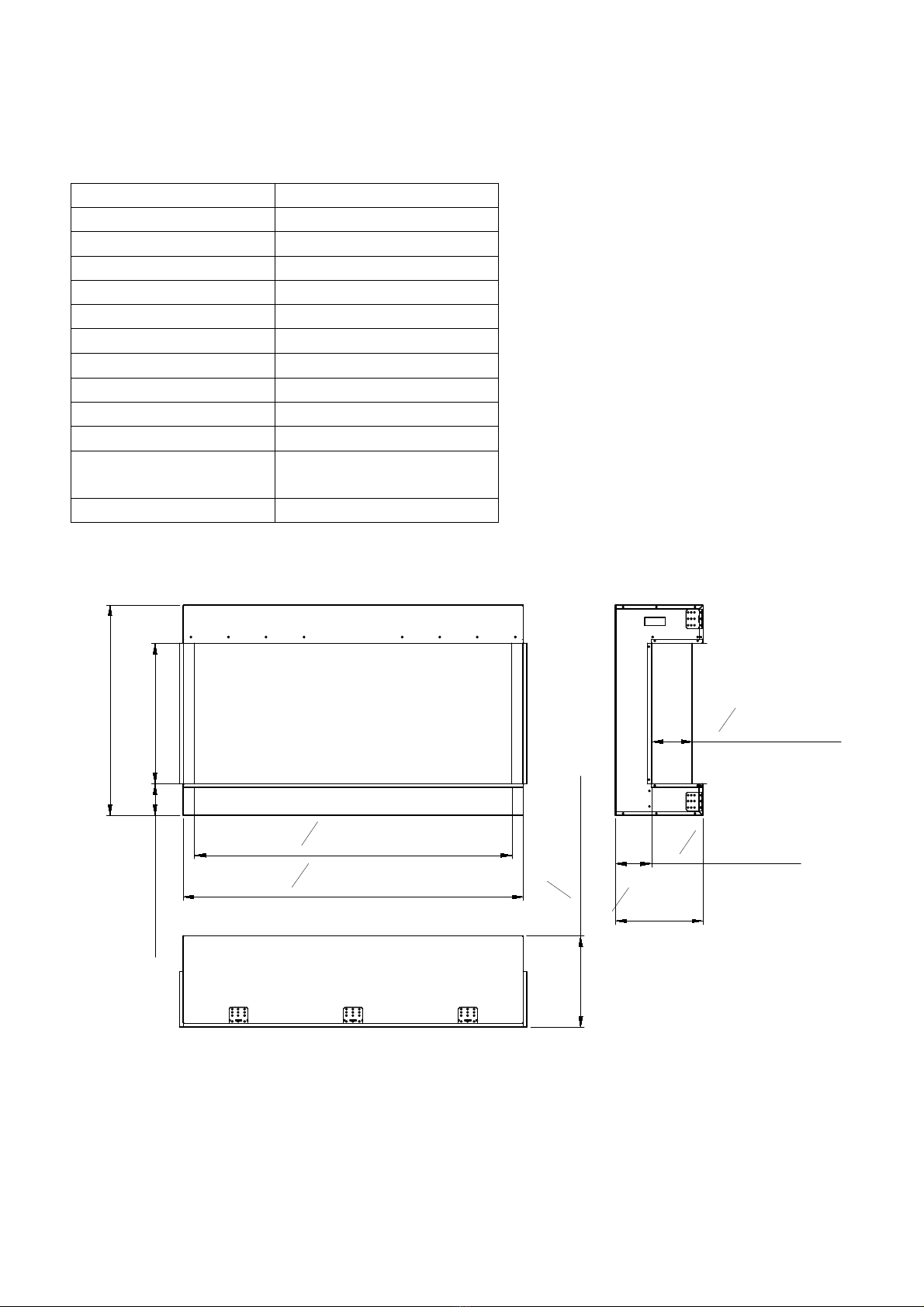

50-TRV-XL-XT
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 53 1/4”or 135.2 cm
ApplianceHeight 33" or 83.7 cm
ApplianceDepth 13 3/4" or 34.8 cm
Gross Weight 147.7 lbs or 67 kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 53 3/4”34" or
136.5 cm 86.4 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/NFPA70
NationalElectricalCodein theUnited
States.
6
5314" [1351.6mm]
5" [126.8mm] 22" [558.8mm]
33" [837.2mm]
4958" [1261mm]
1334" [348mm]
614" [160mm]
1414" [363mm]
558" [144mm]

60-TRV-XL-XT
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 63 1/4 or 160.6 cm”
ApplianceHeight 33" or 83.7 cm
ApplianceDepth 13 3/4" or 34.8 cm
Gross Weight 169.8 lbs or 77 kgs
PlugLocation Left side
Cord Length 707/8" or180 cm
RoughWall OpeningSize 63 3/4" 34" or
161.9 cm 86.4 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/NFPA70
NationalElectricalCodein theUnited
States.
7
33" [837.2mm]
5" [126.8mm] 22" [558.8mm]
5958" [1515mm]
6314" [1605.6mm]
1334" [348mm]
614" [160mm]
1414" [363mm]
558" [144mm]

72-TRV-XL-XT
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 75 1/4”or 191 cm
ApplianceHeight 33" or 83.7 cm
ApplianceDepth 13 3/4" or 34.8cm
Gross Weight 200.6 lbs or 91 kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 75 3/4" 34" or
192.4 cm 86.4 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/NFPA70
NationalElectricalCodein theUnited
States.
8
22" [558.8mm]5" [126.8mm]
33" [837.2mm]
7514" [1910.4mm]
7158" [1819.8mm] 1334" [348mm]
614" [160mm]
1512" [393mm]
558" [144mm]

88-TRV-XL-XT
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 91 1/4”or 231.7 cm
ApplianceHeight 33" or 83.7 cm
ApplianceDepth 13 3/4" or 34.8 cm
Gross Weight 231.5 lbs or 105 kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 91 3/4”34" or
233 cm 86.4 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/NFPA70
NationalElectricalCodein theUnited
States.
9
22" [558.8mm]5" [126.8mm]
33" [837.2mm]
9114" [2316.8mm]
8758" [2226.2mm] 1334" [348mm]
614" [160mm]
1512" [393mm]
558" [144mm]

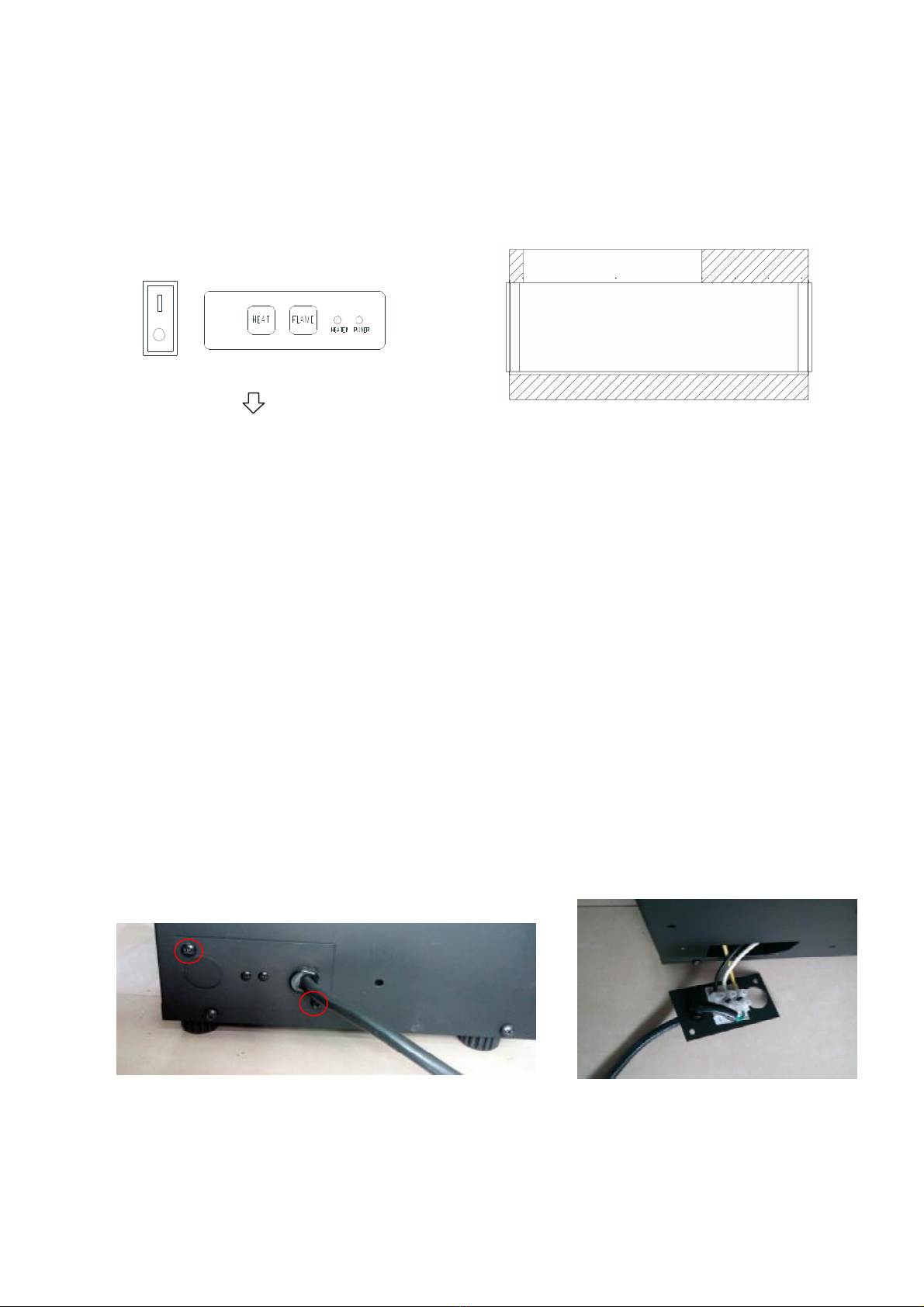

SAFETYDRILL SCREWAREA
Thereis asafetydrillscrewareaasshow below.
Pleasemakesurethat thefixscrewsare inthis area.
Themanualcontrolpadposition
Safetydrill screwarea
(Darkarea)
HARD-WIRE INSTALLATION
Turnofftheappliancecompletelyand let coolbeforeservicing.Onlyaqualifiedserviceperson
should serviceandrepairthiselectricappliance.
If itis necessarytohardwirethisappliance,aqualifiedelectricianmustremovethecordconnection,
and wiretheappliancedirectlyto thehousehold wiring.
This appliancemustbeelectricallyconnectedandgroundedinaccordancewith localcodes,ifhard
wired.Intheabsenceoflocal codes, usethecurrentCSA C22.1CANADIANELECTRICAL CODEin
CanadaorthecurrentANSI/NFPA70 NATIONAL ELECTRICAL CODEintheUnited States.
1. Removethecoverplatefromtheleftsideoftheappliancebyremovingthetwoscrews, as
shownbelow.Unscrewand removepowercord.
0

2. Attachthewiringtothejunctionblock.Pleasemakesurethelivewiregoesintothe “L”,the
neutral wireinto “N”and thegroundwireinto “G”.
3. Puttheplatebackandscrew back.
FOR BATHROOM USE
If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If receptacle is
used it must be readily accessible.
To prevent electric shock, please be aware that this unit is an electrical appliance that is NOT watertight
and must be installed as to prevent water from entering unit. This must be installed away from shows,
tubs, etc. Never locate fireplace where it may fall into a bathtub or other water container.
All wiring connections to line power shall be in accordance with local building code requirements.
Inquires about local codes and regulations must be done prior to installation.

OUTDOOR INSTALLATION
The TRV-XL-XT series electric fireplaces are suitable for installation in outdoor areas protected from
direct water impingement. In addition to maintaining the listed mantel and combustibles clearances,
a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the
installed appliance. See illustration below. All wiring connections to line power shall be in
accordance with local building code re uirement. In uires about local codes and regulations must be
done prior to installation.
Side of
Fireplace
AB
The overhang (A) must extend at least 1/2 the roof-line height (B).
Height is measured from the base of the fireplace.
For example: if the roof-line (B) is 8’ above the base of the fireplace,
the overhang (A) must be at least 4’.
2

INSTALLATION

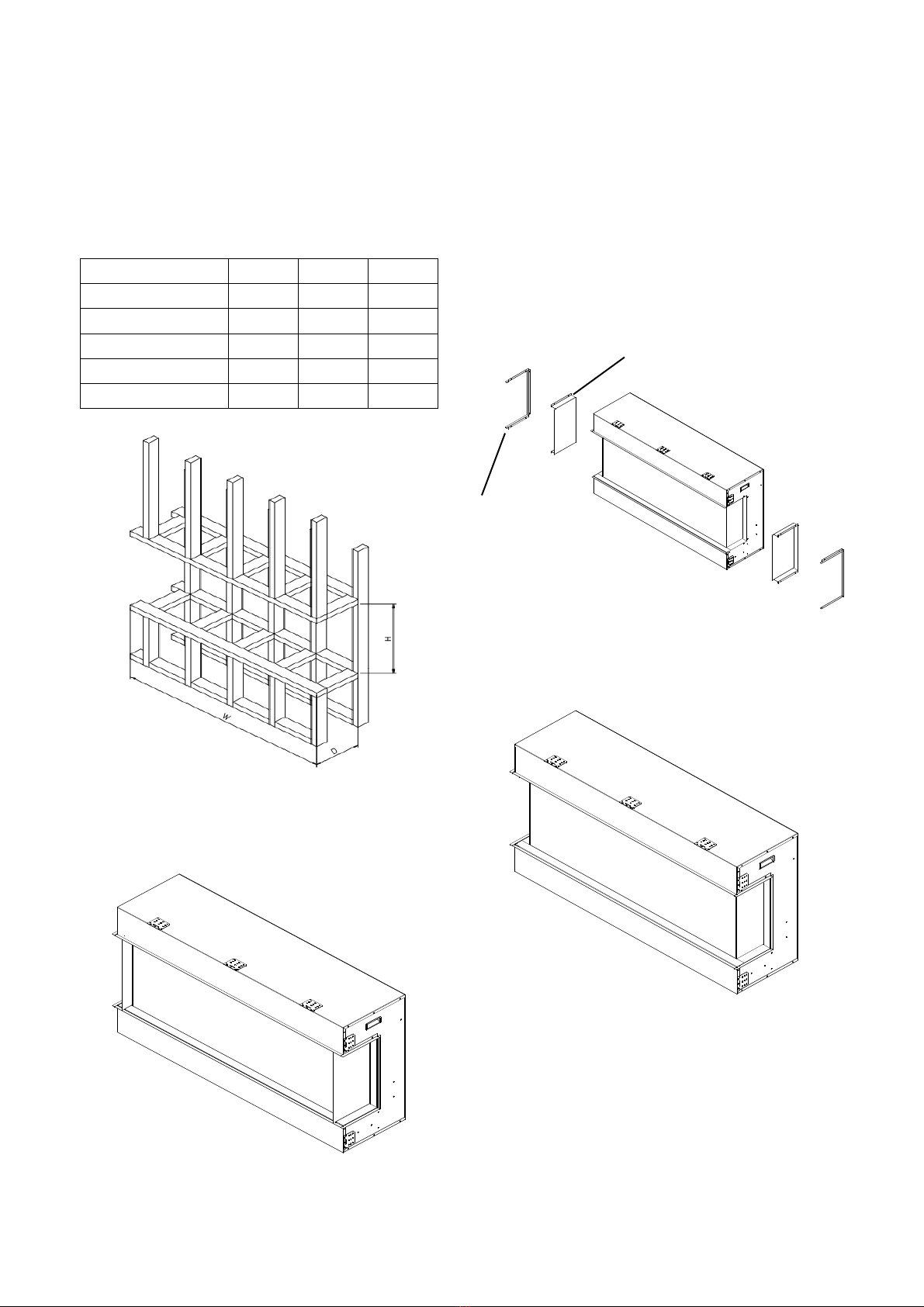

The TRV-XL-XT models are designed to be built-in and allow for the finishing material (drywall, stone,
tile, etc) to be built right down to the glass edge.
The rough wall opening size of the fireplace:
NOTE: Due to the many different materials used on different walls, it is highly recommended that
you consult your local builder before you install this appliance.
W(＂)D(＂) H(＂)
60-TRV-XL-XT 63 3/414 1/4 34
72-TRV-XL-XT 75 3/414 1/4 34
88-TRV-XL-XT 913/414 1/4 34
50-TRV-XL-XT 53 3/414 1/4 34
1. Product is fixed with fending bars and
panels on the left and right side.
2. Take off the fending bars and panels if you
want to view the fire from three angles.
3. Screw back the fending bar after the panel
is removed.
fending bar
fending panel
40-TRV-XL-XT 43 3/4 14 1/4 34
3
. Remove the framing plates from the
fireplace and fix them as the picture shows.
NOTE: After removing framing plates on the
left and right sides, screw back the screws.

5. Make an opening for the fireplace according
to requested measurement.
6. Insert the fireplace into the wall opening.
Drive the mounting screws into the frame
plates on the unit and the wall studs. To fix
the bottom of the fireplace and the wall
studs with the framing plates that you’ve
removed from left and right side of the
fireplace at STEP . Plug in and check if the
fireplace works.
7. After checking that the fireplace operates
properly, cover the glass panels with
protective plastic bag and install plywood or
drywall.
framing plate
framing plate
4

8. Decorate the plywood or drywall with
glazed tile, wallpaper, etc.

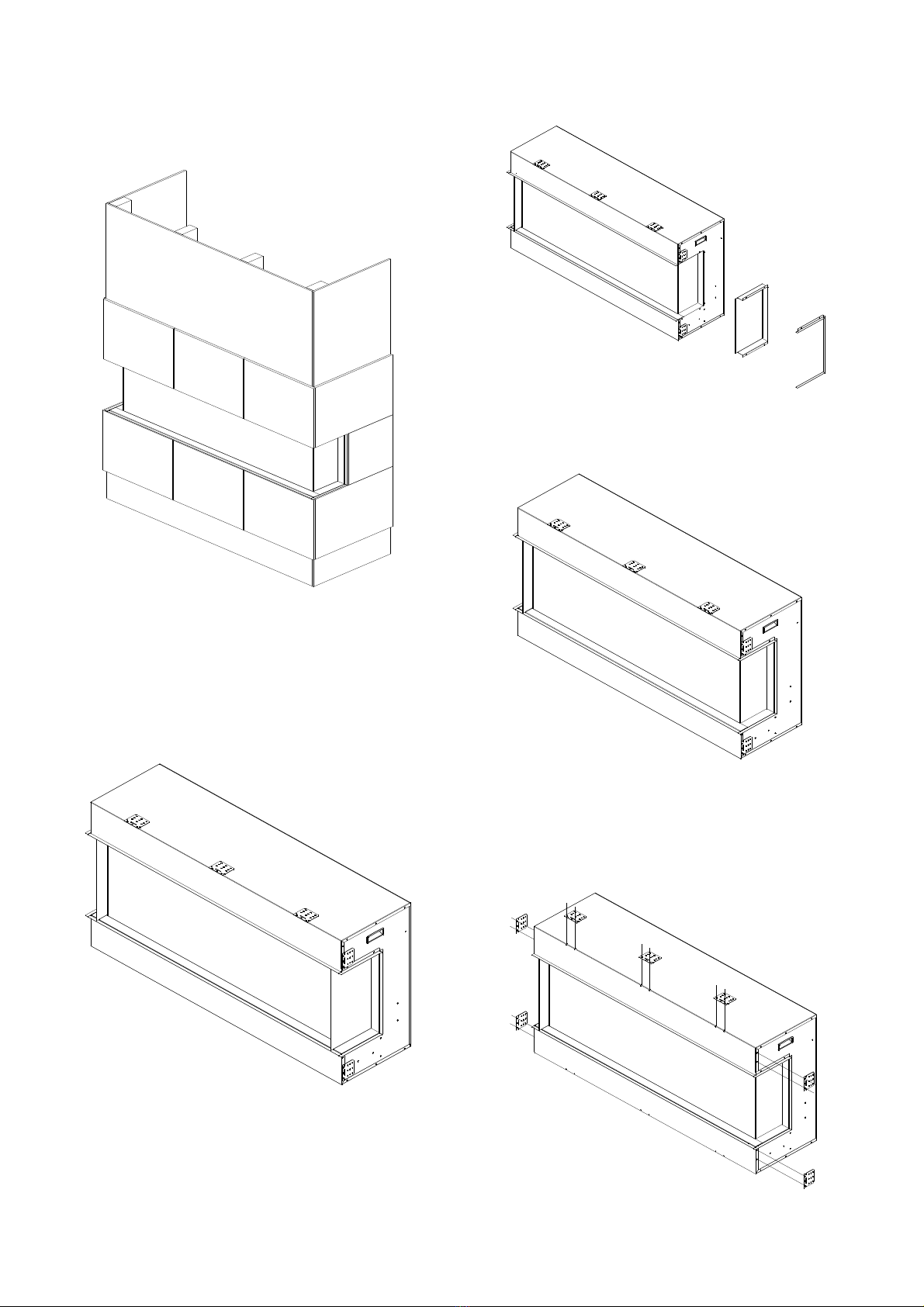

Installation for Front and right side
Viewing
1. To install the fireplace where the left side is
close to a wall, and you want to view the
fire from front and right side, take off the
fending panel on the right.
2. Unscrew 7screws on the right side that fix
the fending bar and panel and then take off
the fending bar and panel.
3. After the fending panel is removed, screw
back the bar.
. Remove the framing plates from the
fireplace and fix them as the picture shows.
NOTE: After removing framing plates on the
left and right sides, screw back the screws.
5

5. Make an opening for the fireplace according
to requested measurement.
6. Insert the fireplace into the wall opening.
Drive the mounting screws into the frame
plates on the unit and the wall studs. To fix
the bottom of the fireplace and the wall
studs with the framing plates that you’ve
removed from left and right side of the
fireplace at STEP . Plug in and check if the
fireplace works.
7. After checking that the fireplace operates
properly, cover the glass panels with
protective plastic bag and install plywood or
drywall.
8. Decorate the plywood or drywall with
glazed tile, wallpaper, etc.
6

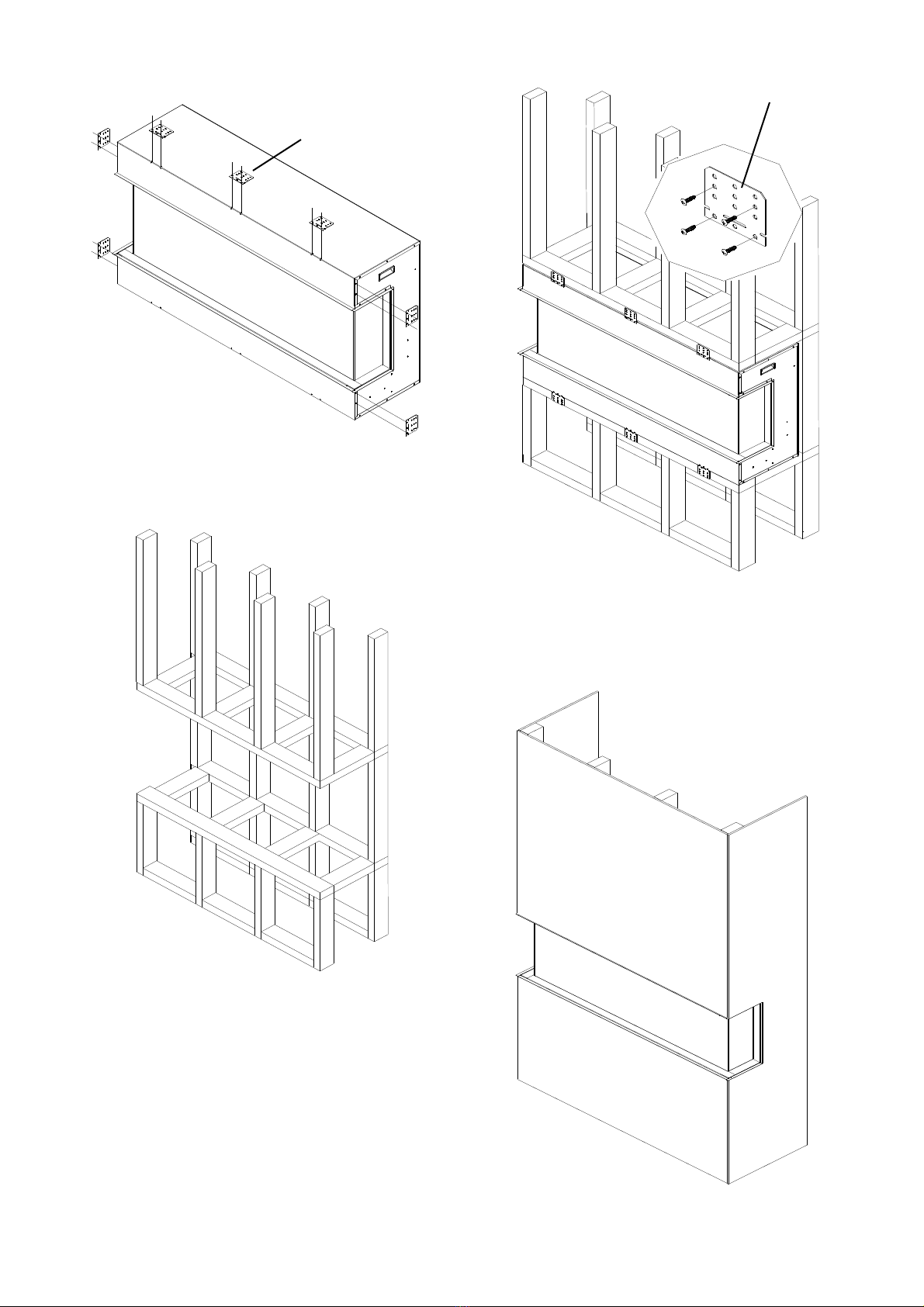

Installation for Front and Left Side
Viewing
1. Install the fireplace where the right side is
close to a wall, and you want to view the
fire from front and left side, take off the
fending panel on the left.
2. Unscrew 7 screws on the left side that fix
the fending bar and panel and then take off
the fending bar and panel.
3. After the fending panel is removed, screw
back the bar.
. Remove the framing plates from the
fireplace and fix them as the picture shows.
NOTE: After removing the framing plates on
the left and right sides, screw back the
screws.
5. Make an opening for the fireplace according
to requested measurement.
7

6. Insert the fireplace into the wall opening.
Drive the mounting screws into the frame
plates on the unit and the wall studs. To fix
the bottom of the fireplace and the wall
studs with the framing plates that you’ve
removed from left and right side of the
fireplace at STEP . Plug in and check if the
fireplace works.
7. After checking that the fireplace operates
properly, cover the glass panels with
protective plastic bag and install plywood or
drywall.
8. Decorate the plywood or drywall with
glazed tile, wallpaper, etc.
8

MEDIA OPTIONS
The TRV-XL-XT series models are shipped with no Media. Customers may purchase optional
decorative media if they choose. See dealer for more details.
MEDIA OPERATION
1. Unscrew2screwsandtakeofftwobracketswhich
arefendingthefrontglasspanel.
Screwsandbrackets
2. Afterthebracketsareremoved,thefrontglasspanel
willfalldownautomatically.
4. Installingthefireglass media.Pourthefire
glass media intothetrayasshownbelow.
Feelfreetouseanycombination of fireglass
mediathatyoufind mostappealing.
3. Takeoffthefrontglasspanelandputitinsafeplace.
5. Putbackthefrontglassandscrewbackthebracket.
9

OPERATION
Thefireplacecanbeoperatedeitherbytheswitcheslocatedontheleft bottomofthefireplaceunit
orbysuppliedremotecontrol.
Plugthefireplaceintoa15 Amp wall socket.
MANUAL OPERATION
1. ThemainpowerON/OFFswitchinpositionO,thefireplaceis OFF.
2. WhenmainpowerON/OFF switchis at position I,thefireplaceis readyto use.
3. Press the buttonrepeatedlytosettheheatertodesiredheatsetting.Theheaterindicator
LED will glowwhichshowsthecurrent heatersettings.
a) RED 1500WHEAT OUTPUT
b) BLUE750WHEAT OUTPUT
c) PURPLEAUTOMODE
AUTO MODE
Underthis modetheheaterwill automaticallyturnONathighheatsetting1500Wheatoutputwhen
theroomtemperature dropsbelow22 (72℉). Whentheroomtemperatureis between
22-25 (72-77℉)theheateroutput will switchtolowheatsetting750W.Whentheroom
temperature goesabove25 (77℉)theheaterwill beturnedoff andthecyclewill continue.The
LED indicatorwill bePURPLEincolourunderthis mode.
4. Flameeffect:Press thebuttonmarked toadjusttheflamebrightness.Theflamebrightness
will cyclethrough –Low-Medium-High-OFF.
5. Moodlight effect:Press thebuttonmarked to changethemoodlight colour.
NOTE: IfoperatedattheLowheatsetting,thefireplacewill notprovideasmuchheatoutputasin
theHighheatsetting,howeverthelowsettingwill notrequireasmuchelectrical powertooperate.
Toavoidoverloadingacircuit,donotplugthefireplaceintoacircuitthatalreadyhasother
appliancesworking.When thefireplaceis not in useswitchoff andunplug.
SAFETYCUT-OFF
lThis applianceis fittedwith asafetycut-offwhichwill operateifthefireplaceoverheats(eg.Due
toblockedairvents). Forsafetyreasons, thefireplacewill NOT automaticallyreset.
lToresettheappliance,disconnecttheappliancefromthemainsupplyforatleast10minutes.
Reconnectthe mainpower supplyand putthe mainpower switchtotheONposition.
20
