Amantii Remii SYM-SLIM-42 User manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR
1
INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE
SYM-SLIM-42
-
(WM-SLIM-45)
Version:202104

2
TABLE OF CONTENTS
Please read and carefully follow all of the instruction found in this manual. The instructions
included here will assure that you have many years of dependable and enjoyable service
from your Amantii Electric Fireplace.
IMPORTANT INSTRUCTIONS ......................................................................................................................................... 3
UNPACKING AND TESTING THE APPLIANCE .......................................................................................................... 6
GROUNDING THE APPLIANCE ...................................................................................................................................... 6
LOCATING THE FIREPLACE ........................................................................................................................................... 6
SYM-SLIM-42(WM-SLIM-45) ...........................................................................................................................................
WALL MOUNT INSTALLATION ..................................................................................................................................... 8
BUILT IN INSTALLATION ............................................................................................................................................... 9
HARDWIRE INSTALLATION ........................................................................................................................................ 12
MEDIA OPTIONS .............................................................................................................................................................. 14
DECORATIVE MEDIA INSTALLATION ...................................................................................................................... 14
OPERATION ....................................................................................................................................................................... 15
MANUAL OPERATION ................................................................................................................................................... 15
REMOTE CONTROL OPERATION ................................................................................................................................ 16
WIFI OPERATION ............................................................................................................................................................. 19
INSTALLING WALL THERMOSTAT ........................................................................................................................... 22
REPLACEMENT PARTS .................................................................................................................................................. 23
EXPLODED VIEW ............................................................................................................................................................ 24
TROUBLE SHOOTING ..................................................................................................................................................... 25
SERVICE HISTORY .......................................................................................................................................................... 26
WARRANTY ...................................................................................................................................................................... 2

3
IMPORTANT INSTRUCTIONS
1. Read all instructions before installing or using this heater.
. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and
curtains at least 3 feet from the front, sides and rear of the heater.
3. Always unplug heater when not in use.
4. Do not operate the fireplace if it has a damaged cord or plug, after it has
malfunctioned, or if the unit has been dropped or damaged in any way.
5. Do not use the heater outdoors.
6. Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners
or anything else. Arrange the cord away from traffic areas where it could not be
tripped over.
7. To disconnect the heater, turn the controls to "OFF" before removing the plug from
the outlet.
8. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as
this may cause an electric shock, fire or damage to the heater.
9. To prevent the possibility of fire, do not block air intakes in any manner.
10. A heater has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline, paint or flammable liquids are used or stored.
11. Use this heater only as described in this manual. Any other use is not recommended
by the manufacturer, as it may cause fire, electric shock or injury.
1 . Avoid the use of an extension cord, the extension cord will overheat and cause a fire.
13. Always use properly grounded fused and polarized outlets.
14. Always use ground fault protection where it is required by electrical codes.
15. Always disconnect the power before performing any cleaning, maintenance or
relocation of the heater.
16. To prevent a possible fire, do not burn wood or other materials in this heater.
17. To prevent electric shock or fire, always use a certified electrician, should new
circuits or outlets be required.
18. When transporting or storing the heater, keep it in a dry place, free from excessive
vibration.
19. This appliance should not be modified under any circumstances.
0. Packaging material should be kept away from children and be disposed of in a safe
manner. Plastic bags are not toys and should be kept away from children and
infants.

4
1. Do not use this heater in small rooms when they are occupied by persons not
capable of leaving the room on their own, unless constant supervision is provided.
. If the glass is damaged, do not use the heater to avoid a hazard.
3. Do not leave children unsupervised when the heater is turned on.

5
Cautions
Do’s
 Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
 Always make sure the electrical socket is accessible and located adjacent
to, but not above the heater.
 Always disconnect the heater from the electrical supply before moving it, or
carrying out cleaning, maintenance.
 Always make sure the heater is firmly secured to prevent it from being
tipped over.
 Always use a fireguard when young children and infirm persons can come
into contact with the heater.
Don’ts
 Never leave children unsupervised in a room where the heater is ON and
unguarded.
 Never obstruct or cover the fan outlet or force items into heater openings.
 Never install or use the heater anywhere where water is in use, for
example: bathrooms, kitchens, or swimming pools.
 Never use aerosols or steam cleaners on or around the heater.
 Never route the main supply cable under carpet etc.
 Never install the heater close to curtains or combustible materials.
 Never use the heater to dry clothes etc.
 Never sit or stand on the heater.

UNPACKING AND TESTING APPLIANCE
6
UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by
the power supply cord into a 1 0 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components are operating correctly.
As with most electronic devices, your new electric fireplace has
temperatures between 5 ℃ (41
℉
fireplace to reach room temperature before turning it on.
NOTE: T ere may be traces
of odor during t e first few minutes of initial use. T
armless and
normal and will never occur again.
GROUNDING APPLIANCE

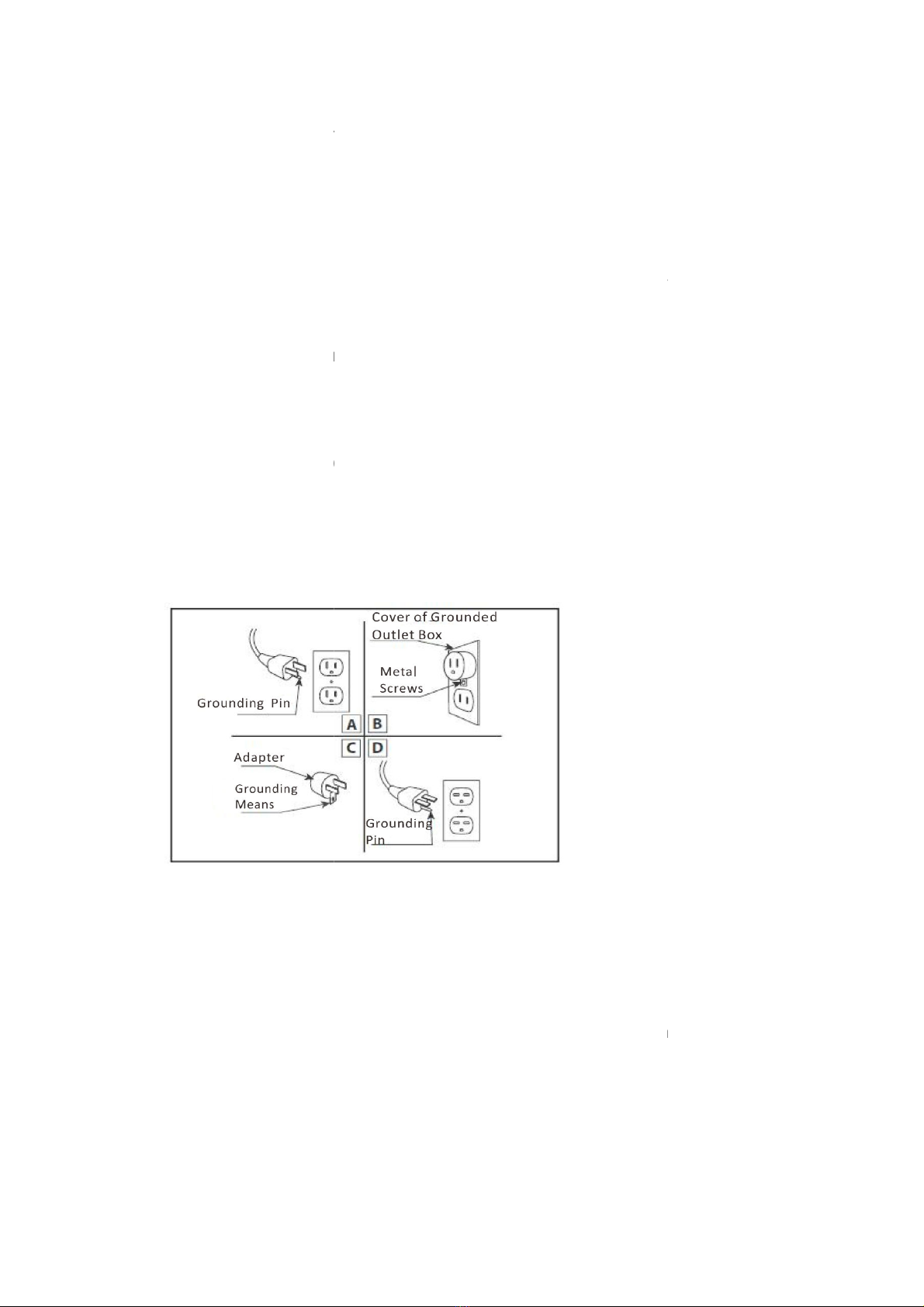

This appliance is for use on 1 0 Volts. The cord has a plug as shown in (A). An adapter as
shown in (C) is available for connecting three
receptacles. The green grounding lug extending from the adapter must be connected to a
permanent ground such as a properly grounded outlet box. The adapter should not be used if a
three-
slot grounded receptacle is available.
To disconnect appliance, turn
controls to off, then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you
install the fireplace. Before installation consider the following:
1.
Where the fireplace is located must allow for wall and ceiling clearances
.
Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3.
A 15 ampere, 1 0 Volt, 60 Hz branch circuit with proper ground must be a
location. Preferably a dedicated branch circuit should be provided to avoid circuit breakers
to trip or fuses to blow.
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by
the power supply cord into a 1 0 Volt grounded outl
et.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components are operating correctly.
As with most electronic devices, your new electric
fireplace has
been designed to operate at
℉
) and 35 ℃ (95℉
). During the cold winter months, allow the
fireplace to reach room temperature before turning
it on.
of odor during t e first few minutes of initial use. T
normal and will never occur again.
This appliance is for use on 1 0 Volts. The cord has a plug as shown in (A). An adapter as
shown in (C) is available for connecting three
-
blade grounding type plugs to two
receptacles. The green grounding lug extending from the adapter must be connected to a
permanent ground such as a properly grounded outlet box. The adapter should not be used if a
slot grounded receptacle is available.
controls to off, then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you
install the fireplace. Before installation consider
the following:
Where the fireplace is located must allow for wall and ceiling clearances
Consider a location where the fireplace screen will not be exposed to direct sunlight from
A 15 ampere, 1 0 Volt, 60 Hz branch circuit with proper ground must be a
location. Preferably a dedicated branch circuit should be provided to avoid circuit breakers
Prior to installing the appliance, test to make sure the appliance operates properly by
plugging
Test all aspects of its operation (manual switches, remote and heater) to make sure all
been designed to operate at
). During the cold winter months, allow the
of odor during t e first few minutes of initial use
. T is is
This appliance is for use on 1 0 Volts. The cord has a plug as shown in (A). An adapter as
blade grounding type plugs to two
-slot
receptacles. The green grounding lug extending from the adapter must be connected to a
permanent ground such as a properly grounded outlet box. The adapter should not be used if a
controls to off, then remove plug from outlet.
Plan where to locate and frame the fireplace. This will save time and money later when you
Where the fireplace is located must allow for wall and ceiling clearances
Consider a location where the fireplace screen will not be exposed to direct sunlight from
A 15 ampere, 1 0 Volt, 60 Hz branch circuit with proper ground must be a
vailable at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit breakers

Description Built-in Appliance
Voltage 120V AC 60Hz
Watts 1500W Max
NO HEATER 38W
MOTOR HEATER 19W
Appliance Width 42 1/4” or 107.16 cm
Appliance Height 15 3/8 ” or 39.1 cm
Appliance Depth 4 1/8” or 10.4 cm
Gross Weight 63.27 lbs or 28.7 kgs
Plug Location Left side
Cord Length 70 7/8” or 180 cm
Rough Wall Opening
Size
42 1/2”× 15 5/8“ or
107.95 cm× 39.688 cm
BTU 5118
This appliance has been tested in accordance
with the UL Standard 2021 for fixed and location
dedicated electric room appliances in the United
States and Canada. If you need assistance
during installation please contact your local
dealer.
NOTE: This applianc must b l ctrically
wir d and ground d in accordanc with local
cod s. In th abs nc of local cod s, us th
curr nt CSA C22.1 Canadian El ctrical Cod
in Canada or th ANSI/NFPA 70 National
El ctrical Cod in th Unit d Stat s.
161
2" [418.2mm]
441
8" [1120mm]
15
3
8" [391mm]
41
8" [104mm]
45
8" [119mm]
10
3
4" [273.5mm]
401
8" [1019mm]
421
4" [1071.6mm]
SYM-SLIM-4 (WM-SLIM-45)

8

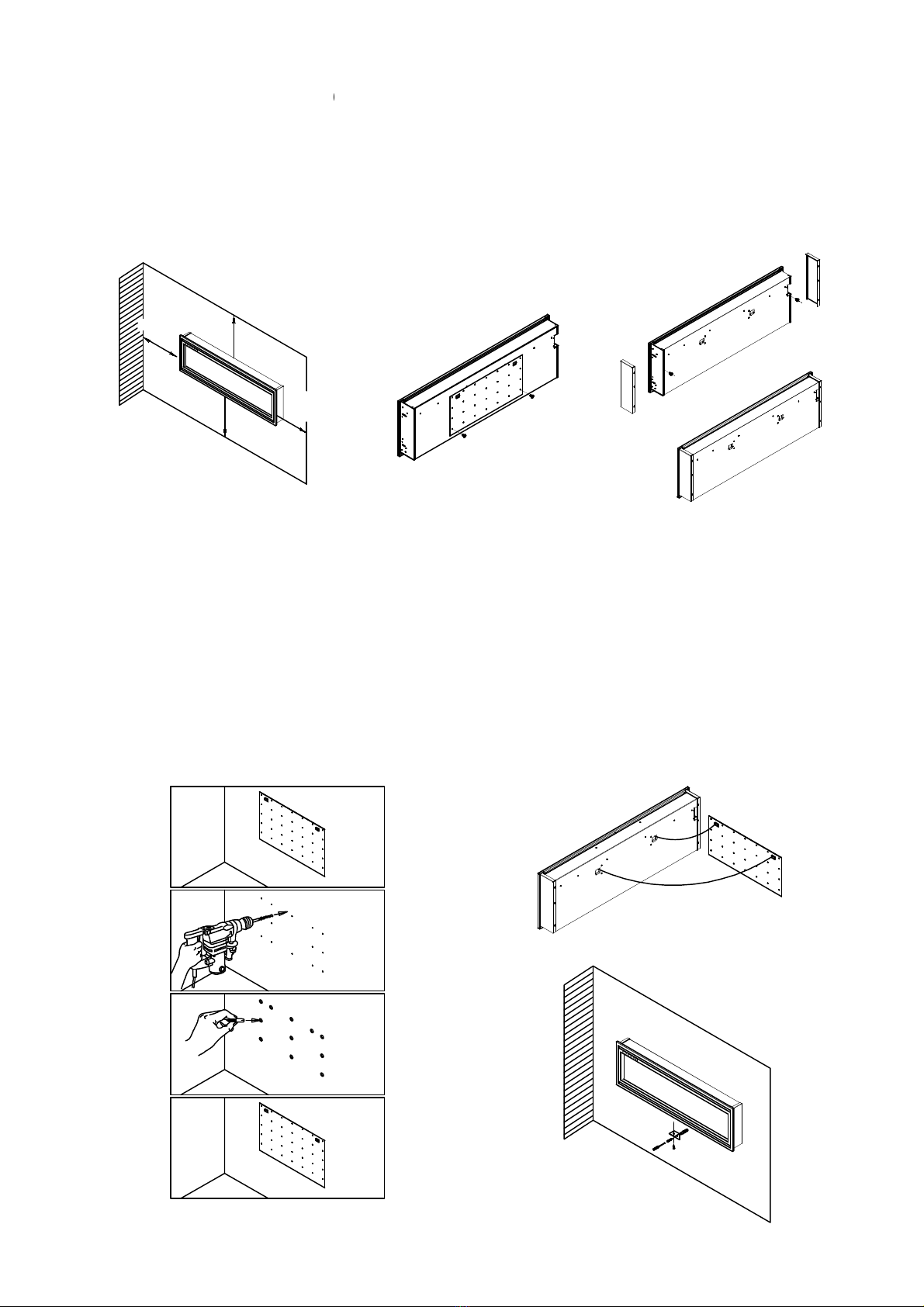

INSTALLATION-
WALL MOUNT
WALL MOUNT
NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your
local builder before you install this appliance on a wall.
1. Select a location that is not prone to moisture and is located at least .91 m or 3 feet away from combustible
materials such as curtains or drapes, furniture, bedding, paper, etc.
2. Using a spirit level to select a position in which to mount the heater horizontally. See Figure 1.
3. Check the wall to ensure there is no wiring, pipe wires etc in the area to be drilled. Drill 8 or more holes
depending on the size of the unit purchased, (8mm diameter & 4 mm depth) using a suitable size drill bit and
insert the wall plugs into the holes.
4. Remove the hanger from the fireplace by removing the screws. See Figure 2.
5. Screw the left and right side steel panel to the left and right side to cover the screws. See Figure 3.
Min. 5cm
2 in
Min. 5cm
2 in
Min. 5cm
2 in
FLOOR
Fig 1 Fig 2 Fig 3
Fig 4
Fig 5
Fig 6
6. Fasten the hanger to the wall (See Figure 4.). Hang the fireplace onto the hanger (See Figure 5.).
7. To prevent fireplace from moving, use the provided safety screw to fasten the fireplace to the wall. See Figure 6.
WARNING: Be sure that the bolts have been fixed firmly enough to
withstand the weight!

INSTALLATION- BUILT-
IN
NOTE: Due to the many different materials used to build walls it is highly recommended that
you consult your local builder before you install this appliance on a wall.
Pr paration
1. Select
a location that is not prone to moisture and is located at least 0.91m or 3 feet away
from combustible materials such as curtains drapes furniture bedding paper etc.
2.
Mark the desired location on the floor and store the appliance in a safe dry and dus
place.
3.
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at
least 1/4” (6mm) around the edge of the appliance. Any new wiring must be done in
compliance with local and national codes and other applicable regulations.
P
rior to installing test the appliance to make sure the appliance is fully operational by
plugging the power supply cord into a 120 Volt grounded outlet.
The rough wall opening size of the fireplace:
INSTALLATION
9
IN
NOTE: Due to the many different materials used to build walls it is highly recommended that
you consult your local builder before you install t
his appliance on a wall.
a location that is not prone to moisture and is located at least 0.91m or 3 feet away
from combustible materials such as curtains drapes furniture bedding paper etc.
Mark the desired location on the floor and store the appliance in a safe dry and dus
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at
least 1/4” (6mm) around the edge of the appliance. Any new wiring must be done in
compliance with local and national codes and other applicable regulations.
rior to installing test the appliance to make sure the appliance is fully operational by
plugging the power supply cord into a 120 Volt grou
nded outlet.
The rough wall opening size of the fireplace:
NOTE: Due to the many different materials used to build walls it is highly recommended that
you consult your local builder before you install this appliance on a wall.
a location that is not prone to moisture and is located at least 0.91m or 3 feet away
from combustible materials such as curtains drapes furniture bedding paper etc.
Mark the desired location on the floor and store the appliance in a safe dry and dus
t free
Prepare a wall with a framed opening to accommodate the size of your unit. Leave at
least 1/4” (6mm) around the edge of the appliance. Any new wiring must be done in
compliance with local and national codes and other applicable regulations.
rior to installing test the appliance to make sure the appliance is fully operational by
Screw
Screw
1. Unscrew 1 screw on each left and right side and push the front glass panel upward a bit
to take it off. (The screws are only for protection during transportation.)
W(“)
SYM-SLIM-4
(WM-SLIM-45) 4 1/
D(“) H(“)
4 3/8 15 5/8

10
2.
Unscrew the 2 screws located on each side and take off the inner
3.
Put the fireplace into the wall op
Unscrew the 2 screws located on each side and take
off the inner
side steel panels.
Put the fireplace into the wall op
ening and fix it to be the wall.
side steel panels.
inner side steel panels
screws
screws
Screw the appliance onto the wall.

11
4.
Screw back the inner side steel panel.
5. Put
back the front glass panel after you finish the media
Screw back the inner side steel panel.
back the front glass panel after you finish the med
ia decoration.
Screw back the inner side panel
that you removed at STEP 2.

12
Turn off the appliance completely and let cool before servicing. Only a qualified service
person should service and repair this electric appliance.
If it is necessary to hard-wire this appliance a qualified electrician must remove the
cord connection and wire the appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes
if hard-wired. In the absence of local codes use the current CSA C22.1 CANADIAN
ELECTRICAL CODE in Canada or the current ANSI/NFPA 70 NATIONAL ELECTRICAL
CODE in the United States.
1. Remove the cover plate from the left side of the appliance by removing the two screws
as shown below. Unscrew and remove power cord.
2. Cut off the copper head of the wiring and leave 1 cm (0.4 inch) uncovered wiring.
HARD
WIRE INSTALLATION
WIRE INSTALLATION

13
3. Connect the uncovered wiring with 14 A WG wiring (not provided with the appliance) y a wiring
connecting cap which you can find in the manual ag. Please make sure the live wire goes into
the “L”, the neutral wire into “N” and the ground wire into “G”.
4. Return the cover plate to the left side adding a wiring protector which you can find in the
manual bag and screw the two screws back in to fasten the plate.

14
MEDIA OPTIONS
T
he only media that comes with this appliance
optional decorative media if they choose. See dealer for more details.
he only media that comes with this appliance
is ‘Clear glass
’. Consumers may purchase
optional decorative media if they choose. See deale
r for more details.
Clear glass
’. Consumers may purchase
DECORATIVE MEDIA INSTALLATION
DECORATIVE MEDIA INSTALLATION
I
NSTALLING THE DECORATIVE MEDIA
Pour the fire glass media into the tray. Feel free to use any combination of the fire glass
media that you find most appealing. Put back the trim and front glass after you finish
installing the fire glass.
NSTALLING THE DECORATIVE MEDIA
Pour the fire glass media into the tray. Feel free to use any combination of the fire glass
media that you find most appealing. Put back the trim and front glass after you finish
Pour the fire glass media into the tray. Feel free to use any combination of the fire glass
media that you find most appealing. Put back the trim and front glass after you finish
Screw
Screw
Unscrew 1 screw on each left and right side
take it off.
Unscrew 1 screw on each left and right side
and push
the front glass panel
the front glass panel
upward a bit to

15
OPERATION
Plug the fireplace into a 15 Amp wall socket.
MANUAL OPERATION
Plug the fireplace into a 15 Amp wall socket.
The fireplace can be operated either by the touch panel located on the left front top side of
the fireplace,
or by supplied remote control.
The fireplace can be operated either by the touch panel located on the left front top side of
or by supplied remote control.
The fireplace can be operated either by the touch panel located on the left front top side of
1. Press to turn on and off the fireplace.
2. Press to adjust the flame’s brightness. There are 7 brightness levels (L5 L4 - L3
L2 L1 L0 L6).The indicator light turns off automatically leaving it not operated within
10 seconds.
3. Press to adjust the ember bed brightness. There are 12 brightness levels (D4 D5
D6 D7 D8 D9 DA DB D0 D1 D2 D3).
4. Press to set the turn-off time, 30min-1h-2h-3h-4h-5h-6h-7h-8h-t0. The indicator light
turns off automatically leaving it not operated within 10 seconds. The timing turns off
when is pressed.
5. Press to turn on and off the heater in its AUTO mode. The setting temperature
switch through 59℉- 61℉- 63℉- 64℉- 66℉- 68℉- 70℉- 72℉- 73℉- 75℉- 77℉- 79℉-
81℉- 83℉ - ℉ in Fahrenheit or 15℃ -16℃ -17℃ - 18℃ - 19℃ - 20℃ - 21℃ - 22℃ - 23℃
- 24℃ - 25℃ - 26℃ - 27℃ - 28℃ - ℃ in Celsius. The temperature setting mode will be
closed automatically if leaving not operated for 5 seconds.
6. When the heater is on, press the for 5 seconds to switch between Celsius and
Fahrenheit.

16
REMOTE CONTROL OPERATION
For remote to function make sure the fireplace is plugged in and the remote has batteries.
Important: When operating the remote make sure you point the remote to the center of the
fireplace. Each time you press the button, the buzzer inside the unit will beep once. It takes
some time for the receiver to respond to the transmitter. Do not PRESS the buttons more
than once within two seconds for correct operation.
Set the current time of the remote control
Press the to activate the remote control and press to set the time and date.
When one of the “Sun” “Mon” “ Tue” “Wed” “Thu” “Fri” “Sat” is flashing, press or to
set the day of the week, press to confirm day of the week and then enter hour setting.
Press or to set the hour, press to confirm the hour and then enter minute
setting. Press or to set the minute and press to confirm the minute and
finish time setting.
Press this Power button to turn on and off the fireplace.
Press this Timer button to set the time to turn off the fireplace.
The available settings range from 3 minutes to 8 hours. As
shown in the following: :3 - 1: - 1:3 - 2: - 2:3 - 3: -
3:3 - 4: - 4:3 - 5: - 5:3 - 6: - 6:3 - 7: - 7:3 - 8: .
Once you have set the timer, the icon will be displayed
on the LCD screen of the remote control. Press this button
again to cancel the timer setting and the icon disappears.
Press the HEATER button once, one setting of heater works,
75 W, indicating “H 1” on display; Press again, two settings of
heater work, 15 W, indicating “H 2” on display; Press for the

1
third time to turn on the AUTO mode, press or to set the temperature
and or to switch temperature unit between Celsius and Fahrenheit.
Press this button to adjust the speed of the flame. There are 3 options: High-
Medium- Low.
Press this button to turn on and off the ember bed light. When in ON position, the
display screen of the remote control shows AD 1, when the number “1” flashes, you
can set the color of the ember bed by or . There are 1 different ember bed
light colors (AD1-1 ). When in AD 11 status, the color of the ember bed light cycles
through 1 colors. Press “SET” to confirm the setting.
Press the Flame button to turn on and off the Flame. When in ON position, the LCD
screen of the remote control shows 6 6 6. Press or or to change
the brightness of each color flame.
7 Day Timer Function
Press once, 7 days from Monday to Sunday will display on the LCD screen of
the remote control, press within 5 seconds to enter 7 day timer function. When
“Sun” flashes, press or to select the day that you want to set, press to
confirm your setting. Then “ON” will be display on the LCD screen of the remote
control, at the same time, digital of time hour flashes, press or to set the
time to turn the fireplace on. After setting the startup time, “OFF” will be displayed on
the LCD screen and press or to set the shutdown time. When the
shutdown time’s set, “AUTO” will be displayed on the LCD screen of the remote
control and the digital of temperature flashes. At this time, you can set the
temperature by or , or press to choose low heat (H1) or high heat
(H2). Now, you have finished setting of this function.

When the 7 day timer’s set, the icon will be displayed on the LCD screen of the
remote control. Press again to cancel the 7 da
will disappears.
NOTE: If the 7 day timing and the general timing are set at the same time, the
system will respond to an earlier shutdown time.
Press Refer button to check the settings of 7 day timer. Press or to see the
settings of the day of the week and or the settings of the startup and
shutdown time.
18
y timer and the icon

WIFI OPERATION
IN TALL Tuya mart life
There are 2 ways to install TuyaSmart;
1. Search for “TuyaSmart life” in the APP store on your phone, download and install.
2. Scan the QR code below with your mobile phone.
WIFI ETTING AND FIREPLACE OPERATION
1. Create an account and log in.
2. When you log in, touch “+” (FIG.1) to enter in FIG.2. Touch “others” on the left corner first
and then choose “Connector (Wi-fi)” to enter in FIG.3 to set your Wi-fi account and
password.
FIG.1 FIG. 2 FIG.3
19

FIG.4
3. Press (flame button) on the touch panel of the fireplace for more than 5 seconds
when the fireplace in standby mode. There will be 2 beeps come out from the fireplace
and the (flame button) will flash as well indicating that Wi-fi is in EZ mode. Then
please confirm to go next. (FIG.5)
4. The APP will scan (FIG.6) and add the fireplace to APP (FIG.7) automatically. Please
make sure the Wi-fi account and password you set are correct and Wi-fi signal is good.
5. Touch “Done” to finish Wi-fi setting.(FIG.7)
FIG.5 FIG.6 FIG.7
20
