Amantii BI-60-SLIM Owner's manual

INSTALLATIONANDOPERATIONINSTRUCTIONS FOR BI-SLIM
UNITS
BI-40-SLIM
BI-50-SLIM
BI-60-SLIM
BI-72-SLIM
BI-88-SLIM
SAFETY INFORMATION
WARNING
If theinformationintheseinstructionsare
not followed exactly,afireorexplosion
mayresult causingpropertydamage,
personalinjuryorlossoflife.
Do not storeoruse gasolineorotherflammablevapors
and liquidsinthevicinity ofthisorany otherappliance.
INSTALLER:LEAVETHIS MANUALWITH THE APPLIANCE.
CONSUMER:RETAINTHISMANUALFOR FUTURE REFERENCE.

2
TABLE OF CONTENTS
Pleasereadandcarefullyfollowalloftheinstructionfoundinthis manual.Pleasepayspecial
attentiontothesafetyinstructionsprovided inthismanual.Theinstructionsincludedhere will assure
thatyouhavemanyyearsofdependableand enjoyableservicefromyourAmantii product.
IMPORTANTINSTRUCTIONS....................................................................................................................................3
UNPACKING ANDTESTINGAPPLIANCE...............................................................................................................5
GROUNDINGAPPLIANCE.........................................................................................................................................5
LOCATINGTHEFIREPLACE.....................................................................................................................................5
BI-40-SLIM....................................................................................................................................................................6
BI-50-SLIM....................................................................................................................................................................7
BI-60-SLIM....................................................................................................................................................................8
BI-72-SLIM....................................................................................................................................................................9
BI-88-SLIM..................................................................................................................................................................10
INSTALLATION..........................................................................................................................................................14
SAFETYDRILLSCREWAREA................................................................................................................................
FOR BATHROOMUSE..............................................................................................................................................
HARD-WIRE INSTALLATION..................................................................................................................................
PANORAMACOVERINSTALLATION....................................................................................................................
11
12
11
19
MEDIAOPTIONS.......................................................................................................................................................20
OPERATION................................................................................................................................................................21
INSTALLING WALLTHERMOSTAT........................................................................................................................23
REPLACEMENTPARTS............................................................................................................................................24
EXPLODEDVIEW......................................................................................................................................................25
TROUBLESHOOTING..............................................................................................................................................26
SERVICE HISTORY....................................................................................................................................................27
WARRANTY...............................................................................................................................................................28
OUTDOORINSTALLATIONS .........................................................................................................................................13

IMPORTANT INSTRUCTIONS
1. Read all instructionsbeforeinstallingorusingthisheater.
2. Keepcombustiblematerials, suchas furniture,pillows, bedding, papers, clothesandcurtainsat
least 3feetfromthefront oftheheater;keepthemawayfromsidesandrear as well.
3. Alwaysunplugheaterwhenit snot in use.
4. Donotoperatethefireplaceifithasadamagedcordorplug,afterit hasmalfunctioned,orifthe
unithasbeendroppedordamaged in anyway.
5. Neverplacetheheaterwhereit mayfall into abathtuborotherwatercontainers.
6. Donotrun thecordundercarpeting.Donotcoverthecordwiththrowrugs, runnersoranything
else.Arrangethecordawayfromtrafficareas whereit couldnotbetripped over.
7. To disconnecttheheater,turnthecontrolsto"OFF" beforeremovingtheplugfromtheoutlet.
8. Donotinsertorallowforeignobjectstoenteranyventilationorexhaustopening,as thismay
causeanelectricshock,fireordamagetotheheater.
9. To prevent apossiblefire,donotblockair intakesin anymanner.
10. Aheaterhashotand arcingorsparkingpartsinside.Donotuseitinareaswheregasoline,paint
orflammableliquidsareusedorstored.
11. Usethisheateronlyas describedinthismanual.Anyotherusenot recommendedbythe
manufacturermaycausefire,electricshockorinjurytopersons.
12. Avoidtheuseofanextensioncordbecausetheextension cordmayoverheat andcauseafire.
13. Alwaysuseproperlygroundedfused andpolarized outlets.
14. Alwaysusegroundfault protection whereitis requiredbyelectrical codes.
15. Alwaysdisconnectthepowerbeforeperforminganycleaning,maintenanceorrelocationofthe
heater.
16. To prevent apossiblefire,donotburn wood orothermaterials inthis heater.
17. Topreventelectricshockorfire,alwaysuseacertifiedelectrician,shouldnewcircuitsor
outletsberequired.
18. Whentransportingorstoringtheheater,keepit in adryplace,freefromexcessivevibration.
19. This appliance should not be modified under any circumstances.
Packaging material should be kept away from children and be disposed of in a safe manner.
Plastic bags are not toys and should be kept away from children and infants.
Do not use this heater in small rooms when they are occupied by persons not capable of leaving
the room on their own, unless constant supervision is provided.
If the glass is damaged, do not use the heater in order to avoid a hazard.
Children of less than 3 years should be kept away from unless continuously supervised.
CAUTION Some parts of this product can become very hot and cause burns. Particular attention
has to be given where children and vulnerable people are present.
20.
21.
22.
23.
24.
3

Cautions
Do’s
·Always install the heater in accordance with this guide. If in
doubt obtain expert advice.
·Always make sure the electrical socket is accessible and located
adjacent to, but not above the heater.
·Always disconnect the heater from the electrical supply before
moving it, or carrying out cleaning, maintenance.
·Always make sure the heater is firmly secured to prevent it from
being tipped over.
·Always use a fireguard when young children and infirm persons
can come into contact with the heater.
Don’ts
·Never leave children unsupervised in a room where the heater is
ON and unguarded.
·Never obstruct or cover the fan outlet or force items into heater
openings.
·Never use aerosols or steam cleaners on or around the heater.
·Never route the mains supply cable under carpet etc.
·Never install the heater close to curtains or combustible
materials.
·Never use the heater to dry clothes etc.
·Never sit or stand on the heater.
·Never use with a timer or any other device that switches the fire
on automatically.
4

5
UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by
plugging the power supply cord into a conveniently located 120 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components operate correctly.
NOTE: There may be trace f d r during the first few minutes f initial use. This is
harmless, n rmal and will never ccur again.
GROUNDING APPLIANCE
This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as
shown in (C) is available for connecting three-blade grounding type plugs to two-slot
receptacles. The green grounding lug extending from the adapter must be connected to a
permanent ground such as a properly grounded outlet box. The adapter should not be used if
a three-slot grounded receptacle is available.
To disconnect appliance, turn controls to off, then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you
install the fireplace. Before installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3. A 15 ampere, 120 Volt, 60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit
breakers to trip of fuses to blow.
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5 ℃ (41℉) and 35 ℃ (95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.

6
BI-40-SLIM
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 38 5/8”or98.1 cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 6 3/4”or17.2 cm
Gross Weight 88 lbsor40kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 40”25“or
101.6 cm 63.5 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/NFPA70
NationalElectricalCodein theUnited
States.

7
BI-50-SLIM
ModelNumber BI-50-SLIM
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 48 5/8”or123.5cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 6 3/4”or17.2 cm
Gross Weight 105.6 lbsor48kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 50”25“or
127 cm 63.5 cm
BTU 4800
This appliancehasbeentestedinaccordance
with theULStandard2021forfixedand
locationdedicatedelectricroomappliances
intheUnitedStatesandCanada.Ifyouneed
assistanceduringinstallation,pleasecontact
yourlocaldealer.
NOTE:Thisappliancemustbeelectrically
wiredandgroundedinaccordancewith
localcodes.Intheabsenceoflocalcodes,
usethecurrent CSAC22.1Canadian
ElectricalCodeinCanadaortheANSI/NFPA
70 NationalElectricalCodeintheUnited
States.

8
BI-60-SLIM
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 58 5/8”or148.5cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 6 3/4”or17.2 cm
Gross Weight 123.2 lbsor56kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 60”25“or
152.4 cm 63.5 cm
BTU 4800
This appliancehasbeentestedinaccordance
with theULStandard2021forfixedand
locationdedicatedelectricroomappliances
intheUnitedStatesandCanada.Ifyouneed
assistanceduringinstallation,pleasecontact
yourlocaldealer.
NOTE:Thisappliancemustbeelectrically
wiredandgroundedinaccordancewith
localcodes.Intheabsenceoflocalcodes,
usethecurrent CSAC22.1Canadian
ElectricalCodeinCanadaortheANSI/NFPA
70 NationalElectricalCodeintheUnited
States.

9
BI-72-SLIM
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 72 1/8”or183.2cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 6 3/4”or17.2 cm
Gross Weight 149.6lbsor68kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 73 1/2”25“or
186.7 cm 63.5 cm
BTU 4800
This appliancehasbeentestedinaccordance
with theULStandard2021forfixedand
locationdedicatedelectricroomappliances
intheUnitedStatesandCanada.Ifyouneed
assistanceduringinstallation,pleasecontact
yourlocaldealer.
NOTE:Thisappliancemustbeelectrically
wiredandgroundedinaccordancewith
localcodes.Intheabsenceoflocalcodes,
usethecurrent CSAC22.1Canadian
ElectricalCodeinCanadaortheANSI/NFPA
70 NationalElectricalCodeintheUnited
States.

10
BI-88-SLIM
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 88 5/8”or225.2cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 6 3/4”or17.2 cm
Gross Weight 187lbsor85kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 89 1/4”25“or
226.7 cm 63.5 cm
BTU 4800
This appliancehasbeentestedinaccordance
with theULStandard2021forfixedand
locationdedicatedelectricroomappliances
intheUnitedStatesandCanada.Ifyouneed
assistanceduringinstallation,pleasecontact
yourlocaldealer.
NOTE:Thisappliancemustbeelectrically
wiredandgroundedinaccordancewith
localcodes.Intheabsenceoflocalcodes,
usethecurrent CSAC22.1Canadian
ElectricalCodeinCanadaortheANSI/NFPA
70 NationalElectricalCodeintheUnited
States.

SAFETYDRILL SCREWAREA
Thereis asafetydrillscrewareaasshow below.
Pleasemakesurethat thefixscrewsare inthis area.
Themanualcontrolpadposition
Safetydrill screwarea
(Darkarea)
HARD-WIRE INSTALLATION
Turnofftheappliancecompletelyand let coolbeforeservicing.Onlyaqualifiedserviceperson
should serviceandrepairthiselectricappliance.
If itis necessarytohardwirethisappliance,aqualifiedelectricianmustremovethecordconnection,
and wiretheappliancedirectlyto thehouseholdwiring.
This appliancemustbeelectricallyconnectedandgroundedinaccordancewith localcodes,ifhard
wired.Intheabsenceoflocal codes, usethecurrentCSA C22.1CANADIANELECTRICAL CODEin
CanadaorthecurrentANSI/NFPA70 NATIONAL ELECTRICAL CODEintheUnited States.
1. Removethecoverplatefromtheleftsideoftheappliancebyremovingthetwoscrews, as
shownbelow.Unscrewand removepowercord.
11

2. Attachthewiringtothejunctionblock.Pleasemakesurethelivewiregoesintothe “L”,the
neutral wireinto “N”and thegroundwireinto “G”.
3. Puttheplatebackandscrew back.
FOR BATHROOM USE
If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If receptacle is
used it must be readily accessible.
To prevent electric shock, please be aware that this unit is an electrical appliance that is NOT watertight
and must be installed as to prevent water from entering unit. This must be installed away from shows,
tubs, etc. Never locate fireplace where it may fall into a bathtub or other water container.
All wiring connections to line power shall be in accordance with local building code requirements.
Inquires about local codes and regulations must be done prior to installation.
12

The overhang (A) must extend at least 1/2 the roof-line height (B).
Height is measured from the base of the fireplace.
For example: if the roof-line (B) is 8’ above the base of the fireplace,
the overhang (A) must be at least 4’.
OUTDOOR INSTALLATIONS
The BI-SLIM series electric fireplaces are suitable for installation in outdoor areas protected from direct
water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain
protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed
appliance. See illustration below. All wiring connections to line power shall be in accordance with local
building code requirements. Inquires about local codes and regulations must be done prior to
installation.


When installed in outdoor applications, it is recommended that the BI-SLIM models use the protective
PAN-COVER.
13

14
INSTALLATION
TheBI-SLIMmodels aredesignedto bebuilt-inand allow forthefinishingmaterial (drywall, stone,
tile,etc) tobebuilt rightdownto theglass edge.However,thatapplication is not alwaysdesirableor
availablesothesurround could beused asan alternatefinishoption.
Note:Theoptional trim can bepulledoutdirectlyfromtheunit.Itwill need twopeopletodoit.
The rough wall opening sizeof the fireplace:
W(＂) D(＂) H(＂)
BI-40-SLIM 40 7 25
BI-50-SLIM 50 7 25
BI-60-SLIM 60 7 25
BI-72-SLIM 731/2 7 25
BI-88-SLIM 89 1/4 7 25
1. Takeouttheunit fromthebox.Pleasedo thepre-testbeforeyouinstall the fireplace. Pull
outtheoptionaltrim fromtheunit as shows below.
optional trim
NOTE: Due to the many different materials used on different walls, it is highly recommended
that you consult your local builder before you install this appliance.

2. Removetheframingplates fromtheunit
framing plate
3. Re-fixtheframingplates to theunit as thepicture shows
framing plate
15

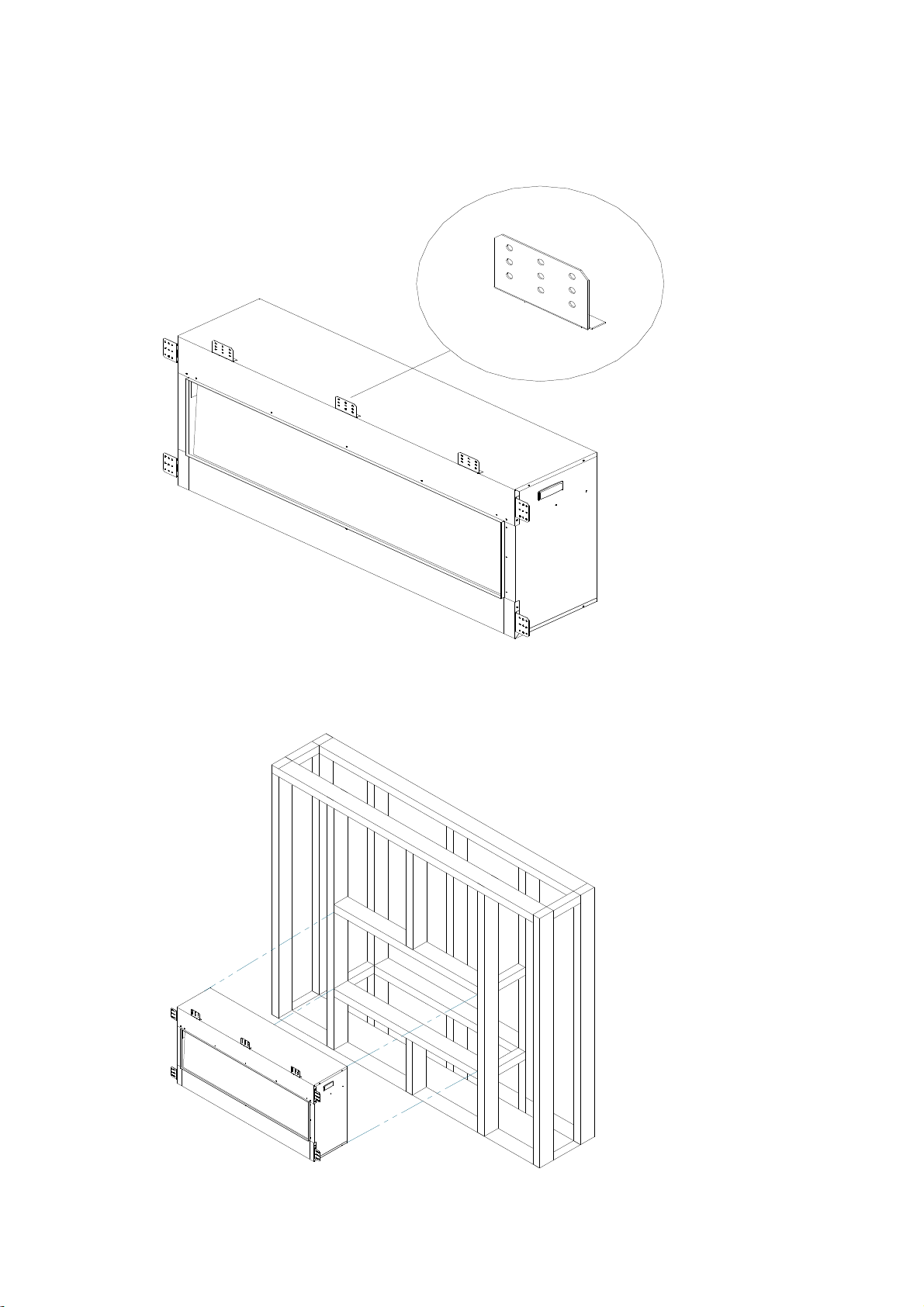

4. Bend up theframingplates.
5. Puttheunit into theopening.
16

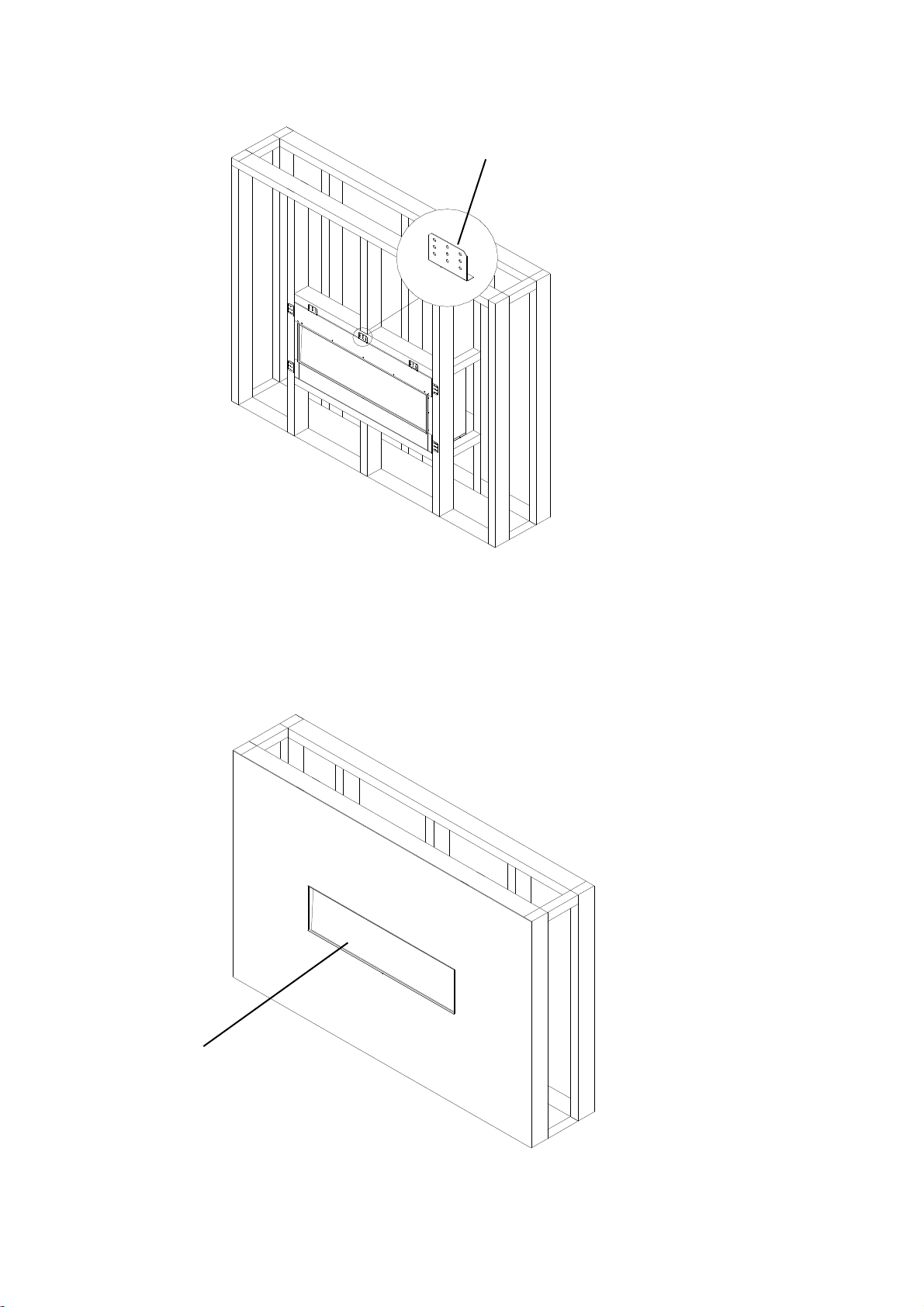

6. Drivethemountingscrews into theframingplates on theunit and thewall studs.
framing plate
7. After checkingthatthefireplace operatesproperly,cover theglass panelwith
protectiveplasticbagand install plywood or drywall.
Fireplace
17
NOTE: In order to use the supplied trim kit, the thickness of the desired wall finish
can not exceed 1 inch.

8. Decoratetheplywood or drywall with glazed tile, wallpaper, etc.
Fireplace
9. Putback thetrim thatyou veremoved fromtheunit atSTEP1.
trim
18

19
PANORAMACOVERINSTALLATION
Makesureinstall thepan-coverwhenthefireplaceusedinoutdoors.
Removethecoverfromthepackaging.
Thehandleswill needtobeattachedtothe
coverwith theprovidedhardwareas shown in
fig.1
First,placeaplatewasherand then aspring
washeronthescrewasshown in fig.2
Affixthehandlesto thefrontofthecoverusing
theprepared screws.Fig.3
Inserttheassembledcoverontotheunit as
shown inFigs.4and 5
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5

20
Media Options
TheBI-40-SLIM,BI-50-SLIM,BI-60-SLIMis
shippedwith3largeglass nuggets,clearand
bluediamondshaped media.
TheBI-72-SLIM,BI-88-SLIMis shippedwith6
largeglass nuggets, clear and bluediamond
shapedmedia.
FireGlassMedia-Log Installation
1. Takeoffthefrontclearglass.Thereis a
bracketwhichholdsthefrontglass.Itis
showasbelow.Unscrewthescrewand take
off thebracket.Turnaroundandinsertto
thegap.Itcanhooktheglass and pullout
theglass.
2. Installingthefireglass media.Pourthefire
glass media intothetrayasshownbelow.
Feelfreetouseanycombination of fireglass
mediathatyoufind mostappealing.
3.Putbackthefrontglass andscrewbackthe
bracket.
