INSTALLATION AND OPERATION INSTRUCTIONS FOR
BI-SLIM UNITS
BI-40-SLIM
BI-50-SLIM
BI-60-SLIM
BI-72-SLIM
BI-88-SLIM
SAFETY INFORMATION
WARNING
If the information in these
instructions are not followed exactly,
a fire or explosion may result causing
property damage, personal injury or
loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
PDF created with pdfFactory trial version www.pdffactory.com

TABLE OF CONTENTS
Please read and carefully follow all of the instruction found in this manual. Please pay special
attention to the safety instructions provided in this manual. The instructions included here will
as sure that you have many years of dependable and enjoyable service from your Amantii
product.
IMPORTANT INSTRUCTIONS ...............................................................................................3
UNPACKING AND TESTING APPLIANCE.............................................................................4
GROUNDING APPLIANCE.....................................................................................................4
LOCATING THE FIREPLACE.................................................................................................4
BI-40-SLIM..............................................................................................................................5
BI-50-SLIM..............................................................................................................................6
BI-60-SLIM..............................................................................................................................7
BI-72-SLIM..............................................................................................................................8
BI-88-SLIM..............................................................................................................................9
INSTALLATION.....................................................................................................................10
HARD- WIRE INSTALLATION..............................................................................................10
Media Options.......................................................................................................................12
OPERATION.........................................................................................................................13
INSTALLING WALL THERMOSTAT......................................................................................15
REPLACEMENT PARTS ......................................................................................................16

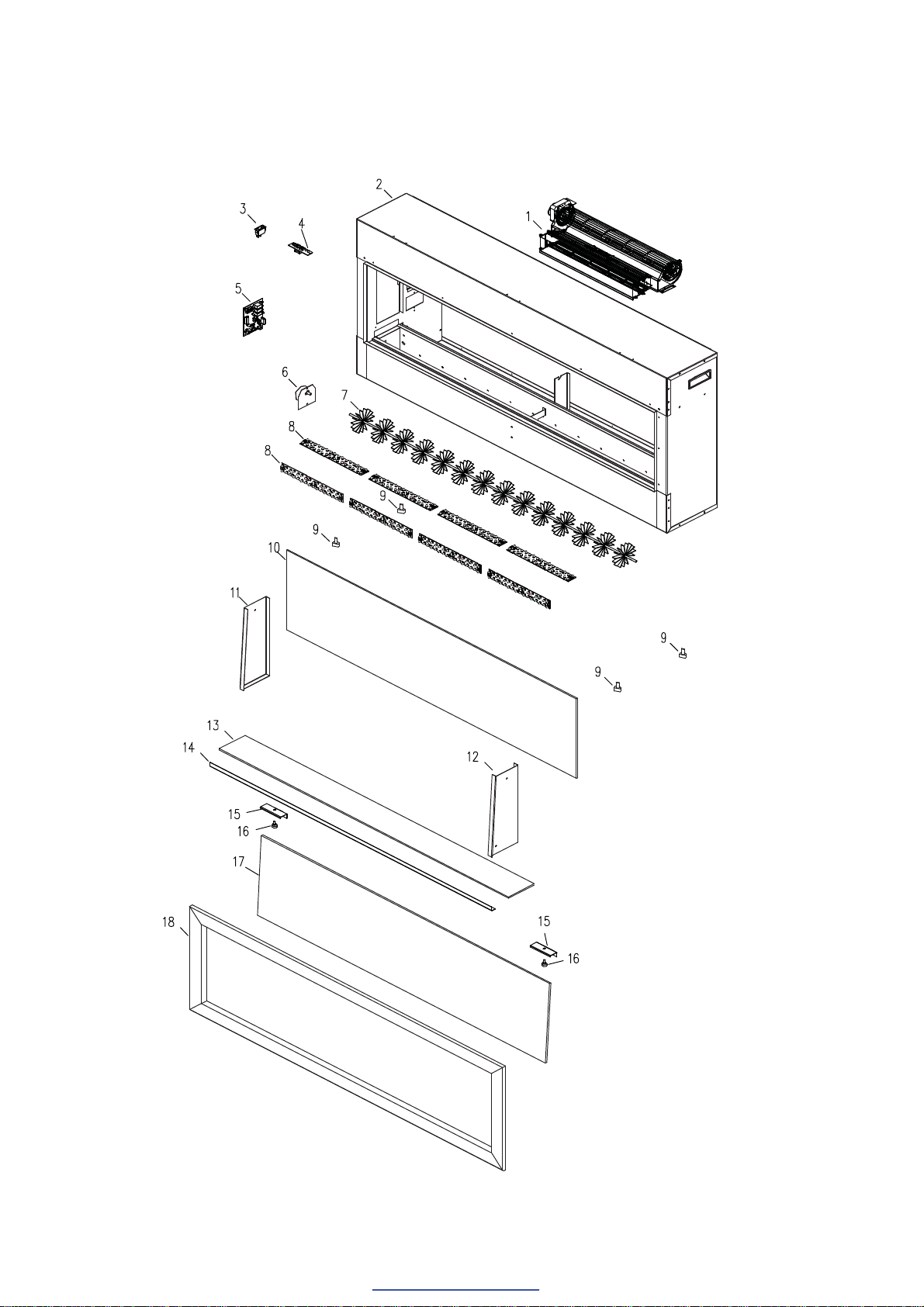

EXPLODED VIEW ................................................................................................................17
TROUBLE SHOOTING.........................................................................................................18
SERVICE HISTORY .............................................................................................................19
WRRRANTY.........................................................................................................................20
PDF created with pdfFactory trial version www.pdffactory.com

IMPORTANT INSTRUCTIONS
1. Read all instructions before installing or using this heater.
2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and
curtains at least 3 feet from the front of the heater; keep them away from sides and rear
as well.
3. Always unplug heater when it’s not in use.
4. Do not operate the fireplace if it has a damaged cord or plug, after it has malfunctioned, or
if the unit has been dropped or damaged in any way.
5. Do not use the heater outdoors.
6. This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. Never place the heater where it may fall into a bathtub or other water
containers.
7. Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners or
anything else. Arrange the cord away fromtraffic areas where it could not be tripped over.
8. To disconnect the heater, turn the controls to "OFF" before removing the plug from the
outlet.
9. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this
may cause an electric shock, fire or damage to the heater.
10. To prevent a possible fire, do not block air intakes in any manner.
11. A heater has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline, paint or flammable liquids are used or stored.
12. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury to persons.
13. Always use properly grounded fused and polarized outlets.
14. Always use ground fault protection where it is required by electrical codes.
15. Always disconnect the power before performing any cleaning, maintenance or relocation
of the heater.
16. To prevent a possible fire, do not burn wood or other materials in this heater.
17. 18 To prevent electric shock or fire, always use a certified electrician, should new circuits
or outlets be required.
18. When transporting or storing the heater, keep it in a dry place, free from excessive
vibration.
PDF created with pdfFactory trial version www.pdffactory.com

UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box. Prior to installing the appliance, test to make
sure the appliance operates properly by plugging the power supply cord into a conveniently
located 120 Volt grounded outlet.
GROUNDING APPLIANCE
This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as
shown in (C) is available for connecting three-blade grounding type plugs to two-slot
receptacles. The green grounding lug extending from the adapter must be connected to a
permanent ground such as a properly grounded outlet box. The adapter should not be used if
a three-slot grounded receptacle is available.
To disconnect appliance, turn controls to off, then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you
install the fireplace. Before installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances (see
INSTALLATION)
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3. A 15 ampere, 120 Volt, 60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit
breakers to trip of fuses to blow.
PDF created with pdfFactory trial version www.pdffactory.com

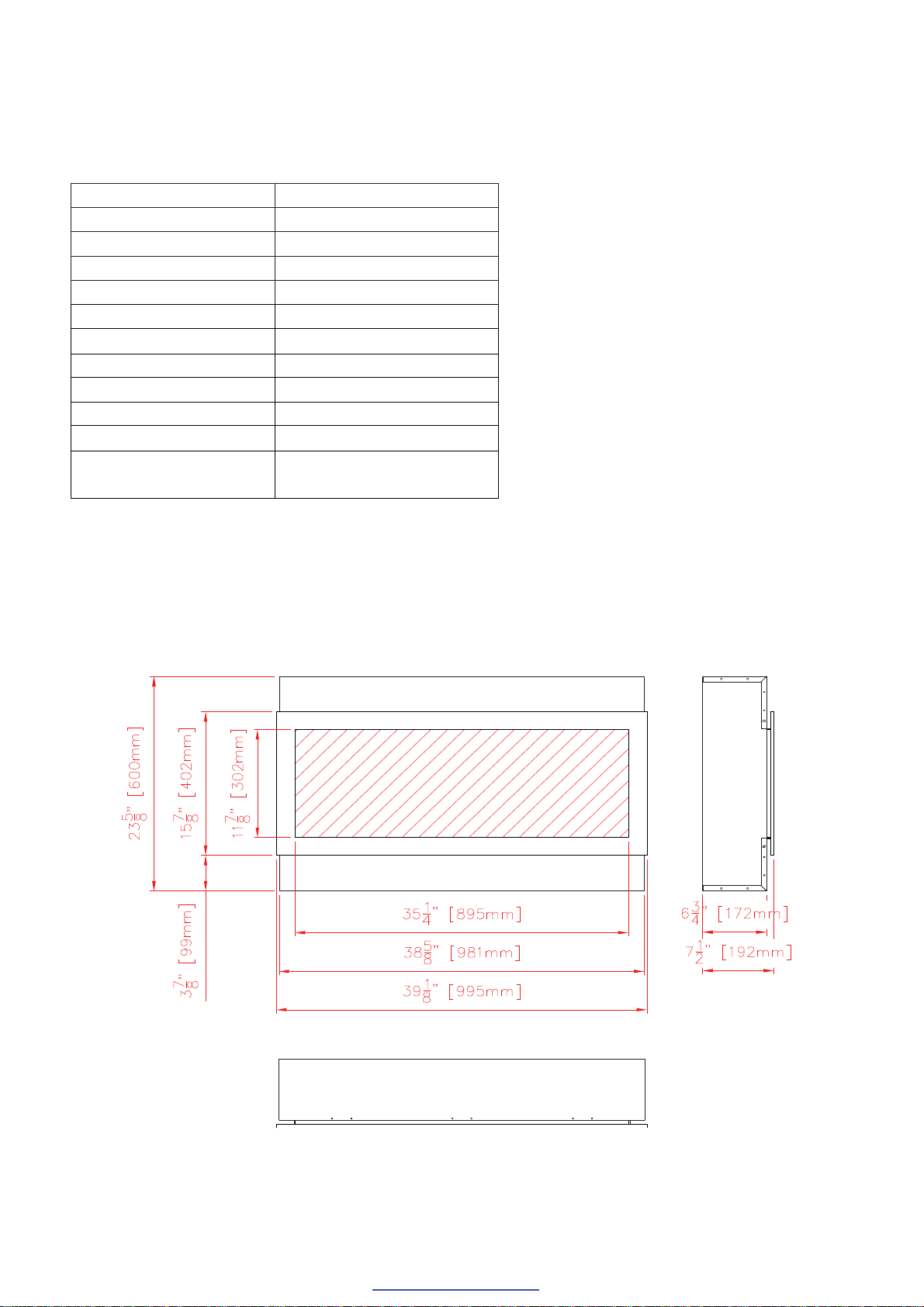

BI-40-SLIM
Description Built-in Appliance
Voltage 120VAC 60Hz
Watts 1500W Max
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 38 5/8”or 98.1 cm
Appliance Height 23 5/8”or 60 cm
Appliance Depth 63/4”or 17.2 cm
Gross Weight 88 lbs or 40kg
Plug Location Left side
Cord Length 70 7/8”or 180 cm
Rough Wall Opening
Size 40”24“or 101.6 cm60 cm
This appliance has been tested in
accordance with the UL Standard
2021 for fixed and location
dedicated electric room appliances
in the United States and Canada. If
you need assistance during
installation, please contact your
local dealer.
NOTE: This appliance must be
electrically wired and grounded
in accordance with local codes.
In the absence of local codes, us
the current CSA C22.1 Canadian
Electrical Code in Canada or the
ANSI/NFPA 70 National Electrical
Code in the United States.
PDF created with pdfFactory trial version www.pdffactory.com

BI-50-SLIM
Model Number BI-50-SLIM
Voltage 120VAC 60Hz
Watts 1500W Max
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 48 5/8”or 123.5 cm
Appliance Height 23 5/8”or 60 cm
Appliance Depth 63/4”or 17.2 cm
Gross Weight 105.6 lbs or 48kg
Plug Location Left side
Cord Length 70 7/8”or 180 cm
Rough Wall Opening
Size 50”24“or 127 cm 60 cm
This appliance has been tested in
accordance with the UL Standard
2021 for fixed and location dedicated
electric room appliances in the United
States and Canada. If you need
assistance during installation, please
contact your local dealer.
NOTE: This appliance must be
electrically wired and grounded in
accordance with local codes. In the
absence of local codes, us the
current CSA C22.1 Canadian
Electrical Code in Canada or the
ANSI/NFPA 70 National Electrical
Code in the United States.
PDF created with pdfFactory trial version www.pdffactory.com

BI-60-SLIM
Description Built-in Appliance
Voltage 120V AC 60Hz
Watts 1500W Max
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 58 5/8”or 148.5 cm
Appliance Height 23 5/8”or 60 cm
Appliance Depth 63/4”or 17.2 cm
Gross Weight 123.2 lbs or 56kg
Plug Location Left side
Cord Length 70 7/8”or 180 cm
Rough Wall Opening
Size 60”24“or 152.4 cm60 cm
This appliance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated electric
room appliances in the United States and
Canada. If you need assistance during
installation, please contact your local
dealer.
NOTE: This appliance must be
electrically wired and grounded in
accordance with local codes. In the
absence of local codes, us the current
CSAC22.1 Canadian Electrical Code in
Canada or the ANSI/NFPA 70 National
Electrical Code in the United States.
PDF created with pdfFactory trial version www.pdffactory.com

BI-72-SLIM
Description Built-in Appliance
Voltage 120V AC 60Hz
Watts 1500W Max
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 72 1/8”or 183.2 cm
Appliance Height 23 5/8”or 60 cm
Appliance Depth 63/4”or 17.2 cm
Gross Weight 149.6lbs or 68kg
Plug Location Left side
Cord Length 70 7/8”or 180 cm
Rough Wall Opening
Size 73 1/2”24“or 186.7 cm60 cm
This appliance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated electric
room appliances in the United States
and Canada. If you need assistance
during installation, please contact your
local dealer.
NOTE: This appliance must be
electrically wired and grounded in
accordance with local codes. In the
absence of local codes, us the
current CSA C22.1 Canadian
Electrical Code in Canada or the
ANSI/NFPA 70 National Electrical
Code in the United States.
PDF created with pdfFactory trial version www.pdffactory.com

BI-88-SLIM
Description Built-in Appliance
Voltage 120V AC 60Hz
Watts 1500W Max
NO HEATER 25W
MOTOR HEATER 19W
Appliance Width 88 5/8”or 225.2 cm
Appliance Height 23 5/8”or 60 cm
Appliance Depth 63/4”or 17.2 cm
Gross Weight 187lbs or 85kg
Plug Location Left side
Cord Length 70 7/8”or 180 cm
Rough Wall Opening
Size 89 1/4”24“or 226.7 cm60 cm
This appliance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated electric
room appliances in the United States and
Canada. If you need assistance during
installation, please contact your local
dealer.
NOTE: This appliance must be
electrically wired and grounded in
accordance with local codes. In the
absence of local codes, us the current
CSAC22.1 Canadian Electrical Code in
Canada or the ANSI/NFPA 70 National
Electrical Code in the United States.
PDF created with pdfFactory trial version www.pdffactory.com

INSTALLATION
The BI-SLIM models are designed to be built-in and allow for the finishing material (drywall,
stone, tile, etc) to be built right down to the glass edge. However, that application is not
always desirable or available so the surround could be used as an alternate finish option.
Note: The optional trim can be pull out directly from the unit. It will need two person to do it.
The rough wall opening size of the fireplace.
W()D()H()
BI-40-SLIM 40 7 24
BI-50-SLIM 50 7 24
BI-60-SLIM 60 7 24
BI-72-SLIM 73 1/2 7 24
BI-88-SLIM 89 1/4 7 24
1. Take out the unit from the box. Do the
pre-test before you install the fireplace. Pull
out the optional trim from the unit as show.
2. Screw the framing plates to the fireplace.
3. Bent up the framing plates.
4. Insert the fireplace into the wall opening.
5. Drive the mounting screws into the
framing plates on the units and the wall
studs.
HARD- WIRE INSTALLATION
Turn off the appliance completely and let cool before servicing. Only a qualified service
PDF created with pdfFactory trial version www.pdffactory.com

person should service and repair this electric appliance.
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord
connection, and wire the appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes,
if hard wired. In the absence of local codes, use the current CSA C22.1 CANADIAN
ELECTRICAL CODE in Canada or the current ANSI/NFPA 70 NATIONAL ELECTRICAL
CODE in the United States.
1. Remove the cover plate fromthe left side of the appliance by removing the two screws, as
shown below. Unscrew and remove power cord. Remove the knockout.
2. Attach the wiring to the junction block.
3. Put the plate back and screw back.
PDF created with pdfFactory trial version www.pdffactory.com

Media Options
The BI-40-SLIM, BI-50-SLIM,BI-60-SLIM is
shipped with 3 large glass nuggets, clear
and blue diamond shaped media and 6
piece log set.
The BI-72-SLIM, BI-88-SLIM is shipped with
6 large glass nuggets, clear and blue
diamond shaped media and 6 piece log set.
Fire Glass Media-Log Installation
1. Take off the front clear glass. There is a
bracket which hold the front glass.It is
show as below. Unscrew the screw and
take off the bracket. Turn around and
insert to the gap. It can hook the glass
and pull out the glass.
2. Installing the fire glass media. Pour the
fire glass media into the tray as shown
below. Feel free to use any combination
of fire glass media that you find most
appealing.
3.Put back the front glass and screw back
the bracket.
PDF created with pdfFactory trial version www.pdffactory.com

OPERATION
The fireplace can be operated either by the switches located on theleft bottomof the fireplace
unit or by supplied remote control.
Plug the fireplace into a 15 Amp wall socket.
MANUAL OPERATION
1. The main power ON/OFF switch in position O, the fireplace is OFF.
2. When main power ON/OFF switch is at position I, the fireplace is ready to use.
3. Press the Heat button repeatedly to set the heater to desired heat setting. The heater
indicator LED will glow which shows the current heater settings.
a) RED 1500W HEAT OUTPUT
b) BLUE 750W HEAT OUTPUT
c) PURPLE AUTO MODE
AUTO MODE
Under this mode the heater will automatically turn ON at high heat setting 1500W heat output
when the room temperature drops below 22 . When the room temperature is between
22-25 the heater output will switch to low heat setting750W.When the room temperature
goes above 25 the heater will be turned off and the cycle will continue. The LED indicator
will be PURPLE in colour under this mode.
4. Flame effect: Press the button marked Flame to adjust the flame brightness. The flame
brightness will cycle through –Low-Medium-High -OFF.
NOTE: If operated at the Low heat setting, the fireplace will not provide as much heat output
as in the High heat setting, however the low setting will not require as much electrical power
to operate. To avoid overloading a circuit, do not plug the fireplace into a circuit that already
has other appliances working. When the fireplace is not in use switch off and unplug.
SAFETY CUT-OFF
This appliance is fitted with a safety cut-off which will operate if the fireplace overheats
(eg. Due to blocked air vents). For safety reasons, the fireplace will NOT automatically
reset.
To reset the appliance, disconnect the appliance from the mains supply for at least 10
minutes. Reconnect the supply to the mains and switch on the appliance.
PDF created with pdfFactory trial version www.pdffactory.com

REMOTE CONTROL OPERATION
For remote to function make sure the heater is plugged in and mains power switch located on
the bottom left hand side is at position I.
When operating the remote make sure you point the remote to the centre of the fireplace and
make sure each time you press the button. The buzzer inside the unit will beep once. It takes
some time for the receiver to respond to the transmitter. Do not PRESS the buttons more than
once within two seconds for correct operation.
Power on button: The power-on button at top left corner of the remote is the mains
ON/OFF power button. This will turn off all the functions and the fireplace will be in standby
mode.
DISPLAY ON/OFF button: Switching the fireplace flame and tray light ON/OFF. It has
functions of setting memory.
DISPLAY YELLOW button: Adjust the yellow color brightness of flame.
DISPLAY BLUE button: Adjust the blue color brightness of flame.
HEATER ON/OFF button: Switching the heater ON/OFF. It has functions of setting memory.
HIGHT button: Press the high button to switch the heater to high heat setting 1500W.
LOW button: Press the low button to switch the heater to low heat setting 750W.
TEMP. button: Press the TEMP. button to switch the heater to AUTO mode. Under this mode
the heater will operate in similar way as explained above for the manual operation.
PDF created with pdfFactory trial version www.pdffactory.com

INSTALLING WALL THERMOSTAT
WALL THERMOSTAT WIRING DIAGRAMS
Wire the wall thermostat prior to installing the fireplace.
WALL THERMOSTAT WIRING(24 VAC)
Install Wall Thermostat per instructions provided with kit and per the following
information:
1. Turn off circuit breaker.
2. Remove cover plate located on the left side of appliance.
3. Pull the wire out and cut the inside thermostat. Connect the wires to the wall thermostat
as shown below. Follow instructions provided with wall switch kit.
PDF created with pdfFactory trial version www.pdffactory.com

REPLACEMENT PARTS
This list contains replacement parts
NO
.BI-40-SLI
M
BI-50-SLI
M
BI-60-SLI
M
BI-72-SLI
M
BI-88-SLI
M
DESCRIPTIO
NQTY .
1 602120 602120 602120 602120 602120 BLOWER AND
HEATER ASSEMBLY
1
2FIREPLACE BOX
3 10104010 10104010 10104010 10104010 10104010 SWITCH 1
4 601032B 601032B 601032B 601032B 601032B CONTROL PANEL 1
5 601097 601097 601097 601097 601097 CIRCUIT BOARD 1
6 10101201C 10101201C 10101201C 10101201C 10101201C FLAME MOTOR 1
7 3109503 3057503 3110503 3058503 3111503 FLICKER
ASSEMBLY
1
8 601140 601140 601140 601141 601141 LED STRIP
9 10203015 10203015 10203015 10203015 10203015 ADJUSTABLE
FOOT
4
10 FLAME EFFECT
GLASS(CLEAR GLASS
WITH BLACK PLASTIC)
1
11 3057012 3057012 3057012 3057012 3057012 GLASS
BRACKET LH
1
12 3057013 3057013 3057013 3057013 3057013 GLASS
BRACKET RH
1
13 10702156 BOTTOM GLASS 1
14 3109017 357017 3110017 358017 3111017 MEDIA HOLD
BRACKET
2
15 3057016 3057016 3057016 3057016 3057016 FRONT GLASS
BRACKET.
2
16 ADJUSTABLE SCREW 2
17 10701187 10701165 10701189 10701166 10701191 FRONT GLASS 1
18 3109501 3057501 3110501 3058501 3111501 OVERLAY 1
19 10105057 10105057 10105057 10105057 10105057 REMOTE 1
PDF created with pdfFactory trial version www.pdffactory.com

EXPLODED VIEW
PDF created with pdfFactory trial version www.pdffactory.com

TROUBLE SHOOTING
PROBLEM POSIBBLE CAUSE SOLUTION
Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace
them if necessary.
Ember bed is not
glowing or dimming Ember LED’s are burnt out Inspect the ember bed LED’sand replace them if necessary.
Appliance has overheated
and safety device has caused
the thermal switch to
disconnect
Turn off the main switch, allow
appliance to cool for 10 minutes,
then turn it on.
House circuit breaker has
tripped Reset house circuit breaker.
Appliance turns off
and will not turn on
Appliance’s fuse has blown Replace the fuse.
Appliance is not plugged into
an electrical outlet Check plug and plug in.
Appliance has overheated
and safety device has caused
the thermal switch to
disconnect
Turn off the main switch, allow
appliance to cool for 10 minutes,
then turn it on.
Appliance will not
come on when switch
is flipped to ON
Circuit board is burnt out Inspect the circuit board and
replace it if necessary.
No warm air coming
out of appliance Heater is burnt out Inspect the burner and heater assembly and replace it if
necessary.
Flame sputters Flame motor is defective. Call a qualified service technician
and replace flame motor.
Remote Control does
not work. Low batteries. Unit switch in “O”position. Replace AAA batteries in remote control.
Turn the switch in “I”position.
Flame is fixed. Wiring may be loose or the
flame motor may be defective.
PDF created with pdfFactory trial version www.pdffactory.com

SERVICE HISTORY
This heater must be serviced annually depending on usage.
Date Dealer
Name Service technician Name Service Performed Special Concerns
NOTES:
PDF created with pdfFactory trial version www.pdffactory.com

WRRRANTY
Amantii Imports Corp. (”Amantii”) warrants that your newly purchased Amantii electric fireplace is free from
manufacturing and material defects for a period of one (1) year from the date of the first purchase, subject to the
conditions and limitations contained below.
Warranty Application & Exclusions
This limited warranty applies to your newly purchased Amantii electric ?replace; the limited warranty’s
application is limited to purchases made in any province of Canada or in any of the 52 States of the United
States of America, including the District of Columbia. Only the original purchaser of the product is eligible for
coverage under this limited warranty; the warranty is not transferable.
Products excluded from this limited warranty
Light bulbs are not covered by this limited warranty and are the sole responsibility of the owner/purchaser.
Warranty Coverage and Team
Products covered by this limited warranty have been tested and inspected prior to shipment and, subject to the
provisions of this warranty, Amantii warrants such products to be free from defects in material and workmanship
for a period of one (1) year from the date of the first purchase of such products.
The limited one (1) year warranty period for products also applies to any implied warranties that may exist under
applicable law. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to the purchaser.
All other warranties - expressed or implied - with respect to the product, its components and accessories or any
obligation/liabilities on the part of Amantii are hereby expressly excluded.
Limitations to Coverage Under Limited Warranty
This limited warranty does not apply to products that have been repaired, except by Amantii or its authorized
service representatives, or otherwise altered. This limited warranty further does not apply to defects resulting
from misuse, abuse, accident, neglect, incorrect installation, improper maintenance or handling, or operation
with an incorrect power source.
Products made by other manufacturers, sold with the product or thereafter, are not covered by this limited
warranty. The use of unauthorized components will render this warranty null and void.
Service Under Limited Warranty
Defects must be brought to the attention of Amantii Technical Service by contacting Amantii at (1-888-406-8764),
or a t#1503-7088 18th Avenue, Burnaby, British Columbia, Canada, V3N 0A2. Please have your proof of
purchase, catalogue/model and serial numbers available when calling; any and all service under the limited
warranty requires a proof of purchase of the product.
Defects
Should a product or part covered by this limited warranty be proven to be defective, in material or workmanship,
and during the one (1) year limited warranty period, Amantii will replace such defective product or part without
charge. If Amantii is unable to replace such product, or if replacement is not commercially practicable or cannot
be timely done, in its sole discretion Amantii may, in lieu of replacement, choose to refund the purchase price for
PDF created with pdfFactory trial version www.pdffactory.com
