INSTALLATIONAND OPERATIONINSTRUCTIONS FOR
BI-DEEP UNITS
BI-40-DEEP
BI-50-DEEP
BI-60-DEEP
BI-72-DEEP
BI-88-DEEP
SAFETYINFORMATION
WARNING
Iftheinformationinthese
instructionsarenotfollowedexactly,
afireorexplosionmayresultcausing
propertydamage, personal injuryor
loss oflife.
Do not storeorusegasoline orotherflammable
vaporsand liquidsinthe vicinityofthisoranyother
appliance.
INSTALLER:LEAVE THIS MANUALWITHTHE APPLIANCE.
CONSUMER:RETAINTHIS MANUALFORFUTURE REFERENCE.
RATED FOR INDOOR OR OUTDOOR USE

2
TABLE OFCONTENTS
Pleaseread and carefullyfollowallof the instructionfoundinthismanual. Pleasepayspecial
attention tothesafetyinstructionsprovided inthismanual. The instructionsincluded herewill
assurethatyou havemanyyearsofdependableand enjoyableservicefromyourAmantii
product.
IMPORTANTINSTRUCTIONS....................................................................................................................................3
UNPACKING AND TESTING APPLIANCE...............................................................................................................4
GROUNDINGAPPLIANCE.........................................................................................................................................4
LOCATING THEFIREPLACE.....................................................................................................................................4
SAFETYDRILLSCREWAREA..................................................................................................................................4
BI-40-DEEP...................................................................................................................................................................5
BI-50-DEEP...................................................................................................................................................................6
BI-60-DEEP...................................................................................................................................................................7
BI-72-DEEP...................................................................................................................................................................8
BI-88-DEEP...................................................................................................................................................................9
INSTALLATION..........................................................................................................................................................10
HARD-WIREINSTALLATION.................................................................................................................................11
PANORAMACOVERINSTALLATION....................................................................................................................12
MediaOptions..............................................................................................................................................................13
OPERATION................................................................................................................................................................14
INSTALLING WALLTHERMOSTAT........................................................................................................................16
REPLACEMENTPARTS............................................................................................................................................17
EXPLODEDVIEW......................................................................................................................................................18
TROUBLESHOOTING..............................................................................................................................................19
SERVICEHISTORY....................................................................................................................................................20
WRRRANTY...............................................................................................................................................................21

3
IMPORTANTINSTRUCTIONS
Read allinstructionsbeforeinstalling orusing thisheater.
2.Keep combustiblematerials,suchasfurniture,pillows,bedding,papers,clothesand
curtainsatleast3feetfromthe frontofthe heater;keep themawayfromsidesand rear
aswell.
3.Donotoperatethe fireplaceifit hasadamagedcordorplug, afterit hasmalfunctioned, or
if theunit hasbeendropped ordamaged inanyway.
4.Thisheaterisnotintended foruseinbathrooms,laundryareasand similarindoor
locations.Neverplacethe heaterwhereitmayfall intoabathtuborotherwater
containers.
5.Donotrun the cordundercarpeting.Donotcoverthe cordwiththrowrugs,runnersor
anything else.Arrangethe cordawayfromtrafficareaswhereitcouldnotbetrippedover.
6.Todisconnecttheheater,turnthe controlsto"OFF"beforeremoving theplug fromthe
outlet.
7.Donotinsertorallowforeignobjectstoenteranyventilationorexhaustopening,asthis
maycausean electricshock, fireordamage tothe heater.
8.Toprevent apossiblefire, do not block airintakesinanymanner.
9.Aheaterhashotand arcing orsparkingpartsinside.Donotuseitinareaswhere
gasoline, paint orflammableliquidsareused orstored.
10.Usethisheateronlyasdescribed inthismanual. Anyotherusenotrecommended bythe
manufacturermaycausefire, electricshock orinjurytopersons.
11.Avoidtheuseofan extension cordbecausethe extensioncordmayoverheatandcause
afire.
12.Always useproperlygroundedfused and polarizedoutlets.
13.Always usegroundfaultprotection whereitisrequiredbyelectricalcodes.
14.Always disconnectthepowerbeforeperforming anycleaning,maintenanceorrelocation
of the heater.
15.Toprevent apossiblefire, do not burnwood orothermaterialsinthisheater.
16.Toprevent electricshock orfire, always useacertified electrician, shouldnewcircuits
oroutletsbe required.
When transporting orstoring the heater,keepitinadryplace,free fromexcessive
vibration.
1.
17.

4
UNPACKINGAND TESTINGAPPLIANCE
Carefullyremovethe appliancefromthe box.Priortoinstalling theappliance,testtomake
surethe applianceoperatesproperlybyplugging the powersupplycordintoaconveniently
located 120Voltgrounded outlet.

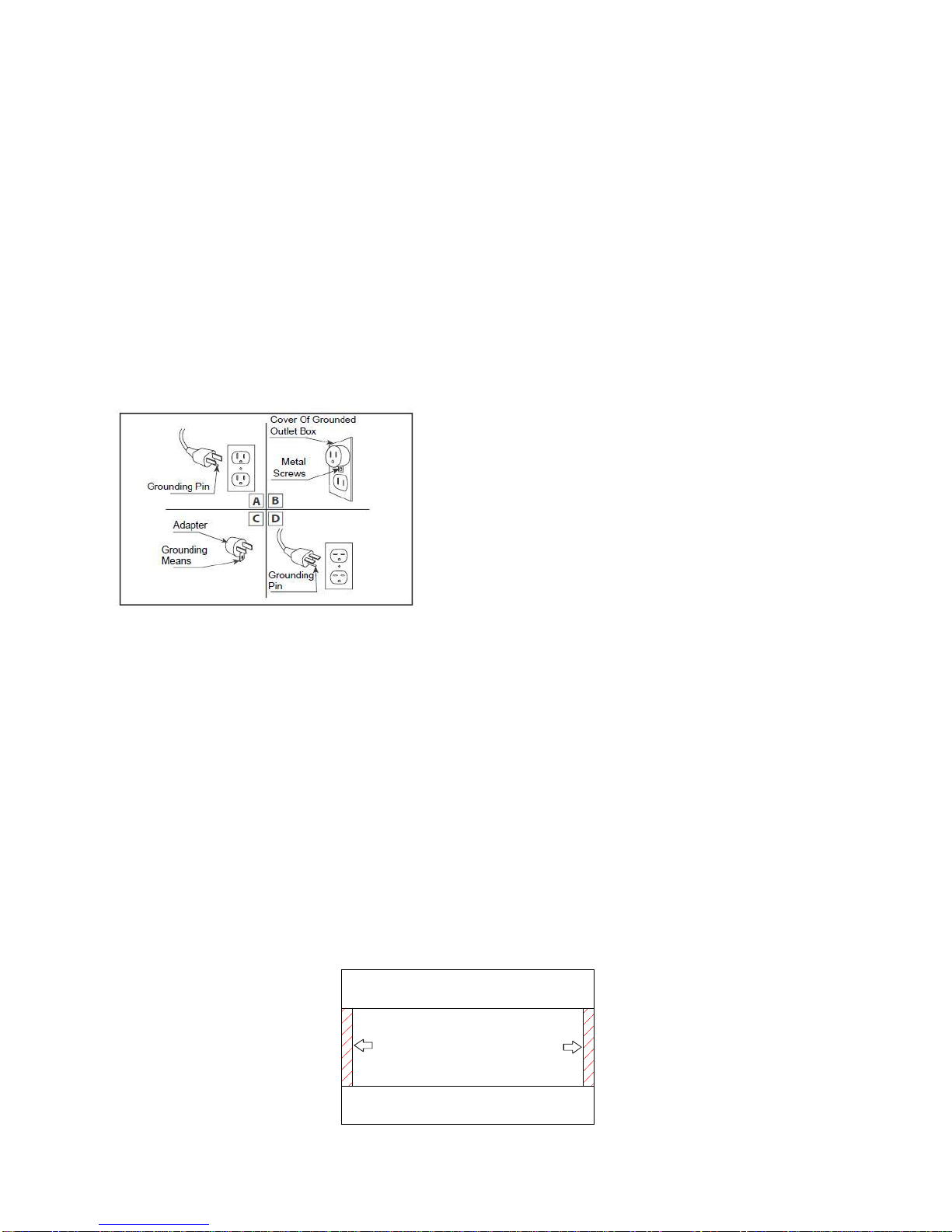

GROUNDINGAPPLIANCE
Thisapplianceisforuseon 120Volts.Thecordhasaplugasshownin(A).Anadapteras
shownin(C)isavailableforconnectingthree-bladegroundingtypeplugstotwo-slot
receptacles.The greengrounding lug extending fromthe adaptermustbe connected toa
permanentgroundsuchasaproperlygroundedoutletbox.The adaptershouldnot be used if
athree-slot grounded receptacleisavailable.
Todisconnectappliance, turncontrolstooff,then removeplugfromoutlet.
LOCATINGTHEFIREPLACE
Plan wheretolocateand framethe fireplace.Thiswillsavetimeand moneylaterwhen you
installthefireplace. Beforeinstallation considerthe following:
1.Wherethe fireplaceislocatedmustallowforwall and ceiling clearances(see
INSTALLATION)
2.Consideralocation wherethefireplacescreenwill notbeexposed todirectsunlightfrom
windowsordoors.
3. A15 ampere,120 Volt, 60 Hzbranchcircuitwithproperground mustbe availableatthe
location.Preferablyadedicated branchcircuitshouldbe provided toavoidcircuit
breakerstotripof fusestoblow.
SAFETYDRILLSCREW AREA
Thereisasafetydrillscrewarea asshowbelow.Pleasemakesurethatthe fixscrewsarein
thisarea.
Safetydrillscrewarea
(Darkarea)

5
BI-40-DEEP
Description Built-inAppliance
Voltage 120VAC60Hz
Watts 1500WMax
NO HEATER 25W
MOTORHEATER 19W
ApplianceWidth 38 5/8”or98.1cm
ApplianceHeight 23 5/8”or60cm
ApplianceDepth 12 1/4”or31.2cm
Gross Weight 94.6lbsor43kg
Plug Location Left side
CordLength 70 7/8”or180 cm
Rough WallOpening
Size 40”24“or 101.6cm 60 cm
Thisappliancehasbeen testedin
accordancewiththeULStandard
2021 forfixed and location
dedicated electricroomappliances
inthe UnitedStatesand Canada.If
you need assistanceduring
installation,pleasecontactyour
localdealer.
NOTE:Thisappliance mustbe
electricallywiredandgrounded
inaccordance withlocalcodes.
Intheabsence oflocalcodes,us
thecurrentCSAC22.1Canadian
ElectricalCodeinCanadaorthe
ANSI/NFPA70 NationalElectrical
CodeintheUnitedStates.

6
BI-50-DEEP
ModelNumber BI-50-DEEP
Voltage 120VAC60Hz
Watts 1500WMax
NO HEATER 25W
MOTORHEATER 19W
ApplianceWidth 48 5/8”or123.5cm
ApplianceHeight 23 5/8”or60cm
ApplianceDepth 12 1/4”or31.2cm
Gross Weight 110lbsor50kg
Plug Location Left side
CordLength 70 7/8”or180 cm
Rough WallOpening
Size 50”24“or 127 cm 60 cm
Thisappliancehasbeentestedin
accordancewiththe ULStandard
2021 forfixed and location dedicated
electricroomappliancesinthe United
Statesand Canada.If you need
assistanceduring installation,please
contact yourlocaldealer.
NOTE:Thisappliance mustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absence oflocalcodes,usthe
currentCSAC22.1Canadian
ElectricalCodeinCanadaorthe
ANSI/NFPA70 NationalElectrical
CodeintheUnitedStates.

7
BI-60-DEEP
Description Built-inAppliance
Voltage 120VAC60Hz
Watts 1500WMax
NO HEATER 25W
MOTORHEATER 19W
ApplianceWidth 58 5/8”or148.5cm
ApplianceHeight 23 5/8”or60cm
ApplianceDepth 12 1/4”or31.2cm
Gross Weight 127.6lbsor58kg
Plug Location Left side
CordLength 70 7/8”or180 cm
Rough WallOpening
Size 60”24“or 152.4cm 60 cm
Thisappliancehasbeentestedin
accordancewiththeULStandard2021
forfixed andlocation dedicatedelectric
roomappliancesinthe UnitedStatesand
Canada.If you need assistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliance mustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absence oflocalcodes,usthecurrent
CSAC22.1CanadianElectrical Codein
CanadaortheANSI/NFPA70 National
Electrical CodeintheUnitedStates.

8
BI-72-DEEP
Description Built-inAppliance
Voltage 120VAC60Hz
Watts 1500WMax
NO HEATER 25W
MOTORHEATER 19W
ApplianceWidth 72 1/8”or183.2cm
ApplianceHeight 23 5/8”or60cm
ApplianceDepth 12 1/4”or31.2cm
Gross Weight 156.2lbsor71kg
Plug Location Left side
CordLength 70 7/8”or180 cm
Rough WallOpening
Size 73 1/2”24“or 186.7cm 60 cm
Thisappliancehasbeen testedin
accordancewiththe ULStandard2021
forfixed andlocationdedicated electric
roomappliancesintheUnited States
and Canada.Ifyou need assistance
during installation,pleasecontactyour
localdealer.
NOTE:Thisappliance mustbe
electricallywiredandgroundedin
accordance withlocalcodes.Inthe
absence oflocalcodes,usthe
currentCSAC22.1Canadian
ElectricalCodeinCanadaorthe
ANSI/NFPA70 NationalElectrical
CodeintheUnitedStates.

9
BI-88-DEEP
Description Built-inAppliance
Voltage 120VAC60Hz
Watts 1500WMax
NO HEATER 25W
MOTORHEATER 19W
ApplianceWidth 88 5/8”or225.2cm
ApplianceHeight 23 5/8”or60cm
ApplianceDepth 12 1/4”or31.2cm
Gross Weight 195.8lbsor89kg
Plug Location Left side
CordLength 70 7/8”or180 cm
Rough WallOpening
Size 89 1/4”24“or 226.7cm 60 cm
Thisappliancehasbeentestedin
accordancewiththeULStandard2021
forfixed andlocation dedicatedelectric
roomappliancesinthe UnitedStatesand
Canada.If you need assistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliance mustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absence oflocalcodes,usthecurrent
CSAC22.1CanadianElectrical Codein
CanadaortheANSI/NFPA70 National
Electrical CodeintheUnitedStates.

10
INSTALLATION
The BI-DEEPmodelsaredesigned tobe built-inand allowforthe finishingmaterial(drywall,
stone, tile, etc)tobe builtright downtothe glass edge. However, thatapplicationisnot
always desirableoravailablesothe surroundcouldbe usedasanalternatefinishoption.
The rough wallopening sizeof thefireplace.
W(＂) D(＂) H(＂)
BI-40-DEEP 40 12 24
BI-50-DEEP 50 12 24
BI-60-DEEP 60 12 24
BI-72-DEEP 73 1/2 12 24
BI-88-DEEP 89 1/4 12 24
1.Takeoutthe unitfromthe box. Dothe
pre-test beforeyou installthe fireplace. Pull
out the optionaltrimfromthe unit asshow.
2. Screwthe framing platestothe fireplace.
3.Bent up the framing plates.
.
4. Insertthe fireplaceintothe wallopening.
5. Drivethe mounting screwsintothe
framing platesonthe unitsand thewall
studs.
Note:
Note:When using unit in outdoor applications, consult with local building codes and regulations
prior to installation. All outdoor installations require a PAN-COV stainless cover for
warranty to be valid. Please see page 12 for Panorama Cover Installation instructions.
For 60",72" and 88" models it is recommended that two people are used to remove
the surround.

11
HARD-WIREINSTALLATION
Turnoff the appliancecompletelyand let coolbeforeservicing. Onlyaqualified service
person shouldserviceandrepairthiselectricappliance.
If itisnecessarytohardwirethisappliance, aqualified electrician must removethe cord
connection,and wirethe appliancedirectlytothe householdwiring.
Thisappliancemustbe electricallyconnected and groundedinaccordancewithlocalcodes,
ifhardwired.Inthe absenceoflocalcodes,usethecurrentCSA C22.1CANADIAN
ELECTRICALCODEinCanada orthe currentANSI/NFPA 70 NATIONALELECTRICAL
CODEinthe United States.

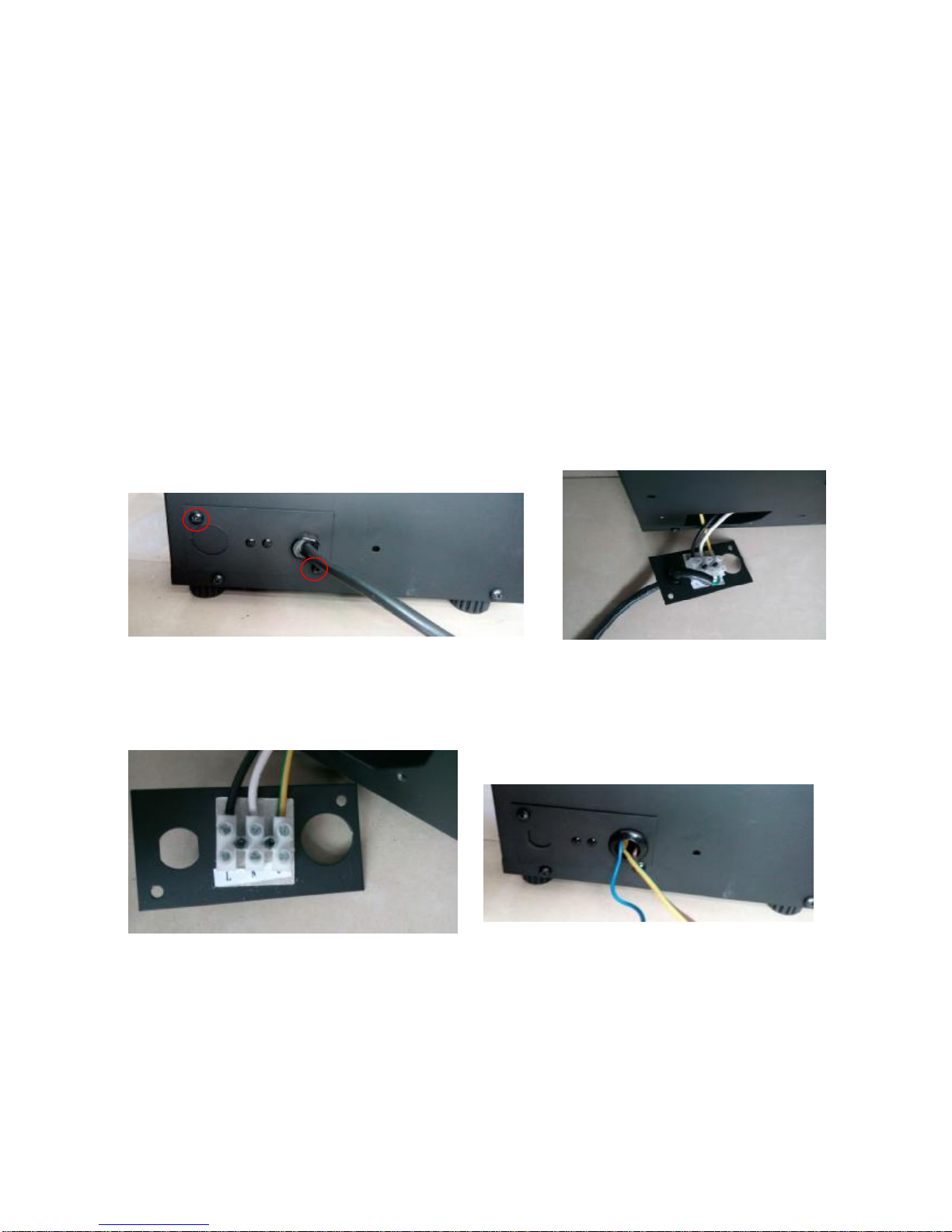

1.Removethe coverplatefromthe leftside oftheappliancebyremovingthetwoscrews,as
shownbelow. Unscrewand removepowercord.
2.Attachthe wiring tothejunction block.Pleasemakesurethe livewireintothe “L”,the
neutralwireinto “N”andthe groundwireinto “G”.
3.Put the plateback andscrewback.

12

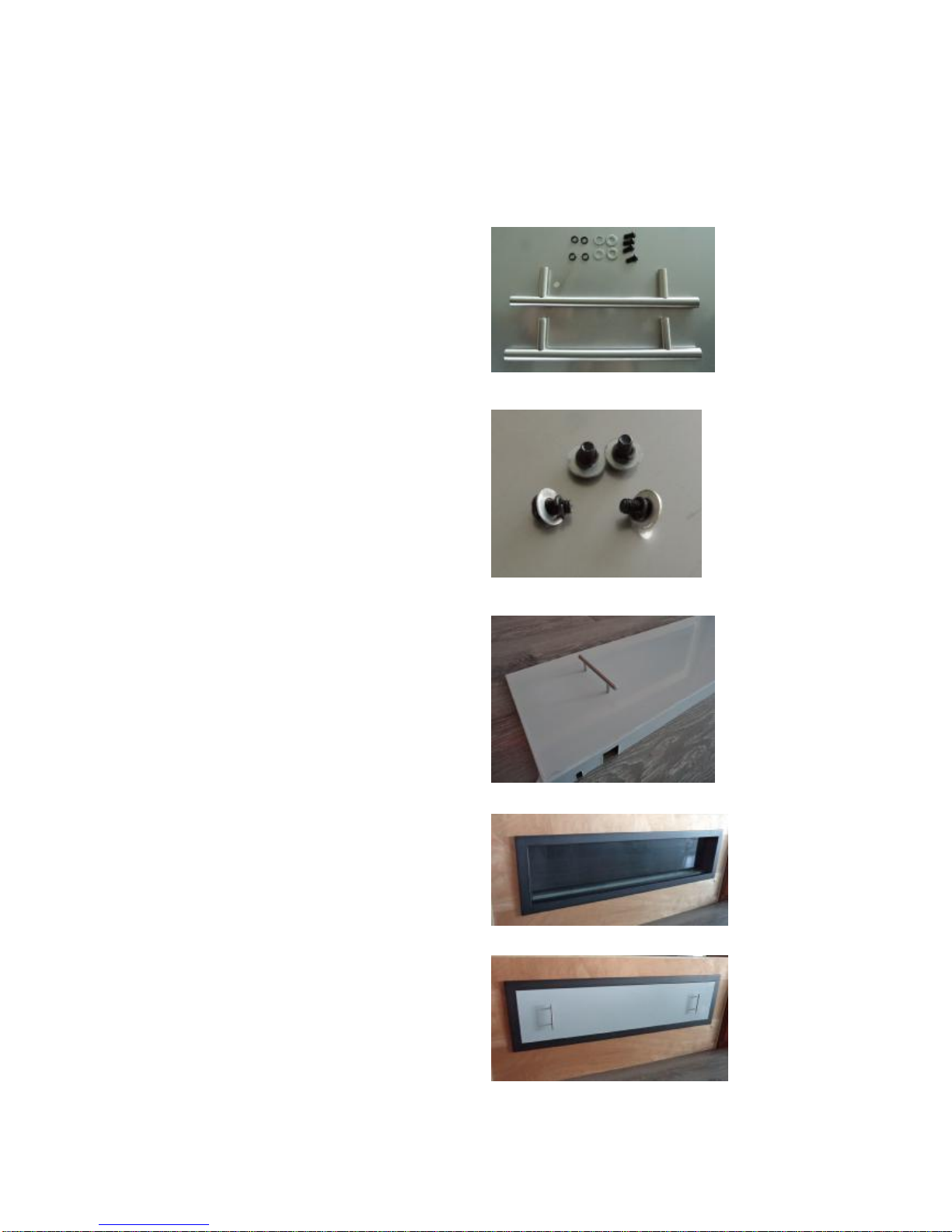

PANORAMACOVER INSTALLATION
Makesureinstallthepan-coverwhen thefireplaceused inoutdoors.
Removethe coverfromthe packaging.
The handleswillneedtobe attachedtothe
coverwiththeprovided hardwareasshown
infig. 1
First, placeaplatewasherandthenaspring
washeron the screwasshowninfig. 2
Affixthe handlestothefrontof thecover
usingthe prepared screws. Fig. 3
Insert theassembled coverontothe unit as
showninFigs.4and5
Fig1
Fig2
Fig3
Fig4
Fig5
There is some slots at the top of the cover.
It can avoid the main switch interference.

13
MediaOptions
The BI-40-DEEP,BI-50-DEEP,BI-60-DEEP
isshippedwith3large glass nuggets,clear
and bluediamond shapedmediaand11
piecelog set.
The BI-72-DEEP,BI-88-DEEPisshipped
with6large glass nuggets,clearandblue
diamond shaped
media and 11 piece log set.
FireGlass Media-LogInstallation
1.Takeoffthe frontclearglass.Thereisa
bracketwhichholdthe frontglass.It is
showasbelow.Unscrewthe screwand
takeoffthebracket. Turnaround and
inserttothe gap.Itcan hooktheglass
and pulloutthe glass.
2.Installingthe fireglassmedia.Pourthe
fireglass mediaintothe trayasshown
below.Feelfreetouseanycombination
offireglass mediathatyou findmost
appealing
3.Putback the frontglass and screwback
the bracket.
11 piece log set

14
OPERATION

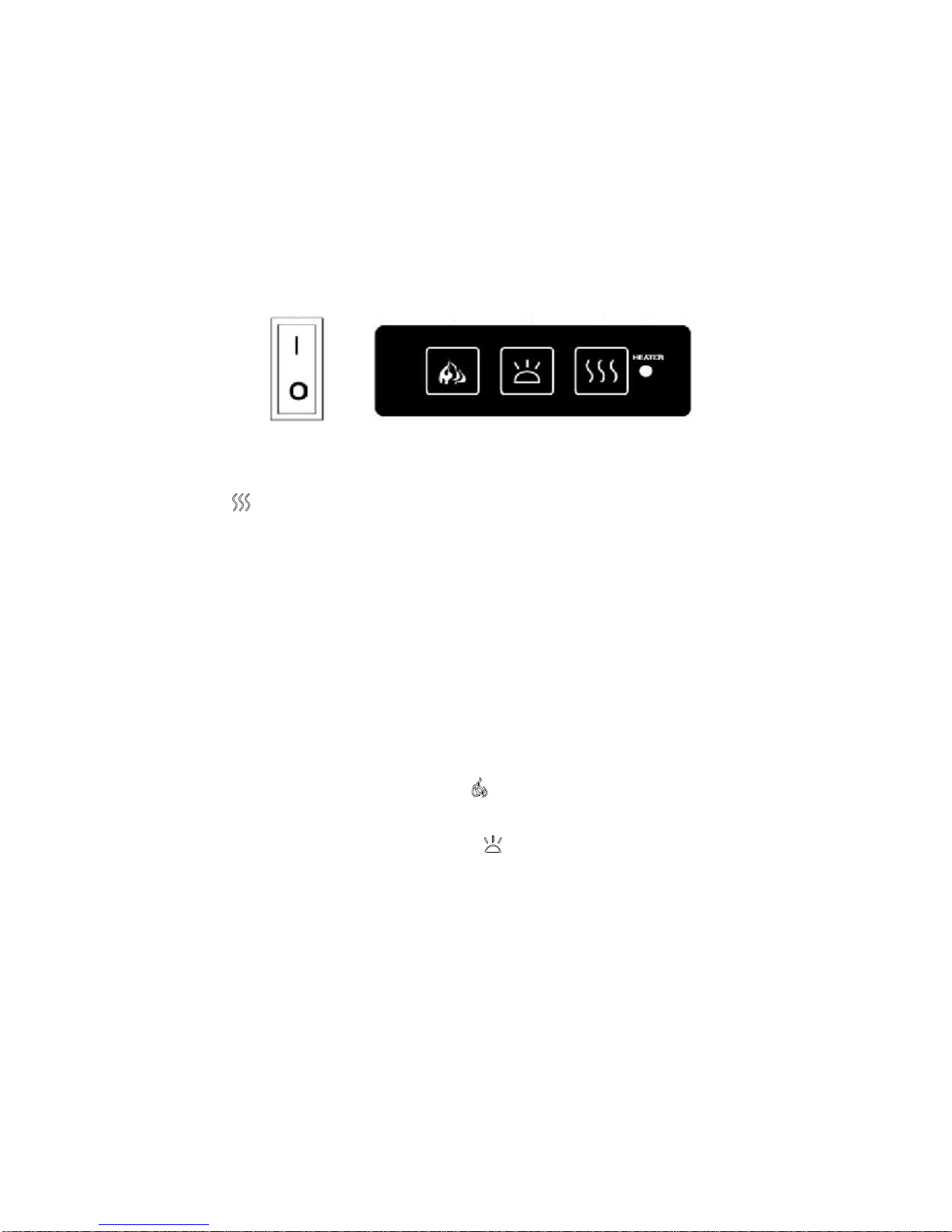

The fireplacecan be operated eitherbythe switcheslocatedontheleftbottomofthe fireplace
unitorbysupplied remotecontrol.
Plug thefireplaceintoa15 Ampwall socket.
MANUALOPERATION
1. The mainpowerON/OFFswitchinposition O,the fireplaceisOFF.
2.WhenmainpowerON/OFF switchisat positionI, the fireplaceisreadytouse.
3.Press the button repeatedlytosetthe heatertodesired heatsetting.The heater
indicatorLEDwillglowwhichshowsthe current heatersettings.
a)RED1500WHEATOUTPUT
b)BLUE750WHEATOUTPUT
c)PURPLEAUTO MODE
AUTOMODE
Underthismode the heaterwillautomaticallyturnONat high heat setting 1500Wheat output
when the roomtemperaturedropsbelow22.When the roomtemperatureisbetween℃
22-25the heateroutputwillswitchtolowheatsetting℃750W.Whenthe roomtemperature
goesabove25the heaterwillbe turned off and the cyclewillcontinue.The LEDindicator℃
willbe PURPLEincolourunderthismode.
4.Flameeffect: Press the button marked toadjustthe flamebrightness.The flame
brightness willcyclethrough –Low-Medium-High -OFF.
5.Mood lighteffect: Press the button marked tochange the mood light colour.
NOTE: If operated atthe Lowheatsetting,thefireplacewillnotprovide asmuchheatoutput
asinthe Highheatsetting,howeverthelowsetting willnotrequireasmuchelectricalpower
tooperate.Toavoidoverloadingacircuit,do notplugthe fireplaceintoacircuitthatalready
hasotherappliancesworking.When the fireplaceisnotinuseswitchoffand unplug.
SAFETYCUT-OFF
lThisapplianceisfitted withasafetycut-offwhichwill operateifthe fireplaceoverheats
(eg.Due toblocked airvents).Forsafetyreasons,the fireplacewillNOTautomatically
reset.
lToresettheappliance,disconnectthe appliancefromthe mainssupplyforatleast10
minutes. Reconnect the supplytothemainsand switchon the appliance.

15
REMOTECONTROLOPERATION
Forremotetofunctionmakesuretheheaterispluggedinandmainspowerswitchlocatedon
the bottomleft hand side isat positionI.
When operating theremotemakesureyou point the remotetothe centreof the fireplaceand
makesureeachtimeyou press the button.Thebuzzerinside theunit willbeep once. It takes
sometimeforthe receivertorespond tothe transmitter.Donot PRESS the buttonsmorethan
oncewithintwosecondsforcorrectoperation.
Poweron button:Thepower-on button attop leftcorneroftheremoteisthe mains
ON/OFF powerbutton.Thiswillturnoffallthefunctionsandthe fireplacewillbe instandby
mode.
DISPLAYON/OFF button:Switching thefireplaceflameand traylightON/OFF.It has
functionsof setting memory.
DISPLAYBLUEbutton:Adjust the blue colorbrightness of flameand tray.
DISPLAYYELLOWbutton:Adjust the yellowcolorbrightness of flameand tray.
DISPLAYORANGEbutton:Adjust the orangecolorbrightnessof flameand tray.
MOODLIGHTON/OFFbutton: Switching themood lightON/OFF.
ADJUSTbutton: Switching thecolorof the mood light.
FLASHbutton: Switching the flashwayof themood light.
HEATERON/OFFbutton: Switching the heaterON/OFF.It hasfunctionsof settingmemory.
HIGHTbutton: Press the high button toswitchthe heatertohigh heat setting 1500W.
LOWbutton: Press the lowbutton toswitchthe heatertolowheat setting 750W.
TEMP. button: Press theTEMP. button toswitchthe heatertoAUTO mode. Underthismode
the heaterwilloperateinsimilarwayasexplained aboveforthe manualoperation.

16
INSTALLING WALLTHERMOSTAT

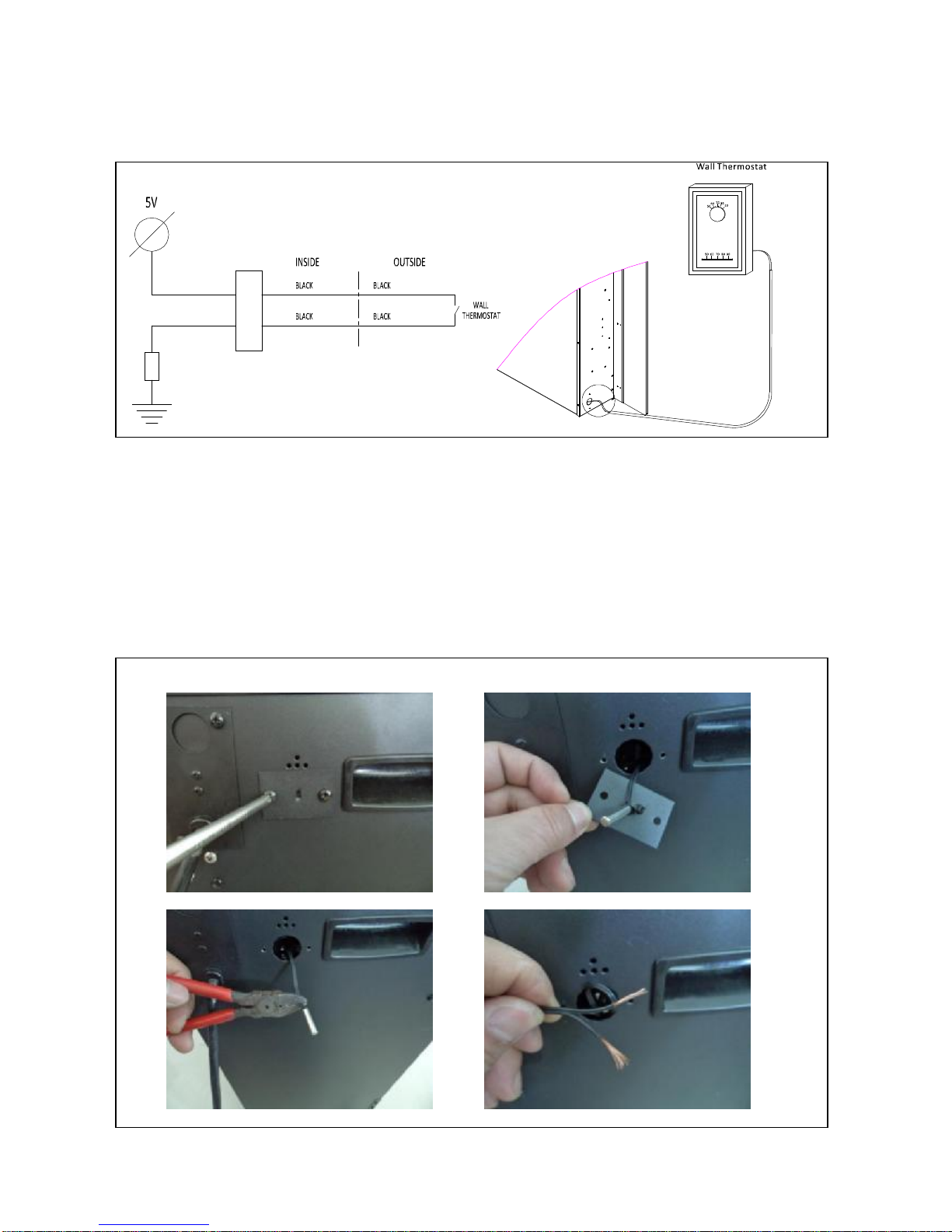

WALLTHERMOSTATWIRING DIAGRAMS
Wirethewall thermostatpriortoinstallingthefireplace.
WALLTHERMOSTATWIRING(24 VAC)
Install Wall Thermostatperinstructionsprovidedwithkitand perthefollowing
information:
1.Turnoff circuit breaker.
2.Removecoverplatelocated on theleft side ofappliance.
3. Pullthewireoutandcutthe inside thermostat. Connectthewirestothe wall thermostat
asshownbelow. Followinstructionsprovidedwithwall switchkit.

17
REPLACEMENTPARTS
Thislist containsreplacement parts
NO
. BI-40-DEE
P
BI-50-DEE
P
BI-60-DEE
P
BI-72-DEE
P
BI-88-DEE
P
DESCRIPTIO
N QTY .
1 602030C 602030C 602030C 602030C 602030C BLOWERAND
HEATER
ASSEMBLY
1
2 FIREPLACEBOX
3 10104010 10104010 10104010 10104010 10104010 SWITCH 1
4 601032B 601032B 601032B 601032B 601032B CONTROLPANEL 1
5 601092C 601092C 601092C 601092C 601092C CIRCUITBOARD 1
6 10101225 10101225 10101225 10101225 10101225 FLAMEMOTOR 2
7 3109503 3057503 3110503 3058503 3111503 FLICKER
ASSEMBLY
2
8 601136B 601136B 601136B 601137B 601137B LEDSTRIP
9 10203015 10203015 10203015 10203015 10203015 ADJUSTABLE
FOOT
4
10 FLAMEEFFECT
GLASS(CLEAR GLASS
WITH BLACKPLASTIC)
1
11 3057012 3057012 3057012 3057012 3057012 GLASS
BRACKETLH
1
12 3057013 3057013 3057013 3057013 3057013 GLASS
BRACKETRH
1
13 10702155 10702152 10702156 10702153 10702157 BOTTOMGLASS 1
14 3109017 357017 3110017 358017 3111017 MEDIAHOLD
BRACKET
2
15 3057016 3057016 3057016 3057016 3057016 FRONTGLASS
BRACKET.
2
16 ADJUSTABLESCREW 2
17 10701187 10701165 10701189 10701166 10701191 FRONTGLASS 1
18 3109501 3057501 3110501 3058501 3111501 Blacksteelsurround 1
19 10105063 10105063 10105063 10105063 10105063 REMOTE 1

18
EXPLODEDVIEW

19
TROUBLESHOOTING
PROBLEMPOSSIBLECAUSE SOLUTION
Dimorno flame FlameLEDsareburnt out InspecttheLEDsand replace
themif necessary.
Emberbedisnot
glowingordimming EmberLEDsareburntout Inspectthe emberbed LED sand replacethemif necessary.
Appliancehasoverheated
and safetydevicehascaused
the thermalswitchto
disconnect
Turnoffthe mainswitch,allow
appliancetocoolfor10 minutes,
then turnit on.
Housecircuitbreakerhas
tripped Reset housecircuit breaker.
Applianceturnsoff
and willnot turnon
Appliancesfusehasblown Replacethe fuse.
Applianceisnotplugged into
an electricaloutlet Check plug andplug in.
Appliancehasoverheated
and safetydevicehascaused
the thermalswitchto
disconnect
Turnoffthe mainswitch,allow
appliancetocoolfor10 minutes,
then turnit on.
Appliancewillnot
comeon when switch
isflippedtoON
Circuitboardisburnt out Inspectthe circuitboardand
replaceitifnecessary.
Nowarmaircoming
out of appliance Heaterisburnt out Inspectthe burnerand heater assemblyand replaceitif
necessary.
Flamesputters
Flamemotorisdefective. Callaqualified servicetechnician and replaceflamemotor.
RemoteControldoes
not work. Lowbatteries. Unit switchin “O”position. ReplaceAAAbatteriesinremote control.
Turntheswitchin “I”position.
Flameisfixed. Wiringmaybe looseorthe
flamemotormaybe defective.

20
SERVICEHISTORY
Thisheatermust be serviced annuallydepending on usage.
DateDealer
Name Service technician Name Service Performed Special Concerns
NOTES:
