Amantii WM-BI-26-3623 User manual

INSTALLATIONANDOPERATIONINSTRUCTIONSFOR
WALL-MOUNTAND BUILT-INUNITS
WM-BI-26-3623
WM-BI-34-4423
WM-BI-48-5823
WM-BI-72-8123
SAFETYINFORMATION
WARNING
Iftheinformationinthese
instructionsarenotfollowedexactly,
afireorexplosionmayresultcausing
propertydamage, personal injuryor
loss oflife.
Do not storeorusegasoline orotherflammable
vaporsand liquidsinthe vicinityofthisoranyother
appliance.
INSTALLER:LEAVE THISMANUALWITHTHEAPPLIANCE.
CONSUMER:RETAINTHISMANUALFORFUTUREREFERENCE.
ELECTRIC FIREPLACE

2
TABLE OFCONTENTS
Pleaseread and carefullyfollowallof the instructionfoundinthismanual. Pleasepayspecial
attention tothesafetyinstructionsprovided inthismanual. The instructionsincluded herewill
assurethatyou havemanyyearsofdependableand enjoyableservicefromyourStanley
product.
IMPORTANTINSTRUCTIONS....................................................................................................................................3
UNPACKING AND TESTING APPLIANCE...............................................................................................................6
LOCATING THEFIREPLACE.....................................................................................................................................6
WM-BI-34-4423.............................................................................................................................................................8
WM-BI-48-5823.............................................................................................................................................................9
WM-BI-72-8123...........................................................................................................................................................10
INSTALLATION-WALLMOUNT..............................................................................................................................11
INSTALLATION-BUILT-IN.......................................................................................................................................12
OPERATION................................................................................................................................................................13
MANUALOPERATION..............................................................................................................................................13
REMOTECONTROLOPERATION...........................................................................................................................14
CARE AND MAINTENANCE.....................................................................................................................................17
REPLACEMENTPARTS............................................................................................................................................18
EXPLODEDVIEW......................................................................................................................................................19
TRUBLESHOOTING.................................................................................................................................................20
SERVICEHISTORY....................................................................................................................................................21
WARRANTY...............................................................................................................................................................22
WM-BI-26-3623.............................................................................................................................................................7
CAUTIONS.....................................................................................................................................................................5

IMPORTANTINSTRUCTIONS
3
Please read the following instructions carefully before using the appliance.
Caution - Fire, electric shock, physical injury and material damage hazards:
To use the appliance, always follow the instructions for assembly, use and maintenance as well as
usage cautions:
1. Carefully read and retain these instructions.
2. Before connecting the appliance, be sure that the mains voltage available matches that specified
on the rating plate.
3. Do not use the appliance for other than its intended use. For domestic indoor use only.
4. There may be trace of odour during the first few minutes of initial use. This is normal and will
quickly disappear.
5. The heater is hot when in use. To avoid burns, do not let bare skin touch any hot surface.
6. Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains etc. at
least 1m away from the heater.
7. Do not use the heater in areas where flammable liquids are stored or where flammable fumes
may be present.
8. Do not cover or obstruct any of the heat outlet grilles or the air intake openings of the heater.
9. Do not use the heater in the rooms with explosive gas or while using inflammable solvents,
varnish or glue.
10. Keep the heater clean. Do not allow any objects to enter any ventilation or exhaust opening as
this may cause electric shock, or fire or damage to the heater.
11. Always unplug or disconnect the appliance from the mains power supply when not in use or
when moving or cleaning it. Do not pull the cord to unplug the heater.
12. Do not immerse the cord, plug or any part of the appliance in water or any other liquid.
13. Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable
parts inside.
14. The heater must not be located immediately below a socket-outlet.
15. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
16. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this
appliance must not be supplied through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by the utility.
17. Do not use this heater with a programmer, timer, separate remote-control system or any other
device that switches the heater on automatically, since a fire risk exists if the heater is covered or
positioned incorrectly.
18. WARNING: In order to avoid overheating, do not cover the heater.
19. WARNING! – DO NOT COVER THIS APPLIANCE WITH ITEMS SUCH AS CLOTHING, BLANKETS OR
PLACE NEXT TO CURTAINS OR NET/BLINDS.
20. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
21. Do not use this heater in small rooms when they are occupied by persons not capable of leaving

4
the room on their own, unless constant supervision is provided.
22. If the glass is damaged, do not use the heater in order to avoid a hazard.
23. Children of less than 3 years should be kept away from unless continuously supervised.
24. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided
that it has been placed or installed in its intended normal operating position and they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved, Children aged from 3 years and less than 8 years shall not plug in, regulate and
clean the appliance or perform user maintenance.
25. CAUTION Some parts of this product can become very hot and cause burns. Particular attention
has to be given where children and vulnerable people are present.
26. This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
27. The heater may emit a slight, harmless odour and smoke when first used. This odour and smoke
is normal and it is caused by the initial heating of internal heater parts and will not occur again.
28. DO NOT plug into an extension lead/cable or plug adaptor.
29. DO NOT cut off the plug and hardwire directly into the mains or via a fused fixed spur.
30. For details about installing the fireplace, please refer to “Installation” section.

Cautions
Do’s
·Always install the heater in accordance with this guide. If in
doubt obtain expert advice.
·Always make sure the electrical socket is accessible and located
adjacent to, but not above the heater.
·Always disconnect the heater from the electrical supply before
moving it, or carrying out cleaning, maintenance.
·Always make sure the heater is firmly secured to prevent it from
being tipped over.
·Always use a fireguard when young children and infirm persons
can come into contact with the heater.
Don’ts
·Never leave children unsupervised in a room where the heater is
ON and unguarded.
·Never obstruct or cover the fan outlet or force items into heater
openings.
·Never install or use the heater anywhere where water is in use,
i.e. Bathrooms, Kitchens, Shower Rooms, and Swimming Pool etc.
·Never use aerosols or steam cleaners on or around the heater.
·Never route the mains supply cable under carpet etc.
·Never install the heater close to curtains or combustible
materials.
·Never use the heater to dry clothes etc.
·Never sit or stand on the heater.
·Never use with a timer or any other device that switches the fire
on automatically.
5

6
UNPACKINGAND TESTINGAPPLIANCE
Carefullyremovethe appliancefromthe box.Priortoinstalling theappliance,testtomake
surethe applianceoperatesproperlybyplugging the powersupplycordintoaconveniently
located 240Voltgrounded outlet.
LOCATINGTHEFIREPLACE
Plan wheretolocateand framethe fireplace.Thiswillsavetimeand moneylaterwhen you
installthefireplace. Beforeinstallation considerthe following:
1.Wherethe fireplaceislocatedmustallowforwall and ceiling clearances(see
INSTALLATION-WALLMOUNT)
2.Consideralocation wherethefireplacescreenwill notbeexposed todirectsunlightfrom
windowsordoors.
3. A15 ampere,240 Volt, 50 Hzbranchcircuitwithproperground mustbe availableatthe
location.Preferablyadedicated branchcircuitshouldbe provided toavoidcircuit
breakerstotripof fusestoblow.
Screw
There are two screws on each side to fix the front glass.
Please see the figure right side.
TAKE OUT THIS SCREW ON EACH SIDE
before you take off the front glass.

WM-BI-26-3623
Description Built-inorWall Mount Appliance
Voltage 240V AC50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 25 1/2”or64.9 cm
ApplianceHeight 21 1/8”or53.6 cm
ApplianceDepth 6 1/8”or15.5 cm
Gross Weight 55.68 lbs or 25.31kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWallOpening
Size 27”22or 68.60 cm 55.9 cm
BTU 6500
”
7

5
WM-BI-34-4423
Description Built-inorWall Mount Appliance
Voltage 240V AC50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 33 1/2”or85.2cm
ApplianceHeight 21 1/8”or53.6 cm
ApplianceDepth 6 1/8”or15.5 cm
Gross Weight 65.78 lbs or 29.90kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWallOpening
Size 35”22or 88.90 cm 55.9 cm
BTU 6500
”
8

9
WM-BI-48-5823
Description Built-inorWall Mount Appliance
Voltage 240V AC50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 47 1/2”or120.7 cm
ApplianceHeight 21 1/8”or53.6 cm
ApplianceDepth 6 1/8”or15.5 cm
Gross Weight 82.17 lbs or 37.35kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWallOpening
Size 49”22or 124.50 cm 55.9 cm
BTU 6500
”

10
WM-BI-72-8123
Description Built-inorWall Mount Appliance
Voltage 240V AC50-60Hz
Watts 1900WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 71”or180.4 cm
ApplianceHeight 21 1/8”or53.6 cm
ApplianceDepth 6 1/8”or15.5 cm
Gross Weight 133.12 lbs or 52.41kgs
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWallOpening
Size 72 1/2”22or 184.15 cm 55.9 cm
BTU 6500
”

11
INSTALLATION-WALLMOUNT
1. Selectalocation thatisnotprone to
moistureandislocated atleast0.91 m
or3feetawayfromcombustible
materialssuchascurtainsordrapes,
furniture, bedding ,paper, etc.
2.Referring toFig.1belowselecta
suitablepositioninwhichtomountthe
heaterhorizontally –useaspiritlevelto
achievethis.
3.Check the wall toensurethereisno
wiring,pipe wiresetcintheareatobe
drilled.Drill8ormoreholes(8mm
diameter&40mm depth)using a
suitablesizedrillandputthewallplugs
intothe holes.
4.Takeoutthe hangerfromthe fireplace
byunscrewthe screw.Referring to
Fig.2.
5. Referring toFig. 3，fixthe hangertothe
wall.
6. ReferringtoFig.4，avoidfireplaceto
move, usescrewfixfireplacetowall.
Warning!Alwaysensurethefireplace
isatleast350mm abovethefloor!
Besurethattheboltshavebeenfixed
firmlyenoughtowithstandthe
weight
Fig. 1
Fig. 2
Fig.3
Fig. 4

12
INSTALLATION-BUILT-IN
1.Selectalocation thatisnotprone to
moistureand islocated atleast0.91mor
3feetawayfromcombustiblematerials
suchascurtainsordrapes,furniture,
bedding, paper, etc.
2.Markthe desired location on the floor
and storeapplianceinasafe,dryand
dust freelocation.
3.Prepareawallwithaframed opening to
accommodatethe sizeofyourunit.
Leaveatleast1/4”(6mm)around the
edge ofthe appliance.Anynewwiring
mustbe done incompliancewithlocal
and nationalcodesand otherapplicable
regulations.
Note:Fireplacemuststick outofthewalla
minimumof 21/4”or5.8cm.
Priortoinstallingtheappliance,testto
make suretheappliance operates
properlybypluggingthepowersupply
cordintoaconvenientlylocated120 Volt
groundedoutlet.
The rough wallopening sizeof thefireplace.
W(“) D(“) H(“)
WM-BI-26-3623 27 5 22
WM-BI-34-4423 35 5 22
WM-BI-48-5823 49 5 22
WM-BI-72-8123 72 1/2 5 22
1. Takethefrontglass off fromtheunit.Putthe
bracketson thebothsidesandtopofthefireplace
asshownblew.
2.Lift fireplaceand insertintoopening.
3.Makesurethatthe powersupplyportis
not behindthe wall.
4.Levelthe fireplace.
5.Drivemounting screwsintothe
mounting bracketson theunitand the
wall studs.

13
OPERATION
The fireplacecan be operated eitherbythe switcheslocatedontheleftbottomofthe fireplace
unitorbysupplied remotecontrol.
Plug thefireplaceintoa15 Ampwall socket.
MANUALOPERATION
1、 Press key . Press for the first time，heater work at 1900W, indicator ights red.
Press for the second time, heater work at 950W，indicator ights b ue. Press for the
third time, the heating e ement turns off, indicator extinguishes.
Note: after the heating e ements are turned on manua y, the heating e ements work but
are not contro ed by the temperature sensor.
2、Press key . Press for the first time and the charcoa and f ame is in the highest
brightness. Press for the second time ,the charcoa and f ame is in medium brightness.
Press for the third time ,the charcoa and f ame is in ow brightness. Press for the fourth time ,
the charcoa and f ame goes out. Then it circu ates in turn.

14
REMOTECONTROLOPERATION
1 、 Press the remote contro ’s key“ ”, its screen turns on, the f ame ignites and the f ame icon appears on
the LCD screen of the remote contro . Week, time (24h system), and temperature setting are disp ayed
norma y. Press it again, the screen of the remote contro wi turn off;
2
、 Key“ ”, f ame and charcoa contro switch. In case of ON, press once, the f ame and the charcoa bed
go out, the LCD screen does not disp ay . Press it again and the f ame and the charcoa bed turn on,
the LCD screen disp ays . The buzzer beeps once when the key is pressed;
3
、 Press“ ”to adjust the red f ame. The buzzer beeps once when the key is pressed;
4 、 Press“ ” to adjust the ye ow f ame. The buzzer beeps once when the key is pressed;
5
、 Press“ ” to adjust the b ue f ame. The buzzer beeps once when the key is pressed;
6 、 Press“ ”to adjust the brightness of the charcoa bed; The buzzer beeps once when the key is
pressed;

7、Press the heating key“ .” Press for the first time ,the heating e ements work at 1900W,
the LCD screen disp ays , the indicator on the machine ights red. Press a second
time , the heating e ements work at 950W, the LCD screen disp ays , the indicator
on the machine ights b ue. Press a third time and the heating e ements turn off, the LCD
screen does not disp ay the function icon, the indicator on the machine goes off. The
buzzer beeps once when the key is pressed;
Note: in case the heating e ements are turned on by remote contro , whether the heating
e ements work or not depends on the temperature setting and ambient temperature. They
work on y when the temperature setting is above the ambient temperature.
8、Press key“ ”“ ” to adjust the temperature setting between 7 and 30 ℃ . The
buzzer beeps when the key is pressed;
9、Press shift key“ ”. Press once, the corresponding figure f ashes. Press “ ” “
”
now to set current time and week. The buzzer does not beep when the key is pressed;
10、Press timing parameter setting key“ .” Press for the first time and the LCD screen
disp ays to indicate Monday. Now the temperature setting f ashes, press “ ” to
set the timing temperature for Monday, press key “ ” to confirm and then press “ ”
the time setting for timing.. The disp ayed time parameter is “00-23.” Press “ ”
to set the current operating state of timing function; indicates that the timing is on
current y and the contro temperature is the temperature setting, indicates that the
timing is on current y and the contro temperature is the temperature setting minus 3 ℃, No
disp ay indicates timing is off current and the heating e ements do not work. Corresponding
point f ashes when setting. Press for the second time, it disp ays , set the parameters
15

for Tuesday. Press for the 7th time and it disp ays . Press for the 8th time and it exits
and recovers to the current week day;
11、Press“ .” Press for the first time and the timing function turns on, the LCD screen
disp ays
, the machine’s indicator ights green. Press again to turn off, icon
on the LCD screen goes off. After the timing function is turned on, it works according
the parameter settings. The LCD screen
ights up according to corresponding parameter settings;
Note: when the time, week and timing parameters are changed, you need to switch on-off
the timing key to transfer the timing parameters to the machine. After the machine has
received them correct y, the buzzer wi beep once.
12、 Press“ ”. Press once to turn on the Open Window function, the LCD screen disp ays
icon , the indicator on the machine ights ye ow. Press again to turn it off, the LCD
screen does not disp ay icon
and the indicator on the machine goes off. The
buzzer beeps when the key is pressed;
After the Open Window function is turned on, the program first y detects if the heating
function is turned on. If it is turned on, the program wi save the current ambient temperature
va ue and detects the ambient temperature change once per 12 minutes. When the
decrease in the ambient temperature detected within 30 minutes exceeds 4 ℃ ,the
program wi deem that the window is open and stop heating, and the Open Window
indicator on the machine wi f ash rapid y. After it has stopped heating for 70 minutes,
the program starts to detect if the window is c osed, and the indicator f ashes s ow y. It
heats for 6 minutes every 30 minutes (position H2). If the temperature rise is more than 2 ℃ ,
the window is considered as c osed, and the indicator stops f ashing.
16

CARE AND MAINTENANCE
17
CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the
surface finish of the plastic components.
CONFORMITY WITH DIRECTIVES
Conforms to all relevant European directives
ENVIRONMENTAL PROTECTION
Recycling
This symbol is known as the 'Crossed-out Wheelie Bin Symbol'. When
this symbol is marked on a product or battery, it means that it should not
be disposed of with your general household waste. Some chemicals
contained within electrical/electronic products or batteries can be harmful
to health and the environment.
Only dispose of electrical/electronic/battery items in separate collection
schemes, which cater for the recovery and recycling of materials contained
within. Your co-operation is vital to ensure the success of these schemes
and for the protection of the environment.
1. Switch off and unplug from the power supply before cleaning.
2. Using a soft, moist cloth, with or without a mild soap solution, carefully clean the exterior surface
of the products.
CAUTION: Allow the product to completely cool before handling or cleaning it.
3. Do not allow water or other liquids to run into the interior of the product, as this could create a
fire and/or electrical hazard.
4. We also recommend the periodic cleaning of this appliance by lightly running a vacuum cleaner
nozzle over the guards to remove any dust or dirt that may have accumulated inside or on the
unit.

18
REPLACEMENTPARTS
PART NUMBERNO
WM-BI-26-3623 WM-BI-34-4423 WM-BI-48-5823 WM-BI-72-8123
DESCRIPTION QTY
.
1 FIREPLACEBOX 1
2 301506 301506 301506 301506 REMOTERECEIVER 1
3 601095F 601095F 601095F 601095F CIRCUIT BOARD 1
4 10104010 10104010 10104010 10104010 SWITCH 1
5 601035 601035 601035 601035 CONTROLPANEL 1
6 TOPPANEL 1
7 602083D 602083D 602083D 602083D BLOWERAND HEATER
ASSEMBLY
1
8 3093017C 3094006C 3095006C 3096006C 1
9 3093003 3093003 3093003 3093003 BLOWERMOUNT 1
10 GLASS BRACKET 2
11 LEDBRACKET 1
12 10702143B 10702144B 10702145B 10702146B BOTTOMGLASS 1
13 10101221C 10101221C 10101221C 10101221C FLAMEMOTOR 1
14 3117506 3118506 3119506 396502C FLICKERASSEMBLY 1
15 BOTTOM GLASS HOLDER 1
16 10103007 10103007 10103007 10103007 POWERCORD 1
17 BOTTOMPANEL 1
18 601136B 601136B+601137B 601136B+601137B 601137B LEDSTRIP
21 10105200 REMOTE
PLASTIC BOARD
FRONT GLASS PANEL
19 10701151C 10701152C 10701153C 10701154C 1
20 LOG
10305511 10305512 10305513 10305514 1
1

19

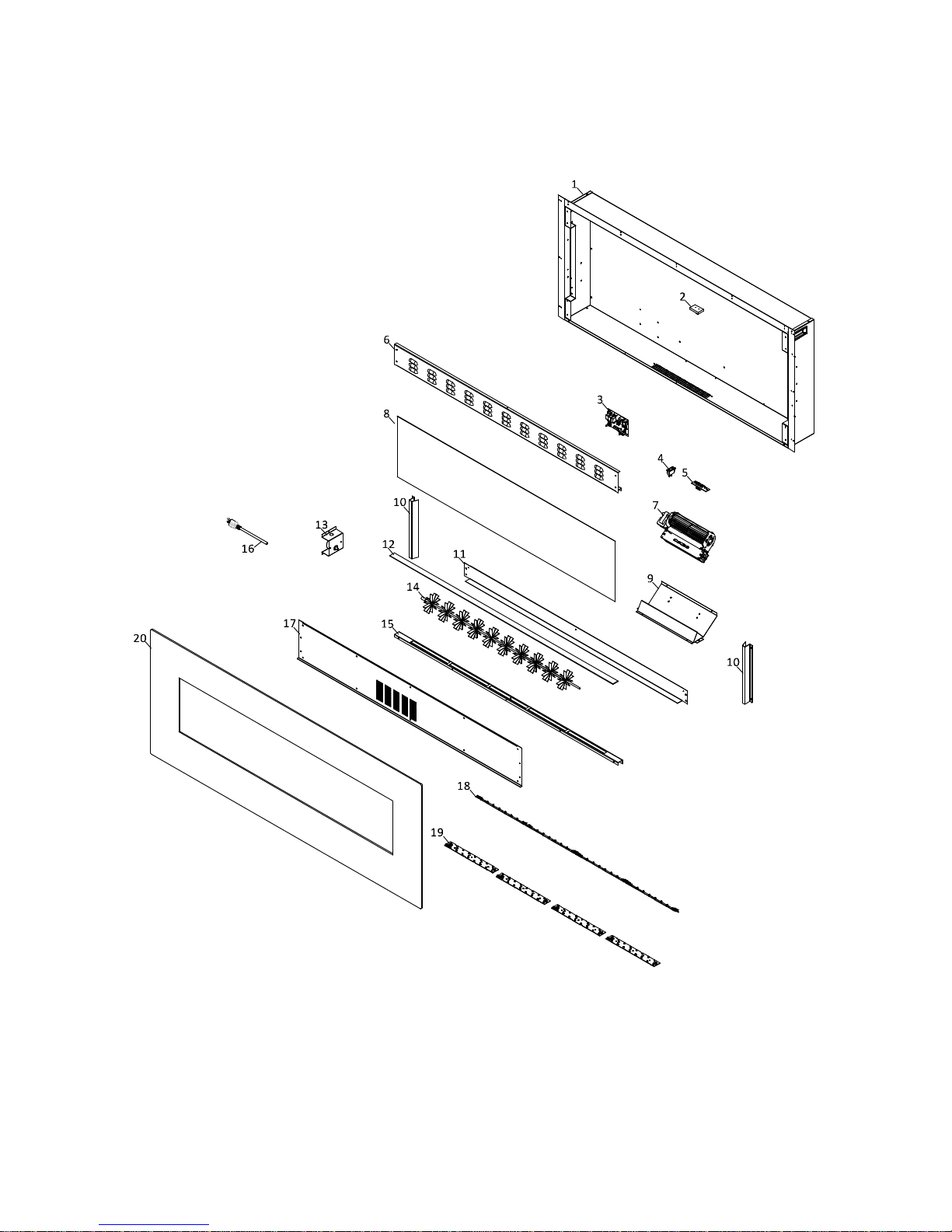

EXPLODEDVIEW

20
TRUBLESHOOTING
PROBLEMPOSIBBLECAUSE SOLUTION
Dimorno flame FlameLEDsareburnt out InspecttheLED sand replace
themif necessary.
Emberbedisnot
glowingordimming EmberLEDsareburntout Inspectthe emberbed LED sand replacethemif necessary.
Appliancehasoverheated
and safetydevicehascaused
the thermalswitchto
disconnect
Turnoffthe mainswitch,allow
appliancetocoolfor10 minutes,
then turnit on.
Housecircuitbreakerhas
tripped Reset housecircuit breaker.
Applianceturnsoff
and willnot turnon
Appliancesfusehasblown Replacethe fuse.
Applianceisnotplugged into
an electricaloutlet Check plug andplug in.
Appliancehasoverheated
and safetydevicehascaused
the thermalswitchto
disconnect
Turnoffthe mainswitch,allow
appliancetocoolfor10 minutes,
then turnit on.
Appliancewillnot
comeon when switch
isflippedtoON
Circuitboardisburnt out Inspectthe circuitboardand
replaceitifnecessary.
Nowarmaircoming
out of appliance Heaterisburnt out Inspectthe burnerand heater assemblyand replaceitif
necessary.
Flamesputters
Flamemotorisdefective. Callaqualified servicetechnician and replaceflamemotor.
RemoteControldoes
not work. Lowbatteries. Unit switchin “O”position. ReplaceAAAbatteriesinremote control.
Turntheswitchin “I”position.
Flameisfixed. Wiringmaybe looseorthe
flamemotormaybe defective.
