Amantii BS2100045-1 Owner's manual

INSTALLATION AND OPERATION INSTRUCTIONS FOR
ELECTRIC FIREPLACE
TRV-45 BESPOKE BS2100045-1
TRV-55 BESPOKE BS2100055-1
TRV-65 BESPOKE BS2100065-1
TRV-75 BESPOKE BS2100075-1
TRV-85 BESPOKE BS2100085-1
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING: This product can expose you to chemicals including
lead in the wiring, which is [are] known to the State of California
to cause birth defects of other reproductive harm. For more
information visit: www.p65warnings.ca.gov
SAFETY INFORMATION
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other.
if the information in these instructions are not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss
of life.
WARNING
www.amantii.com
REVISED - 202309
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

TABLE OF CONTENTS
Please read and carefully follow all of the instruction found in this manual. The instructions
included here will assure that you have many years of dependable and enjoyable service from
your Amantii Electric Fireplace.
IMPORTANT INSTRUCTIONS
CAUTIONS
FCC CAUTIONS
UNPACKING AND TESTING APPLIANCE
GROUNDING APPLIANCE
LOCATING THE FIREPLACE
PRODUCT SPECIFICATION
OUTDOOR INSTALLATION
HARDWIRE INSTALLATION

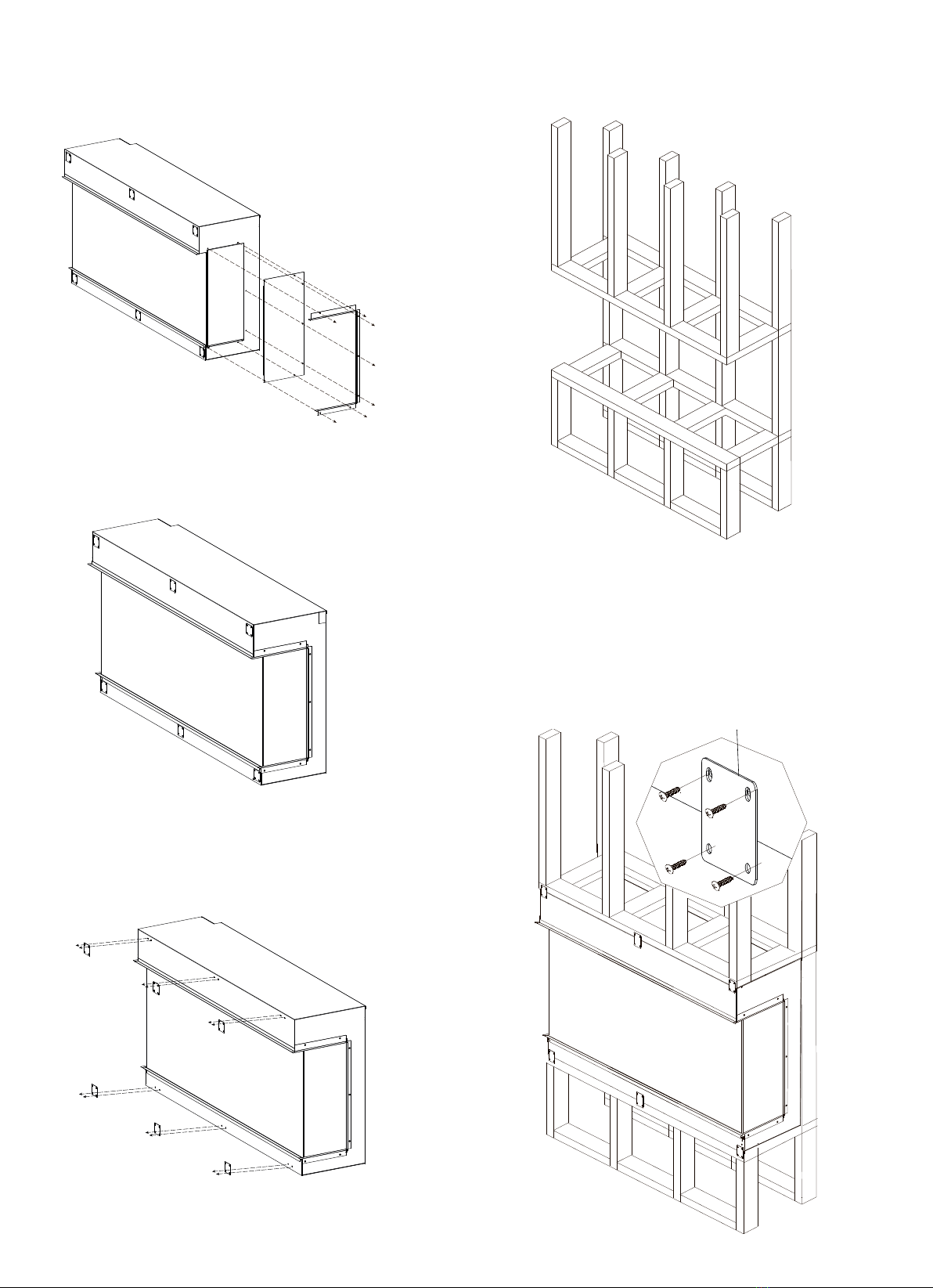

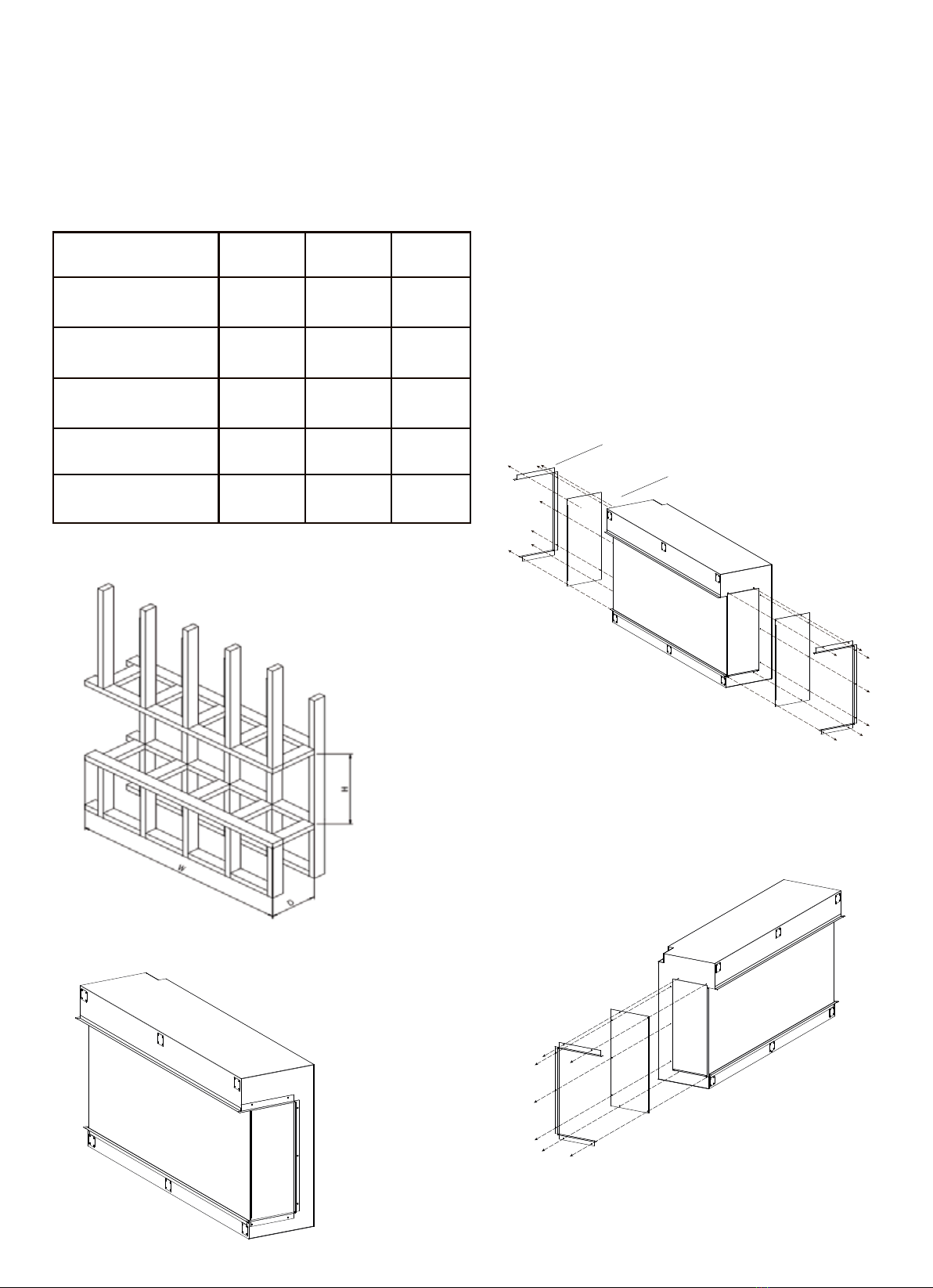

INSTALLATION

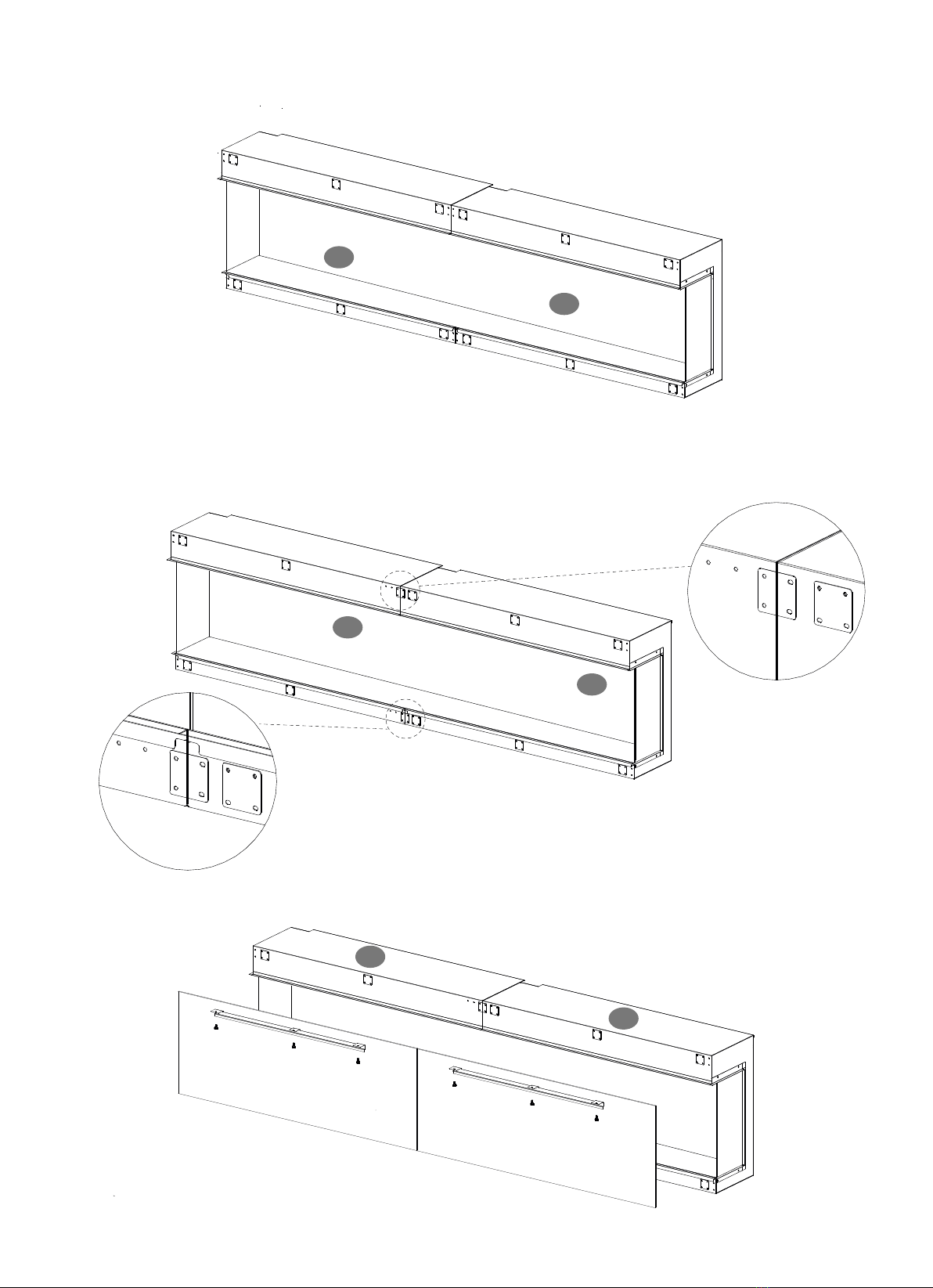

SIDE BY SIDE INSTALLATION

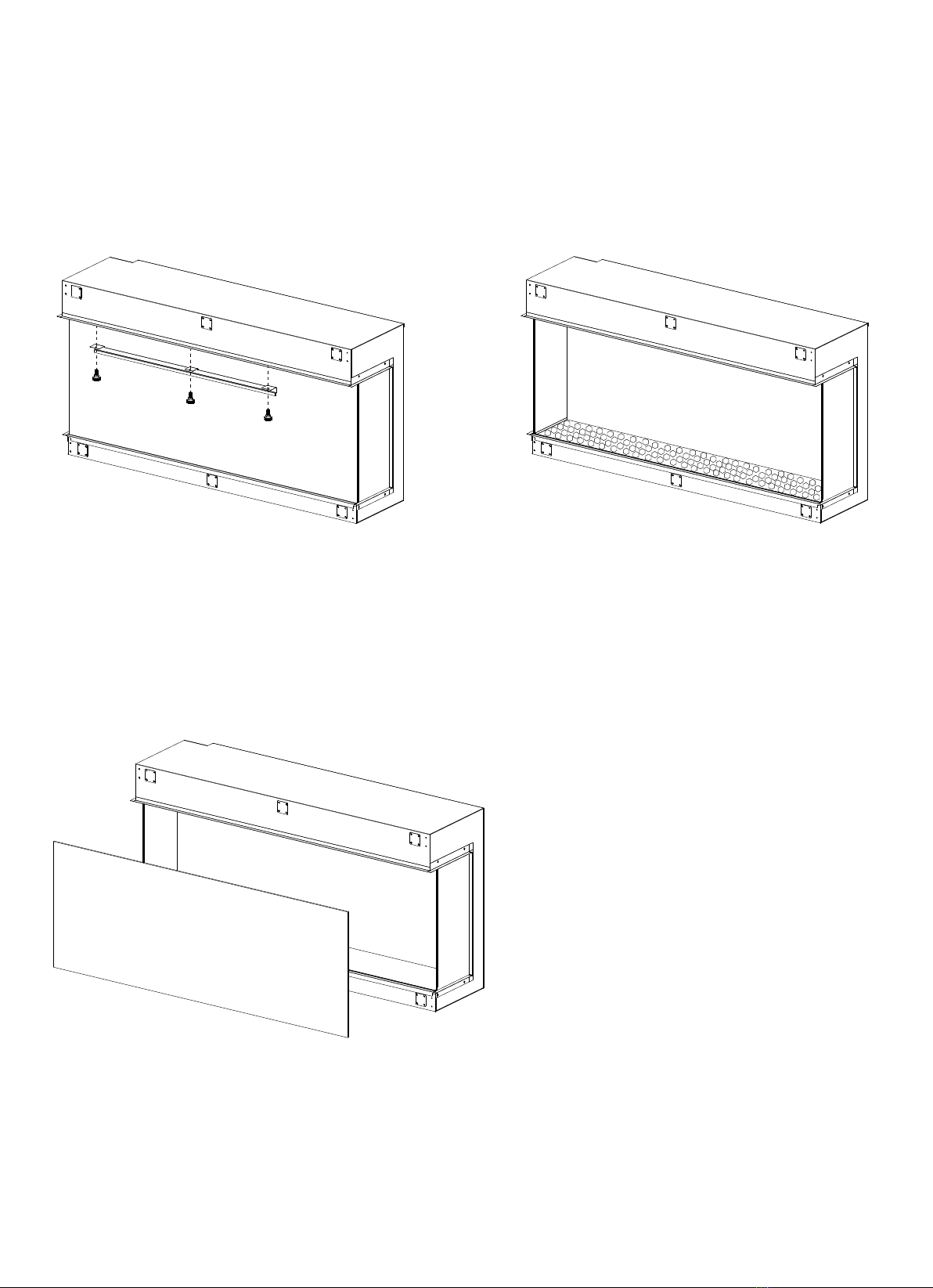

MEDIA INSTALLATION

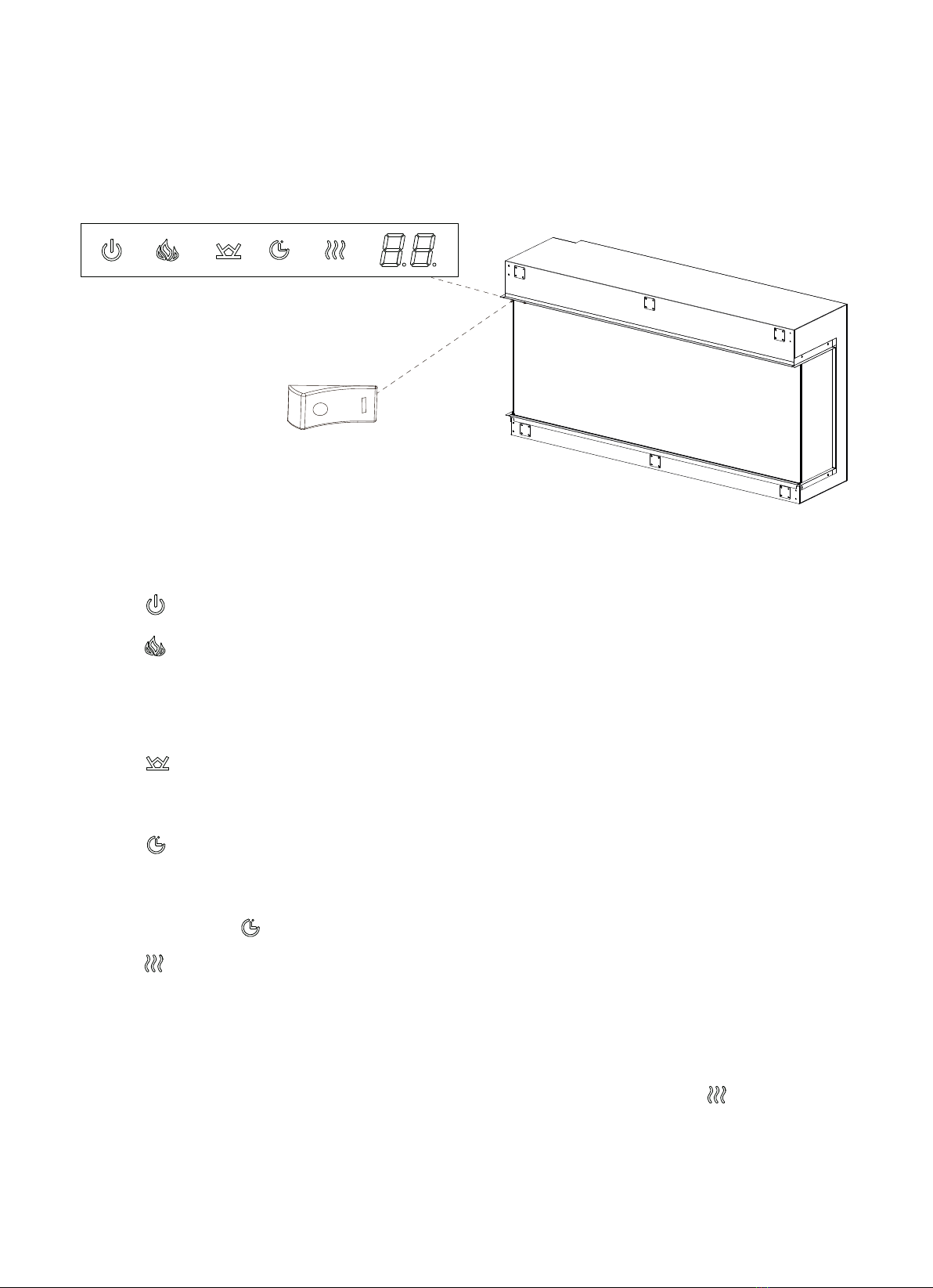

MANUAL OPERATION
REMOTE CONTROL OPERATION
TROUBLE SHOOTING
EXPLODED VIEW
WIRING DIAGRAM
ELECTRIC FIREPLACE WARRANTY
03
04
05
06
06
06
08
09
10
13
16
18
19
20
23
24
25
27
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

IMPORTANT INSTRUCTIONS
1. Read all instructions before installing or using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surface. If provided,
use handles when moving this heater. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the heater.
3. Always unplug heater when not in use.
4. Do not operate the fireplace if it has a damaged cord or plug, after it has malfunctioned, or if the
unit has been dropped or damaged in any way.
5. Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners or anything
else. Arrange the cord away from traffic areas where it could not be tripped over.
6. To disconnect the heater, turn the controls to "OFF" before removing the plug from the outlet.
7. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may
cause an electric shock, fire or damage to the heater.
8. To prevent a possible fire, do not block air intakes in any manner. Do not use on soft surfaces,
like a bed, where openings may become blocked.
9. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint
or flammable liquids are used or stored.
10. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury.
11. Avoid the use of an extension cord, the extension cord will overheat and cause a fire. This
heater is not to be used with an extension cord.
12. Always use properly grounded fused and polarized outlets.
13. Always use ground fault protection where it is required by electrical codes.
14. Always disconnect the power before performing any cleaning, maintenance or relocation of the
heater.
15. To prevent a possible fire, do not burn wood or other materials in this heater.
16. To prevent electric shock or fire, always use a certified electrician, should new circuits or outlets
be required.
17. When transporting or storing the heater, keep it in a dry place, free from excessive vibration.
18. This appliance should not be modified under any circumstances.
19. Packaging material should be kept away from children and be disposed of in a safe manner.
Plastic bags are not toys and should be kept away from children and infants.
20. Do not use this heater in small rooms when they are occupied by persons not capable of
leaving the room on their own, unless constant supervision is provided.
21. If the glass is damaged, do not use the heater in order to avoid a hazard.
22. Extreme caution is necessary when any heater is used by or near children or invalids and
whenever the heater is left operating and unattended.
23.The heater may include an audible or visual alarm to warn that parts of the heater are getting
excessively hot. If the alarm sounds (or illuminates), immediately turn the heater off and inspect for
any objects on or adjacent to the heater that may have blocked the airflow or otherwise caused
high temperatures to have occurred. DO NOT OPERATE THE HEATER WITH THE ALARM
SOUNDING (OR ILLUMINATING).
24. Do not operate any heater after it malfunctions. Disconnect power at service panel and have
heater inspected by a reputable electrician before reusing.
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

Always install the heater in accordance with this guide. If in doubt obtain
expert advice.
Always make sure the electrical socket is accessible and located adjacent
to, but not above the heater.
Always disconnect the heater from the electrical supply before moving it, or
carrying out cleaning, maintenance.
Always make sure the heater is firmly secured to prevent it from being
tipped over.
Always use a fireguard when young children and infirm persons can come
into contact with the heater.
Never leave children unsupervised in a room where the heater is ON and
unguarded.
Never obstruct or cover the fan outlet or force items into heater openings.
Never use aerosols or steam cleaners on or around the heater.
Never route the main supply cable under carpet etc.
Never install the heater close to curtains or combustible materials.
Never use the heater to dry clothes etc.
Never sit or stand on the heater.
Do’s
Don’ts
CAUTIONS
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

FCC CAUTIONS
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1)This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifcations not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note:This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference wil not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on,the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an cxperienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and opeated with minimum distance 20cm
between the radiator & your body.
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

UNPACKING AND TESTING APPLIANCE
GROUNDING APPLIANCE
LOCATING THE FIREPLACE
Carefully remove the appliance from the box.
Prior to installing the appliance, test to make sure the appliance operates properly by plugging the
power supply cord into a 120 Volt grounded outlet.
Test all aspects of its operation (manual switches, remote and heater) to make sure all
components are operating correctly.
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5 ℃(41℉） and 35℃(95℉). During the cold winter months, allow the
fireplace to reach room temperature before turning it on.
NOTE: There may be a trace of odor during the first few minutes of initial use. This is
harmless, normal and will never occur again.

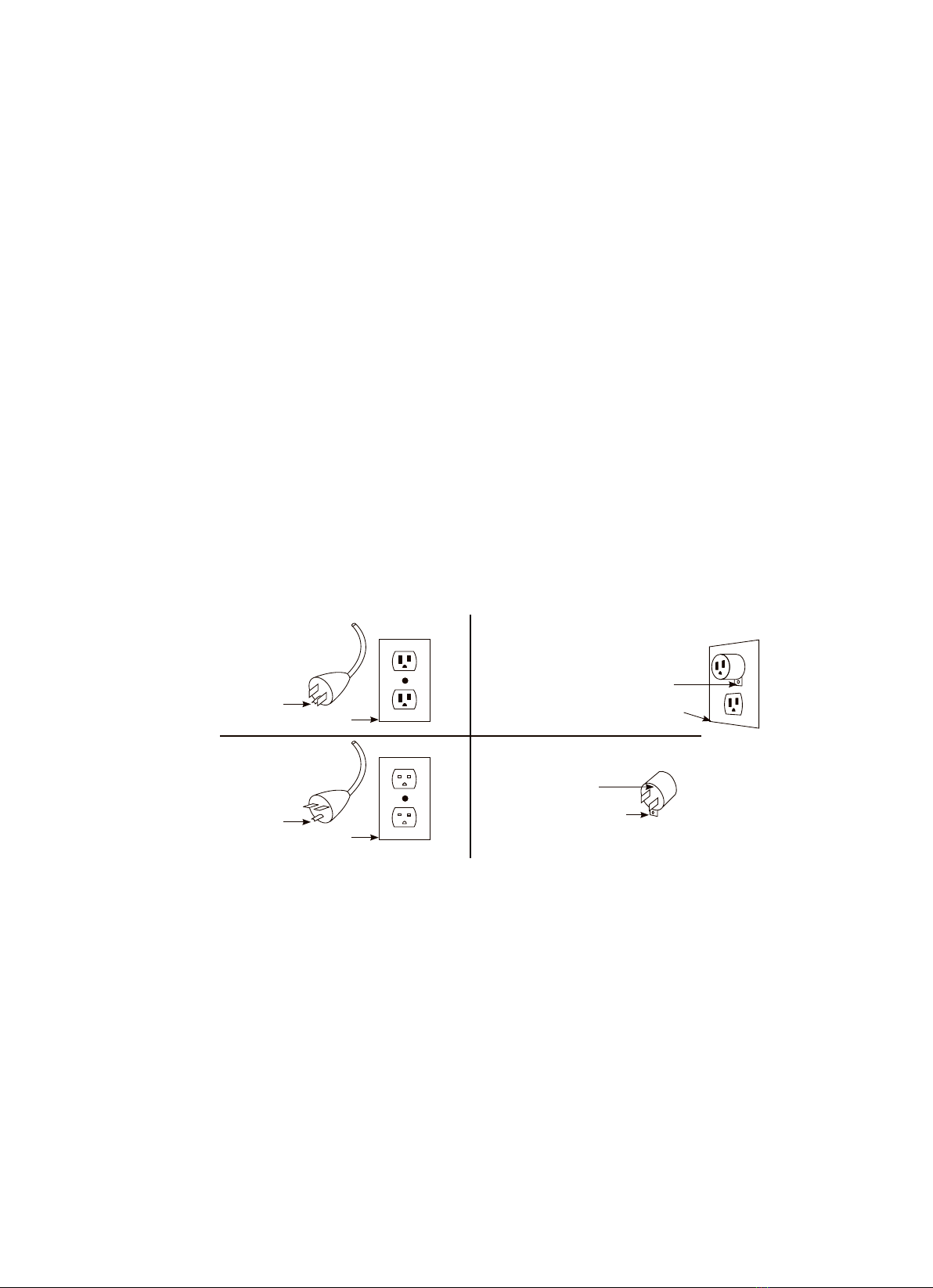

This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as
shown in (C) is available for connecting three-blade grounding type plugs to two-slot. The green
grounding lug extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle
is available.
To disconnect appliance, turn controls to off, then remove plug from outlet.
Plan where to locate and frame the fireplace. This will save time and money later when you install
the fireplace. Before installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances.
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3. A 15 ampere, 120 Volt, 60 Hz branch circuit with proper ground must be available at the
location. Preferably a dedicated branch circuit should be provided to avoid circuit breakers to trip
or fuses to blow.
Adapter
Grounding Lug
Cover of Grounded Outlet Box
Grounding Pin
Cover of Grounded Outlet Box
Grounding Pin
Cover of Grounded Outlet Box
Metal Screw
A B
CD
NOTE: Adaptors are NOT for use in Canada.
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

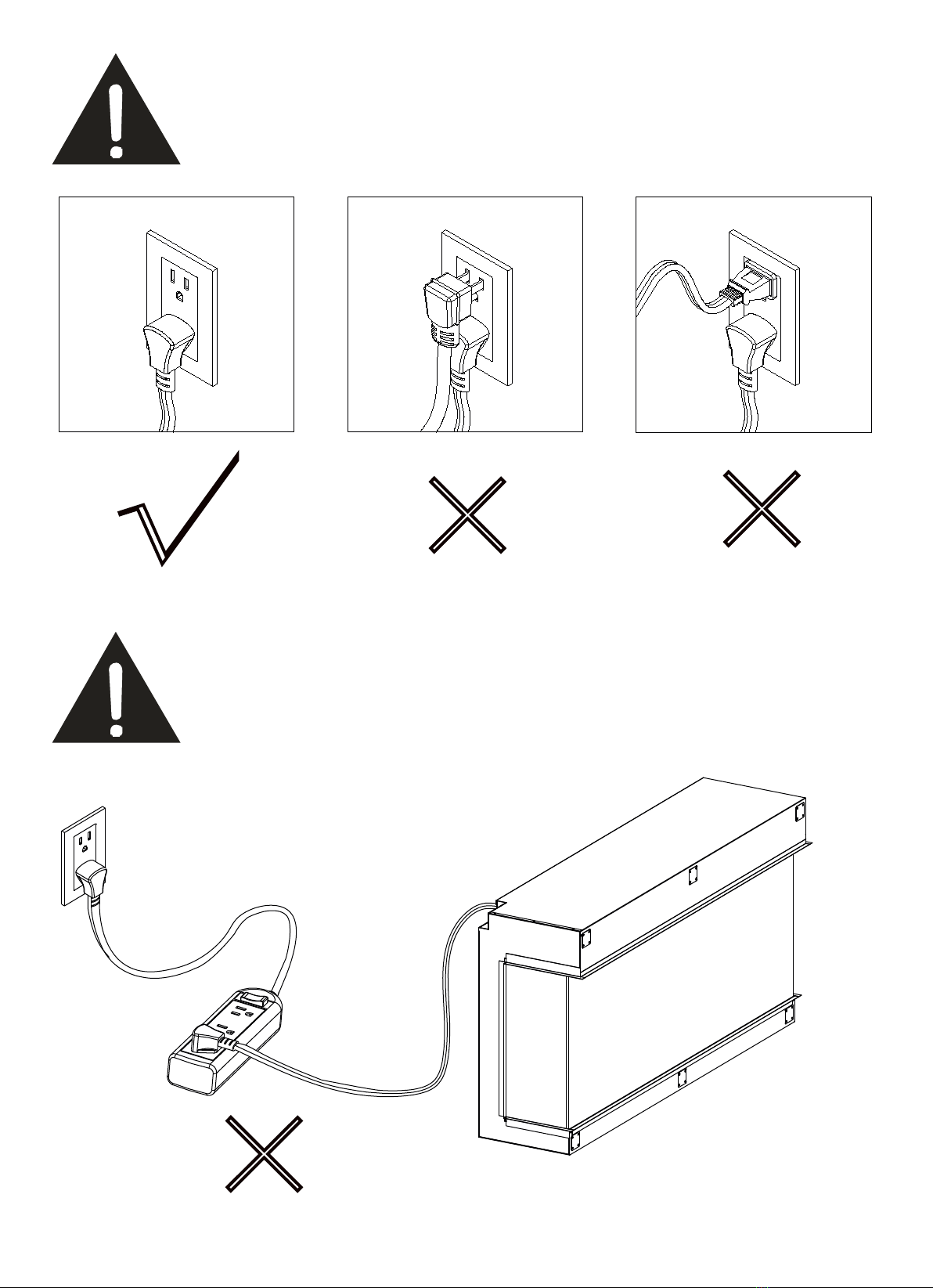

Do not share a socket with other appliances
when using electric fireplaces, please use a
dedicated socket.
Never use with an extension cord or
relocatable power tap (outlet / power strip).
√×
×
×
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

Product model BS2100055-1
TRV-55 BESPOKE
BS2100045-1
TRV-45 BESPOKE
BS2100065-1
TRV-65 BESPOKE
BS2100075-1
TRV-75 BESPOKE
BS2100085-1
TRV-85 BESPOKE
Voltage
Watts
Appliance size
(W x H x D)
Cord Length
Glass Viewing
(W1 x H1 )

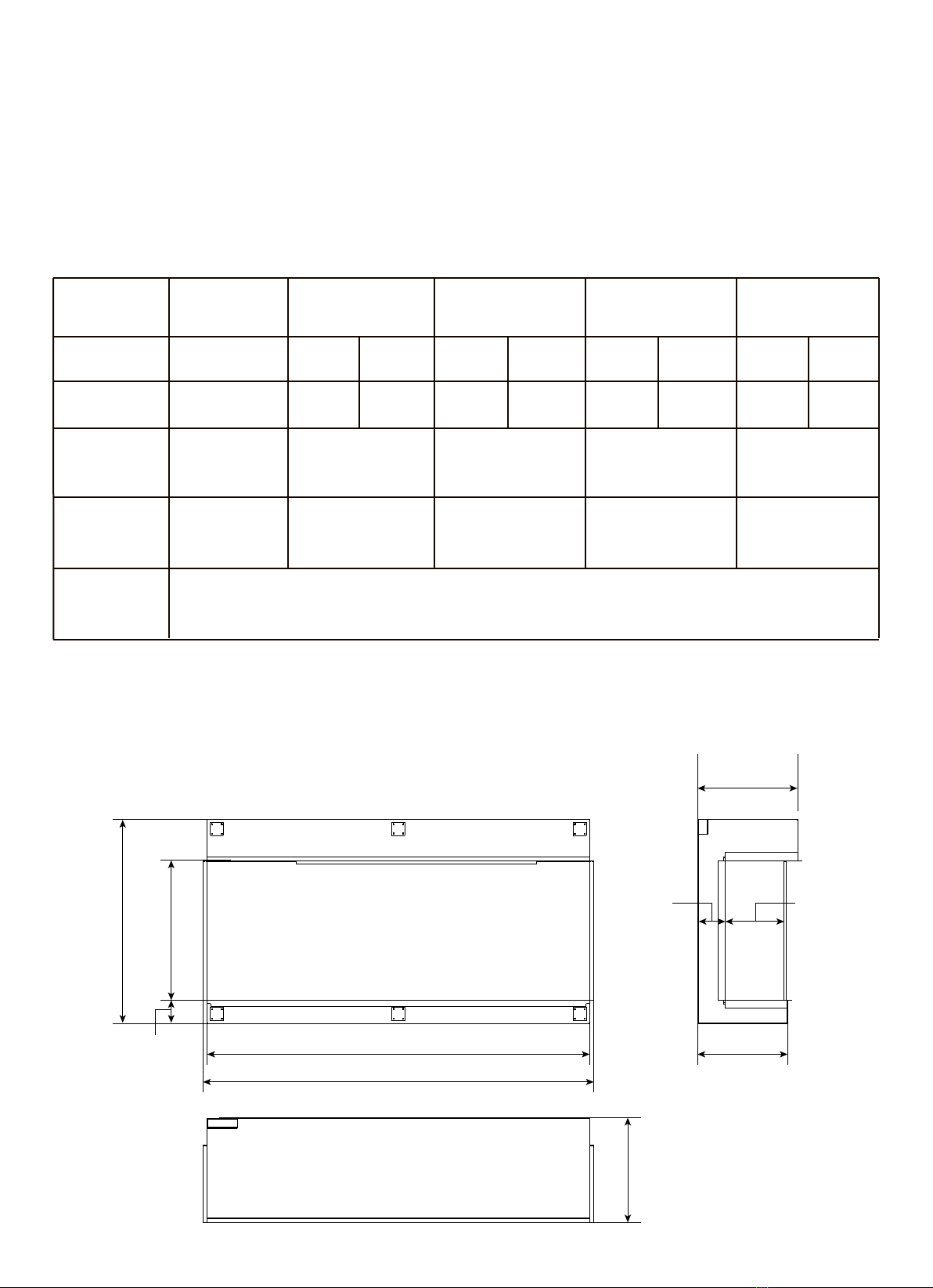

PRODUCT SPECIFICATION
This appliance has been tested in accordance with the UL Standard 2021 for fixed and location
dedicated electric room appliances in the United States and Canada. If you need assistance during
installation, please contact your local dealer.
NOTE: This appliance must be electrically wired and grounded in accordance with local
codes. In the absence of local codes, use the current CSA C22.1 Canadian Electrical Code
in Canada or the ANSI/NFPA 70 National Electrical Code in the United States.
W
HH1
W1
8 3/4”
[222mm]
3 3/8”
[86mm]
4”
[100mm]
12 7/8”
[326mm]
14 1/4”
[367mm]
D
120V AC 60Hz
56 1/8” x 29 3/8” x 15”
142.7 x 74.6 x 38.2 cm
46 1/8” x 29 3/8” x 15”
117.2 x 74.6 x 38.2 cm
66 1/8” x 29 3/8” x 15”
168.1 x 74.6 x 38.2 cm
55” x 20”
139.7 x 50.9 cm
45” x 20”
114.3 x 50.9 cm
65” x 20”
165.1 x 50.9 cm
76 1/8” x 29 3/8” x 15”
193.5 x 74.6 x 38.2 cm
75” x 20”
190.5 x 50.9 cm
86 1/8” x 29 3/8” x 15”
218.9 x 74.6 x 38.2 cm
85” x 20”
215.9 x 50.9 cm
L=70.9”
L=180 cm
1500W
120V AC 60Hz
1500W 3000W 1500W 3000W 1500W 3000W 1500W 3000W
240V AC 60Hz 120V AC 60Hz 240V AC 60Hz 120V AC 60Hz 240V AC 60Hz 120V AC 60Hz 240V AC 60Hz
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

OUTDOOR INSTALLATIONS
The TRV Series electric fireplaces are suitable for installation in outdoor areas protected from
direct water impingement. In addition to maintaining the listed mantel and combustibles
clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each
side of the installed appliance. See illustration below. All wiring connections to line power shall be
in accordance with local building code requirements. Inquires about local codes and regulations
must be done prior to installation.
The overhang(A) must extend at least 1/2 the roof-line height. Height is measured from the base
of the fireplace.
For example: if the roof-line(B) is 8” above the base of the fireplace, the overhang(A) must be at
least 4”.
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

HARDWIRE INSTALLATION
Turn off the appliance completely and let cool before servicing. Only a qualified service person
should service and repair this electric appliance.
If it is necessary to hardwire this appliance, a qualified electrician must remove the cord connection,
and wire the appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes, if
hardwired. In the absence of local codes, use the current CSA C22.1 CANADIAN ELECTRICAL
CODE in Canada or the current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United
States.
The following steps are only applicable to model TRV-45.
1. Test the unit before removing the cord.
Remove the cover plate from the back top right corner of the appliance by removing the four
screws, as shown below. Unscrew and remove power cord.
2. Attach the wiring to the junction block. Please make sure the live wire goes into the “L”, the
neutral wire into “N” and the ground wire into “G”.
3. Return the cover plate to the back top right corner and screw the four screws back in to fasten
the plate.
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

1. Test the unit before removing the cord.
Remove the cover plate from the back top right corner of the appliance by removing the four
screws, as shown below. Unscrew and remove power cord.
2. Attach the wiring to the junction block. Please make sure the live wire goes into the “L1”, the
neutral wire into “N” and the ground wire into “G”.
3. Return the cover plate to the back top right corner and screw the four screws back in to fasten
the plate.
Connect to the fireplace
N G L1
Disconnect the N G L
These appliances have two types of hardwired. Connect to 120V or 240V.
Connect to 120V
The following steps are applicable to model TRV-55，TRV-65，TRV-75，
TRV-85.
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

1. Test the unit before removing the cord.
Remove the cover plate from the back top right corner of the appliance by removing the four
screws, as shown below. Unscrew and remove power cord.
2. Attach the wiring to the junction block. Please make sure the live wire goes into the “L1” and
“L2” (as shown below), the neutral wire into “N” and the ground wire into “G”. Tighten the N1
and N2 with two screw caps.
3. Return the cover plate to the back top right corner and screw the four screws back in to fasten
the plate.
N
L2N2
screw caps
N1 G L1
Connect to the fireplace
Disconnect the N G L
Connect to 240V
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

TRV-45 BESPOKE
W D H
TRV-65 BESPOKE
TRV-75 BESPOKE
TRV-85 BESPOKE
INSTALLATION
The TRV BESPOKE models are designed to be built-in and allow for the finishing material (drywall,
stone, tile, etc) to be built right down to the glass edge.
NOTE: Due to the many different materials used on different walls, it is highly recommended that
you consult your local builder before you install this appliance.
1. Product is fixed with fending bars and
panels on the left and right side.
2. To view the flame from different angles,
you need to remove panels from different
sides.
(1). Remove both sides of the fending
panels if you want to view the flame from
three angles.
fending bar
fending panel
(2). Remove the fending panel on the left
side if you want to view the flame from
front and left side.
45 1/4”
114.8 cm
29 5/8”
75.2 cm
29 5/8”
75.2 cm
29 5/8”
75.2 cm
29 5/8”
75.2 cm
29 5/8”
75.2 cm
13 1/4”
33.6 cm
TRV-55 BESPOKE 55 1/4”
140.2 cm
13 1/4”
33.6 cm
13 1/4”
33.6 cm
13 1/4”
33.6 cm
13 1/4”
33.6 cm
65 1/4”
165.6 cm
75 1/4”
191 cm
85 1/4”
216.5 cm
NOTE: The wall opening size is suitable for fireplace
without adjustable leveling feet.
The wall opening size of the fireplace:
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

(3). Remove the fending panel on the right
side if you want to view the flame from
front and right side.
3. Screw back the fending bar after the
panel is removed.
4. Remove the framing plates from the
fireplace and save for step 6.
6. Insert the fireplace into the wall opening.
Drive the mounting screws into the frame
plates on the unit and the wall studs. To fix
the bottom of the fireplace and the wall studs
with the framing plates that you’ve removed
from the fireplace at STEP 4. Plug in and
check if the fireplace works.
5. Make an opening for the fireplace
according to requested measurement.
framing plate
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

7. After checking that the fireplace operates properly, cover the glass panels with protective plastic
bag and install plywood or drywall.
Front and left side viewing
Front and right side viewing
Three angles viewing
8 3/4”
[222mm]
4”
[100mm]
12 7/8”
[326mm]
14 1/4”
[367mm]
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

SIDE BY SIDE INSTALLATION
1. Unscrew 7 screws on the right side that
fix the fending bar and panel, and then
take off the fending bar and panel.
2. Unscrew 3 screws （The quantity varies
depending on the size of the unit）and remove
the front glass bracket which are fending the
front glass.
4. Unscrew 2 screws and remove the brackets
which are fending the right side glass.
5. Remove the right side glass and take off the
bracket.
6. Remove the front glass, left side fending
bar, fending panel,left glass and brackets from
the other one in the same way.
3. Take off the front glass and put it in safe
place.
11
1
2
1
1
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

7. Place fireplace 1 and fireplace 2 on the same level, and place the right side of fireplace 1 close
to the left side of fireplace 2.
9. Put back the front glass to the fireplaces and secure them with screws and front glass brackets.
8. Unscrew the 8 screws at the joint, then remove the 2 framing plates from the fireplace 1 and fix
them as the picture shows.
NOTE: After removing the framing plates on the fireplace 1, screw back the screws.
1
2
1
2
1
2
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

1. Unscrew 3 screws（The quantity varies
depending on the size of the unit）and
remove the bracket which are fending the front
glass panel.
2. Take off the front glass panel and put it in
safe place.
3. Installing the fire glass media. Pour the
fire glass media into the tray as shown
below.
Feel free to use any combination of fire
glass media that you find most appealing.
4.Put back the front glass and screw back
the bracket.
MEDIA INSTALLATION
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

MANUAL OPERATION
The fireplace operates either by the touch panel located on the left front top side of the fireplace or
by supplied remote control.
1. Press “ ” to turn on and off the fireplace.
2. Press “ ” to adjust the flame brightness. There are 6 brightness levels（L6-L1）and an
off(OF) position. Each time the flame button is pressed, the brightness of the flame decrease.
Press the flame button more than 5 seconds, the timer indicator light on and will rapidly blinks, at
this time, you can use the TuyaSmart APP to connect to the fireplace.
3. Press “ ” to adjust the ember bed brightness. There are 7 brightness levels (d8-d2), dynam-
ic condition(d1) ,and the OFF(OF) setting you can cycle through. Each time the ember bed button
is pressed, the brightness of the ember bed decrease.
4. Press “ ” for the first time to display the current timing. If the timing in off position, the
second press will show 30. Multiple times to set operating duration to OF, 30 min, 1h, 2h, 3h, 4h,
5h, 6h, 7h, 8h.
Press and hold the “ ” for 5 seconds to turn on the sound.
5. Press “ ” for the first time to display the current setting temperature，when the digital
display stop blinks, press the button again to clear the current temperature. If the heater in off
position, the second press will show22℃(72℉). Multiple times to set ambient temperatures at
22℃(72℉), 23℃(74℉),24℃(76℉), 25℃(78℉), 26℃(80℉), 27℃(82℉), 28℃(83℉),15℃(59℉),
16℃(60℉), 17℃(62℉),18℃(64℉), 19℃(66℉), 20℃(68℉), 21℃(70℉).
Temperature unit convert function: When the heater is on, press and hold the“ ” Button for 5
seconds, current temperature unit display will convert to another temperature unit.
NOTE:The heater is turned on by switching on the fan first, then after 5 seconds the heating coil.
The heater is turned off by switching off the heating coil first, then after 30 seconds the fan.
Ensure that the ON / OFF Power Switch on the fireplace is in the ON position.
Touch the control panel once to “wakes up” the controls. This will cause the controls to light up. At
this time, you can press the power button to turn on fireplace
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27

REMOTE CONTROL OPERATION
You must press the key to open the remote control and press the key to enter the setting
current time state. When one of the “Sun”“ Mon”“Tue”“Wed”“Thu”“Fri”“Sat” date is flashing, you
can press the or key to select the current day of the week, and press the key to con-
firm and enter hour setting. When the digital tube of time hour flashes, press the or key to
set the current time and press the key to confirm and enter minute setting. When the digital
tube of time minute flashes, press the or key to set the current time and press the
key to confirm.
This Power Button turns the fireplace on and off. It has a
memory function, press the power button once to turn
power on. Pressing the power button again will turn the
power off.
The Timer Button has adjustable setting at range from 30
minutes to 8 hours. As shown the following: 0:30- 1:00-
1:30- 2:00- 2:30- 3:00- 3:30- 4:00- 4:30- 5:00- 5:30- 6:00-
6:30- 7:00-7 :30- 8:00. Once you have set the timer, The
icon will be displayed on the LCD screen of the remote
control. Press this button again, cancel the timing setting,
and the icon disappears.
When the timer is up, it will close all the functions and
enter standby mode. In this mode, you should touch the
power icon to restart the appliance.
Each time the Heater Button is pressed, the power of the
heater will change. As shown the following: H1- H2-
AUTO(22℃)- OFF(no display).
H1 means the fireplace on Low Heat.
H2 means the fireplace on High Heat.
AUTO means fireplace can automatically adjust to the
temperature you set. When in AUTO, you can set the
desired temperature with or keys. You can
switch temperature unit between Celsius and Fahrenheit
with or keys.
Setting the current time of the remote control
For the remote to function make sure the fireplace is plugged in and the ON / OFF Power Switch
on the fireplace is in the ON position and the remote has batteries.
Important: When operating the remote make sure you point the remote to the center of the
fireplace. Each time you press the button, there will be a beep tone emitted.
01 02 03 04 05 06 07
08 09 10 11 12 13 14
15 16 17 18 19 20 21
22 23 24 25 26 27
