Amantii BI-60-DEEP Owner's manual

INSTALLATIONANDOPERATIONINSTRUCTIONS FOR BI-DEEP
UNITS
BI-40-DEEP
BI-50-DEEP
BI-60-DEEP
BI-72-DEEP
BI-88-DEEP
SAFETY INFORMATION
WARNING
If theinformationintheseinstructionsare
not followed exactly,afireorexplosion
mayresult causingpropertydamage,
personalinjuryorlossoflife.
Do not storeoruse gasolineorotherflammablevapors
and liquidsinthevicinity ofthisorany otherappliance.
INSTALLER:LEAVETHIS MANUALWITH THE APPLIANCE.
CONSUMER:RETAINTHISMANUALFOR FUTURE REFERENCE.

2
TABLE OF CONTENTS
Pleasereadandcarefullyfollowalloftheinstructionfoundinthis manual.Pleasepayspecial
attentiontothesafetyinstructionsprovided inthismanual.Theinstructionsincludedhere will assure
thatyouhavemanyyearsofdependableand enjoyableservicefromyourAmantii product.
IMPORTANTINSTRUCTIONS....................................................................................................................................3
UNPACKING ANDTESTINGAPPLIANCE...............................................................................................................4
GROUNDINGAPPLIANCE.........................................................................................................................................4
LOCATINGTHEFIREPLACE.....................................................................................................................................4
BI-40-DEEP...................................................................................................................................................................5
BI-50-DEEP...................................................................................................................................................................6
BI-60-DEEP...................................................................................................................................................................7
BI-72-DEEP...................................................................................................................................................................8
BI-88-DEEP...................................................................................................................................................................9
INSTALLATION..........................................................................................................................................................14
SAFETYDRILLSCREWAREA................................................................................................................................10
FOR BATHROOMUSE..............................................................................................................................................12
HARD-WIRE INSTALLATION..................................................................................................................................11
PANORAMACOVERINSTALLATION....................................................................................................................18
MEDIAOPTIONS.......................................................................................................................................................19
OPERATION................................................................................................................................................................20
INSTALLING WALLTHERMOSTAT........................................................................................................................22
REPLACEMENTPARTS............................................................................................................................................23
EXPLODEDVIEW......................................................................................................................................................24
TROUBLESHOOTING..............................................................................................................................................25
SERVICE HISTORY....................................................................................................................................................26
WARRANTY...............................................................................................................................................................27
OUTDOORINSTALLATIONS .........................................................................................................................................13

3
IMPORTANT INSTRUCTIONS
Read all instructionsbeforeinstallingorusingthisheater.
2. Keepcombustiblematerials, suchas furniture,pillows, bedding, papers, clothesandcurtainsat
least 3feetfromthefront oftheheater;keepthemawayfromsidesandrear as well.
3. Alwaysunplugheaterwhenit snot in use.
4. Donotoperatethefireplaceifithasadamagedcordorplug,afterit hasmalfunctioned,orifthe
unithasbeendroppedordamaged in anyway.
5. Neverplacetheheaterwhereit mayfall into abathtuborotherwatercontainers.
6. Donotrun thecordundercarpeting.Donotcoverthecordwiththrowrugs, runnersoranything
else.Arrangethecordawayfromtrafficareas whereit couldnotbetripped over.
7. To disconnecttheheater,turnthecontrolsto"OFF" beforeremovingtheplugfromtheoutlet.
8. Donotinsertorallowforeignobjectstoenteranyventilationorexhaustopening,as thismay
causeanelectricshock,fireordamagetotheheater.
9. To prevent apossiblefire,donotblockair intakesin anymanner.
10. Aheaterhashotand arcingorsparkingpartsinside.Donotuseitinareaswheregasoline,paint
orflammableliquidsareusedorstored.
11. Usethisheateronlyas describedinthismanual.Anyotherusenot recommendedbythe
manufacturermaycausefire,electricshockorinjurytopersons.
12. Avoidtheuseofanextensioncordbecausetheextension cordmayoverheat andcauseafire.
13. Alwaysuseproperlygroundedfused andpolarized outlets.
14. Alwaysusegroundfault protection whereitis requiredbyelectrical codes.
15. Alwaysdisconnectthepowerbeforeperforminganycleaning,maintenanceorrelocationofthe
heater.
16. To prevent apossiblefire,donotburn wood orothermaterials inthis heater.
17. Topreventelectricshockorfire,alwaysuseacertifiedelectrician,shouldnewcircuitsor
outletsberequired.
Whentransportingorstoringtheheater,keepit in adryplace,freefromexcessivevibration.
1.
18.

4
UNPACKINGANDTESTINGAPPLIANCE
Carefullyremovetheappliancefromthebox. Priortoinstallingtheappliance,testtomakesurethe
applianceoperatesproperlybypluggingthepowersupplycordintoaconvenientlylocated120Volt
groundedoutlet.
GROUNDINGAPPLIANCE
This applianceis foruseon 120Volts.Thecordhasaplugasshownin(A). Anadapterasshownin(C)
is availableforconnectingthree-bladegroundingtypeplugstotwo-slotreceptacles.Thegreen
groundinglugextendingfromtheadaptermustbeconnectedtoapermanentground suchasa
properlygroundedoutletbox. Theadaptershouldnotbeusedifathree-slotgroundedreceptacleis
available.
To disconnectappliance,turn controls to off,then removeplugfromoutlet.
LOCATINGTHEFIREPLACE
Planwhere tolocateandframethefireplace.This will savetimeandmoneylaterwhenyouinstall
thefireplace.Beforeinstallationconsiderthefollowing:
1. Where thefireplaceis locatedmust allowforwallandceilingclearances(see INSTALLATION)
2. Consideralocationwhere thefireplacescreenwill notbeexposedtodirectsunlight from
windowsordoors.
3. A15 ampere,120 Volt,60 Hz branchcircuit with properground mustbeavailableatthelocation.
Preferablyadedicatedbranchcircuitshouldbeprovidedtoavoidcircuitbreakerstotripoffuses
toblow.

5
BI-40-DEEP
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 38 5/8”or98.1 cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 12 5/8”or32.2 cm
Gross Weight 94.6lbsor43kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 40”25“or
101.6 cm 63.5cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/NFPA70
NationalElectricalCodein theUnited
States.

6
BI-50-DEEP
ModelNumber BI-50-DEEP
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 48 5/8”or123.5cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 12 5/8”or32.2 cm
Gross Weight 110lbsor50kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 50”25“or
127 cm 63.5cm
BTU 4800
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.

7
BI-60-DEEP
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 58 5/8”or148.5cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 12 5/8”or32.2 cm
Gross Weight 127.6lbsor58kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 60”25“or
152.4 cm 63.5 cm
BTU 4800
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.

8
BI-72-DEEP
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 72 1/8”or183.2cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 12 5/8”or32.2 cm
Gross Weight 156.2lbsor71kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 73 1/2”25“or
186.7 cm 63.5 cm
BTU 4800
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.

9
BI-88-DEEP
Description Built-inAppliance
Voltage 120V AC60Hz
Watts 1500WMax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 88 5/8”or225.2cm
ApplianceHeight 23 5/8”or60 cm
ApplianceDepth 12 5/8”or32.2 cm
Gross Weight 195.8lbsor89kg
PlugLocation Left side
Cord Length 707/8”or180 cm
RoughWall OpeningSize 89 1/4”25“or
226.7 cm 63.5 cm
BTU 4800
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.

SAFETYDRILL SCREWAREA
Thereis asafetydrillscrewareaasshow below.
Pleasemakesurethat thefixscrewsare inthis area.
Themanualcontrolpadposition
Safetydrill screwarea
(Darkarea)
HARD-WIRE INSTALLATION
Turnofftheappliancecompletelyand let coolbeforeservicing.Onlyaqualifiedserviceperson
should serviceandrepairthiselectricappliance.
If itis necessarytohardwirethisappliance,aqualifiedelectricianmustremovethecordconnection,
and wiretheappliancedirectlyto thehouseholdwiring.
This appliancemustbeelectricallyconnectedandgroundedinaccordancewith localcodes,ifhard
wired.Intheabsenceoflocal codes, usethecurrentCSA C22.1CANADIANELECTRICAL CODEin
CanadaorthecurrentANSI/NFPA70 NATIONAL ELECTRICAL CODEintheUnited States.
1. Removethecoverplatefromtheleftsideoftheappliancebyremovingthetwoscrews, as
shownbelow.Unscrewand removepowercord.
10

2. Attachthewiringtothejunctionblock.Pleasemakesurethelivewiregoesintothe “L”,the
neutral wireinto “N”and thegroundwireinto “G”.
3. Puttheplatebackandscrew back.
FOR BATHROOM USE
If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If receptacle is
used it must be readily accessible.
To prevent electric shock, please be aware that this unit is an electrical appliance that is NOT watertight
and must be installed as to prevent water from entering unit. This must be installed away from shows,
tubs, etc. Never locate fireplace where it may fall into a bathtub or other water container.
All wiring connections to line power shall be in accordance with local building code requirements.
Inquires about local codes and regulations must be done prior to installation.
11

The overhang (A) must extend at least 1/2 the roof-line height (B).
Height is measured from the base of the fireplace.
For example: if the roof-line (B) is 8’ above the base of the fireplace,
the overhang (A) must be at least 4’.
OUTDOOR INSTALLATIONS
The BI-DEEP series electric fireplaces are suitable for installation in outdoor areas protected from direct
water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain
protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed
appliance. See illustration below. All wiring connections to line power shall be in accordance with local
building code requirements. Inquires about local codes and regulations must be done prior to
installation.
When installed in outdoor applications, it is recommended that the BI-DEEP models use the protective
PAN-COVER.


12

13
INSTALLATION
TheBI-DEEPmodels aredesignedto bebuilt-inand allow forthefinishingmaterial (drywall, stone,
tile,etc) tobebuilt rightdownto theglass edge.However,thatapplication is not alwaysdesirableor
availablesothesurround could beused asan alternatefinishoption.
Note:Theoptional trim can bepulledoutdirectlyfromtheunit.Itwill need twopeopletodoit.
Theroughwall openingsizeofthefireplace:
W(＂) D(＂) H(＂)
BI-40-DEEP 40 12 25
BI-50-DEEP 50 12 25
BI-60-DEEP 60 12 25
BI-72-DEEP 731/2 12 25
BI-88-DEEP 89 1/4 12 25
1. Takeouttheunit fromthebox.Pleasedo thepre-testbeforeyouinstall the fireplace. Pull
outtheoptionaltrim fromtheunit as shows below.
optional trim

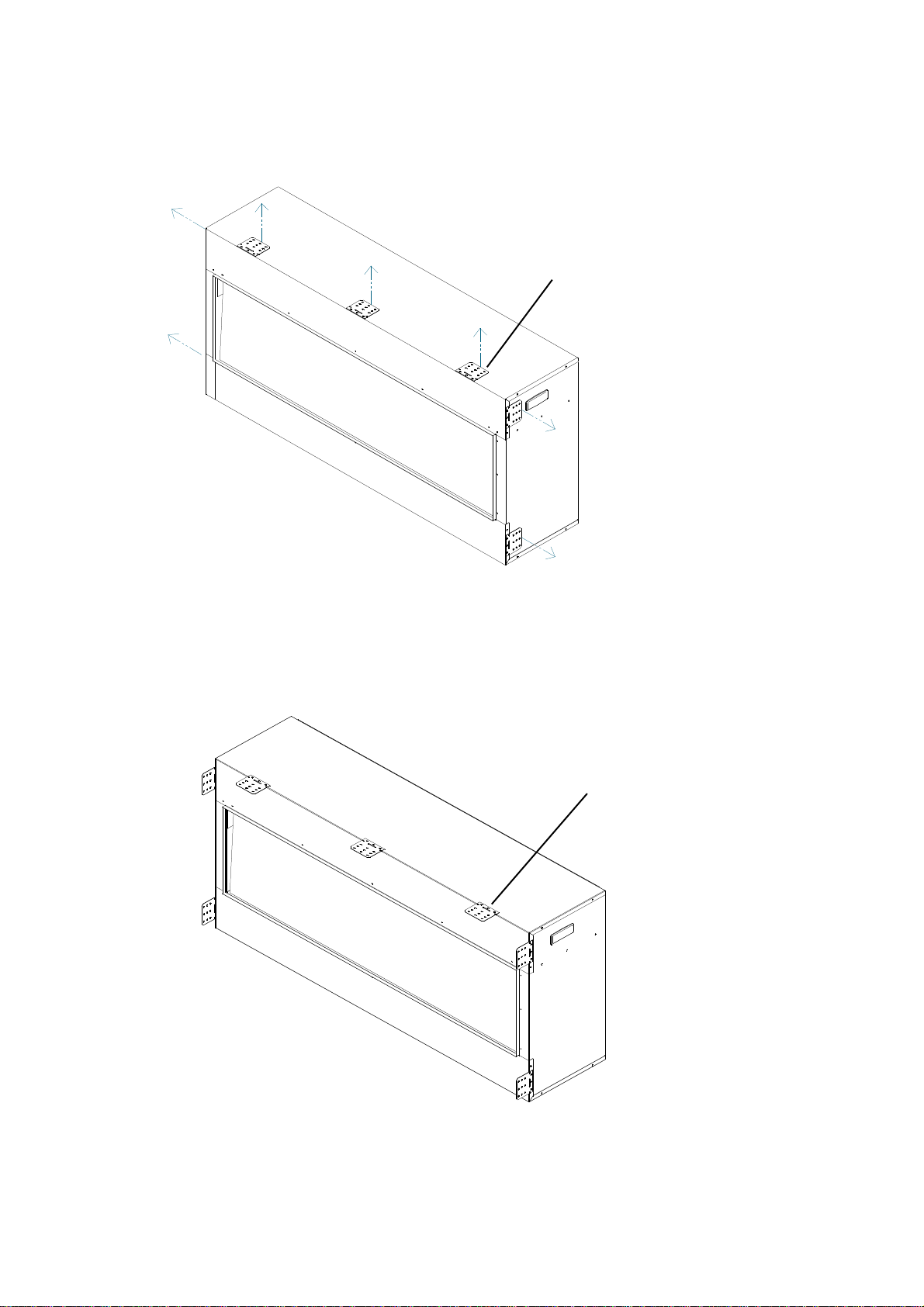

2. Removetheframingplates fromtheunit
framing plate

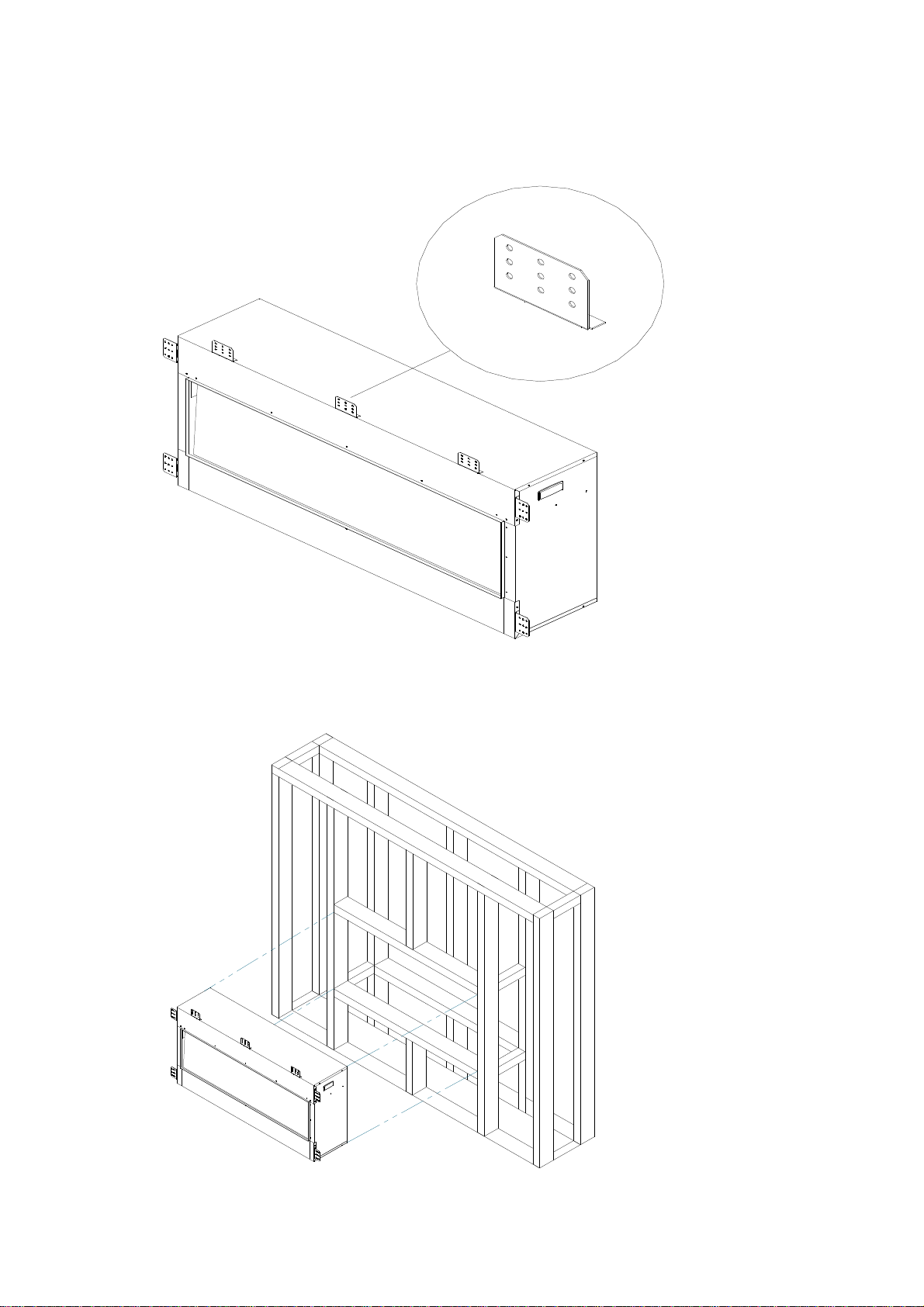

3. Re-fixtheframingplates to theunit as thepicture shows
framing plate
14

4. Bend up theframingplates.
5. Puttheunit into theopening.
15

6. Drivethemountingscrews into theframingplates on theunit and thewall studs.
7. After checkingthatthefireplace operatesproperly,cover theglass panelwith
protectiveplasticbagand install plywood or drywall.
Fireplace
16
framing plate
NOTE: In order to use the supplied trim kit, the thickness of the desired wall finish
can not exceed 1 inch.

8. Decoratetheplywood or drywall with glazed tile, wallpaper, etc.
Fireplace
9. Putback thetrim thatyou veremoved fromtheunit atSTEP1.
trim
17

18
PANORAMACOVERINSTALLATION
Makesureinstall thepan-coverwhenthefireplaceusedoutdoors.
Removethecoverfromthepackaging.

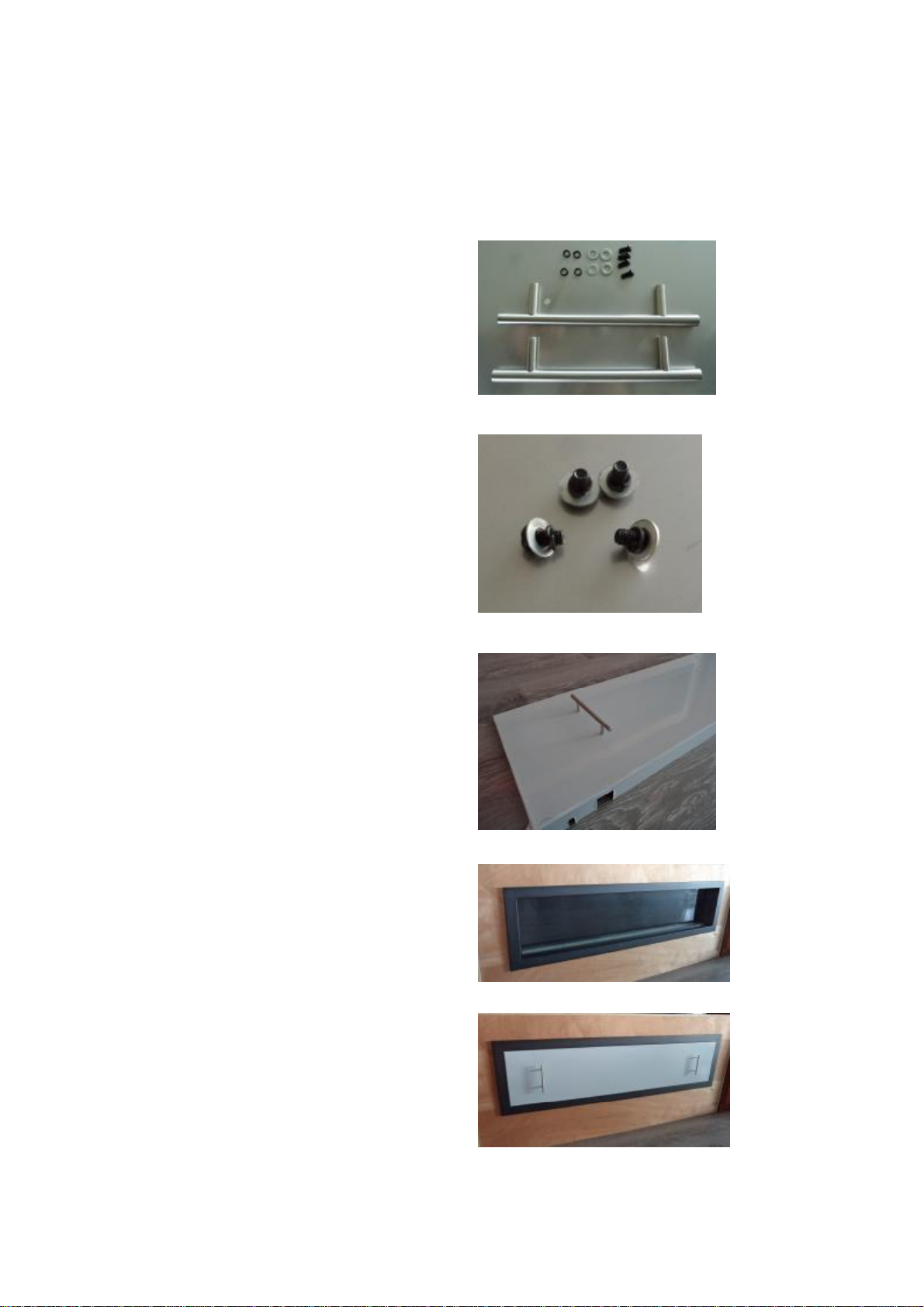

Thehandleswill needtobeattachedtothe
coverwith theprovidedhardwareas shown in
fig.1
First,placeaplatewasherand then aspring
washeronthescrewasshown in fig.2
Affixthehandlesto thefrontofthecoverusing
theprepared screws.Fig.3
Inserttheassembledcoverontotheunit as
shown inFigs.4and 5
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5

19
MediaOptions
The BI-40-DEEP,BI-50-DEEP,BI-60-DEEP
isshippedwith3large glass nuggets,clear
and bluediamond shapedmediaand11
piecelog set.
The BI-72-DEEP,BI-88-DEEPisshipped
with6large glass nuggets,clearandblue
diamond shaped
media and 11 piece log set.
FireGlass Media-LogInstallation
1.Takeoffthe frontclearglass.Thereisa
bracketwhichholdthe frontglass.It is
showasbelow.Unscrewthe screwand
takeoffthebracket. Turnaround and
inserttothe gap.Itcan hooktheglass
and pulloutthe glass.
2.Installingthe fireglassmedia.Pourthe
fireglass mediaintothe trayasshown
below.Feelfreetouseanycombination
offireglass mediathatyou findmost
appealing
3.Putback the frontglass and screwback
the bracket.
11 piece log set

20
OPERATION
Thefireplacecanbeoperatedeitherbytheswitcheslocatedontheleft bottomofthefireplaceunit
orbysuppliedremotecontrol.
Plugthefireplaceintoa15 Amp wall socket.
MANUAL OPERATION
1. ThemainpowerON/OFFswitchinpositionO,thefireplaceis OFF.
2. WhenmainpowerON/OFF switchis at position I,thefireplaceis readyto use.
3. Press the buttonrepeatedlytosettheheatertodesiredheatsetting.Theheaterindicator
LED will glowwhichshowsthecurrent heatersettings.
a) RED 1500WHEAT OUTPUT
b) BLUE750WHEAT OUTPUT
c) PURPLEAUTOMODE
AUTO MODE
Underthis modetheheaterwill automaticallyturnONathighheatsetting1500Wheatoutputwhen
theroomtemperature dropsbelow22 (72℉). Whentheroomtemperatureis between
22-25 (72-77℉)theheateroutput will switchtolowheatsetting750W.Whentheroom
temperature goesabove25 (77℉)theheaterwill beturnedoff andthecyclewill continue.The
LED indicatorwill bePURPLEincolourunderthis mode.
4. Flameeffect:Press thebuttonmarked toadjusttheflamebrightness.Theflamebrightness
will cyclethrough –Low-Medium-High-OFF.
5. Moodlight effect:Press thebuttonmarked to changethemoodlight colour.
NOTE: IfoperatedattheLowheatsetting,thefireplacewill notprovideasmuchheatoutputasin
theHighheatsetting,howeverthelowsettingwill notrequireasmuchelectrical powertooperate.
Toavoidoverloadingacircuit,donotplugthefireplaceintoacircuitthatalreadyhasother
appliancesworking.When thefireplaceis not in useswitchoff andunplug.
SAFETYCUT-OFF
lThis applianceis fittedwith asafetycut-offwhichwill operateifthefireplaceoverheats(eg.Due
toblockedairvents). Forsafetyreasons, thefireplacewill NOT automaticallyreset.
lToresettheappliance,disconnecttheappliancefromthemainsupplyforatleast10 minutes.
Reconnectthesupplytothemainand switchontheappliance.
