Amantii WM -FM -34-4423-BG User manual

INSTALLATION ANDOPERATION INSTRUCTIONS FOR WALL-MOUNT
ANDBUILT-INUNITS
WM-FM-26-3623-BG
WM-FM-34-4423-BG
WM-FM-48-5823-BG
WM-FM-60-7023-BG
WM-FM-72-8123-BG
WM-FM-88-10023-BG
SAFETY INFORMATION
WARNING
If theinformationintheseinstructionsare
not followed exactly,afireorexplosion
mayresult causingpropertydamage,
personalinjuryorlossoflife.
Do not storeoruse gasolineorotherflammablevapors
and liquidsint hevicinity ofthisorany otherappliance.
INSTALLER: LEAVE THIS MANUAL WITHTHEAPPLIANCE.
CONSUM ER: RETAINTHIS MANUAL FOR FUTURE REFERENCE.

2
TABLE OF CONTENTS
Pleasereadandcarefullyfollowalloftheinstructionfoundinthis manual.Pleasepayspecial
attentiontothesafetyinstructionsprovided int hismanual.Theinstructionsincludedhere will assure
thatyouhavemanyyearsofdependableand enjoyableservicefromyourAmantii product.
IMPORTANTINSTRUCTIONS....................................................................................................................................3
UNPACKING ANDTESTINGAPPLIANCE...............................................................................................................4
GROUNDING APPLIANCE.........................................................................................................................................4
LOCATINGTHEFIREPLACE.....................................................................................................................................4
WM-FM-34-4423-BG....................................................................................................................................................6
WM-FM-48-5823-BG....................................................................................................................................................7
WM-FM-60-7023-BG....................................................................................................................................................8
WM-FM-72-8123-BG....................................................................................................................................................9
WM-FM-88-10023-BG................................................................................................................................................10
REMOVINGFRONTGLASS.....................................................................................................................................11
INSTALLATION-WALLMOUNT..............................................................................................................................12
INSTALLATION-BUILT-IN.......................................................................................................................................13
HARD-WIRE INSTALLATION.................................................................................................................................14
MEDIAOPTIONS.......................................................................................................................................................15
DECORATIVEMEDIAINSTALLATION..................................................................................................................15
OPERATION................................................................................................................................................................16
MANUALOPERATION..............................................................................................................................................16
REMOTE CONTROLOPERATION...........................................................................................................................17
INSTALLING WALLTHERMOSTAT........................................................................................................................18
REPLACEMENTPARTS............................................................................................................................................19
EXPLODEDVIEW......................................................................................................................................................20
TRUBLESHOOTING.................................................................................................................................................21
SERVICE HISTORY....................................................................................................................................................22
WARRANTY...............................................................................................................................................................23
WM-FM-26-3623-BG....................................................................................................................................................5

3
IM PORTANT INSTRUCTIONS
Read all instructionsbeforeinstallingorusingthisheater.
2. Keepcombustiblematerials, suchas furniture,pillows, bedding, papers, clothesandcurtainsat
least 3feetfromt hefront oftheheater;keepthemawayfromsidesandrear as well.
3. Alwaysunplugheaterwhenit snot in use.
4. Donotoperatet hefireplaceifithasadamagedcordorplug,afterit hasmalfunctioned,orifthe
unithasbeendroppedordamaged in anyway.
5. Donotusetheheateroutdoors.
6. This heateris notintendedforuseinbathrooms, laundryareas andsimilar indoorlocations.
Neverplacetheheaterwhereit mayfall into abathtuborotherwatercontainers.
7. Donotrun thecordundercarpeting.Donotcoverthecordwiththrowrugs, runnersoranything
else.Arrangethecordawayfromtrafficareas whereit couldnotbetripped over.
8. To disconnecttheheater,t urnthecontrolst o"OFF" beforeremovingtheplugfromt heoutlet.
9. Donotinsertorallowforeignobjectstoenteranyventilationorexhaustopening,as thismay
causeanelectricshock,fireordamagetotheheater.
10. To prevent apossiblefire,donotblockair intakesin anymanner.
11. Aheaterhashotand arcingorsparkingpartsinside.Donotuseitinareaswheregasoline,paint
orflammableliquidsareusedorstored.
12. Usethisheateronlyas describedint hismanual.Anyotherusenot recommendedbythe
manufacturermaycausefire,electricshockorinjurytopersons.
13. Avoidtheuseofanextensioncordbecausetheextension cordmayoverheat andcauseafire.
14. Alwaysuseproperlygroundedfused andpolarized outlets.
15. Alwaysusegroundfault protection whereitis requiredbyelectrical codes.
16. Alwaysdisconnectthepowerbeforeperforminganycleaning,maintenanceorrelocationofthe
heater.
17. To prevent apossiblefire,donotburn wood orot hermaterials inthis heater.
18. To prevent electricshockorfire,alwaysuseacertifiedelectrician,shouldnewcircuitsoroutlets
berequired.
Whent ransportingorstoringtheheater,keepit in adryplace,freefromexcessivevibration.
1.
19.

4
UNPACKINGAND TESTINGAPPLIANCE
Carefullyremovethe appliancefromthe box.Priortoinstalling theappliance,testtomake
surethe applianceoperatesproperlybyplugging the powersupplycordintoaconveniently
located 120Voltgrounded outlet.
GROUNDINGAPPLIANCE
Thisapplianceisforuseon 120Volts.Thecordhasaplugasshownin(A).Anadapteras
shownin(C)isavailableforconnectingthree-bladegroundingtypeplugstotwo-slot
receptacles.The greengrounding lug extending fromthe adaptermustbe connected toa
permanentgroundsuchasaproperlygroundedoutletbox.The adaptershouldnot be used if
athree-slot grounded receptacleisavailable.
Todisconnectappliance, turncontrolstooff,then removeplugfromoutlet.
LOCATINGTHEFIREPLACE
Plan wheretolocateand framethe fireplace.Thiswillsavetimeand moneylaterwhen you
installthefireplace. Beforeinstallation considerthe following:

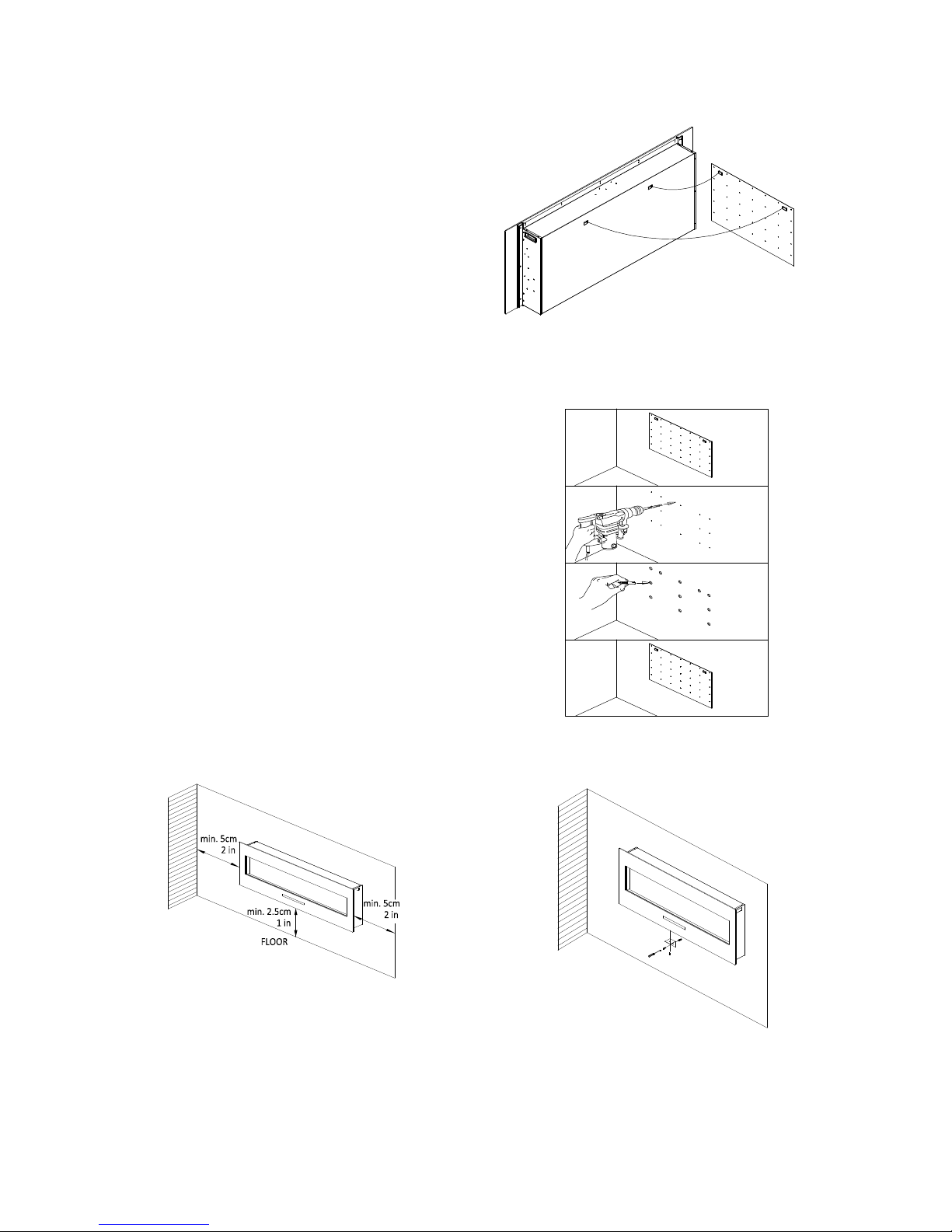

1.Wherethe fireplaceislocatedmustallowforwall and ceiling clearances(see
INSTALLATION-WALLMOUNT)
2.Consideralocation wherethefireplacescreenwill notbeexposed todirectsunlightfrom
windowsordoors.
3. A15 ampere,120 Volt, 60 Hzbranchcircuitwithproperground mustbe availableatthe
location.Preferablyadedicated branchcircuitshouldbe provided toavoidcircuit
breakerstotripof fusestoblow.
Screw
There are two screws on each side to fix the front glass.
Please see the figure right side.
TAKE OUT THIS SCREW ON EACH SIDE
before you take off the front glass.

5
WM-FM-26-3623-BG
Description Built-inorWall Mount Appliance
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 25 1/ 2”or64.9 cm
ApplianceHeight 19 7/ 8”or50.6 cm
ApplianceDepth 6 1/ 8”or15.5 cm
Gross Weight 52.8 lbsor24kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWallOpening
Size
27”201/ 2“or
68.60 cm 52 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021
forfixedandlocationdedicated
electricroomappliancesintheUnited
Statesand Canada.Ifyouneed
assistanceduringinstallation,please
contactyourlocal dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewithlocalcodes.Inthe
absenceoflocalcodes,usethe
currentCSAC22.1CanadianElectrical
Codein CanadaortheANSI/ NFPA70
NationalElectricalCodein theUnited
States.

6
WM-FM-34-4423-BG
Description Built-inorWall Mount Appliance
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 33 1/ 2”or85.2 cm
ApplianceHeight 19 7/ 8”or50.6 cm
ApplianceDepth 6 1/ 8”or15.5 cm
Gross Weight 63.1 lbsor28.7kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWallOpening
Size
35”201/ 2“or
88.9 cm 52 cm
BTU 4800
This appliancehasbeentestedin
accordancewith theULStandard2021
forfixedandlocationdedicatedelectric
roomappliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecontactyourlocal
dealer.
NOTE:Thisappliancemustbe
electricallywiredandgroundedin
accordancewith localcodes.Inthe
absenceoflocalcodes,usethecurrent
CSAC22.1 CanadianElectricalCodein
CanadaortheANSI/NFPA70National
Electrical CodeintheUnitedStates.

7
WM-FM-48-5823-BG
Description Built-inorWall Mount Appliance
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 47 1/ 2”or120.6cm
ApplianceHeight 19 7/ 8”or50.6 cm
ApplianceDepth 6 1/ 8”or15.5 cm
Gross Weight 81 lbsor36.7kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWallOpening
Size
49”201/ 2“or
124.5 cm 52 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021for
fixedandlocationdedicatedelectricroom
appliancesintheUnitedStatesand Canada.
Ifyouneedassistanceduringinstallation,
pleasecontactyourlocaldealer.
NOTE:Thisappliancemustbeelectrically
wiredandgroundedinaccordancewith
localcodes.Intheabsenceoflocalcodes,
usethecurrent CSAC22.1Canadian
ElectricalCodeinCanadaortheANSI/ NFPA
70 NationalElectricalCodeintheUnited
States.

8
WM-FM-60-7023-BG
Description Built-inorWall Mount Appliance
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 59 1/ 4”or150.6cm
ApplianceHeight 19 7/ 8”or50.6 cm
ApplianceDepth 6 1/ 8”or15.5 cm
Gross Weight 97.2lbsor44.2kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWallOpening
Size
60 5/ 8”20 1/ 2“or
154 cm 52cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021for
fixedandlocationdedicatedelectricroom
appliancesintheUnitedStatesand Canada.
Ifyouneedassistanceduringinstallation,
pleasecontactyourlocaldealer.
NOTE:Thisappliancemustbeelectrically
wiredandgroundedinaccordancewith
localcodes.Intheabsenceoflocalcodes,
usethecurrent CSAC22.1Canadian
ElectricalCodeinCanadaortheANSI/ NFPA
70 NationalElectricalCodeintheUnited
States.

9
WM-FM-72-8123-BG
Description Built-inorWall Mount Appliance
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 71”or180.4 cm
ApplianceHeight 19 7/ 8”or50.6 cm
ApplianceDepth 6 1/ 8”or15.5 cm
Gross Weight 113.3lbsor51.5kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWallOpening
Size
72 1/ 2”20 1/ 2“or
184 cm 52 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021for
fixedandlocationdedicatedelectricroom
appliancesintheUnitedStatesand
Canada.Ifyouneedassistanceduring
installation,pleasecont actyourlocal
dealer.
NOTE:Thisappliancemustbeelectrically
wiredand groundedinaccordancewith
localcodes.Intheabsenceoflocalcodes,
usethecurrent CSAC22.1Canadian
ElectricalCodeinCanadaorthe
ANSI/ NFPA70NationalElectricalCodein
theUnited States.

10
WM-FM-88-10023-BG
Description Built-inorWall Mount Appliance
Voltage 120V AC60Hz
Watts 1500WM ax
NOHEATER 25W
MOTOR HEATER 19W
ApplianceWidth 88”or223.6 cm
ApplianceHeight 19 7/ 8”or50.6 cm
ApplianceDepth 6 1/ 8”or15.5 cm
Gross Weight 138.6lbsor63kg
PlugLocation Left side
Cord Length 707/ 8 ”or180 cm
RoughWallOpening
Size
89 1/ 2”20 1/ 2“or
227.3 cm 52 cm
BTU 4800
This appliancehasbeentestedin
accordancewiththeULStandard2021for
fixedandlocationdedicatedelectricroom
appliancesintheUnitedStatesand Canada.
Ifyouneedassistanceduringinstallation,
pleasecontactyourlocaldealer.
NOTE:Thisappliancemustbeelectrically
wiredandgroundedinaccordancewith
localcodes.Intheabsenceoflocalcodes,
usethecurrent CSAC22.1Canadian
ElectricalCodeinCanadaortheANSI/ NFPA
70 NationalElectricalCodeintheUnited
States.

11

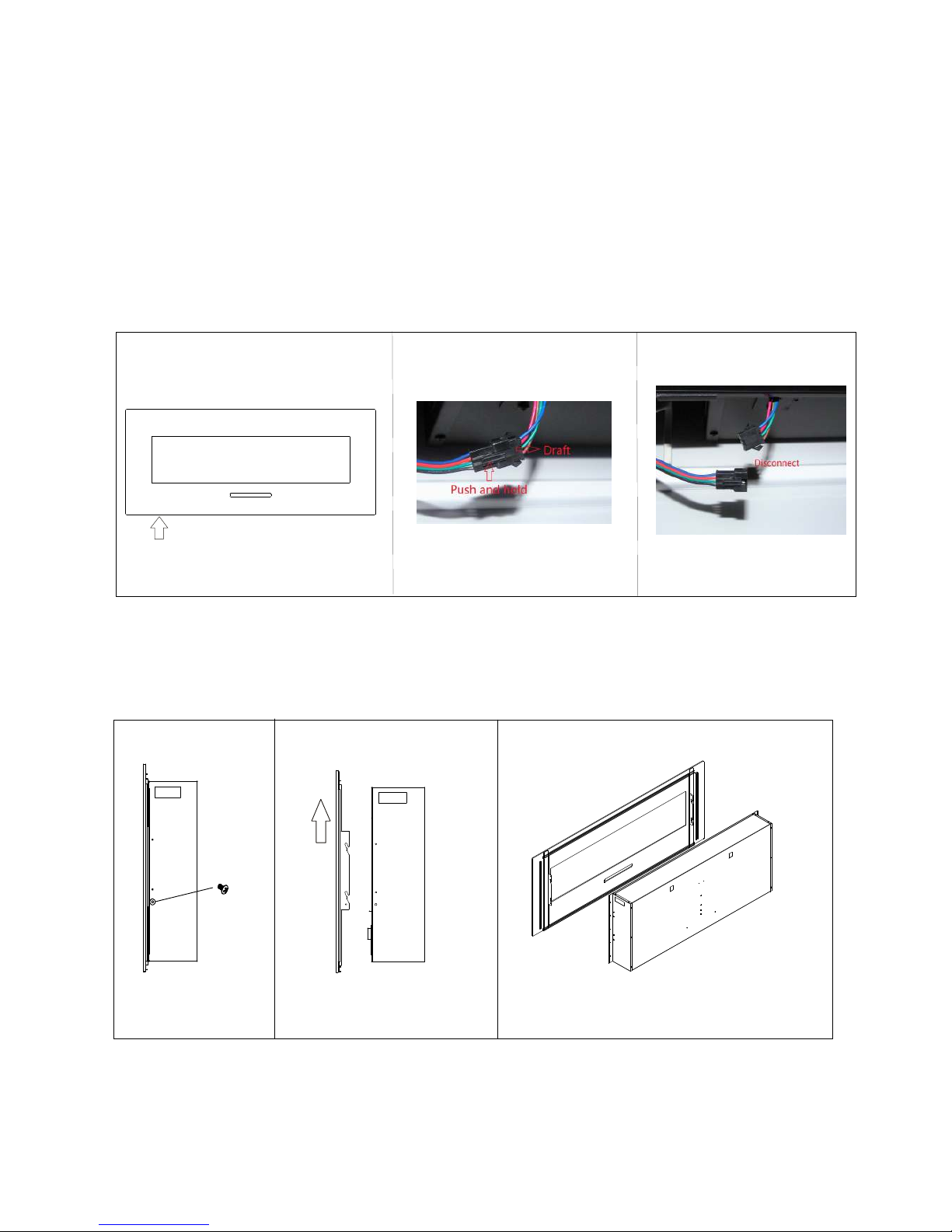

REMOVING FRONTGLASS
ModelsWM-FM-26-3623-BG , WM-FM-36-4423-BG , WM-FM-48-5823-BG and WM-FM-60
-7023-BGeach have2screwsthat secure the front glass in place. Models WM-FM-72-
8123-BG and WM-FM-88-10023-BG havefourscrews secure the front glass in place.
Two people are required for the installation process.
1. The back-lighting LED is located on the back of the glass. Before removing the glass
you must unplug the back-lighting from the unit. This plug is located at the bottom left
hand side behind the front of the glass.
2. The screws are located on the sides of the unit. Once located, unscrew the two or four screws.
You can then lift the front glass from the 4 shoulder posts on the sides of the unit and remove
the glass.
3. To replace the glass, lift onto the 4 shoulder posts. For a Wall Mount installation,replace the
two or four screws to secure the glass. For Flush Mount installs it is not possible to replace
the screws.
Location of the back-lighting plug Unplug the back-lighting
Screw locations on uint Lift glass from shoulder posts

12
INSTALLATION-WALL MOUNT
1. Selectalocationthatis notproneto
moistureandis locatedatleast0.91mor3
feetawayfromcombustiblematerialssuch
ascurtainsordrapes, furniture,bedding,
paper,etc.
2. ReferringtoFig.1belowselectasuitable
positioninwhichtomounttheheater
horizontally –useaspiritleveltoachieve
this.
3. Checkthewall toensurethere is nowiring,
pipewiresetcintheareatobedrilled.Drill
8ormore holes(8mmdiameter&40mm
depth)usingasuitablesizedrill andputthe
wall plugs into theholes.
4. Takeoutt hehangerfromthefireplaceby
unscrewthescrew.Referringto Fig.2.
5. ReferringtoFig.3，fixthehangertothe
wall.
6. Referringto Fig.4，avoid fireplaceto move,
usescrewfixfireplaceto wall.
Warning!
Besurethattheboltshavebeenfixed
firmlyenoughtowithstand theweight
Fig. 1
Fig. 2
Fig.3
Fig. 4

13
INSTALLATION-BUILT-IN
1. Selectalocationthatis notproneto
moisture and is locatedatleast0.91mor3
feetawayfromcombustiblematerialssuch
ascurtainsordrapes, furniture,bedding,
paper,etc.
2. Markthedesiredlocationonthefloorand
store applianceinasafe,dryand dustfree
location.
3. Prepare awallwithaframedopeningto
accommodatethesizeofyourunit.Leaveat
least1/ 4 ”(6mm)aroundtheedgeofthe
appliance.Anynewwiringmustbedonein
compliancewithlocal and national codes
and otherapplicableregulations.
Note:Fireplacemuststickout ofthewall a
minimumof1/ 2 ”or1.5 cm.
Priorto installingtheappliance,testto make
suretheapplianceoperatesproperlyby
pluggingthepowersupplycordintoa
convenientlylocated120Volt grounded
outlet.
Theroughwall openingsizeofthefireplace:
W(“) D(“) H(“)
WM -FM -26-3623-BG 27 6 1/2 20 1/2
WM -FM -34-4423-BG 35 6 1/2 20 1/2
WM -FM -48-5823-BG 49 6 1/2 20 1/2
WM -FM -60-7023-BG 60 5/8 6 1/2 20 1/2
WM -FM -72-8123-BG 721/2 6 1/2 20 1/2
WM -FM -88-10023-BG 89 1/ 2 6 1/2 20 1/2
1. Takethe frontglass offfromthe unit.Putthe
bracketson the bothsidesand top ofthe fireplace
asshown blew.
2. Lift fireplaceand insertint oopening.
3. Makesuret hatthepowersupplyportisnot
behindthewall.
4. Levelthefireplace.
5. Drivemountingscrewsintothemounting
bracketsontheunit and t hewall studs.
6 Replace glass and plug in back-lighting.
LED. See page 11.

14
HARD-WIRE INSTALLATION
Turnofftheappliancecompletelyand let coolbeforeservicing.Onlyaqualifiedserviceperson
should serviceandrepairthiselectricappliance.
If itis necessaryt ohardwiret hisappliance,aqualifiedelectricianmustremovet hecordconnection,
and wiretheappliancedirectlyto thehouseholdwiring.
This appliancemustbeelectricallyconnectedandgroundedinaccordancewith localcodes,ifhard
wired.Intheabsenceoflocal codes, usethecurrentCSA C22.1CANADIANELECTRICAL CODEin
Canadaort hecurrentANSI/ NFPA70 NATIONAL ELECTRICAL CODEintheUnited States.
1. Removethecoverplatefromtheleftsideoftheappliancebyremovingthetwoscrews, as
shownbelow.Unscrewand removepowercord.
2. Att achthewiringtothejunctionblock.Pleasemakesurethelivewiregoesintot he “L”,the
neutral wireinto “N”and thegroundwireinto “G”.
3. Puttheplatebackandscrew back.

15
MEDIAOPTIONS
Thefireplaceshipped with an emberlogset that
is pre-installed.Consumershavetheir choiceof
decorativemedia shouldt heywishtoinstall it.
Consumerschoosefrom “EMBER”or “ICE:”
decorativemedia.
Logset
HZ-12-EMBER
Fi-109-Diamond
DECORATIVEMEDIA INSTALLATION
Removing thelog
Unplugtheunitfromwall and makesure
controls areswitchedoff.
Unscrewtwoscrewsbothhandsidetotakeoff
thefrontglass.Thelogisshippedinplace.The
loghastabsoneachsidethatholditsecure.
Therearetwoscrewstofixthesidepanel.
Unscrewthescrewstoremovethesidepanels.
Removebothsidepanelstoremovethelogset.
Screwbackthesidepanels afterremovethelog
set.
Installing thedecorativemedia
Pourthefireglass media intothetray.Feelfree
touseanycombinationoffire glass mediathat
youfind mostappealing.Put backthefront
glass afteryoufinish install thefire glass.

16
OPERATION
Thefireplacecanbeoperatedeitherbytheswitcheslocatedontheleft bot tomofthefireplaceunit
orbysuppliedremotecontrol.
Plugt hefireplaceintoa15 Amp wall socket.
MANUAL OPERATION
1. ThemainpowerON/ OFFswitchinpositionO,thefireplaceis OFF.
2. WhenmainpowerON/OFF switchis at position I,thefireplaceis readyto use.
3. Press the buttonrepeatedlytosettheheatertodesiredheatsetting.Theheaterindicator
LED will glowwhichshowst hecurrent heatersettings.
a) RED 1500WHEAT OUTPUT
b) BLUE750WHEAT OUTPUT
c) PURPLEAUTOM ODE
AUTO MODE
Underthis modetheheaterwill automaticallyturnONathighheatsetting1500Wheatoutputwhen
theroomtemperature dropsbelow22 (72 ℉). Whentheroomtemperatureis between
22-25 (72-77 ℉)t heheateroutput will switchtolowheatsetting750W.Whentheroom
temperature goesabove25 (77℉)theheaterwill beturnedoff andthecyclewill continue.The
LED indicatorwill bePURPLEincolourunderthis mode.
4. Flameeffect:Press thebut tonmarked toadjusttheflamebrightness.Theflamebrightness
will cyclethrough –Low-Medium-High-OFF.
5. Moodlight effect:Press thebuttonmarked to changethemoodlight colour.
NOTE: IfoperatedattheLowheatsetting,thefireplacewill notprovideasmuchheatoutputasin
theHighheatsetting,howeverthelowsettingwill notrequireasmuchelectrical powertooperate.
Toavoidoverloadingacircuit,donotplugthefireplaceintoacircuitthatalreadyhasother
appliancesworking.When thefireplaceis not in useswitchoff andunplug.
SAFETYCUT-OFF
lThis applianceis fittedwith asafetycut-offwhichwill operateifthefireplaceoverheats(eg.Due
toblockedairvent s). Forsafetyreasons, thefireplacewill NOT aut omaticallyreset.
lToresettheappliance,disconnecttheappliancefromthemainsupplyforatleast10 minutes.
Reconnectthesupplytothemainand switchontheappliance.

17
REMOTE CONTROL OPERATION
Forremotetofunctionmakesure theheaterispluggedinandmainpowerswitchlocatedonthe
bottomleft handsideis at position I.
Whenoperatingt heremotemakesureyoupointtheremotetothecentreofthefireplaceand make
sure eachtimeyoupress thebuttonthebuzzerinsidet heunitwill beeponce.Ittakessometimefor
thereceivertorespondtothetransmitter.DonotPRESS thebuttonsmoret hanoncewithintwo
secondsforcorrectoperation.
Poweron button:Thepower-onbutt onattopleftcorneroftheremoteis themainON/ OFF
powerbutton.This will turnoff all thefunctionsand thefireplacewill bein standbymode.
DISPLAYON/ OFFbutton:SwitchingthefireplaceflameandtraylightON/ OFF.Ithasfunctionsof
settingmemory.
DISPLAYBLUEbutton:Adjustthebluecolorbrightness offlameandtray.
DISPLAYYELLOW button:Adjusttheyellowcolorbright ness offlameand tray.
DISPLAYORANGEbutton:Adjusttheorangecolorbrightness offlameand tray.
MOODLIGHTON/ OFFbutton:Switchingthemood light ON/ OFF.
ADJUST button:Switchingthecolorofthemoodlight.
FLASHbutton:Switchesthemood light into flashmode,t his cyclesthrough all mood light colors.
HEATERON/ OFFbutton:SwitchingtheheaterON/OFF.Ithasfunctionsofsettingmemory.
HIGHTbutton:Pressthehighbuttontoswitchtheheatertohighheat setting1500W.
LOW button:Press t helowbuttontoswitchtheheaterto low heatsetting750W.
TEMP.button:PresstheTEMP.buttontoswitchtheheatertoAUTOmode.Underthismodet he
heaterwill operatein similar wayasexplainedaboveforthemanual operation.

18
INSTALLINGWALL THERMOSTAT
WALL THERM OSTATW IRING DIAGRAM S
NOTE:THEWALL THERM OSTATWILL WOKINGWHENTHEHEATERONTEMP.SETTING.PLEASE
REEFERTOTHEMANUALCONTROLAND THEREMOTECONTROL.
Wirethewallthermostat prior toinstallingthefireplace.
WALL THERM OSTATW IRING(24VAC)
Install Wall Thermostat per instructionsprovided withkitandperthefollowinginformation:
1. Turn off circuitbreaker.
2. Removecoverplatelocatedontheleftsideofappliance.
3. Pull thewire outandcuttheinsidethermostat.Connectthewirestothewall t hermostatas
shownbelow.Followinstructionsprovidedwit h wall switchkit.

19
REPLACEMENTPARTS
PARTNUM BER
NO
WM-FM-26-
3623-BG
WM-FM-34-
4423-BG
WM-FM-48-
5823-BG
WM-FM-60-
7023-BG
WM-FM-72-
8123-BG
WM-FM-88-
10023-BG
DESCRIPTION
QTY.
1 FIREPLACE BOX 1
2 301506 REMOTE RECEIVER 1
3 601092C CIRCUITBOARD 1
4 10104010 SWITCH 1
5 601036 CONTROL PANEL 1
6 TOPPANEL 1
7 602082 BLOWERANDHEATER
ASSEMBLY
1
8 1070117 1070117 1070117 1070117 BACKBLACKPLASTICGLASS 1
9 3117505 BLOWERM OUNT 1
10 GLASS BRACKET 2
11 LEDBRACKET 1
12 10702143 10702144 10702145 10702164 10702146 10702165 BOTTOM GLASS 1
13 10101225 FLAMEMOTOR 1
14 3093502 3094502 3095502 3120502 3096502 3122502 FLICKERASSEM BLY 1
15 BOTTOM GLASS HOLDER 1
16 10103007 POWERCORD 1
17 BOTTOM PANEL 1
18 601136B 601136B+60
1137B
601136B 601136B+60
1137B
601137B 601136B+60
1137B
FLAMELEDSTRIP
19 601136B 601137B 601136B 601136B+60
1137B
601137B 601136B+60
1137B
TRAYLEDSTRIP
10701203 10701204 10701205 10701206 10701207 10701208 FRONTGLASS(CLEAR)
21 10105063 REMOTE

20
EXPLODEDVIEW
