Ambient Weather WS-2700 User manual

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 1
WS-2700Advanced Wireless Weather
Station User Manual
Table of Contents
1Introduction............................................................ 3
1.1 Features ................................................................ 4
2Quick Start Guide................................................... 5
3Getting Started........................................................ 5
3.1 Parts List........................................................ 6
3.2 Recommend Tools ......................................... 7
3.3 Thermo-Hygrometer Sensor Set Up.............. 7
3.4 Display Console........................................... 10
3.4.1 Display Console Layout.............................. 10
3.4.2 Display Front and Back View.................. 12
3.4.3 Display Console Set Up........................... 13
3.5 Sensor Operation Verification...................... 16
3.6 Sensor Placement......................................... 17
3.7 Best Practices for Wireless Communication 19
4Console Operation................................................ 20

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 2
4.1 Set Mode...................................................... 21
4.1.1 Time Zones.............................................. 24
4.2 Barometric Pressure..................................... 25
4.2.1 Barometric Pressure History.................... 25
4.2.2 Relative Pressure Calibration .................. 26
4.2.3 Relative vs.Absolute Pressure................. 26
4.3 Dew Point.................................................... 27
4.4 Multiple Channel Selection and Scroll Mode
27
4.5 Alarms ......................................................... 28
4.5.1 View Alarm Time .................................... 28
4.5.2 Time Alarm Settings Mode...................... 28
4.5.3 Cancelling the Alarm............................... 29
4.5.4 Low TemperatureAlarm.......................... 30
4.6 Calibration................................................... 30
4.7 Max/Min Mode............................................ 34
4.8 Other Console Features................................ 35
4.8.1 Display Brightness................................... 35
4.8.2 Weather Forecasting ................................ 35
4.8.3 Weather Forecasting Description and

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 3
Limitations............................................................ 36
4.8.4 Moon Phase............................................. 37
4.8.5 Pressure TendencyArrows ...................... 39
4.8.6 Rate of Change of Pressure Graph........... 39
4.8.7 Resynchronizing Lost Sensor.................. 40
4.8.8 Factory Reset........................................... 41
5Glossary of Terms................................................. 42
6Specifications ....................................................... 43
6.1 Wireless Specifications................................ 43
6.2 Measurement Specifications........................ 44
6.3 Power Consumption........................................... 45
7Troubleshooting Guide......................................... 45
8Accessories........................................................... 48
9Liability Disclaimer.............................................. 49
10 FCC Statement................................................. 50
11 Warranty Information....................................... 51
12 California Prop 65............................................ 53
1Introduction
Thank you for your purchase of the Ambient Weather

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 4
WS-2700 Wireless Weather Station. The following user
guide provides step by step instructions for installation,
operation and troubleshooting. To download the latest
manual and additional troubleshooting tips, please visit:
https://help.ambientweather.net/product/ws-2700
1.1 Features
The WS-2700 features:
•Wireless outdoor and indoor humidity (%RH)
•Wireless outdoor and indoor temperature (°F
or °C)
•Records min. and max. humidity
•Records min. and max. temperature
•Barometric pressure (inHg or hPa)
•Weather forecast
•Radio controlled (WWVB) automatic date and
time or manual date and time
•12 or 24-hour time display
•Perpetual calendar
•Time alarm with snooze
•Moon phase
•LED backlight
•Wall hanging or free standing
•Supports up to three wireless remote sensors

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 5
•Optional AC adapter
2Quick Start Guide
Step
Description
Section
1
Power up Remote Sensor
3.3
2
Power Up Display Console
3.4
3
Set Up or Program Display Console
4.1
4
Install Sensor
3.6
5
Calibrate Barometer
4.2 and
4.6
3Getting Started
The WS-2700 weather station consists of a display
console (receiver) and a thermo-hygrometer sensor.
Note: The power up sequence must be performed
in the order shown in this section (remote transmitter
first, display console second) to properly synchronize the
remote sensor to the console.

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 6

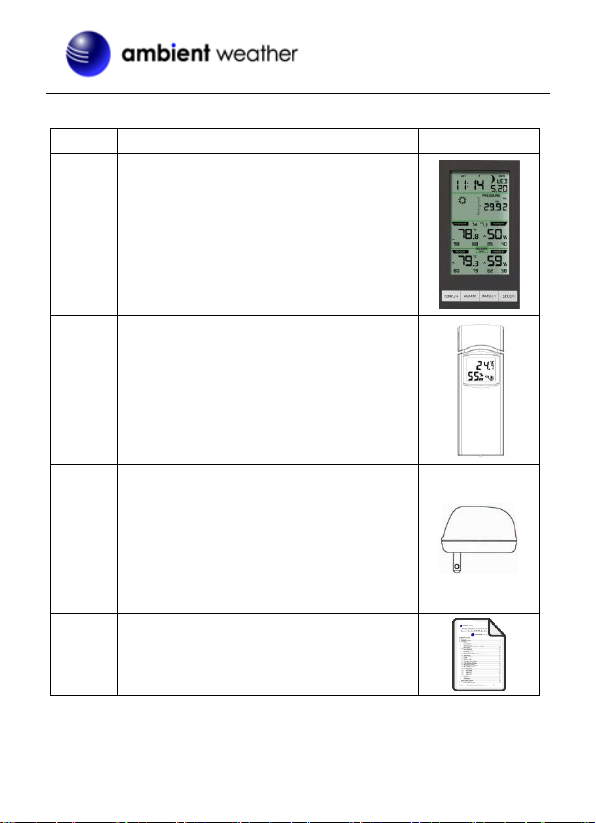

3.1 Parts List
QTY
Item
1
Display Console (WS-2700-C)
Frame Dimensions (LxHxW):
6.36 x 3.39 x 0.86”
(161.5 x 86 x 21.5 mm)
1
Thermo-hygrometer transmitter
(WH32M)
Dimensions (LxHxW): 4.80 x
1.57 x 0.71”
(122 x 40 x 18 mm)
1
Optional Power Adapter
(included with WS-2700-AC,
sold separately with the
WS-2700).
1
Manual
Figure 1

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 7
3.2 Recommend Tools
•Hammer and nail for hanging remote
thermo-hygrometer transmitter.
3.3 Thermo-Hygrometer Sensor Set Up

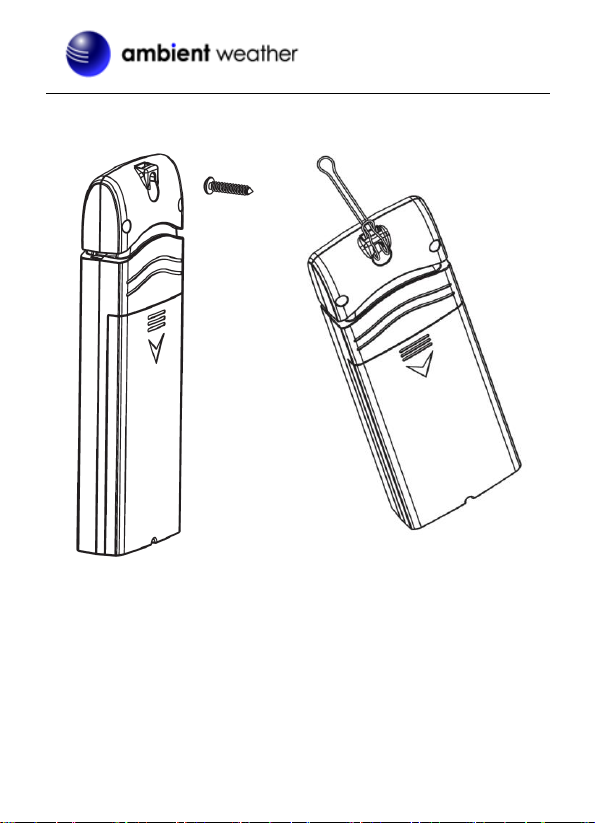

Remove the battery door on the back of the sensor, as
shown in Figure 2.
Figure 2

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 8
1. BEFORE inserting the batteries, switch the
channel switch to the appropriate channel. If
you have one sensor, set the switch to Channel 1.
If you have two sensors, set the second sensor to
Channel 2. If you own three sensors, set the
third sensor to Channel 3.
2. To change the temperature units of measure,
press the ºC/ºF button.
3. Insert two AA batteries.
4. After inserting the batteries, the remote sensor
will display temperature and humidity and
channel number on the display, as shown in
Figure 3.

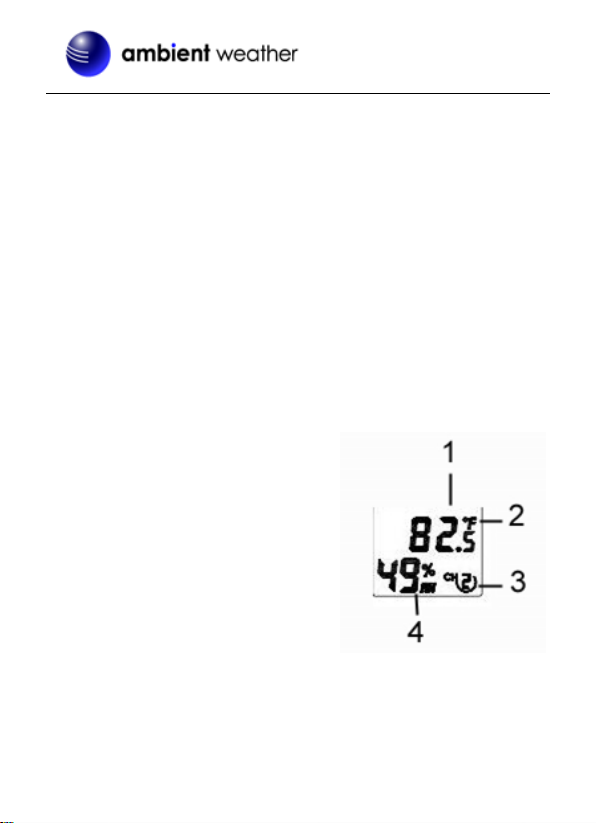

1Temperature
2Temperature Units of
Measure
3Channel Number
4Humidity
Figure 3
5. Close the battery door.

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 9
Note: We recommend lithium batteries for cold
weather climates, but alkaline batteries are sufficient
for most climates. We do not recommend
rechargeable batteries. They have lower voltages, do
not operate well at wide temperature ranges, and do
not last as long, resulting in poorer reception.
Note: If the incorrect channel number is selected,
change the channel number switch on the back of
the sensor, and remove and reinsert the batteries for
the change to take effect.

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 10
3.4 Display Console
3.4.1 Display Console Layout
The display console layout is shown in Figure 4.
Figure 4
1. Time
2. Weather forecast icon
based on barometer
14. Min outdoor humidity
3. Transmitter signal
strength
15. Outdoor humidity

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 11
4. Outdoor temperature
16. Sensor channel number
5. Max outdoor
temperature
17. Barometric pressure trend
arrow
6. Min outdoor
temperature
18. Barometric pressure
7. Indoor temperature
19.Pressure rate of change
8. Max indoor temperature
20. Date
9. Min indoor temperature
21. Week day
10. Max indoor humidity
22. Moon phase
11. Min indoor humidity
23. Alarm
12. Outdoor humidity
24. Radio controlled reception
13. Max outdoor humidity
25.Daylight Savings Time

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 12

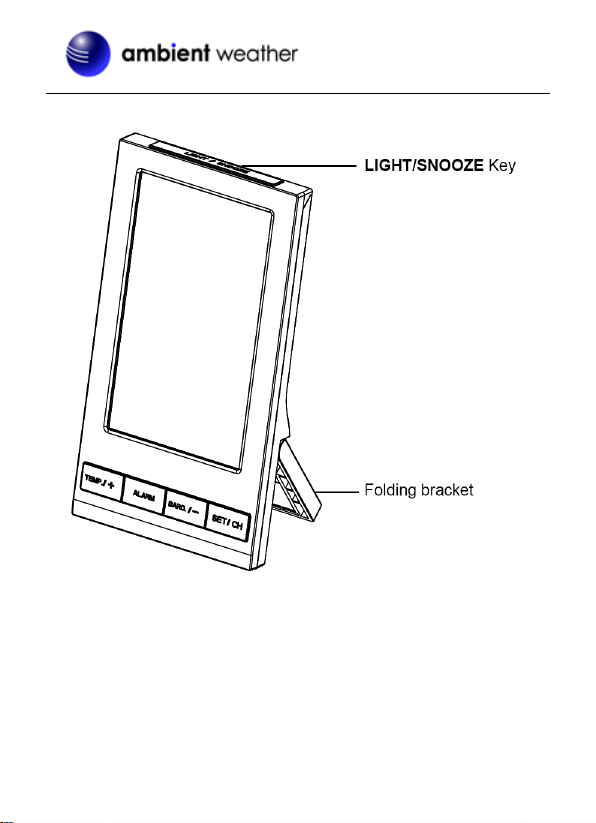

3.4.2Display Front and Back View

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 13
Figure 5
3.4.3 Display Console Set Up
Place the wireless thermo-hygrometer sensor about 5 to
10 feet away from the display console (if the sensor is
too close, it may not be received by the display console).
1. Remove the battery door on the back of the display.
Insert three AAA (alkaline or lithium, avoid
rechargeable) batteries in the back of the display

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 14
console. Looking at the back of the unit (left to
right), the polarity is (-) (+) for the top battery, (+) (-)
for the middle battery and (-) (+) for the bottom
battery. The LCD display will beep once and then
light up. The brightness selection is set to high when
plugged into the adapter.
Note: To avoid permanent damage, please
take note of the battery polarity before inserting
the batteries.
2. Replace the battery door, fold out the desk stand and
place the console in the upright position, as shown in
Figure 5.
Note: The backlight will remain on for 5
seconds when on battery power only. The back-light
will remain on continuously with the optional AC
adapter.
3. After initialization, the console will instantly display
indoor temperature, humidity, barometer, moon
phase, date and time. The remote search icon will

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 15
turn on：
Do not touch any buttons until the remote sensor
reports in, otherwise the remote sensor search mode
will be terminated, and the search icon will turn off.
When the remote sensor data has been received, the
console will automatically switch to the normal
mode, and all further settings can be performed.
3.4.4 Radio Controlled Clock (RCC)
Your console is equipped with the Radio Controlled
Clock (RCC). The icon WWVB will appear above the
time to signify this.
The RCC is received by the wireless transmitter, and
passed to the console. After the remote sensor is powered
up, the sensor will transmit weather data for 30 seconds,
and then the sensor will begin radio controlled clock
(RCC) reception.
During the RCC time reception period (maximum 10
minutes), no weather data will be transmitted to avoid
interference.

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 16
If the signal reception is not successful (normally during
the day due to solar interference), the sensor search will
be cancelled, the outdoor temperature and humidity will
update as normal, and the RCC search will automatically
resume every two hours until the signal is successfully
captured. The regular RF link will resume once RCC
reception routine is finished. In some locations, RCC
reception may take a few days to receive the signal. The
temperature and humidity data will continue to transmit
during this period.
Once the radio controlled time is received, the RCC
reception icon will turn on (reference Figure 4).
3.5 Sensor Operation Verification
Verify the indoor and outdoor humidity match closely
with the console and sensor array in the same location
(about 10’ apart). The sensors should match within a few
percentage points (the accuracy is ± 5%). Allow about
30 minutes for both sensors to stabilize.
Verify the indoor and outdoor temperature match closely
with the console and sensor array in the same location
(about 10’ apart). The sensors should match within a few
degrees (the accuracy is ± 2°F). Allow about 30
minutes for both sensors to stabilize.

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 17
3.6 Sensor Placement
It is recommended you mount the remote sensor outside
on a north facing wall, in a shaded area, at a height at or
above the receiver. If a north facing wall is not possible,
choose a shaded area, under an eve.
Direct sunlight and radiant heat sources will result in
inaccurate temperature readings. Although the sensor is
weatherproof, it is best to mount in a well-protected area,
such as an eve.
1. Use a screw or nail to affix the remote sensor to the
wall, as shown in Figure 6.
2. Hang the remote sensor up on string, as shown in
Figure 7.
3. Note: Make sure the sensor is mounted
vertically and not lying down on a flat surface. This
will insure optimum reception. Wireless signals are
impacted by distance, interference (other weather
stations, wireless phones, wireless routers, TVs and
computer monitors), and transmission barriers, such
as walls. In general, wireless signals will not
penetrate solid metal and earth (down a hill, for

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 18
example).
Figure 6
Figure 7

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 19
3.7 Best Practices for Wireless
Communication
Wireless communication is susceptible to interference,
distance, walls and metal barriers. We recommend the
following best practices for trouble free wireless
communication.
1. Electro-Magnetic Interference (EMI). Keep the
console several feet away from computer monitors and
TVs.
2. Radio Frequency Interference (RFI). If you have
other 915 MHz devices and communication is
intermittent, try turning off these other devices for
troubleshooting purposes. You may need to relocate the
transmitters or receivers to avoid intermittent
communication.
3. Line of Sight Rating. This device is rated at 300 feet
line of sight (no interference, barriers or walls) but
typically you will get 100feet maximum under most
real-world installations, which include passing through
barriers or walls.
4. Metal Barriers. Radio frequency will not pass through
metal barriers such as aluminum siding. If you have metal
siding, align the remote and console through a window to
get a clear line of sight.
The following is a table of reception loss vs. the

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved.
Page 20
transmission medium. Each “wall” or obstruction
decreases the transmission range by the factor shown
below.
Medium
RF Signal Strength
Reduction
Glass (untreated)
5-15%
Plastics
10-15%
Wood
10-40%
Brick
10-40%
Concrete
40-80%
Metal
90-100%
4Console Operation
Note: The console has four keys for easy operation:
TEMP/+ key, ALARM key, BARO/- key and
SET/CH/CH key. There are four program modes: Set
Mode, Alarm Mode, Calibration Mode and Min/Max
Mode.
Any program mode can be exited at any time by either
pressing the SNOOZE/LIGHT key (on the top of the
display console), or waiting for the 30-second time-out
to take effect.
