AMCI 1141 User manual

20 Gear Drive, Plymouth Industrial Park, Terryville, CT 06786 page: 1
Tel: [phone] Fax: [phone] Web: www.amci.com
1141 and 1142, Manual
One and Two Channel 1762 I/O Resolver Interface Modules
Revision 2.0
Module Overview
Utilizing licensed Allen-Bradley interface technology, these Resolver Interface Modules can be added as
expansion modules to Rockwell Automation’s MicroLogix 1100, 1200, and 1400 rack systems.
The 1141 is a one channel module that can be connected to one resolver, and the 1142 is a two channel
module that can be connected to either two independent single resolver transducers or a single dual resolver
transducer.
Both the 1141 and 1142 modules have an input that can be configured for stop time monitoring (channel 1
only), to capture the current position, or to offset the current position to a previously programmed preset value
(channel 1 only). This input will operate at either at 24Vdc or 120Vac.
These modules have the additional ability to be programmed to interface to Autotech and standard Gemco
resolvers that have a transformation ratio of 1.4.
Prior to serial number 03180001, only the now obsolete 1141A and 1142A
modules could be programmed to be compatible with resolvers that have a
transformation ratio of 1.4.

20 Gear Drive, Plymouth Industrial Park, Terryville, CT 06786 page: 2
Tel: [phone] Fax: [phone] Web: www.amci.com
1141 and 1142, Manual
One and Two Channel 1762 I/O Resolver Interface Modules
Revision 2.0
Table of Contents
General Information 2
Installing the 114X Module Chapter 1 4
Installing the Hardware 4
MicroLogix 1500 Configuration 5
Module Specifications Chapter 2 6
Module Specifications 6
Front Panel & LED Functions 7
Connector Pinout 7
Input 9
Transducer Wiring 9

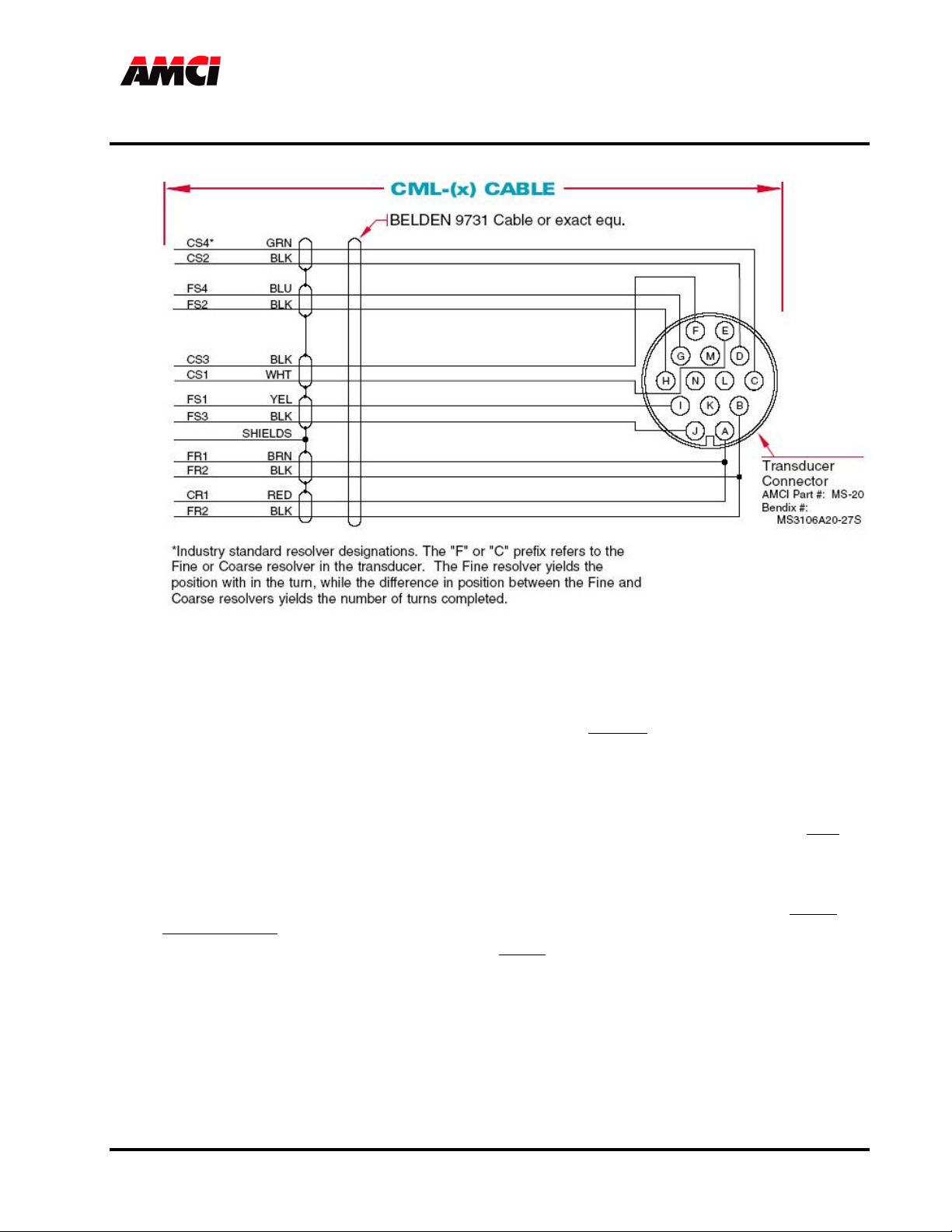

CTL-X & CML-X diagrams 9
Wiring Notes 10
Programmable Parameters Chapter 3 11
Apply Preset 11
Count Direction 11
Transducer Fault Latch 11
Tachometer Response 11
Tachometer Units 12
Disable Channel 2 12
Reference Voltage Frequency 12
Resolver Type 12
Input Functionality 13
Input Polarity 13
Full Scale Count 13
Preset Value 13
Transducer Type 14
Number of Turns 14
Backplane Programming Chapter 4 15
Programming Cycle 15
EEPROM Parameter Memory 15
Input Registers 16
Status Word 17
Output Registers 20
Control Word 21
Setup Word 21
Manual Revision History Chapter 5 22

20 Gear Drive, Plymouth Industrial Park, Terryville, CT 06786 page: 3
Tel: [phone] Fax: [phone] Web: www.amci.com
1141 and 1142, Manual
One and Two Channel 1762 I/O Resolver Interface Modules
Revision 2.0
General Information
Important User Information
The products and application data described in this manual are useful in a wide variety of different
applications. Therefore, the user and others responsible for applying these products described herein are
responsible for determining the acceptability for each application. While efforts have been made to provide
accurate information within this manual, AMCI assumes no responsibility for the application or the
completeness of the information contained herein. Throughout this manual the following two notices are used
to highlight important points.
WARNINGS tell you when people may be hurt or equipment may be damaged if the procedure is not
followed properly.
CAUTIONS tell you when equipment may be damaged if the procedure is not followed properly. No patent
liability is assumed by AMCI, with respect to use of information, circuits, equipment, or software described in
this manual. The information contained within this manual is subject to change without notice. UNDER NO
CIRCUMSTANCES WILL ADVANCED MICRO CONTROLS, INC. BE RESPONSIBLE OR LIABLE
FOR ANY DAMAGES OR LOSSES, INCLUDING INDIRECT OR CONSEQUENTIAL DAMAGES OR
LOSSES, ARISING FROM THE USE OF ANY INFORMATION CONTAINED WITHIN THIS MANUAL,
OR THE USE OF ANY PRODUCTS OR SERVICES REFERENCED HEREIN.
Standard Warranty
ADVANCED MICRO CONTROLS, INC. warrants that all equipment manufactured by it will be free from
defects, under normal use, in materials and workmanship for a period of [18] months. Within this warranty
period, AMCI shall, at its option, repair or replace, free of charge, any equipment covered by this warranty
which is returned, shipping charges prepaid, within 18 months from date of invoice, and which upon
examination proves to be defective in material or workmanship and not caused by accident, misuse, neglect,
alteration, improper installation or improper testing. The provisions of the “STANDARD WARRANTY” are
the sole obligations of AMCI and excludes all other warranties expressed or implied. In no event shall AMCI
be liable for incidental or consequential damages or for delay in performance of this warranty.
Returns Policy
All equipment being returned to AMCI for repair or replacement, regardless of warranty status, must have a
Return Merchandise Authorization number issued by AMCI. Call [phone] with the model and serial
numbers along with a description of the problem. A “RMA” number will be issued. Equipment must be
shipped to AMCI with transportation charges prepaid. Title and risk of loss or damage remains with the
customer until shipment is received by AMCI.
24 Hour Technical Support Number
Technical Support, in the form of documents, FAQs, and sample programs, is available from our website,
www.amci.com. 24 Hour technical support is also available on this product. For technical support, call (860)
583-7271. Your call will be answered by the factory during regular business hours, Monday through Friday,
8AM - 5PM EST. During non-business hours, an automated system will ask you to leave a detailed message
and the telephone number that you can be reached at. The system will page an engineer on call. Please have
your product model number and a description of the problem ready before you call.

20 Gear Drive, Plymouth Industrial Park, Terryville, CT 06786 page: 4
Tel: [phone] Fax: [phone] Web: www.amci.com
1141 and 1142, Manual
One and Two Channel 1762 I/O Resolver Interface Modules
Revision 2.0
Chapter 1: Installing the 114X module
WARNING Disconnect power before attempting to install or remove the 114X module.
Chapter 1: Installing the 114X module
1. Verify that your system’s power supply has adequate reserve current capacity. The 114X module
requires 45mA at +5Vdc and 48mA @24Vdc.
2. The 114X module is not hot swap capable, power must be removed before removing or installing any
module.
3. The 114X can be mounted on the following DIN Rails
EN 05 022 – 35 X 7.5 (35 X 7.5 mm)
EN 05 022 – 35 X 15 (35 X 15 mm)
4. Close the DIN rail latch on the module before mounting the module on the rail.
5. Press the DIN rail mounting area of the module against the rail. The latch will open as you install the
module and will snap into place when the module is properly seated on the DIN rail.
6. The communication bus is carried between the modules through the ribbon cable attached to every
module.
7. If necessary, remove the bus connector cover from the PLC and or from the module that the 114X
will be connected to.
8. Use the pull loop on the connector to plug the ribbon cable from the 114X into either the module or
the PLC directly to the left of 114X module.
9. Reinstall the bus connector cover.
10. It is very important to use the pull loop to disconnect modules. Pulling on the ribbon cable may
damage the cable or the module.
Disconnect power before attempting to install or remove the
114X module

20 Gear Drive, Plymouth Industrial Park, Terryville, CT 06786 page: 5
Tel: [phone] Fax: [phone] Web: www.amci.com
1141 and 1142, Manual
One and Two Channel 1762 I/O Resolver Interface Modules
Revision 2.0
Configuring a MicroLogix PLC for the 114X module
1. Open or create the RSLogix 500 project in which you want to use the 114X module.
2. Double click on I/O Configuration in the project tree.
3. Select the slot where the 114X module will be installed.
4. Double click on “Other.. Requires I/O Card Type ID” from the bottom of the list of available
modules.
5. Enter the following information in the window that appears.
Vendor ID: 3
Product Type: 9
Product Code: 26
Series/Major Rev/Min Rev: A
Input Words: 8
Output Words: 8
Input Bits: 0
Output Bits: 0
Extra Data Length: 0
Ignore Configuration Error: Your Choice, but not recommended
6. The 114X module will now appear in the I/O Configuration with a Part Number of Other and a
Description of I/O Module – ID Code = 26
7. Input Data (data from the 114X module to the PLC) will appear in Input Image Table registers
I:X.0 to I:X.7, where X is the slot number.
Output Data (data from the PLC to the 114X module) will be written to registers O:X.0 to O:X.7,
where X is the slot number.

20 Gear Drive, Plymouth Industrial Park, Terryville, CT 06786 page: 6
Tel: [phone] Fax: [phone] Web: www.amci.com
1141 and 1142, Manual
One and Two Channel 1762 I/O Resolver Interface Modules
Revision 2.0
Chapter 2: Module Specifications
Power Requirements
45mA @5Vdc
48mA @ 24Vdc typical
80mA @24Vdc with reference voltage shorted
Default Reference Voltage
1.35Vrms 5kHz
Throughput Time :
Reference Voltage
Frequency
Position
Update
Backplane
Update
5KHz 200
µ
s 1ms
2.5kHz 400
µ
s 1.2ms
Compatible Transducers
The 1141 module is compatible with one AMCI single resolver based transducer, including the HT-20 series,
the H25-XX series, and the HT-20-X series transducer. The 1142 module is compatible with any two single
resolver transducer, or one of the HTT-20-X dual resolver multiturn series where X can be 100, 180, 1000 or
1800 turns. The use of other transducers may also be supported with the use of AMCI RM reference
modules. Please visit our website, www.amci.com for more information on these resolver transducers. Click
on www.amci.com/resolvers.asp for a direct link to page containing the resolver information.
The 1141 and 1142 can also be programmed to work with resolvers that have a Transformation Ratio of 1.4.
The 1142 module can be programmed to work with Autotech RL210 128 turn transducers.
Programmable Parameters
Apply Preset Input Polarity
Full Scale Count Resolver Type
Preset Value Disable Channel 2 (1142 only)
Count Direction Reference Voltage Frequency
Tachometer Response Transducer Type (dual resolver transducers only)
Transducer Fault Latch Number of Turns (dual resolver transducers only)
Input Functionality Tachometer units (1RPM or 0.1RPM)
Data Transfer
Data updated automatically during program scan. Programming the module is accomplished with a
Programming Cycle, which uses two handshaking bits (Transmit and Acknowledge).
Data Available to Processor
Status Bits, Position Data, Tachometer Data (in RPM or 0.1 RPM) (both channels)
Stop Time and Brake Applied Position (channel 1 only)
Captured current position

20 Gear Drive, Plymouth Industrial Park, Terryville, CT 06786 page: 7
Tel: [phone] Fax: [phone] Web: www.amci.com
1141 and 1142, Manual
One and Two Channel 1762 I/O Resolver Interface Modules
Revision 2.0
Program Storage
EEPROM. Endurance of 100,000 write cycles.
Environmental Conditions
Operating Temperature: 0 to 60° C
Relative Humidity: 5 to 95% (non-condensing)
Storage Temperature: -40 to 85° C
Front Panel & LED Function
114X Front Panel and LED Function
Connector Pinout
The input and sensor signals are brought into the 1141 and 1142 modules through a 10-pin connector.
Power : Module has power and communicating with the PLC
Status 1 & 2 LEDs
LED Pattern Meaning
Solid Green No Faults (Resolver Transducer and cable are OK)
Blinking Green Clearable transducer fault
Blinking Red Non-Clearable transducer fault
Status 2: The Status 2 LED will be off on 1141 modules, and when an 1142 module has been
configured to work with dual resolver transducers, or when channel 2 has been disabled.
Status 1: Additional Error Codes (The Status 2 LED will be off.)
•Long Red/Short/Off Shorted Reference Voltage
•Solid Red EEPROM Data Error (The module can still be used but it will
always power up with the factory defaults.)
•Long and 1 Short Failure to initialize communication with ASIC
•Long and 2 Short Communication with ASIC lost
•Long and 3 Short Incorrect or unexpected data from ASIC
•Long and 9 Short Power up hardware test failed (EEPROM/Digital Pot.)
AMCI
Resolver
Interface
Power
Status 1
Status 2
No Connection (2)
No Connection (4)
R2 (6)
Cable Shields & Earth Ground (8)
Input (9)
Input (10)
(1) S3
(3) S4
(5) S1 & S2
(7) R1
1141 Connector Wiring
Make the following
connections to simulate a
resolver at its 90 degree
point.
R1 (pin 7) to S3 (pin 1)
R2 (pin 6) to S4 (pin 3)

20 Gear Drive, Plymouth Industrial Park, Terryville, CT 06786 page: 8
Tel: [phone] Fax: [phone] Web: www.amci.com
1141 and 1142, Manual
One and Two Channel 1762 I/O Resolver Interface Modules
Revision 2.0
1142 Two Single Resolver Connector Wiring
1142 Dual Resolver Connector Wiring
1142 Dual Resolver Autotech 128 Turn Connector Wiring
S3 Channel 2 (2)
S4 Channel 2 (4)
R2 (Channel 1 & 2) & Channel 2 S1 & S2 (6)
Cable Shields & Earth Ground (8)
Input (9)
Input (10)
(1) S3 Channel 1
(3) S4 Channel 1
(5) S1 & S2 Channel 1
(7) R1 (Channel 1 and 2)
(1) CS3
(3) CS2
(5) CS1 and CS4
(7) CR1 and FR1
FS1 (2)
FS2 (4)
CR2, FR2, FS3, & FS4 (6)
Cable Shields & Earth Ground (8)
Input (9)
Input (10)
(1) CS1
(3) CS2
(5) CS3 and CS4
(7) CR1 and FR1
FS3 (2)
FS4 (4)
CR2, FR2, FS1, & FS2 (6)
Cable Shields & Earth Ground (8)
Input (9)
Input (10)
Make the following connections to simulate the resolvers of either channel at its 90 degree point. PLEASE NOTE,
ONLY ONE CHANNEL AT A TIME CAN BE SIMULATED.
Channel 1 = R1 (pin 7) to S3 (pin 1) and R2 (pin 6) to S4 (pin 3)
Channel 2 = R1 (pin 7) to S3 (pin 2) and R2 (pin 6) to S4 (pin 4)
C=Coarse Resolver
F=Fine Resolver
C=Coarse Resolver
F=Fine Resolver

20 Gear Drive, Plymouth Industrial Park, Terryville, CT 06786 page: 9
Tel: [phone] Fax: [phone] Web: www.amci.com
1141 and 1142, Manual
One and Two Channel 1762 I/O Resolver Interface Modules
Revision 2.0
Input
The two Input terminals accept a 24Vdc or a 120Vac signal across the two terminals. The input is
bipolar, that is, positive voltage can be applied to either pin. The input function is programmable and can
be selected to monitor the stopping time and brake applied position of channel 1, to capture the current
position, or to apply the preset of channel 1.
The input can be programmed to act on either the ON to OFF (power removed) or the OFF to ON (power
applied) transition of the input, with the default being the ON to OFF transition.
DC AC
On State 10 to 30Vdc 79 to 132Vac
Off State 0 to 2Vdc 0 to 2Vac
Current Draw 5mA @ 24Vdc 10mArms @ 120Vac
Pre made cables are available from AMCI. These cables come with a Bendix connector that mate with the
resolver transducer. The other end is pigtailed at the factory for easy connection to the 114X module’s
connector. These cables have a part number of CTL-X for single resolver transducers and CML-X for the
dual resolver transducers. In both cases, X equals the length in feet. The maximum CTL-X cable length is
500 feet.
The CTL-X cable shown below is used to connect an AMCI single resolver transducer to the 114X module.
Two of these cables will be needed to connect two AMCI resolvers to the 1142 module configured to use two
single resolver transducers.
If the input has been configured to Apply the Preset to the channel 1
position, each inactive to active transition of the input will count as one of
the EEPROM’s 100,000 write cycles.

20 Gear Drive, Plymouth Industrial Park, Terryville, CT 06786 page: 10
Tel: [phone] Fax: [phone] Web: www.amci.com
1141 and 1142, Manual
One and Two Channel 1762 I/O Resolver Interface Modules
Revision 2.0
The CML-X cable shown below is used to connect an AMCI Dual Resolver transducer to the 1142 module.
Wiring Notes:
•AMCI recommends the use of either the Beldin 9873 or 9730 or equivalent cables to connect the
single resolver transducers to the 114X module. While the Beldin 9730 can be used for cable runs of
between 1 and 500 feet, the 9873 can only be used for runs of less than 100 feet.
•Resolver signals are low voltage, low power signals. If you are using A-B guidelines for cabling
installation, treat the cable as a Category 2 cable. It can be installed in conduit along with other low
power cabling such as communication cables and low power ac/dc I/O lines. It cannot be installed in
conduit with ac power lines or high power ac/dc I/O lines.
•Like all signal and communication cable, the resolver cable should be shielded. These shields must be
grounded only at one end of the cable. Because the control cabinet is typically better grounded than
the machine, AMCI recommends that you attach the shields at the module end of the cable run.
•Shield pin 8 IS NOT connected to either the 114X module or to earth ground and is included as a
convenient place to land the shield wires. To drain the electronic noise away, a heavy wire MUST
ALSO BE RUN from the pin 8 to your earth ground bus.
•Treat the shields as conductors at any junctions. Do not ground the shields at the junction box.
•If the resolver cable must cross power feed lines, it should do so at right angles.
•Route the cable at least five feet from high voltage enclosures, or sources of “rf” radiation.
