American Flyer 2-8-8-2 User manual

20221050250
6/22
2-8-8-2
Steam Locomotive
Owner’s Manual
2-8-8-2
Steam Locomotive
Owner’s Manual

2
Thank You!
• 1 Locomotive
• 1 Tender
• 2 Replacement traction tires
• 1 Owner's manual
• 1 Smoke uid funnel
• 1 Side-rod screw wrench
Included with your locomotive
Thank you for your purchase of this American Flyer LEGACY steam locomotive! On the outside, this locomotive features numerous details and expert decoration in your favorite livery. Inside
the body, this locomotive is equipped with some of the most advanced sounds and controls in model
railroading. is powerful locomotive is ready for duty on your layout.
LEGACY® Control System
is revolutionary control system allows you to run your LEGACY®Control System-equipped
locomotive just like a real engineer runs his trains. With its enhanced sounds and 200 speed
steps, this system allows properly equipped engines to function with unparalleled options.
e CAB-2 Remote Controller has an LCD screen display, vibration that simulates the eort of
the locomotive, and other exciting operating features. e new CAB-IL Remote Controller is a
simplied alternative to unlock many LEGACY®features.
LEGACY® RailSounds®
Widely regarded as the industry standard, the impressive RailSounds®sound system
brings the real sounds of the railroad to your layout. From the mechanical symphony of the
locomotives, to the commotion of the station, you will be impressed by the digitally recorded
samples of these special and authentic sounds.
e following Lionel marks are used throughout this Owner’s Manual and are protected under law. All rights reserved.
Lionel®, TMCC®, LEGACY®, FasTrack®,TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™,
ElectroCoupler™, CAB-1®Remote Controller, Wireless Tether™, SensorTrack™, DynaChu™, MultiWhistle™

3
Table of contents
Locomotive basics
LEGACY Control operations 4
TrainMaster Command Control (TMCC/Command Control) operations 5
Conventional transformer operations 6
Adding smoke fluid to your locomotive's smoke generator 7-8
Locomotive switch locations 9
Assigning your locomotive a new ID# (LEGACY and TMCC) 10
Lash-ups (for LEGACY operation only) 11
LEGACY Control System operations
The LEGACY CAB-2 Remote Controller 12
The Velocity Throttle 13
The Multi-Controller 13
The Train Brake Slider 13
The Warning Sound Controller 14
The Speed Bar 14
EFX Trim and EFX Bar Graph 15
Leaving the Preset Speed Screen 15
LEGACY RailSounds Sound System operations
LEGACY RailSounds sound system 16
CrewTalk dialog and TowerCom announcements in the LEGACY environment 17
LEGACY RailSounds sound system dialog on a round trip 18
TrainMaster Command Control operations
CAB-1 Remote Controller commands 19
CAB-1 Remote Controller numeric keypad commands 20-21
Controlling the smoke level and cab lights 21
Conventional transformer operations
Using the LEGACY RailSounds sound system in the conventional environment 22
Activating CrewTalk dialog and TowerCom announcements 22
Locking your locomotive into a single direction 23
DCC operations
DC and DCC operation 23 24
DCC Mode Operating Features 24 25
Setting the locomotive address in DCC mode 24 25
Setting the consist position (CV50) in DCC mode 24 26
Lionel Specific CV settings 25-26 27
Maintaining and servicing your locomotive
Reprogramming your locomotive to restore features (LEGACY) 28
Reprogramming your locomotive to restore features (TMCC) 28
Lubricating your locomotive and tender 29-30
Servicing your locomotive’s LEDs 31
Replacing the traction tires 31
Lionel Warranty 32

4
Power your locomotive with an alternating-current (50-60Hz AC) transformer only.
Powering your locomotive with a direct-current (DC) transformer, or in excess of 19 volts
AC, may result in damage to sensitive electronic components.
Your locomotive requires curves that have a 36" or larger diameter, measured from center
point between rails to center point between rails.
Note!
Note!
Locomotive basics
1. Turn o track power, and then plug in the LEGACY
Base and connect it to the track.
2. Place your locomotive and tender on the track and con-
nect the drawbar.
3. Increase track power voltage to full power (no more
than 19 volts AC). If a circuit breaker trips when you turn
on the Lionel power supply, check the wheels of your locomo-
tive to make sure they are all securely on the track. Check to
make sure the track is free of all metals that may cause a short
circuit.
4. As illustrated in Figure 1, press ENG and 1 (or your
selected ENG ID#) to address the locomotive with your
LEGACY CAB-2 Remote Controller.
5. Press the Start Up button on your LEGACY CAB-2
Remote, shown in Figure 2. en, throttle up and move
'em out! Your engine sound will start up, and the locomotive-
specic touch screen buttons will populate the remote. For
more information on operating your locomotive with the
LEGACY system, please refer to the LEGACY section of this
manual. Additional information is also found in the LEGACY
System Manual, available online at www.lionel.com.
Figure 1. LEGACY engine selection
Figure 2. LEGACY start-up
LEGACY Control operations
For the nest operating experience, your locomotive is fully compatible with the LEGACY Control System.
To operate in LEGACY mode, you need a LEGACY Command Base and LEGACY CAB-2 Remote
Controller (6-14295).
Your commands are sent by the CAB-2 Remote Controller to the Command Base, which sends a digital code
through the rails to your locomotive. Your locomotive will not respond until it recognizes its unique ID#, so you
can operate multiple Command-equipped locomotives on the same track at the same time.

5
TrainMaster Command Control (TMCC) operations
For operation in the TrainMaster Command Control environment, you need a TrainMaster Command Base (6-12911) and a CAB-1 Remote Controller (6-12868). Refer to your TMCC
System Manual for complete information. To access all the locomotive's features, you must
operate in the LEGACY environment, as discussed on the previous page.
Your commands are sent by the CAB-1 Remote Controller to the Command Base, which trans-
lates the command into digital code. at code is sent through the outside rails to your locomotive,
which will not respond until it recognizes its unique ID#. TrainMaster Command Control gives you
the power to operate multiple Command-equipped locomotives on the same track at the same time.
1. Turn o track power, and then plug in the Command Base and connect it to the
track.
2. Place your locomotive and tender on the track and connect the drawbar.
3. Increase track voltage to full power (no more than 19 volts AC). If a circuit breaker
trips when you turn on the Lionel power supply, check the wheels of your locomotive to make
sure they are all securely on the track. Check to make sure the track is free of all metals that may
cause a short circuit.
4. Press ENG and 1 (or the ENG ID# you set) to address your locomotive with your
CAB-1 Remote Controller.
5. rottle up and move ‘em out.
For more information, please refer to the TrainMaster Command Control operations section of
this manual or the TMCC System Manual, available online at www.lionel.com.
Power your locomotive with an alternating-current (50-60Hz AC) transformer only.
Powering your locomotive with a direct-current (DC) transformer, or in excess of 19 volts
AC, may result in damage to sensitive electronic components.
Your locomotive requires curves that have a 36" or larger diameter, measured from center
point between rails to center point between rails.
Note!
Note!
Locomotive basics

6
Conventional transformer operations
For Conventional operation, a Command Base must not be powered up anywhere in the
area, even if it is not connected to the track. If a base is detected, your locomotive will
default to Command mode.
Power your locomotive with an alternating-current (50-60Hz AC) transformer only.
Powering your locomotive with a direct-current (DC) transformer, or in excess of 19 volts
AC, may result in damage to sensitive electronic components.
Your locomotive requires curves that have a 36" or larger diameter, measured from center
point between rails to center point between rails.
Set the smoke unit switch to the O position if you will be making multiple
direction changes to prevent overheating the smoke unit. See Figure 4 on page 9
for the location of this switch.
1. With track power o, place your locomotive on the track.
2. Power up the track (8-18 volts AC). Starting voltage will vary based on the locomo-
tive's load. If a circuit breaker trips when you turn on the Lionel power supply, check the
wheels of your locomotive to make sure they are all securely on the track. Check to make sure
the track is free of all metals that may cause a short circuit.
3. Move ‘em out! When the locomotive’s headlight illuminates and the LEGACY RailSounds
sound system starts, press the DIRECTION button on your transformer to sequence your loco-
motive through the repeating pattern of operations: neutral, forward, neutral, reverse, neutral,
and so on. You may also briey turn o track power to advance the locomotive to the next oper-
ating state. Adjust the throttle until your locomotive moves at your desired speed.
When placing your locomotive on your layout for the rst time and aer power interrup-
tions lasting longer than ve seconds, it will start out in neutral.
Use the HORN and BELL buttons on your transformer to activate those features. For more
information, please refer to the Conventional transformer operations section of this manual.
If the HORN and BELL buttons on your transformer appear to be reversed (i.e., trigger
the other sound), simply switch the wire connections at the transformer terminals.
Note!
Note!
Note!
Note!
Caution!
Note!
Locomotive basics

7
Refer to Figures 3a and 3b on page 8 as you add the smoke uid. If you prefer to operate your
Legacy Steam Locomotive without smoke, locate the smoke unit switch on top of the cab and slide it
to the OFF position. Refer to Figure 4 on page 9 for the location of the switch.
Adding fluid to your locomotive’s smoke generator
Note!
Your Legacy Steam Locomotive is equipped with two smoke generators that produce safe, clean, white smoke during operation. e smoke generators for this locomotive supply the stack and
whistle smoke eects. e reservoirs contain the uid and wicks which, once saturated, supply the
heating elements with the right amount of uid.
For best performance, we recommend using only Lionel Premium Smoke Fluid.
Locomotive basics
Note!
Stack Smoke
Loading smoke fluid into the smoke stack will provide smoke fluid for the stack smoke
effect. When adding fluid DO NOT EXCEED 20 DROPS as this can cause your smoke
unit to become oversaturated allowing leakage onto the electronics. Note that operating your
locomotive's smoke unit without smoke fluid will cause damage to the heating element. Add
20 drops initially and 10 to 20 thereafter, as required to maintain desired smoke.
Whistle Steam
To load smoke fluid for the whistle steam effect, remove the hatch to access the fill port as
shown in Figure 3b. When adding fluid DO NOT EXCEED 20 DROPS as this can cause
your smoke unit to become oversaturated allowing leakage onto the electronics. Note that
operating your locomotive's smoke unit without smoke fluid will cause damage to the heating
element. Add 20 drops initially and 10 to 20 thereafter, as required to maintain desired smoke.
Your locomotive's smoke fluid consumption will vary depending on the smoke level
setting you have selected and the labor of the locomotive.

8
Adding fluid to your locomotive’s smoke generator continued
Locomotive basics
Figure 3a. Stack smoke uid ll location
Figure 3b. Whistle steam uid ll location

9
The functions of your locomotive's switches are outlined below. Refer to Figure 4 for the location of the switches. e instructions below are specic to this particular locomotive; note
that available features (and switches) may dier from other locomotives and locomotive
sets.
Locomotive basics
Locomotive switch locations
Smoke Unit Switch (SMK/NO SMK)
Used to turn both the stack and whistle smoke function on and o. Be sure that track power is o
when you throw the switch
Program / Run Switch
Used to assign an ID# and reprogram the locomotive in LEGACY and Command operation when
the switch is in the PROG position. Also used to “lock” your locomotive in a single direction, or neu-
tral, in conventional operation when the switch is placed in the PROG position.
Smoke unit
On/O switch
Program/Run
switch
REAR
Figure 4. Locomotive switch locations

10
For operation in the LEGACY or Command Control environment, you will want to give your Steam Locomotive a unique ID#. Your locomotive will respond to commands associated with
its ID# while all other units will disregard these commands. is procedure is not necessary for
conventional (non-Command) operation.
1. Slide the program run switch on your locomotive to the PROG position. See Figure 4
on page 9.
2. Place the locomotive and tender on the track.
3. Connect the Command Base and plug it in.
4. Power up the track.
5. Press ENG on the CAB-1 or CAB-2 remote.
6. Enter the unique ID#. Choose any number from 1 to 98 that has not been assigned
to another locomotive (ENG). We recommend using a part of your locomotive’s road
number.
All LEGACY locomotives respond to ENG 99. We recommend that you reserve ID# 99 as
a "universal" ID#.
7. Press SET. e locomotive’s whistle will sound, or the headlights will ash if the
RailSounds sound system is o.
8. Slide the program run switch back to the RUN position.
e locomotive's ID# has been set. Be sure to record the new ID# for your reference.
Locomotive basics
Assigning your locomotive a new ID#
Note!

11
Locomotive basics
Lash-ups (for LEGACY operations only)
In the Command environment, building a lash-up allows you to control your locomotive as one in a prototypical manner. It is still possible to control any of the engines in the lash-up individually.
When you issue a train command, the individual engine you were controlling will return to the group.
If there is a dierence in speed, the individual Engine will return to the speed of the lash-up at the rate
set in the train momentum.

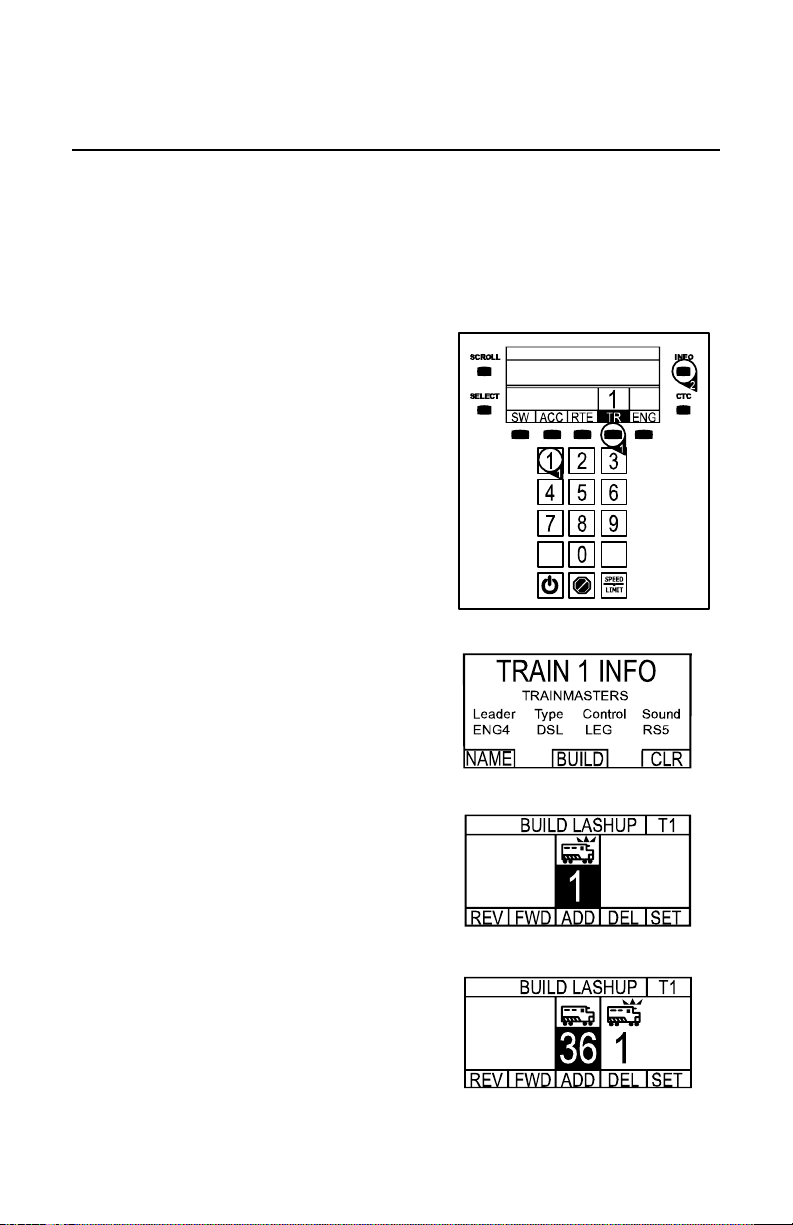

To build a lash-up, assign a unique engine (ENG) ID# to each unit. See page 10 for details.
1. Address the train ID# you wish to create or edit, 1 to
99.
2. Press INFO.
3. Press BUILD sokey (button directly under BUILD).
4. Enter the front engine number. It is not necessary
to enter ENG, just enter the #. It will appear in the
blinking box.
5. Press ADD to add the front engine. e engine will
move to the right and the blinking box will be ready
for your next engine to be added.
6. Enter the second engine ID# in the blinking box.
7. Press ADD to add the second engine. e engine will
move to the right and the blinking box will be ready
for your next engine to be added.
8. Add all the engines you want in your lash-up in this
manner.
9. To change the direction of an engine in your lash-up,
turn the Velocity rottle to move the engine you want
into the blinking box. en press DIR to change the
direction of the engine.
10. To delete an engine in your lash-up, turn the red
Velocity rottle knob to move the engine you want to
delete into the blinking box. en press DEL.
11. To save your lash-up, press SET. Watch the onscreen
prompts and wait until you see the message
TRAIN CREATED.
12. Press CTC to exit to the operating screen.
See reference numbers 1 and 2
See reference number 4
See reference number 3
See reference numbers 6 and 7

12
LEGACY Control System operations
The LEGACY CAB-2 Remote Controller
Main Display
Displays real-time information about your railroad sys-
tem. Displays real-time feedback of operation.
Scroll Button
Navigates through the entire list
of Engines, Trains, Switches, etc.
Select Button
Performs addressing by
3-4 digit road number.
Touch Screen Key Pad
A group of touch sensitive keys
with icons for each function.
These keys serve many pur-
poses and their icons change
accordingly.
Train Brake Slider
This slider is used to increase or
decrease the amount of Train Brake
aecting the engine or train.
Train Link Button
Quick select of Train-Link devic-
es (LEGACY Control System
Version 1.3)
AUX-2/Out Button
Controls switch direction.
Toggles all lights on/o,
except lights that are wired
to track power.
Emergency Halt Button
Stops everything on lay-
out; also stops recording
playback.
Record Button
Used to record and play
back events.
Velocity Throttle
Throttle control over
engines, also used to navi-
gate thru info/options.
Set Button
Used to set Engine address and for
programming.
Info Button
Used to enter/view the info/options of
selected components.
CTC Button
Press and hold to turn your remote
on and o. Tap this button to enter
the remote and base options. Tap it
again to return to the main screen.
Soft Keys
These keys directly correlate to the
5 selection boxes located at the
bottom of the main display. These
are also used in the info/option
menus to select options.
Warning Sound Controller
Warning Bell and Variable Horn con-
trol. Pull down to sound Horn. Push
up and release to trigger Warning
Bell.
Oicial R.R. Speed Control Bar
Toggles the touchscreen display of R.R.
preset speeds and control panel.
Multi Controller
Boost, Brake, and Direction con-
trol. Rock forward for Boost, rock
backward for engine brake, and
press down for direction change.
Click-hold-and rock for absolute
direction selection.
Front & Rear Coupler Buttons
Fire couplers.
Low, Medium, High Momentum Buttons
Used to select the desired momentum of
your addressed engine/train/accessory.
AUX-1/Thru Button
Press to view the Control
Panel while operating.
Controls switch direction.
Feedback Button
Toggle ON/OFF the vibration feed-
back feature in the CAB-2 Remote.

13
e Velocity rottle (the red rotary knob on the bottom of your Lionel
remote) is used to start your engine moving, slow it down, or speed it up. Use it
simply by turning it clockwise (speed up) or counter-clockwise (slow down).
Direction
e direction of your engine toggles between forward and reverse at the
touch of the Multi-Controller. Press the center of the Multi-Controller once,
and your engine's lights will change directions and the engine will stop until
you throttle up again in the new direction.
Boost & Brake
Boost and brake give you another way to control the speed of your train.
Boost gives your locomotive a temporary increase in tractive power, and
returns to the previous speed when you release the control, while the brake
command slows you down more quickly than the Velocity rottle alone.
LEGACY Control System operations
The Velocity Throttle
The Multi-Controller
e Train Brake is used to slow down and limit the top speed
of your train by adding a load. e more the Train Brake is
applied by pulling the Train Brake Slider down, the more labor-
ing is heard from the engine. Eventually Train Brake application
will slow down the train and it is even possible to stop a train by
pulling the Train Brake Slider all the way down. If your smoke
unit is turned on, you'll also see more smoke as the slider is
pulled down.
The Train Brake Slider
is section is a brief overview of the LEGACY Control System. For a more in-depth
explanation of the LEGACY Control System features, please see your LEGACY Control
System Operations Manual, available online at www.lionel.com.
Note!

14
Warning sounds are an important part of Lionel Railroading. Your Lionel
Legacy Control System equipped engines have a real-time variable "quilling"
whistle.
Blow the whistle by pulling down on the Warning Sound Controller. Notice
the dierence in intensity of the whistle sound.
Strike the bell once by pushing the Warning Sound Controller up and releas-
ing quickly. To activate continuous bell sounds, push the Warning Sound
Controller up and hold it for 1.5 seconds. To discontinue the bell sounds, push
and hold the Warning Sound Controller up until the bell stops.
LEGACY Control System operations
The Warning Sound Controller
e Speed Bar is used to select a new touch-screen
Icon Control set. is set of touch-screen keys is used
to select prototypical preset speeds. e speed of the
engine changes with each press and release of a dier-
ent Preset Speed key.
• Tap a key, and your locomotive will immediately
begin moving to that speed.
• If you hold the key until the dialog is nished,
the engineer will indicate that he is "increasing
to...", "slowing to...", or "we are at..." the command
speed.
You can also use the Velocity rottle and other
action controls in this mode and continue to use
Preset speeds at the same time.
Press AUX1 to leave the Preset speed mode and
return to the Standard Control Panel. Press the speed
bar to toggle between the Speed Control Panel and the
Standard Control Panel.
The Speed Bar
Note! Depending on the track resistance (e.g., at curves or inclines), your locomotive may
not start to move at Roll or Restricted speeds.

15
Sound and smoke eects of the engine can be trimmed higher or lower depending on your operat-
ing preference. Pressing the EFX up button will make the engine sound like it is working harder and
will also increase the smoke output (if the smoke unit is turned on). Similarly, the EFX down button
will decrease the laboring sound of the engine and smoke. A RESET command will return the EFX
trim to its default setting.
Notice that the current EFX level is displayed on the remote as a bar graph inside the so key to the
le of the ROLL button. e height of this graph varies with the EFX keys, throttle and train brake
adjustments.
LEGACY Control System operations
EFX Trim and EFX Bar Graph
Use the Speed Bar to leave the Speed Panel and return to the Control panel. Press the Speed Bar to
toggle between the Speed Control Panel and the Standard Control Panel.
Leaving the Preset Speed Screen

16
LEGACY RailSounds sound system operations
LEGACY RailSounds sound system
When adjusting the overall volume, you'll hear a single bell hit that gets louder or soer with each
volume adjustment. When the volume is at maximum, additional button presses have no eect and
won't play the bell. When adjusting the background sounds (AUX1, then a volume key) you'll hear
the volume change without a single bell hit.
RULE
17
OFF
17
ON
OFF
CrewTalk
Engineer begins radio dialog, dispatcher
replies.
Water Injector/Water Tower
When the engine is in motion, plays the
sound of water flowing from the tender
to the boiler. When the engine is stopped,
plays the sound of the water tower refill-
ing the tender.
Volume UP
Raises the overall master volume of the LEGACY
RailSounds sound system. To independently adjust
the level of the background sounds only (e.g., the
chuing sounds and steam hiss), tap AUX1 and then
this key.
Volume DOWN
Lowers the overall
master volume of the
LEGACY RailSounds
sound system. To
independently adjust
the level of the back-
ground sounds only
(e.g., chuing sounds
and steam hiss), tap
AUX1 and then this
key. Volume settings
are retaining when
track power is turned
o.
RailSounds Shutdown
Activates the LEGACY
RailSounds sound system shut-
down sequence when stopped.
Blowdown icon
Activates the blowdown sound.
Emergency Stop
Activates the emergency stop
feature while in motion.
(Icon will change as the state of
the locomotive changes).
Stops and resets the locomotive
Resets the locomotives direc-
tion to forward. Press and
hold to activate a fueling
sequence. Fueling sounds.
Smoke ON
Turns the smoke units ON.
Smoke OFF
Turns the smoke units OFF.
Rule 17 Lighting
Use the Rule 17 buttons to turn
the Rule 17 lighting functionality
(e.g., headlights dim at a stop)
on and off.
TrainSounds Dialog
Activates dialog of ran-
dom radio chatter.

17
CrewTalk dialog and TowerCom announcements in the LEGACY environ-
ment
CrewTalk dialog and TowerCom announcements feature a variety of brief radio conversations between the engineer and dispatcher. CrewTalk dialog is an engineer-initiated radio conversa-
tion with the dispatcher. TowerCom announcements are a dispatcher-initiated radio conversation
with the engineer. Be sure to listen for the dierent combinations of words and phrases that comprise
these exchanges.
Refer to Table 1 below for the dialog commands. e dialog in the table provides examples of the
conversations you can trigger. e actual dialog will vary.
Table 1. LEGACY Remote Controller dialog commands
*Activating 7 or AUX1, 7 while the locomotive is in motion enables an arrival conversation for 30 seconds. If the
train stops within this time, pressing 2 will play this special conversation.
Locomotive Commands Example dialog
Stopped AUX1, 2 Crew: Ask to depart
Tower: Deny departure
AUX1, 7 Tower: Ask To Standby
Crew: Acknowledge
2 Crew: Ask to depart
Tower: Approve departure
7 Tower: Approve Departure
Crew: Acknowledge
5 or Crew: Shutdown Announcement
AUX1, 5 Shutdown sequence
AUX1, 0 Refueling sequence
Crew: My tank is full
Moving 2 (recent departure) Crew: Train is underway
Tower: Acknowledge
2 Crew: Are we clear ahead?
Tower: Acknowledge
AUX1, 2 Crew: Report engine status
7 or Tower: Clear in-bound
AUX1, 7* Crew: Acknowledge
5 or Tower: Emergency stop
AUX1, 5 Crew: Acknowledge
LEGACY RailSounds sound system operations

18
LEGACY RailSounds sound system dialog on a round trip
Figure 5. LEGACY RailSounds sound system dialog on a round trip
Refer to Figure 5 for a sample dialog script for manually controlled dialog on the locomotive’s round
trip using the numeric keypad.
AUX1, 7 - “Stand by.”
7 - “You are clear.”
5 or AUX1, 5 - Crew shutdown
announcement. Shutdown
sequence.
AUX1, 7 - “You are clear
inbound.”
7 - “All clear ahead.”
AUX1, 2 - “Are we clear?”/”
No, stand by.”
2 - “Can we go yet?”/”Yes,
you are clear.”
RECENT DEPARTURE
2 - “Train is
underway.”/“Roger, you
are clear.”
AUX1, 2 - Crew reports fuel
status and speed.
Locomotive IN MOTION
The actual dialog will vary.
Locomotive STOPPED
The actual dialog will vary.
LEGACY RailSounds sound system operations
2 - “Still clear ahead?”/
“Roger, you are clear.”
5 or AUX1, 5 - Emergency
stop.

19
TrainMaster Command Control operations
CAB-1 Remote Controller commands
The CAB-1 Remote Controller commands are detailed below. e corresponding RailSounds sound system eects are in italic type.
Releases the ElectroCoupler (if applicable) on the front
of the locomotive. Coupler release sound.
Releases the ElectroCoupler on the rear of the tender.
Coupler release sound.
Activates the numeric keypad.
Short air release sound.
Controls switch direction. Toggles all directional lights
on/o.
Accelerates the locomotive with a clockwise rotation.
Decelerates the locomotive with a counter-clockwise
rotation. Speed-dependent RPM sounds.
Activates the locomotive’s whistle. Release the button to
discontinue the sound. Whistle sound.
Toggles the bell sound on and o.
Bell sound.
Changes the locomotive’s direction. e locomotive
decelerates to a stop and continues in the opposite
direction when you increase the throttle. Air release
sound.
Increases the locomotive’s speed while the button is pressed.
Release the button to return to the initial speed. Increase
chu
Decreases the locomotive’s speed while the button is
pressed. Squealing brake sounds.
Shuts down all PowerMasters on your railroad. Stops all
TrainMaster Command Control-equipped locomotives in
operation. Use HALT only in emergency situations.
SET L M H
Odyssey II Momentum
L 32 speed steps with low momentum
M 100 speed steps with low momen-
tum
H 100 speed steps with medium
momentum

20
TrainMaster Command Control operations
CAB-1 Remote Controller numeric keypad commands
When you press the AUX1 button on your CAB-1 Remote Controller, you turn the numeric keypad into ten command buttons. Aer you press the AUX1 button, you will be able to press
any numbered button until you address a dierent product. e corresponding RailSounds sound sys-
tem eects are in italic type.
Stops and resets the locomotive. Resets the locomotive’s direction to forward.
Your locomotive keeps track of its coal and water levels. Higher engine speeds and/or heavy
labor will use fuel at a faster rate. Like a prototypical steam locomotive, water is consumed
at a faster rate than coal.
To add both coal and water, perform a "long reset." Press and hold AUX1 and 0 for at least
three seconds. You will hear the sounds of coal pouring into the tender as long as you hold
the button. When you release the button, the sounds will stop and the engineer will conrm
that the tank is full. Refueling sequence.
Raises the overall master volume of the LEGACY RailSounds sound system. To indepen-
dently adjust the level of the background sounds only (e.g., the chung and steam hiss), tap
AUX1 and then this key. Sound volume increases.
When adjusting the overall volume, you'll hear a single bell hit that gets louder or soer with
each volume adjustment. When the volume is at maximum, additional button presses have
no eect and won't play the bell. When adjusting the background sounds (AUX1, then a
volume key) you'll hear the volume change without a single bell hit. .
Engineer begins radio dialog, dispatcher replies (see page 17). To hear the engineer say the
current level of coal or water and current speed, press AUX1, 2 or AUX1, CrewTalk while
the engine is in motion. CrewTalk communication.
Lowers the overall master volume of the LEGACY RailSounds sound system. To indepen-
dently adjust the level of the background sounds only (e.g., chung and steam hiss), tap
AUX1 and then this key. Volume settings are retaining when track power is turned o.
Sound volume decreases.
Activates the LEGACY RailSounds sound system shutdown sequence when stopped.
Activates the emergency stop feature while in motion. Note that, in the shutdown sequence,
the smoke unit will turn o if it was already on.
