THANK YOU...
for selecting an Eljer bathing product. Your new bath is shipped to you after careful inspection. The whirlpool
version is completely assembled with pump and circulatory system piping. All you need to finish the installation
are your selected fittings, electrical connections and support bedding material.
To ensure maximum performance and pleasure from this product, please follow the instructions and cautions.
© Eljer 2015
All product names listed herein are trademarks of Eljer unless otherwise noted.
For questions or service issues, please call Technical Support 1-(800)-442-1902.
Please do not contact or return product to the store.
INSTALLATION AND
OPERATION MANUAL
015-0005
015-0015
015-0026
015-0066
015-0076
015-0077
015-0140
015-0141
015-0142R
015-0142L
015-0143
015-0144
015-0145
015-0146
015-0150
015-0156
015-0305
015-0309
015-2500
015-4800
015-5400
025-0005
025-0140
025-0141
025-0142R
025-0142L
025-0143
025-0144
025-0145
025-0146
025-0155
025-0159
025-2505
025-4805
025-5405
035-0140
035-0141
035-0142R
035-0142L
035-0143
035-0144
035-0145
035-0146
035-0151
035-0158
035-2501
035-5401
045-0140
045-0141
045-0142R
045-0142L
045-0143
045-0145
045-0146
045-0154
045-0157
045-2504
045-4804
045-5404
WHIRLPOOL, AIR BATHS AND SOAKING TUBS
MODEL NUMBERS:

2
754764-100 Rev. D
TABLE OF CONTENTS:
Cover ................................................................................................Page 1
Ta ble of Contents ..............................................................................Page 2
Safety Instructions Notice.................................................................Page 3
Installation, Framing and Post Installation
Clean-Up Instructions.......................................................................Page 4 - 5
Typical Flange & Under Deck Mounting Instructions........................Page 5 - 6
General Specifications for Whirlpools...............................................Page 7 - 8
Roughing-in References for All Model Series...................................Pages 9 - 17
Electrical Installation Instructions .....................................................Page 18 - 19
Whirlpool and Air Massage
Combination Models.............
.................................................... ....... Page 19
Operating Instructions.......................................................................Page 20
Cleaning and Maintenance...............................................................Page 21
Warranty
...................................... .....................................................Page 22

754764-100 Rev. D
3
!
!
!
!
!
!
!
SAVE THESE INSTRUCTIONS
WARNING: Risk of personal injury. Do not permit children to use this unit without adult supervision.
WARNING: Risk of personal injury. Do not operate this unit without the guard over the suction fitting.
WARNING: Risk of electric shock. Do not permit electrical appliances (hair dryer, telephone, radio, etc.) within
60 inches (1524mm) of this unit.
WARNING: Risk of hyperthermia and possible drowning. People using medications and/or having adverse
medical history should consult a physician before using this product.
WARNING: Risk of personal injury. Do not overfill unit before entering. Entering tub when filled more than 2/3
can cause overflow and slippery conditions. Exercise caution when entering and exiting.
WARNING: No Food or Alcoholic Beverages. Use of your bathtub immediately after meals is not
recommended. Avoid alcohol consumption before or during bathing. Alcoholic beverages can cause drowsiness or
hyperthermia resulting in loss of consciousness or even drowning.
WARNING: Pregnancy. If you are or think you may be pregnant, consult your physician before using the bathtub.
Never drop or insert any object into any opening.
Use this unit only for its intended use as described in this manual. Do not use any attachments not recommended by
American Standard.
The unit must be connected only to a supply circuit that is properly protected by a ground-fault circuit-interrupter
(GFCI). Such a GFCI should be provided by the installer and should be tested on a routine basis. To test the GFCI,
push the test button. The GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI
fails to operate in this manner, the GFCI is defective. If the GFCI interrupts power to the bathtub without the test button
being pushed, a ground current is flowing, indicating the possibility of an electric shock. Do not use this hydromassage
bathtub. Disconnect the hydromassage bathtub and have the problem corrected by a licensed electrician before using.
A pressure wire connector is provided on the exterior of the motor unit to permit connection of a no. 8 AWG solid
copper bonding conductor between this unit and all other electrical equipment and exposed metal in the vicinity, as
needed to comply with local requirements. To reduce the risk of an electric shock, connect this connector to the
grounding terminal of your electric service or supply panel with a conductor equivalent in size to the circuit conductors
supplying this unit.
IMPORTANT SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, ELECTRIC SHOCK
OR INJURY TO PERSONS
READ AND FOLLOW ALL INSTRUCTIONS!

4
754764-100 Rev. D
Each bath arrives ready for installation, completely equipped with the pump and plumbing
necessary for operation. However, a drain/overflow kit is required for each bath and it is
not included.
The variety of installations for this bath may require framing procedures other than those shown.
Locate studs as required. Ensure roughing-in dimensions are proper, plumb, and square.
Installation and Framing Instructions
Remove the bath from the carton. Retain the shipping carton until satisfactory
inspection of the product has been made. Do not lift the bath by the plumbing at
any time; handle by the shell only.
All bath units are factory tested for proper operation and watertight connections
prior to shipping. Prior to installation and before enclosing with wallboard, tile,
etc., the bath must be filled with water and operated to check for leaks that may
have resulted from shipping damage or mishandling.
The sumps of these baths are not supported by the feet and additional sump
support is required. Once the bath is in place, the rim of the bath should contact
the stringer or pier but supports no weight.
Provisions must be made in all installations for an access opening for servicing the
bath pump. Unless an access opening of at least 12" x 24" (305mm x 610mm) is
provided, warranty service will not be performed. It is strongly recommended that an
additional opening be provided for access to drain components.
Each bath has a nominal length (L), width (W), and Height (H) along with a rim
height. Unless otherwise noted in the following rough-in references, assume
that the nominal tolerances are as much as +/-1/4 inch (6mm). Therefore, it is
strongly recommended that the installer build the surrounding structure after
receiving the actual bath. Structural measurements should be verified against
the actual bath received to ensure proper fit.
!
!
!
!
!
POST INSTALLATION CLEAN-UP
Remove all construction debris from bath. Tile grout can be removed with a wooden
popsicle stick or tongue depressor.
Do not use wire brushes or any other metal implement on bath surface.
Post installation clean-up generally can be completed using warm water and liquid
dishwashing detergent.
Stubborn dirt or stains may be removed using granular Spic and Span®mixed with water.
Painter's naphtha can be used to remove excess adhesives and/or wet oil-base paint.

754764-100 Rev. D
5
INSTALLATION AND FRAMING INSTRUCTIONS
The variety of installations possible for this whirlpool may require framing procedures other than those shown. Locate studs as
needed. Ensure roughing-in dimensions are proper, plumb and square. Provisions must be made in all installations for an access
opening for servicing the pump and controls. It is strongly recommended that an additional opening be provided for access to the
drain components. The apron should not be used as the primary access opening.
TYPICAL PIER TYPE INSTALLATION
AS DESIRED
F
CUTOUT
AS DESIRED
G
CUTOUT
C
24
(610 mm)
12
(305 mm)
MOUNTING
SURFACE
WATERPROOF
SEALANT
BATH
TYPICAL RECESS INSTALLATION
24
(610 mm)
12
(305 mm)
C
E
D
W
LEVELING
STRINGERS
TILE
TILE BEAD
STRIP
LEVELING STRINGER
1 x 4 (not for support)
BATH
ADHESIVE
SEALANT
WALLBOARD
NOTE: Tile bead kit not included and
must be purchased separately.
C*
TYPICAL INSTALLATION
FIGURE 1
3. Install drain components to the whirlpool following the drain installation
instructions. Before replacing your whirlpool for final installation, be certain
that an opening has been provided in the sub-floor for the drain. See the
roughing-in drawing and Ta ble 1 for suggested opening size (shadowed) and
location dimensions. The drain/overflow of the bath extends below the bottom
of the bath. Note that this requires a cutout in the floor.
The floor structure beneath the bath must be able to support a total weight of
bath, water, and bather. Refer to Ta ble 1 under total weight for your model.
2. Remove the whirlpool and attach a 1 x 4 stringer to the studs, with the top of
the stringer touching the traced line.
The rim of the bath must not support weight.
1. Position the whirlpool into the installation opening and level the deck in both directions, shimming the integral leveling
feet IF necessary. Mark the final position of the underside of the deck by tracing a line on to the studs (see Figure 1).
!
!
ACCESS PANEL MUST BE LOCATED
ON THE SAME SIDE AS THE MOTOR.
ALLOW OPEN FRAMING ON PUMP/MOTOR
END FOR SERVICE.
ACCESS PANEL MUST BE LOCATED
ON THE SAME SIDE AS THE MOTOR.
ALLOW OPEN FRAMING ON
PUMP/MOTOR END FOR SERVICE.
FOR E & D DIMENSIONS SEE TABLE 1 ON PAGE 7 - 8. FOR C, G & F DIMENSIONS SEE TABLE 1 ON PAGE 7 - 8.
NOTE:
FRONT EDGE
OF BATH MUST
BE SUPPORTED
BY STUD WALL OR
ELJER APRON KIT
UNLESS AN ACCESS OPENING OF AT LEAST 12" X 24" (305 X 610mm)
IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.
UNLESS AN ACCESS OPENING OF AT LEAST 12" X 24" (305 X 610mm)
IS PROVIDED, WARRANTY SERVICE WILL NOT BE PERFORMED.
ACCESS PANELS NOT REQUIRED
FOR BATH TUBS. ACCESS PANELS NOT REQUIRED
FOR BATH TUBS.
SEE TABLE 1 ON PAGE 7 - 8.
The bath must be supported along it’s entire bottom. Use mortar as
bedding material (do not use sand or foam). Apply enough mortar to support
the complete bottom of the bath. After the mortar has been poured, and before it
sets, position whirlpool or bath until the rim is leveled against the leveling
stringers or mounting surfaces (see “Typical Installations”) shown below.
!The rim of the bath must not support weight. If foundation base is used, allow
the bedding material to completely harden before applying weight to the rim or
bottom of the bath. Any finish material such as tile or wall board must be
self-supporting if it contacts the deck of the bath.

6
754764-100 Rev. D
SUGGESTED WHIRLPOOL / BATH
INSTALLATION METHOD
SECURE THE BATH TO THE STUDS AS SHOWN
FOR WOOD OR STEEL STUD CONSTRUCTION.

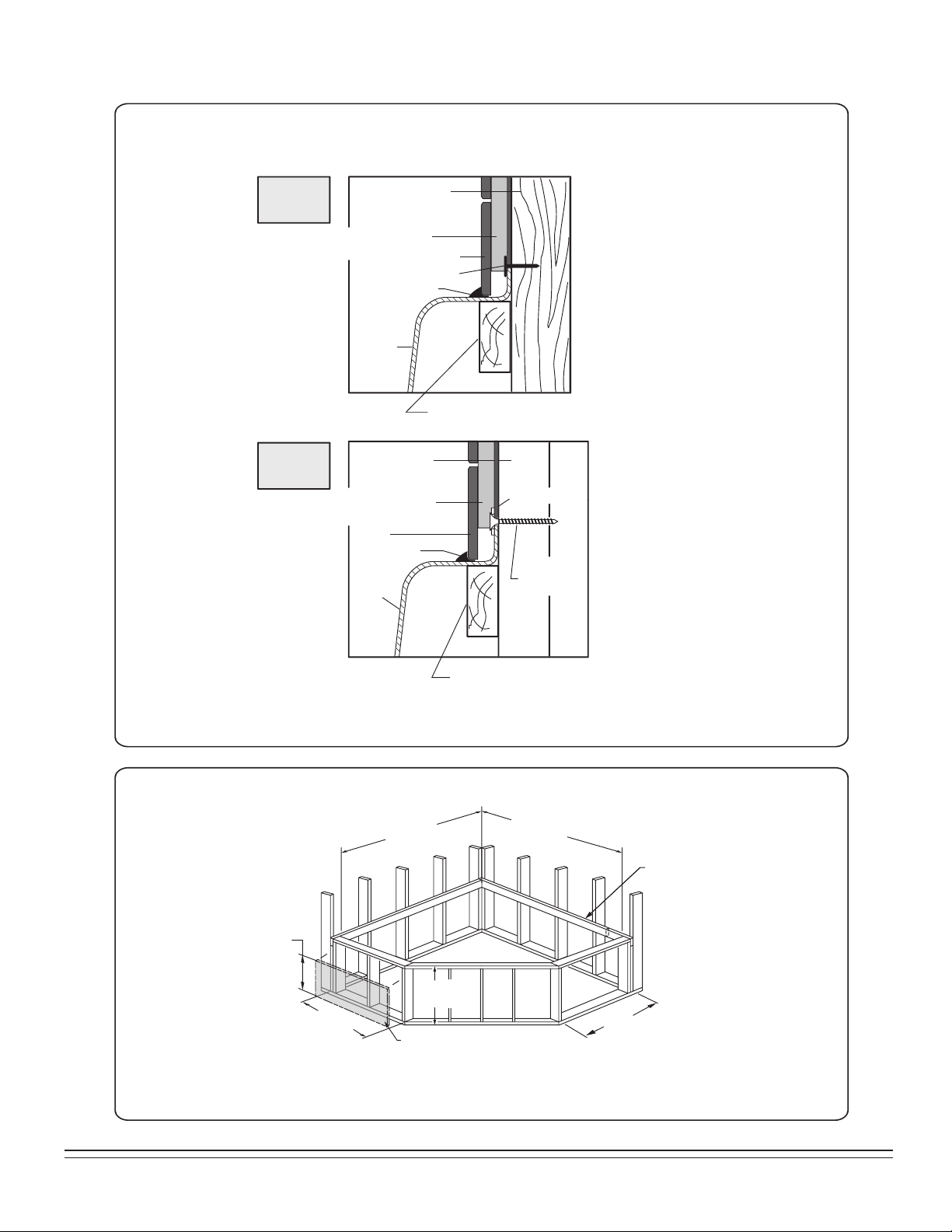

TYPICAL FLANGE MOUNTING DETAIL
STUD
WATERPROOF DRYWALL
OR CEMENT BOARD
WATERPROOF DRYWALL
OR CEMENT BOARD
TILE
SEALANT
TUB
ROOFING NAIL
1 x 3 (25 x 76mm) WOOD
STRINGER FULL LENGTH
1 x 3 (25 x 76mm) WOOD
STRINGER FULL LENGTH
STEEL
STUD
WASHER
TILE
SEALANT
TUB
4" (102mm)
DRYWALL
SCREW
WOOD
STUDS
STEEL
STUDS
TYPICAL INSTALLATION - CORNER
UNLESS AN ACCESS OPENING OF AT LEAST
12" X 24" (305 X 610mm) IS PROVIDED,
WARRANTY SERVICE WILL NOT BE PERFORMED.
58-1/2"
(1486mm)
58-1/2"
(1486mm)
25"
(635mm)
25"
(635mm)
PUMP ACCESS PANEL
LEVELING
STRINGER
19-1/2"
(495mm)
12"
(305mm)

754764-100 Rev. D
7

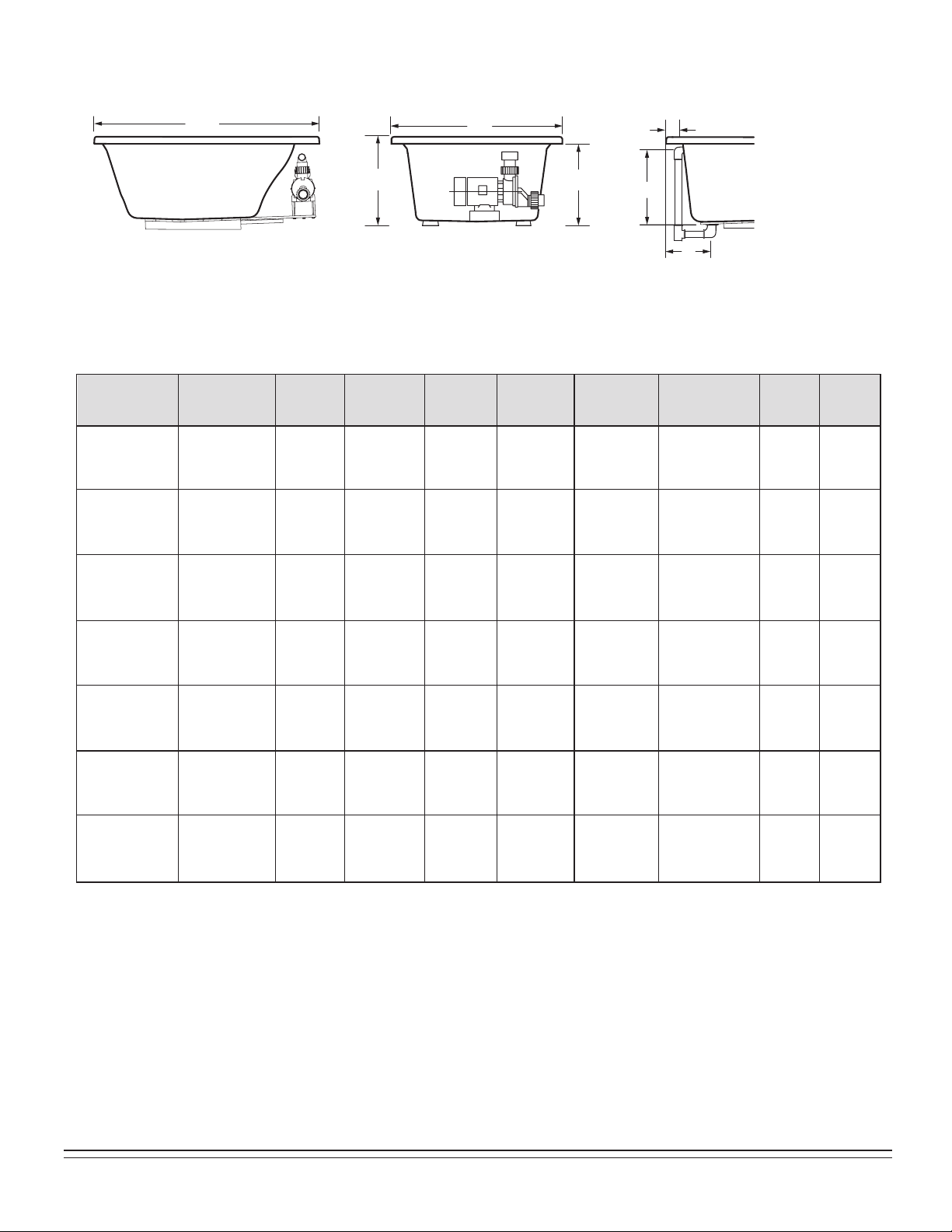

SPECIFICATIONS:

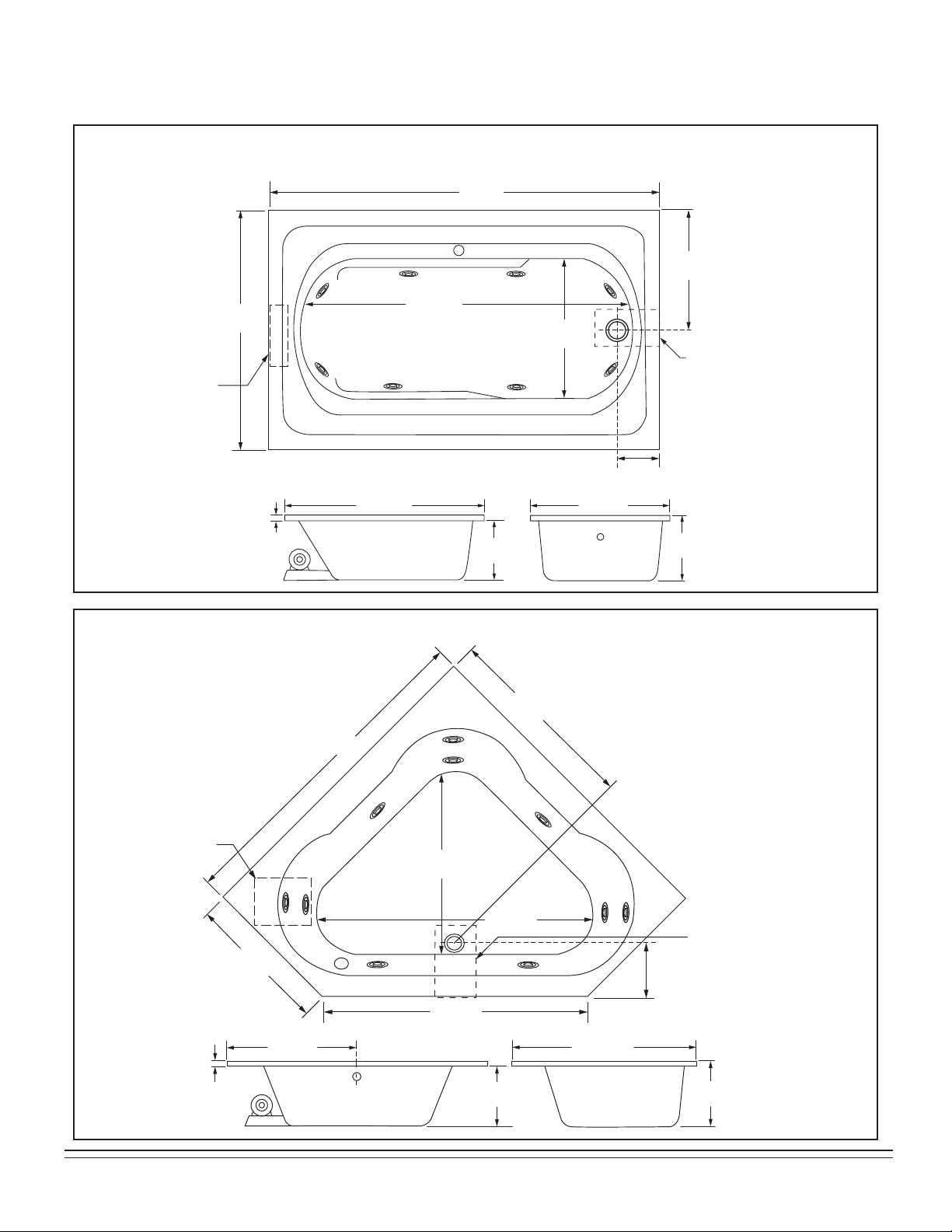

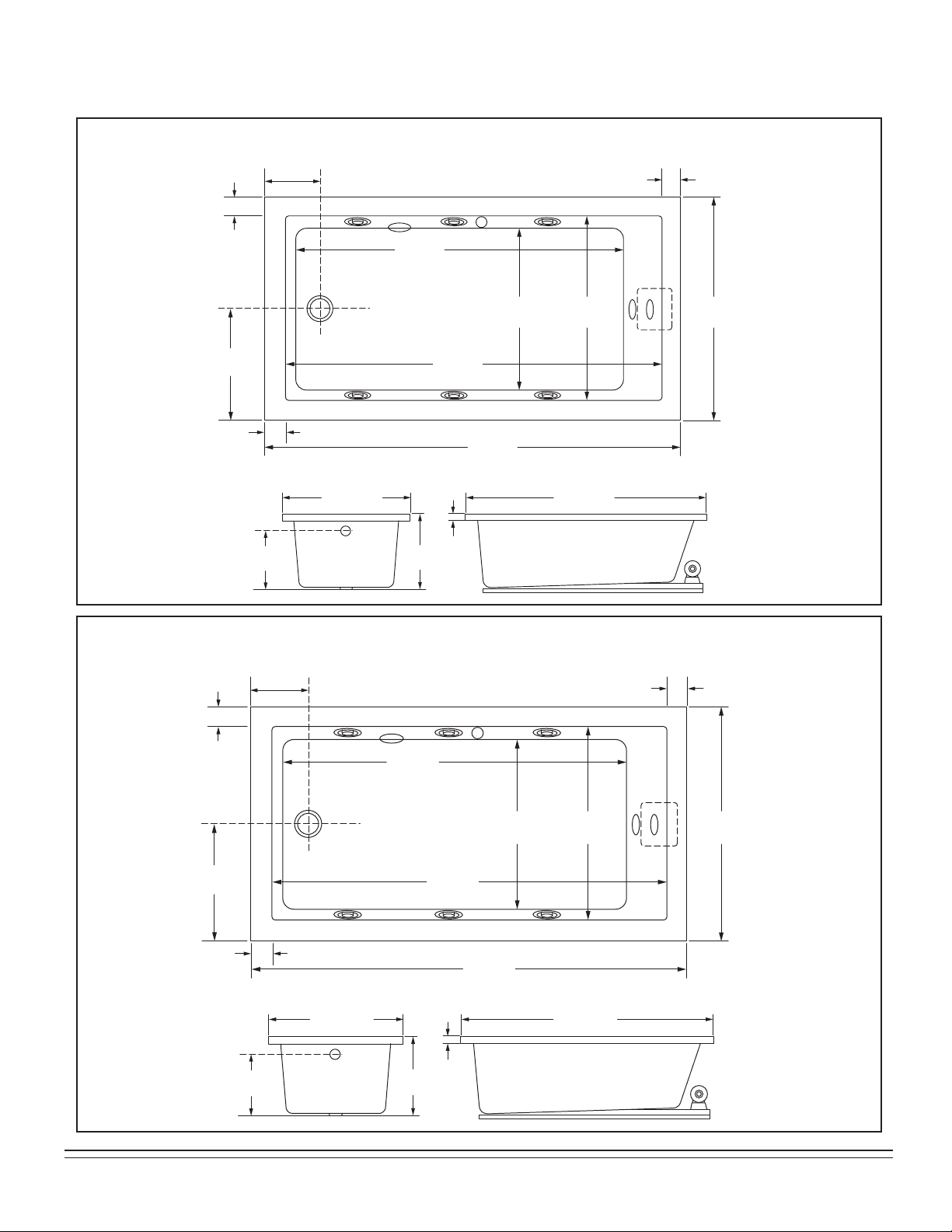

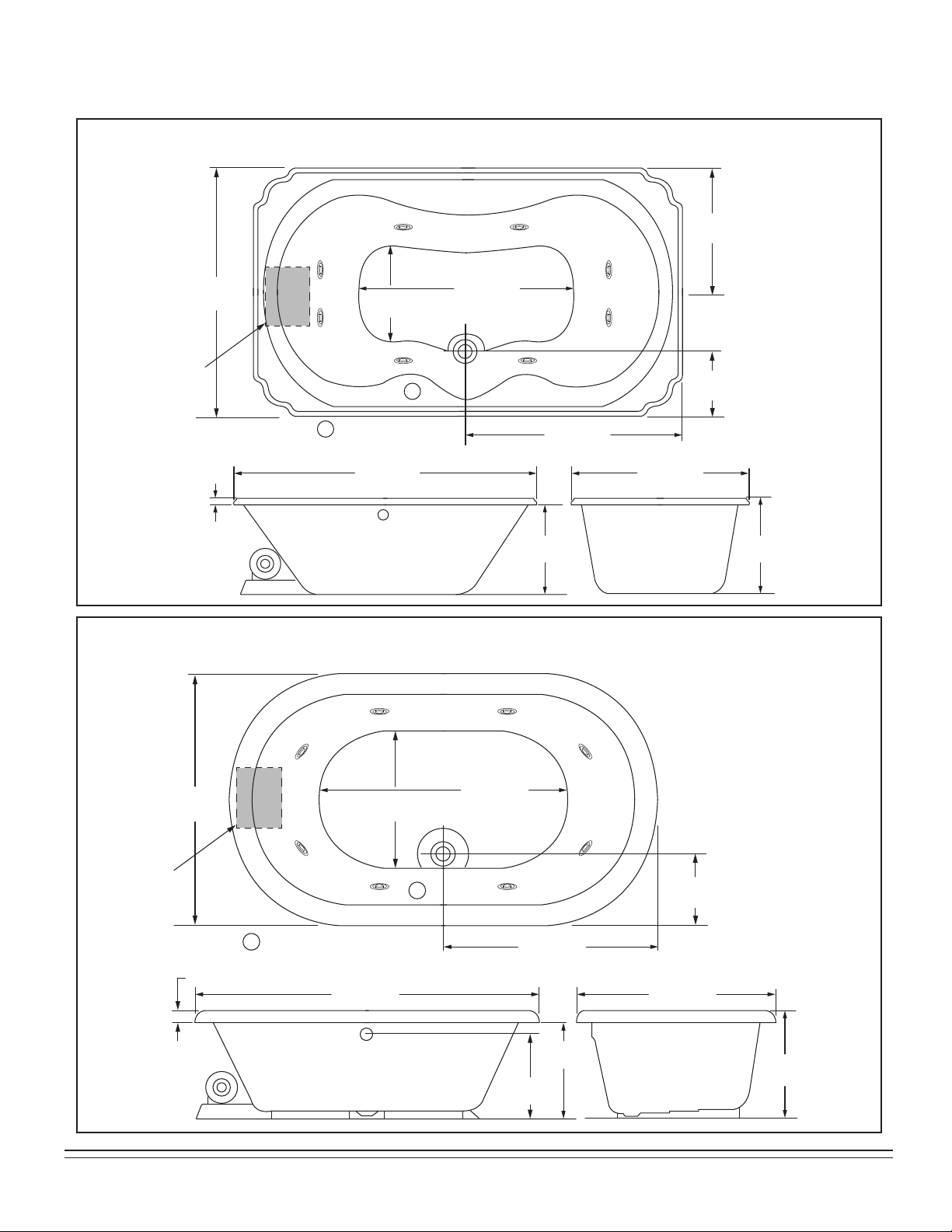

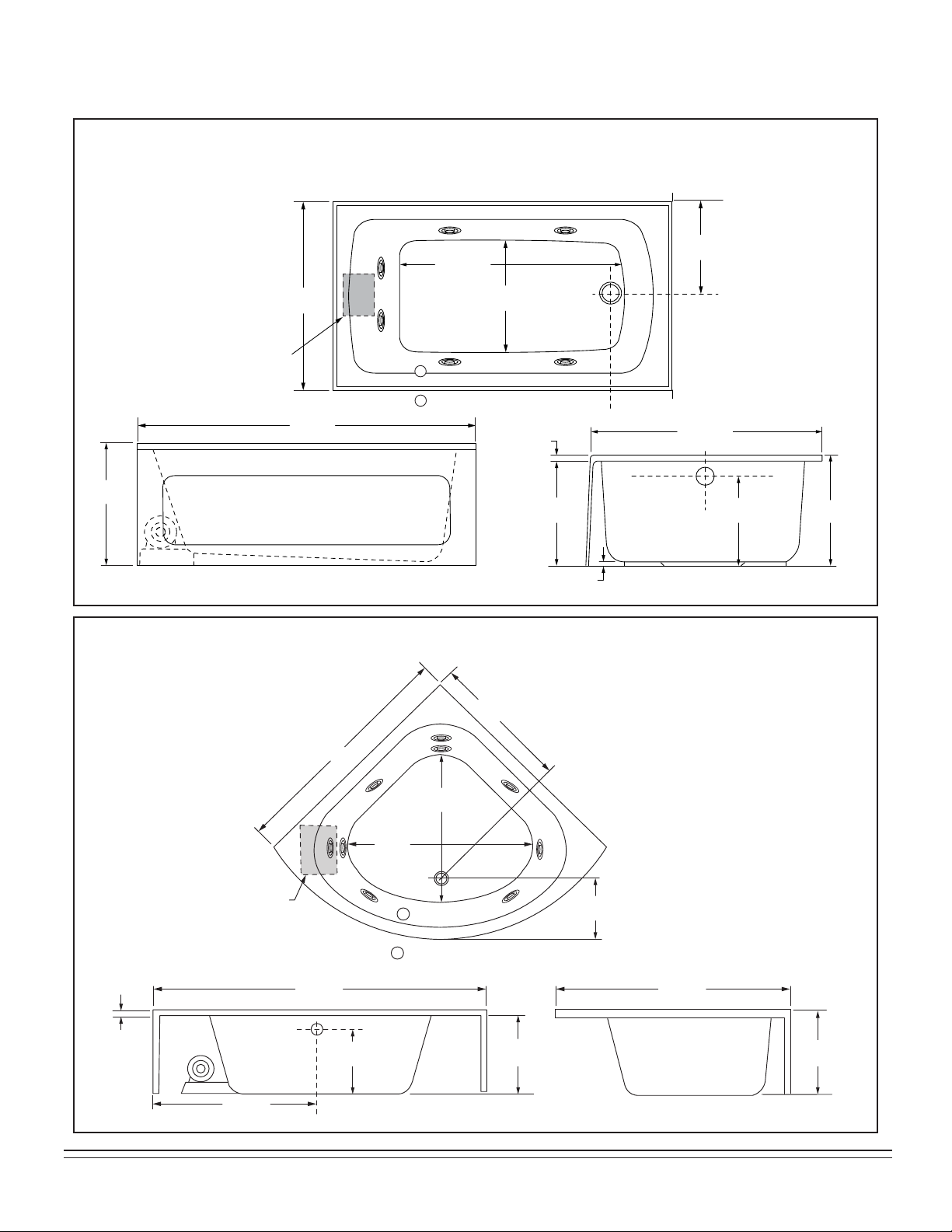

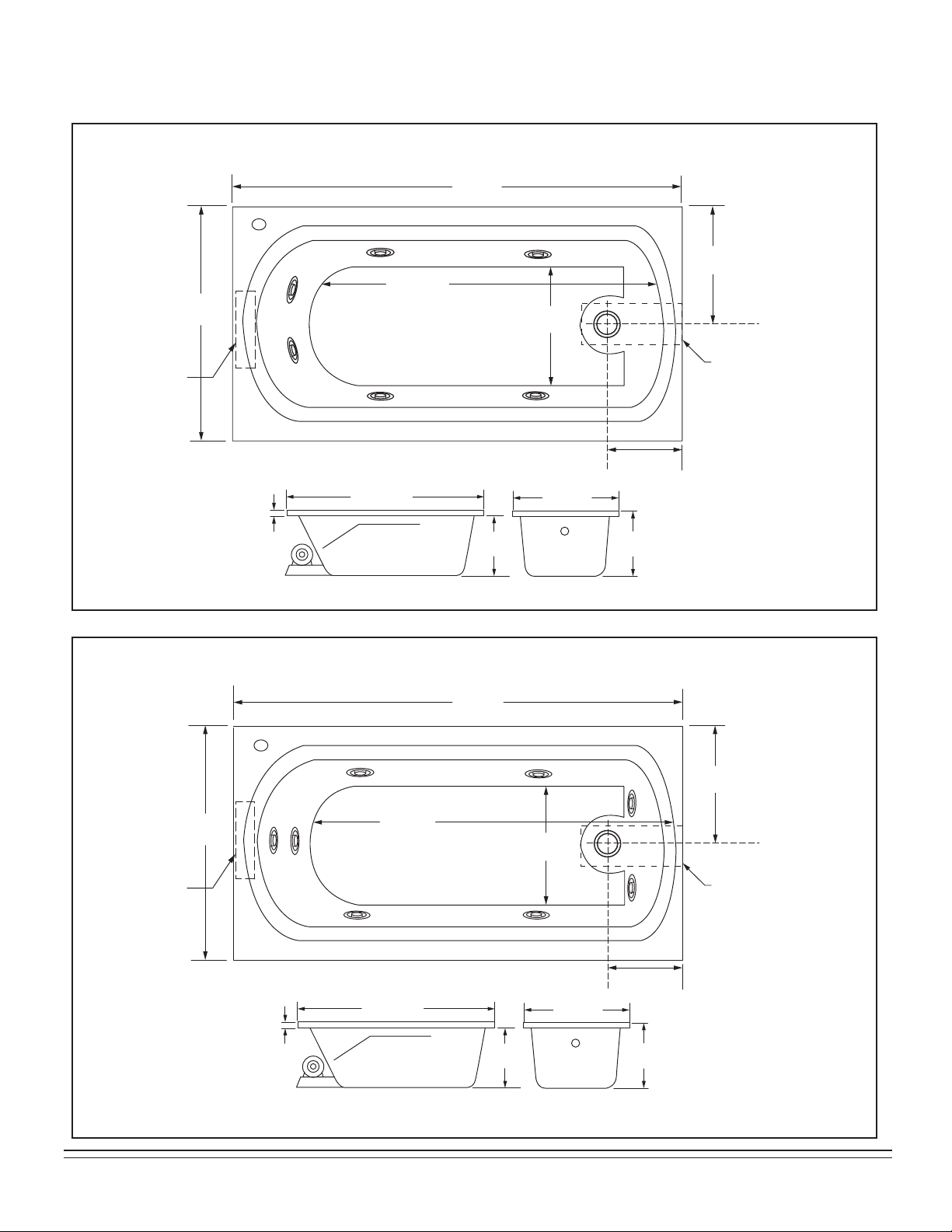

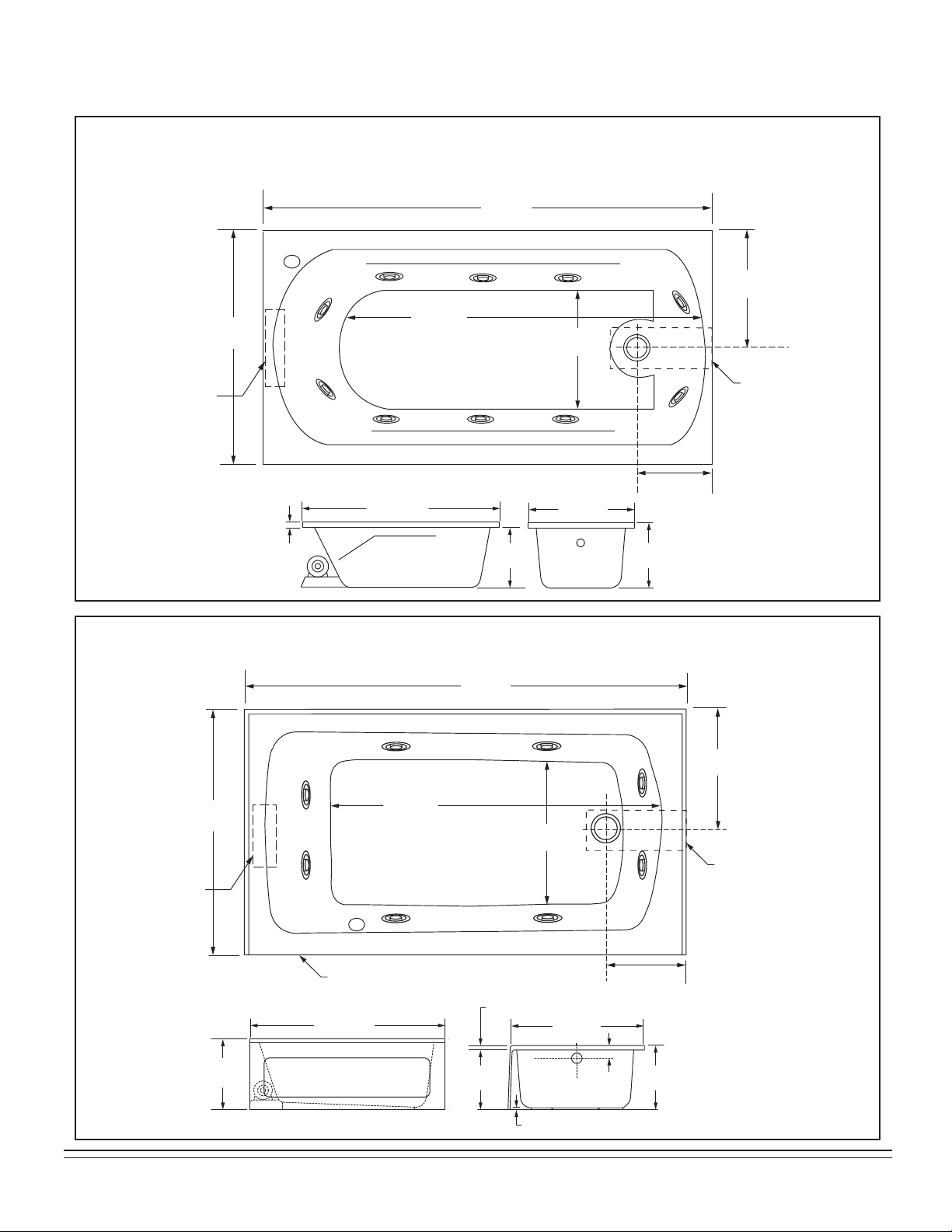

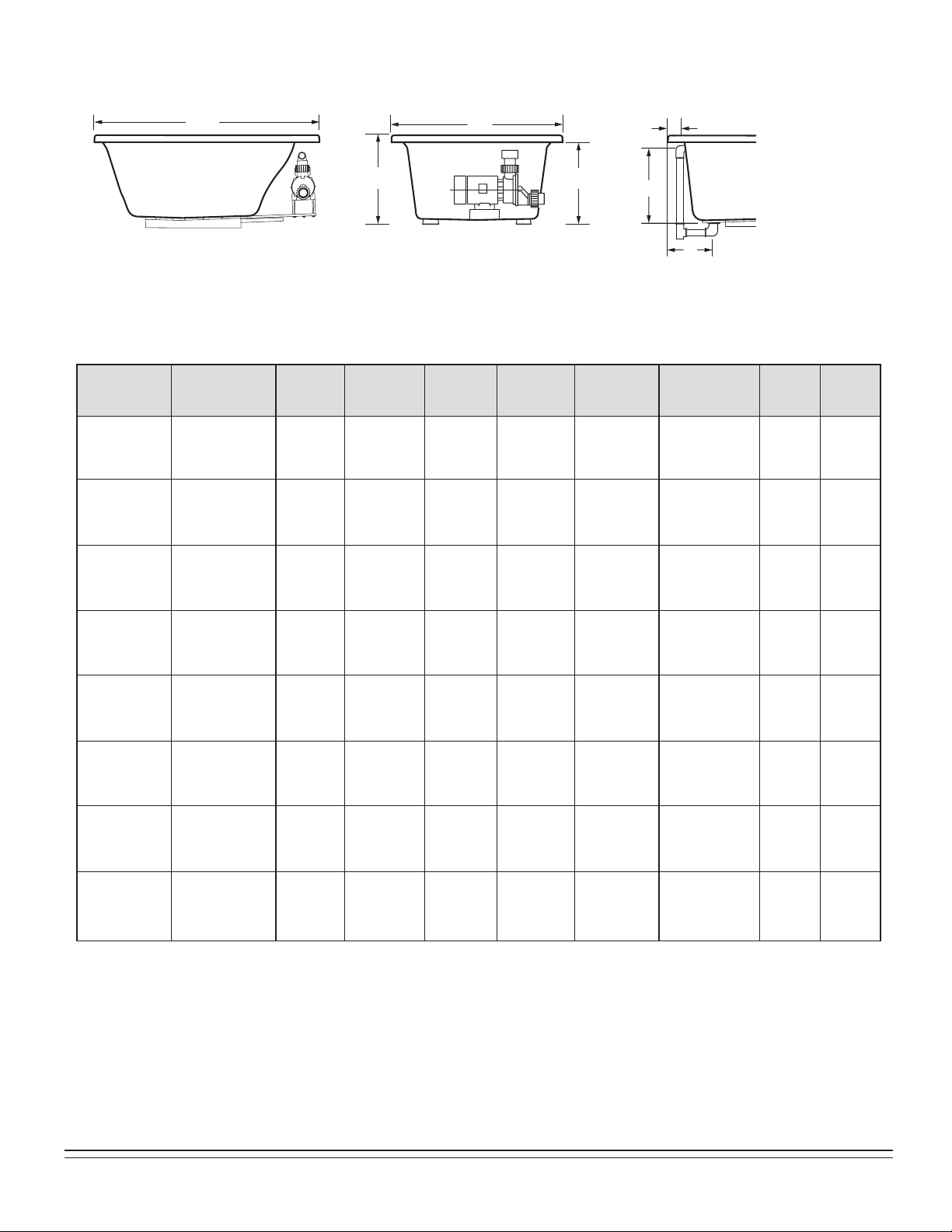

GENERAL SPECIFICATIONS FOR ELJER WHIRLPOOLS AND BATH TUBS
SIDE VIEW DRAIN / OVERFLOW END VIEW
L
H
W
CA
B
J
A 16"
(406mm)
B 10-1/4"
(260mm)
A 16"
(406mm)
B 10-1/4"
(260mm)
A 16-1/4"
(413mm)
B 8-1/4"
(209mm)
A 17"
(432mm)
B 10-1/2"
(267mm)
A 16"
(406mm)
B 10-1/2"
(267mm)
A 16"
(406mm)
B 10-1/2"
(267mm)
A 14"
(356mm)
B 9-1/2"
(241mm)
C 17-1/2"
(445mm)
C 17-1/2"
(445mm)
C 17-7/8"
(454mm)
C 19-1/2"
(495mm)
C 18"
(457mm)
C 18"
(457mm)
C 18-1/2"
(469mm)
58-1/2"
(1486mm)
x 30-1/2"
(775mm)
58-1/2"
(1486mm)
x 30-1/2"
(775mm)
58-1/2"
(1486mm)
x 34-1/2"
(876mm)
58-1/2"
(1486mm)
x 58-1/2"
(1486mm)
70-1/2"
(1791mm)
x 34-1/2"
(876mm)
70-1/2"
(1791mm)
x 34-1/2"
(876mm)
Not
Applicable
60"
(1524mm)
x 30-1/2"
(775mm)
60"
(1524mm)
x 30-1/2"
(775mm)
60"
(1524mm)
x 34-1/2"
(876mm)
Not
Applicable
72"
(1829mm)
x 34-1/2"
(876mm)
72"
(1829mm)
x 34-1/2"
(876mm)
60"
(1524mm)
x 30-1/2"
(775mm)
L 60" (1524mm)
W 32" (813mm)
H 18-1/2" (469mm)
L 60" (1524mm)
W 32" (813mm)
H 19" (483mm)
L 60" (1524mm)
W 36" (914mm)
H 19-3/8" (492mm)
L 60" (1524mm)
W 60" (1524mm)
H 21" (533mm)
L 72" (1829mm)
W 36" (914mm)
H 19-1/2" (495mm)
L 72" (1829mm)
W 36" (914mm)
H 19-1/2" (495mm)
L 60" (1524mm)
W 32" (813mm)
H 18-3/4" (476mm)
98 lb.
(45 kg.)
98 lb.
(45 kg.)
102 lb.
(46 kg.)
119 lb.
(54 kg.)
103 lb.
(47 kg.)
119 lb.
(54 kg.)
135 lb.
(61 kg.)
418 lb. (190 kg)/
31 lb./sq.ft.
(153 kg/sq.m)
418 lb. (190 kg)/
31 lb./sq.ft.
(153 kg/sq.m)
414 lb. (188 kg)/
28 lb./sq.ft.
(135 kg/sq.m)
695 lb. (316 kg)/
34 lb./sq.ft.
(166 kg/sq.m)
543 lb. (247 kg)/
30 lb./sq.ft.
(148 kg/sq.m)
559 lb. (254 kg)/
31 lb./sq.ft.
(152 kg/sq.m)
455 lb. (207 kg)/
34 lb./sq.ft.
(167 kg/sq.m)
40
40
45
72
55
55
40
Description Drain /
Overflow
Cut Out
Pier
G x F
Rough-In
Recess
E x D
Weight with
Water / Floor
Loading
Product
Weight
Gallon to
Overflow
Height to
Underside
of Deck: C
Dimensions
L-W-H
2-1/4"
(57mm)
2"
(51mm)
2"
(51mm)
3-1/4"
(83mm)
1-1/2"
(38mm)
1-1/2"
(38mm)
2-1/4"
(57mm)
Tub Edge to
Centerline
Overflow: J
015-0005
5' x 32"
Cypress
015-0015
5' x 32"
Madison
015-0026
5' x 36"
Canterbury
015-0066
Tr iangle
015-0076
6' x 36"
Emblem
015-0077
6' x 36"
Emblem
To tal Massage
015-0305/0309
5' x 32"
Patriot
T
ABLE 1
(continued on ne
xt page)

8
754764-100 Rev. D
SPECIFICATIONS:
GENERAL SPECIFICATIONS FOR ELJER WHIRLPOOLS AND BATH TUBS
SIDE VIEW DRAIN / OVERFLOW END VIEW
L
H
W
CA
B
J
A 15"
(381mm)
B 10-1/4"
(260mm)
A 16"
(406mm)
B 9-1/2"
(241mm)
A 17"
(432mm)
B 9-1/2"
(241mm)
A 16"
(406mm)
B 9-1/2"
(241mm)
A 17"
(432mm)
B 10-1/2"
(267mm)
A 15"
(381mm)
B 7-3/4"
(197mm)
A 19-1/2"
(495mm)
B 8-1/4"
(210mm)
A 19-1/2"
(495mm)
B 7-3/8"
(187mm)
C 18"
(457mm)
C 18-1/2"
(469mm)
C 19-1/2"
(495mm)
C 20"
(508mm)
C 20"
(508mm)
C 17-3/4"
(451mm)
C 22-1/4"
(565mm)
C 21-1/2"
(546mm)
58-1/2"
(1486mm)
x 30-1/2"
(775mm)
58-1/2"
(1486mm)
x 30-1/2"
(775mm)
70-1/2"
(1791mm)
x 34-1/2"
(876mm)
Not
Applicable
58-1/2"
(1486mm)
x 58-1/2"
(1486mm)
58-1/2"
(1486mm)
x 30-1/2"
(775mm)
70-1/2"
(1791mm)
x 34-1/2"
(876mm)
56"
(1422mm)
x 36"
(914mm)
60-1/8"
(1527mm)
x 30-1/2"
(775mm)
60-1/8"
(1527mm)
x 30-1/2"
(775mm)
72-1/8"
(1832mm)
x 34-1/2"
(876mm)
60-1/8"
(1527mm)
x 30-1/2"
(775mm)
Not
Applicable
60-1/8"
(1527mm)
x 30-1/2"
(775mm)
72-1/8"
(1832mm)
x 34-1/2"
(876mm)
Not
Applicable
L 60" (1524mm)
W 32" (813mm)
H 19-1/2" (495mm)
L 60" (1524mm)
W 32" (813mm)
H 20" (508mm)
L 72" (1829mm)
W 36" (914mm)
H 21" (533mm)
L 60" (1524mm)
W 32" (813mm)
H 20-1/2" (520mm)
L 60" (1524mm)
W 60" (1524mm)
H 21-1/2" (546mm)
L 59-3/4" (1518mm)
W 32" (813mm)
H 19-1/4" (489mm)
L 72" (1829mm)
W 36" (914mm)
H 23-3/4" (603mm)
L 58" (1473mm)
W 38" (965mm)
H 23-1/2" (597mm)
92 lb.
(42 kg.)
90 lb.
(41 kg.)
112 lb.
(51 kg.)
124 lb.
(56 kg.)
130 lb.
(59 kg.)
90 lb.
(41 kg.)
124 lb.
(58 kg.)
97 lb.
(44 kg.)
425 lb. (193 kg)/
32 lb./sq.ft.
(156 kg/sq.m)
548 lb. (249 kg)/
41 lb./sq.ft.
(201 kg/sq.m)
862 lb. (392 kg)/
48 lb./sq.ft.
(234 kg/sq.m)
699 lb. (318 kg)/
52 lb./sq.ft.
(256 kg/sq.m)
863 lb. (392 kg)/
41 lb./sq.ft.
(201 kg/sq.m)
656 lb. (298 kg)/
49 lb./sq.ft.
(240 kg/sq.m)
1124 lb. (511 kg)/
62 lb./sq.ft.
(306 kg/sq.m)
763 lb. (347 kg)/
62 lb./sq.ft.
(306 kg/sq.m)
40
55
90
69
88
68
120
80
Description Drain /
Overflow
Cut Out
Pier
G x F
Rough-In
Recess
E x D
Weight with
Water / Floor
Loading
Product
Weight
Gallon to
Overflow
Height to
Underside
of Deck: C
Dimensions
L-W-H
2"
(51mm)
1-3/4"
(44mm)
1-3/4"
(44mm)
1-3/4"
(44mm)
6-1/4"
(159mm)
1-3/4"
(44mm)
1-3/4"
(44mm)
2-3/4"
(70mm)
Tub Edge to
Centerline
Overflow: J
025-0005
5' x 32"
Cascada
025-0140
5' x 32"
LaSalle
025-0141
5' x 36"
LaSalle XL
025-0142R
025-0142L
5' x 32"
Cabrillo
025-0143
60" x 60"
Gemini
025-0144
59-3/4" x 32"
Merrick
025-0145
6' x 36"
Merrick XL
025-0146
58" x 38"
Ridgefield
T
ABLE 1
(continued from pr
evious page)

754764-100 Rev. D
9
9" x 14" (229 x 356mm)
FLOOR CUTOUT
PROVIDE ACCESS
TO PUMP
0/I
19-1/2"
(495mm)
10-1/4"
(260mm)
40-1/2"
(1029mm)
32"
(813mm)
60"
(1524mm)
16"
(406mm)
60"
(1524mm) 32"
(813mm)
17-1/2"
(445mm)
19"
(483mm)
1-1/2"
(38mm)
9" x 14" (229 x 356mm)
FLOOR CUTOUT
PROVIDE ACCESS
TO PUMP
0/I
19-1/2"
(495mm)
10-1/4"
(260mm)
60"
(1524mm)
40-1/2"
(1029mm)
32"
(813mm)
16"
(406mm)
60"
(1524mm) 32"
(813mm)
17-1/2"
(445mm)
19"
(483mm)
1-1/2"
(38mm)

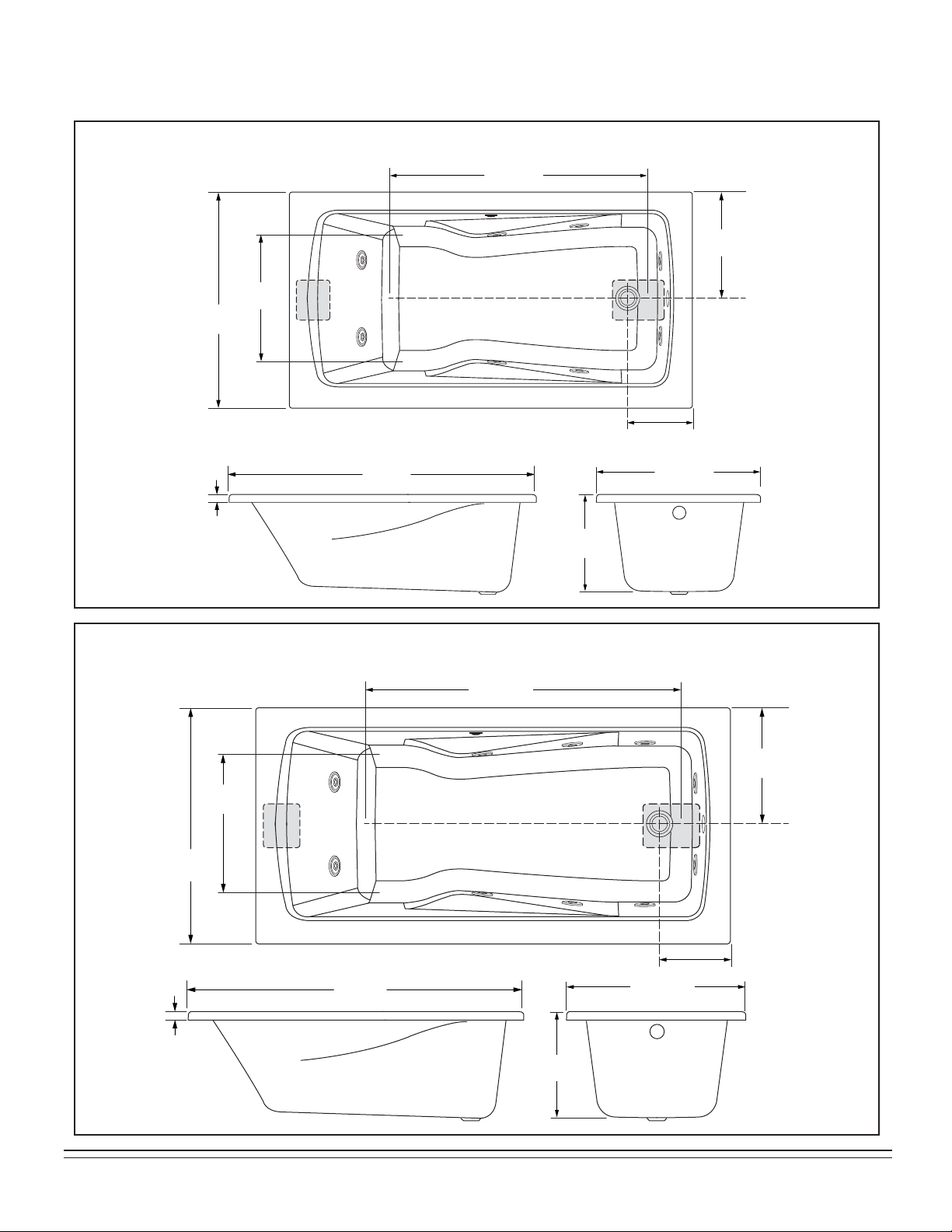

MADISON MODEL 015-0015
CYPRESS MODEL 015-0005
ROUGH-IN REFERENCES

10
754764-100 Rev. D
9" x 14" (229 x 356mm)
FLOOR CUTOUT
PROVIDE ACCESS
TO PUMP
0/I 10-1/2"
(267mm)
35-1/2"
(902mm)
46"
(1168mm)
48-5/8"
(1235mm)
60"
(1524mm)
35-1/2"
(902mm)
25-1/4"
(641mm)
60"
(1524mm)
44"
(1118mm)
19-1/2"
(495mm) 21"
(533mm)
1-1/2"
(38mm)
9" x 14" (229 x 356mm)
FLOOR CUTOUT
PROVIDE ACCESS
TO PUMP
18"
(457mm)
24-1/2"
(622mm)
8-1/4"
(209mm)
60"
(1524mm)
44-1/2"
(1130mm)
36"
(914mm)
60"
(1524mm) 36" (914mm)
19-1/2"
(495mm)
17-1/2"
(444mm)
1-1/2"
(38mm)
TRIANGLE MODEL 015-0066
CANTERBURY MODEL 015-0026
ROUGH-IN REFERENCES

754764-100 Rev. D
11
60"
(1524mm) 32"
(813mm)
18-3/4"
(476mm)
1"
(25mm)
19-3/4"
(502mm)
2-1/2"
(64mm)
1/2" (13mm)
21"
(533mm)
9" x 14" (229 x 356mm)
FLOOR CUTOUT
APRON / SKIRT
PROVIDE ACCESS
TO PUMP
SERVING ON
ALL INSTALLATIONS 0/I
18"
(457mm)
9-1/2"
(241mm)
42"
(1067mm)
32"
(813mm)
60"
(1524mm)
16"
(406mm)
9" x 14"
(229 x 356mm)
FLOOR CUTOUT
21-1/2"
(546mm)
10-1/2"
(267mm)
51-1/2"
(1308mm)
36"
(914mm)
72"
(1829mm)
18"
(457mm)
PROVIDE ACCESS
TO PUMP
0/I
72"
(1829mm) 36"
(914mm)
17-1/2"
(445mm)
19-1/2"
(495mm)
1-1/2"
(38mm)
PATRIOT MODEL 015-0309 / 0305
(Right hand version shown)
EMBLEM MODEL 015-0076
EMBLEM TOTAL MASSAGE MODEL 015-0077
ROUGH-IN REFERENCES

12
754764-100 Rev. D
9" x 14"
(229 x 356mm)
FLOOR CUTOUT
PROVIDE ACCESS
TO PUMP
0/I
19-1/2"
(495mm)
10-1/4"
(260mm)
60"
(1524mm)
40-1/2"
(1029mm)
32"
(813mm)
16"
(406mm)
60"
(1524mm) 32"
(813mm)
18"
(457mm) 19-1/2"
(495mm)
1-1/2"
(38mm)
32"
(813mm)
60"
(1524mm)
19"
(483mm)
9-1/2"
(241mm)
38-1/2"
(978mm)
32"
(813mm)
20-1/2"
(521mm)
16"
(406mm)
CASCADA MODEL 025-0005
CABRILLO MODEL 025-0142R/L
ROUGH-IN REFERENCES

754764-100 Rev. D
13
36"
(914mm)
72"
(1829mm)
1-1/2"
(38mm)
23"
(584mm)
9-1/2"
(241mm)
50-1/2"
(1283mm)
36"
(914mm)
21"
(533mm)
18"
(406mm)
32"
(813mm)
60"
(1524mm)
1-1/2"
(38mm)
20"
(508mm)
9-1/2"
(241mm)
38-1/2"
(978mm)
32"
(813mm)
20"
(508mm)
16"
(406mm)
LASALLE XL MODEL 025-0141
LASALLE MODEL 025-0140
ROUGH-IN REFERENCES

14
754764-100 Rev. D
36"
(914mm)
30"
(762mm)
26"
(660mm)
72"
(1829mm)
63-1/2"
(1612mm)
51-1/2"
(1308mm)
18"
(457mm)
3"
(76mm)
3-1/4"
(83mm)
1-1/2"
(38mm)
8-1/4"
(209mm) 4" (102mm)
72"
(1829mm)
32"
(813mm)
23-3/4"
(603mm)
20-1/4"
(514mm)
32"
(813mm)
26"
(659mm)
21-1/2"
(546mm)
59-3/4"
(1518mm)
53-3/4"
(1365mm)
44-1/2"
(1130mm)
16"
(406mm)
2-3/4"
(69mm)
3-1/4"
(83mm)
1-1/2"
(38mm)
7-3/4"
(197mm) 3" (76mm)
59-3/4"
(1518mm)
32"
(813mm)
19-1/4"
(489mm)
17-1/4"
(438mm)
MERRICK XL MODEL 025-0145
MERRICK MODEL 025-0144
ROUGH-IN REFERENCES

754764-100 Rev. D
15
2"
(51mm) 58"
(1473mm)
38"
(813mm)
23-1/2"
(597mm) 21-1/2"
(546mm)
20-1/4"
(514mm)
58"
(1473mm)
19"
(482mm)
4"
(102mm)
4"
(102mm)
7-3/8"
(187mm)
50"
(1270mm)
38"
(965mm)
30"
(762mm)
4"
(102mm)
24"
(609mm)
42-1/2"
(1079mm)
48-1/4"
(1226mm)
60"
(1524mm)
60"
(1524mm)
25-7/8"
(657mm)
20"
(508mm)
18"
(457mm)
21-1/2"
(546mm)
3"
(76mm)
C/L OF OVERFLOW
1-1/2"
(38mm)
10-1/2"
(267mm)
35-1/2"
(902mm)
RIDGEFIELD MODEL 025-0146
GEMINI MODEL 025-0143
ROUGH-IN REFERENCES

16
754764-100 Rev. D
42"
(1067mm)
24"
(610mm)
10"
(254mm)
1-3/4"
(44mm) 71-1/2"
(1816mm) 42" (1067mm)
35-3/4"
(908mm)
47"
(1194mm)
20-1/4"
(514mm) 22"
(559mm)
C
C
Pump
Location
= Control Panel
18-1/2"
(470mm)
42"
(1067mm) 25-1/2"
(648mm)
10-3/4"
(273mm)
1-1/2"
(38mm) 72"
(1829mm) 42"
(1067mm)
36"
(914mm)
45"
(1143mm)
21-1/2"
(546mm) 23"
(584mm)
C
C
Pump
Location
= Control Panel
21"
(533mm)
GENESIS MODEL 025-5405
VENICE MODEL 025-2505
ROUGH-IN REFERENCES

754764-100 Rev. D
17
84-1/2"
(2146mm)
42-1/4"
(1073mm)
45"
(1143mm)
60"
(1524mm)
36"
(914-mm)
10-3/8"
(264mm)
19-1/2"
(495mm)
17-1/2"
(445mm) 21" (355mm)
34"
(864mm)
1-1/2"
(38mm)
PUMP
LOCATION
C
C
= CONTROL PANEL
60"
(1524mm)
36"
(914mm)
60"
(1524mm)
18"
(457mm)
42"
(1067mm)
36"
(914mm)
21"
(533mm)
18"
(457mm)
18-3/4"
(476mm)
1"
(25mm)
1/2"
(13mm)
19-3/4"
(502mm)
16-1/4"
(413mm)
PUMP
LOCATION
C= CONTROL PANEL
C
CASANOVA MODEL 025-4805
PATRIOT MODEL 025-0155 / 025-0159
ROUGH-IN REFERENCES

18
754764-100 Rev. D
ELECTRICAL DIAGRAM
READ AND FOLLOW ALL INSTRUCTIONS
BLACK
WHITE
120 VAC
GND.
GFCI
OUTLET
WHIRLPOOL MOUNTED
AIR SWITCH OR
WALL TIMER
ELECTRICAL INSTALLATION
PUMP/MOTOR
ELECTRICAL INSTALLATION INSTRUCTIONS
All wiring must be performed by a licensed electrician in accordance with the national electrical code and all other
applicable codes.
WARNING:
When using electrical products, basic precautions should always be observed, including the following:
1. DANGER: RISK OF ELECTRIC SHOCK
Connect only to a circuit protected by a ground-fault circuit interrupter.
2. Grounding is required. The unit should be installed by a licensed electrician and grounded.
3. Install to permit access for servicing.
4. All building materials and wiring should be routed away from the pump body and heater (if equipped).
AIR SWITCH WHIRLPOOLS
The whirlpool should be installed on a 120 vac, 15 amp dedicated circuit. The circuit should be hard-wired from the
electrical power supply panel. The circuit must be a three (3) wire circuit from the electrical supply panel. A grounded
neutral wire and a third wire, earth ground, are essential. A SEPARATE 15 AMP MAXIMUM GFCI CIRCUIT IS
REQUIRED IF THE OPTIONAL HEATER IS INSTALLED (SEE INSTALLATION INSTRUCTIONS SUPPLIED WITH
THE HEATER MODEL NUMBER – 494-1000).

754764-100 Rev. D
19
JETS SPEED WAVE BLOWER SPEED WAVE
Control Center
THERAPY
JETS SPEED WAVE BLOWER SPEED WAVE
Control Center
THERAPY
ELECTRICAL INSTALLATION INSTRUCTIONS (continued)
WHIRLPOOL PLUS AIR BATH COMBINATIONS
The whirlpool pump and blower should be installed on a 120 vac, 20 amp dedicated circuit. The circuit should be
hard-wired from the electrical power supply panel. The circuit must be a three (3) wire circuit from the electrical supply
panel. A grounded neutral wire and a third wire, earth ground, are essential. A SEPARATE 15 AMP MAXIMUM GFCI
CIRCUIT IS REQUIRED IF THE OPTIONAL HEATER IS INSTALLED (SEE INSTALLATION INSTRUCTIONS
SUPPLIED WITH THE HEATER MODEL NUMBER – 494-1000).
The Whirlpool plus Air Bath combination control pad contains six (6) buttons.
Three controls on the “Therapy Control Center” operate the whirlpool and the bottom three controls operate the air
system. The whirlpool and air massages systems may be used at the same time if desired.
The air bath is controlled by a three button control:
1. The first button switches the blower on or off. The other features will not operate unless the blower is turned on.
2. The second button sets the power level of the blower. Holding the button depressed will cycle the blower power from
low to high in a continuous cycle. When the desired level is reached, remove your finger quickly from the button to
maintain that power setting.
3. The third button is a three step wave action button. Once activated, the air holes expell air in a slow pulsating flow
called wave action. There are 3 steps or positions for wave strength.
a. Position #1 operates the blower at a steady flow.
b. Position #2 operates the blower at a quick wave action.
c. Position #3 operates the blower at a slower wave action.
WHIRLPOOL PLUS AIR BATH COMBINATION UNITS ARE EQUIPPED WITH AN AUTOMATIC CLEANING
AND PURGE CYCLE
Air Baths have a preprogrammed cleaning and purge cycle built in to expel the remaining water in the air channels. It
activates within 20 minutes after the bath is drained, blows for about 2 to 3 minutes and then shuts off automatically.
There is nothing to be alarmed about if you hear a blowing noise coming from the tub after the tub has been turned off.
The noise you hear is the cleaning cycle in operation.
Switches the jet-pump
on or off
Adjusts the variable
water flow of the jets
Switches from continuous
to wave action water flow
Switches from continuous
to wave action air flow
Adjusts the variable
air flow of the blower
Switches the air
blower on or off

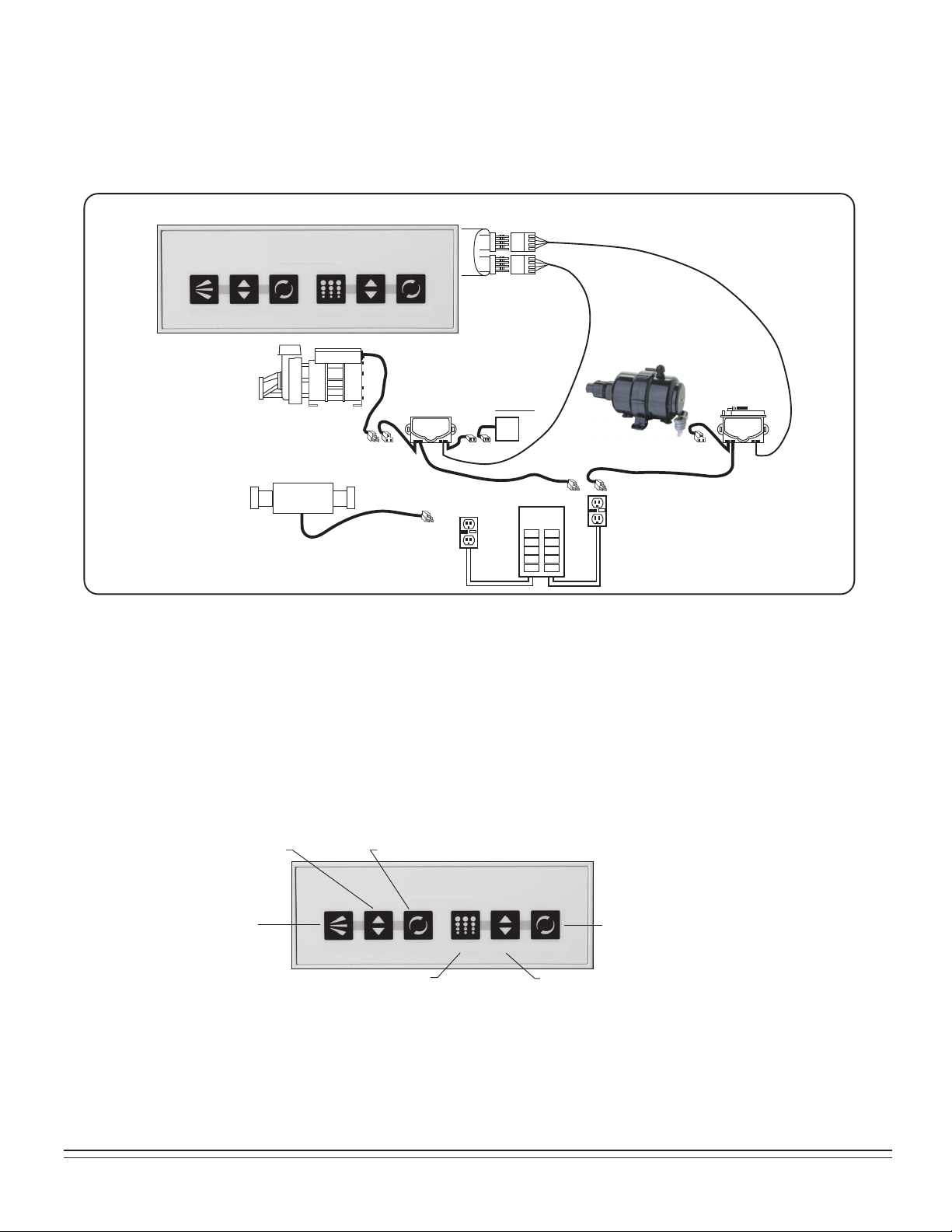

TOTAL MASSAGE CIRCUIT WITH OPTIONAL WATER HEATING ELEMENT
ON/OFF PUMP
OPTIONAL
HEATER
BACK OF 6 BTN
CONTROL
TMS-P / TIMER
CONTROL
120V / 60 Hz
20 AMP GFCI
120V / 60 Hz
20 AMP GFCI
120V / 20 AMP
MALE PLUG
TMS-VARIABLE
CONTROL
BLOWER
PUMP FLOW
CONTROL VALVE
0.5 AMP
ELECTRICAL
FEED
GFCIGFCI

20
754764-100 Rev. D
OPERATING INSTRUCTIONS
1. Fill the bath to at least 3 inches above the jets before activating the pump.
2. The pump is activated by an on/off switch. Each depression of the button switches the power either on or off.
Do not repeatedly depress the switch in rapid order if you do not see the whirlpool function right away,
as it may take a few seconds before you can see it fully operating.
3. If any factory installed fittings are removed do not operate the unit. A safety hazard may occur.
4. Do not use bubble bath when you operate the whirlpool pump.
This might cause excessive foaming.
5. Both air and whirlpool systems are plumbed in a way that water will
drain from the plumbing easily.
ON-OFF SWITCH
The whirlpool bath pump is activated by a on-off switch. Each depression of the switch
will actuate the pump. If off, one depression will turn the pump on. If on,
the next depression will turn it off.
JET OPERATION AND ADJUSTMENT
The jets can be easily adjusted by pointing the jet-nozzle in the desired direction. For units
with Hydro Jets, the strength of the waterflow and air induction can be regulated through
twisting the jet-nozzle. Twisting the nozzle clockwise will decrease the water flow and finally completely
turn off the water flow of that particular jet. If the nozzle is twisted counter- clockwise then the water
flow will increase up to its maximum flow.
ADJUS
TABLE FLOW CLEAN JET™:
The
water flow action may be adjusted from vigorous to soft by rotating the nozzle clockwise for vigorous and
count
erclockwise for soft.
NO
TE: You may balance the air volume control and nozzle adjustment for the most desirable condition.
AIR SWITCH
Small Jet
Large Jet
Softer Massage
(counter-clockwise)
More Vigorous Massage
(clockwise)
Softer Massage
(counter-clockwise)
More Vigorous Massage
(clockwise)
