Installation Instructions
SELECTRONIC®
I.C. Faucet
MODEL NUMBERS
6053.193
6055.193
605B.193
Certied to comply with:
• ASME A112.18.1
NOTE TO INSTALLER: Please give this manual to the customer after installation.
To learn more about American Standard Selectronic®Products visit our website at: www.americanstandard-us.com
or e-mail us at: CR[email protected]
For Parts, Service, Warranty or other Assistance,
please call (844) CRT-TEAM / [phone] (In Canada: 1-800-387-0369)
(In Toronto Area only: 1-905-306-1093)
Product No.’s & Options 1
Specications 2
Faucet Installation 2-3
Electrical Installation 4-6
Start-up / Maintenance 7-8
FAQ’s / Troubleshooting 9-10
Parts 11
CAUTION: Use only American Standard supplied
transformers and cable sets. Using non-AS
supplied cables, or cutting, splicing or modifying
any components will void the warranty.
I.C. Faucet shown installed on
American Standard 9118.111 Sink

M965651 Rev. 2.0 (3/19)
© 2019 AS America Inc. 2
Thank you for selecting American-Standard...the benchmark of ne quality for over 100 years.To ensure
that your installation proceeds smoothly--please read these instructions carefully before you begin.
The illustration below shows the tting and all loose items after they have been removed
from the carton. Some items may be packaged partially assembled to other items.
UNPACKING All American Standard Products Are Water Tested At Our Factory.
Some Residual Water May Remain In The Valve During Shipping
1. Installation Instructions
2. Spout Assembly
3. Mounting Kit
4. Control Box
5. Supply Hose
6. 4" Deck plate (optional, must be ordered separately)
7. 8" Deck plate (optional, must be ordered separately)
8. Mixing Valve (optional, must be ordered separately)
9. Control Box Cover Screws
605P400
605P800
605XTMV
PRODUCT No.s
3
2
6
7
8
Deck Plate Mixing ValveBase Product
605X.193
1
5
4
DO NOT REMOVE
PROTECTIVE FILM
FROM SENSOR
EYE UNTIL
INSTALLATION IS
COMPLETE.
Installation Instructions
SELECTRONIC®
I.C. Control Faucet
Certifiedto comply with ASME A112.18.1
©2015 American Standard
1
2
2-3
4-6
7-8
9-10
11
I.C.Faucet shown Installed on
-AmericanStandard 9118.111 Infection Control Sink
CAUTION: Useonly American Standard
supplied cable sets.Using non-AS supplied
cables, or cutting,splicing or modifying any
components will voidt he warranty.
Product No.'s & Options
Specifications
Faucet Installation
Electrical Installation
Start-up / Maintenance
FAQ’s/ Troubleshooting
Parts
6053.193
6055.193
605B.193
MODELNUMBERS
1
2
2-3
4-6
7-8
9-10
11
NOTETO INSTALLER: Please give this manualto the customer after installation.NOTETO INSTALLER: Please give this manualto the customer after installation.
Tolearn moreabout American StandardSelectronic®Productsvisit our websiteat: www.americanstandard-us.com
or e-mail us at:[e-mail]
For Parts,Service, Warranty or other Assistance,
please call (844) CRT-TEAM/ [phone] (InCanada: 1-800-387-0369)
(InToronto Area only: 1-905-306-1093)
9
Plug-In AC
Power Kit
Hard-Wired AC
Power Kit
Multi-AC
Power Kit
PK00.PAC PK00.HAC PK00.MAC
POWER KITS SOLD SEPARATELY

3M965651 Rev. 2.0 (3/19)
© 2019 AS America Inc.
Fig. 1
1
1
23
4
5
3
SENSOR
CABLES
1
2
3
4
5
6
7
10'
Roughing-in Dimensions
RECOMMENDED TOOLS
1. Slip Joint Pliers
2. Adjustable Wrench
3. Plumbers’ Putty or Caulking
4. Phillips Screwdriver
5. Flat Blade Screwdriver
6. Electric Drill & 1/4"Drill Bit
7. Tape Measure
114mm
(4-1/2)
500mm
(20") 1524mm
(60)
413mm
(16-1/4)
3/8" COMP.
32mm
(1-1/4) DIA.
125mm
(4-7/8)
81mm
(3-3/16)
60mm
(2-3/8) MAX.
MOUNTING
SURFACE
(243mm)
9-9/16"
(127mm)
5"
(133mm)
5-1/4"
(53mm)
2-1/8" DIA.
RECOMENDED ELECTRICAL BOX OR
EQUIVALENT BY OTHERS
HARD-WIRED AND MULTI AC 10’ MAX. CABLE LENGTH
4"(102mm) SQ. X 3-1/2"(89mm) DEEP ELECTRICAL BOX
Hubbel-RACO #256 OR EQUAL (BY OTHERS).
114mm
(4-1/2)
500mm
(20") 1524mm
(60)
413mm
(16-1/4)
3/8" COMP.
32mm
(1-1/4) DIA.
125mm
(4-7/8)
81mm
(3-3/16)
60mm
(2-3/8) MAX.
MOUNTING
SURFACE
(243mm)
9-9/16"
(127mm)
5"
(133mm)
5-1/4"
(53mm)
2-1/8" DIA.
RECOMENDED ELECTRICAL BOX OR
EQUIVALENT BY OTHERS
HARD-WIRED AND MULTI AC 10’ MAX. CABLE LENGTH
4"(102mm) SQ. X 3-1/2"(89mm) DEEP ELECTRICAL BOX
Hubbel-RACO #256 OR EQUAL (BY OTHERS).
GENERAL DESCRIPTION
Electronic faucet with proximity operation. Vandal resistant,
solid brass construction, single post mounting. Operates on DC
(battery/power pack) or AC permanent power (plug-in/hardwire).
In-line strainer for solenoid is integral. Single inlet 3/8
compression, built-in check valves, and exible stainless steel
16-1/4"reach inlet hose for spout connection.
Note: All plumbing and electrical wiring must be installed
in accordance with applicable codes, regulations
and standards.
CAUTION: Use only American Standard supplied
transformers and cable sets. Using non-AS supplied cables,
or cutting, splicing or modifying any components will void
the warranty.
1
SPOUT ASSEMBLY INSTALLATION;
Fig. 1
1. Insert CABLES (1), FLEX HOSE (2) and SPOUT
SHANK (3) through center hole of mounting surface.
2. Assemble “C” WASHER (4) and LOCKNUT (5)
onto SPOUT SHANK (3) from underside of
mounting surface.
3. Align FAUCET and tighten LOCKNUT (5).
Note: 4" and 8" Deck Plates are available for other
installations, see page one for information.
CAUTION Turn off hot and cold water
supplies before beginning.
FAUCET INSTALLATION

4M965651 Rev. 2.0 (3/19)
© 2019 AS America Inc.
2MOUNT CONTROL BOX; Fig. 2
NOTE:The illustration shows the Infection Control faucet
mounted on the American Standard Infection Control
Sink. Faucet can be installed on any sink or countertop.
For futher instructions regarding faucet installation on the
American Standard Infection Control Sink, see instruction
sheet No. 7301793-100 (Infection Control Sink System)
supplied with Sink.
1. For installation on Infection Control Sink, mount
CONTROL BOX (1) on MOUNTING BRACKET (2) with
the SCREWS (3) provided.
2. For all other sinks or countertops, determine location of
CONTROL BOX (1). It must be located with-in the 14"
(356mm) by 21"(533mm) shaded area shown in Figure 2 in
order for electrical connections from the spout assembly to
be made properly.
NOTE: CONTROL BOX SUPPLY HOSE is 20". Distance
between wall supply and CONTROL BOX (1) must
be taken into consideration.
3. Remove tape from CONTROL BOX COVER (6) and pull off
COVER (6). Hold the CONTROL BOX (1) in desired location
and mark the four mounting hole locations as shown.
NOTE: Find plastic bag containing 4 M5X16 screws to be
used for securing the CONTROL BOX (1) when
installation is complete.
NOTE: For AC installation, make power supply connection
before mounting CONTROL BOX (1) to wall.
4. It is recommended that the CONTROL BOX (1) be secured
to a wall stud or cross brace within the wall using the
SCREWS (3) supplied. If the CONTROL BOX (1) is to be
installed on tile or plaster walls, the ANCHORS (5) and
SCREWS (4) should be used.
3
CONNECT SPOUT HOSE TO CONTROL BOX;
Fig. 3
1. Connect SUPPLY NUT (1) from spout hose to nipple on top
of CONTROL BOX (2). Tighten with adjustable wrench to
make a water tight connection. Fig. 3.
4CONNECT WATER SUPPLY TO CONTROL
BOX AND WALL SUPPLY; Fig. 4, 4a
NOTE: If using the optional Mixing Valve, see sheet
#M968808 for installation instructions.
1. Insert FIBER WASHER (4) into SUPPLY NUT (1) on
CONTROL BOX (2).
2. Connect FLEXIBLE SUPPLY HOSE (3) to SUPPLY NUT (1)
on CONTROL BOX (2). Tighten to make a water tight
connection. Use two wrenches to tighten if necessary. Fig. 4.
3. Connect FLEXIBLE SUPPLY HOSE (3) directly to wall
supply. Connection on FLEXIBLE SUPPLY HOSE (3) is 3/8"
compression. Use adjustable wrench to tighten connection.
Do not over tighten. Fig. 4a.
Note: FLEXIBLE SUPPLY HOSE (3) measures 20"from
the bottom of the CONTROL BOX (2) base. If additional
supply length is required, installer must purchase parts
separately.
Important: If FLEXIBLE SUPPLY HOSE (3) is too long, loop to
avoid kinking.
Fig. 2
3-3/4"
(96mm)
2-3/4"
(71mm)
3"
(76mm)
6
4
5
2
2
3
1
1
MOUNTING
BRACKET
SUPPLIES
WASTE
ENCLOSURE
MOUNTING
HOLES
1524mm
(60)
20"
(500mm)
MOUNTING
BRACKET
14"
(356mm)
21"
(533mm)
Fig. 3 1
2
1
3
3
Fig. 4
2
COLD WATER OR
TEMPERED
WALL SUPPLY
OTHER SINK
INSTALLATION
Fig. 4a
4

5M965651 Rev. 2.0 (3/19)
© 2019 AS America Inc.
Fig. 1a Fig. 1b
Fig. 1
2
3
1
4
5
INSTALL BATTERY
CR-P2
5a
5
Fig. 1c
7
2
STANDARD
BATTERY
PWRX
5a
5a
6
STANDARD
BATTERY
PWRX
Fig. 1d 5a
ELECTRICAL INSTALLATION
Product Page
Plug-In AC Power Kit (PK00.PAC) 6
Hard-Wired AC Power Kit (PK00.HAC) 6
Multi-AC Power Kit (PK00.MAC) 7
ADC VERSIONS ; Fig. 1
• PWRX
•STANDARD BATTERY
1. Remove CONTROL BOX COVER (1). Fig. 1.
2. Feed the CABLES (2) through the top of CONTROL BOX
(3). Fig. 1a.
FOR STANDARD BATTERY VERSION ONLY
3. Insert BATTERY (4) into BATTERY HOLDER (5),
make sure the shape of the BATTERY (4) follows the
shape of the BATTERY HOLDER (5) and terminal end
is inserted rst. Fig. 1b.
4. Insert the BATTERY CONNECTOR (5a) from the
Standard Battery or PWRX BATTERY PACK through side
GROMMET (6) as shown. Fig. 1c.
5. Connect SOLENOID CABLE (7) and BATTERY
CONNECTOR (5a) to CABLES (2).
Place Standard Battery or PWRX BATTERY PACK into
housing. Fig. 1d.
6. Reinstall CONTROL BOX COVER (1). Tighten cover
screws rmly.
CAUTION: Use only American Standard supplied cable sets.
Using non-AS supplied cables, or cutting, splicing or modifying
any components will void the warranty.

6M965651 Rev. 2.0 (3/19)
© 2019 AS America Inc.
Fig. 2
2
3 1
Fig. 2a
16 6
9
810
2
PLUG INTO
WALL OUTLET
7
Fig. 2c
BLACK & WHITE
POWER
CONNECTIONS
10' EXTENSION
13
12
10b
15
14
10a
7
2
2
Fig. 2b
6
9
FROM ELECTRICAL BOX
WITH POWER SUPPLY
16
B

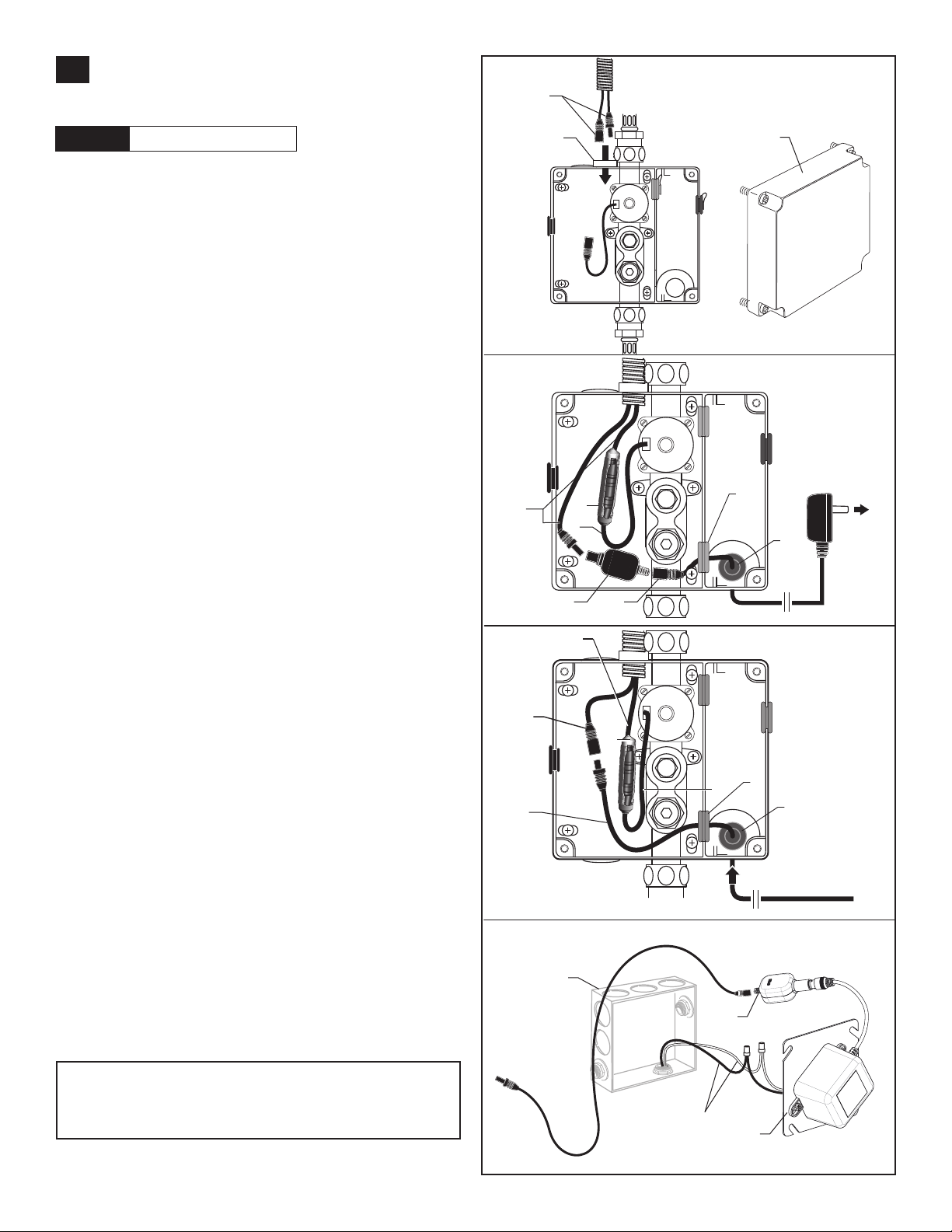

AC VERSION; Fig. 2
• PLUG-IN
•HARDWARE
Note: For AC installation, make power supply connection
before mounting CONTROL BOX (3) to wall.
1. Remove CONTROL BOX COVER (1). Feed the
EXTENSION CABLES (2) from the Faucet through
the top of ENCLOSURE (3).
FOR AC PLUG-IN ONLY
2a. Insert POWER CORD (8) through POWER SUPPLY
GROMMET (9).Fig. 2a.
3a. Insert POWER CORD (8) through side GROMMET (6)
as shown. Fig. 2a.
4a. Connect one of the CABLES (2) to SOLENOID
CABLE (7) and the other to the SINGLE AC
ADAPTER (10). Connect POWER CORD (8) to Single
AC Adapter (10) and install CONNECTOR LOCKING
DEVICE (16). Fig. 2a.
5a. Mount CONTROL BOX to wall. Replace CONTROL BOX
COVER (1). Tighten cover screws rmly.
6a. Plug AC POWER SUPPLY into wall outlet.
FOR HARDWIRE HOOK-UP ONLY
2b. Insert one end of the 10'EXTENSION (10a) through
POWER SUPPLY GROMMET (9). Fig. 2b.
3b. Insert 10'EXTENSION (10a) through side
GROMMET (6) as shown. Fig. 2b.
4b. Connect CABLES (2) to SOLENOID CABLE (7) and the
other to the 10' EXTENSION CABLE (10a). Install
CONNECTOR LOCKING DEVICE (16). Fig. 2b.
Contractor to supply ELECTRICAL BOX (12) and power
to POWER SUPPLY (13).
5b. Mount POWER SUPPLY (13) onto ELECTRICAL
BOX (12). Connect connections to POWER SUPPLY
CONNECTIONS (14). Fig. 2c.
6b. Connect the10'EXTENSION (10b) to the POWER
SUPPLY CABLE (15). Fig. 2c.
CAUTION Disconnect AC power supply
before opening CONTOL BOX.
CAUTION: Use only American Standard supplied cable sets.
Using non-AS supplied cables, or cutting, splicing or modifying
any components will void the warranty.

7M965651 Rev. 2.0 (3/19)
© 2019 AS America Inc.
Unit #2 Unit #3
Fig. 3
10 ft.
EXTENSION
CABLE
AC POWER
SUPPLY
*MAXIMUM OF 15 UNITS PER AC POWER SUPPLY.
10' MAXIMUM CABLE LENGTH BETWEEN UNITS.
OR
Unit #1
Already installed
BLACK &
WHITE
POWER
CONNECTIONS
CMULTI-AC VERSION (DAISY-CHAIN); Fig. 3, 3a
Important: All control box covers must be removed before beginning to make daisy-chain connections.
Disconnect the rst unit’s Y-Adapter from power supply before making daisy-chain connections.
Note: For Unit #1 electrical instructions, refer to section B (page 6).
For subsequent Units, refer to instructions below...
1. Remove COVERS from all CONTROL BOXES (3).
2. Remove solid black plug grommet from left side of all
CONTROL BOXES (3), and replace with GRAY
GROMMET (5b). (Supplied with each Faucet).
3. Insert pervious unit’s 10'EXTENSION (11a) through
gray GROMMET (5b) and connect to single terminal
of Y-ADAPTER (11).
4. Feed CABLES (2) through the top of CONTROL BOX (3).
Connect one CABLE (2) to the SOLENOID CABLE (7),
and the other to either of the two available terminals of
the Y-ADAPTER (11). Connect the current unit’s 10'
EXTENSION (10a) to available terminal of the
Y-ADAPTER (11).
5. Feed the other end of the 10 ft.EXTENSION (10b)
through the two GRAY GROMMETS (6a and 6b) and
connect to the single terminal of the next unit’s
Y-ADAPTER (11). Place Y-ADAPTER (11) into
CONTROL BOX (3).
6. Repeat Steps above for each additional Unit, for a
Max. of 15 Units on one AC POWER SUPPLY.
7. Reinstall CONTROL BOX COVERS. Tighten cover
screws rmly.
CAUTION: Use only American Standard supplied transformers and cable sets. Using non-AS supplied cables, or
cutting, splicing or modifying any components will void the warranty.
Unit #2 Detail
Fig. 3a
5
5b
10b
6a
6b
10a
7
2
2
11
11a
3

8M965651 Rev. 2.0 (3/19)
© 2019 AS America Inc.
TO ENSURE A LAMINAR WATER FLOW, the air must be
slowly purged from the spout. To do so, cover the SENSOR (1)
while slowly opening the water supply valves. When the water
ows as a solid, smooth, steady stream, uncover the
SENSOR (1) and fully open the water supply valve. Fig. 1.
AHAND WASH SENSOR OPERATION; Fig. 1
When the Sensor detects a user, the water immediately starts
to ow. Water ow will stop 2 seconds after user is out of
sensor range. The off delay allows the user to comfortably
move his hands without the ow cycling on and off. As a
precaution, a safety timer will turn off the water after the
sensor has been blocked for 59 seconds. The water will stay
off until the blockage is removed from the detection zone.
Detection Zone: 2" - 10" (50mm - 250mm)
Default: Set at Factory 6" (150mm)
BCHANGE SENSOR RANGE;
(Factory set at 6") Fig. 2, 2a
1. Remove CONTROL BOX COVER. Disconnect Power Supply
(1), then reconnect. Fig. 2.
2. While the SENSOR CONTROL LED (2) is blinking slowly,
place your hand 1 - 2 in. (30-50mm) in front of the sensor.
Fig. 2a.
3. When the LED stops blinking and stays “ON”, move your
hand to the desired position and hold in place until the LED
begins to blink again. Fig. 2a.
4. Once the SENSOR CONTROL LED (2) begins to blink
again, remove your hand from the detection zone. When the
ashing stops, the detection distance is set.
5. Reinstall CONTROL BOX COVERS (2). Tighten cover
screws rmly.
CCLEAN FILTER ASSEMBLY; Fig. 3
1. Remove CONTROL BOX COVER.
2. Close SUPPLY STOP (13) with 4mm Hex wrench.
Note: Activate sensor to keep water owing out of
faucet while shutting off.
3. Unthread FILTER ASSEMBLY (6) using a 7/16"socket.
4. Pull out the FILTER ASSEMBLY (6), remove and clean
white debris cup and lter screen.
5. Install the FILTER ASSEMBLY (6) back in its place and
tighten with a 7/16"socket.
Caution: Do not over tighten.
6. Open SUPPLY STOP (13) with 4mm Hex wrench.
7. Reinstall CONTROL BOX COVER. Tighten cover
screws rmly.
Fig. 1
DETECTION
ZONE
1
Fig. 2
BLINKINGLED
UP TO 10" (250mm)
1
2
BLINKING
LED
2
1" -2"(30mm - 50mm
Fig. 2a
6
WHITE
DEBRIS
CUP
FILTER
SCREEN
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Fig. 3
7/16" SOCKET
4mm HEX WRENCH
13
CAUTION Before opening CONTROL BOX
disconnect AC power supply.
TEST INSTALLED FAUCET
MAINTENANCE

9M965651 Rev. 2.0 (3/19)
© 2019 AS America Inc.
Fig. 4
CR-P2
6
3
2
STANDARD
BATTERY
PWRX
4
1
5
1
2
3
4
Fig.5
Fig.5a
PULL UP TO
REMOVE SPOUT
3
6
4
5

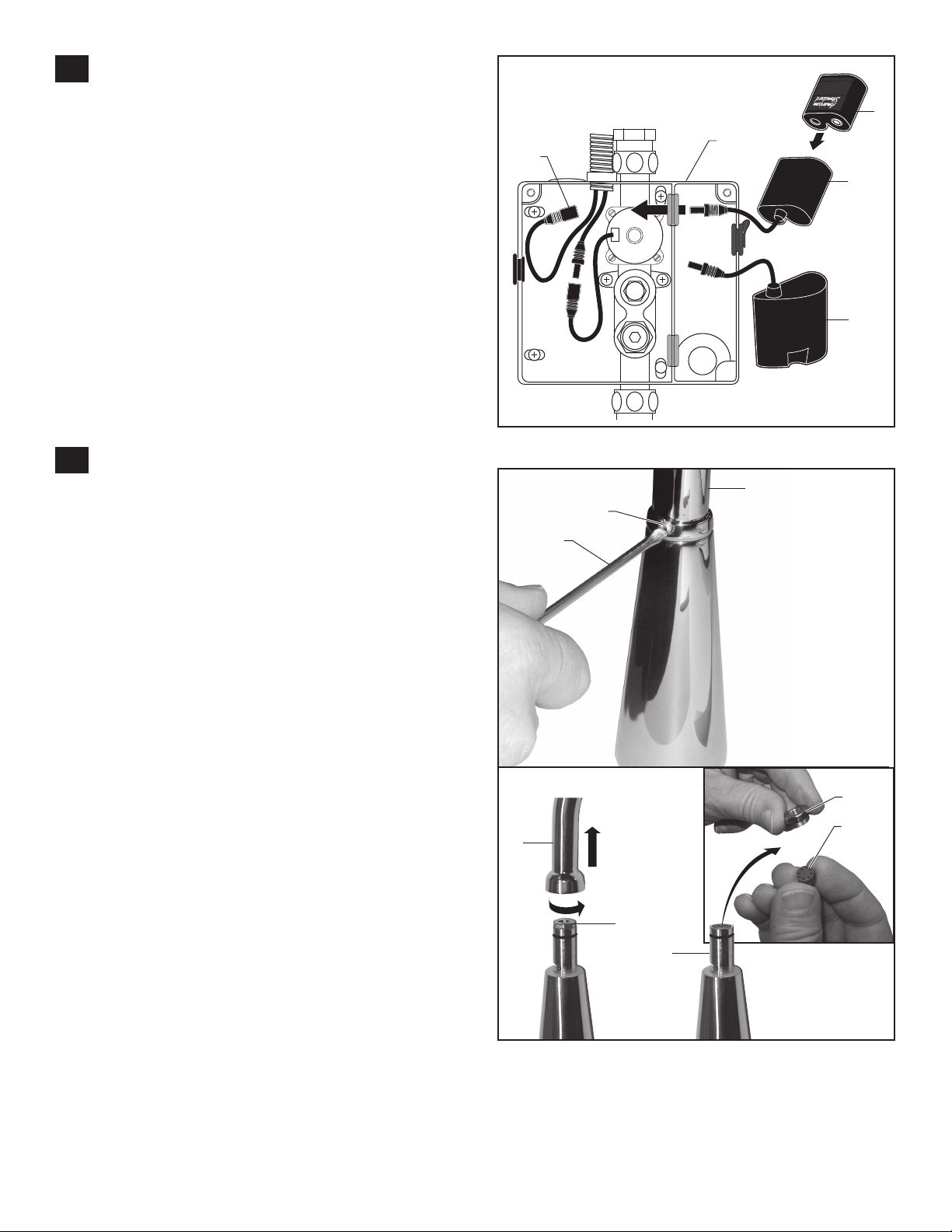

DINSTALL / REPLACE THE BATTERY or
PWRX BATTERY PACK; Fig. 4
1. Remove CONTROL BOX COVER (1).
2. Disconnect Battery Holder (3) from CABLE (5).
3. Remove old BATTERY from Battery Holder (3). Install new
BATTERY (2) making sure the terminal side is inserted rst
and shape of the battery follows the shape of the BATTERY
HOLDER (3).
4. Reconnect BATTERY HOLDER (3) to CABLE (5).
5. To replace PWRX BATTERY PACK (4), unplug and
replace with new Power Pack.
6. Reinstall CONTROL BOX COVER. Tighten cover
screws rmly.
E
CLEAN AND REMOVE FLOW RESTRICTOR;
Fig. 5
1. Remove SET SCREW (1) with FLAT BLADE
SCREWDRIVER (2). Pull off SPOUT (3) from faucet
base. Fig. 5.
2. Remove HOUSING (4) and remove FLOW
RESTRICTOR (5). Fig. 5a.
3. Clean FLOW RESTRICTOR (5). Reassemble and
install into SPOUT BASE (6). Reassemble
SPOUT (3) onto SPOUT BASE (6) and tighten
SET SCREW (1). Fig. 5.

10 M965651 Rev. 2.0 (3/19)
© 2019 AS America Inc.
Fig.6
FGENERAL CLEANING; Fig. 5
1. Only use a damp, soft cloth to clean the spout and
the sensor.
2. For tougher dirt, use a soft cloth with diluted dish
washing detergent. Wipe the area using a wet cloth.
CAUTION Do not scratch the sensor when cleaning. Avoid using
any abrasives or harsh detergents or chemicals.
FAQ’S
Q: How will I know if the battery needs to be replaced?
A: Valve will not open and sensor will continuously blink 2 times interrupted by a pause, for up to 7 days.
Q: Why has the ow rate of the faucet reduced signicantly?
A: The lter assembly, ow regulator or areator/spray may be clogged. Check and clean. Refer to Start-up/
Mainenance, sections C, D and E.
Q: Why doesn’t water ow out of faucet when I’m within the sensor detection zone?
A: Battery may need replacement. If sensor continuously blinks 2 times interrupted by pause, replace battery
or call (844) CRT-TEAM / [phone].Z
Q: What is the normal operating pressure range?
A: Faucet will operate with supply pressures ranging from 20-80 psi.

11 M965651 Rev. 2.0 (3/19)
© 2019 AS America Inc.
TROUBLESHOOTING FLOW CHARTS
UNIT DOES NOT FUNCTION
1 1
2 2
YES
YES
YES
NO
NO
NO
YES
NO
OPEN EXTERNAL SUPPLY STOPS.
OPEN INTERNAL SUPPLY STOP.
(HEX KEY NEEDED)
CRITICALLY LOW BATTERY.
INSTALL NEW BATTERY.
DEAD BATTERY. INSTALL
NEW BATTERY. REPEAT.
NO CHECK FOR DAMAGE TO SENSOR WIRE INSULATION.
REPLACE SENSOR.
ARE EXTERNAL SUPPLY
STOPS OPEN?
IS INTERNAL SUPPLY
STOPOPEN?
REPEATED DOUBLE FLASH
ON SENSOR?
RECONNECT BATTERYTO SENSOR.
DOES SENSOR FLASH FOR 5 SECONDS?
REPLACE SOLENOID
YES
YES
NO CHECK FOR DAMAGE TO SENSOR WIRE INSULATION.
REPLACE SENSOR.
RECONNECT BATTERYTO SENSOR.
DOES SENSOR FLASH FOR 5 SECONDS?
NO FULLY OPEN INTERNAL & EXTERNAL SUPPLY
STOPS BY TURNING COUNTER CLOCKWISE.
LOW FLOW COULD BE CAUSED BY DEBRIS
IN THE FILTER ASSEMBLY, FLOW REGULATOR
OR AERATOR/SPRAY. REMOVE, CLEAN AND
INSERT BACK TO ORIGINAL POSITION.
ARE INTERNAL & EXTERNAL SUPPLY
STOPS FULLY OPEN?
REPLACE SOLENOID
WATER IS CONTINUOUSLY RUNNING
LOW FLOW ISSUES
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
(844) CRT-TEAM / [phone]
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
IN MEXICO 01-800-839-1200
Product names listed herein are trademarks of AS America, Inc. ©2019
To learn more about American Standard Selectronic®Products visit our website at:
www.americanstandard-us.com or e-mail us at: [email protected]
Mon. - Fri. 8:00 a.m. to 8:00 p.m. EST Saturday 10:00 a.m. to 4:00 p.m. EST
