OWNERS MANUAL
Homestead®VorMax® /Esteem®VorMax®
Two-Piece Chair Height Toilet with Seat
INSTALLATION INSTRUCTIONS
Thank you for selecting American Standard – the benchmark of fine quality for over 150 years.
To ensure this product is installed properly, please read these instructions carefully before you
begin. Certain installations may require professional help.
INSTALLATION PREPARATION
• Please unpack carefully and identify all parts needed for installation by using the Box Contents
page as a reference. Inspect the product and report any damages or missing parts immediately
to customer care by calling 855-815-0004. Follow the prompts for consumer/bathing. Local
building codes vary by location. Observe all local plumbing and building codes.
NOTE: Take extra care in handling the front surfaces of the walls. Use only non-abrasive cloths
to avoid scratching.
• Wear protective equipment during installation to avoid injury.
• Please keep these instructions for after care and customer service details.
7302155-100 Rev. E (6/23)
Image shown may vary from product purchased.

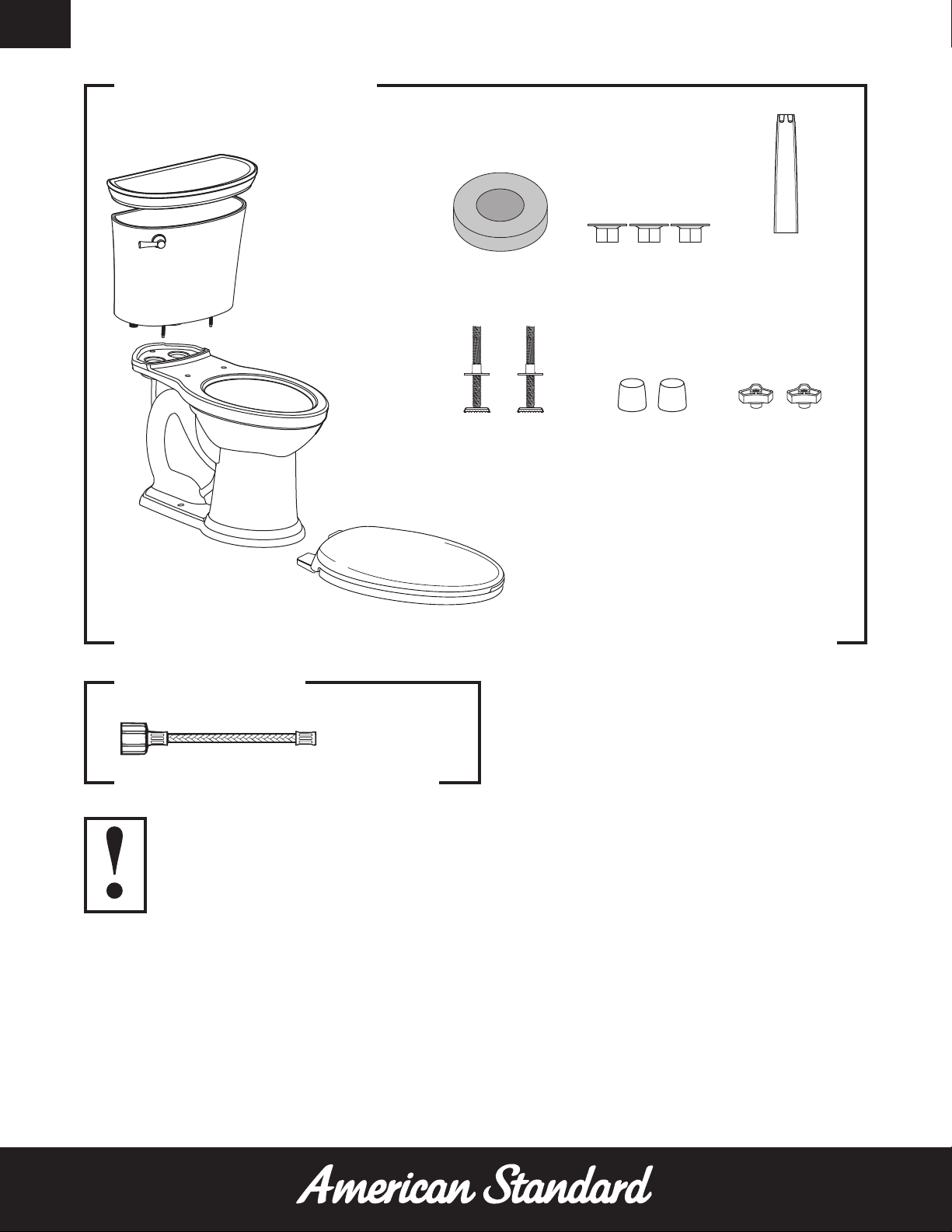

INSIDE THE BOX
SOLD SEPARATELY
Wax Ring
Slow Close Toilet Seat
Water Supply Line
Installation steps will indicate which items should be used with asscociated letter
T-Bolts with
Retainer (2)
Bolt
Caps (2)
Bowl-to-Floor
Knobs (2)
Nuts (3)
Attachment
Handle
BEFORE INSTALLING YOUR TOILET
please see your product spec page to verify the dimensions and water supply
connections. Visit our website where you can search by Model number for the
product spec page at: http://www.americanstandard-us.com
Image shown may vary from product purchased.
For seat installation,
see instructions included with seat.
7302155-100 Rev. E (6/23)

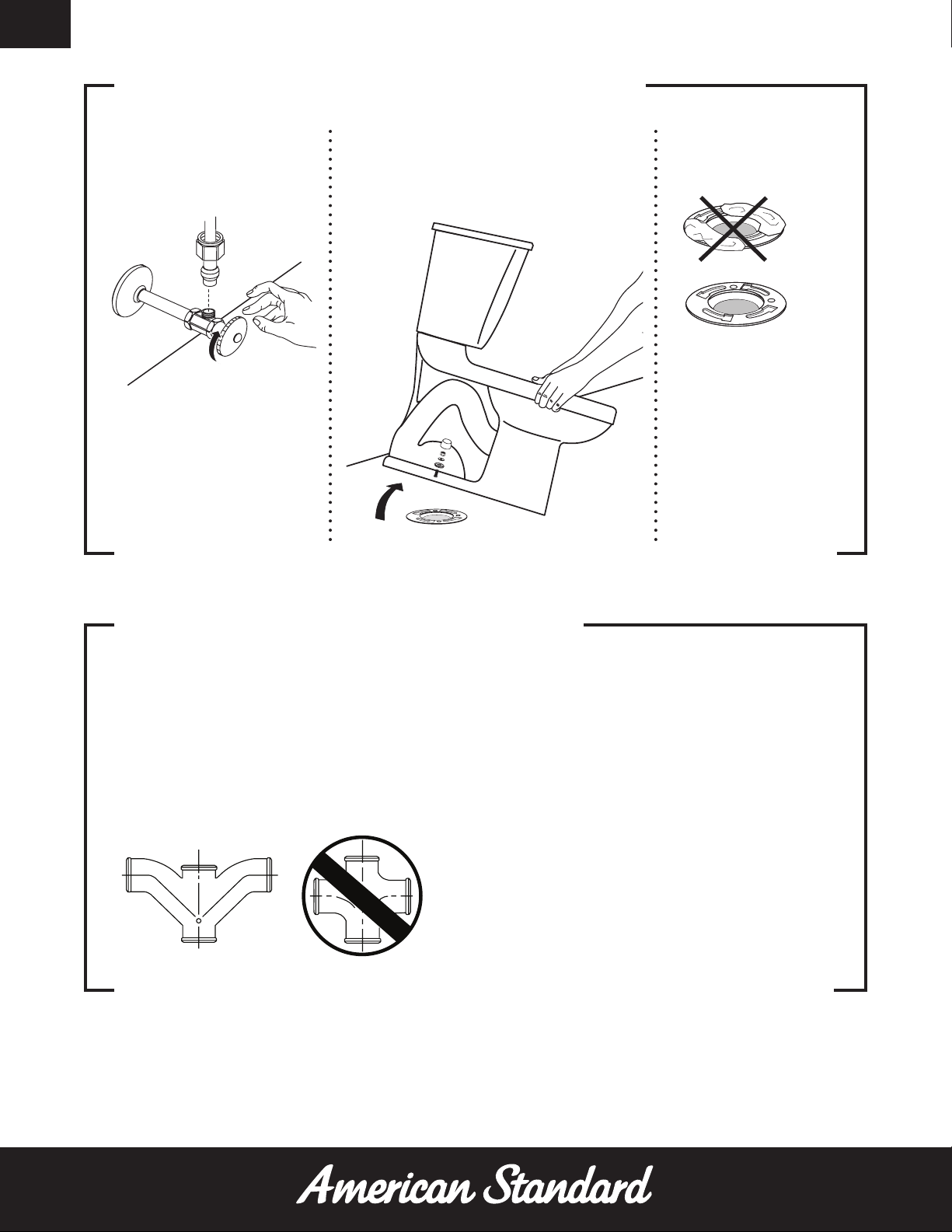

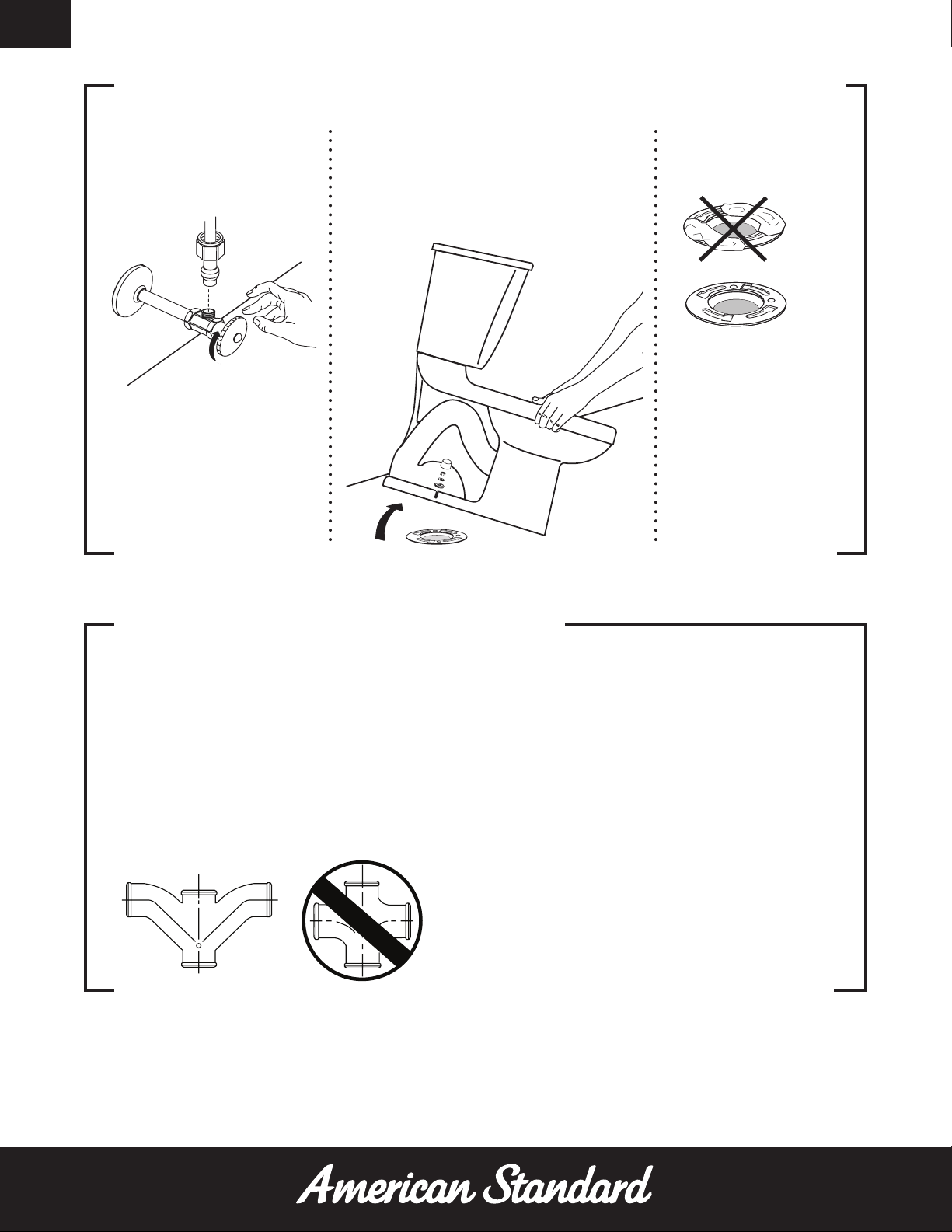

IF REMOVING AN EXISTING TOILET
INSTALLATION INSTRUCTIONS
Turn o water
supply
BACK-TO-BACK INSTALLATION
Depending upon your plumbing and venting conditions, the flow from this toilet
in a back-to-back installation may create a vacuum on the system and draw water
from the opposing bowl. The National Standards Plumbing Code prohibits the
use of a cross fitting for drainage as throw over is possible. The code does
approve a directional “Y” style fitting with proper venting to direct the water
downward and away from the other toilet.
Clean flangeFlush to remove water from
tank; sponge remaining
water from bowl before
removing toilet
Recommended fitting type for
back-to-back installations.
CAUTION
If leaving floor flange
open for more than 1-2
hours, cover flange to
prevent escaping sewer
gasses.
1 2 3
7302155-100 Rev. E (6/23)

1
3
2
4
Apply weight evenly. Do not move
after placement. Water tight seal
may break.
Hand tighten only.
Do not over-tighten.
Press firmly
Wax
ring
SECURE FLANGE
PLACE TOILET ON FLANGE
ATTACH WAX RING
ATTACH BOWL TO FLOOR KNOBS
7302155-100 Rev. E (6/23)

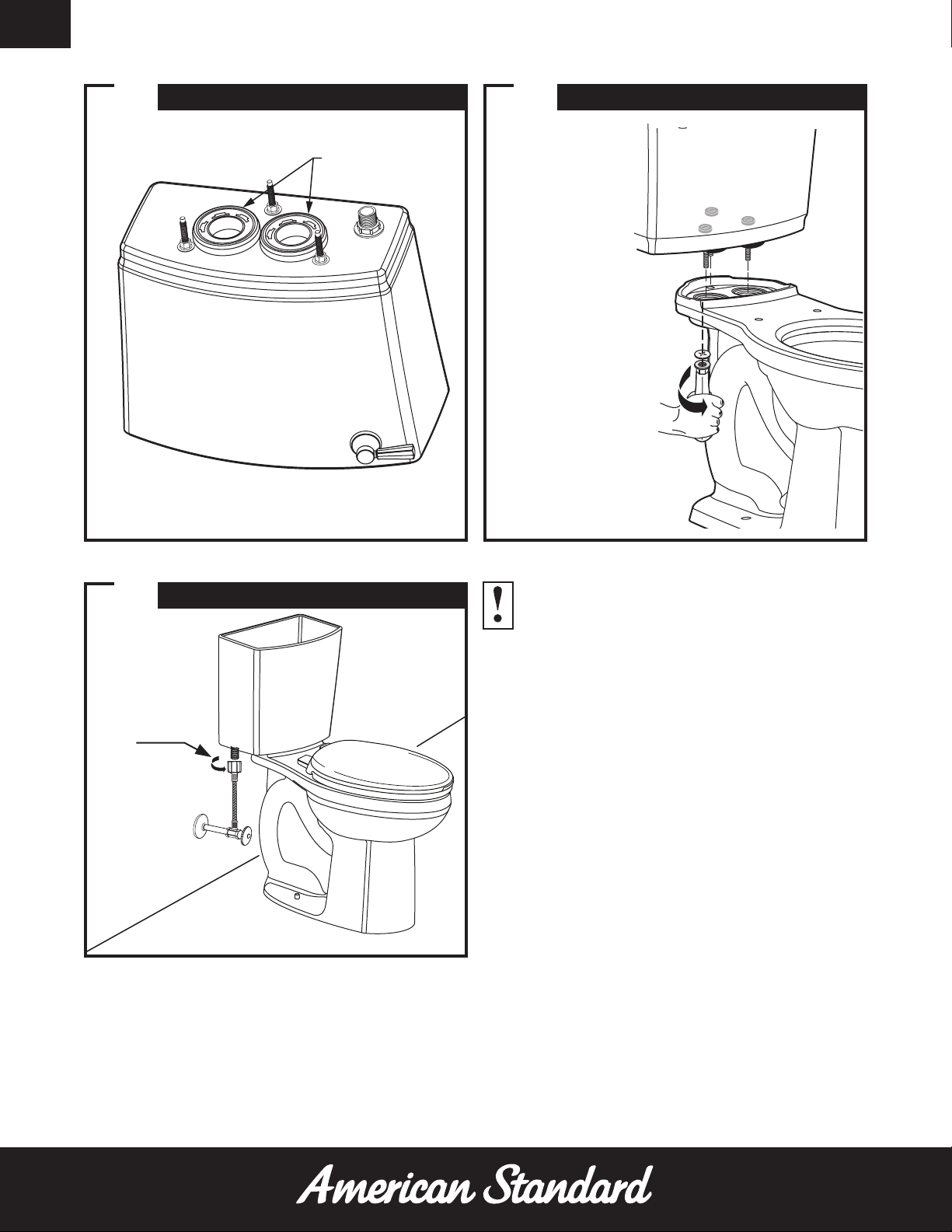

56
7

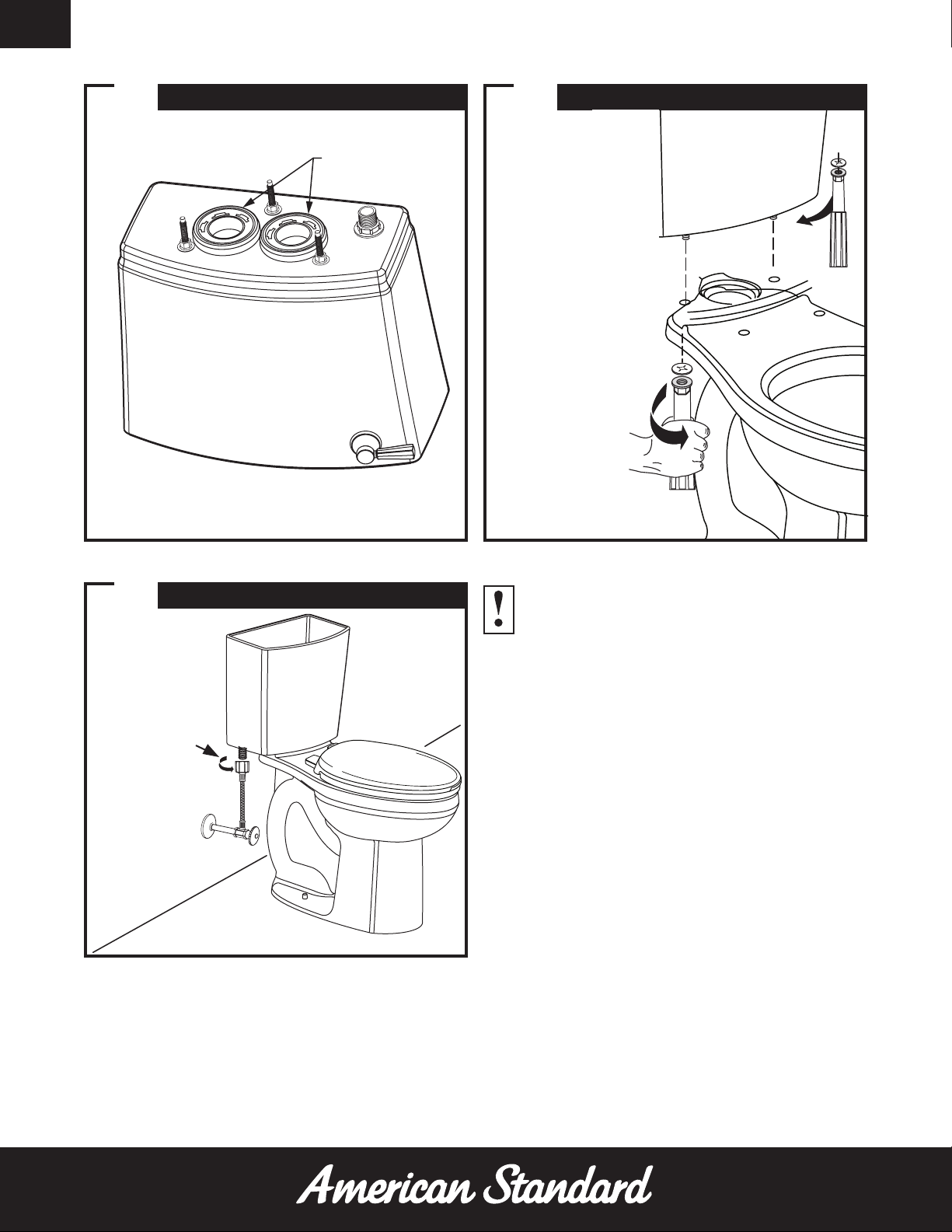

Confirm gaskets are fully seated on tank.
Tighten handles
alternately until
the tank con-
tacts the front
and back of the
bowl achieving
china-to-china
contact.
NOTE: To ease
installation,
push down on
the top of the
tank while
tightening
handles.
AConnect
water supply
line. (Sold
separately)
Hand
tighten nut.
BTurn on
water supply.
WARNING: Over-tightening of water
supply line nuts could result in breakage
and potential flooding.
If the connection leaks after hand tightening,
replace the supply line. If the connection continues
to leak with the new supply line, replace the
fill valve. Do not use plumber’s putty, pipe dope
or any other sealant on the water supply
connection. Use of plumber’s putty, pipe dope, or
any other type of sealant will void the warranty.
WARNING: Do not use plumber’s putty, pipe
dope, or any other sealant on the water supply
connection to this tank. If the connection leaks
after hand tightening, replace the supply line.
If the connection continues to leak with the
new supply line, replace the fill valve.
Warranty is void if any type of sealant is used on
the water supply connection.
ATTACH TANK TO BOWL GASKET CONNECT TANK AND BOWL
CONNECT WATER SUPPLY
7302155-100 Rev. E (6/23)
GASKETS

8
9
A Adjust water level to level
indicated on tank by turning
water level adjustment knob
to move float cup up or down.
B Prime the system by flushing
the product 5 times before
use to achieve optimal
performance.
C PROPER FLUSHING METHOD:
Be sure to fully depress the
trip lever on each flush. Do
not hold the trip lever down
for extended periods of time
as this could allow air to enter
the system which will slightly
degrade performance for
a few flushes.
• Depress trip lever handle all the way (A).
•Adjust screw on the teeter bar (B) so rear
frame (C) touches the frame stop (D).
• Return trip lever handle (A) to rest
position.
• Make sure hook (E) is fully engaged
under tab on valve body (F), if not,
slightly adjust screw to make sure hook
is engaged.v

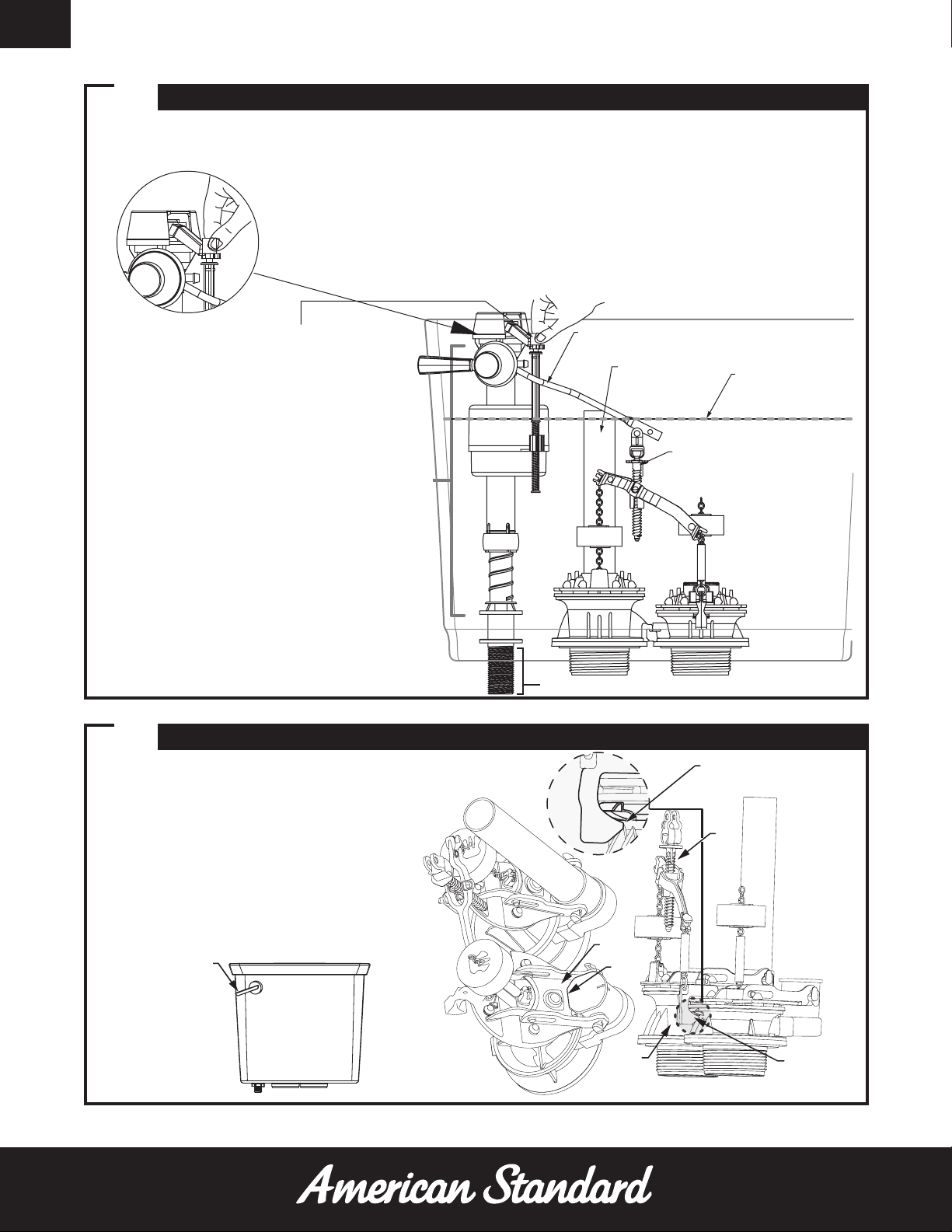

ADJUST FLUSH VALVE SETTINGS
VERIFY ADJUSTABLE SCREW SETUP
7302155-100 Rev. E (6/23)
Water Level Adjustment Knob
Trip Lever Rod
Overflow Tube Approximate
Water Level
Fill Valve
Or Water
Control
Water Supply
Line
Adjustable Screw
Hook
(E) (F)
(C)
(D)
(B)
(A)
HOW IT WORKS:
VorMaxfi Flush Technology reinvents conventional toilet flushing to provide
the cleanest flush ever engineered. The patent pending innovative VorMax
flushing system is powered by dual-injection flush valves. This newly
engineered system delivers a powerful stream of water that scours the inside
of the entire bowl surface and a separate burst of water towards the outlet
for superior solid waste removal with just one flush of 1.28 gallons of water.
VorMaxfi flushing technology is independently tested and verified to provide
a flush that’s 2x cleaner than conventional toilets.

TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Does not flush a. Water supply valve closed
b. Supply line blocked
c. Flush valve chain too loose or
disconnected
d. Sand or debris lodged in water
control
a. Open valve and allow water to fill tank
b. Shut o water supply, disconnect supply line and
inspect all gaskets and washers. Reassemble
c. Readjust chain length as required
d. Shut o water supply. Remove cap and clean
as per Fluidmaster maintenance instructions at:
www.americanstandard-us.com/enews/fluidmaster-
guide.pdf
Poor or sluggish
flush
a. Bowl water level too low
b. Supply valve partly closed
c. Partially clogged trapway and/or
drain pipe and/or vent
d. Supply pressure too low
e. Tank not installed tightly on
bowl.
f. Product has air stuck in
waterways.
g. Incorrect tank water level
h. Trip lever not opening jet flapper
to stop
i. Air leak
j. Trip lever not returning to original
position
k. Loss of prime due to depressing
on the trip lever too long
a. Check that refill tube is connected to water
control and inserted into overflow tube without
being kinked or damaged
b. Open supply valve fully. Be sure that proper supply
tube size is used
c. Remove obstruction. Consult a plumber if necessary
d. Normal supply pressure must be at least 20 psi
e. Tighten bolts as shown in Step 6 to make sure the
tank is touching the piers of the bowl in the front
and back of the product.
f. Re-prime bowl by flushing 5 times in a row allowing
the tank to refill each time to achieve optimal
performance.
g. Check water level in tank to make sure it is at the
correct height listed inside the tank. Re-prime bowl
by flushing 5 times in a row allowing the tank to
refill each time to achieve optimal performance.
h. Adjust settings according to adjustable screw setup
in Step 9
i. Reseat tank by shutting o water supply, disconnect
supply line, remove tank mounting nuts, inspect all
gaskets and reassemble
j. Adjust trip lever nut by loosening the nut a quarter
turn at a time clockwise (reverse thread)
k. Do not depress trip lever longer than 2 seconds for
optimal performance. Depressing trip lever longer
will negatively aect the toilet performance by
causing a loss of prime. Re-prime bowl by flushing
5 times in a row allowing the tank to refill each time
to achieve optimal performance
See Step 8-9 For Diagram
7302155-100 Rev. E (6/23)
Continued on next page

TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Toilet leaks a. Poor supply line connection.
b. Poor bowl to tank/floor
connection.
c. Cracked Bowl
d. Loose tank nuts
e. Loose flush valve mounting nuts
f. Tank to Bowl gaskets defective
g. Black rim flapper leaking. Inlet
valve will periodically run and
you will see water coming from
port in to the bowl
h. Red jet flapper leaking. Inlet
valve will periodically run
a. Review Step 8 of installation procedure.
b. Review Step 1 through 6 of installation procedure.
c. Send new bowl / return
d. Tighten nuts, reinstall
e. Tighten nuts, reinstall
f. Replace gaskets
g. Clean debris from seal surface. Replace flapper
seal as needed and adjust settings according to
adjustable screw setup in Step 9.
h. Clean debris from seal surface. Replae flapper seal
as needed and adjust settings according to
adjustable screw setup in Step 9
Toilet does not
shut o
a. Flapper seal leaking or deformed
b. Sand or debris lodged in water
control
c. Flush valve chain too tight,
holding flapper open
a. Clean debris from seal surface. Replace flapper
seal as needed. See web for more info.
b. Shut o water supply. Remove cap and clean as
per
Fluidmaster maintenance instructions at:www.
americanstandard-us.com/enews/fluidmaster-
guide.pdf
c. Adjust settings according to adjustable screw
setup in Step 9.
Toilet bowl rocks
after installation
a. Wax ring not fully compressed
b. Floor not level
a. Retighten bowl-to-floor knobs.
b. Use toilet shims and /or place a bead of
caulk around the base of the toilet
Continued
For Repair Parts List, see under tank lid.
7302155-100 Rev. E (6/23)
CARE AND CLEANING
When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear
water and dry with a soft cloth. WARNING: Do not use in-tank cleaners. These products can
seriously corrode fittings in the tank. This damage can cause leakage and property damage.
American Standard shall not be responsible or liable for any damage caused by the use of
in-tank cleaners.

7302155-100 Rev. E (6/23)
TELL US WHAT YOU THINK!
Please leave us a product review or story
at AmericanStandard.com/reviews
Register your warranty and sign up for an idea-filled newsletter at
AmericanStandard-us.com/support/warranty
PLEASE COMPLETE AMERICAN STANDARD WARRANTY REGISTRATION PROCESS AND
SAVE THIS WARRANTY INFORMATION IMPORTANT:
Registration of the sink must be completed for this warranty to become eective. Your registration
will make it easier to contact you in the event of a product recall.*
INSTRUCTIONS: Register your sink at www.americanstandard.com. Please save your proof of purchase
(sale receipt). If you need assistance or do not have access to our website, please contact American Standard
Customer Care at: [phone]. An American Standard representative will assist in completing
the warranty registration.
*In California, your warranty rights remain intact even if you do not complete the registration process.
Find installation videos at
youtube.com/americanstandard
WANT MORE INFO?
For questions or help call us at 855-815-0004,
or visit AmericanStandard.com
UNITED STATES
American Standard Brands
865 Centennial Ave.
Piscataway, New Jersey 08854
Attention: Director of Customer Care
For residents of the United States,
warrantyinformation may also be
obtained by calling the following
toll free number: [phone]
www.AmericanStandard.com
CANADA
LIXIL Canada, Inc.
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: [phone]
www.AmericanStandard.ca
MEXICO
American Standard B&K Mexico
S. de R.L. de C.V.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 800-839-1200
www.AmericanStandard.com.mx
SHARE YOUR NEW PRODUCT!
Tag us @american_standard on Instagram
and show us how your new product looks.
