American Standard Baby Devoro 2282 User manual

SAVE FOR FUTURE USE
1
7301876-100
Product names listed herein are
trademarks of AS Americas Inc.
© AS Americas Inc. 2011
Putty Knife
Flush Valve
Sealant
Tape Measure
Regular Screwdriver
Adjustable Wrench
Carpenters Level
RECOMMENDED TOOLS AND MATERIALS
Pictures may not exactly define contour of china
Model 2282
BABY DEVORO FLUSHOMETER BOWL
Model 2282
CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR HANDLING TO AVOID
BREAKAGE AND POSSIBLE INJURY!
NOTE: For proper operation product requires a minimum of 30 psi working line pressure
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years.To ensure this product is installed
properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be
sure your installation conforms to local codes.
!
CLOSET
FLANGE
CLOSET
BOLTS
10"
254mm
WAX RING
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent
damage), and install wax ring evenly
around waste flange (horn), with
tapered end of ring facing toilet. Apply a
thin bead of sealant around toilet base.
2
45
3
546mm
(21-1/2")
1 - 1/2
SPUD
121mm
(4-3/4")
254mm
(10")
FINISHED WALL
FINISHED
FLOOR
C/L OF OUTLET
1" N.P.T. OR 1" C.W.T. SUPPLY
TO FLUSH VALVE

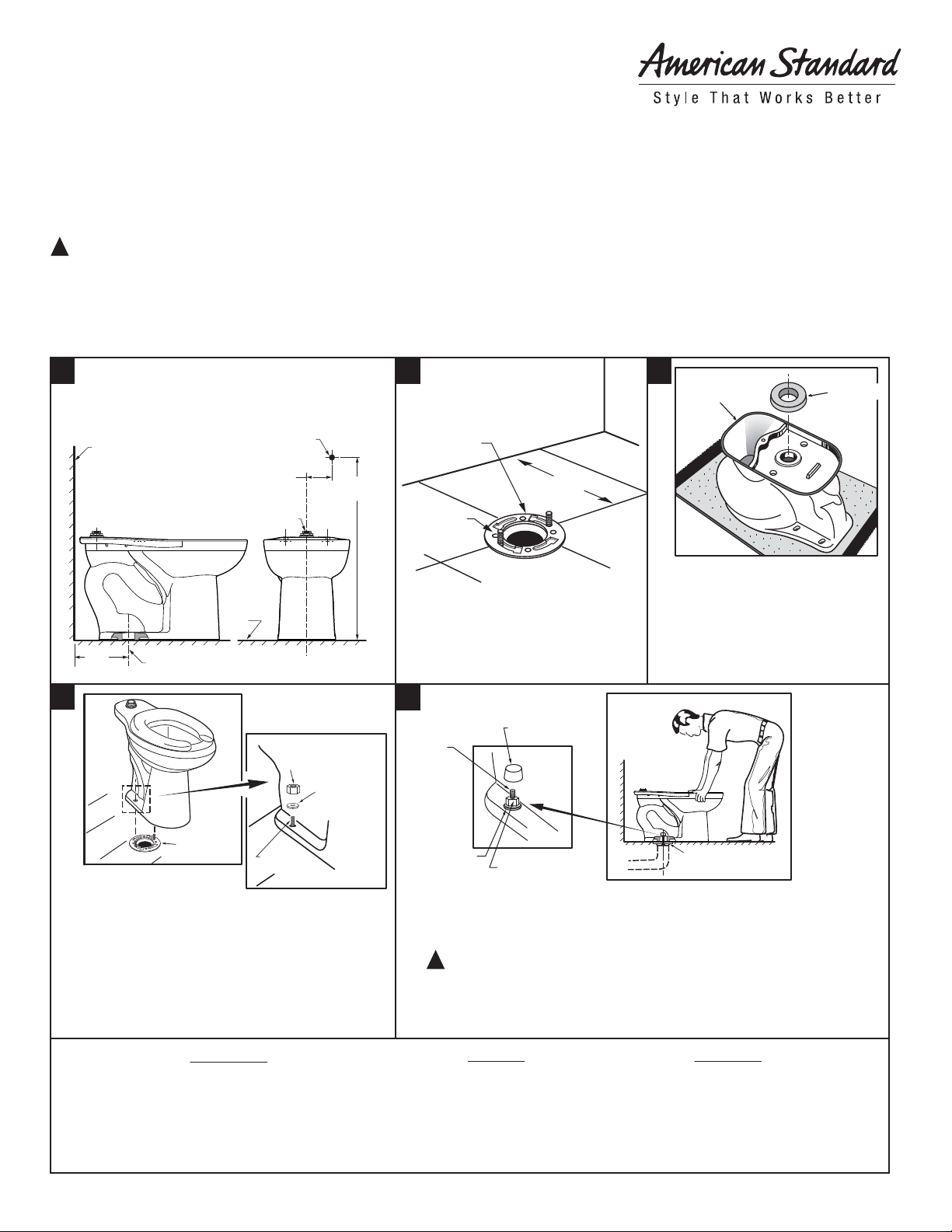

INSTALLATION INSTRUCTIONS
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet
flange so bolts project through mounting holes.
b. Loosely install retainer washers and nuts. Side of
washers marked "THIS SIDE UP" must face up!
CLOSET
BOLT
NUT
TAPERED
WASHER
FLANGE
INSTALL TOILET
a. Position toilet squarely to wall and, with a rocking motion, press bowl down fully on
wax ring and flange. Alternately tighten nuts until toilet is firmly seated on floor.
CAUTION: DO NOT OVERTIGHTEN NUTS
OR BASE MAY BE DAMAGED!
b. Install caps on washers. (If necessary, cut bolt height to size before installing caps.)
c. Smooth off the bead of sealant around base. Remove excess sealant.
CLOSET FLANGE
CLOSET
BOLT
NUT
WASHER
BOLT
CAP
!
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn
90°, and slide into place 6" (152mm) apart
and parallel to wall.
In the United States:
American Standard Brands
P.O. Box 6820
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: [phone]
www.americanstandard.com
In Canada:
AS Canada, ULC
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Toll Free: [phone]
www.americanstandard.ca
In Mexico:
American Standard B&K Mexico
S. de R.L. de C.V.
Via Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. Mexico
Toll Free: 01-800-839-1200
www.americanstandard.com.mx

GUARDE ESTAS INSTRUCCIONES PARA CONSULTAS POSTERIORES
Los nombres de productos que aparecen en este documento son marcas comerciales de AS Americas Inc.
© AS Americas Inc. 2011
Cuchillo para masilla Sellador
Cinta métrica
Destornillador normal
Llave ajustable
Nivel de carpintero
Válvula de descarga
BRIDA DEL
INODORO
PERNOS DE
FIJACIÓN
PERNO DE
FIJACIÓN
TUERCA
ARANDELA
CÓNICA
BRIDA
INSTALACIÓN DEL INODORO
a. Alinee el inodoro con la pared y, con un movimiento de vaivén, presione la taza
completamente sobre el anillo de cera y el reborde. Apriete las tuercas
alternadamente hasta que el inodoro se ajuste con firmeza en el piso.
ADVERTENCIA: ¡NO APRIETE EXCESIVAMENTE LAS
TUERCAS O SE PUEDE DAÑAR LA BASE!
b. Coloque las cubretuercas o tapas sobre las arandelas. (Si fuera necesario, corte el
tornillo antes de instalar las tapas.)
c. Alise la capa de sellador alrededor de la base. Quite el exceso de sellador.
!
PARED TERMINADA
PISO
ACABADO
L/C DE DESAGUE
INSTALACIÓN DEL SELLO DE CERA
Invierta el inodoro sobre el piso (en una
superficie amortiguada para evitar
daños) e instale el anillo de cera en
forma pareja alrededor de la brida del
desagüe (chapa circular), con el extremo
cónico del anillo hacia el inodoro. Aplique
una base delgada de sellador alrededor
de la base del inodoro.
1
7301876-100SP
HERRAMIENTAS Y MATERIALES RECOMENDADOS
Modelo 2282
BABY DEVORO TAZA DE FLUXOMÉTRO
Model 2282
ADVERTENCIA: EL PRODUCTO ES FRÁGIL. SE RECOMIENDA QUE DOS PERSONAS
MANIPULEN EL INODORO PARA NO ROMPERLO Y EVITAR POSIBLES LESIONES.
NOTA: Para un funcionamiento adecuado, el producto requiere un mínimo de presión de suministro de 30 psi.
Gracias por elegir American Standard - el parámetro de primera calidad por más de 100 años. Para asegurarse de que
el producto esté instalado correctamente, por favor lea estas instrucciones cuidadosamente antes de comenzar. (Ciertas
instalaciones pueden requerir ayuda profesional).Asegúrese de que su instalación cumpla con los códigos locales.
!
10"
254mm
ANILLO DE
CERA
IMPERMEABLE
2
45
3
546mm
(21-1/2")
1 - 1/2 DE
ACOPLE
121mm
(4-3/4")
254mm
(10")
SUMINISTRO DE 1" NPT O CWT
A VÁLVULA DE DESCARGA
INSTRUCCIONES DE INSTALACIÓN
COLOCACIÓN DEL INODORO SOBRE LA BRIDA
a. Desconecte la abertura de desechos del piso e instale el
inodoro sobre el reborde del inodoro de manera que los
tornillos de fijación salgan por los agujeros de montaje.
b. Instale las arandelas de retención y las tuercas sin
apretar mucho. El lado de las arandelas que dice
"THIS SIDE UP" debe ir hacia arriba!
BRIDA DEL
INODORO
PERNO DE
FIJACIÓN
TUERCA
ARANDELA
DEL TUBO
JUEGO DE TAPAS
DE PERNOS
INSTALACIÓN DE LOS PERNOS DE
FIJACIÓN DEL INODORO
Instale los tornillos de instalación del
inodoro en el canal del reborde, gire 90˚
y acomode deslizándolo 6" (152 mm)
de separado y paralelo a la pared.
En los Estados Unidos:
American Standard Brands
P.O. Box 6820
Piscataway, New Jersey 08855
Atención: Director de Servicio al Cliente
Para los residentes en los Estados Unidos, la
información de la garantía puede obtenerse también
llamando al siguiente número sin cargo: [phone]
www.americanstandard.com
En Canadá:
AS Canada, ULC
5900 Avebury Rd.
Mississauga, Ontario
Canadá L5R 3M3
Número sin cargo: [phone]
www.americanstandard.ca
En México:
American Standard B&K México
S. de R. L. de C.V.
Vía Morelos #330
Col. Santa Clara
Ecatepec 55540 Edo. México
Número sin cargo: 01-800-839-1200
www.americanstandard.com.mx
Es posible que las imágenes no definan
con exactitud el contorno de la loza

CONSERVER POUR RÉFÉRENCE ULTÉRIEURE
Les noms de produits indiqués ci-après sont des marques de commerce de AS Americas Inc.
© AS Americas Inc. 2011
Couteau à mastiquer Scellant
Ruban à mesurer
Tournevis ordinaire
Clé universelle
Niveau de menuisier
Valve de chasse
OUTILS ET MATÉRIAUX RECOMMANDÉS
COLLERETTE
DE PLANCHER
BOULONS DE
LA TOILETTE
RONDELLE
EN CIRE
SCELLANT
BOULONS
DE TOILETTE
ÉCROU
RONDELLE
TRONQUÉE
COLLERETTE
COLLERETTE DE
PLANCHER
BOULONS
DE TOILETTE
ÉCROU
RONDELLE
CACHE-BOULON
1
7301876-100FR
Modèle 2282
BABY DEVORO TOILETTE AVEC
ROBINET DE CHASSE
Model 2282
AVERTISSEMENT : CE PRODUIT EST FRAGILE. POUR ÉVITER LES BRIS ET LES BLESSURES,
IL EST RECOMMANDÉ D’ÊTRE DEUX PERSONNES POUR MANIPULER L'ACCESSOIRE!
REMARQUE : Afin d’assurer un fonctionnement adéquat, la pression de la conduite doit être au moins de 30 psi.
Nous vous remercions d'avoir choisi American Standard - synonyme de qualité supérieure depuis plus de 100 ans. Afin de
s'assurer que ce produit soit bien installé, veuillez lire ces instructions attentivement avant de commencer. (Certaines installations
peuvent requérir une aide professionnelle.) Assurez-vous également que votre installation se conforme aux codes locaux.
!
10"
254mm
INSTALLER LE JOINT DE CIRE
Renverser la toilette sur le plancher (en
protégeant contre les dommages), et
installer la rondelle de cire uniformément
autour de la collerette de vidange (garde),
le côté plus étroit de la rondelle vers la
toilette. Appliquer un mince trait de
scellant autour de la base de la toilette.
2
45
3
546mm
(21-1/2")
1 - 1/2
RACCORD
121mm
(4-3/4")
254mm
(10")
MUR FINI
PLANCHER
FINI
L/C DE SORTIEOF OUTLET
ALIMENTATION FILAGE 1 PO
NPT OU 1 PO QUINTAL À LA
VALVE DE CHASSE
INSTRUCTIONS D'INSTALLATION
PLACER LA TOILETTE SUR LA COLLERETTE
a. Dégager l'ouverture du renvoi dans le plancher et
installer la toilette sur la collerette de manière à ce que
les boulons passent à travers les trous de montage.
b. Installer sans serrer les rondelles et écrous de retenue.
Le côté des rondelles marqué « CE CÔTÉ EN HAUT »
doit être tourné vers le haut!
INSTALLATION DE LA TOILETTE
a. Placer la toilette en ligne droite avec le mur et, en la balançant, presser la cuvette
vers le bas complètement sur la rondelle en cire et la collerette. Resserrer les
écrous en alternant jusqu'à ce que la toilette soit solidement appuyée au sol.
AVERTISSEMENT : NE PAS TROP SERRER LES ÉCROUS SINON
LA BASE POURRAIT ÊTRE ENDOMMAGÉE!
b. Installer les cache-boulons sur les rondelles. (Si nécessaire, couper le boulon à la
bonne longueur avant d'installer les cache-boulons.)
c. Lisser le ruban de scellant autour de la base. Enlever l'excédent de scellant.
!
INSTALLER LES BOULONS DE
LA TOILETTE
Passer les boulons de la toilette dans les
ouvertures de la collerette, tourner 90°
pour glisser en place, 6 po (152 mm)
entre chacun et parallèle au mur.
Au Mexique :
American Standard B&K Mexique
S. de R.L. de C.V.
Via Morelos n° 330
Col. Santa Clara
Ecatepec 55540 Edo. Mexique
Sans frais: 01-800-839-1200
www.americanstandard.com.mx
Au Canada:
AS Canada, ULC
5900 Avebury Rd.
Mississauga, Ontario
Canada L5R 3M3
Sans frais: [phone]
www.americanstandard.ca
Aux États-Unis:
American Standard Brands
P.O. Box 6820
Piscataway, New Jersey 08855
Attention: Directeur du Service à la clientèle
Les résidents des États-Unis peuvent aussi obtenir
des informations à propos de la garantie en
composant le numéro sans frais [phone]
www.americanstandard.com
Les dessins peuvent ne pas correspondre
exactement aux contours de l'appareil ou
des composants

Installation Instructions
Installation Instructions
(In Toronto Area only: 1-905-3061093)
Certified to comply with ASME A112.19.2M
© 2008 AS America, Inc.
NOTE TO INSTALLER: Please give this manual to the customer after installation.
SELECTRONIC™
PROXIMITY TOILET FLUSH VALVE
1.28 & 1.6 GPF
Exposed Flushometer
for 1-1/2"Top Spud Bowls
CLOG RESISTANT
• Self-cleaning piston valve prevents clogging and reduces maintenance.
ONE SENSOR FITS ALL
• Only 1 sensor for entire Selectronic™ line of faucets, urinals, and ush valves.
• Range can be adjusted manually or with optional remote control.
• Sensor Features Low Battery Indicator.
M968699 Rev.1.6
6065.161
6065.121
6065.565
MODEL NUMBERS
6065.162
6065.122
6065.525
CLOG RESISTANT
• Self-cleaning piston valve prevents clogging and reduces maintenance.
ONE SENSOR FITS ALL
• Only 1 sensor for entire Selectronic™ line of faucets, urinals, and ush valves.
• Range can be adjusted manually or with optional remote control.
• Sensor Features Low Battery Indicator.
To learn more about American Standard Faucets visit our website at: www.americanstandard-us.com
or U.S. customer's e-mail us at: [email protected]
For Parts, Service, Warranty or other Assistance,
please call 1-800-442-1902 (In Canada: 1-800-387-0369)
(In Toronto Area only: 1-905-3061093)
Installation Instructions

Installation Instructions
5. Sweat Solder Adapter
6. Cover Tube
7. Wall Escutcheon
8. Supply Stop
9. Installation Instructions
1. Flush Valve Assembly
2. Down Tube and Vacuum Breaker
3. Spud Coupling Nut and Washers
4. Spud Flange
All American Standard Products Are Water Tested At Our Factory.
Some Residual Water May Remain In The Valve During Shipping.
Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that
your installation proceeds smoothly--please read these instructions carefully before you begin.
UNPACKING
1
1. Remove the Flush Valve items from the carton. The illustration below shows all items after
they have been removed from the carton. Some items may be packaged partially assembled
to other items.
1
2
3
4
5
6
78
9
M968699 Rev. 1.6
DO NOT REMOVE PROTECTIVE FILM FROM SENSOR
EYE UNTIL INSTALLATION IS COMPLETE.
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
CARE INSTRUCTIONS:
Installation Instructions
Installation Instructions
(In Toronto Area only: 1-905-3061093)
Certified to comply with ASME A112.19.2M
© 2008 AS America, Inc.
NOTE TO INSTALLER: Please give this manual to the customer after installation.
SELECTRONIC™
PROXIMITY TOILET FLUSH VALVE
1.28 & 1.6 GPF
Exposed Flushometer
for 1-1/2"Top Spud Bowls
CLOG RESISTANT
• Self-cleaning piston valve prevents clogging and reduces maintenance.
ONE SENSOR FITS ALL
• Only 1 sensor for entire Selectronic™ line of faucets, urinals, and ush valves.
• Range can be adjusted manually or with optional remote control.
• Sensor Features Low Battery Indicator.
M968699 Rev.1.5
6065.161
6065.121
6065.565
MODEL NUMBERS
6065.162
6065.122
6065.525
CLOG RESISTANT
• Self-cleaning piston valve prevents clogging and reduces maintenance.
ONE SENSOR FITS ALL
• Only 1 sensor for entire Selectronic™ line of faucets, urinals, and ush valves.
• Range can be adjusted manually or with optional remote control.
• Sensor Features Low Battery Indicator.
To learn more about American Standard Faucets visit our website at: www.americanstandard-us.com
or U.S. customer's e-mail us at: [email protected]
For Parts, Service, Warranty or other Assistance,
please call 1-800-442-1902 (In Canada: 1-800-387-0369)
(In Toronto Area only: 1-905-3061093)

Installation Instructions
RECOMMENDED TOOLS; Fig. 2 Fig. 2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Teflon Tape
Flat Blade Screwdriver
Adjustable Wrench
Tape Measure
Hacksaw
Tubing Cutter
File
For Sweat Connection; Solder and Torch
2.5mm Hex Wrench
1.5mm Hex Wrench
123
4
5
6
7910
8
PRIOR TO INSTALLATION
Note: Prior to installing the Selectronic™Flush Valve
the following items must be installed.
1. Water Closet
2. Drain line
3. Water supply line
• Flush all water lines prior to operation (See Step 4). Dirt
and debris can cause flush valve to run continuously.
• With the exception of Supply Stop Inlet, DO NOT use
pipe sealant or plumbing grease on any valve component
or coupling!
• Protect the chrome or special finish on the Flushometer.
DO NOT USE toothed tools on finished surfaces to install
or service these valves. Also see “Care and Cleaning”
section of this manual.
• This product contains mechanical and/or electrical
components that are subject to normal wear. These
components should be checked on a regular basis and
replaced as needed to maintain the valve’s performance.
IMPORTANT:
• All plumbing must be installed in accordance with
applicable codes and regulations.
• Water supply lines must be sized to provide an
adequate volume of water for each fixture.
2
Fig. 1
Roughing-in Dimensions GENERAL DESCRIPTION:
Right or Left Hand Installation
10'
Exposed Flushometer
for 1-1/2" Top Spud Fixtures
SELECTRONIC™
PROXIMITY TOILET
FLUSH VALVE
Exclusive, self cleaning piston-type flush
valve with proximity operation and
manual override. Operates on DC
(battery) power. Recommended
operating pressure 35 to 80 psi. Can
install left or right-handed. Detection
Zone can also be adjusted manually, or
with optional remote control.
See (Section 5) for converting Flush
Valve to Left Hand Installation.
M968699 Rev. 1.6
799mm
(31-1/2)
409mm
(16-1/8)
565mm
(22-1/4)
165mm
(6-1/2)
293mm
(11-1/2)
6065.161
6065.121
MODEL X
X
Y
Y
-C-L-
-C-L-
-C-L-
6065.162
6065.122 683mm
(27)
116mm
(4-5/8)
72mm
(2-7/8)
57mm
(2-1/4 MIN.)
DETECTION ZONE
400mm-800mm
(15-3/4 TO 31-1/2)
SUPPLY
DN 25mm
(1” I.P.S.)
15˚
FINISHED WALL
115mm-134mm
(4-1/2 TO 5-1/4)
FOR 1-1/2" TOP
SPUD FIXTURES
MANUAL
OVERRIDE
BUTTON
*CRITICAL
LEVEL
Installation Instructions
*Note: The Critical Line (-C-L-) on Vacuum
Breaker must typically be 6"(152mm) above
fixture. Consult Codes for details.

Installation Instructions
1
1
23
4
5
1
4
2
3
Fig. 4
Fig. 5

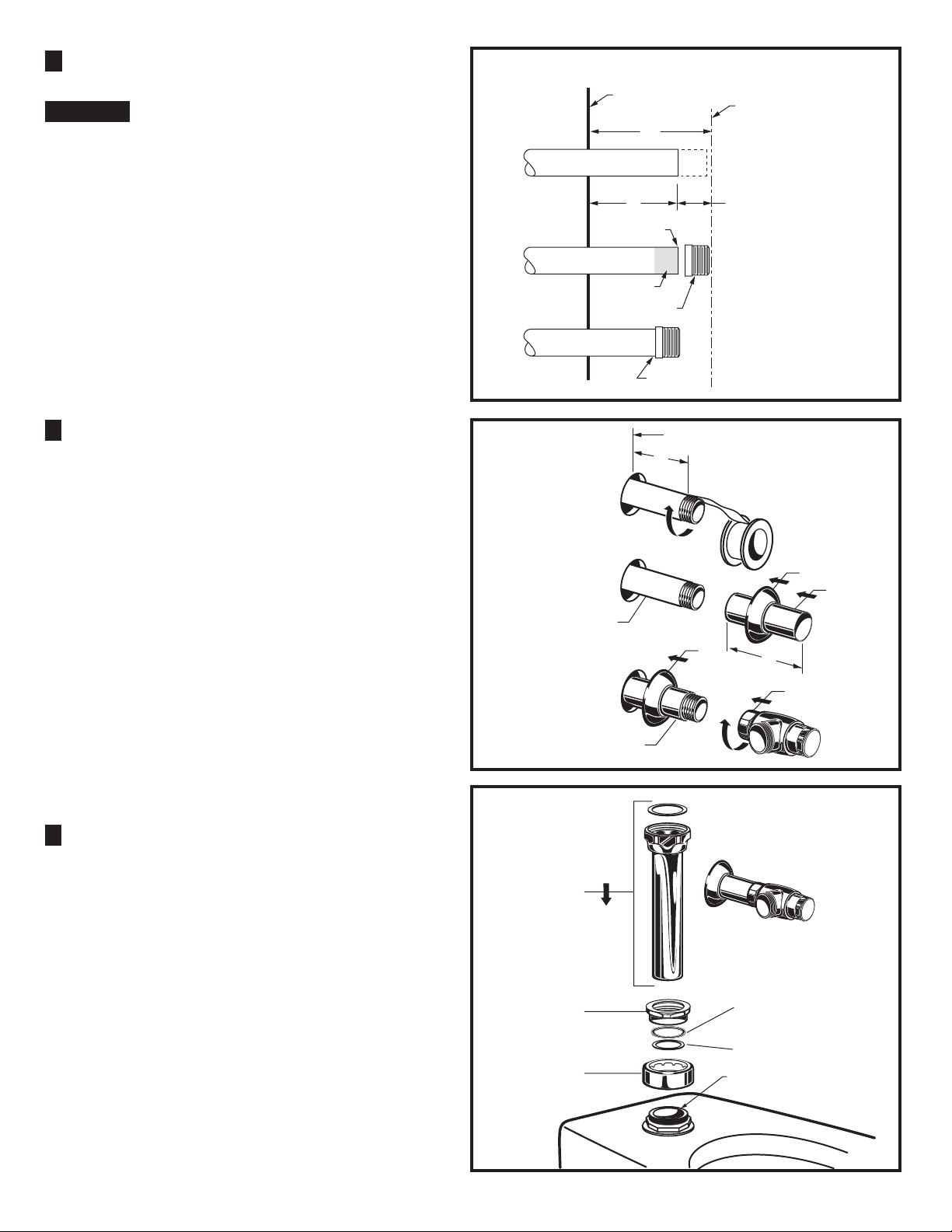

1. Measure from finished wall to first thread of Adapter
or threaded supply pipe (dimension “X”). Cut COVER
TUBE (1) to length (X). Apply Teflon Tape to the
threaded end of the Adapter or supply pipe. Fig. 4a.
2. Push the COVER TUBE (1) into the WALL
ESCUTCHEON (2). Slide both onto the SUPPLY PIPE
(3). Fig. 4b.
3. Push the COVER TUBE (1) in to expose the threads
of the supply pipe. Fig. 4c. With a wrench thread the
SUPPLY STOP (4) onto the SUPPLY PIPE (3). Align
and tighten. Fig. 4c.
4. Pull COVER TUBE (1) against SUPPLY STOP (4)
and push WALL ESCUTCHEON (2) against finished
wall.
3
INSTALL COVER TUBE, WALL
ESCUTCHEON and SUPPLY STOP;
Fig. 4
2
TEFLON TAPE
FINISHED WALL
M968699 Rev. 1.6
1-1/2" TOP SPUD
INSTALL THE SWEAT SOLDER
ADAPTER; Fig. 3
CAUTION Turn water supplies off
before beginning
Note: Install Optional Sweat Solder Adapter
(Supplied) for copper pipe supply line. Fig. 3.
1. Measure the distance (A) from the finished wall to the
center of the inlet spud on the fixture.
2. Cut the supply pipe 1-1/4" (A-B=C) shorter then the
measurement taken in Step 1. File any rough edges off
the end of the supply pipe.
3. Clean the end of the supply pipe. Push the threaded
Adapter on until it is seated against the internal stop.
Sweat the Adapter to the pipe.
1
CENTER LINE OF
FIXTURE SPUD
FINISHED WALL
FILE EDGES
SOLDER
ADAPTER
Fig.3
ADAPTER
32mm
(1-1/4)
A
(A-B)= B
C
X
X
CLEAN
1. Place the SPUD FLANGE (1) over the spud on the
Fixture.
2. Thread SPUD COUPLING NUT (2) onto Spud.
Make sure SEAL WASHER (3) and FRICTION
WASHER (4) are installed. Do not tighten fully.
3. Insert the DOWN TUBE (5) into the SPUD
COUPLING NUT (2) and push it down.
Note: If cutting Down Tube (5) to size, note that
Critical Line (C/L) on Vacuum Breaker must
typically be 6"(152mm) above fixture. Consult
Code for details.
INSTALL DOWN TUBE AND
VACUUM BREAKER; Fig. 5
3
Fig. 4a
Fig. 4b
Fig. 4c
2
Installation Instructions

Installation Instructions
4M968699 Rev. 1.6
1
CLOCKWISE CLOSES
CONTROL STOP
COUNTER-CLOCKWISE
OPENS CONTROL STOP
REMOVE COVER
Fig. 6

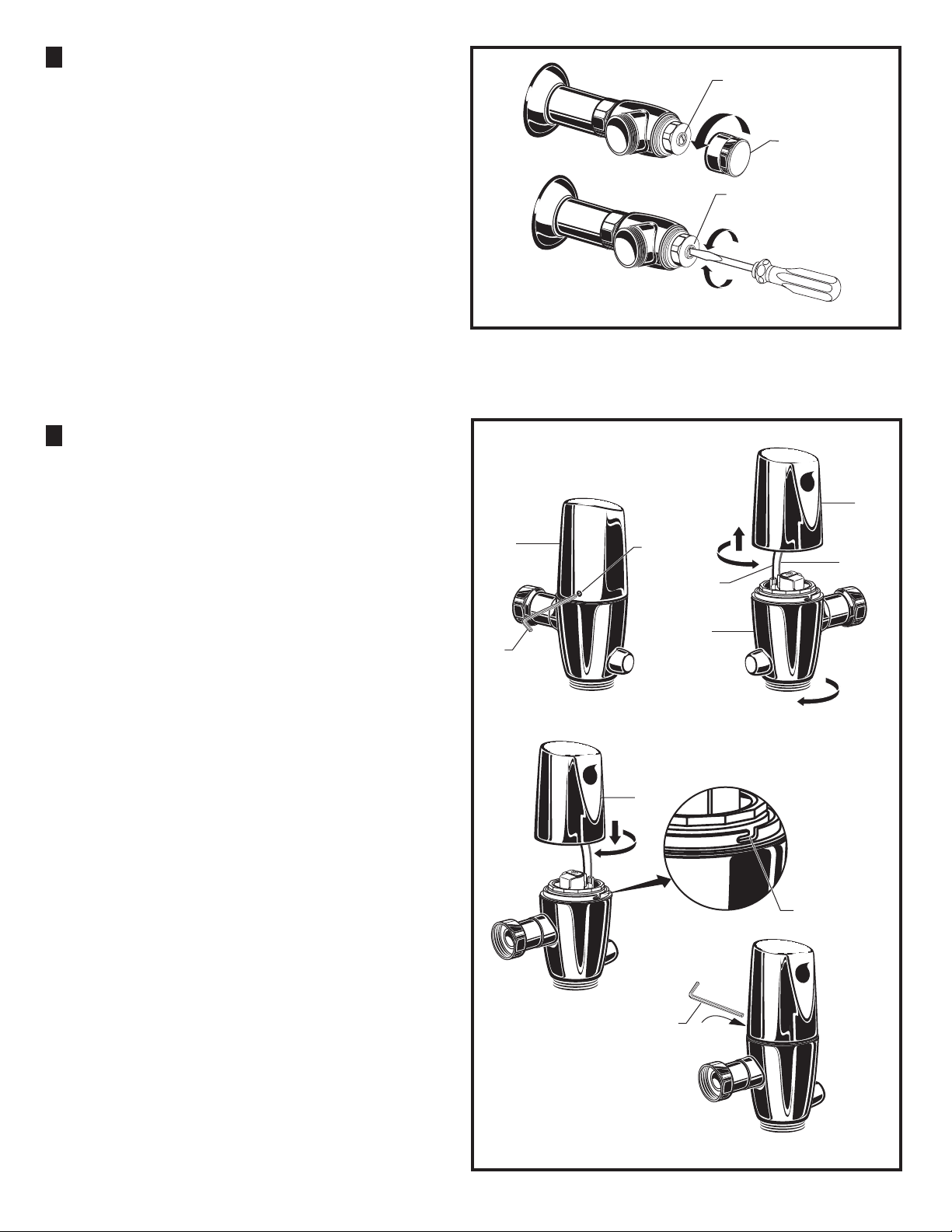

1. Remove COVER (1) from SUPPLY STOP (2).
2. With a flat blade screwdriver open SUPPLY STOP (2).
3. Turn on water supply to flush line of any debris or
sediment.
4. Close SUPPLY STOP (2) and replace COVER (1).
FLUSH OUT SUPPLY LINES; Fig. 6
4
1
4
Fig. 7a
Fig. 7c
Fig. 7d
Fig. 7
3
The UNIT is shipped with the inlet flange on the right
side. If needed, the orientation can be reversed by
following the steps below.
1. Loosen SET SCREW (1) with 2.5mm Hex Wrench (4)
in back of top half of FLUSH VALVE (2). Fig. 7a.
2. Rotate TOP (2) to the right and pull off. Fig. 7b.
3. Rotate bottom half of FLUSH VALVE (3) 180˚. Fig. 7b.
4. Replace TOP (2) and rotate until key engages than
tighten SET SCREW (1). Fig. 7c, 7d.
4 LEFT OR RIGHT HAND
INSTALLATION; Fig. 7
5
4
2
2
Installation Instructions
KEY
2
2
1
3
Fig. 7b
180˚
RED+
BLACK-
2

Installation Instructions
M968699 Rev. 1.6
7
9
6
2
1
5
8
10
121mm,+13mm, -6mm
(4-3/4)(+1/2, -1/4)
Fig. 8b
5
Fig. 9
2
REMOVE COVER
CLOCKWISE CLOSES
CONTROL STOP
COUNTER-CLOCKWISE
OPENS CONTROL STOP
IMPORTANT: To avoid overflowing, the SUPPLY STOP
(3) must never be opened to the point where the flow
from the valve exceeds the flow capacity of the
fixture. The fixture must be able to handle a
continuous flow in case of a flush valve failure.
1. After installation is complete, peel off the
PROTECTIVE FILM (1) from the sensor. Standing to one
side, block the sensor with your hand for 10 seconds.
Remove your hand and listen for audible “click” from
within the valve.
2. Remove COVER (2) from SUPPLY STOP (3).Turn on
water supply 1/4 turn to 1/2 turn(CCW) and test for
leaks. Note: Unit may flush for approximately 5 to 10
sec. when water is first turned on. If flow persists,
turn water off and repeat step #1 above.
3. Actuate the FLUSH VALVE:
A) Cover sensor with hand for 10 seconds.
NOTE: Stand outside of sensor detection aera.
B) Remove hand from in front of the sensor; unit will
flush in approximately 3 seconds.
4. Adjust SUPPLY STOP (3) after each flush until the
stated flush volume is achieved, no splashing occurs and
the fixture is properly cleansed.
5. When adjustment is complete, replace COVER (2)
and tighten to ensure vandal-resistance.
ADJUST SUPPLY STOP; Fig. 9
7
Installation Instructions
3
Fig. 8a
3
25
1
1. As shown in Fig. 8a, insert the side INLET FLANGE (1)
on the FLUSH VALVE (2) into the SUPPLY STOP (3).
Lubricate the INLET FLANGE O-RING (4) with water if
necessary. Lightly tighten COUPLING NUT (5). Fig. 8a.
Important: Do not use lubricants (other than water)
or any type of thread sealing paste or tape.
2. Align the FLUSH VALVE (2) (Fig. 8b) directly above
the DOWN TUBE (7) and VACUUM BREAKER
COUPLING NUT (6). Make sure that GASKET (10) is
installed.
Note: There is a +13mm, -6mm (+1/2, -1/4) tolerance
for the 121mm (4-3/4) dimension. Fig. 8b.
3. Pull the DOWN TUBE (7) up to meet the threaded
FLUSH VALVE CONNECTION (8) and hand tighten
the VACUUM BREAKER COUPLING NUT (6). Align
all components of the flush valve assembly. Fig. 8b.
4. Lightly tighten the COUPLING NUT (5) connection
first, then the VACUUM BREAKER COUPLING NUT
(6) and finally the SPUD COUPLING NUT (9). Once
alligned correctly, use a wrench to tighten couplings to
make water tight connections. Fig. 8b.
INSTALL FLUSH VALVE;
Fig. 8a & 8b
6
4

Fig. 12b
Installation Instructions
M968699 Rev. 1.6
9
6
1. Remove COVER (1) from SUPPLY STOP (2) if
installed. Fig. 10.
2. Turn water supply off. Fig. 10.
3. Loosen SPUD COUPLING NUT (3). Unthread
COUPLING NUT (4) and VACUUM BREAKER
COUPLING NUT (5). Remove FLUSH VALVE (6).
Fig. 10.
4. Clean all threaded connections before installing the
new flush valve. Fig. 10a.
5. Refer to Sections 5,6 and 7 to complete the retrofit
installation. Fig. 10b.
Note: In most Retrofits the wall escutcheon, supply stop,
cover tube and vacuum breaker do not have to be replaced.
If these items do need replacement they must be purchased
separately or order the complete flush valve assembly from
American Standard.
HOW TO RETROFIT OUR VALVE;
Fig. 10
8
(Replaces Industry Standard Manual and
Electronic Valves)
CLEAN
CONNECTIONS
2
Fig. 10 Fig. 10a Fig. 10b
1
4
5
3
6
1. Loosen SET SCREW (1) with 2.5mm Hex Wrench
(2) in back of top half of FLUSH VALVE CAP (3). Fig.
12a.
2. Rotate CAP (3) to the right and pull off. Fig. 12b.
3. Turn CAP (3) over and remove the two SCREWS
(4). Remove the BATTERY COVER (5) to expose the
battery (6). Remove old BATTERY (6). Fig. 12c.
4. Install the new BATTERY (7) making sure the + & -
are facing up towards the open end of the cover.
Fig. 12d.
5. Replace the BATTERY COVER (5), reverse the
above steps to assembly flush valve.
HOW TO CHANGE THE BATTERY;
Fig. 12
1
5
7
46
6
Fig. 12a
Fig. 12c
Fig. 12d
Fig. 12
OLD
BATTERY
OUT
NEW
BATTERY
IN
2
Installation Instructions
3

Installation Instructions
M968699 Rev. 1.6
7
Note: The detection distance is preset and is ideal for
most installations. Should an adjustment be required
follow the steps below.
1. Loosen SET SCREW (1) with 2.5mm Hex Wrench (2)
in back of top half of FLUSH VALVE (3). Fig. 13a.
2. Rotate CAP (3) to the right and pull off. Fig. 13b.
3. Turn CAP (3) over and disconnect GREY SENSOR
WIRE (4) from BATTERY COVER (5).
4. Keeping hands away from the front of the sensor,
reconnect the GREY SENSOR WIRE (4) and quickly
place the CAP (3) on the valve. Do not secure the CAP
(3) at this time. Note: You have 5 seconds after
connecting cable to enter program code.
5. While the SENSOR CONTROL LED (6) is blinking
slowly, place your hand 1 to 2 in. (30-50mm.) in front of
the sensor. Fig. 14a.
6. When the LED (6) stops blinking and stays "ON",
move your hand to the desired position from sensor
(detection zone, 1-1/2" to 31", 38 to 787mm ) and hold
in place until the LED (6) begins to blink again. Fig. 14b.
Note: Detection Zone is 1-1/2" to 31", 38 to 787mm
from sensor.
7. Once the SENSOR CONTROL LED (6) begins to
blink again, remove your hand from the detection zone.
When the flashing stops, the detection distance is set.
8. Replace and secure CAP (3) onto valve.
9. Actuate the FLUSH VALVE:
A) Cover sensor with hand for 10 seconds. NOTE:
Stand outside of sensor detection aera.
B) Remove hand from in front of the sensor; unit will
flush in approximately 3 seconds.
HOW TO SET DETECTION RANGE
(If Required) ; Fig. 13 & 14
6
6
Fig. 13b
Fig. 13
Fig. 14
Fig. 14a Fig. 14b
VIEW “A”
VIEW “A”
10
DETECTION ZONE
38mm TO 787mm
(1-1/2 TO 31)
1
Fig. 13c
Fig. 13a
2
4
5
3
1" - 2" (30mm - 50mm
BLINKING LED
BLINKING LED
Installation Instructions
3
6

Installation Instructions
M968699 Rev. 1.6
8
IS STOP VALVE OPEN?
LOOK FOR REPEATED
DOUBLE FLASH ON SENSOR YES INSTALL NEW BATTERY
TRY MANUAL VALVE BUTTON;
WILL THE UNIT FLUSH? NO REPLACE PISTON KIT
INSTALL NEW BATTERY
SEE STEP 10, page 6 in manual
NO REPLACE SENSOR NO
YES
NO
NO
YES YES
OPEN VALVE
UNIT WILL ONLY FLUSH MANUALLY
LOOK FOR REPEATED
DOUBLE FLASH ON SENSOR
RETRY AUTOMATIC FLUSH.
DOES THE UNIT FLUSH?
RETRY AUTOMATIC FLUSH.
TEST SENSOR. DISCONNECT
GRAY FLAT WIRE FROM BATTERY
COVER AND RE-CONNECT. SENSOR
SHOULD FLASH FOR 5 SECONDS.
DOES IT FLASH?
TEST SENSOR. DISCONNECT
GRAY FLAT WIRE FROM BATTERY
COVER AND RE-CONNECT. SENSOR
SHOULD FLASH FOR 5 SECONDS.
DOES IT FLASH?
CLOSE STOP VALVE,
REPLACE SOLENOID KIT.
RE-ASSEMBLE & INSTALL UNIT.
OPEN STOP VALVE.
BATTERY LOW; REPLACE BATTERY
SEE STEP 10, page 6 in manual
NO NO
YES
DOES THE SENSOR FLASH
FOR THE FIRST 5 SECONDS?
NO REPLACE SOLENOID KIT
RETRY AUTOMATIC FLUSH;
WAS IT SUCCESSFUL?
YES
1. COVER SENSOR FOR 10 SECONDS 2. UNCOVER SENSOR FOR 10 SECONDS.
REPLACE BATTERY
SEE STEP 10, page 6 in manual
MANUAL VALVE OBSTRUCTED. CLOSE STOP VALVE AND SERVICE
RETRY AUTO FLUSH
NO
UNIT IS CONTINUOUSLY FLUSHING
PUSH MANUAL FLUSH
BUTTON; DOES IT RETURN?
LOOK FOR REPEATED
DOUBLE FLASH ON SENSOR
NO NO
YES
NO
1. COVER SENSOR FOR 10 SECONDS 2. UNCOVER SENSOR FOR 10 SECONDS. DOES THE UNIT STOP FLUSHING? YES
INSTALL NEW BATTERY
SEE STEP 10, page 6 in manual
YES
1. CLOSE STOP VALVE, 2. REPLACE SOLENOID KIT. 3. RE-ASSEMBLE AND INSTALL UNIT. 4. OPEN STOP VALVE.
REPLACE SENSOR
NO
TROUBLESHOOTING FLOW CHARTS
UNIT DOES NOT FLUSH AT ALL
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
1 [phone]
Weekdays 8:00 a.m. to 6:00 p.m. EST
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
Product names listed herein are trademarks of AS America, Inc.
IN MEXICO 01-800-839-12-00
Installation Instructions

Installation Instructions
M968699 Rev. 1.6
9
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
1 [phone]
Weekdays 8:00 a.m. to 6:00 p.m. EST
IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
Product names listed herein are trademarks of AS America, Inc.
IN MEXICO 01-800-839-12-00
PRODUCT NUMBERS
A950223-0071600A
SENSOR ASSEMBLY
W/MTG. KIT.
FOR FLUSH VALVE
WITH 1.6 gpf
A950223-0071280A
SENSOR ASSEMBLY
W/MTG. KIT.
FOR FLUSH VALVE
WITH 1.28 gpf
A923654-0070A
BATTERY 6VCR-P2
M962666-0020A
MANUAL VALVE
M962664-0070A
SOLENOID ASSEMBLY
M962663-0070A
PISTON ASSEMBLY
A906680-0070A
BONNET NUT
A955057-0020A
INLET PIPE ASSEMBLY
A955054-0020A
VACUUM BREAKER
ASSEMBLY 11-1/2"
(220mm) ROUGH-IN
A955068-0020A
VACUUM BREAKER
ASSEMBLY 27"
(610mm) ROUGH-IN
M952269-0020A
ESCUTCHEON KIT
M962665-0021600A
COVER ASSEMBLY FOR
FLUSH VALVE WITH 1.6 gpf
(BATTERY INCLUDED)
M962665-0021280A
COVER ASSEMBLY FOR
FLUSH VALVE WITH 1.28 gpf
(BATTERY NCLUDED)
SELECTRONIC™
PROXIMITY TOILET
FLUSH VALVE
1.6 & 1.28 GPF
6065.161
6065.121
6065.565
6065.162
6065.122
6065.525
A955056-0020A
1" SUPPLY STOP
A924349-0020A
CAP FOR 1" SUPPLY
Installation Instructions
A955066-0020A
ADJUSTABLE TAILPIECE
(4-1/2 to 5-1/4 Rough-in)
OPTIONAL ADJUSTABLE TAILPIECE
(Purchased Separtely)
M962836-0020A (8-1/2 to 9-1/4 Rough-in)
M962835-0020A (7-1/2 to 8-1/4 Rough-in)
M962834-0020A (6-1/2 to 7-1/4 Rough-in)
M962833-0020A (5-1/2 to 6-1/4 Rough-in)
