American Standard Spalet CEAS7SS1 User manual

User Manual Contents
SAFEGUARDS CAUTIONS ...........................1
CAUTIONS OF USING ...................................5
CAUTIONS BEFORE INSTALLATION ...........6
COMPONENTS NAME ..................................8
Installation ....................................................10

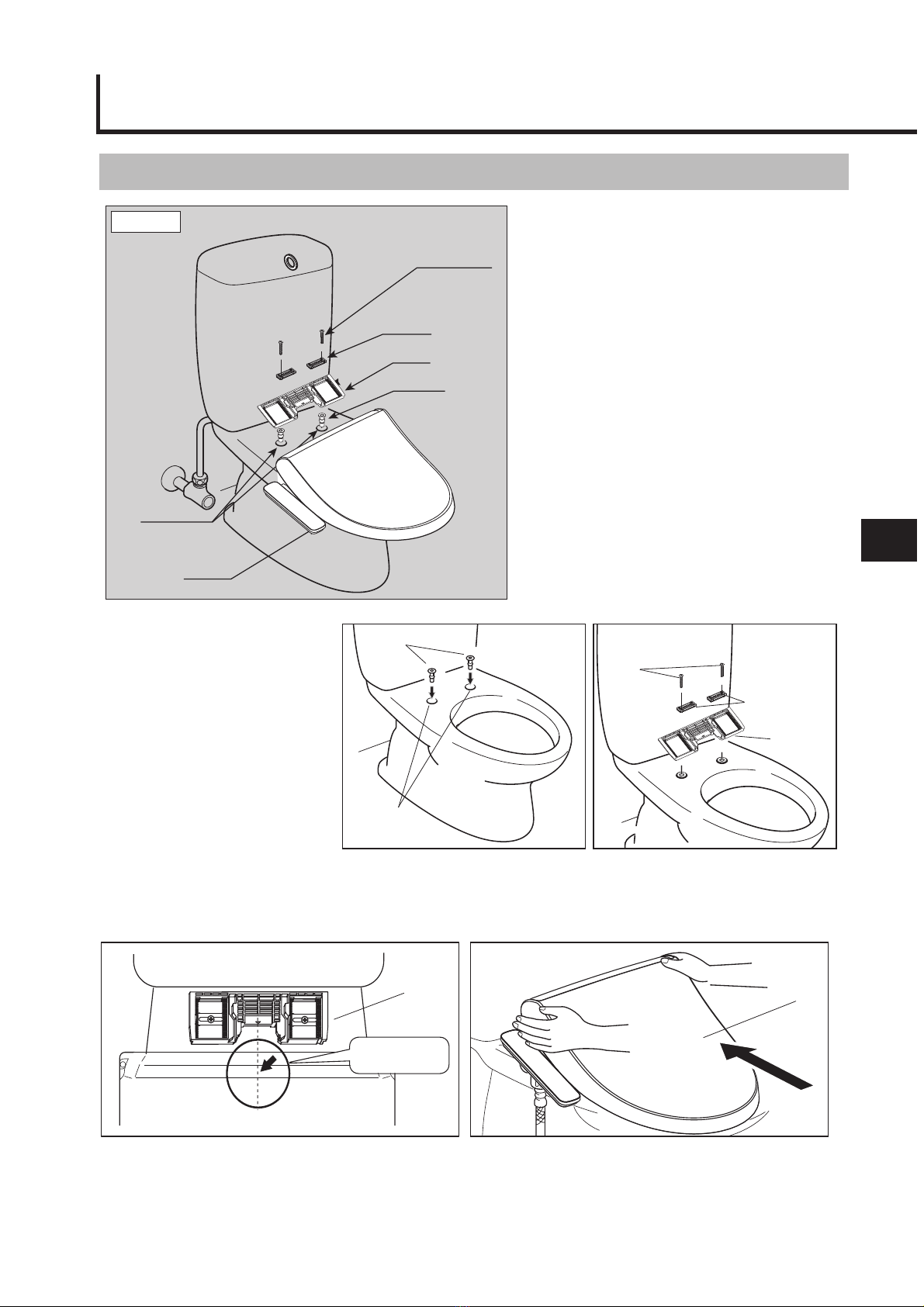

■ Installation of E-bidet .................................................. 10

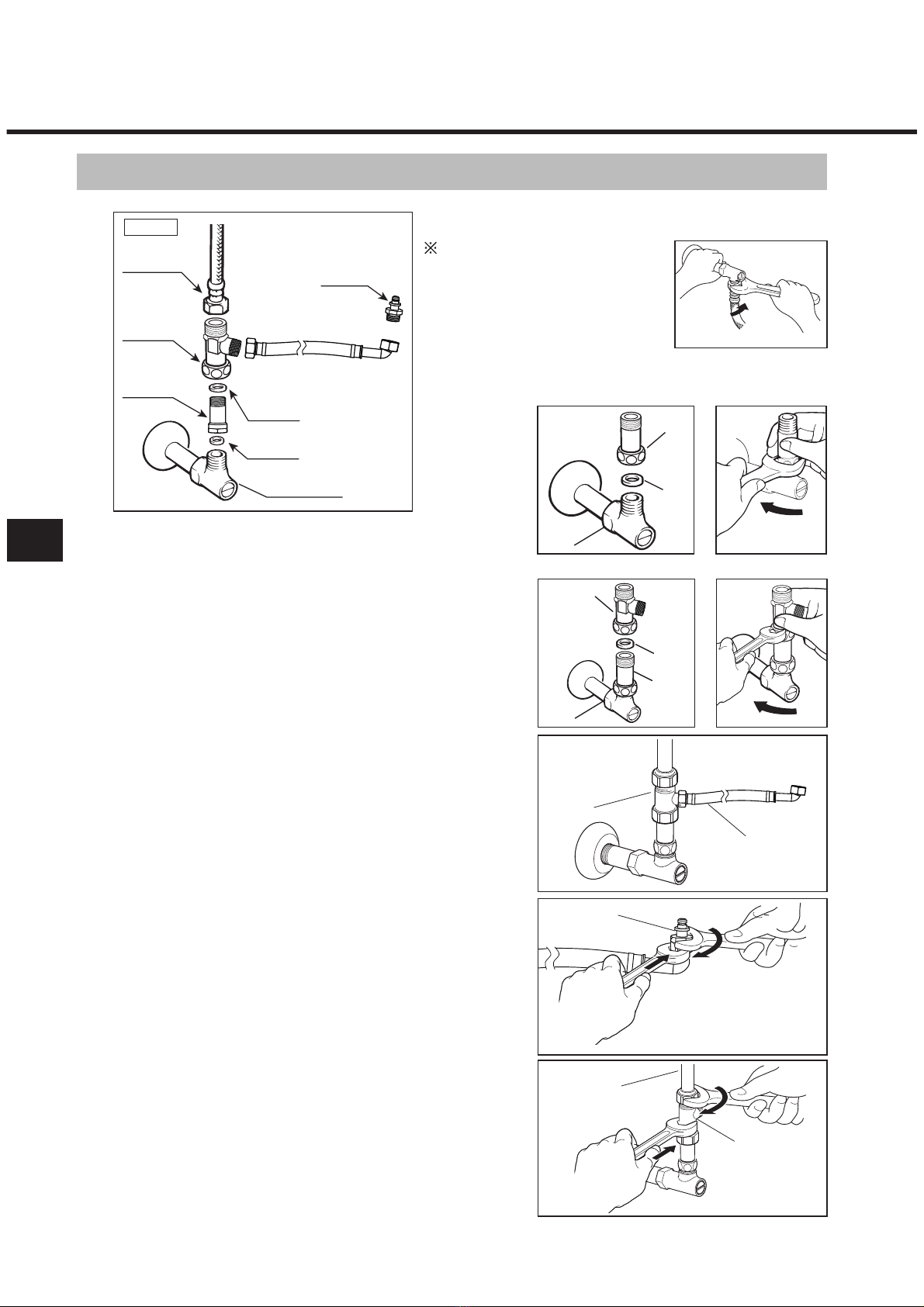

■ Installation of E-bidet water supply hose .................... 11
■ Installation of body water supply hose (body side) ..... 12

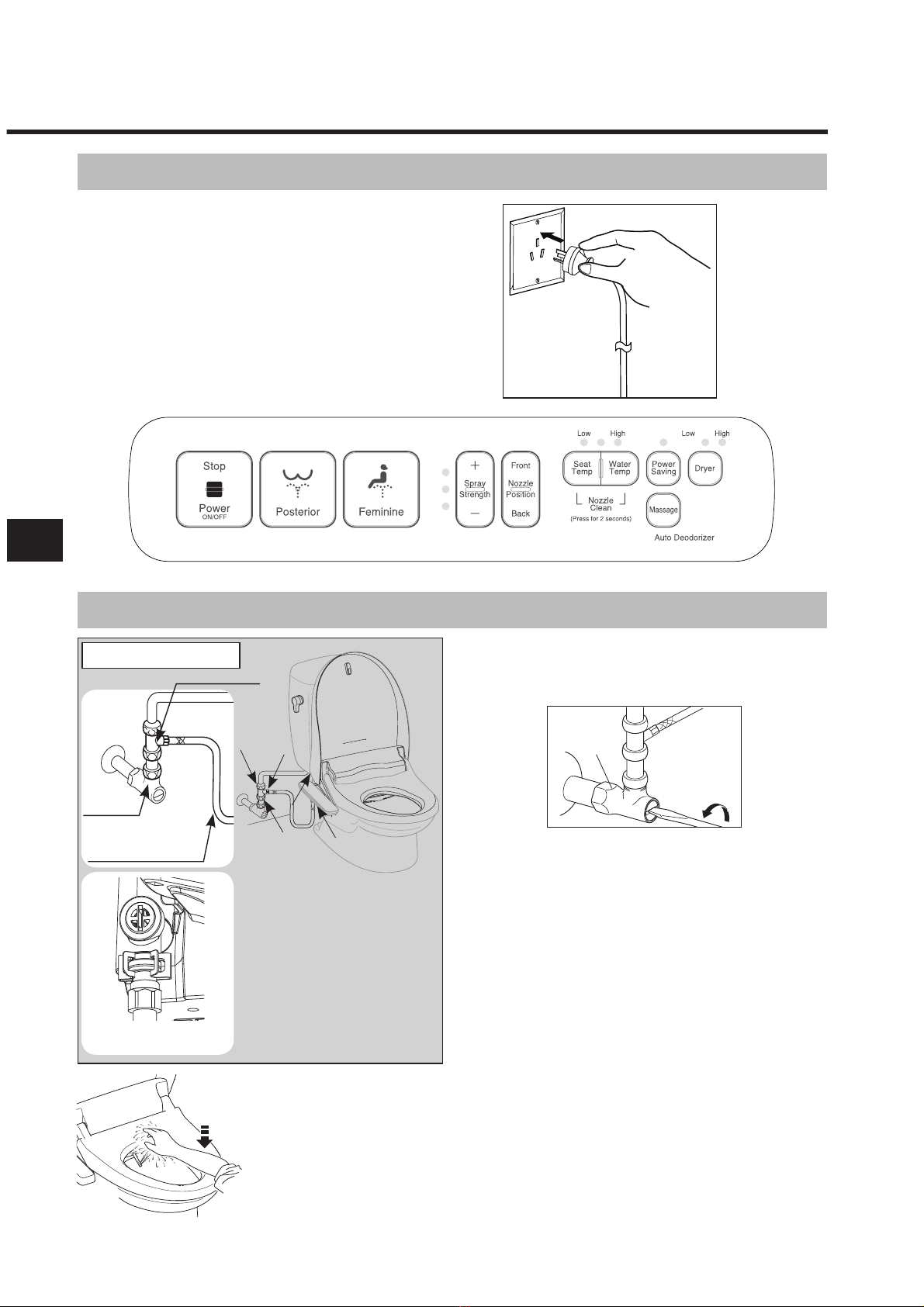

■ Power on confi rmation ................................................ 15
■ Test run ....................................................................... 15
OPERATION INSTRUCTION .......................16
Preparation and Confi rmation before Using ........ 16

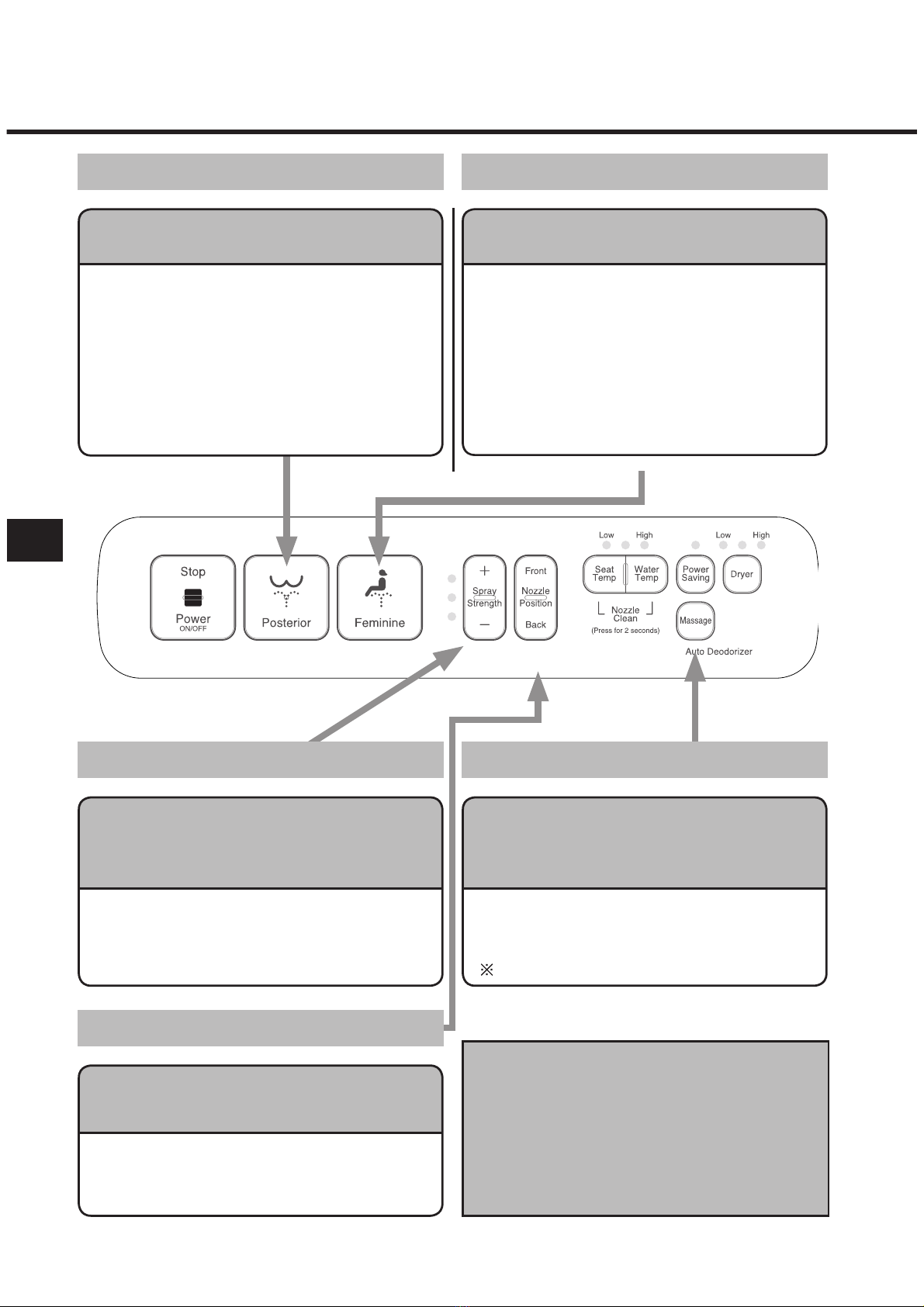

Basic Operation ................................................... 18
■ Deodorization function is activated when the unit is oc-
cupied (auto deodorization) ........................................ 18
■ Shower
▲
Oscillating .................................................. 19
■ Spray strength adjustment ......................................... 19
■ Nozzle position ........................................................... 19
■ Bidet
▲
Oscillating ...................................................... 19
■ Massage ..................................................................... 19
■ Warm air dryer ............................................................ 20
■ Stop (Power ON/OFF) ................................................ 20
Other Function Settings ....................................... 21
■ To prevent low temperature burn ................................ 21
■ Resume to factory settings ......................................... 21
■ Power Saving ............................................................. 22
■ Seat temp. 3 → 5 modes expansion function ............. 23
■
Warm water temp. 3 → 5 modes expansion function .............................. 23
■ Spray strength 3 → 5 modes expansion function ....... 23
Information to the User ........................................24
CLEANING AND CARE ................................25
Daily Cleaning and Care ...................................... 25
■ Cleaning and care of seat, lid and protective cases
(plastic parts) .......................................................... 25
■
Cleaning and Care of Nozzle ..................................... 25
Cleaning after Removing Lid ............................... 26
Cleaning of Blocked Part of E-bidet ..................... 27
Cleaning of Nozzle Shutter .................................. 28
Cleaning Maintenance of Deodorization Filter ..... 29
When Cleaning Function Decreases ................... 30
GENERAL TROUBLE SHOOTING ..............31
ANTI-BACTERIAL ........................................33
SPECIFICATIONS ........................................34
CEAS7SS1-0100510R0
Spalet® E-bidet
● Thank you very much for selecting Spalet®
eBidet from American Standard. Please read
the manual carefully prior to use.
● The pictures in the manual are for reference
only.

SAFEGUARDS CAUTIONS
1
SAFEGUARDS CAUTIONS
SAFEGUARDS CAUTIONS
SAFEGUARDS CAUTIONS
CAUTION … Improper use of the product could lead to minor injury or
…
property damage.
"WARNING" and "CAUTION".
Please read carefully and observe strictly.
… The "Prohibited" mark indicates "please do not do it!".
… The "observe at all times" mark indicates "please do it!".
Please read the following "safeguard cautions" carefully before using.
Failure to observe the following safeguard cautions may result in serious accidents.
Please strictly observe the following content, for your safety. Please leave these
instructions and warranty info with the product
Explanation of terms and marks
WARNING … Improper use of the product could lead to death or injury

2
SAFEGUARDS CAUTIONS
●NEVER stand on the seat, or use the lid as a support.
Please use the new water supply hose attached to product.
●Ensure that the cord is not curled, twisted, folded and is free for
obstructions to eliminate risk of damage.
●Do not use damaged power plug and loosened plug seat. If the power
cord is broken, please contact your distributor.
●Do not use power supply other than AC 240v 15amp
●Do not use extension leads.
●Never install the product in a place with high humidity or contact with
water. Maintain ventilation inside the room for air to circulate.
●Do not dismantle, repair or remodel the product. Only qualified service
personnel should service this product.
●Do not plug or unplug the power plug with wet hands.
●Please ensure that the internal parts of eBidet, control panel, and the
external power are not flushed with water or detergent.

3
● In case of any problems (abnormal noises, abnormal smell, smoking, high
temperature, crack) with the main unit of eBidet, plug or power cord,
please immediately unplug the power cord and contact your distributor
● If water leaks from the valve, please unplug the power cord and turn off
the supply valve.
● Please regularly dust the surface of the power plug. Unplug before
cleaning and only use a dry, soft cloth
● Please hold the plug not the cord when disconnecting from the power
source
● Properly plug the power plug into the power socket.
● If sitting on the product for a long time, please set the seat temperature in
"OFF" mode to avoid low-temperature burn.
● When the following people use the product, carer should set the seat
temperature and warm air dryer temperature in "OFF" mode. (Children,
the elderly and patients, people who cannot adjust the temperature by
themselves, people with sensitive skin, people who are taking certain
medications or others with the function of hypnosis, drunk people and
people who are extremely fatigued)
A low temperature burn may occur when using temperatures in other modes rather than the
"OFF" mode for long periods of time.
● If using the warm air dryer for a long time, please set dryer temperature at
"LOW" mode.
● Ensure that power supply is grounded.
● In order to avoid the possible danger caused by reset of thermal cut-off in
error, the product cannot be controlled by external switch, such as the plug
seat with timer.
SAFEGUARDS CAUTIONS

4
● When cleaning the plastic parts of the product, do not use unsuitable
detergents (toilet cleaner, apartment cleaner, decolorizer, benzene, paint
thinner, scouring powder, abrasive cleaners, alcohol, etc.).
● Do not stand or sit on the seat lid.
● When removing the filter, water supply valve must be turned off .
● When installing the filter, please tighten it properly without leaving any gap.
● Keep any flammable materials, including cigarette ends and ashtrays away
from the product.
● Do not curve, twist or damage the water supply hose.
● Do not use the water supply valve to lean on, or step on the water supply
valve.
● Do not put your finger into the cover of the deodorization carbon block.
● Do not lean your back against the lid.
.
● Power plug must be unplugged before cleaning the product.
● When the following people use the product, carer should take good care of
them to prevent them from falling down. (Children, the elderly, people who
cannot sit down and stand up by themselves.)
●Water supply hose must be connected to running water and filter
screen should be installed. Filter screen should be free of dirt and debris.
● Drain the water from unit and unplug the power if it is not going to be used
for an extended period of time.
SAFEGUARDS CAUTIONS

CAUTIONS OF USING
5
CAUTIONS OF USING
■ Please strictly follow the following cautions to prevent any mal-
function.
In case of thunder and lightning nearby,
please disconnect the power plug from
the plug seat.
Keep heater or warmer, etc. away from
the E-bidet.
Avoid direct sunlight. Do not roughly open and close the seat
and toilet lid.
Do not put your finger into the cover of
dryer or nozzle.
Do not block the outlet of warm air.
Ensure that the unit is clear of water
splash/ over spray.
Do not connect the product to the
power when it is on an uneven surface.
CAUTIONS OF USING

CAUTIONS BEFORE INSTALLATION
6
CAUTIONS BEFORE INSTALLATION
■ Packing Material List
Mounting plate
E-bidet body
Fixing block
Mounting bolt
Rubber
expansion
Manual
Water supply hose
Clip
Plastic
sleeve Connector
T junction
Dual check ඞalve
Seal washer
Seal washer
■ Installation Tools for Preparation
screwdriver
Adjustable wrench (with 26 mm above of adjustable range)
-
+or adjustable wrench (23~26 mm)
(Model of wrench varies with type of tank.)
Above 26 mm
23~26 mm
CAUTIONS BEFORE INSTALLATION

7
CAUTIONS BEFORE INSTALLATION
■ Installation Space Range
472
ŢţŰŷŦġ200
511
ŢţŰŷŦġ200
■ Adaptive Toilet
30 mm ps!npsf
410~475mm
130~215 mm
■ Power Supply and Water Supply
●Please use power socket with 15 amp AC
220-240V, 50 Hz and Min. power 650W.
●
●
Power cord length is 1.0 m.
As per the below diagram the power supply should sit
300mm from finished floor and appropriate distance from
water supply.
Ensure that socket earth wire is connected correctly,
otherwise, contact electrical installation company to
perform work.
●Only to be used with clean potable water.
●Water pressure supplied should be maintained between 0.06 MPa (0.6 kgf/cm2) and
0.75 MPa (7.5 kgf/cm2).
●Note: It is a requirement of Australian regulators that the water supply to this product must be protected by a high hazard
backflow prevention device, such as a reduced pressure zone device (RPZD). As per AS/NZS 3500.1, the RPZ shall be
maintained in working order and tested for operational functions at intervals not exceeding 12 months.
●Any electrical work connected to this product must be installed by qualified personnel in accordance with AS/NZS 3000
Do NOT plug into power until installation is complete!
Risk of electric shock if power supply not grounded. Power supply grounded here indicates that the
ground wire of distributor uses copper wire with a diameter of 1.5 mm or more when ground resistance
is less than 100 Ω.
120mm
Water inlet!
Water inlet!

COMPONENTS NAME
8
COMPONENTS NAME

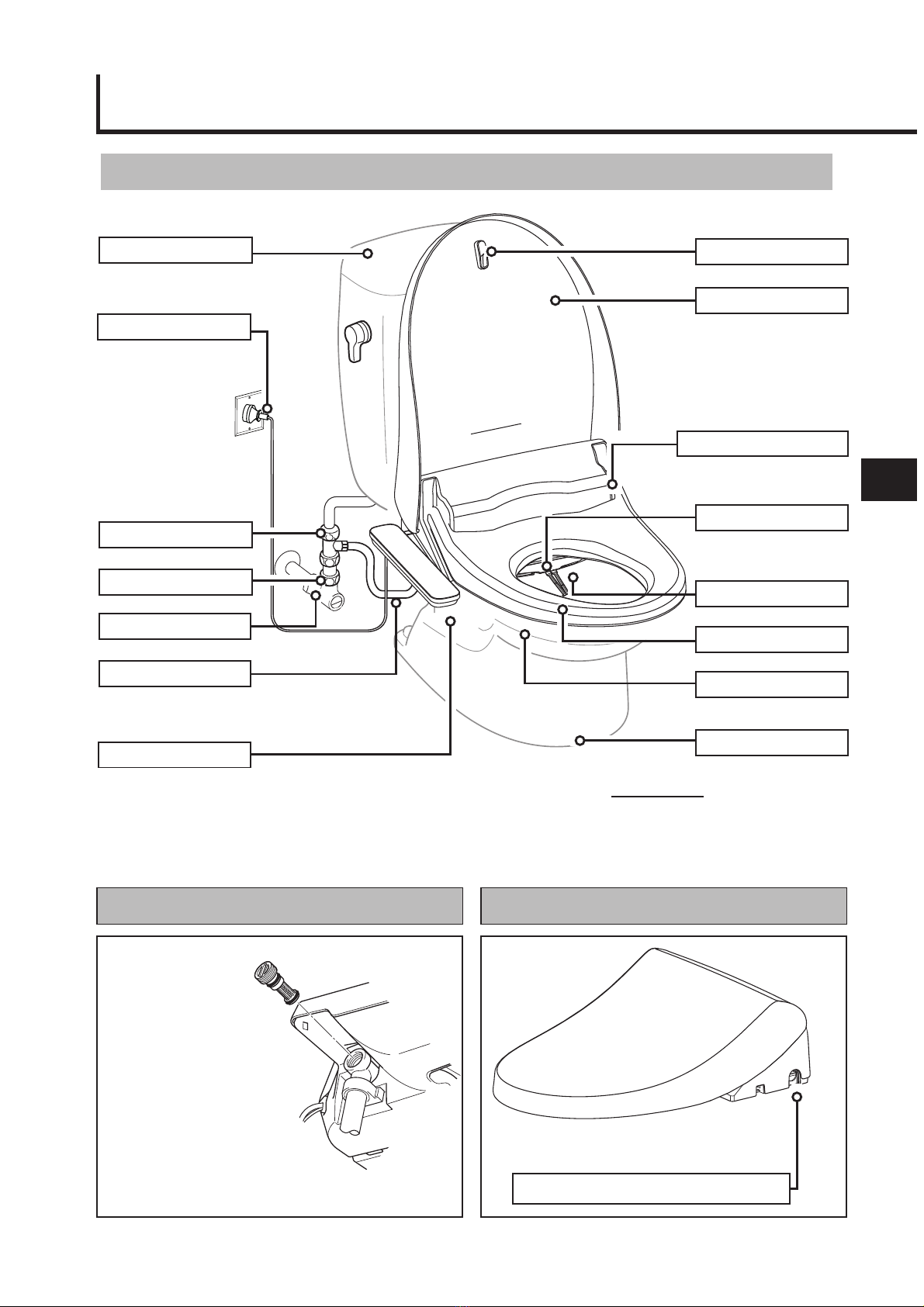

■ Integral Diagram
■ Strainer ■ Drainage valve of warm water tank
Tank
Control panel
Angle Valve*
Power plug
T junction
Dual check valve
Drainage valve of warm water tank
Water hose
Bowl
Seat
Lid
Nozzle shutter
Seat sensor (built-in)
Lid bumper
Nozzle
Warm air dryer
COMPONENTS NAME
Note:
●Use 750mm 1/2" X 90 hose supplied when valve is installed on right side.
●Plumber to install shorter hose when valve is on left side.
*Not included
*

9
COMPONENTS NAME

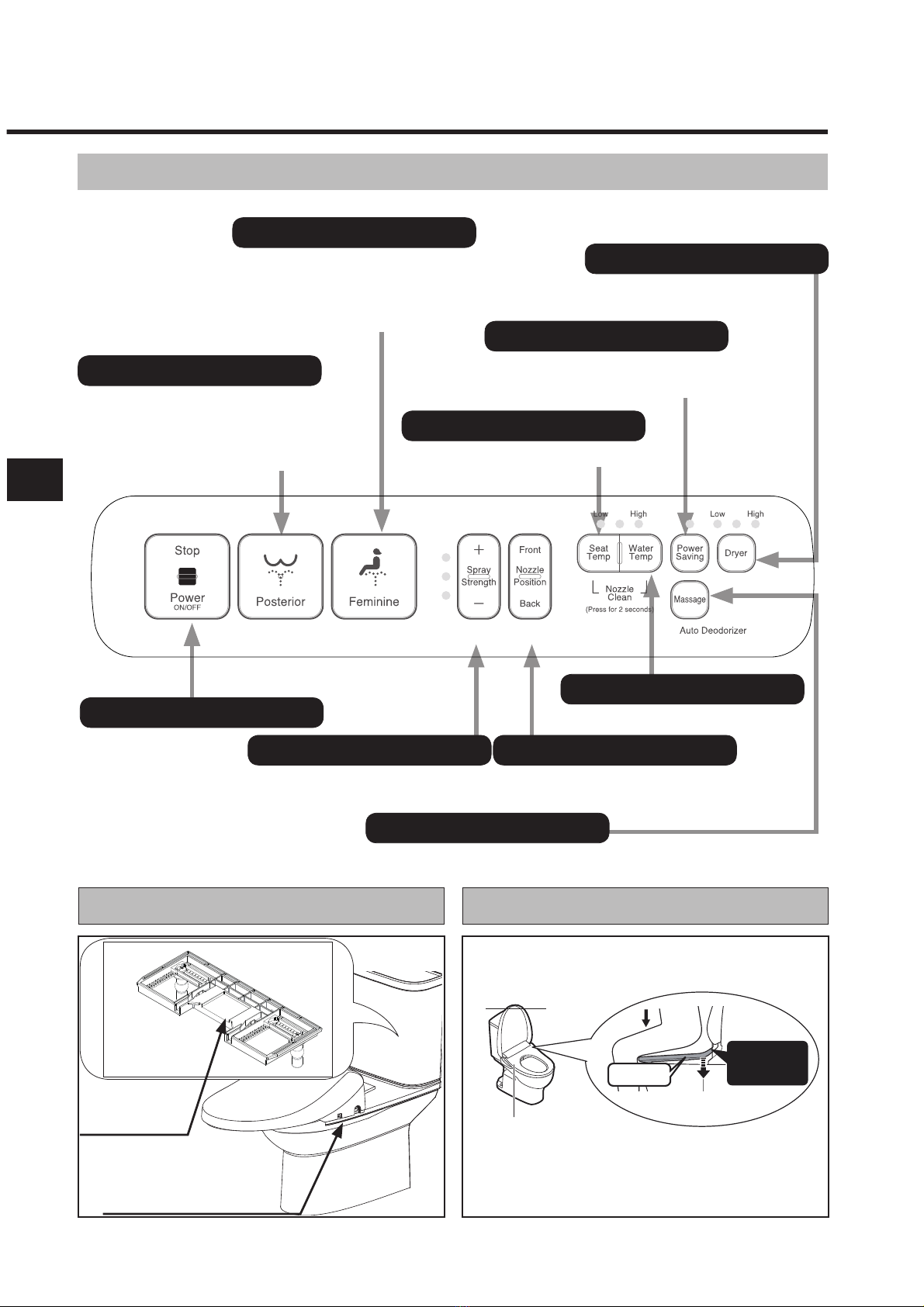

■ Mounting plate & locking handle ■ Seat sensor
■ Operation
Locking handle
Spray strength
● Adjust spray strength of posterior
and feminine.
Seat temperature
●Seat temperature adjustment.
Stop
●Hold for power to turn
on or off
● Stop function
Massage
● Massage cleaning (only for posterior)
Nozzle position
● There are 5 modes for nozzle posi-
tion adjustment.
Mounting
plate
Feminine
● Press twice for oscillating
function.
● Press for 2 seconds to start one
touch cleansing mode.
Posterior
● Press twice to activate oscillating mode.
● Press for 2 seconds to start cleansing
mode.
Warm air dryer
Water temperature
●Water temperature adjustment.
Power save
● Press the "Power Saving" button
to start power saving mode.
zFunctions will only work when seat sensor has
been activated. A "click" sound will be heard.
Gap
seat sensor
activated！
Seat sensor
(built-in)
Seat downward

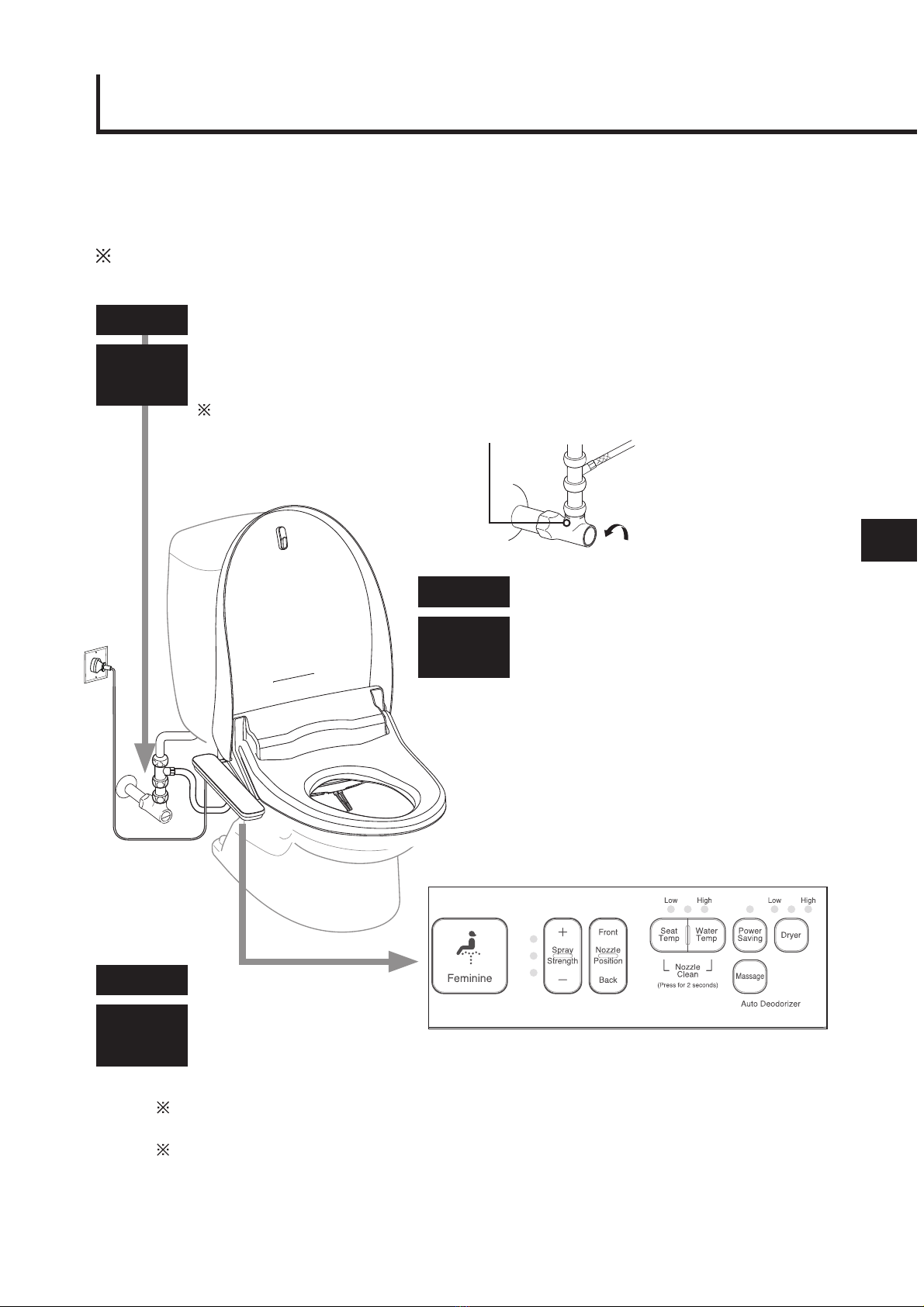

Installation
Use 750mm 1/2" X 90 hose supplied when valve is installed on right side.
Plumber to install shorter hose when valve is on left side.
10
■ Installation of E-bidet
Body mounting bolt
Mounting
plate
Rubber expansion
Fixing washer
Ceramic
mounting hole
E-bidet
Installation
Figure
3A
3B
3C
3D
3E
3F
1.Install 3C to bowl.
(1) Insert 3D into 3E of bowl.
(2) Pre-secure 3C to bowl with 3A
after inserting 3B into 3C.
3D
3E
3A
3B
3C
2.Install the E-bidet
(1) Put 3F in front of 3C with 3F and 3C center aligned.
(2) Push body backward slowly until it reaches the bottom with a slight "click" sound heard.
Center aligned
3F
3C
Installation

11
Installation
1. Remove 1H after 1A is closed.
There will be small amount of
water leakage during removal, so
put a piece of cloth, etc. under it.
2.Install 1C to 1A.
(It is recommended that tightening torque should be
10~15N.m (100~150kgf.cm))
■ Installation of E-bidet water supply hose
Installation
Figure
Seal washer
Water supply valve
T junction
Toilet Water
supply hose
Seal washer
Dual check valve
Connector
1H
1E
1C
1A 1B
1C
1A
1D
1B
1G
4. Install 1F to 1E.
3. Install 1E to 1C.
(It is recommended that tightening torque should be
10~15N.m (100~150kgf.cm))
1C
1E
1A
5. Install 1G to 1F.
6. Install 1H to 1E.
Note:Do not twist or deform flexi tail (1H).
1H
1E
1E
1F
1G
1D

12
Installation
O-ring
Installation Figure
Water supply
joint
Clip
Water supply hose
Plastic sleeve
■ Installation of body water supply hose (body side)
2A
2B
2C
2D
1. Insert 2A into 2B.
2A
2B
2D
Ɨ
2A
2B
2C
Ƙ
ƙ
2C
2E
ƚ
4. Clamp 2E into 2C from top to bottom.
When 2E is clamped into position, a “click” sound is heard.
2E
2. Clamp 2C into 2A and 2B.
The side of clip 2C with round corner faces downward.
3. Rotate 2C by 90°.
After clamping 2C, fully rotate to confi rm it is clamped into position.

13
4. Adjust the installing position of E-bidet to front, rear, left and right
(1) Adjust the installing position to front, rear, left and right, so
that 3F edge matches with ceramic edge curve of bowl.
Adjust E-bidet
to front and rear
3F
Locking handle
Pull out by holding lower part.
3L
Installation
(2) Press locking handle (3L) on right side, slide 3F forward to remove it.

14
5. Fix E-bidet securely
(1) Adjust 3C forward and backward and then
tighten 3A.
Reference torque: 1.0~3.0 N.m (about 10-
30 kgf.cm).
(2) Place 3F at front of 3C to make 3F and 3C
align center.
(3) Slowly push 3F backward until it reaches
bottom and a slight "click" is heard.
Slightly shake 3F to front, rear, left and
right to make sure the body is fi xed securely.
3F
Engage
each other
3C
3A
3A
3C
Make concavity side
face the front of bowl.
Pay attention to followings during installation:
(1) Please note the front and rear directions of
mounting plate.
(2) Please note the installation direction of small
sliding block.
Make the teeth side
of small sliding block
face fi xing plate.
Installation

15
■ Test run
Installation diagram
Nut
Water sup-
ply valve
5A
5B
E-bidet
Water supply hose
5C
1. Turn on angle valve (5B) to open water
supply to eBidet.
Water supply
inserting part
2. Operate functions to confirm there is no
water leakage from each part.
3. After water tank is filled with
water,confirm water supply shuts off.
4. Confirm if shower and bidet function
operate normally:
1) Press the seat with your hand to enter sitting state.
2) Respectively press Posterior and Feminine buttons
to confi
rm water fl ows from the nozzle smoothly.
3) Press Stop button.
5. Confirm temperature adjustment function
operates normally.
6. Seat takes approximately 15 minutes to heat.
Rotate in anti-
clockwise direction
5B
■ Power on confirmation
1. Connect power plug to power supply.
2. Confirm that the power is on.
(1) Confirm water temperature and seat temperature.
indicators on side control panel turn on.
(2) To prevent dry burning of warm water tank, before the
test run is done, press Power button to turn off all
indicators!
Installation

OPERATION INSTRUCTION
16
OPERATION INSTRUCTION
Preparation and Confirmation before Using
If this is your first time using the eBidet, the following steps must be confirmed.
Methods of turning on/off the water supply valve written in this guide may be diff erent
from the actual circumstances.
STEP
1Confirm whether the water supply valve has been
turned on.
If water supply valve is off , please rotate in anti-clockwise direction to turn it on.
STEP
3Power
(1) Check if the indicators (green) on control panel turn on.
Press Power button for 6 seconds to shut down the eBidet, press Power button for 2
seconds to turn on the power.
Check the indicators of water temp. and seat temp. turn on or not to judge power on/off .
(2) Confi rm water temp., seat temp. and dryer indicators turn on or not.
STEP
2Connect the power plug to
plug seat.
Connect power plug to plug seat of AC 230 V.
Rotate in anti-clockwise
direction
Water supply valve
OPERATION INSTRUCTION

17
STEP
4Testing shower function.
STEP
6Adjust warm water temperature.
STEP
5Adjust seat temperature.
(1) Press Water Temp. button to adjust water temperature.
(2) The indicator will be switched each time the button is
pressed, achieving appropriate temperature.
Wash water temperature cannot be immediately heated to
warm state, it takes 10-15 minutes to reach desired heat.
Each time the button is pressed, the indicator will be switched be-
tween "Off (indicator not turn on)", "Low", "Mid", and "High" state.
Initial setting is "Mid" when you first time using.
(1) Press the seat to enter sitting state (press force is
more than 12 N).
(2) Press Posterior button.
(3) Cover the front of nozzle with left hand after noz-
zle is extended to block water fl ow.
If this is your fi rst time to use the product, it will take
1 - 2 minutes to inject water to warm water tank.
Water cannot be heated to set temperature immedi-
ately, and warm water may spray out after about 5
minutes.
(4) Press STOP button or move your right hand from
the seat sensor zone to stop shower.
Please read the operation method, and confi rm other
functions.
Seat sensor is available to sense if there is anyone sitting on the
toilet seat. When press force is more than 12 N, shower, bidet,
deodorization or dryer function will work.
(1) Press Seat Temp. button to adjust seat temperature.
(2) The indicator will be switched each time the button
is pressed, achieving appropriate temperature.
- Seat temperature takes 15 minutes to reach selected heat
when heating function is selected.
-Each time the button is pressed, the indicator will be
switched between "Off (indicator not turn on)", "Low", "Mid",
and "High" state.
-Initial setting is "Mid" when you first time using.
OPERATION INSTRUCTION

18
OPERATION INSTRUCTION

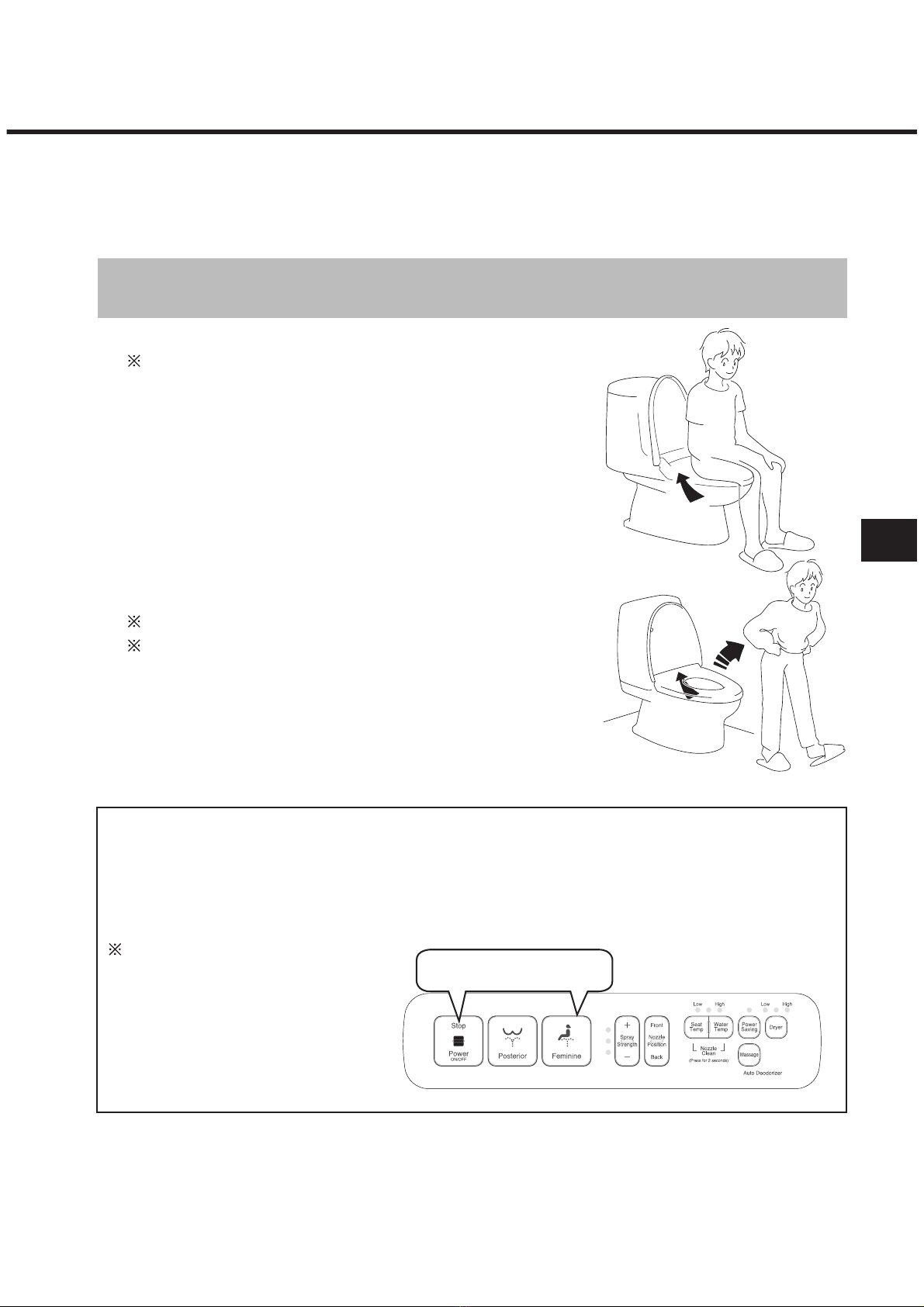

■ Deodorization function is activated when the unit is occupied
(auto deodorization)
(2) Stop deodorization
It automatically stops after user leaves.
If sitting on the seat for longer than 1 minute, auto deodorization
will continue for another 60 seconds.
Shut off auto deodorization
Press and hold both Stop and Feminine buttons for more than 2 seconds to shut off
auto deodorization.
After setting, all indicators will fl ash once.
To restart auto deodorization, also
press and hold both Stop and Feminine
buttons for more than 2 seconds. After
setting, all indicators will fl ash once.
"Stop" + "Feminine"
Basic Operation
Seat sensor activates to sense if there is anyone sitting on the toilet seat. Without sitting
on it, shower, bidet, deodorization or dryer function will not work.
(1) Auto deodorization is activated when people sit down.
Deodorization fan is working under the “auto mode” and remove
the odor in the bowl.

19
■ Shower
▲
Oscillating ■ Bidet
▲
Oscillating
When it is necessary to change
the spray strength, press "+" or "-"
button to adjust.
The indicator will change once every
time the button is pressed, and you
can set to a proper spray strength.
● The Shower and Bidet have auto stop after 2 minutes
function.
● Please sit fully on the seat.
●There is an auto clean function will will activate between
each use.
●Please note: Before and after the shower, water may flow
from the nozzle. This phenomenon is normal and is not a
product fault.
Press Posterior button.
Water sprays out from front of nozzle t o
clean posterior.
To activate the oscillating setting press
for a second time. To stop the oscillation
press for a third time.
Press "Stop" button to stop.
Press Feminine button.
To activate feminine setting press button once.
Press again will enter front and rear oscillating
status, and the oscillating range will be
expanded. Press for the third time will start
wider range clean.
Press "Stop" button to stop.
Press "Front" or "Rear" button of
Nozzle Position.
There are 5 modes for nozzle position
adjustment.
Press "Massage" button to start
massage function under shower
function working.
With massage function working,
press "Massage" button again to
stop massage function.
Massage function is not available for bidet.
■ Nozzle position
■ Spray strength adjustment ■ Massage
OPERATION INSTRUCTION
