Amica 10152.3EQW User manual

10152.3EQW
10152.3EQX
INSTRUCTION MANUAL
IO-CBI-0078 / 8062824
(02.2017 / v3)
BUILT-IN ELECTRIC OVEN
C
O

2
DEAR CUSTOMER,
The oven is exceptionally easy to use and extremely ecient. After reading the instruction
manual, operating the oven will be easy.
Before being packaged and leaving the manufacturer, the oven was thoroughly checked with
regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the oven until you have read this instruction manual.
The oven is intended for household use only.
The manufacturer reserves the right to introduce changes which do not aect the
operation of the appliance.

3
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 7
Installation......................................................................................................................... 10
Operation........................................................................................................................... 12
Baking in the oven – practical hints ............................................................................... 16
Cleaning and maintenance.............................................................................................. 18
Technical data................................................................................................................... 23

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements. Children less than 8
years of age shall be kept away unless continuously
supervised.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside
the oven.
Accessible parts may become hot during use. Young
children should be kept away.
Warning: Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result
in shattering of the glass.

5
SAFETY INSTRUCTIONS
● Ensurethatsmallitemsofhouseholdequipment,includingconnectionleads,do
nottouchthehotovenastheinsulationmaterialofthisequipmentisusuallynot
resistant to high temperatures.
● Donotleavetheovenunattendedwhenfrying.Oilsandfatsmaycatchredue
to overheating or boiling over.
● Donotputpansweighingover15kgontheopeneddooroftheoven.
● Donotuseharshcleaningagentsorsharpmetalobjectstocleanthedoorasthey
can scratch the surface, which could then result in the glass cracking.
● Donotusetheovenintheeventofatechnicalfault.Anyfaultsmustbexedby
anappropriatelyqualiedandauthorisedperson.
● Intheeventofanyincidentcausedbyatechnicalfault,disconnectthepowerand
report the fault to the service centre to be repaired.
● Therulesandprovisionscontainedinthisinstructionmanualshouldbestrictly
observed. Do not allow anybody who is not familiar with the contents of this instruc-
tion manual to operate the oven.
● Theappliancehasbeendesignedonlyforcooking.Anyotheruse(forexample
forheating)doesnotcomplywithitsoperatingproleandmaycausedanger.

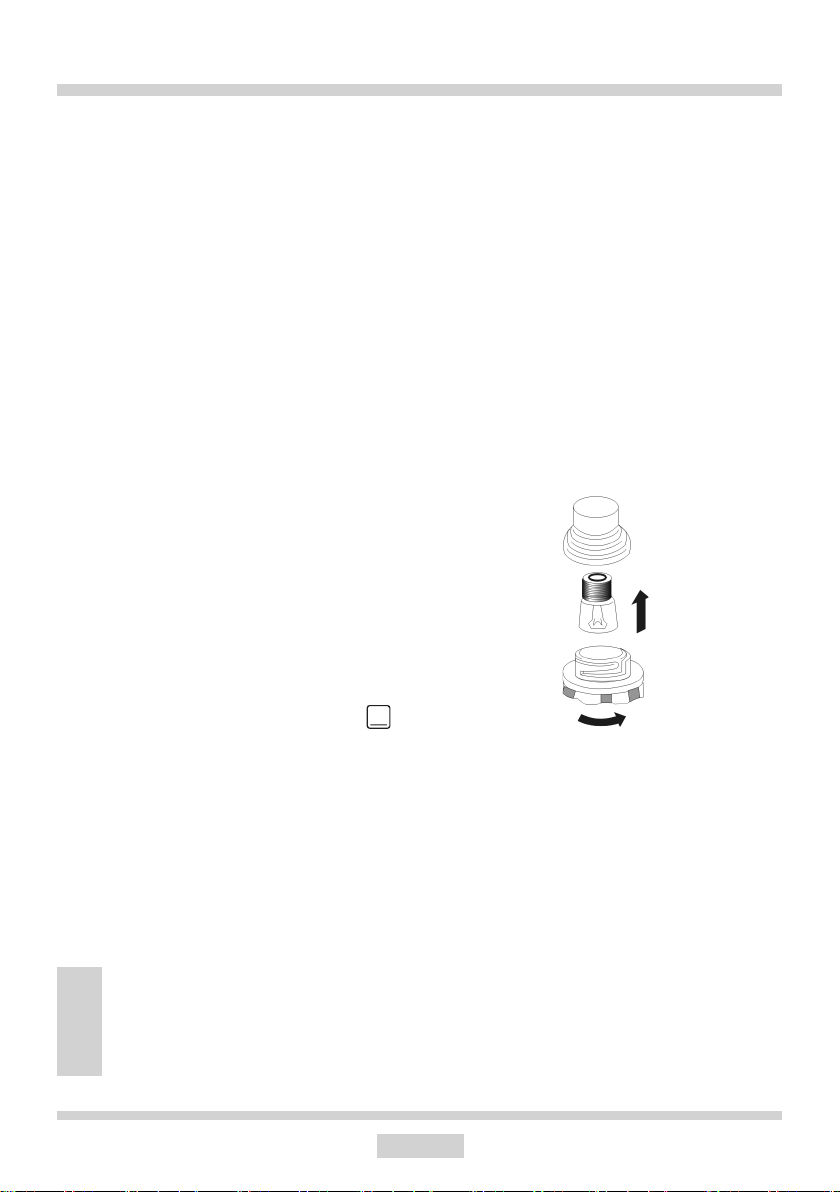

Warning:Ensurethattheapplianceisswitchedo󰀨
before replacing the lamp to avoid the possibillity of
electric shock.
You should not use steam cleaning devices to clean
the appliance.

6
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
 Switch o󰀨 the oven in good time and
make use of residual heat.
For long cooking times, switch o󰀨 heating
zones5to10minutesbeforenishingcook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch o󰀨 the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the oven in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.
HOW TO SAVE ENERGY

7
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpacking,
please dispose of all elements
of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronicequipment.Asymbol
shown on the product, the in-
struction manual or the packaging shows that
it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
asignicantcontributiontotheprotectionof
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

8
C
O
DESCRIPTION OF THE APPLIANCE
Oven function
selector knob
Temperature adjust-
ment knob
Temperatureregula-
torsignal light L
Cooker operation
signal light R

9

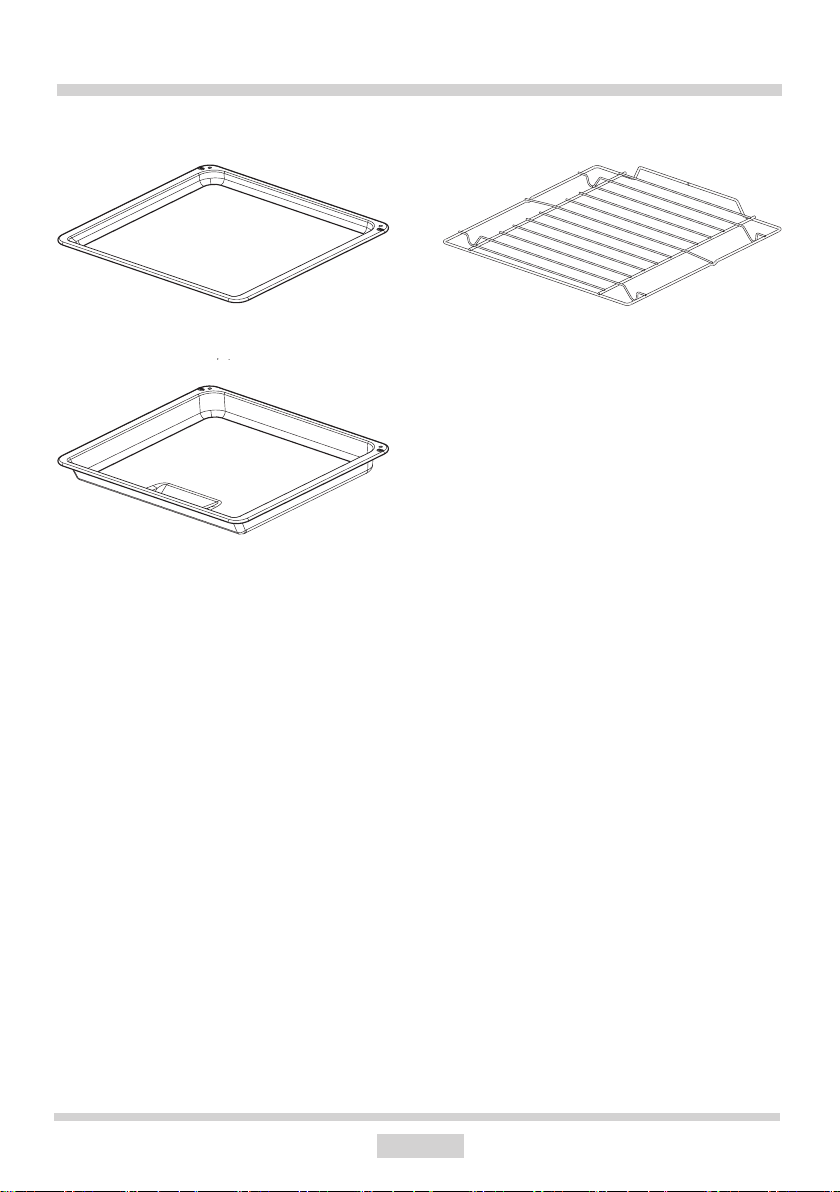

SPECIFICATIONS OF THE APPLIANCE
Cookerttings:
*optional
Baking tray* Grill grate
(drying rack)
Roasting tray*

10
Installing the oven
The kitchen area should be dry and aired
and equipped with e󰀩cient ventillation.
When installing the oven, easy access to
all control elements should be ensured.
This is a Y–type design built–in oven,
which means that its back wall and one
side wall can be placed next to a high
piece of furniture or a wall. Coating or
veneerusedonttedfurnituremust be
applied with a heat–resistant adhesive
(100°C). This prevents surface deforma-
tion or detachment of the coating.
Hoods should be installed according to
the manufacturer’s instructions.
Make an opening with the dimensions
given in the diagram for the oven to be
tted.
Make sure the mains plug is disconnected
and then connect the oven to the mains
supply.
Insert the oven completely into the open-
ing without allowing the four screws in the
places shown in the diagram to fall out.
INSTALLATION

11
INSTALLATION
Electrical connection
Warning: This appliance must be earthed.
Theapplianceissuppliedttedwithapower
cord and 3 pin plug protected by 13amp
fuse. The cable type must be a minimum of
H05VV-F (PVC insulated and sheathed) 3
cores x 1,5mm2. The power supply plug must
be accessible to allow disconnection of the
appliance in the installed position. The supply
cable should be positioned so that it does not
reach a temperature of more than 75 °C along
its entire length.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agentorsimilarlyqualiedpersonsinorder
to avoid a hazard.
Attention: Disconect the electric power sup-
ply before performing technical assistance or
maintenance on the product.
In case of replacement of the electric
cable, ensure the use of an electric cable
certied according to the Standards in
force and suitable to the technical features
of the product.

12
OPERATION
Important!
The inside of the oven should only be washed
with warm water and a small amount of
washing–upliquid.
Before using the appliance for the
rst time
● Remove packaging, clean the interior of
the oven.
● Takeoutandwashtheoventtingswith
warmwaterandalittlewashing–upliqu-
id.
●Switch on the ventillation in the room or
open a window.
●Heat the oven (to a temperature of 250°C,
for approx. 30 min.), remove any stains
and wash carefully.

13
OPERATION

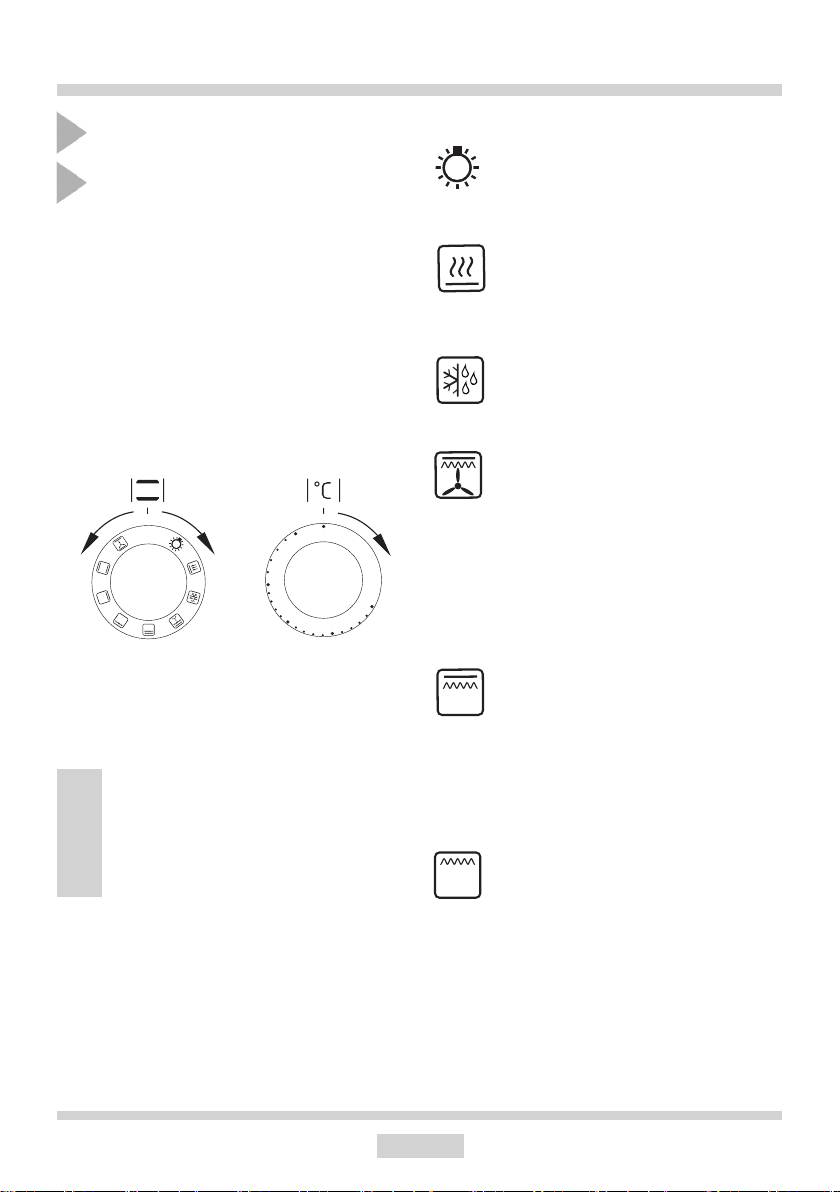

Oven functions and operation.
Oven with automatic air
circulation
(including fan)
The oven can be warmed up using the bottom
and top heaters, as well as the grill. Operation
of the oven is controlled by the oven function
knob–tosetarequiredfunctionyoushould
turn the knob to the selected position, as well
as the temperature regulator knob – to set a
requiredfunctionyoushouldturntheknobto
the selected position.
Theovencanbeswitchedo󰀨bysettingboth
of these knobs to the position “”/“0”.
Caution!
When selecting any heating func-
tion (switching a heater on etc.) the
oven will only be switched on after
the temperature has ben set by the
temperature regulator knob.
0Oveniso󰀨
Independent oven lighting
Set the knob in this position to light up
the oven interior.
Roaster on.
Roasting is used for cooking of small
portions of meat: steaks, schnitzel,
fish, toasts, Frankfurter sausages,
(thickness of roasted dish should not
exceed 2-3 cm and should be turned
over during roasting).
Defrosting
Onlyfanisonandallheatersareo󰀨.
Rapid Preheating
Top heater, roaster and fan on. Use to
preheat the oven.
Fan and combined grill on
When the knob is turned to this posi-
tion, the oven activates the combined
grill and fan function. In practice, this
function allows the grilling process to
be speeded up and an improvement
in the taste of the dish. You should
only use the grill with the oven door
shut.
Enhanced roaster (super roaster)
In this setting both roaster and top
heater are on. This increases tem-
perature in the top part of the oven’s
interior, which makes it suitable for
browning and roasting of larger por-
tions of food.
5050
100
150
200
250
0

14
OPERATION

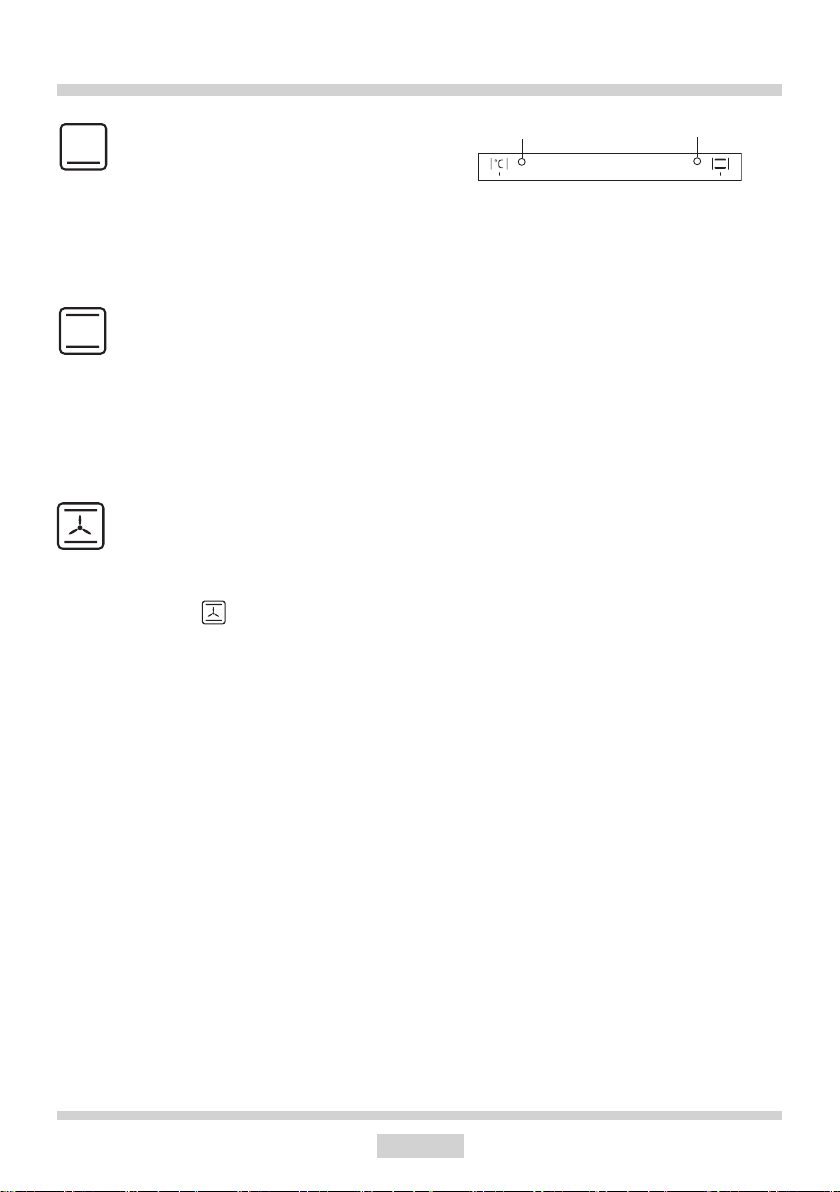

Switching on the oven is indicated by two
signal lights, R, L, turning on. The Rlight
turned on means the oven is working. If the L
light goes out, it means the oven has reached
the set temperature. If a recipe recommends
placing dishes in a warmed-up oven, this
should be not done before the Llight goes out
forthersttime.Whenbaking,theLlight will
temporarily come on and go out (to maintain
the temperature inside the oven). The Rsig-
nal light may also turn on at the knob position
of “oven chamber lighting”.
Top and bottom heaters on
Set the knob in this position for co-
nventional baking. This setting is ideal
for baking cakes, meat, sh, bread
and pizza (it is necessary to preheat
the oven and use a baking tray) on
one oven level.
Top heater, bottom heater and fan
are on.
This knob setting is most suitable
for baking cakes. Convection baking
(recommended for baking).
When the functions have been
selected but the temperature knob is
set to zero only the fan will be on. With
this function you can cool the dish or
the oven chamber.
Bottom heater on
When the knob is set to this position
the oven is heated using only the
bottom heater. Baking of cakes from
the bottom until done (moist cakes
withfruitstu󰀩ng).
L R

15
Use of the grill
The grilling process operates through infrared
rays emitted onto the dish by the incandes-
cent grill heater.
In order to switch on the grill you need to:
Set the oven knob to the position marked
grill.
Heat the oven for approx. 5 minutes (with
the oven door shut).
Insert a tray with a dish onto the appropri-
ate cooking level; and if you are grilling
on the grate insert a tray for dripping on
the level immediately below (under the
grate).
Close the oven door.
For grilling with the function grill and com-
bined grill the temperature must be set to
250ºC, but for the function fan and grill it
must be set to a maximum of 190ºC.
Warning!
When using function grill it is recommended
that the oven door is closed.
When the grill is in use accessible parts can
become hot.
It is best to keep children away from the
oven.
OPERATION

16
BAKING IN THE OVEN – PRACTICAL HINTS
Baking
we recommend using the baking trays which were provided with your cooker;
it is also possible to bake in cake tins and trays bought elsewhere which should be
put on the drying rack; for baking it is better to use black trays which conduct heat
better and shorten the baking time;
shapes and trays with bright or shiny surfaces are not recommended when using the
conventional heating method (top and bottom heaters), use of such tins can result in
undercooking the base of cakes;
when using the ultra-fan function it is not necessary to initially heat up the oven
chamber, for other types of heating you should warm up the oven chamber before
the cake is inserted;
before the cake is taken out of the oven, check if it is ready using a wooden stick (if
the cake is ready the stick should come out dry and clean after being inserted into
the cake);
 afterswitchingo󰀨theovenitisadvisabletoleavethecakeinsideforabout5min.;
temperatures for baking with the ultra-fan function are usually around 20 – 30 degrees
lower than in normal baking (using top and bottom heaters);
the baking parameters given in Table are approximate and can be corrected based
on your own experience and cooking preferences;
 ifinformationgiveninrecipebooksissignicantlydi󰀨erentfromthevaluesincluded
in this instruction manual, please apply the instructions from the manual.
Roasting meat
cook meat weighing over 1 kg in the oven, but smaller pieces should be cooked on
the gas burners.
use heatproof ovenware for roasting, with handles that are also resistant to high
temperatures;
when roasting on the drying rack or the grate we recommend that you place a baking
tray with a small amount of water on the lowest level of the oven;
it is advisable to turn the meat over at least once during the roasting time and during
roastingyoushouldalsobastethemeatwithitsjuicesorwithhotsaltywater–do
not pour cold water over the meat.

17
BAKING IN THE OVEN – PRACTICAL HINTS
Type
of
dish
Oven
functions
Temperature Level Time
in minutes
160 - 200 2 - 3 30 - 50
150 3 25 - 35
160 - 180 2 - 3 20 - 40*
150 3 65 - 70
220 - 240 3 10 - 15
210 - 220 2 45 - 60
190 2 - 3 60 - 70
230 - 250 4 14 - 18
225 - 250 2 120 - 150
160 - 230 2 90 - 120
190 2 - 3 50 - 60
160 - 180 2 45 - 60
190 - 210 2 40 - 50
170 - 190 3 40 - 50
Caution!
TheguresgiveninTablesareapproximateandcanbeadaptedbasedonyourown
experience and cooking preferences.
* Baking smaller items
Oven with automatic air circulation (including fan)

18
CLEANING AND MAINTENANCE
By ensuring proper cleaning and mainte-
nance of your cooker you can have a sig-
nicantinuenceonthecontinuingfault-free
operation of your appliance.
Before you start cleaning, the cooker must
be switched o󰀨 and you should ensure
that all knobs are set to the “O󰀨” position.
Do not start cleaning until the cooker has
completely cooled.
●The oven should be cleaned after every
use. When cleaning the oven the lighting
should be switched on to enable you to
see the surfaces better.
●The oven chamber should only be washed
with warm water and a small amount of
washing-upliquid.
●Steam Clean function
- Pour approximately 0.25 ml (1 glass)
of water onto the tray inserted on level
one in the oven.
-Close the oven door,
 -setthetemperatureadjustmentknob
to 50°C, and the function selector
knob to bottom heater position
-heat the oven chamber for about 30
minutes,
-When the steam cleaning process is
completed, wipe out the chamber with
a damp cloth or a sponge soaked in
amildsolutionofwashing-upliquid.
●After cleaning wipe over chamber dry.
●Use a soft, moisture absorbing cloth to
clean surfaces
Caution!
Do not use cleaning products contain-
ing abrasive materials for the cleaning
and maintenance of the glass front
panel.
Replacement of the oven light bulb
In order to avoid the possibility of an
electric shock ensure that the appliance is
switched o󰀨 before replacing the bulb.
Set all control knobs to the position “”/“0”
and disconnect the mains plug,
unscrew and wash the lamp cover and
then wipe it dry.
unscrew the light bulb from the socket,
replace the bulb with a new one – a high
temperature bulb (300°C) with the follow-
ing parameters:
- voltage 230 V
- power 25 W
- thread E14.
Screw the bulb in, making sure it is prop-
erly inserted into the ceramic socket.
Screw in the lamp cover.
Oven light bulb

19

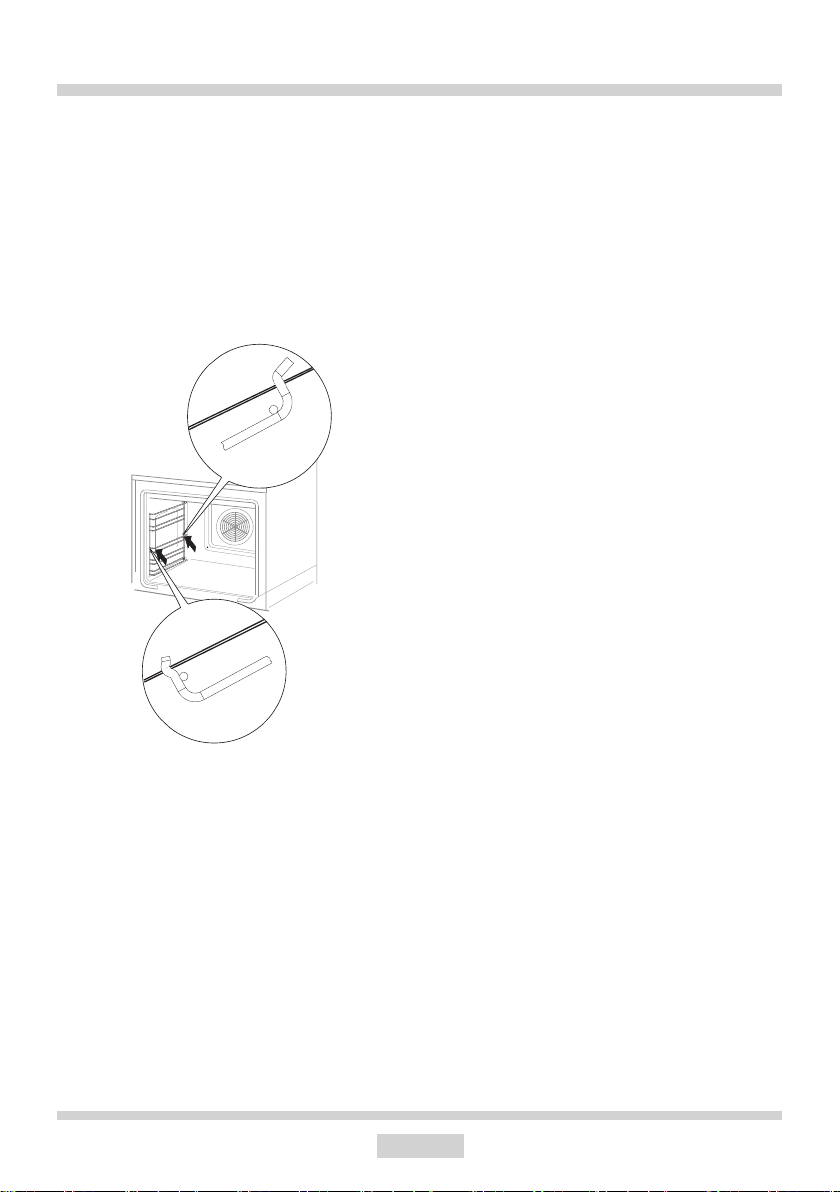

Dismounting the side racks
Dismounting the side racks
Ovens marked with the letter D*areequipped
with easily removable wire guides (side racks)
of oven inserts. To remove them for washing
purposes, pull the front catch (Z1), then tilt
the guide and remove it from the rear catch
(Z2). After washing the guides, put them in
the mounting holes of the oven and press the
catches (Z1 and Z2).
CLEANING AND MAINTENANCE
Ovens types marked with the letters Dp* in
the model number have moveable stainless
telescopic runners attached to the side racks.
The runners should be taken out and washed
along with the side racks. Before putting
trays on the telescopic runners they should
be pulled out (if the oven is warmed up the
runners should be pulled out by hooking the
back edge of trays on the bumpers in the front
part of the telescopic runners) and then insert
them together with a tray.
Z2
Z1
*optional

CLEANING AND MAINTENANCE

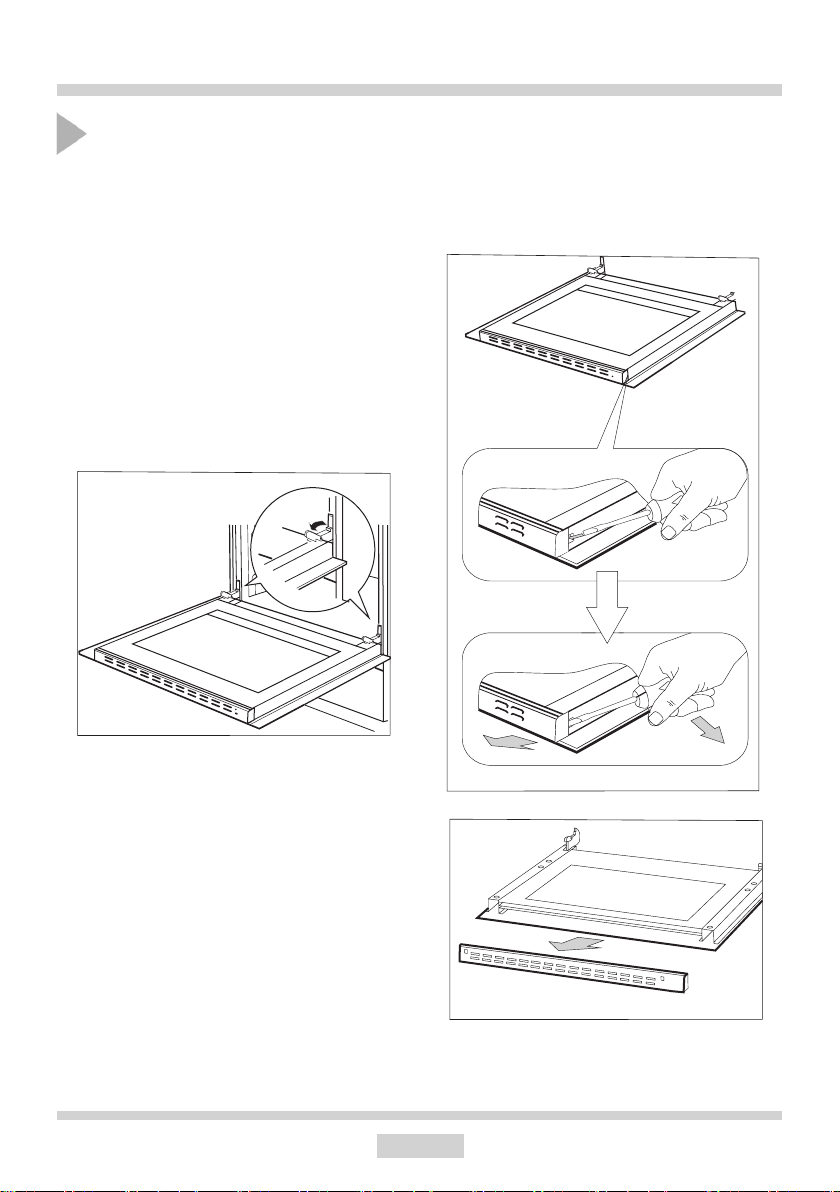

Door removal
In order to obtain easier access to the oven
chamber for cleaning, it is possible to remove
the door. To do this, tilt the safety catch part
ofthehingeupwards(g.A).Closethedoor
lightly, lift and pull it out towards you. In order
totthedoorbackontothecooker,dothe
inverse.Whentting,ensurethatthenotchof
the hinge is correctly placed on the protrusion
ofthehingeholder.Afterthedooristtedto
the oven, the safety catch should be carefully
lowered down again. If the safety catch is not
set it may cause damage to the hinge when
closing the door.
Removing the inner panel
1. Usingaatscrewdriverunhooktheup-
per door slat, prying it gently on the sides
(g.B).
2. Pulltheupperdoorslatloose.(g.B,C)
Tilting the hinge safety catches
A
B
C
20
