Amica ADC700 Quick start guide

www.amica-international.co.uk
ADC700 &
ADC900
Double ovens
Installation, use and maintenance

2
Contents:
3 Important information
4 Important safety notes
6 Before first use
7 Notes on usage
8 Oven controls and use
10 Setting the time/clock
10 Minute minder
11 Semi-automatic cooking
12 Automatic cooking
13 Care and maintenance
14 Changing the oven lamp
16 Removing the oven door(s)
17 Troubleshooting
19 Mains electricity connection
21 Installation
22 Appliance dimensions
23 Energy eciency information

3
Important
This appliance must only be used for the purpose for which it is
intended, i.e. domestic cooking. Any other use could be dangerous
and may lead to premature failure of the appliance.
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note that
CDA reserve the right to invalidate the guarantee supplied with this
product following incorrect installation or misuse of the appliance.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
User information:
•Ovens become hot during and immediately after use.
•The oven door can become hot during operation.
•After use, please ensure that the control knobs are in the
‘O’ position.
•Keep children away from the appliance when in use, and
immediately after use.
•Keep the oven door closed when the appliance is in use.

4
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
EU Declarations of Conformity:
This oven has been designed, constructed and marketed in
compliance with safety requirements of EU Directive 2014/35/EU (LVD)
and requirements of EU Directive 2014/30/EU (EMC).
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Electrical safety (LVD)
and Electromagnetic interference compatibility (EMC). Parts intended
to come into contact with food conform to 1935/2004/EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority dierentiated
waste collection centre or to a dealer providing this service.

5
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.
Important
• Read the user instructions carefully before using the oven
for the first time.
• Follow the instructions for first use of the oven.
• Clean the oven regularly.
• Steam cleaners must not be used when cleaning this
appliance.
• Remove spills as soon as they occur.
• Always use oven gloves when removing shelves and trays
from the ovens.
• Do not allow children near the oven when in use.
• Do not allow fat or oils to build up on the oven shelves,
grill pan or oven base.
• Do not place any cooking utensils or plates directly on the
oven base.
• Keep the oven door closed when the oven is in use.
• Do not grill food containing fat without using the grill pan
grid.
• Do not cover the grill pan grid or the oven walls with
aluminium foil.
• Do not use the oven tray for roasting.

6
• Do not perform maintenance or cleaning of the oven
without first switching o the electricity supply. If the oven
has recently been used, allow to cool.
• Do not place hot enamel parts in water. Leave them to
cool first.
• Do not allow vinegar, coee, milk, saltwater, lemon or
tomato juice to remain in contact with enamel parts.
• Do not use abrasive cleaners or powders that will scratch
the surface of the enamel.
• Do not attempt to repair the internal workings of your
oven.
• The oven is equipped with a safety thermostat which will
switch o the oven in the event of the oven overheating.
If the safety thermostat should switch o the power, you
must wait for the oven to cool down before using it again.
• Do not cover the oven floor with aluminium foil.
First use of the oven
The metal casing of this appliance has been coated with a
preservative to protect it during transport and storage. This should be
removed during installation by using a non-abrasive stainless steel
cleaner. Always follow the instructions given with the cleaner being
used.
Before using the oven for the first time we recommend that you clean
both oven cavities with soapy water, rinse carefully and then heat
on each of the below programmes at maximum temperature for the
specified time. A slightly unpleasant smell may be produced, caused
by grease remaining on the oven elements from the production
process.

7
Top oven
15 minutes full grill
60 minutes conventional
Lower oven
60 minutes fan oven
Please note:
• This oven has been fitted with a cooling fan to achieve maximum
eciency and to maintain low surface temperatures. The cooling fan
will switch on automatically when the oven is switched on and runs
for a while after the oven has been switched o - the length of time
can vary and will be increased by poor ventilation.
• The oven light remains on for every cooking function.
• Do not switch o the oven if you have set a programme for semi-
automatic or automatic cooking as this will cancel the programme.
• The current time must be set on the programmer/timer for the
cooking functions to work properly (see page 10).

8
Oven controls and use
Cooking function knobs
To set the function, turn the cooking function knob for the required
oven clockwise to the required function. Each of the oven functions
uses dierent elements within the oven to oer you the best choice of
cooking every time. These are explained below:
Conventional oven
This function uses the top and bottom heating elements
only with a temperature between 50ºC and 250ºC.
Natural convection creates a perfect cooking zone in the
centre of the oven, ideal for dark fruit cakes and pastries.
Warming oven
This function uses the bottom heating element only with a
temperature set between 50ºC and 250ºC. This natural
heat is perfect for dough proving and blind-baking.
Grill
This function radiates the heat from the grill element and
the top element.
This fully temperature variable grill is ideal for grilling a
full family meal. It can be set between 50ºC and 250ºC.
When grilling, please note:
• Always grill with the oven door closed.
• Put the grill pan as close to the grill as possible.
• Do not grill for more than 30 minutes at a time.
• Preheat the grill for a few minutes with the oven door closed.

9
Oven Lamp
This function switches on the oven light in the cavity.
Please note: the oven light will operate on all cooking
functions
Defrost
Using the fan only this oven function circulates the air
around the oven cavity, speeding up the natural defrost
process (1kg takes approximately one hour, depending
on the type of food).
Fan Oven
Using the circular element and the fan with a temperature
between 50ºC and 250ºC, this cooking function blows
the air into and around the oven cavity. Both cooking
temperatures and cooking times can be reduced for a
more energy ecient cooking programme. This function
is perfect for cooking various food types simultaneously
as foods are sealed quickly to prevent flavour transfer.
Temperature knob
• To set the temperature, turn the temperature knob for the required
oven clockwise to the required temperature.
• Oncetheovenhasreachedtherequiredtemperature,thetemperature
indicator lamp on the control panel will switch o.
• The temperature indicator lamp will light up when the oven elements
are working.

10
Programming the oven
Please note:
• The semi-automatic and automatic
cooking programmes will only work with
the main (lower) oven.
• The alert beep will cut o after two
minutes if it is not switched o manually.
• The current time must be set in order
for the functions to work. If you are
unsure whether the current time is
set, switch o the appliance at the
mains supply for approximately 10
seconds and then turn it back on. Set
the time as per the instructions below.
Setting the clock
The clock is preset to 12:00, and will revert to this after a power failure.
When the current time indicator is flashing, touch > or <. When
the correct time is shown on the display, the clock will set after
approximately five seconds’ delay.
To change the clock once it has been set, touch
OK
repeatedly until
the current time indicator flashes, then touch > or <. When the correct
time is shown on the display, the clock will set after approximately five
seconds’ delay.
The minute minder
The minute minder can be used when the oven is switched on or o.
OK
1
2
3
4
6 7
5

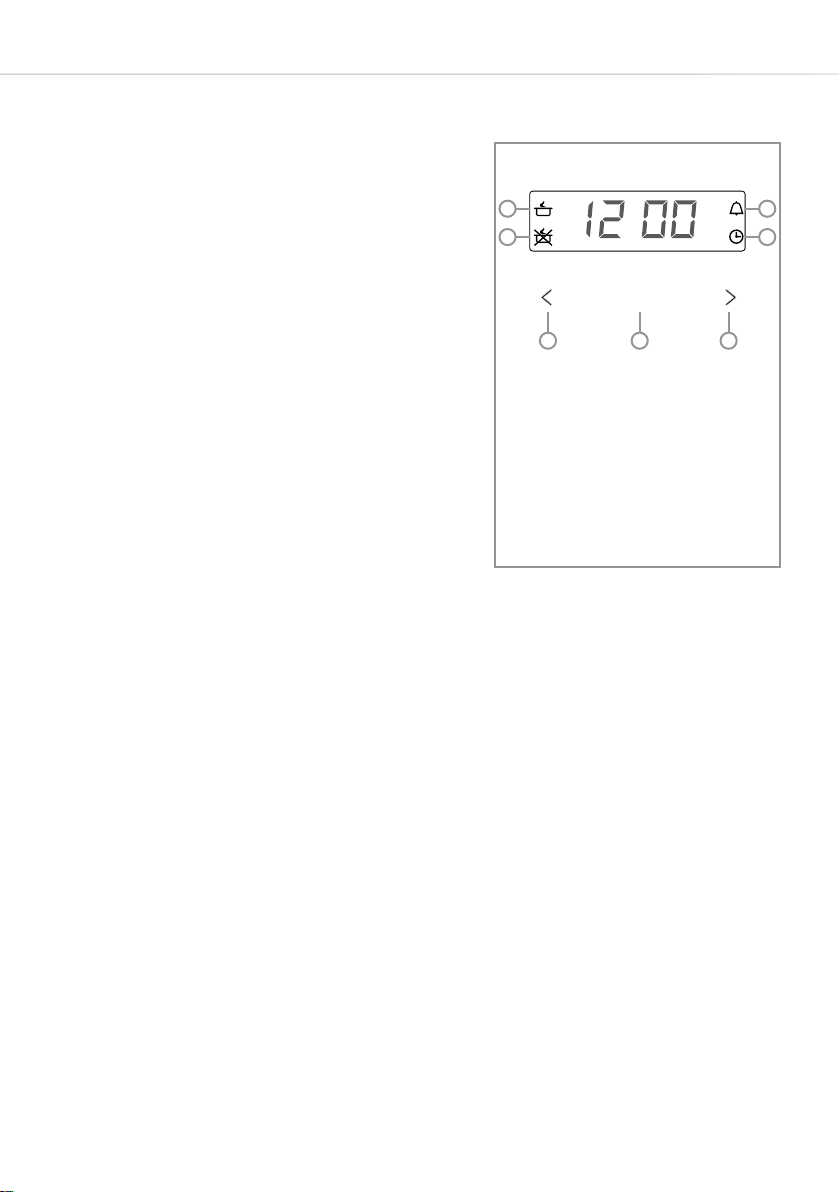

Fig. 1
1 Cooking time indicator
2 End of cooking time indicator
3 Minute minder indicator
4 Current time indicator
5 Decrease key
6 Mode key
7 Increase key

11
It can be set for up to 23 hours and 59 minutes.
To set the minute minder:
• Touch
OK
repeatedly until the minute minder indicator flashes.
• Then touch > or < to select the required duration for the minute
minder. When the correct duration shows on the display, either
touch
OK
or wait for approximately five seconds. The minute minder
indicator will remain lit to confirm the minute minder is on.
• When the countdown is complete, there will be an alert beep which
will continue for two minutes and the minute minder indicator will
flash. To switch o the alert beep, touch any key.
Please note:
At the end of the countdown, the minute minder will not switch o the
oven. Remember to turn o the oven manually.
Semi-automatic cooking
The main oven can be set to switch o automatically at a preset time
up to a maximum of 10 hours.
To set a semi-automatic cooking programme:
• Select the oven function and temperature (the oven will switch on).
• Touch
OK
until the cooking time indicator flashes.
• Then touch > or < to select the required duration for the semi-
automatic cooking programme. When the correct duration shows on
the display, wait for approximately five seconds. The cooking time
indicator will remain lit to confirm the semi-automatic programme is
on.

12
• When the cooking time is complete, there will be an alert beep
which will continue for two minutes and the cooking time indicator
will flash. To switch o the alert beep, touch any key.
• Turn the control knobs to the o position.
Please note:
At the end of the cooking programme, remember to turn o the oven
manually.
Automatic cooking
The main oven can be set to switch on and o automatically at preset
times up to a maximum of 10 hours.
To set an automatic cooking programme, follow the steps for setting a
semi-automatic programme above, and then:
• Touch
OK
until the end of cooking time indicator flashes.
• Then touch > or < to select the required end of cooking time. When
the correct time shows on the display, wait for approximately five
seconds. The cooking time and end of cooking time indicators will
remain lit to confirm the automatic programme is on.
• The oven will switch o until the automatic programme starts. When
the programme starts, the cooking time indicator will switch o
• When the cooking time is complete, there will be an alert beep
which will continue for two minutes and the end of cooking time
indicator will flash. To switch o the alert beep, touch any key.
Please note:
At the end of the cooking programme, remember to turn o the
oven manually (at the control knobs). If you have not switched the

13
oven o at the control knobs, pressing a control panel key will re-
activate the previously set function.
Care and maintenance
IMPORTANT
Before any maintenance is started involving electrical parts, the
appliance must be disconnected from the power supply.
If the oven has been in use, let the oven cavity and the heating
elements cool down before attempting any maintenance.
The oven exterior
As the oven has a stainless steel or enamel surface, you should use a
nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch
the surface and could erase the control panel markings. Stainless
steel can be eectively cleaned by simply using a dilute solution of
water and mild detergent and drying to a shine with a clean cloth.
Proprietary stainless steel cleaners are available. We recommend the
a clean microfibre cloth for cleaning stainless steel surfaces.
Inside of the oven
The oven should always be cleaned after use when it has cooled
down.
The cavity should be cleaned using a mild detergent solution and
warm water.
Suitable proprietary chemical cleaners may be used after first
consulting with the manufacturers’ recommendations and testing a
sample on a small area of the oven cavity. Abrasive cleaning agents or

14
scouring pads/cloths should not be used on the cavity surface.
IMPORTANT:
•Steam cleaners must not be used when cleaning this appliance.
•Once care and maintenance is complete, ensure that all parts are
correctly replaced before using the oven.
Changing the oven lamp
Before any maintenance is started involving electrical parts, the
appliance must be disconnected from the power supply.
If the oven has been in use, let the oven cavity and the heating
elements cool down before attempting any maintenance.
Changing the bulb (fig. 2)
Unscrew the protective cover. We
recommend that you wash and dry the
glass cover at this point. Carefully remove
the old bulb and insert the new bulb
suitable for high temperatures (300ºC)
having the following specifications: 230-
240V, 50Hz, 25W, G9 fitting.
Refit the protective cover.
fig. 2

15
IMPORTANT
Never use screwdrivers or other utensils to remove the light cover.
This could damage the enamel of the oven or the lamp holder.
Remove only by hand. Make sure the power is o and the lamp
assembly has cooled.
IMPORTANT
Never replace the bulb with bare hands as contamination from your
fingers can cause premature failure. Always use a clean cloth or
gloves.
Please note:
The bulb replacement is not covered by your guarantee.
See page 16 for information on removing the appliance doors.

16
Oven doors
Removing the oven doors
The oven door can easily be removed
as follows:
• Open the door to the full extent (fig. 4).
• Open the lever A completely on the
left and right hinges (fig. 5).
• Hold the door as shown in fig. 3.
• Gently close the door (fig. 6) until left
and right hinge levers A are hooked to
part B of the door (fig. 5).
• Withdraw the hinge hooks from their
location following arrow C (fig. 7).
• Rest the door on a soft surface.
• To replace the door, repeat the above
steps in reverse order.
fig. 4
fig. 7
B
B
fig. 5
C
`
fig. 6
fig. 3
A

17
Troubleshooting
If you have any problems with your appliance, you should check the
following troubleshooting steps prior to calling Amica Customer Care
to help avoid unnecessary service visits. Contact details for Amica
Customer Care are on page 18 and the rear cover of this manual.
•If there is no power to the oven.
Check that the mains power supply is switched on. If it is and the
oven is still not working then the switch the mains power supply o
and check the fuse at the spur. Replace the fuse and try switching the
power back on.
•If there is power to the oven (the programmer is on/lit) but the
oven is not heating.
It is possible that the current time/clock has not been set. Switch the
appliance o at the mains power supply and then switch it back on.
The clock should show ‘12:00’ and a flashing rectangular indicator by
the clock symbol on the control panel. Use the > and < keys to set the
current time. After approximately 5 seconds the time should set and
the oven should function as normal.
It is also possible that the automatic cooking function and a cooking
duration have been engaged. This is signified by the end of cooking
time indicator and the cooking time indicator being on. To cancel this
function, press ok until the cooking time indicator flashes. Use < to
return the cooking duration to ‘0.00’. After approximately 5 seconds
you should be able to use your oven as normal.

18
•If a function is on (and working) but the internal light is not
working
It is most likely that the bulb has blown. Switch the appliance o at
the mains power supply and fit a replacement bulb as per page 14. Be
sure to follow the safety warnings on page 14.
If none of the previous troubleshooting checks resolve your issue,
please contact Amica Customer Care using the contact details below:
A: Amica CCD, The CDA Group Building, Harby Road, Langar,
Nottinghamshire, NG13 9HY
T: 01949 862 012 F: 01949 862 003
E: [email protected]
W: www.amica-international.co.uk

19
Mains electricity
connection
Warning! This appliance must be
earthed
To connect this appliance to a UK
standard mains supply, connect the
bridging links between 1-2-3 for the live
feed and 4-5 for the neutral feed.
This appliance must be connected
to the power supply by a qualified
electrician or engineer, who is a
member of the N.I.C.E.I.C. and who
will comply with the I.E.T. and local
regulations.
This appliance is intended to be connected to fixed wiring and is
not suitable for connection to a 13A plug or 13A supply.
This appliance is intended to be connected to fixed wiring by a
double pole switch, having a contact separation of at least 3mm in
all poles. The switch must be positioned no further than 2m from the
appliance.
Release the two locks located at either side of the connector cover at
the rear of the appliance.
fig.8
12 3
4

20
Fig.9
Green/yellow
Blue
Brown
Feed the mains lead through the
cable clamp to prevent accidental
disconnection.
Tighten the cable clamp securely and
close the connector cover.
Green and Yellow = Earth (PE)
Blue = Neutral
Brown = Live
Please note:
• The mains cable must only be replaced by a qualified electrician
or service engineer and must be of equivalent or better rating (i.e.
2.5mm², HO5RR-F).
• This appliance is intended to be connected to the mains supply with
a cable of cross section area 2.5 mm². A larger cable will not fit the
terminal connections.
• The marking of the current rating of the fuse or circuit breaker
protecting this appliance should be marked on the socket outlet.
• Assembly and electrical connection should be carried out by
specialised personnel.
• When installing this product we recommend you seek the help of
another individual.
