Amperes PM1060 User manual

Thank you for choosing another quality product from Amperes Electronics.
PM1060 / PM1120 has been upgraded with improved circuitry to deliver better speech clarity, which is important in
any voice announcement.
We recommend that a thorough reading of the manual is done prior to installation in order to avoid unnecessary
error.
VER 11 / 2021
PM 1120
amperes
12 ZONE PAGING MICROPHONE
ALL
CALL CHIME
TAL K
12 3 456
78 9 10 11 12

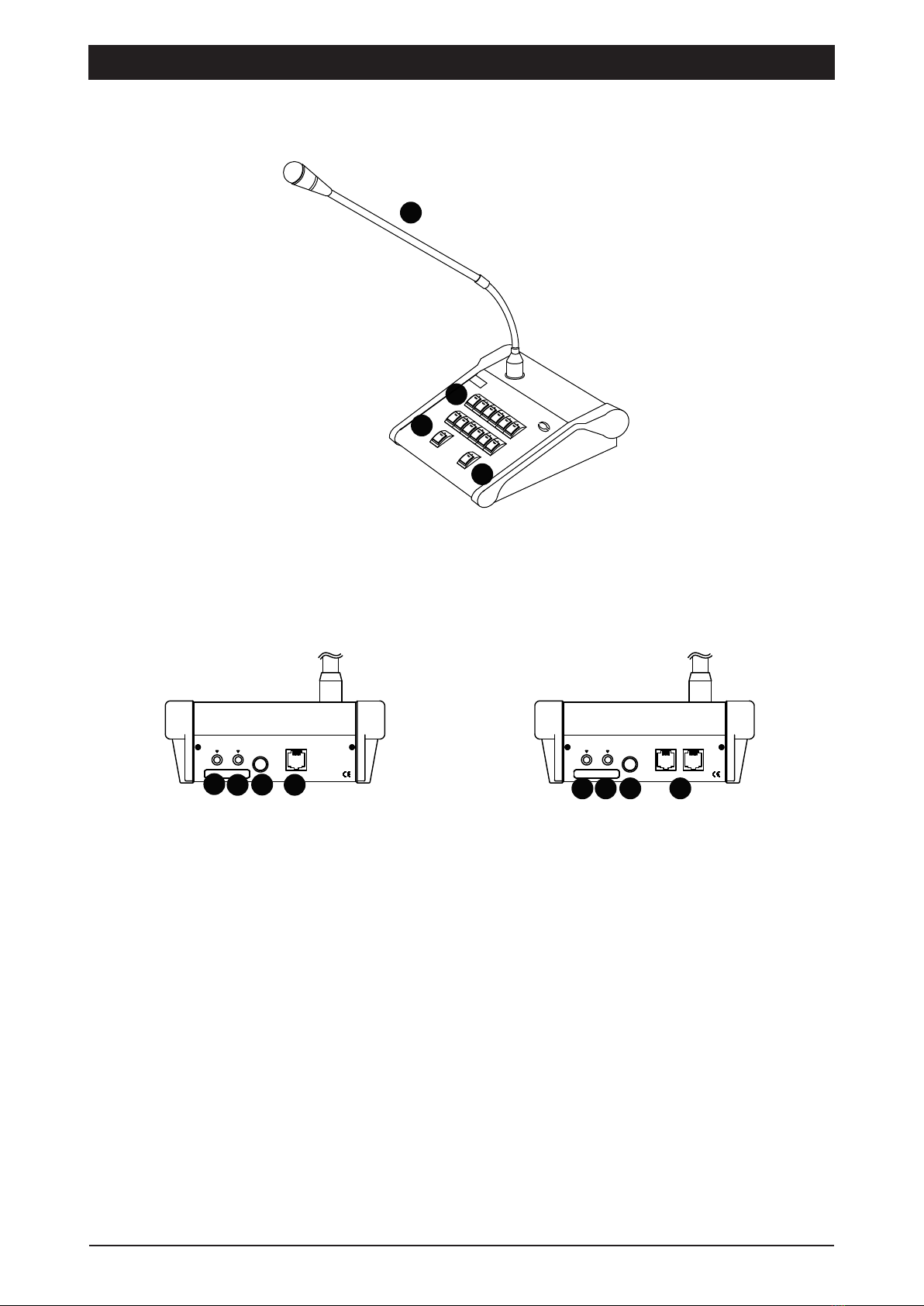

Parts Identifications
PAGE 2 PM1060 / 1120 DESKTOP PAGING MICROPHONE WITH ZONE SELECTOR
REAR VIEW
1
2
3
4
PM 1120
amperes
12 ZONE PAGINGMICROPHONE
ALL
CALL CHIME
TALK
12 3 456
78 9 10 11 12
FRONT VIEW
AMPERES ELECTRONICS
Another Quality Product From
S/N :
BALANCED
MIC OUT
MAXMIN
PM1120
MAXMIN
MICCHIME
PIN 1 to 6 : Z1 - Z6
PIN 7 : DC 24V
PIN 8 : GND
PIN 1 to 6 : Z7 - Z12
PIN 7 : DC 24V
PIN 8 : GND
TO ZS TRIGGER PORTAMPERES ELECTRONICS
Another Quality Product From
S/N :
BALANCED
MIC OUT
MAXMIN
PM1060
MAXMIN
MICCHIME
PIN 1 to 6 : Z1 - Z6
PIN 7 : DC 24V
PIN 8 : GND
TO ZS TRIGGER PORT
7568
PM1060 PM1120
7
568
1. GOOSENECK MICROPHONE
A detachable gooseneck microphone is provided with this console. Its cardioid back electret capsule is
sensitive to front voice pick up and reject rear unwanted noise.
2. ZONE SELECTION SWITCHES
12 individual zone selection switches are available for PM1120 and 6 for PM1060. LED indicator is
provided for active zone.
3. ALL CALL SWITCH
ALL CALL switch shall activate all zones with single press.

Parts Identifications
PAGE 3PM1060 / 1120 DESKTOP PAGING MICROPHONE WITH ZONE SELECTOR
4. CHIME / TALK SWITCH
Pressing this switch shall send signal for zones activation and follow by a 4 tones up chime. Gooseneck
microphone LED shall lit to indicate that the console is ready for announcement.
Pressing the switch again shall deactivate the console in which a 4 tones down chime shall be broadcasted
before ending the zone selection.
8. POWER AND DATA PORT
Connect these RJ45 connectors to external devices like MA2000 / ZS Series zone selector remote trigger
ports. PM1060 / PM1120 shall take DC 24V power from the external devices and provide control signal for
zone selection.
6. MICROPHONE VOLUME CONTROL
Adjust mic volume.
5. CHIME VOLUME CONTROL
Adjust chime volume
7. BALANCED MIC OUT
Paging signal is sent out via this port. Connect this port to audio amplifier / mixer using a 1/4” stereo phone
jack. The output audio is a balanced signal and the level can be set to mic or line level via a switch located
at the bottom of the console.

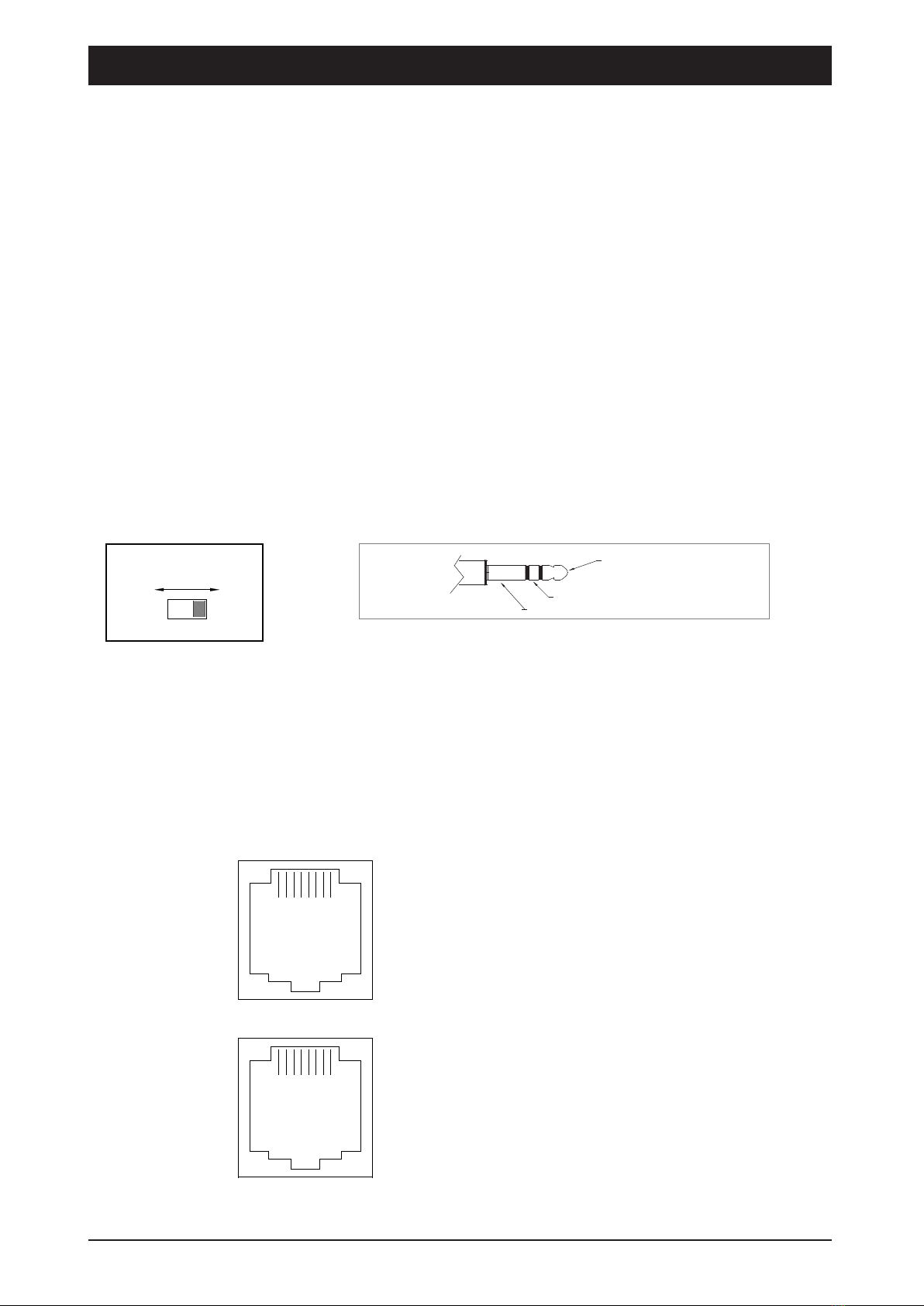

Mic / Line level switch
Line Mic
The output level can be set to mic / line level by toogle a switch
located at the bottom of the unit.
PHONE JACK
TIP : +VE / HOT SIGNAL
RING : -VE / COLD
SLEEVE : GROUND / SCREEN
12 3 4 5 6 7 8
12 3 4 5 6 7 8
PIN 1 to 6: Z1 - Z6
PIN 7: DC 24V
PIN 8: GND
PIN 1 to 6: Z7 - Z12 (only available on PM1120)
PIN 7: DC 24V
PIN 8: GND

Application Schematic
O
I
amperes
MX 2222
POWER
OFF SELECT
TUNER
CD
CASS
OFF
MASTER
MUSIC SOURCE
SIG IN
BASS
MAXMIN
EXT INPUT
MAX MAXMIN
SOURCE
MIN
SIG IN
CHIME MIXER TREBLE
MAXMIN
TONE CTRL
CH5 CH6CH4
SIG INSIGIN SIG IN
MAXMIN MAXMIN MIN
CH3CH1 CH2
SIG INSIG IN
MAXMIN MAXMIN MAXMIN MAX
AUX
SIG IN
PM1060 OR PM1120 DESKTOP PAGING CONSOLE
AMPERES ZS SERIES ZONE SELECTORS AMPERES MX2222 / MX2322 PRE-AMP MIXER AMPERES EP1200 EMERGENCY PANEL AMPERES PA2000 SERIES POWER AMPLIFIER
OUTPUT TO
AMPERES CHANGEOVER
OR
SPEAKER ZONE SELECTOR
PM1060 - 1X Cat5
PM1120 - 2X Cat5
2 core screen for balanced audio output
NOTE: The above diagram illustrates typical interconnections between PM paging microphone and with Amperes series of PA equipments. Application of PM paging microphones are not limited to usage with other Amperes products only. PM can be used alongside with almost any brand of PA equipments. Kindly consult us if there is any technical enquiry on the suitability of application.
PAGE 4 PM1060 / 1120 DESKTOP PAGING MICROPHONE WITH ZONE SELECTOR
PUBLIC ADDRESS POWER AMPLIFIER
SIGNAL -40 dB SIGNAL -10 dB
POWER PROTECT
CLIP
PA 2480
amperes
ZS 5121
EP 1200 amperes
EMERGENCY PAGING PANEL
MIC
SIREN SWITCH
SIREN
FIRE
EMERGENCY / SIREN ACTIVE

Selecting zone for paging
1. Press required zone button, the zone LED shall lit to indicate a zone has been selected. To select all the
zones, just press the ALL CALL button.
2. Press “CHIME / TALK” button to activate paging. The button adjacent red LED shall lit and a
preannouncement chime shall be played.
3. When gooseneck mic LED lit, the console is ready for paging.
4. To end paging, press “CHIME / TALK” button again. An ending chime shall be played follow by termination of
zone selection. All selected zones LEDs remain lit to allow next recall. User can select to remove a zone by
pressing the zone button again.
PM1060/1120 and ZS5062 / 5122.
When using PM1060/1120 with Amperes ZS5062/5122, activation of paging console shall automatically mute
the BGM broadcast of the zones at the zone selector panel. Upon deactivation of the paging mic, the BGM
broadcast shall return to the preselected zones.
PM1060/1120 and ZS5602
Unlike ZS5602/5122, activation of PM1060/1120 shall mute the selected Paging Zones only while other
selected BGM zone shall not be interrupted.
Operating Sequence
PAGE 5PM1060 / 1120 DESKTOP PAGING MICROPHONE WITH ZONE SELECTOR

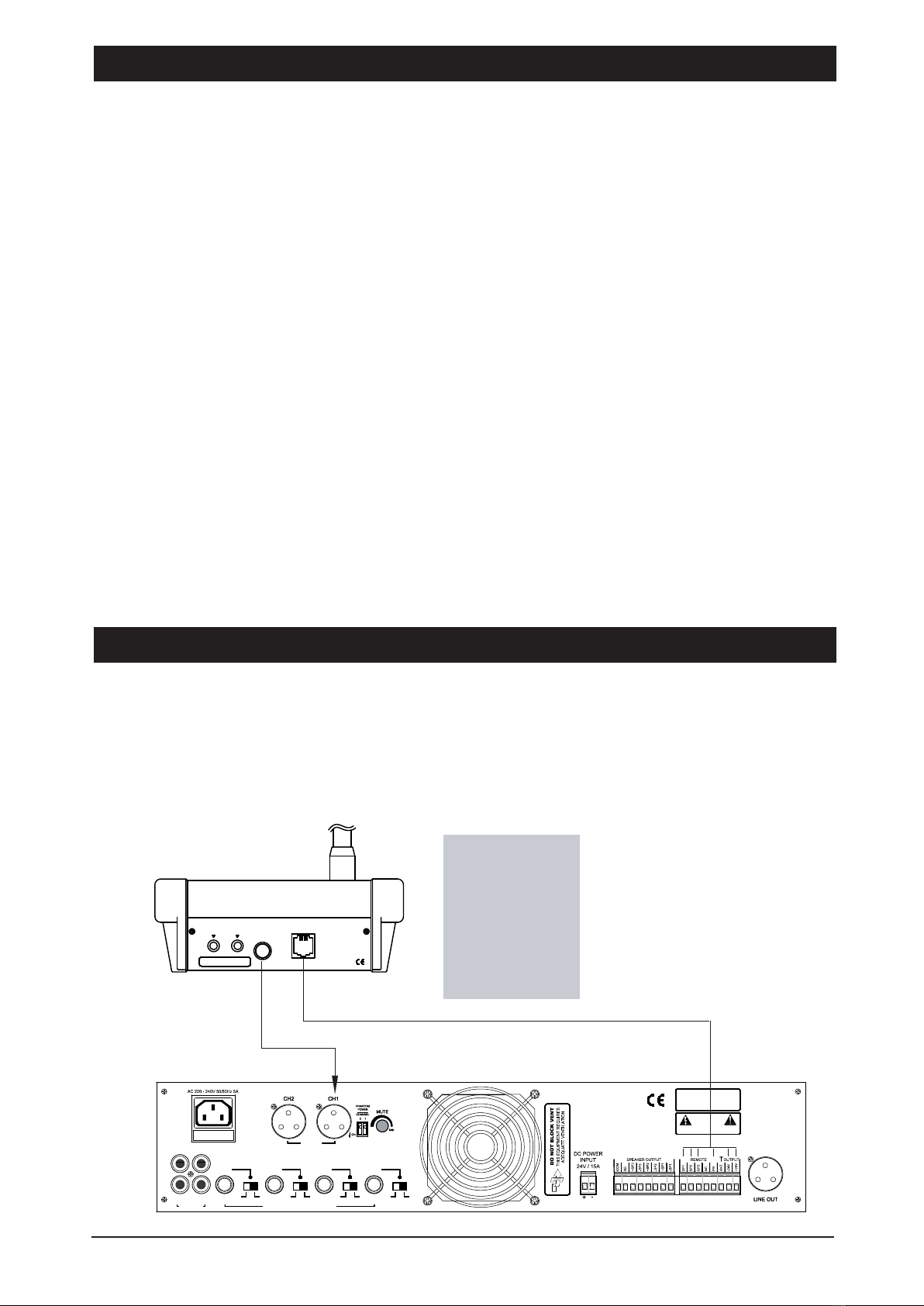

Connecting To MA2000 Amplifier
Remote zone selection on MA2000 amplifier can be done using PM1000 Series paging mic. Diagram below
illustrate a connection example. Connect PM1060 Pin 1 to Pin 3 to MA2024 SP1 to SP3 respecively. Connect
an unused pin, in this case Pin 4 ( corresponding to zone 4 ) to PR ( Priority ) port of MA2000. With this,
activate zone 1 + zone 4 buttons on PM1060 will override MA2000 front panel activated zones and allow
PM1060 to page to zone 1.
WARNING !
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
CAUTION
CH3CH5
CH6 CH4
MICLINE MICLINE MICLINE MICLINE
CH3CH4CH5CH6
MIC LEVEL (BALANCED/UNBALANCED)LINE LEVEL
MIC LEVEL
PRIORITY MUTE
CH.1 / 2 / EXT.IN
MAX
CH3CH5
CH6 CH4
MICLINE MICLINE MICLINE MICLINE
CH3CH4CH5CH6
MIC LEVEL (BALANCED/UNBALANCED)LINE LEVEL
CH.1 / 2 / EXT.IN
MAX
AMPERES ELECTRONICS
Another Quality Product From
S/N :
BALANCED
MIC OUT
MAXMIN
PM1060
MAXMIN
MICCHIME
PIN 1 to 6 : Z1 - Z6
PIN 7 : DC 24V
PIN 8 : GND
TO ZS TRIGGER PORT
MA2000
PM1060 PM1060:
PIN 1
PIN 2
PIN 3
PIN 4
PIN 7
PIN 8
Connection:
MA2024:
SP 1
SP 2
SP 3
PR
+24V
-24V
PM1060 MIC OUT
(2-Core Screen Cable)
Cat5

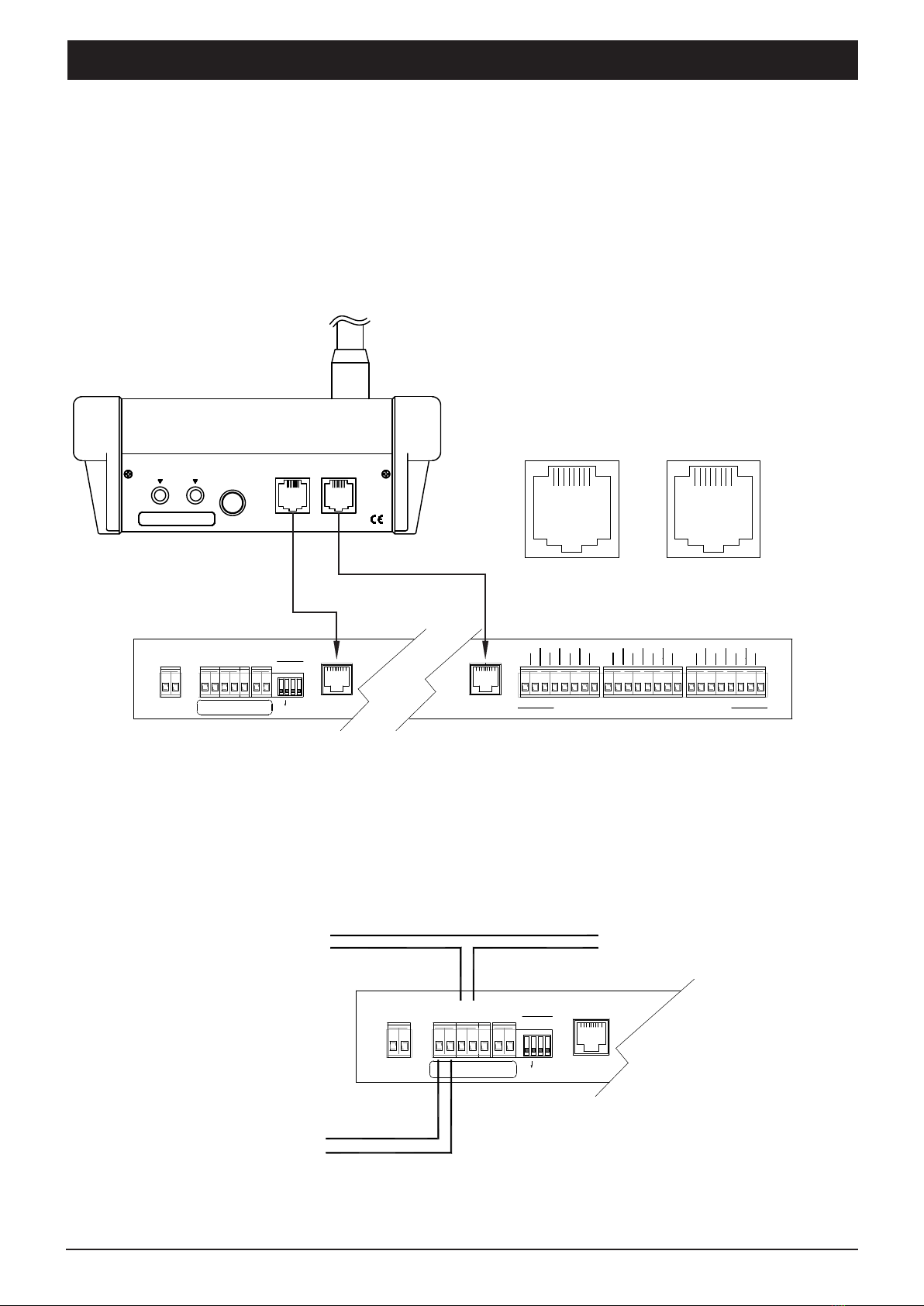

Connecting To Zone Selector
All Call paging from the Paging mic would trigger all zone but would not trigger the zone selectors E/M relay. The
overriding of volume controllers shall require 24V DC for the activation of their internal relay and this can be done via
EP1200.
24V DC to volume controllers
ALL Call triggering from
EP1200
PAGE 6 PM1060 / 1120 DESKTOP PAGING MICROPHONE WITH ZONE SELECTOR
AMPERES ELECTRONICS
Another Quality Product From
S/N :
BALANCED
MIC OUT
MAXMIN
PM1120
MAXMIN
MICCHIME
PIN 1 to 6 : Z1 - Z6
PIN 7 : DC 24V
PIN 8 : GND
PIN 1 to 6 : Z7 - Z12
PIN 7 : DC 24V
PIN 8 : GND
TO ZS TRIGGER PORT
We recommed that the PM1000 Series paging mic is used with Amperes Zone Selector in order to tap the full
features available. Other brand of zone selectors can be employed provided that the remote zone selection uses
negative signal triggering method.
Diagram below shows connection between PM1120 and ZS5122 zone selector.
Any zones or All Call activation on paging mic shall override ZS5122 front panel selected BGM zones. This however,
would not trigger E/M override relay at the zone selector.
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
PIN 1 to 6: Z1 - Z6
PIN 7: DC 24V
PIN 8: GND
PIN 1 to 6: Z7 - Z12
PIN 7: DC 24V
PIN 8: GND
PM1060 / PM1020 and Amperes
Zone Selector RJ45 connectors are pin to pin compatible
PM1120
AMPLIFIER INPUTS - ZONE OUTPUTS FOR ZONE 7 TO 12
REMOTE SELECT
COM
ZON12
AMP 7
100V 100V
AMP10
ZON8
100V
100V
ZON7
COM COM COM
AMP 8
100V 100V 100V COM COM COM
AMP 9 ZON9
100V 100V COM COM COM
ZON10 AMP11
100V 100V 100V COM COM
ZON11 AMP12
ZONE 7 TO 12
ZONE SELECTOR
ZS 5122
DC 24V
+ - CONT
RELAYRELAY
TRIG PR
ZREMOTE SELECT
A B
RS485
1-Z1
2-Z2
3-Z3
4-Z4
5-Z5
6-Z6
7-24V
8-COM
UNIT ADD
ON
8
4
21
ZONE 1 TO 6
Quality Product From
AMPERES ELECTRONICS
ZONE SELECTOR
ZS 5122
DC 24V
+ - CONT
RELAYRELAY
TRIG PR
ZREMOTE SELECT
A B
RS485
1-Z1
2-Z2
3-Z3
4-Z4
5-Z5
6-Z6
7-24V
8-COM
UNIT ADD
ON
8
421
ZONE 1 TO 6
Quality Product From
AMPERES ELECTRONICS
PM1060 - 1X Cat5
PM1120 - 2X Cat5
ZS5122

Technical Specifications
Summary Of Features
PAGING ZONE CONTROL
Announcement to speaker zone can be selected from the paging console, individually or ALL CALL.
PREANNOUNCEMENT CHIME
Chime up tone is broadcasted prior to announcement. Chime down shall be played prior zone deactivation.
BGM MUTING
When using the paging mic with Amperes series of zone selectors, activation of the paging mic shall automatically
mute the BGM zone at the zone panel. The BGM broadcast shall resume to the preselected zone upon mic
deactivation. Using the paging mic with ZS5602 shall have the same features but shall not interrupt the BGM
zones not selected for paging.
CHIME AND MIC VOLUME CONTROLS
Output level of chime and microphone can be adjusted individually as required.
BALANCED OUTPUT
Balanced line output is the standard feature for all the paging desk, designed for professional application and
longer distance audio transmission with minimal noise.
PAGE 7PM1060 / 1120 DESKTOP PAGING MICROPHONE WITH ZONE SELECTOR
24V DC 500mA
6 zones or 12 zones with ALL CALL
Cardioid Condenser Microphone
Line: 470 Ohm +/- 10% / Mic: 90k Ohm +/-10%
Line 1.2 V / Mic 50mV
Chime and mic level
1/4 " stereo phone jack
RJ45 connector
300 m (recommended)
4-tone up and 4-tone down
280Hz ~ 7.5 KHz (+/- 3 dB)
Mic ring, zone switch, ALL CALL
60 dB
370 mm
150 x 62 x 186 mm (excluding mic)
650mW
800 gms 850 gms
Power requirement
Power consumption
Idle
Active
Current consumption
Idle
Active
Zone selection
Microphone
Output impedance
Output level
Volume controls
Audio connection
Switching connection
Operating distance
Chime
Indicators
Frequency response
SNR
Gooseneck mic length
Dimensions (W x H x D)
Weight
4.5W (All Call)
30mA DC
180mA DC
PM1060 PM1120

Warranty Conditions
Disclaimer
AMPERES ELECTRONICS SDN BHD
MADE IN MALAYSIA
Published : APRIL 2021
ISO 9001: 2015
Design & Manufacture of Public Address Equipment and Systems
Certicate No. 16895 / A / 0001 / UK / En
Information contained in this manual is subject to change without prior notice and does not represent a
commitment on the part of the vendor. AMPERES ELECTRONICS SDN BHD shall not be liable for any
loss or damages whatsoever arising from the use of information or any error contained in this manual.
It is recommended that all services and repairs on this product be carried out by AMPERES ELECTRONICS
SDN BHD or its authorized service agents.
AMPERES series must only be used for the purpose they were intended by the manufacturer and in
conjunction with this operating manual.
AMPERES ELECTRONICS SDN BHD cannot accept any liability whatsoever for any loss or damages
caused by service, maintenance or repair by unauthorized personnel, or by use other than that intended by
the manufacturer.
Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes
Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn
Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor,
Malaysia or its authorized dealers. This warranty is not valid if repairs are performed by unauthorized
personnel or service centres.
This warranty covers only repairs and replacement of defective parts ; cost and risks of transportation as
well as removal and installation of the product from the main system are for the account of the purchaser.
This warranty shall not extend to the replacement of the unit.
This warranty does not cover damages caused by misuse, neglect, accident of the product as well as using
the product with power supply voltage other than shown on the product, or any other power supply source /
adaptor not recommended by the manufacturer.
This warranty does not cover damages caused by fire, earthquakes, floods, lightning and every cause not
directly related to the unit.
This warranty does not include any indemnity in favor of the purchaser or the dealer for the period out of
use of the unit; moreover the warranty does not cover any damages which may be caused to people and
things when using the product.
This warranty certificate is valid only for the described product, and is not valid if modifications are made on
this certificate or on the identification label applied on the product.
This warranty covers all the material and manufacturing defects and is valid for a period of 36 months from
the date of purchase or for a specified period in countries where this is stated by a national law. In this case,
the extension is valid only in the country where the product is purchased.
Amperes Electronics Sdn Bhd is not obliged to modify previously manufactured products under warranty if
the design changes or improvements are made.
