AMSAN AM-WB10810A User manual

PLEASE READ THE PRODUCT MANUAL ENTIRELY BEFORE INSTALLING
OR OPERATING THE LIFT.

IMPORTANT INFORMATION
•The shipment should be thoroughly inspected as soon as it is received. Any freight damage or
missing items must be noted on the freight bill before signing and reported to the freight
carrier with a freight claim established. Buyer should claim the compensation from the
freight carrier if any damage happens to the equipment during shipping. Please refer to our
website for detailed shipping policies and procedures.
•Make sure you have additional help or heavy-duty lifting equipment when unloading and
assembling the machine.
•Read and understand this installation and operation manual entirely before attempting to
install or operate this machine. Keep this manual near the product for future references.
Make sure all operators read this manual.
•This Wheel service machine should only be operated by authorized personnel. Keep children
and untrained personnel away from the machine.
•Do not make any modifications to this machine; this voids the warranty and increases the
chances of injury or property damage.
•Do not use the machine while tired or under the influence of drugs, alcohol, or medication
•The manufacturer or distributor assumes no responsibility for loss or damage of any kind,
expressed or implied, resulting from improper installation or use of this machine. Always use
professional installation companies.
•All persons using the equipment must be responsible, qualified, and carefully follow the
operation and safety guidelines contained in this manual.
•The machine should be installed in a place close to the main power source and compressed
air system.
•Install the machine on the smooth concrete ground or other ground with hard flooring. 4 sets
of anchor bolts can be used to fasten the machine onto the ground to avoid vibration and
noise.
•Leave enough space for the operation and maintenance of the machine. The space should be
no less than 1M in front and on the two sides of the machine, 0.5M behind it so that operation
on different parts shall not be hindered.
•If the machine has to be installed outdoors, a protective shelter should be built.
•All wiring must be performed by a licensed, certified Electrician.
•Do not perform any maintenance until the main electrical power has been disconnected from
the machine and cannot be re-energized until all procedures are complete.
•Do not put the equipment in a place with high temperature or moisture, or near the heating
system, water tap, air-humidifier, or chimney.
•Do not put the equipment near the window with sunlight. Protect the unit with a curtain or
shield if necessary. Never operate the machine in a place with flammable gas.
•Avoid lots of dust, ammonia, alcohol, thinner, or spraying binder.
•Use appropriate equipment and tools, protective and safety equipment, including eyeglasses,
earplugs, and work boots. Pay special attention to the marks on the machine. Do not touch or
approach the moving parts by hand during operating.
•Do not remove the safety device or keep it from working properly.
•All information in this manual is believed to be correct at the time of publication. The design,
material, and specifications are subject to change without notice.

AM-WB10810A
Contents
1. General 1
2. Machine assembly 1
3. Controls and components 3
4. Indication and use of wheel balancer 5
5. Self-calibration 11
6. Errors 13
7. Self- diagnoses 14
8. Setting machine 14
9. OPT function 15
10. Spare parts list and Exploded drawings 16
11. Appendix 1 ……………………………………………………………………………………………22

AM-WB10810A
No.
Item
Qty
1
Width gauge
1
2
Conic No.1
1
Conic No.2
1
Conic No.3
1
Conic No.4
1
3
Quick release nut
1
4
Thread hub
1
5
Bowl for quick nut
1
6
Pad for bowl
1
7
Balancing hammer
1
8
100g weight
1
9
Allen wrench
1
1. General
1.1. Technical data：
⚫ Max wheel weight：65kg
⚫ Power：0.2kw;0.37kw
⚫ Power supply: 220v;230v;240v;110v;50hz;60hz
⚫ Balancing accuracy：
1g
⚫ 5 balancing modes: DYN, ALU1, ALU2, ALUS, ST
⚫ Balancing speed：200r/min
⚫ Cycle time：8s
⚫ Rim diameter：10〃～24〃(256mm～610mm)
⚫ Sound pressure level during work cycle：<70db
1.2. Features：
⚫ Distance and diameter value input automatically
⚫ Statistic and dynamic balancing, ALU-programs for alloy rims or special-shaped
⚫ Self-diagnoses, easy to find the problem
⚫ Apply to steel and aluminum alloy rim
1.3. Working environment：
⚫ Temperature：5～50℃
⚫ Height：≤4000m
2. Machine assembly
2.1. Unpack
Unpack the carton, check if missing any spare parts.

AM-WB10810A
2.2. Install
•The equipment should be installed on the stable ground, not a wooden pallet, otherwise not
accurate.
•Keep the back panel 0.6M away from the wall for good ventilation. Enough room should be left
on both sides for convenient operation.
2.3. Fix balancer to the floor with screws on the bottom.
2.4. Install adaptor
•The wheel balancer is supplied complete with cone type adaptor for fastening the wheel with
a central bore. (see below picture)
2.5. Install wheel
•Clean wheel, take off counterweights, check the pressure of wheel.
•Choose the way of installation according to the type of wheel.

AM-WB10810A
No.
Item
Standard/
Optional
A
Head with
tool tray
S
B
Keyboard
S
C
Gauge head
S
D
Main shaft
S
E
Safe guard
S
Main shaft-wheel—Main shaft-suitable cone(big head towards inside)
suitable cone( small head towards inside)—quick handle nut —wheel—quick handle nut
Attention：May add a wheel, and hold the wheel to help install the threaded hub. When installing or taking off the
wheel, do not let the wheel move on the shaft, to avoid scratching the shaft.
3. Controls and components

Keyboard(B)
1. Digital readout of “a”，distance dimension, inside amount of unbalance
2. Digital readout, the inside position of unbalance
3. Digital readout, the outside position of unbalance
4. Digital readout of “d”, diameter dimension, outside amount of unbalance
5. Indicator, computer board working
6. Digital readout of “b”, the width dimension
7. Indicator, dimension in mm or inch
8. Indicator, automatic gauge
9. “ALU” correction mode selected, can choose following different modes:
Five balancing modes
Icon
Balancing
mode
Operation
Add weights
Standard/Default
1. Turn on machine
2. Input a,b,d value
3. Start spin, after spin stop
Clip-on weights on
both sides of rim edge
ALU1
1. Turn on machine
2. Input a,b,d value
3. Press the ALU button, indicator lit up
4. Start spin, after spin stop
Add adhesive weights
on the rim shoulder
on both sides
ALU2
1. Turn on machine
2. Input a,b,d value
3. Press t h e ALU button, indicator lit
up
4. Start spin, after spin stop
Clip-on weight on
the inside rim edge,
addadhesive weight
on
outside rim shoulder
ALUS
1. Turn on machine
2. Press t h e ALU button, indicator lit
up
3. Input aI,aE,d value
4. Start spin, after spin stop
Add adhesive weights
on the two positions
gauge head touch

AM-WB10810A
Static mode
1. Turn on machine
2. Input a,b,d value
3. Start spin, after spin stop
3. Press the F button
Add adhesive weight

Keyboard (B)
Icon
Function
Icon
Function
Set distance
Inch/mm change
Set rim width
Optimization of unbalance
Set rim diameter
Selection of “ALU” modes
Recalculation
Unbalance display pitch and
threshold
Static mode
Start
Push-button,self-
diagnostics,self-calibration
Stop/Cancel
4. Indication and use of wheel balancer
4.1. DYN (Standard/Default) mode
4.1.1. Clean wheel, take off counterweights, check the pressure of wheel. Choose the way of installation according
to thetype of wheel.
Main shaft-wheel—Main shaft-suitable cone(big head towards inside)
suitable cone( small head towards inside)—quick handle nut —wheel—quick handle nut
Attention：May add a wheel, and hold the wheel to help install the threaded hub. When installing or taking off the
wheel,do not let the wheel move on the shaft, to avoid scratching the shaft.
4.1.2. Turn on machine
4.1.3. Input a b d value
Turn on the machine, choose t he right way to install the wheel according to the type of wheel. Set
“a” “b” “d”values:
●set “a” value：move the gauge to measure position as illustrated as Fig.1, hold the gauge still in
position for approx. 4 seconds, successful memorization is given, then return the gauge to position

AM-WB10810A
0. (The value measured in automatic mode appears on the display). Or press and to set
manually.
●set “b” value：set nominal diameter “b” marked on the wheel or use the width gauge to measure
thevalue of ”b” as Fig.2, then press and
●set “d” value：this value measured in automatic mode same time as “a” value set, or press and
to set manually.
Fig.1 Fig.2
4.1.4. Put down the guard or press (when no hood)to perform a measuring spin.
4.1.5. In a few seconds, the wheel is brought to operating speed and begin measuring unbalance, the unbalance values
remain on instruments 1 and 4 when the wheel stopped. Press may check the real unbalance value under the threshold.
4.1.6. Anticlockwise moving wheel slowly, until the right LED lit up full, clip weight on 12 o’clock position (Fig.3)
Fig. 3
4.1.7. Anticlockwise moving wheel slowly, until the left LED lit up full, clip weight on 12 o’clock position (Fig.4)
Fig. 4

4.1.8. ．After finishing clipping the counterweights, put down the guard or press (when no hood) ， to
perform balancing spin again, if comes out 00 00，means balancing succeed. (Fig.5)
Fig. 5
4.2. ALU-1 mode (ALU-1, ALU2 same operation, only the position to add weights differently)
4.2.1. Set “a” “d” “b” values
4.2.2. Press until ALU1 indicator lit up
4.2.3. Put down the guard or press (when no hood)to perform a measuring spin.
4.2.4. In a few seconds, the wheel is brought to operating speed and begin measuring unbalance, the unbalance values
remain on instruments 1 and 4 when the wheel stopped. Press may check the real unbalance value under the threshold.
4.2.5. Anticlockwise moving wheel slowly, the displays with right LED’s lit up full indicate the correct angular position
where to mount the counterweights, 12 o’clock position outside, as Fig.6, add the counterweight.
Fig. 6
4.2.6. Anticlockwise moving wheel slowly, the displays with left LED’s lit up full indicate the correct angular position
where to mount the counterweights, 12 o’clock position inside, as Fig.7, add the counterweight.
Fig. 7
4.2.7. After finishing mounting the counterweights, put down the guard or press (when no hood) ， to
perform balancing spin again, if comes out 00 00，means balancing succeed. (Fig.8)

AM-WB10810A
Fig. 8
4.3. ALU－S mode
This mode is used for thespecial rim, ifALU1/ALU2 can not be used, you should chooseALUS mode.
Input aI, aE, d value
⚫ Set “aI”: pull gauge outlet the gauge head touch the position of FI for 4 seconds, may press and to
change
⚫ Set “aE”: pull gauge outlet the gauge head touch the position of FE for 4 seconds，may press and to
change
⚫ Set “d”: read from rim, press and to input
⚫
Fig. 9
Put down the guard or press (when no hood) to perform a measuring spin.
4.3.1. 12 o’clock position to add weight
Set SLC as OFF according to 8.1
Anticlockwise moving wheel slowly, until the right LED lit up full, add weight on 12 o’clock position (Fig.10)
Fig. 10
Anticlockwise moving wheel slowly, until the left LED lit up full, add weight on 12 o’clock position (Fig.11)

Fig. 11
After finishing mounting the counterweights, put down the guard and press ，to perform balancing spin
again,if comes out 00 00，means balancing succeed. (Fig.12)
Fig. 12
4.3.2. Use gauge head to add weight
Set SLC as ON according to 8.1
Fig. 13

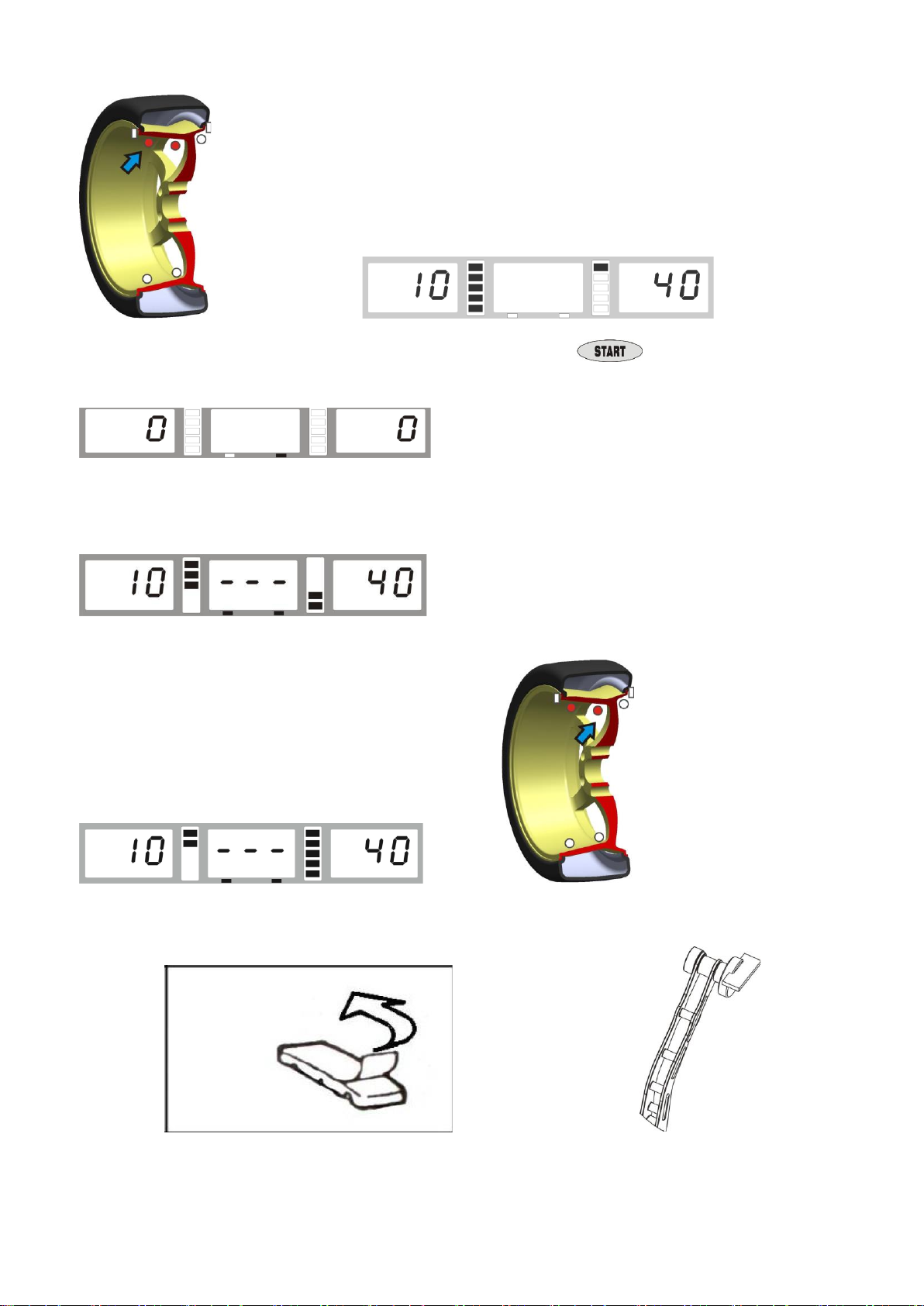

Anticlockwise moving wheel slowly, until the right LED lit up full (Fig.14)
Fig. 14
Take off proper counterweight to be held by the gauge head as Fig. 16
Fig. 15 Fig. 16
Pull out gauge until there is a square comes in the middle window (Fig. 17)

AM-WB10810A
Fig. 17
Release the counterweight and let it stick on the rim (Fig.
18)
Fig. 18
Anticlockwise moving wheel slowly, until the left LED lit up full (Fig.19)
Fig. 19
Take off proper counterweight to be held by the gauge head as Fig. 16
Pull out gauge until there is a square comes in the middle window (Fig. 20)
Fig. 20
Release the counterweight and let it stick on the rim (Fig. 21)
Fig. 21

Then turn down safeguard or press (when no hood) to start the spin, comes Fig. 22 means the
wheel isbalanced.
Fig. 22
5. Self-calibration
5.1. Self-calibration of wheel balancer
Turn on the balancer, install a medium-size wheel (13″-15″)which can use clip-on weight, set “a b d” value, then
Do the self-calibration whenever you think the balancer is not accurate. The 100g weight must be accurate.
Step 1
Press and hold, then press
comes
Step 2
Put down safeguard or press (when no
hood) to start the spin, after spin stop
comes
Step 3
Open the safeguard and clip a 100-gram weight
on the outside 12 o’clock position, put down safe
guard or press (when no hood) to start
spin, after spin stop
comes
Step 4
Open the safeguard and clip a 100-gram weight on
the inside 12 o’clock position, put down safeguard
or press (when no hood) to start the spin,
after spin stop
comes
self-calibration finished

AM-WB10810A
5.2. Rim distance gauge calibration
press +
Step 1
pull gauge to position “0” and
hold, press
Step 2
pull gauge to position “15” and
hold, press
Step 3
＞
Rim distance gauge calibration
finished
5.3. Rim diameter gauge calibration
Press +
Step 1
operation＞
Set “d” by press and , （ for
example if it is 16 inches, make it 16）
Step 2
operation＞
move gauge to touch the edge of
the rim and keep still, press
keysto confirm.
Step 3
operation＞
Calibration finished

6. Errors
Various abnormal conditions can arise during machined operation by the microprocessor, if any errors pop up then you
must stopoperation, find the reason and the solution according, if the error persists, consult the supplier.
No.
Errors
Reasons
Solution
1
1．No spin 2
．Shaft spin
1．If no spin, check or change power
board
2. If spin, check or change position pick
up board and computer board
3. Adjust position pick up board support
2
1 ． No wheel or wheel not
locked tightly
2 ． Position pick up board
problem
1. Lock tightly
2. Check or change position pick up
board
3
1 ． No enough pressure in
wheel
2．Wheel distortion
1．Add proper pressure in wheel
2．Check wheel
4
1. Position pick up board
problem
2. Computer board problem
1. Check or change position pick up
board
2. Check or change computer board
5
1. Micro switch problem
2. Computer board problem
1.Check or change Micro switch
2.Check or change computer board
6
1. Power board problem
2. Computer board problem
1.Check or change power board
2.Check or change computer board
7
1. Program lost
2. Computer board problem
1. Self calibration
2. Check or change computer board
8
1. No add 100g weight
during self calibration 2．
Computer board problem
3．Power board problem
1. Add 100g weight
2. Check or change computer board
3.Check or change power board
9
1. Micro switch problem
2. Computer board problem
1.Check or change micro switch
2.Check or change computer board
10
1．Computer board problem
2．Power board problem
1.Check or change computer board
2.Check or change Power board
11
1．Problem of gauge
2 ．Problem of distance
potentiometer
1. Do self-calibration of gauge
2. Change distance potentiometer and
do self-calibration of distance gauge

AM-WB10810A
7. Self- diagnoses
Press goest to self diagnoses, press to next , press or to escape
Order
Display
Function
Function normal
1
Display
All lit up
2
Position pick up board
POS changes in 0-127
3
Distance potentiometer
Left window data is 327-340, when
pullinggauge out, the data changes
4
Diameter potentiometer
left window data is 327-340, turn ruler
to another direction, data changes
5
Pressure sensor
Use hand to press main shaft, 4X-4X
6X-6X changes
8. Setting machine
8.1. Machine setting
Press and hold, then press goes to set machine, press and to change，press to next
Order
Display
function
choice
1
Unbalance display
threshold
5/10/15
2
Sound
On/off
3
Width
On/off
4
Light
1-8
5
ON use gauge to stick
weights
ON: use gauge to stick weights
OFF: 12 o’clock position
6
Tire weight
On/off
7
Safeguard on
Put down safeguard to start spin
8
Unit of weight
Gram/ Ounce
9
Wheel type operation
CAr：car mode display [CAr]
Sco：Motorcycle mode display [Sco]

9. OPT function
Note: When unbalance value is too much, choose OPT, and the operator must be experienced.
Install wheel, input a b d value
1
Press
comes＞
2
Put down safeguard and press
comes＞
3
With the help of a tire changer, change the rim
andrubber 180 degree
reference
＞
＞＞
4
Then put down safeguard and press
comes＞
5
Rotate wheel until four indicators lit up (two on
both sides, the dark spot in the right- s i d e
picture), mark the position C with chalk on
rubber
reference
＞
6
Rotate wheel until two indicators lit up (one on
both sides, the dark spot in the right- s i d e
picture), mark the position D with chalk on the
rim
reference
＞
7
With the help of a tire changer, change the rim
andrubber to make C and D match
reference
＞
＞＞
8
Put down safeguard and press
comes＞
If unbalance is less than before, OPT succeed
