Installation Guide
Distributed Audio LCD Keypads
Overview
The Matrix Audio Controller LCD Keypads (FIG. 1) are compatible with both Delta and
Mi Series Audio Controller Systems and provide Direct Access Control and advanced
functionality such as:
• Setting and recalling Source Presets
• Setting and recalling Source Favorites
• Zone Grouping
• Alarm clock settings
• Keypad Lockout
DAS-KP-LCD-G Flush Mount LCD Keypad (FG1120-0X)
The DAS-KP-LCD-G Flush Mount LCD Keypad combines the control functionality of
the DAS-KP-4e/KP-6e and DAS-KP-NUM keypads, with the added benefit of visual
feedback.
The DAS-KP-LCD-G is available in the following colors:
• Gloss Black (FG1120-01)
• Gloss White (FG1120-02)
• Gloss Almond (FG1120-03)
• Gloss Ivory (FG1120-04)
DAS-KP-LCDS-W Surface Mount LCD Keypad (FG1120-12)
The DAS-KP-LCDS-W Surface Mount (retrofit) LCD Keypad combines the control
functionality of the DAS-KP-4e-G/KP-6e-G and DAS-KP-NUM-G keypads, with the
added benefit of visual feedback.
• The Surface Mount LCD Keypad fits into a standard single gang box.
• The DAS-KP-LCDS-W is available in Matte White
LCD Keypads - Features By Model
The following table indicates the features supported by each of the Matrix Audio
Controller Keypads:
Installing the Surface-Mount LCD Keypad (DAS-KP-LCDS-W)
The DAS-KP-LCDS-W Surface Mount LCD Keypad is shipped completely assembled.
To correctly install the DAS-KP-LCDS-W (retrofit) in the wall, you must remove the
Front Bezel and the LCD screen.
Please follow these instructions carefully to ensure correct installation and operation.
Note: Before installing the LCD Keypads, POWER OFF the Matrix Controller (and
Expansion Controllers, if applicable).
1. To remove the Front Bezel, firmly hold the rear connector board with one hand
while squeezing the top and bottom near one edge of the front bezel with the
other hand. While squeezing, gently pull the bezel back and down. A soft click
should be heard when the bezel is freed from the mounting plate.
2. Use a small Phillips screwdriver to remove the four screws in the corners of the
LCD board. Once all the screws have been removed, gently grip each side of the
LCD screen and rock it away from the mounting plate. This will slowly release
the LCD screen from the bank of pins connecting it to the Keypad Control Board.
3. Plug the speaker-wire connectors to the “To Speakers” connector and plug the
Zone wires into the “To Controller” connector on the back of the Keypad Connec-
tor Board. Ensure the wiring scheme is correct and that the connector at the
Controller is plugged into the Zone output.
4. Use the provided screws to mount the Keypad Mounting Plate to the j-box in the
wall. Make sure the screws are secure enough that the keypad will not move
when touched but be sure not to overtighten the screws. If the screws are over-
tightened, the connection between the LCD Screen and the Keypad Control
board may not be adequate.
5. Reconnect the LCD screen to the Keypad Control board making sure to line up
the four screw holes correctly. This will ensure that all the pins will be plugged
into their appropriate receptacles.
6. Secure the LCD screen with the four screws that were removed in step #2.
Make sure the volume buttons are still in place on the switches.
7. Before placing the Front Bezel over the screen, POWER ON the Controller (and
Expansion Controllers, if applicable). The DAS-KP-LCDS-W will start the initial-
ization process immediately.
Note: When the System is first powered ON, it could take up to 2 minutes to load all
the information to the LCD keypads. Please wait until initialization has completed
before using the keypad.
8. If everything initialized correctly you should see the source listing at the top of
the screen and “All-On”, “All-Off” and the time displayed at the bottom of the
screen.
9. Remove the protective film from the front of the LCD Touch-screen.
10. Place the Front Bezel on the LCD screen and firmly “click” it into place. It should
fit tightly to the Mounting plate.
Installing the Flush-Mount LCD Keypad (DAS-KP-LCD-G)
The DAS-KP-LCD-G Flush Mount LCD Keypad is shipped completely assembled.
Note: Before installing the LCD Keypads, POWER OFF the Matrix Controller (and
Expansion Controllers, if applicable).
1. Using the cut-out template provided, center the template on the desired location
on the wall and mark the hole to be cut.
2. Connect the appropriate speaker & controller cables to the back of the
DAS-KP-LCD-G.
• The speaker connector is located on the right-hand side
• The controller connector is located on the left-hand side.
3. Remove the bezel from the front, and insert the LCD Keypad and housing into
the hole in the wall.
4. Press the housing firmly against the wall and tighten the 4 mounting screws
(black Phillips head) located in each corner of the housing. This will cause the
doglegs to extend and press against the drywall and will secure the Keypad to
the drywall. Be sure not to over-tighten these screws.
5. Remove the protective film from the front of the LCD Touch-screen.
6. Carefully place the keypad bezel on the front of the Keypad.
Start on one side making sure the volume button fits through the appropriate vol-
ume hole, and gently squeeze the cover to secure it to the other side of the
housing. The second volume button may need to be pressed in order to fit
through the appropriate volume hole.
7. POWER ON the controller (and Expansion Controllers, if applicable). The
DAS-KP-LCD-G will start the initialization process immediately.
Note: When the System is first powered ON, it could take up to 2 minutes to load all
the information to the LCD keypads. Please wait until initialization has completed
before using the keypad.
8. If everything initialized correctly you should see the source listing at the top of
the screen and “All-On”, “All-Off” and the time displayed at the bottom of the
screen.
9. To remove the cover, gently pry from the top corner until all four clips release
from the housing.
Using the Keypads
Matrix DAS-KP LCD keypads have a unique, touch-sensitive LCD panel that has 12
individual “grids” (also called “touch fields”) that become different command buttons
depending on what source and previous command was selected.
Labeling the Keypad Grids
The Matrix touch panel keypads provide the ability to customize the following labels in
the grids (also called “touch fields 1-12” - see FIG. 2):
• Source Names (from the Controller)
• IR command labels (from the Controller)
The above customized field labels are stored on the Mi Series Controller so that it can
be shared with other LCD keypads, the Network Interface application, or anything
using RS-232 commands to control the Mi Series Controller.

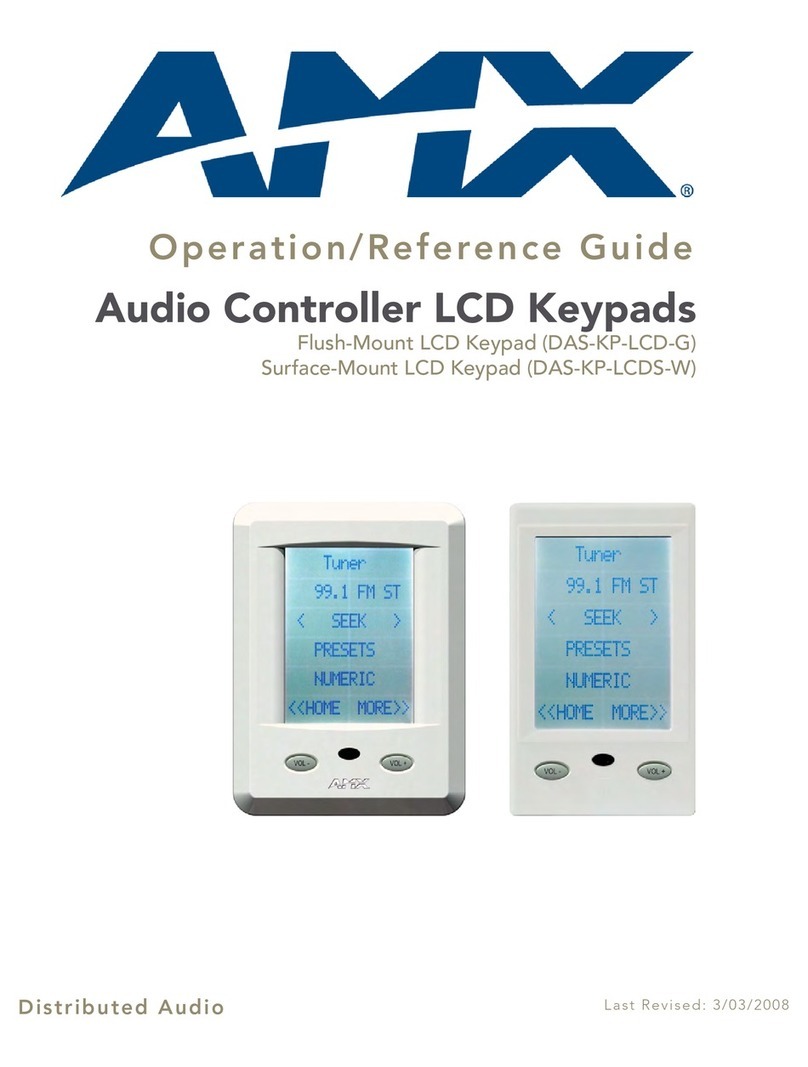

FIG. 1 Matrix Audio Controller LCD Keypads
LCD Keypads - Features By Model
Model Name Description Features
•DAS-KP-LCD-G
(FG1120-0X)
Flush Mount LCD
Keypad
• Control of up to 8 sources
• Direct access control
• Setting/recalling presets
• Setting/recalling favorites
• Zone grouping
• Bass, treble, balance and SRS
control
• Alarm clock settings
• Keypad lockout
• Built-in IR receiver
• 4-pin input/output connectors
•DAS-KP-LCDS-W
(FG1120-12)
Surface Mount LCD
Keypad
Parts List
• Front Bezel • Keypad Control Board • Mounting Plate
• LCD Touch-screen • Keypad Connector Board • Mounting Screws x 2
DAS-KP-LCDS-W
Surface Mount LCD Keypad
DAS-KP-LCD-G
Flush Mount LCD Keypad
Parts List
• Front Bezel
• LCD Touch-screen & Housing

For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s).
3/08
©2008 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX.
AMX reserves the right to alter specifications without notice at any time.
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax [phone] • technical support 800.932.6993 • www.amx.com
93-1120-01 REV: A
Customizing LCD Keypad Labels
Customization of labels displayed on the LCD keypad is done via the Setup menu on
the front of the Controller. Both Source labels and Source Control labels can be
customized (FIG. 3).
Customizing Source Labels
1. Enter the Setup menu from the front of the Matrix Controller, by pressing the
SELECT button.
2. From the menu displayed, select SETUP / MRC / PROGRAM.
3. Select the source # of which you wish to customize the source name. The
default Source name will be displayed.
4. Select Label. The first letter of the Source Name will be highlighted. Use the
UP/DOWN buttons to change the letters in the source name.
• To move from letter to letter, use the FORWARD >> button.
• To delete a letter, use the << BACK button.
• Press the CENTER button to save the label.
Note: Source Names are limited to 6 characters.
Customizing Source Command Labels
1. Enter the Setup menu from the front of the Matrix Controller, by pressing the
SELECT button.
2. From the menu displayed, select SETUP / MRC / PROGRAM.
3. Select the source # of which you wish to customize the source command
name.
4. Select Learn IR. The first IR command for the source will be displayed.
5. Select Next until the IR command you wish to customize is displayed.
6. Select Label. The first letter of the IR Command Name will be highlighted. Use
the UP/DOWN buttons to change the letters in the IR command name.
• To move from letter to letter, use the FORWARD button.
• To delete a letter, use the BACK button.
• Press the CENTER button to save the label.
Note: Source Command Names are limited to 6 characters.
Basic Functionality
Turn On a Source (single room)
Touch (select) the desired source. The LCD screen will switch to the Source MAIN
screen and the source will begin playing. An arrow will be displayed beside the
source name to indicate that the source is ON (see FIG. 4).
Turn Off a Source (single room)
Select the source that is currently On. The source will no longer play and the arrow
will no longer be displayed beside the source name.
Turn a Source On in All Rooms
From the HOME screen, touch ALL ON. The text Select Source will flash. Select
the desired source. All rooms will begin playing the selected source.
Turn All Rooms Off (System Off)
From the HOME screen, touch ALL OFF. Audio in all rooms will be turned off.
KP-LCD Advanced Functionality Screen
Advanced functions are accessed by simultaneously pressing & holding the
Vol - / Vol+ buttons for 3 seconds (FIG. 5).
Note: Advanced Functionality is largely reserved for Mi/Tango Controllers. Only
Backlight and Tone (except for SRS) are available on Delta Controllers.
Grouping Rooms
1. With the desired source ON, access the Advanced screen and select "GROUP
ROOMS".
2. Select "Create a Group" to specify the rooms to be included in the Group.
3. Select "Group ALL" to group all rooms.
Note: When a group is created all rooms included in the group will behave as one
room (same source & volume)
• To adjust the Group Volume, Touch Vol - / Vol+ while on the Group screen.
• To adjust the Volume for an individual room, exit the Group screen, and touch
Vol - / Vol+ from the keypad in each room.
• To clear a Group, access the Group Room screen and touch "Clear Group".
Setting/Clearing the Alarm Clock
1. To set an Alarm for a specific room, access the Advanced screen and select
"ALARM CLOCK".
2. Select "Set Alarm".
3. Select the source by touching "Source" to scroll through the available sources
4. Set the time & adjust the volume and touch SET.
When the selected time is reached, the room will turn on to the selected source and
the volume will ramp up to the set volume.
• To clear an Alarm for a specific room, select "Clear Alarm".
• To clear all Alarms for all rooms, select "Clear All Alarms".
Locking/Unlocking Keypads
When a keypad is locked, touching the screen or buttons will have no effect until the
keypad is unlocked.
1. To lock a keypad, select "LOCK KEYPADS" from the Advanced screen and
select "LOCK/UNLOCK".
2. Select the room to be locked/unlocked and touch SAVE or MORE.
To unlock all keypads, select "UNLOCK ALL" from the Lock Keypads screen.
Tone Control Settings (Bass/Treble/Balance/SRS)
Note: SRS/WOW is a registered trademark of SRS labs, Inc.
Bass/Treble/Speaker Balance & SRS®can be adjusted for each room by accessing
the Advanced screen and selecting "TONE CONTROL".
Note: SRS is supported only on Mi Series Audio Controllers.
• To adjust Bass touch BASS "+" or "-".
• To adjust Treble touch TREBLE "+" or "-".
• To adjust Speaker Balance touch BAL "<L>" or "<R>".
• To add/change an SRS option, touch SRS and select one of the SRS options
(BASS BOOST, 3D, WOW and FOCUS).
• To remove or turn SRS off select "SRS OFF" from the SRS screen.
Backlight Settings
The Intensity and Mode can be adjusted for the LCD keypad by accessing the
Advanced screen and selecting "BACKLIGHT".
• To adjust Intensity, touch the %to increase/decrease the brightness of the
screen (range = 5% - 95%).
• To adjust the Mode, touch the text to scroll through the options (ALWAYS ON,
ALWAYS OFF, and AUTO ON (backlight turns off after 30 seconds)
Privacy Mode
To access Privacy mode:
1. Select MORE>> in the Setup Main screen.
2. Select PRIVACY MODE to display the Privacy Mode-More screen.
Note: <<BACK will return you to the Setup-Main screen.
3. Selecting OK on the Privacy Mode-More screen will set the room to Privacy
Mode: no pages will be heard in this room
4. Select CANCEL to return to the Main Screen where you can select a Source.
Additional Documentation
Refer to the LCD Keypads Operation/Reference Guide (available at www.amx.com)
for additional information on Customizing LCD Keypad Labels and Using the LCD
Keypads.
FIG. 2 Touch Panel Keypad - 12 Touch Fields
FIG. 3 Source Labels and Source Control labels
FIG. 4 Basic Functionality - Home, Source MAIN and Source MORE screens
Source
Source Control
Labels
Labels
HOME Screen Source MAIN Screen Source MORE
FIG. 5 KP-LCD Advanced Functionality screen
Room Grouping options
Alarm Clock options
Keypad Lock options
Tone Control settings
Backlight settings
