amzchef SJ-036 User manual

Brand:amzchef
Model:SJ-036

Section 1. Precautions for Saftety Use
Section 2. Quick Start Assembly
Section 3. Installation Notes
Section 4. Disassembling Method
Section 5. Cleaning & Maintenance
Section 6. Useful Tips
Section 7. Only Hand Wash & Easy Cleaning
Section 8. Specifications
Section 9. Troubleshooting
Section 10. Warranty
1
4
5
7
8
10
11
12
13
14

1
1

2

3

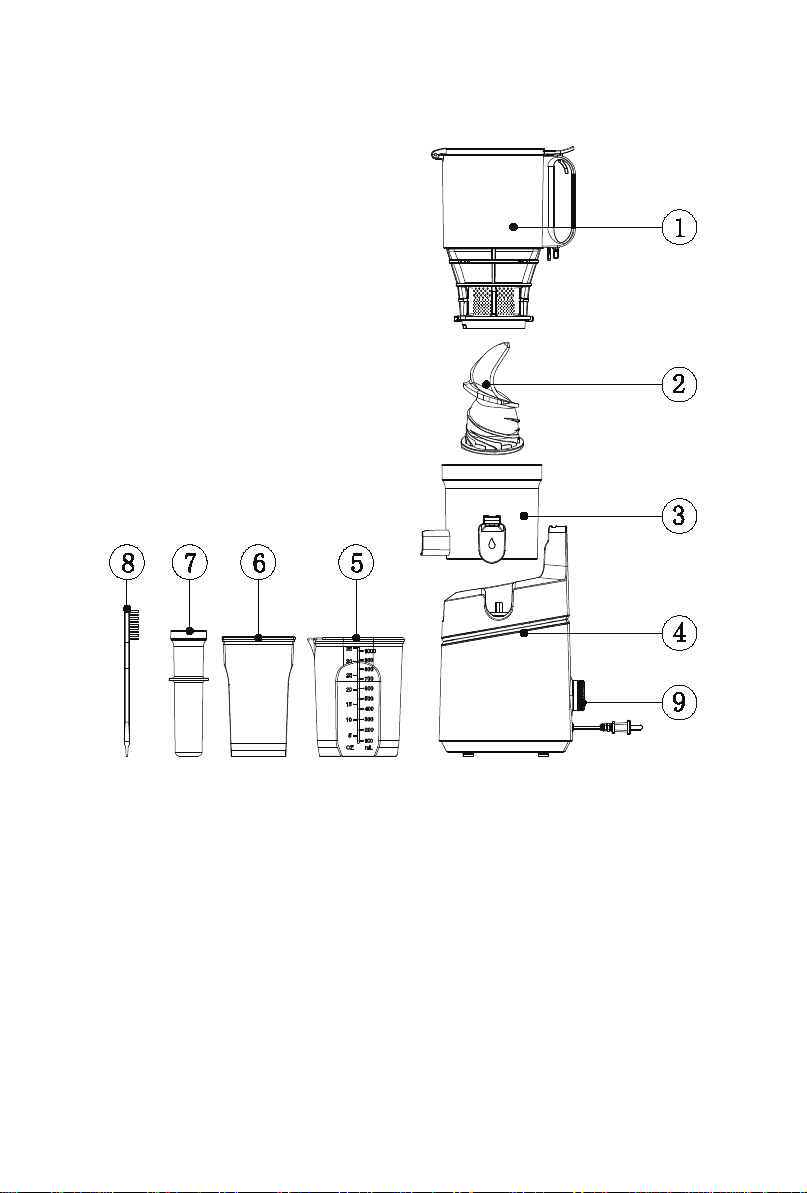

1.Feeding Cup
2.Squeezing Auger
3.Juicing Bowl
4.Power Base
5.Juice Cup
6.Pulp Cup
7.Pusher
8.Cleaning Brush
9.Power Switch
Section 2. Quick Start Assembly
The first use will have odor, is a normal phenomenon, with the
use of increased frequency, the odor will be reduced until
disappeared!
4

Section 3.Installation Notes
Please make sure the unit is not plugged and the knob is turned to
“OFF” setting prior to assembling the machine.
1
2
3
4
Position the squeezing bowl on the power base
aligning the position of the spouts and the axle.
Push the squeezing auger firmly into the center of
the bowl, making sure that it touches down the
bottom, or else the cover cannot be closed.
Position the feeding cup on the bowl to align the “
▲”to the “ ” and twist it clockwise until it clicks
the safety lock. Please make sure that the arrow
“▲ ”on “ ” the cover aligns with the lock graphic
on the bowl.
Place the juice container and the pulp container
under the relevant spouts.
5

Useful Tips :
Open & Close of Juice Spout Cover:
Operation instruction:
During the juicing process, you could keep the drip-stop cover closed before the juice is
full in the juicing bowl.
1.Connect the unit with power.
2.Check and make sure all parts are well assembled in correct position.
3.Make sure the machine is at “OFF” position.
4.Make sure the juice and pulp containers are in position.
5.Make sure the juice spout cover is closed.
6.Prepare the fruits or vegetables and cut them into pieces max 5cm x 2cm strips or 5cm x
5cm cubes.
7.Put fruit strips/cubes into the chute.
8.Rotate the knob to right to start the juicing operation.
9.Push the food down with the pusher only.
10.In case of food stuck inside the bowl, rotate the knob to left for reverse function
instantly.
If the feeding cup is not locked properly, the juicer could not start.
Juicer spout is
opened Juicer spout is closed
NOTE :
Please do not use the juicer continuously longer than 20 minutes.
6

Section 4.Disassembling Method
Benefits of Drip-stop Cover :
1.To stop dripping at the end of juicing.
2.To mix the juice with different fruits and vegetables.
Usage Tips :
1.Remove hard pits or seeds prior to pressing to prevent possible damage to the squeez-
ing screw.
2.If mixed juices are to be made, please begin with harder fruit, and then squeeze the soft
fruit.
3.Please let the juicer to run for 30 seconds after the last ingredient was fed.
Attention :
The juicer is not suitable for juicing very hard or fibrous and starchy fruits or vegetables
such as sugar cane. There are some fruits which contain too much starch to juice.
Some examples are avocado, bananas, figs, mango, papaya, dragon fruit, strawberry,
grape without seeds etc. They will clog up the stainless steel sieve.
To disassemble the unit after use and before cleaning. Please turn the juicer to “OFF”
position and disconnect the juicer from power source.
Then, please follow the steps below :
1Remove the Juice and pulp containers.
2Remove the feeding cup. Turn the chute
anti-clockwise until the ▲ aligns with the “ ” sign.
NOTE :
If the juicer gets overheated, it will turn off automatically to protect the machine.
In this case, please turn the juicer off . Wait 1 hour to let the juicer cool down and
then turn it on again.
7

Section 5.Cleaning&Maintenance
1. Switch off and unplug the juicer.
2. Wash the disassembled parts with water. If the meshes are clogged with pulp, please
use the provided cleaning brush to remove the dregs.
3Remove the squeezing auger by pulling it out
upward. If it is very hard, swing gently and pull.
4Remove the squeezing bowl by lifting it upward
vertically.
IMPORTANT :
Please wash the juicing parts every time immediately after each used, otherwise
the pulp might stick tightly in juicing bowl & squeezing auger which will then affect
the disassembly, cleaning and juicing performance.
Attention:
•Do not use iron wire brush, abrasive or sharp object tool to clean the unit.
•Please do not use water above 40°C/104°F.
•Do not put in the dishwasher.
8

3.In case there is any residues remained in the mouth of the pulp spout, please pull out the
silicone valve as shown in (Fig 1) below and clean under running water.
NOTE:
Please make sure the unit and parts are dry before storing it.
Press the silicone valve to close it property and tightly after cleaning.
Silicone valve. Pull to open
Fig 1
Fig 2a Fig 2b Fig 2c
4.To clean the seal ring in the center of the squeezing bowl, please follow the steps as
below :
a.Turn the squeezing bowl upside down for easier handling, push the seal ring out with
your thumb (Fig 2a) and clean it with water.
b.After cleaning, please put it back to the center hole. The small ribbed surface should
face upward (Fig 2b) make sure the groove of the seal ring well fit in the squeezing bowl.
c.The big flat size of the seal ring will be inside while the small and ribbed side is outside
the squeezing bowl. (Fig 2c)
5.Do not put the power base into water for cleaning. Wipe it with damp cloth only.
6.After cleaning, please dry the parts thoroughly and store them in a dry, cool place.
9

Section 6.Useful Tips
If the juicer stops due to continuous operation for more than 20
minutes, it needs to be turned off and cooled for 1 hour before
restarting the machine.
STORAGE :
1.Follow cleaning instructions to well maintain the unit before storage.
2.Tidy up the power cord set.
3.Keep the unit away from children’s easy access.
4.Store the unit and the accessories at a dry, cool place.
Item Warning Reason
1Not for ice cube. The ice cube is too hard. It may
damage the squeezing parts.
4Do not use other accessory as a
pusher. It may damage the juicer and
cause injury.
5Each juicing cycle not longer
than 20 minutes. Working over time may cause
damage to the motor.
6Never put the spoon,chopsticks
into the opening of the chute, the
juice and pulp spouts. It may damage the juicer.
2The ingredient with long fiber
needs to be cut down to 5-10 cm
thin strips or 3 x 3 cm cubes.
Long fiber food is easy to wind
and block the spout.
3
The peel and pits/seeds must be
removed from oranges, lemons,
grapefruit and melons before
use.
The hard pit or seeds may
damage the squeezing parts. The
peel may block the spout of pulp.
10

Section 7.Only Hand Wash & Easy Cleaning
󾙔󾙒󾙓󾙖󾙕󾙗
󾙘󾙒󾙕󾙕󾙗󾙔󾙓󾙖󾙔󾙒󾙒󾙘󾙓󾙔󾙒󾙒󾙚󾙓󾙓󾙔󾙒󾙓󾙔󾙓󾙔󾙔󾙒󾙓󾙘󾙘󾙒󾙕󾙕󾙗󾙓󾙔󾙒󾙓󾙔
󾙓󾙓󾙔󾙒󾙓󾙖󾙓󾙕󾙔󾙒󾙓󾙙󾙓󾙔󾙒󾙓󾙛󾙓󾙖󾙔󾙒󾙓󾙛󾙔󾙔󾙒󾙓󾙛󾙓󾙗󾙔󾙒󾙔󾙓󾙘󾙔󾙔󾙕󾙕󾙔󾙒󾙒󾙚
11
Manufacturer:Islow Electric (Zhongshan) Co., Ltd
Add: No.1 Zheng'an Road, West District, Zhongshan City, Guangdong China
Company:YH Consulting Limited
Address:C/O YH Consulting Limited Office 147,Centurion House , London Road ,
Staines-upon-Thames , Surrey , TW18 4AX
Contact：Yingmin He Tel：[phone] E-Mail：[email protected]
Contact：Emily Tel： [phone] E-Mail：[email protected]

Section 8.Specifications
Product name :
Model :
Voltage :
Power :
Juice cup capacity :
Pulp container capacity :
Unit size :
Net weight :
Slow juicer
SJ-036
220-240V~50-60Hz
250W
1000ml
900ml
20.95*20.05*43.65cm/
8.2*7.9*17.2inch
3.5KG/7.7LB
12

9
Trouble Cause Solutions
The juicer stops
running suddenly.
The juice yield is low
or juice flows out of
the main housing.
Too many ingredients put into
the juicer
Hard fruits or vegetables have
not been cut in small pieces.
The bowl and the silicone
valve are not installed
properly.
Rotate “I” to “REV” position
instantly to make the ingredients
return upwards. If the machine still
stops running, please clean the
machine before use.
Hard fruits and vegetables have not
(such as carrot) shall be cut into
thin strips or small cubes before
putting into chute.
Juicer turns off automatically
for overheated protection.
Wait one hour to cool and turn on
the juicer again.
Please re-install the bowl silicone
valve by referring to the installation
method.
Abnormal noise
The chute & strainer
assembly cannot be
opened
The container &
accessories are
dyed after use.
Parts cause extrusion sound
during squeezing.
There is too much pulps
inside the bowl.
There is hard foods stuck
inside.
The pulp mess is stuck.
Dyed parts are due to natural
color of specific fruits/veggies.
The sound is caused by extrusion of
fruits and vegetables, which is
normal phenomenon.
Rotate “I” to “REV” position setting
to eject the pulps backward.
Rotate “I” to “REV” position to eject
the object backward .
Pour water into the feeding cup and
wait for few hours
This is natural color and unavoid-
able.
