amzchef ZM1517 User manual

Instrution Manual
Bedienungsanleitung
Manuel d'instructions
Manual de instrucciones
Manuale di istruzioni
ZM1517
AC 220-240V 50/60Hz
Slow Juicer
Langsamer Entsafter
Presse-agrumes lent
Exprimidor lento
Juicer lento
PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY
RETAIN THIS MANUAL FOR FUTURE REFERENCE

ENGLISH Content
Section I. Precautions for Safety Use.....................................................................................01
Section II. Parts and Functions...............................................................................................03
Section III. Method of Operation...............................................................................................05
Section IV. How to assemble...................................................................................................06
Section V.Tips for Ingredients Selection.................................................................................09
Section VI. Maintenance...........................................................................................................11
Section VII. Safety Index...................................................................................................13
Section VIII. Trouble Shooting...........................................................................................14
Section IX. Warranty.......................................................................................15
DEUTSCH Inhalt
Kapitel I. Sicherheitshinweise........................................................................................16
Kapitel II. Komponenten und Funktion...........................................................................19
Kapitel III. Bedienungshinweise......................................................................................20
Kapitel IV. Zusammenbau................................................................................................21
Kapitel V. Hinweise zu den Zutaten..................................................................................24
Kapitel VI. Wartung ..........................................................................................................27
Kapitel VII. Technische Daten............................................................................................29
Kapitel VIII. Störungsbehebung........................................................................................29
Kapitel IX. Garantie......................................................................................................30

FRANÇAIS Table des matières
Section I Précautions d'utilisation en toute sécurité3.........................................................31
Section II. Pièces et fonctions...........................................................................................34
Section III. Mode opératoire...............................................................................................35
Sectionl IV. Assemblage......................................................................................................37
Section V. Conseils pour la sélection des ingrédients...........................................................39
Sectionl VI. Maintenance....................................................................................................42
Section VII. Spécifications techniques..............................................................................44
Section VIII. Dépannage.....................................................................................................44
Section IX. Garantie........................................................ ...........................................................45
ESPAÑOL Contenido
Sección I. Precauciones para el uso seguro........................................................................46
Sección II. Piezas y funciones..............................................................................................49
Sección III. Método de operación.........................................................................................50
Sección IV. Cómo armarlo...................................................................................................51
Sección V. Consejos para la selección de ingredientes.......................................................54
Sección VI. Mantenimiento ..................................................................................................56
Sección VII. Índice de seguridad...........................................................................................58
Sección VIII. Resolución de problemas...................................................................................59
Sección IX.Garantía...............................................................................................................60

ITALIANA Contenuto
Sezione I. Precauzioni per l'uso in sicurezza.........................................................................61
Sección II. Parti e Funzioni..................................................................................................63
Sección III. Metodo di operazione........................................................................................64
Sección IV. Come assemblare...............................................................................................66
Sección V. Suggerimenti per la selezione degli ingredienti...................................................68
Sección VI. Manutenzione .....................................................................................................71
Sección VII. Indice di sicurezza.............................................................................................73
Sección VIII. Risoluzione dei Problemi...................................................................................73
Sección IX. Garanzia.............................................................................................................74

1
Section I. Precautions for Safet y Us e
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1
Power of 220-240V~50/60Hz shall be supplied to this product. Please
confirm your power supply before use.
2
Be sure to disconnect the power supply before dis-assembly/re-assembly
or adjustment to this product.
3In case of any damage to the flexible wire, to avoid any hazard, contact
our customer service or send it to our authorized service center for
replacement, and do not try to disassemble it without our authorization.
4Prior to use, please check the power cable, plug, juice filter, Auger
,
chopper body, meat grinder and other parts, and in case of any damage,
stop using this product and contact our customer service
immediately without unauthorized dis-assembly or repair to avoid any
potential hazard.
5 For need of any repair during use,return appliance to our authorized
service facility for examination, repair or electrical adjustment.
6 Before connecting with power supply, make sure that any such
removable parts as extractor body, auger, j uice filter and extractor
cover have been mounted inplace.
7DO NOT put your fingers or other objects into the juicer opening
while it is in operation. If food becomes lodged in the opening, use
the plunger or another piece of fruit to push it down. When this
method is not possible, turn the motor off and disassemble juicer to
remove the remaining food.

2
8The food material needs to be cut into proper pieces so as to pass
th r ou gh th e inl e t to e x tr a c to r / c ho pp e r/ g ri nd . A n y fru i t / v e g e t a b le s h a ll
haveanyhardcore,seed,skinor shell removed before processing.
9Proper amount of force shall be used to push the food material in, not
excessive but sufficient to have it cut off exactly.
10 The juice filter, extractor cover, or auger may be dyed by the
juice
during operation, which is a normal phenomenon and has no effect on
edibility and does no harm to health.
11
This product is equipped with intelligent protection chips, making it stop
automatically for every 20 minutes' operation. And in such case, rest it for
20-30 minutes before restarting it, so as to cool the motor down and
prolong product servicelife.
12 This product is designed to limit the flow rate. During processing of any
hard material, the motor will be locked and the current will rise up. When
the current goes higher than 1.3A, the equipment will beep and the
motor will stop operation for over-current protection and extension of
life span.
13 In case that current limit protection is triggered or the motor is
locked and stops automatically, touch on/off button to make the
appliance in standby mode, and press”R” to rotate the auger
reversely to discharge the food ingredients in the appliance. If the
problem continues, it is recommended to remove any food material
inside auger before restart so as to protect the motor.
14 After the completion of operation, remove any removable part only
after the motor/auger/shredder/slicer/grinder screw has stopped
rotating and the power has been disconnected.
15 Any part in contact with food material is clean, safe and reliable in
compliance with related food hygiene codes.

3
16 To protect against risk of electrical shock, do not put the motor
base in water or other liquid.
17 Do not use any steel wool, abrasive cleaning agent or corrosive
liquid such as gasoline or acetone to clean this product.
18 This product should be stored in a place that children can’t reach.
Not allow persons with unsound extremities and sensation or
mental disorders and persons who are short of related experience
and knowledge( including children ) to use or play with this product.
19 This product is used for individual or family only.
20 This product is of Class-I protection grade, and the socket used for it
must be grounded properly.
Section II. Parts and Functions

4
No.
Component
Name
Function Description
①
Power cord
It is used for connecting the power supply to
provide power.
③
Main body
As a main part and the power source of
the appliance.
②
Control
panel
It controls the operating statuses of the
appliance.
④
Locking
Button
For locking of extractor to prevent unexpected release
out of the housing. To unload the extractor off the
housing, press down and hold this button.
⑤
Drum
It is a main part for juicing. Food ingredients are
first fed via the feed port at the top of the juicing
body and then discharged in forms of juice and
pulp via the juice outlet and the pulp outlet
respectively.
⑥
Juice
strainer
By means of breaking in with the spiral pusher, it is
used for grinding and filtering the extracted food
ingredients to get juice
⑦
Auger
As a main part for juicing, it is used for conveying
food ingredients and grinding them by breaking in
with the juice strainer or the squeezer.
⑧
End cap
It is used for grinding food ingredients by breaking
in with the spiral pusher (For fruits and
vegetables).
⑨
Juice
container
It is used to hold and collect juice

5
⑩
Pulp
container
It is used for loading Pulps.
⑪
Plunger
It is used for squeezing the fed food ingredients
gently for their full contact with the spiral pusher
and higher juice extraction efficiency.
Section III. Method of Operation
Prior to first use,Please thoroughly clean any parts in contact with food
material. (See Section IV. Maintenance for more details)
1.Juice:it is used for juicing hard food ingredients.
2.Juice:It is used for juicing soft food ingredients.
3.Ice cream: It is suggested for cold soft fruit.
4.Reverse:It is used when pulp discharge blocked or the motor is locked
5.On/Off button

6
Steps to operate:
1. Connect the appliance to the power, all indicators will flash for 3 times, then
the on/off button turns to red ( standby mode).
2. Touch on/off button, all other keys will flash again. Select the desired function,
the selected key will flash and keep light on after 2 seconds when the appliance
start to work.
3. If you want to change the function during work, touch the on/off button to
make the appliance goes into standby mode, and then follow the step 2.
4. In case of Pulp blockage or motor locking, touch on/off button and then “R”
button to rotate the auger reversely to release it. Touch on/off button to exit the
reverse function, and follow step 2 to resume work.
5. Touch the on/off button to stop the appliance.
Section IV. How to assemble
( for juice&ice cream functions)

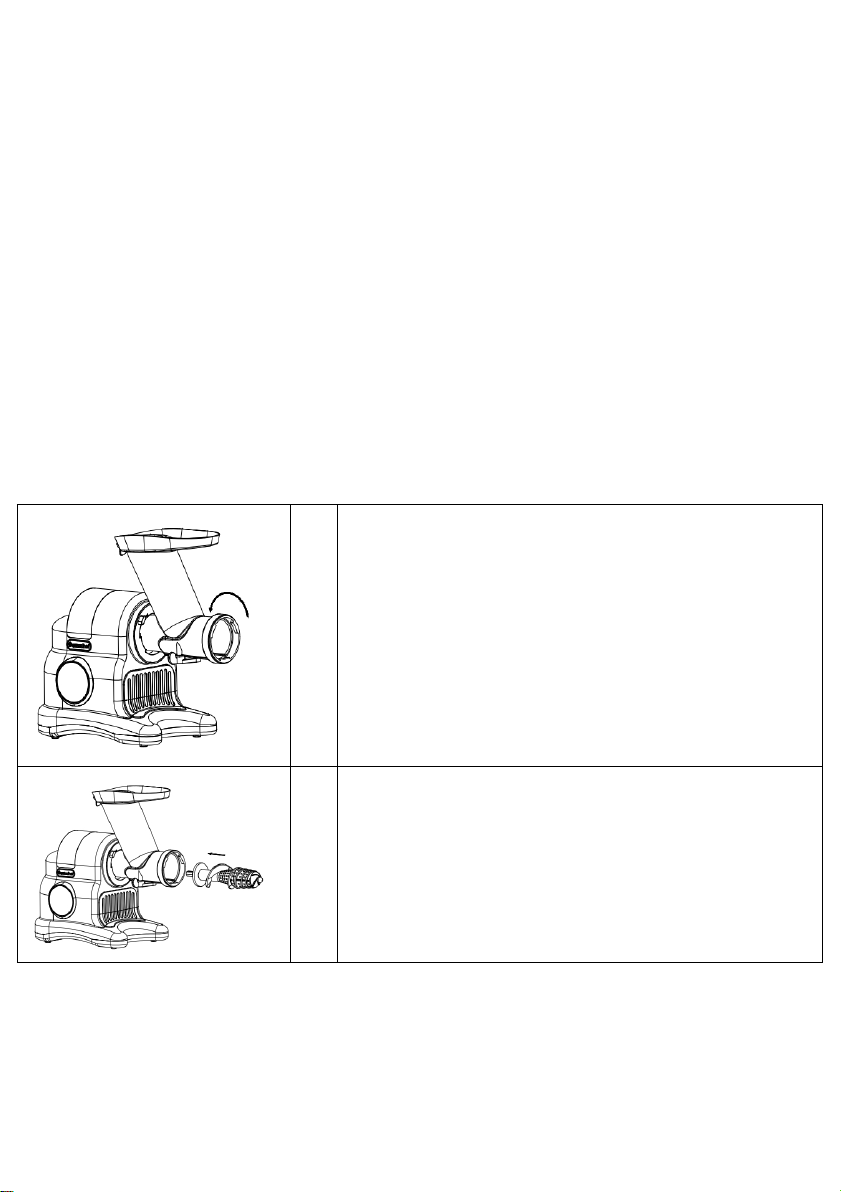

1
Connect the juicing body and the main body:
1. Have the triangular aligning sign “▼”on
the juicing body align with the aligning
“unlocking triangular sign”on the main
body and then put the juicing body into the
main body (the three clips on the juicing
body will realize alignment).
2. Then turn the juicing body anticlockwise.
When there is a click, it suggests that the
connection is finished.
2
Have the hexagonal shaft of the Auger align
with the hole on the main body and push it
horizontally until it reaches the bottom (when
alignment fails, just turn the Auger slightly).

7
3
Fit the larger-hole end of the juicer strainer into
the tail of the Auger and push it while the three
clips of the juicer strainer align with the three
clamping slots in the drum. (The juice strainer
is used with the juicing button in the rear only.
This function is used for juicing.)
4
Place the end cap onto the drum by aligning
the triangle alignment mark “▼” on end cap
with the unlock triangle mark on the drum, and
then rotate the end cap counter clockwise.
5
Put the Juice container in the corresponding
groove on the main body and have its opening
align with the bottom of the juice outlet of the
drum.
6
Put the pulp container below the pulp outlet of
the drum.

8
8
Connect the power supply for use of the
appliance .
7
Wash vegetables and fruits, cut them into
blocks fitting the size of the feed port and put
them on the tray.
9
Operate the appliance according to Section III.
Method of Operation.
10
Put food ingredients into the feed chute on the
drum and then push the food ingredients with
help of the plunger.

9
Section V. Tips for Ingredients Selection
•FRUIT JUICE EXTACTOR
Efficiently juices hard and soft fruits: even citrus fruits, usually one of the
hardest fruits to juice.
Jam can not be achieved, some fruit can not squeeze juice (such as bananas,
mangoes, dried fruit, sugar cane, etc.).
•VEGETABLE JUICE
Cut vegetables to strips(less than 10 cm).
Juices all kinds of vegetables including carrots, beets, celery, peppers,
and radishes without destroying the natural flavor and nutrition benefits.
Fresh taste and full nutrition are guaranteed with this unique extraction
process.
•WHEATGRASS AND LEAFY GREENS
Cut it to strips(less than 10 cm).
Wheat grass, kale, cabbage, spinach and pine tree needles are just some of
the natural products that can be juiced with the Amzchef juicer. Enjoy the
best that nature offers in raw foods of all kinds and juice them for full
nutritional benefits.
Instructions on Selection of Fruits

10
1. Select fresh fruits and vegetables, which contain more juice. The proper
fruits include: pineapple, beet root, celery stalk, apple, cucumber, spinach,
melons, tomato, orange and grape.
2. Thick skin on fruits such as orange, pineapple and raw beet root instead
of thin skin on fruit/vegetable needs to be removed. Seeds in oranges
should be removed as well, which may make the juice taste a little bitter.
3. Concentration of juice extracted from apple depends on what type of
apple is selected. Juice extracted from juicier apple is less thick, so select
the proper type of apple depending on your desired juice concentration.
4. Just extracted apple juice will turn brown very soon, and this process can
be slowed by adding drops of lemon juice into it.
5. Leaves and stems (such as those of lettuce) can be put into theextractor
to extract juice.
The typical nutrient ingredient contained in fruits/vegetables are shown
below:
Fruit/Vegetable
Vitamin/Mineral
Calorie
Apple
Vitamin C
200 gram = 150 KJ (72 calorie)
Apricot
Dietary fiber and potassium
30 gram = 85 KJ（20 calorie）
Beet
Folic acid, dietary fiber, Vitamin C
and potassium
160 gram = 190 KJ(45 calorie)
Blueberry
Vitamin C
125 gram = 295 KJ(70 calorie)
Brussels Sprouts
Vitamins C, B, B6 and E, folic acid
and dietary fiber
100 gram = 110 KJ(26 calorie)
Cabbage
Vitamin C, folic acid, potassium,
Vitamin B6 and dietary fiber
100 gram = 110 KJ(26 calorie)

11
Carrot
Vitamins A, C and B6, and dietary
fiber
100 gram=110 KJ (26
calorie)
Celery
Vitamin C and potassium
80 gram = 55 KJ(7 calorie)
Cucumber
Vitamin C
280 gram = 120 KJ(29 calorie)
Fennel
Vitamin C and dietary fiber
300 gram = 145 KJ(35 calorie)
Grape
Vitamins C and B6, and potassium
125 gram = 355 KJ(85 calorie)
Yangtao
Vitamin C and potassium
100 gram = 100 KJ(40 calorie)
Muskmelon
Vitamins C and A, folic acid and
dietary fiber
200 gram = 210 KJ(50 calorie)
Nectarine
Vitamins C and B3, potassium and
dietary fiber
180 gram = 355 KJ(85 calorie)
Peach
Vitamins C and B3, potassium and
dietary fiber
150 gram = 205 KJ(49 calorie)
Pear
Dietary fiber
150 gram = 250 KJ(60 calorie)
Pineapple
Vitamin C
150 gram = 245 KJ(59 calorie)
Raspberry
Vitamin C, iron, potassium and
magnesium
125 gram =130 KJ(31 calorie）
Tomato
Vitamins C, E and A, dietary fiber
and folic acid
100 gram = 90 KJ(31 calorie）
Section VI . Maintenance
1. Before cleaning this product, be sure to shut down the switch to
disconnect the power supply.

12
2. Clean this product after using it.
3. The Housing cannot be washed under water, and must be cleaned
with twisted wet clothinstead.
4. Before storing it, make sure this product is clean and dry.
5. Disassemble this product to wash the components by the following
steps:
1
Take down the plunger
2
Press the locking button on the side of
the drum and turn the drum clockwise at
the same time to take out the drum. The
drum cannot be dismantled if the button
is not pressed.

13
3
After taking down the drum, take down
the tray, the juice strainer (or the end
cap) and the auger in order. The
dismountable parts may be flushed with
clean water.
Warning
Do not immerse the motor base in water or any other liquid. Do not
use water jet to clean the motor base.
Section VII. Safety Index
Product Name
Slow Juicer
Model
ZM1517
Rated Voltage
220V-240V ~
Rated Power
150W
Rated Frequency
50/60Hz
Continuous Operating Time
≤10 minutes
Interval Time
≥10 minutes

14
Section VIII. TroubleShooting
Fault
Phenomenon
Analysis of cause
Fault resolution
After connecting
power supply and
turning on the
switch, the product
fails to work
After turn on the machine,
wait for 1s, it will work. It is
normal.
After 1s, it still no work,
maybe poor contact between
plug and socket
Re-plug it properly
1. Replace the socket and
try again, or contact after Sales
Support Email:
info@iamzchef .com
During the early
uses, the motor
generates
unpleasant smell
It is a normal phenomenon
If this phenomena occurs
frequently, send it to our
authorized service center nearest
to you for inspection.
This machine stop
during operation
Too low voltage
Excessive amount of food
material has been loaded
The machine has operated
continuously for long time.
Check whether the voltage is too
low
Disconnect the power supply and
remove excessive food material
It is a normal phenomenon and
the motor will resume
after a break time.
Noise is generated
during operation.
The machine operates in an
unbalanced state due to
failure to mount auger or
juice filter in place.
The starting motor in the
frame has been
damaged.
Mount auger or juice filter in
place or Contact after Sales
Support Email:
info@iamzchef .com

15
This marking indicates that this product should not be disposed with other household
wastes throughout the EU. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
Manufacturer:
Zhongshan Jimi Electrical Appliance Co.,Ltd
Add.:No.2,Yucheng 2ND road,Xiaolan Town,Zhongshan City,GuangDong China
Section IX. Warranty
Dear Customer,
Thank you for choosing AMZCHEF product. We sincerely hope that you are
satisfied with it.
The manufacturer's warranty covers the product for a period of 24 months from the
date of purchase against manufacturing faults. All warranties are automatically kept
track of in our system, so there is no need to register your product.
For an extra 1 year's free warranty, please register at our official website
www.iamzchef.com or fill in following Warranty Card, take picture and send to
[e-mail].
Agent/Distributor is welcomed to contact us. Email：[e-mail].
Any help or questions during use, Quick Contact: [email protected]om, we will
service you within 24 hours. We suggest to provide a warranty card, a photo or a
video if there’s broken spare part or not working machine so that we can be much
more clear about your problems and offer you the best solution.
The device meets the requirements of Regulation 2014/35/EU as
well as the applicable standards EN 60335-2-14: 2006 + A1: 2008 +
A11: 2012+ A12: 2016，EN 60335-1: 2012 + A11: 2014 + A13:
2017+ A1: 2019 + A14: 2019 + A2: 2019，EN 62233: 2008
Name: APEX CE SPECIALISTS LIMITED
Add.:UNIT 3D NORTH POINT HOUSE,NORTH POINT BUSINESS
PARK,NEW MALLOW ROAD,CORK,T23 AT2P,IRELAND
[email protected]

16
Kindly send back the warranty card to us after filling in the information. Thanks for
your effort!
Kapitel I. Sic h er h e i t s h i nw e ise
Bei der Verwendung von elektrischen Geräten sind stets diese grundlegenden
Sicherheitshinweise zu beachten:
1.Dieses Produkt muss mit einer Spannung von 220-240V~50/60Hz
versorgt werden. Bitte bestätigen Sie Ihre Stromversorgung vor Gebrauch.
2.Ziehen Sie den Netzstecker, bevor Sie das Gerät demontieren, neu
montieren oder einstellen.
3.Im Fall einer Beschädigung des Kabels wenden Sie sich bitte an
unseren Kundendienst oder senden Sie das Gerät zum Austausch an
unser autorisiertes Kundendienstzentrum. Versuchen Sie nicht, das Gerät
ohne unsere Genehmigung zu demontieren .
