Analog way VIO 4K User manual

1
www.analogway.com
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
USER MANUAL
VIO 4K
Ref. V701
USER MANUAL

2
www.analogway.com
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
USER MANUAL
Information contained in this document, in particular data, pictures, information, trademarks and logos are
exclusive property of Analog Way and are protected by copyrights and other intellectual property rights.
2016, Analog Way, all rights reserved –10/2017
Consequently, any representation and/or reproduction, in part or in full, is prohibited and would be considered a
violation of Analog Way’s copyright and other intellectual property rights.
Visual representations (diagrams, photos, icons, pictograms, screenshots, spare parts, etc.) are not contractual.

3
www.analogway.com
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
USER MANUAL
1Introduction...................................................................................................................7
1.1 Why use the VIO 4K? ............................................................................................................................ 7
1.2 VIO 4K at a glance................................................................................................................................. 7
1.3 Key features.......................................................................................................................................... 8
1.4 Inputs.................................................................................................................................................... 8
1.5 Outputs ................................................................................................................................................. 8
1.6 Frames .................................................................................................................................................. 9
1.7 Control .................................................................................................................................................. 9
1.8 Universal system for format conversion .............................................................................................. 9
1.9 Technical specifications ...................................................................................................................... 10
1.10 Environmental specification ............................................................................................................... 10
2Safety instructions......................................................................................................11
2.1 English................................................................................................................................................. 11
2.2 French ................................................................................................................................................. 12
2.3 Italian .................................................................................................................................................. 13
2.4 German ............................................................................................................................................... 14
2.5 Spanish................................................................................................................................................ 15
3Physical description...................................................................................................17
3.1 Front panel.......................................................................................................................................... 17
3.2 Rear panel........................................................................................................................................... 18
4Quick setup & operation.............................................................................................19
4.1 Front panel control............................................................................................................................. 19
4.1.1 Navigating the menus ................................................................................................................. 19
4.1.2 Operating from the front panel .................................................................................................. 20
4.2 Web RCS interface .............................................................................................................................. 23
4.2.1 Connecting to the Web RCS (LAN) .............................................................................................. 23
4.2.2 Connecting to the Web RCS (USB) .............................................................................................. 25
4.2.3 Operating from the Web RCS interface ...................................................................................... 29
5Device management...................................................................................................31
5.1 Powering-up ....................................................................................................................................... 31
Table of Contents

4
www.analogway.com
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
USER MANUAL
5.2 Sending the device to standby ........................................................................................................... 31
5.3 Adjusting the front panel.................................................................................................................... 32
5.4 Setting up the LAN connection........................................................................................................... 37
5.5 Enabling the USB device connection .................................................................................................. 39
5.6 Using the GPO connection.................................................................................................................. 42
5.6.1 What are GPOs?.......................................................................................................................... 42
5.6.2 ON/OFF pins description............................................................................................................. 42
5.6.3 GPO pins description................................................................................................................... 42
5.6.4 GPO modes ................................................................................................................................. 43
5.7 Resetting the unit ............................................................................................................................... 44
5.8 Creating backups ................................................................................................................................ 47
5.9 Erasing the device memories.............................................................................................................. 53
5.10 Updating the device............................................................................................................................ 58
6Output management...................................................................................................60
6.1 What is an output? ............................................................................................................................. 60
6.2 Supported outputs (formats and signals)........................................................................................... 60
6.2.1 Additional outputs supported with video expansion interfaces ................................................ 62
6.3 Checking the output status................................................................................................................. 62
6.4 Setting up the output ......................................................................................................................... 64
6.4.1 Checking the plug status............................................................................................................. 64
6.4.2 Setting up the plug...................................................................................................................... 66
6.4.3 Setting up the format.................................................................................................................. 74
6.4.4 Adjusting the AOI (Area of Interest) ........................................................................................... 81
6.4.5 Rotating the output .................................................................................................................... 84
6.4.6 Correcting the image................................................................................................................... 85
6.4.7 Using test patterns...................................................................................................................... 87
6.5 Monitoring the output........................................................................................................................ 90
6.6 Freezing the output ............................................................................................................................ 91
6.7 Capturing the output .......................................................................................................................... 92
6.8 Using the Genlock reference .............................................................................................................. 92
6.9 Enabling loop mode............................................................................................................................ 94
7Input management......................................................................................................96
7.1 What is an input?................................................................................................................................ 96

5
www.analogway.com
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
USER MANUAL
7.2 Supported inputs (formats and signals) ............................................................................................. 96
7.3 Checking your inputs status................................................................................................................ 98
7.4 Auto-setting all inputs ...................................................................................................................... 100
7.5 Setting up an input ........................................................................................................................... 101
7.5.1 Auto-setting the input............................................................................................................... 102
7.5.2 Setting up the plug.................................................................................................................... 102
7.5.3 Adjusting the image .................................................................................................................. 121
7.5.4 Adjusting the view .................................................................................................................... 138
7.6 Monitoring input sources ................................................................................................................. 147
7.7 Capturing the input........................................................................................................................... 149
7.8 Looping-through inputs .................................................................................................................... 149
8Frame management..................................................................................................150
8.1 What is a frame?............................................................................................................................... 150
8.2 Supported frame formats................................................................................................................. 150
8.3 Importing and exporting frames....................................................................................................... 150
8.4 Creating frame captures................................................................................................................... 154
8.5 Using frames as transitions............................................................................................................... 155
8.6 Using frames as quick frames ........................................................................................................... 158
9Screen management.................................................................................................163
9.1 What is a screen?.............................................................................................................................. 163
9.2 Adjusting the view ............................................................................................................................ 163
9.3 Customizing the transition effect ..................................................................................................... 166
9.4 Controlling the screen ...................................................................................................................... 168
10 Audio management...................................................................................................172
10.1 Audio inputs and outputs ................................................................................................................. 172
10.2 Supported audio ............................................................................................................................... 172
10.3 A/V mapping inputs and outputs ..................................................................................................... 173
10.4 Selecting the sampling rate .............................................................................................................. 178
10.5 Adjusting the input audio ................................................................................................................. 179
10.6 Adjusting the output audio............................................................................................................... 189
10.7 Adjusting the XLR audio.................................................................................................................... 201
10.8 Prelistening to audio content ........................................................................................................... 205
11 Custom formats ........................................................................................................207
11.1 What are custom formats?............................................................................................................... 207

6
www.analogway.com
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
USER MANUAL
11.2 Creating custom formats .................................................................................................................. 207
11.3 Using custom formats....................................................................................................................... 211
12 Presets.......................................................................................................................212
12.1 What is a preset?.............................................................................................................................. 212
12.2 Creating presets................................................................................................................................ 212
13 EDID support.............................................................................................................216
13.1 What is an EDID ................................................................................................................................ 216
13.2 Supported EDIDs............................................................................................................................... 216
13.3 Managing EDIDs................................................................................................................................ 217
14 HDCP support ...........................................................................................................225
14.1 HDCP detection................................................................................................................................. 225
14.2 HDCP negotiation ............................................................................................................................. 225
14.3 Managing HDCP ................................................................................................................................ 226
15 Expansion interfaces................................................................................................230
15.1 Audio expansion interfaces .............................................................................................................. 230
15.1.1 Dante™ audio expansion interface........................................................................................... 230
15.1.2 XLR audio expansion interface.................................................................................................. 230
15.2 Video cards ....................................................................................................................................... 231
15.2.1 Extra output expansion interface ............................................................................................. 231
15.2.2 4K@60P expansion interface.................................................................................................... 231
15.2.3 4K@60P + SDI expansion interface........................................................................................... 232
15.3 Multi-Outputs support...................................................................................................................... 233
15.3.1 Extra screen............................................................................................................................... 233
15.3.2 Pitch compensation .................................................................................................................. 234

7
www.analogway.com
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
USER MANUAL
1.1 Why use the VIO 4K?
The VIO 4K has been designed to convert any content (AV content like a live video, a Power Point
presentation, a DVD) from one format to another.
With the VIO 4K, you can fully control and operate the conversion environment in a world of multiple
possibilities. You may for example set up your outputs before plugging-in your sources, or add additional
cards to obtain a full 4K resolution display.
•The "all in one" solution for any conversion
•User-friendly and intuitive graphic interface
•Diverse selection of option cards for video and audio system expansion
•Flexible Audio/Stereo switching capability following the video input
•High performance scaling and video processing
•Advanced LED Wall functionalities
•10-bit processing 4:4:4
1 Introduction

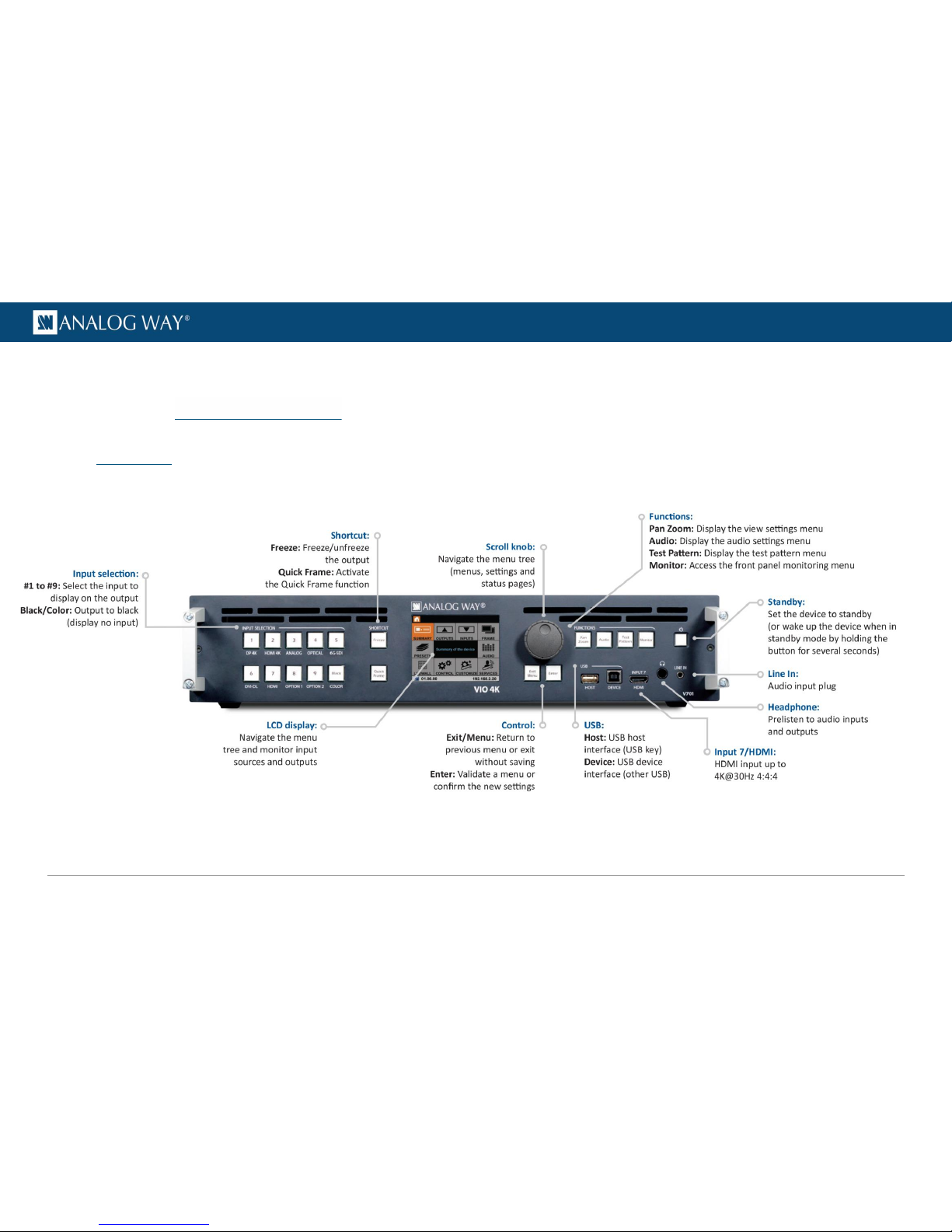

1.2 VIO 4K at a glance

8
www.analogway.com
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
USER MANUAL
1.3 Key features
•Up to 9 inputs and 3 independent outputs (7/1 of which native, +2 with the expansion interfaces)
•2 slots for video option card system expansion
•1 slot for audio option card system expansion
•The source can be positioned anywhere on the screen, and up to 100% outside the screen in any
direction
•Easy Area Of Interest (AOI) management and pixel pitch management
•Genlock: Analog HD Black and Black Burst (Loopthrough)
•All Genlock timings meet broadcast ITU/SMPTE standards
•Output rotation: 90°, 180° and 270° per output
•Unlimited layer sizing and scaling
•Live monitoring of sources and outputs on the 3.5'' Color TFT LCD Display
•Output and screen patterns: Crosshatch, moving, scalable, output ID and other dynamic patterns
•New audio management: 8 channels up to 96kHz (Digital audio, AES)
•Audio Delay compensation up to 400ms
•Memory space for 2 uncompressed frames in 4K
•USB Host: mass storage
•USB Device link
•Import/export device configuration
•DVI, HDMI & HD15 output plugs available as video loop-through
1.4 Inputs
7 inputs + 1 audio line in:
•DisplayPort up to 4K@30Hz
•HMDI up to 4K@30Hz
•SDI (3G Level A & B)
•Universal Analog
•DVI Dual-Link up to 2560x1600@60Hz
•Video Optical SFP Module cage
•HDMI up to 2k 1080p (Front panel - Input #7)
•3.5mm jack for stereo audio in (front panel)
1 standard output with 6 output plugs + 1 headphone output:
•DisplayPort up to 4K@30Hz
•HMDI up to 4K@30Hz
•SDI (6G Level A & B)
•Universal Analog
•DVI Dual-Link up to 2560x1600@60Hz
•Video Optical SFP Module cage
1.5 Outputs

9
www.analogway.com
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
USER MANUAL
•6.35mm stereo jack for Headphone
•DVI, HDMI & HD15 output plugs available as video loop-through
1.6 Frames
•Up to 50 frame memories –Fully resizable
•Download/upload via Web RCS
•Capture from live inputs/outputs
1.7 Control
•Web RCS: On-board intuitive web based user interface
•TCP protocol and AMX/Crestron drivers
1.8 Universal system for format conversion
•Upscale conversion (Scaler)
•Downscale conversion (Scan converter)
•Transcoder
•Coder
•Aspect ratios
•Multi-format Analog Genlock
•Dynamic test patterns
•Pan & Zoom functions
•Freeze Frame
•Aperture correction
•Advanced LED Wall functionalities
•Audio and Video monitoring directly from the Front Panel
•Output rotation
•Custom formats
•EDID Management
•Genlock/Framelock
•Gamma correction and color temperature settings

10
www.analogway.com
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
PROGRAMMER’S GUIDE
USER MANUAL
1.9 Technical specifications
Dimensions (in Rack Units - RU)
•2RU
Dimensions (without rack ears and rear rack mount)
•W 17.28’’ x H 3.46’’ x D 14.82’’
•L 439 mm x H 88 mm x P 381 mm
Dimensions (with handles)
•W 19’’ x H 3.46’’ x D 15.81’’
•L 482.1 mm x H 88 mm x P 406 mm
Weight without accessories
•6.2 kg / 13.66 lbs.
Shipping weight accessories included
•8.7 kg / 19.18 lbs.
Noise (@1,6m height @25°C)
•Front: 39 DBa@1m
•Rear: 39 DBa@1m
Thermal dissipation
•154 BTU/hr.
Operating altitude
•3000 m / 9842 ft.
Warranty
•3-year warranty on parts and labor back to
factory
Power Supply
•100-240 VAC 50/60Hz 3.2A
•Fuse cartridge F4AH 250VAC 5x20mm
•Max consumption: 45 W@100VAC without
any option card
Supplied with
•1 x Power supply cord
•1 x Pair of front handles + screws
•1 x Rackmount kit
•1 x Ethernet cross cable (for device control)
•1 x MCO 5 pin connector
•1 x Quick Start Guide including safety
instructions*
(*) All technical specifications and videos are available on analogway.com
NOTE: Specifications subject to change without prior notice.
1.10 Environmental specification
General:
•Cooling air flows from front to rear
•Storage temperature: -25°C to +70°C (-13°F
to +158°F)
•Operating temperature: 0°C to +40°C (+32°F
to +104°F)
•Storage humidity: 10% to 80% non-
condensing
•Operating humidity: 10% to 80% non-
condensing
•Operating altitude: max 3000m / 9842ft
Environment:
•RoHS 2: EN50581 (2012)
Electrical security:
•IEC 60950-1:2005 (ED.2); A1:2009; A2:2013
•EN 60950-1:2006 + A1:2010 + A11:2009 +
A12:2011 + A2:2013
•UL 60950-1, 2nd Edition 2014
•CSA C22.2#60950-1 (2007/03/27), A1:2011;
A2:2014
•ETL LISTED (CANADA & US)
Electromagnetic compatibility:
•IEC 61000-3-2 (2014)
•IEC 61000-3-3 (2013)
•EN55022 (2010)
•EN55022 (2010)
•EN55024 (2010)
•FCC Part15 of 2012
•IECS-003 of August 2012
