Anatomic SITT Zitzi Starfish Pro User manual

EN
2017.07.14EDITION 1
User manual
Zitzi Starfish Pro

2
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Table of content
Check
box!
Safety precautions 3
Chassi 4
Manual chassi 4
Height adjustable chassi 4
Wheels 5
Seat part 6
Adjustment of the seat part 6
Adjustment of the seat depth/abduction 6
Abduction/adduction support 7
Assembly 7
Adjustment 7
Hipbelt 8
Assembly 8
Adjustment 8
Back 9
Hip angle 10
Tilt of the seat unit 11
Hip support 12
Armrest 13
Armrest, chassi 14
Driving handle 15
Headrest 16
Mounting/Adjustment of the headrest 16
Support mounting 17
Mounting/Adjustment of the harnesses 17
Footrest 18
Mounting of the footrest 18
Angle adjustment of the knee 18
Fixed footrest mounting 18
Flexible footrest adapter 19
Turn up footrest mounting 19
Swivel adapter 19
Calf support 20
Mounting of calf support 20
Height adjustment of the calf support 20
Width adjustment of the calf support 20
Pot 21
Urine protection 22
Service and maintenance 23
Service 23
Cleaning 23
Warranty 23
Combinations 23
Spare parts 23
Reconditioning 23
Marking 23
Recycling 23
Summary and follow-ups 24
Follow-up inspections 24
Adaptation and customization 25
Guidelines and recommendations 25
Terms of sale 26
Warranty 26
Warranty claims 26
Returning products 26
Technical data 27
Check the box if the
product has been
customized. The CE-
marking is no longer valid.

3
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Safety precautions
This product is manufactured by Anatomic SITT AB
Introduction
To be able to use all advandtages of the Zitzi Starfish Pro, it is important that you
read through this manual thoroughly. This applies to all persons who are in the
vicinity of the user. The product is designed for users with seating problems and
fits many dierent types of diagnoses. Adjustment of the Zitzi Starfish Pro should
always be performed by medically qualified person.
If you need additional information, please contact Anatomic SITT AB.
Field of application
The product is intended to use as a seating system together with the chassis
produced by Anatomic SITT AB. If the desire for another use exists,
please contact Anatomic SITT AB.
Correspondence
Zitzi Starfish Pro and its accessories are a CE marked product. A unique serial
number is located on a label placed on the frame. This serial number should be
quoted in any correspondence regarding the product.
Postal address Anatomic SITT AB, Box 6137, SE-600 06 Norrköping
Street address Anatomic SITT AB, Terminalgatan 1, SE-603 61 Norrköping
Telephone [phone]
Fax [phone]
Email [e-mail]
Web anatomicsitt.com, youtube.com/anatomicsitt

4
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Manual chassi
The seat unit can be adjusted to the desired height before the patient is in the
seat. Release the lever (A) on both sides (position (B) is not fully tightened,
but helps to control the cradle in the tracks). Lift the seat out of the tracks and
slide the seat to the desired height. Be sure to push down the seat firmly in the
slots. Finish by tightening the lever (A) firmly.
Height adjustable chassi
The seatpart is height adjustable to reach any desired height. You adjust the
height by stepping on the pump handle. Make shore that you step on the
pump handle with smooth movements so that the adjustment is comfortable
for the user. To lower the chassi place the foot underneath the pump handle
and push it up.
Chassi
A
A
B
A
A
2 : 5
Manual chassi Height adjustable chassi

5
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
To lock the wheels
Push down the brake handle (A) with Your foot to lock the wheel.
(See picture.) Pull up the brake handle to release the brake.
Wheels
A

6
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Adjustment of the seatpart
Seat depth, leg length dierent and abduction/adduction of the legs is easy to adjust.
Take away the cover to access the screws.
Adjustment of the seat depth/ abduction
Release the screws (A) then the seat parts can be adjusted by hand.
Adjust the seat part. Lock the screws firmly when you are done with the adjustment.
Seat part
Attention! Be careful not to adjust the screws all the way out!
A
A

7
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]

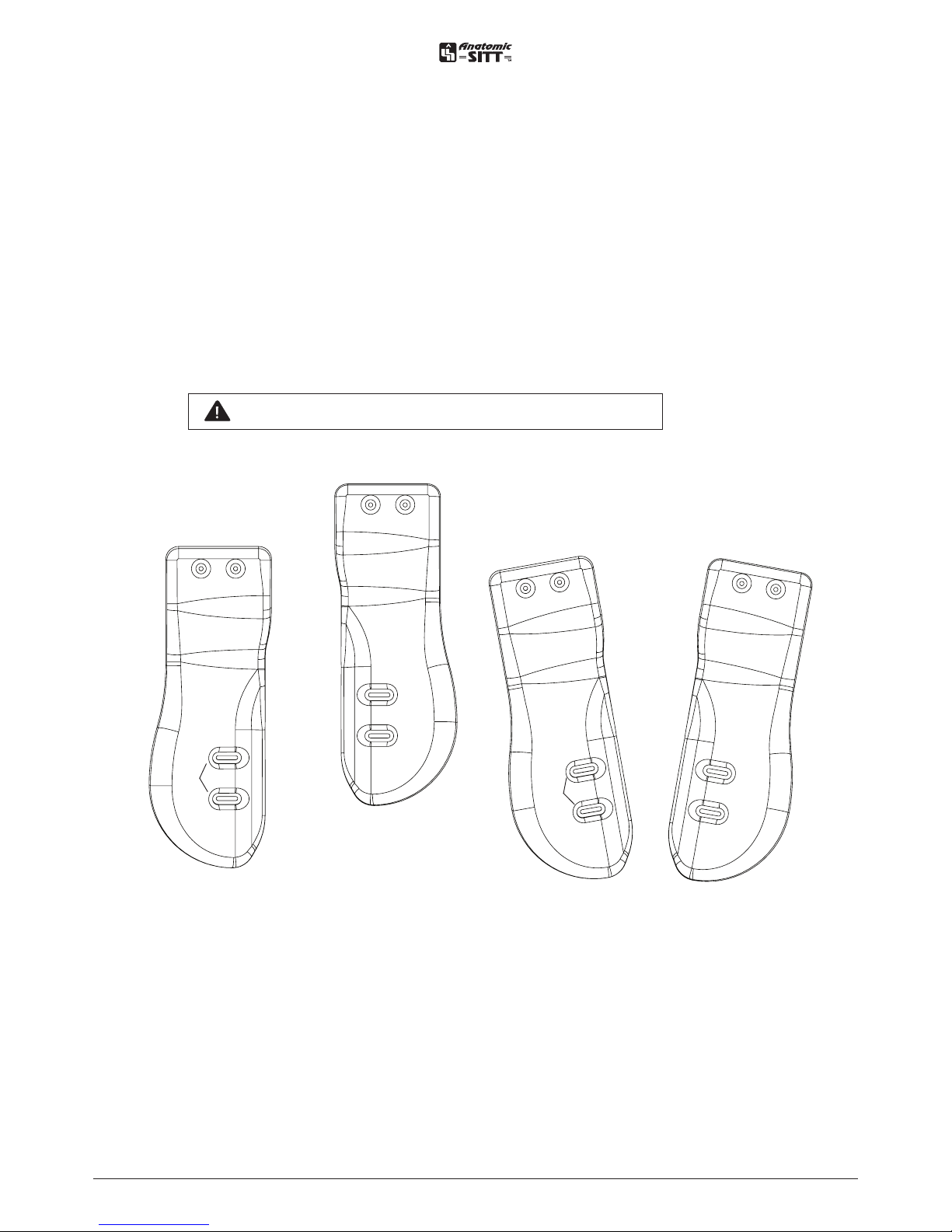

Abduction/Adduction support
Assembly
Release the screws (A) and mount the supports so that You see the holes through the
lines on the support. Mount the screws through the lines in to the holes.
Adjustment
Release a little bit on the screws (A) so that You are able to slide the support sideways.
Adjust the support to desired location and then fix the screws firmly.
A

8
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Assembly
Mount the straps in each loop.
Adjustment
Pull the belt on both sides of the buckle to get the buckle centered.
Adjust the pads to give the best pressure release.
If the straps is too long, cut the straps you don’t need and burn the end.
Mounting pipe
Hipbelt

9
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]

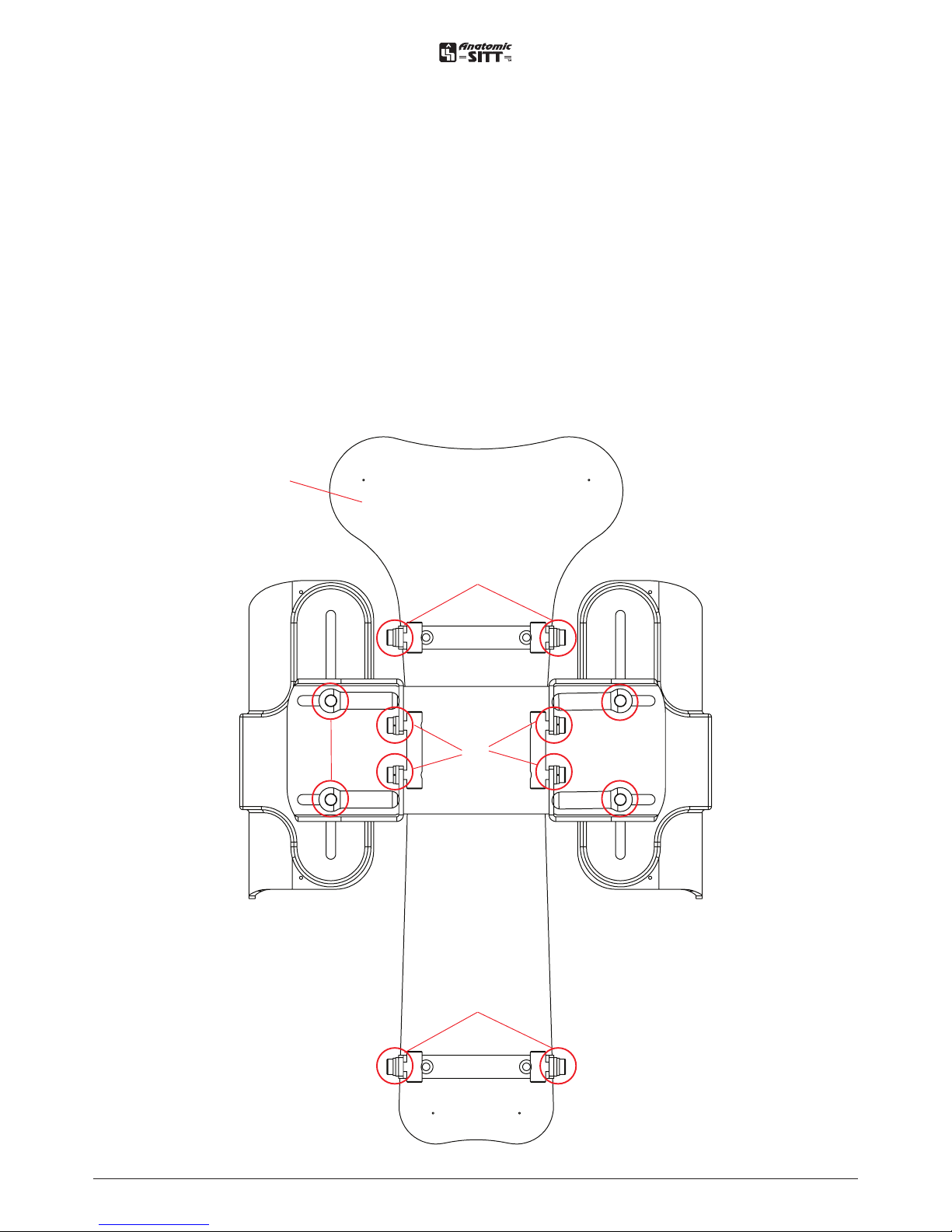

To adjust the back part (A), release the four screws (B) that attach the back part to the
profile. Adjust the back part to desired height and fix the screws (B) firmly.
Roughly adjust the height of the trunk support by releasing the four screws (C) that
attach into the profile. Attach to desired height and fix the screws firmly (C).
The trunk support can now be tweaked through releasing the lever knobs (D).
Adjust the trunk supports to your desired position and then fix the lever knobs
firmly (D).
Back
A
B
B
CD
D

10
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
When the hip angle shall be adjusted: Start with releasing the security knob
(A). Make shore to have a secure grip of the driving handle at the same time
push the trigger to the gas spring (B).
Adjust the back to the desired angle and release the trigger (B). Fix the
security knob firmly when you are finish (A).
Hip angle
A
B

11
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
When the angle of the seat shall be adjusted, make shore to have a secure grip
of the driving handle at the same time push the trigger for the gas spring (A).
Adjust the seat to desired angle and release the trigger (A). Make sure to have
the patient under supervision at all time when doing the adjustment so that
the patient does not squeeze or get hurt.
Tilt of the seat unit
A
A

12
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
The hip support is mounted in the bottom of the back profile. Insert rim pins
(A) and slide the hip support to the desired height. Tighten the screws (B).
Adjust the angle bracket to the desired position laterally. Tighten the knob (C).
Adjust the hip brackets to the desired depth, tighten the knob (D).
Hip support
A
B
C
D

13
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]

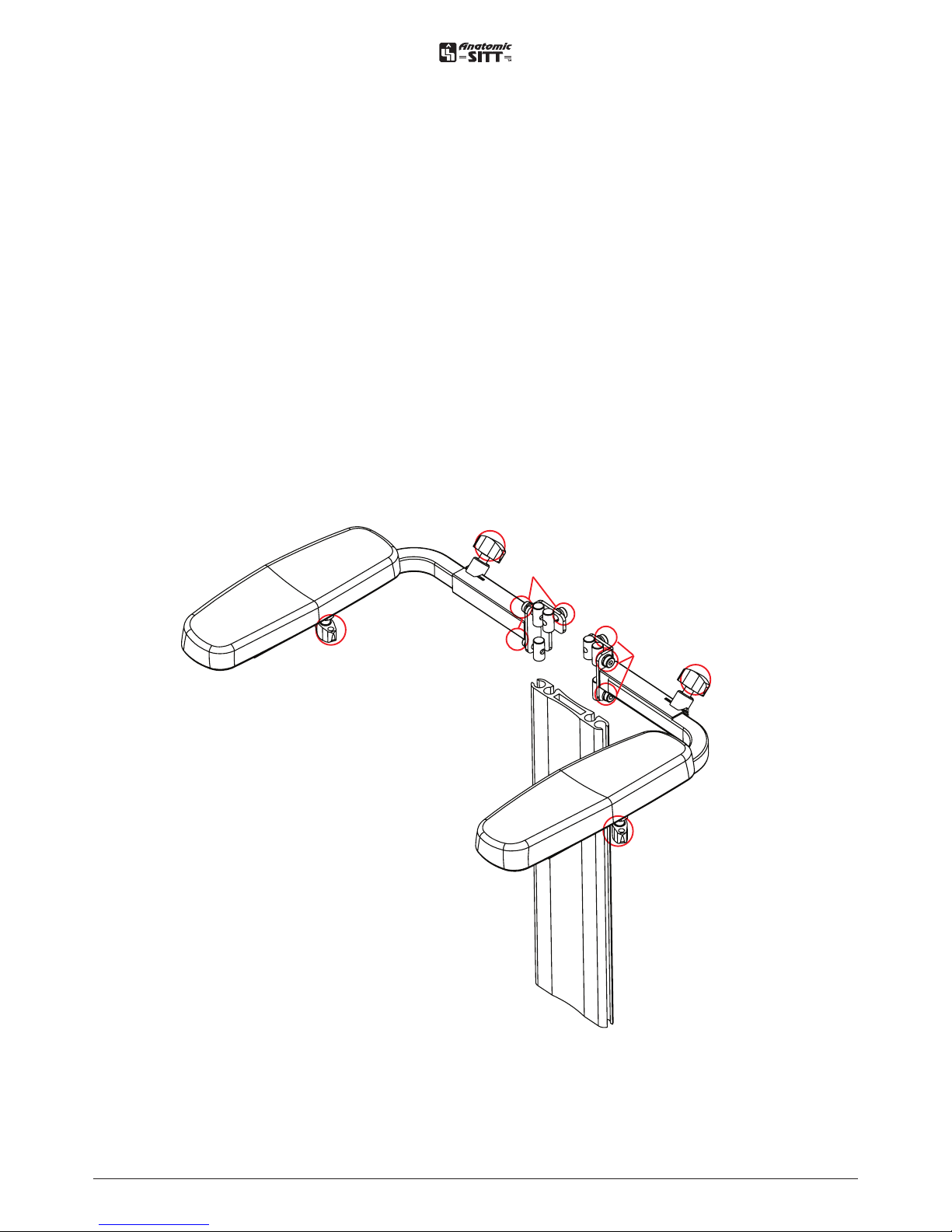

Armrest
Mounting the armrest
The armrest shall be mounted on the back in the profile. Mount the armrest
according to the picture. Adjust to desired height. Fix the screws firmly (A).
Adjustment of the width
Release the lever knob (B). adjust to desired width. Then fix the lever knob
firmly.
Depth adjustment
Release the lever knob (C). Adjust to desired position, then fix the lever knob
firmly.
A
C
C
B
B
A

14
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]

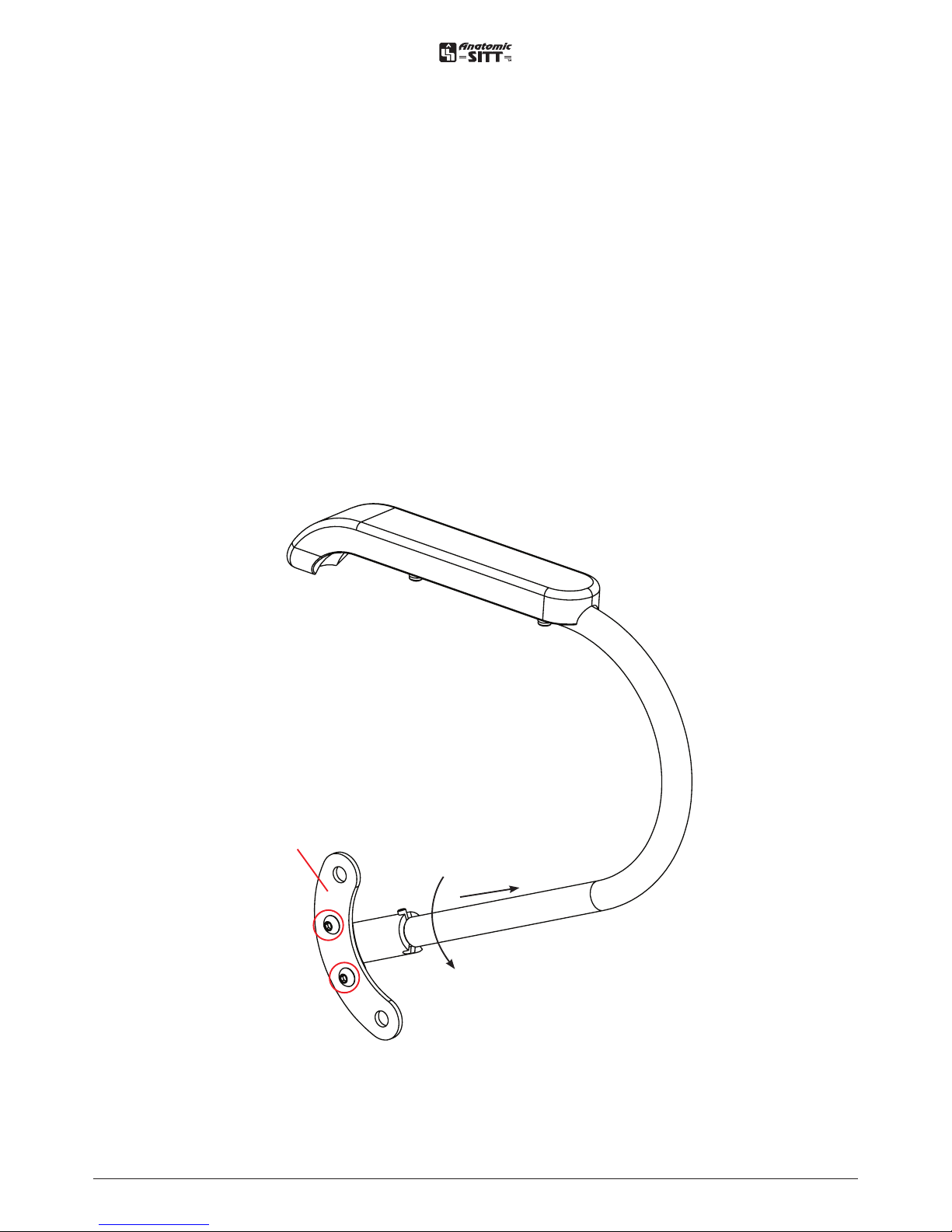

Armrest, chassi
Mounting, armrest on the chassi
The armrest shall be mounted on the side plate (A). Mount the screws (B)
through the centered holes on the plate and in to the threaded holes on the
armrest.
Folding of the armrest
Pull the armrest to the side and up. Then twist the support away from the
chassi until the support attach into the next hem.
A
B

15
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]

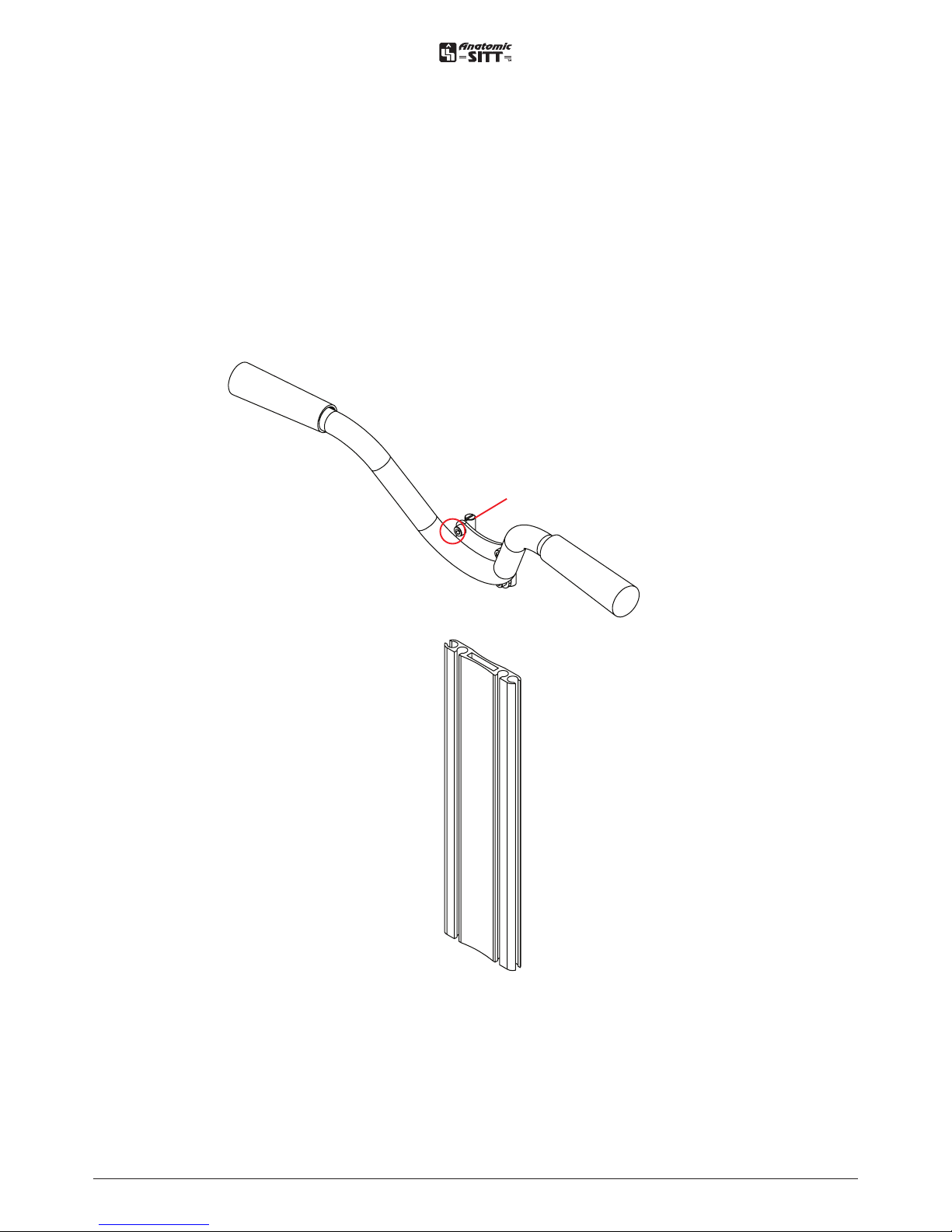

Release the screws (A) enough to be able to slide in the rim sprints (B) into
the profile (C). Adjust to desired height and fix the screws firmly (A).
Driving handle
C
A
B

16
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]

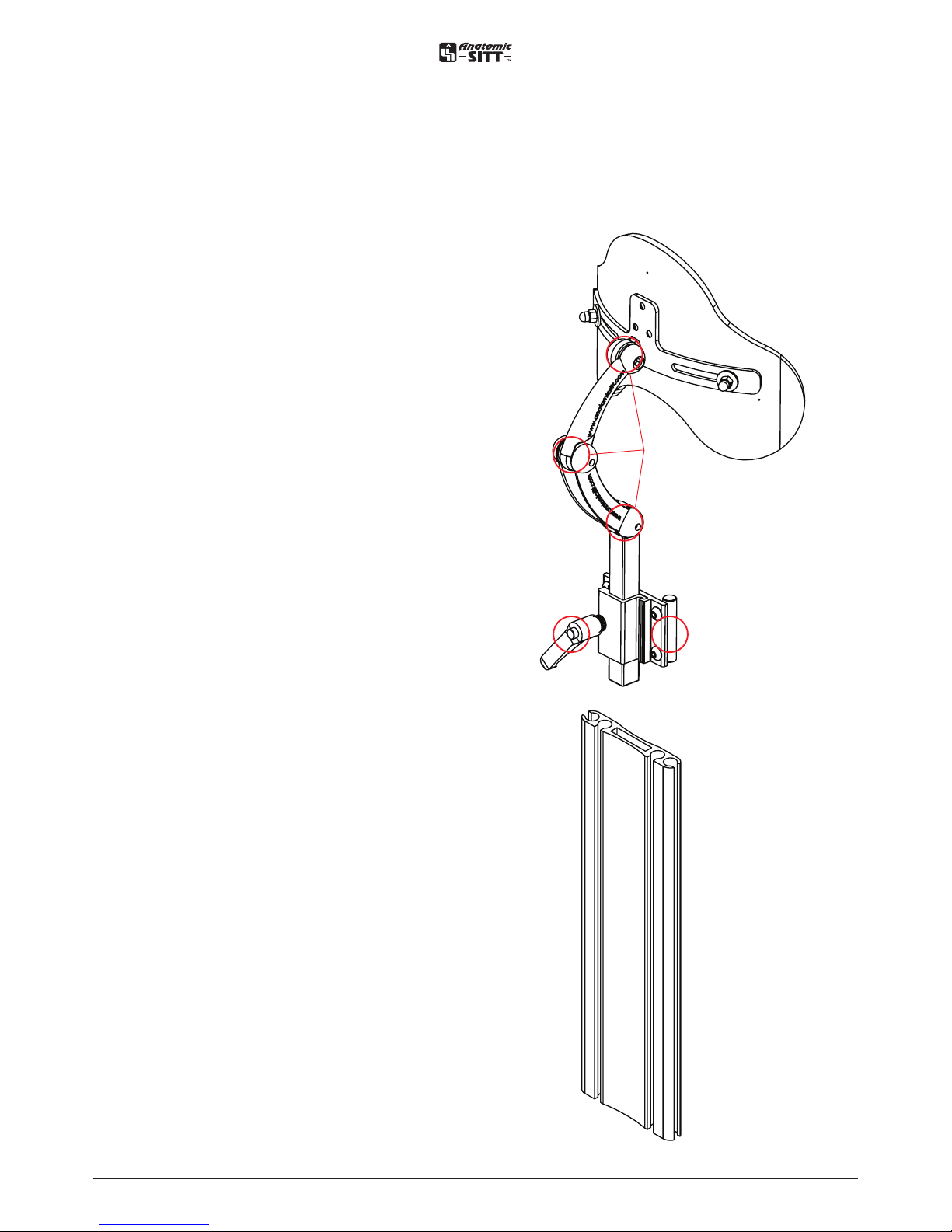

Headrest
Mounting / Adjustment of the headrest
* Take away the protection cap on the profile.
* Mount the headrest mounting on the profile.
* Release the screws (B) enough to be able to slide the
mounting by hand.
* Put in the Patient adjust to desired position (A).
* Fix all of the screws and the lever knob firmly and mount
the protection cap back on the profile.
The headrest is easy to release:
* Loosen the lever knob (C) to be able to take away
the headrest.
C
B
A

17
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]

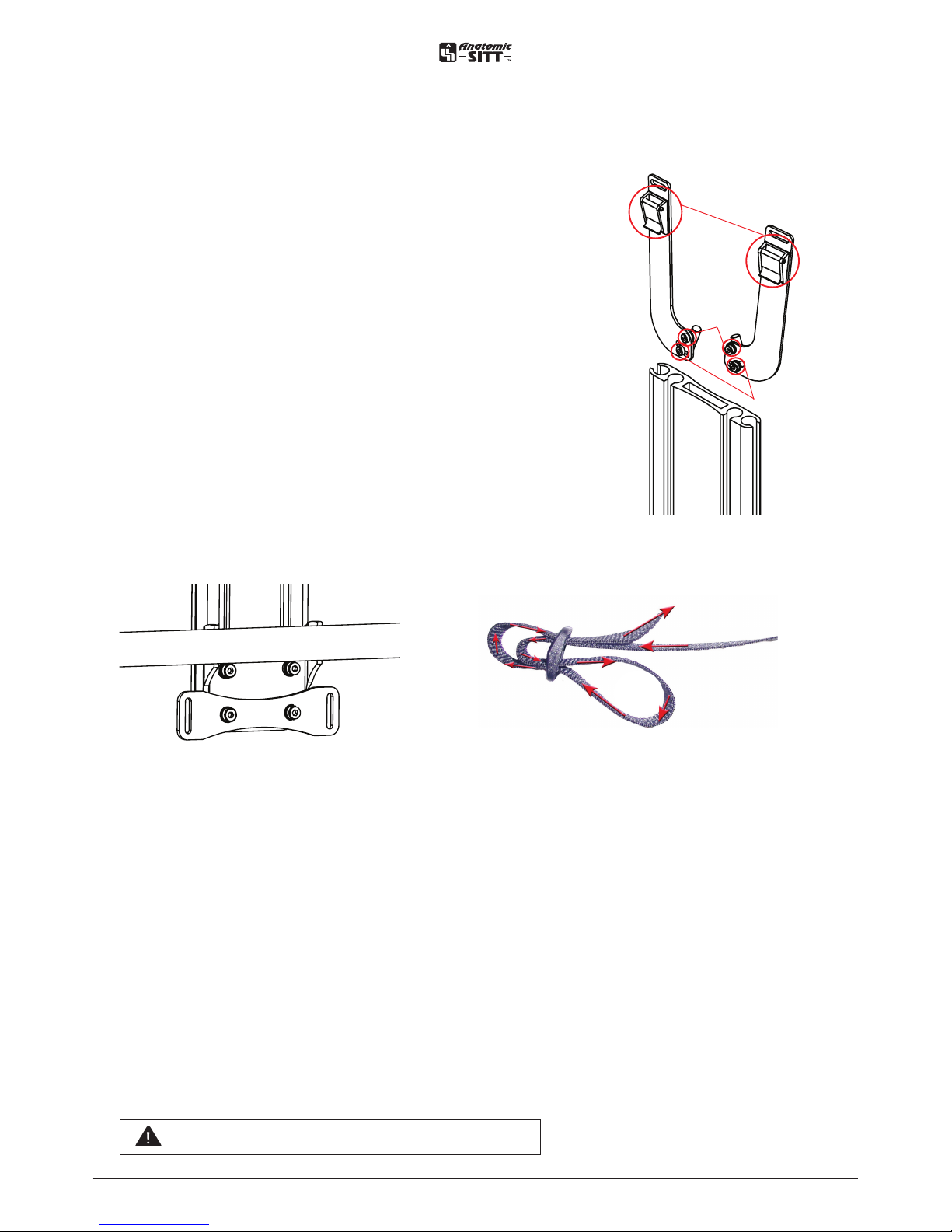

Support mounting
Mounting / Adjustment of the harnesses (Sternum support, H-strap)
Mounting:
Upper mounting: (Picture 1)
* Release the protection cap on the profile.
* Mount the upper mounting as described in the picture 1.
* Open the buckle (A), slide the straps through the hole in the
mounting and through the buckle and lock the buckle.
Lower mounting to H-strap, Sternum support: (picture 2)
The lower mounting is included in the chair always. Lock the strap with the
help of the triglide buckle as the picture 3 shows.
Pic 2
Pic 1
Pic 3
Adjustment:
Seat the patient in the seat and release the socket head screw according to position B & C in picture 1.
Adjust the arms so that the angle of force on the upper mounting points ends up in the same height as the
shoulders.
Attach the screw according to position B on picture 1.
Adjust to desired width by angling the hardware to the right or left. (make shore that it is enough space for
the neck)
Lock the screws according to position C, picture 1.
Adjust the pads in height to give the best pressure relief,
Subsequent verification
• Make sure that there is enough space by the neck.
• Pressure on the strap
• Placement of the pads.
Make sure that there is enough space for the neck.
A
B
C

18
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]

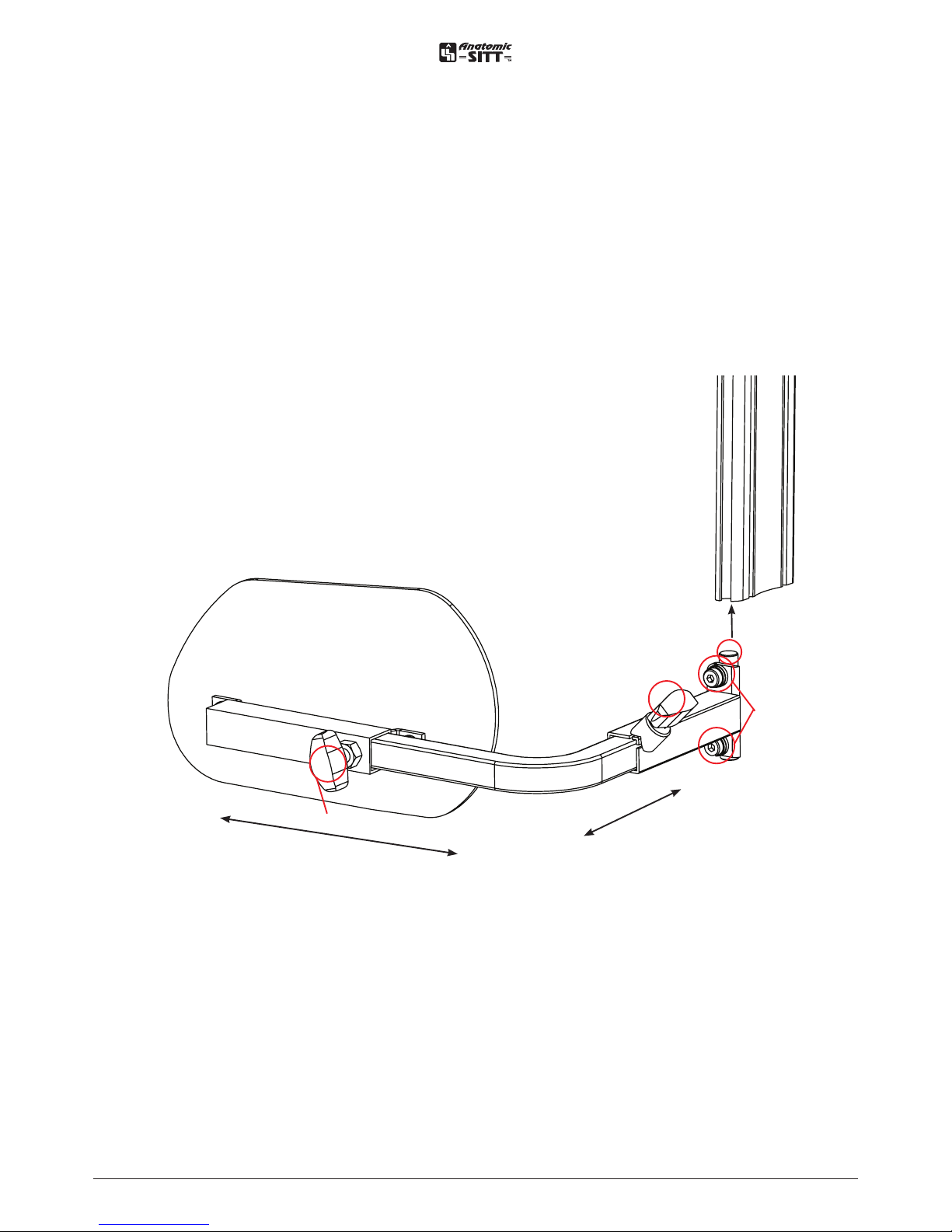

Footrest
Mounting of the footrest
• Mount the footrest as the picture.
• Fix the screw firmly (A)
Angle adjustment of the knee
• Loosen the lever knob (B).
• Adjust to desired angle.
• Fix the lever knob firmly.
AA
A
A
D
A
B
A
CA
B
1
2
4 4
B
C
E
B
DD
3
Fixed footrest mounting
To be able to height adjust the footrest loosen the lever
knob (A) enough to be able to slide on the profile. Then
adjust to desired height. Fix the lever knob firmly
To be able to adjust the angle by the foot loosen the
screw (B). Adjust to desired angle and fix the screw (B)
firmly.
A
B

19
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]

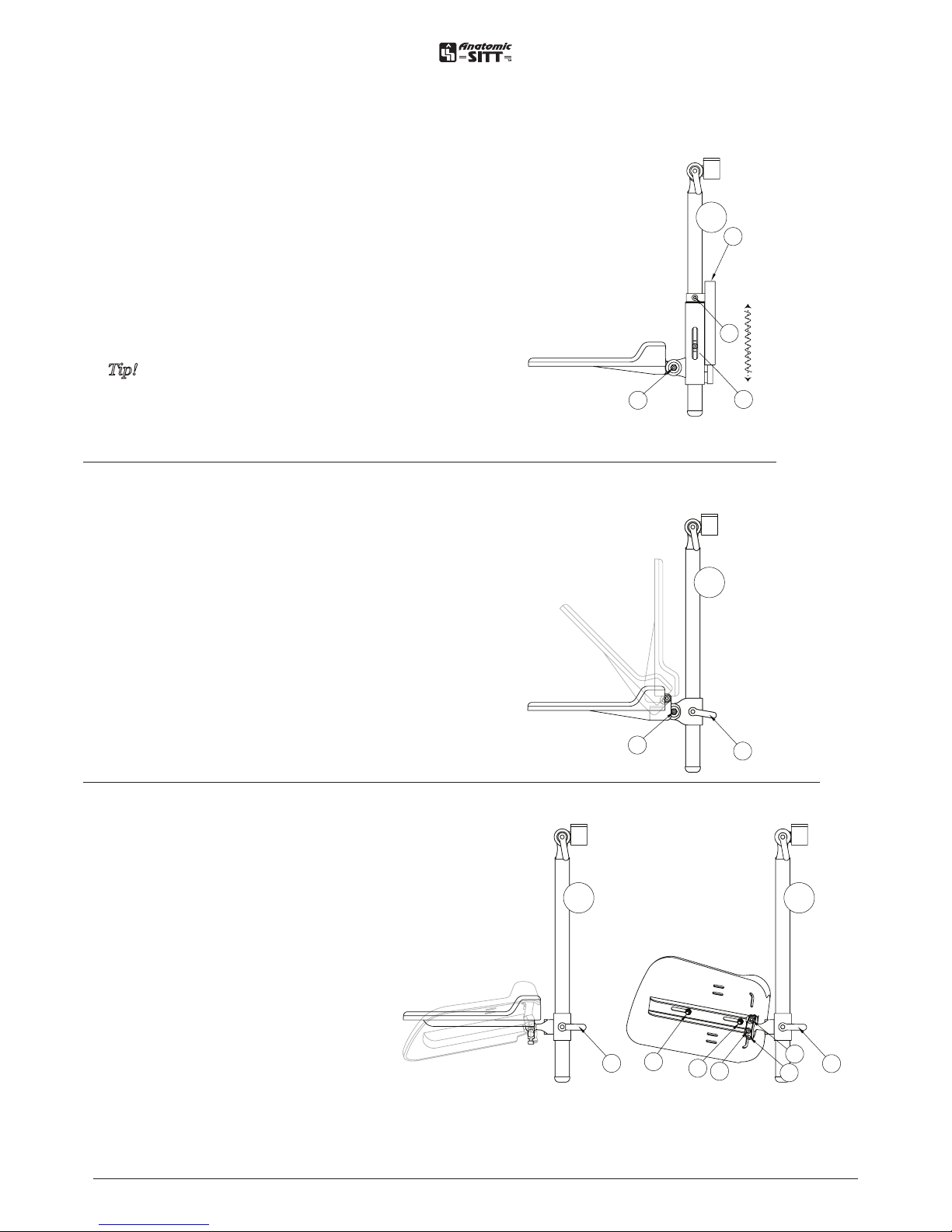

Turn up footrest mounting
To adjust the footrest in height loosen the lever knob
(A) and then adjust to desired height. Fix the lever knob
firmly.
To use the turn up function lift the footrest plate in the
front.
To adjust the angle by the foot loosen the screw (B).
Adjust to desired angle and then fix the screw firmly.
Tip!
Flexible footrest adapter
To adjust the height of the footrest loosen the screw
(D) and then adjust to desired height.
Fix the screw firmly (D).
To Adjust the angle by the foot loosen the screw (C).
Adjust to desired angle and then fix the screw firmly.
The resistance of the spring can be adjusted by using
the screw (A). To get the flexible adapter to work best, the
profile shall be in a straight line down.
AA
A
A
D
A
B
A
CA
B
1
2
4 4
B
C
E
B
DD
3
AA
A
A
D
A
B
A
CA
B
1 2
4 4
B
C
E
B
DD
3
AA
A
A
D
A
B
A
CA
B
1 2
4 4
B
C
E
B
DD
3
Swivel adapter
To adjust the footrest in height loosen the
lever knob (A) and then adjust to desired
height. Fix the lever knob firmly.
To use the swivel function loosen the
screws (B) and (C) and adjust to desired
position. Fix the screws (B) firmly and the
security screw firmly (C).
To adjust the foot plate in depth loosen the
screws (D) the adjust to desired position,
then fix the screws firmly.
AA
A
A
D
A
B
A
CA
B
1 2
4 4
B
C
E
B
DD
3

20
User manual Zitzi Starfish Pro www.anatomicsitt.com | [phone]
Calf support
F
E
E
A
E
E
A
D
D
C
Foot plate
Footrest stay

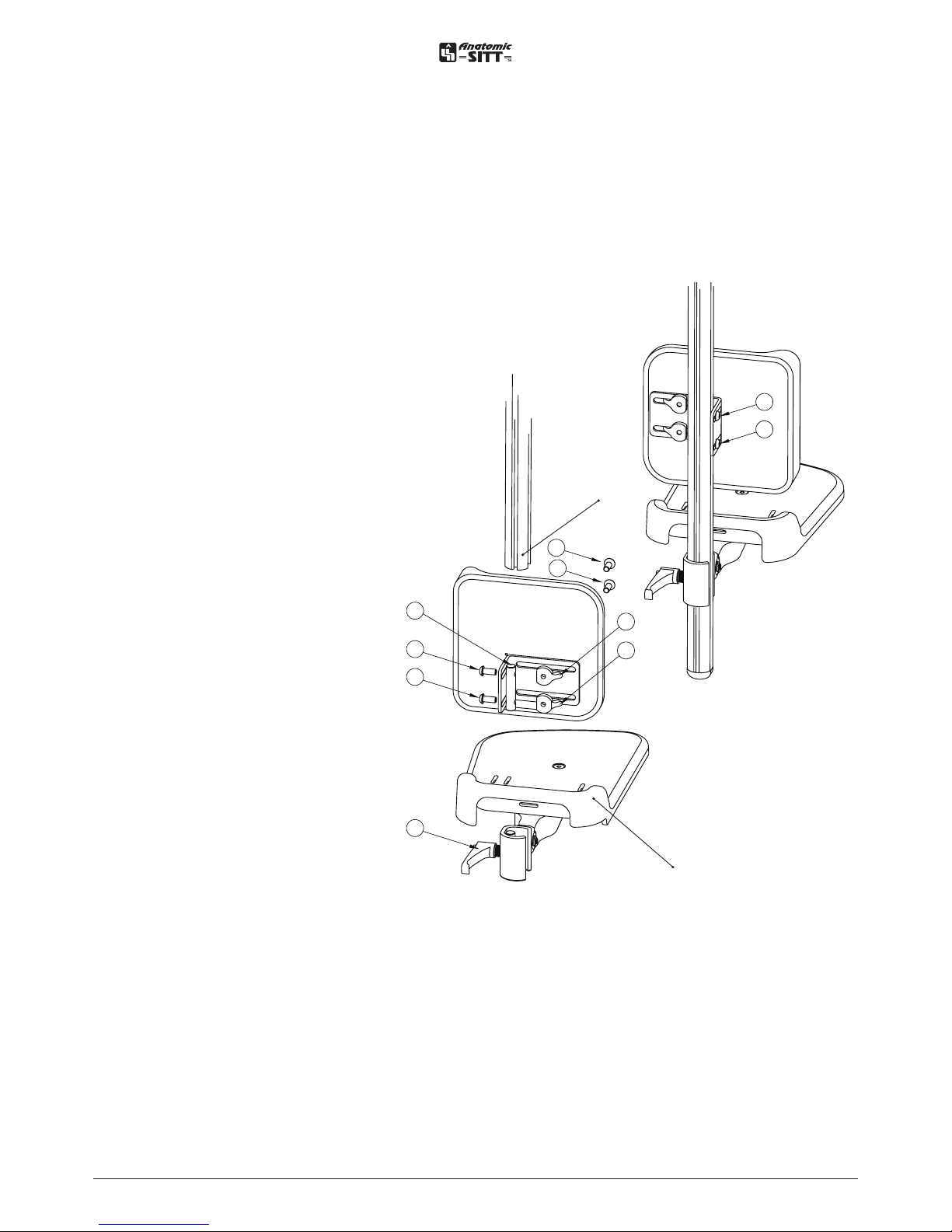

Mounting of calf support
Before mounting the calf support take away the
footrest if this is mounted. Loosen the screw (F)
that holds the footrest on the profile then pull the
footrest down and o.
Mount the calf support through sliding the rim
sprint (C) in the profile, adjust to desired height
and fix the screws firmly (E). Then mount the
footrest back.
Height adjustment of the calf support
To adjust the height of the calf support
loosen the screws (E) then adjust to
desired height. Fix the screws firmly (E).
Width adjustment of the calf support
To adjust the width of the calf support
loosen the screws (A) and then adjust to
desired width. Fix the screws firmly (A).
