Caution : Please read the manual before your first ride!
E-Bike
PRODUCT INSTRUCTION
MANUAL

Warranty
Attachment
Warnings
Safety Instruction
General Information
Bike Use
Installation And Adjustment
Meter Operation
Battery And Charging: Further Information
Maintenance
01
03
07
09
14
15
17
18
19
21
CONTENTS

ANCHEER
1
Thank you for choosing our products.
To ensure your safety and health, we encourage you to read this manual thoroughly before
you assemble the bike and take the first ride.Safe and effective use can only be assured if the
equipment is assembled, maintained, and used properly. More importantly, this will offer
you a general understanding and get the most out of your bike.Please check your electric
bike before every ride, especially when traveling long distances.
This manual is intended as a general guide to your new e-bike. For technical support,
including repair information, please consult your dealer.
Things to know before use
Do not use the product before carefully reading the instructions from this manual and
understanding the performance of the item;
Don't lend this product to people who can't operate it, so as not to cause harm; if you
lend the bike, please let the user follow instructions, it could help to decrease the risk
of accident;
The E-bike cannot be used as off-road vehicles or used for extreme bicycle sports;
when riding the bicycle, please wear a safety helmet and protective gear. It is
forbidden to ride with one hand;
Please abide by the traffic rules and prohibit riding on motorized lanes and roads with
multiple pedestrians;
Carry people or objects in accordance with the requirements of laws and regulations,
and do not park in the building's lobby, evacuation stairs, walkways, and safe
entrances and exits;
It is recommended to charge and park in an outdoor dedicated parking hall, while
avoiding rain; when charging, keep away from combustibles, and the charging time
should not be too long;
For safety reasons, please do not change the default speed setting of the electric
bicycle and do not exceed speed limit in accordance with the traffic rule. Riding on
non-motorized lanes, downhills and paved roads not exceeding 15km/h;
When adjusting the handlebar or saddle, please be careful not to exceed the safety
line markings on the handlebar and saddle;
Please check the tire pressure before riding, the recommended tire pressure is 35-
45PSI;
Please check the power circuit, lighting circuit, etc. before riding;
●
●
●
●
●
●
●
●
●
●
Safety Instruction

ANCHEER
2
Safety Instruction
Before riding, please check whether the front and rear brakes work normally, check
the fastening status of the handlebars and front and rear wheels, and check whether
the reflector is damaged or contaminated;
When using the motor, please be careful not to hit vigorously and keep the rotating
shaft lubricated;
Try to avoid traveling in severe weather such as heavy rain;
Riding in rain or snow, the braking distance will be extended, pay attention to slow
down;
It is not allowed to exceed the maximum load of the vehicle body when riding (the
maximum load is 120KG);
It is suitable for people of 16+ years old and physically fit adults, and it is strictly
forbidden to drive electric bicycles on the road by people under 16 years old.
●
●
●
●
●
●

ANCHEER
3
General Information
1. About ANCHEER Electric Bike
ANCHEER electric bike is a leading icon of e-bikes. For years, ANCHEER has been not only
dedicating to innovation, cutting-edge technology and premium materials, but also
providing cost effective e-bikes, to satisfy riders' various needs of transportation and even
desire of exploring sports & outdoors life. Just ride freely with ANCHEER !
2. What’s In the Box (Parts List)
Description Quantity
ANCHEER Electric Bike
Pedal 2
1
User Manual
Saddle 1
1
Key
Saddle Tube
Front & Rear Fender
1
1
2
Charging Adapter
Kickstand
Throttle
Quick Release Skewer
Reflector
1
1
1
1
1
Battery
Tools Bag
Stem
1
1
1
We will decide whether to include the throttle in your product package in accordance
with local laws and regulations. If it is included, it will come as a single part and will
not be pre-installed. You can choose whether to install or not. If you choose to install,
please use the throttle accurately under the guidance of laws and regulations.
Note:

ANCHEER
4
General Information

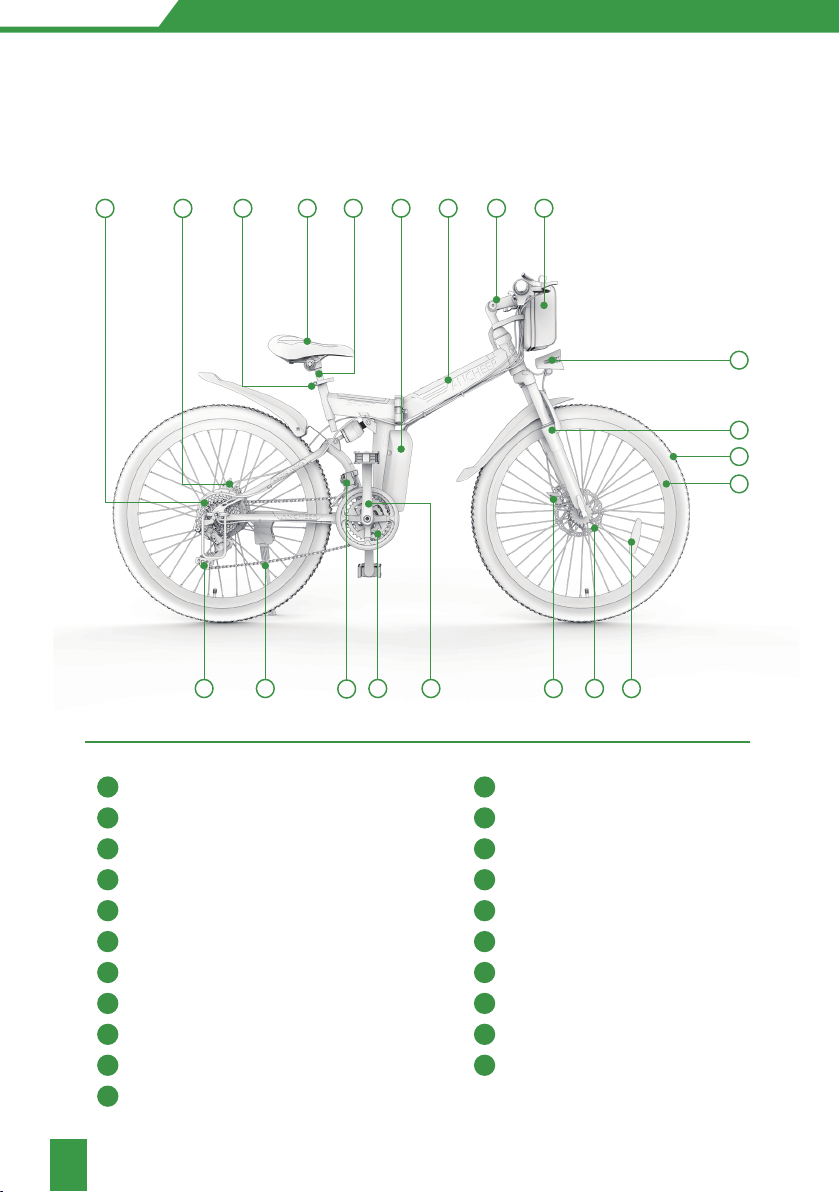

3. Bike Component
1
2
3
4
6 5
10
1213
14 15 16 17 18 19 20 21
78
11 9
2
1
3
4
5
6
7
8
9
10
11
13
12
14
15
16
17
18
19
20
21
Rim Rear Disc Brake Callipers
Front Fork Rear Derailleur
Tyre Flywheel
Head Light/Front Light Chain
Battery Bag Front Derailleur
Stem Chain Wheel
Frame Crank
Controller Box Front Disc Brake Calipers
Saddle Post/ Seat Tube Disc
Saddle Wheel Reflector
Seat Post Clamp/ Seat Clamp

ANCHEER
5
General Information
24
30
23
29
2822
25
27
26
Left Brake Lever Motor
Meter Throttle/ Twister
Front Derailleur Handle Right Brake Lever
Pedal Rear Shifter
Kick Stand
22 27
23 28
24 29
25 30
26

ANCHEER
6
General Information
4. Tool List
5. Standover Height
For the sake of safety and comfortable riding, when the rider stands on the ground there
should be clearance of 70cm/28in from ground to the crotch of the rider. Also, at least
3-8cm/1-3in between the crotch and the top tube of the bike.
Standover height does not apply to bicycles with step-through frames. Instead, the limiting
dimension is determined by saddle height range. You should adjust your saddle position
without exceeding the limit line on the saddle tube.
Note

ANCHEER
7
Bike Usage
Before Riding
During riding
Before riding the bike on the open road, try all the settings on the electric bike, and get
used to various results in a safe and controllable environment.
Please check the power circuit, lighting circuit, and test the brake system before cycling.
Always check the tire pressure before starting to ride, and make sure that the tire is
inflated to a pressure within the specified range.
In order to ensure the safety of riding, please check regularly for loose parts or screws.
The places that need to be checked include but not limited to the seat tube, wheels,
handlebars and pedals.
If necessary, please confirm whether the battery capacity can meet you riding demand.
2.
1.
If the pressure exceeds the recommended maximum value, the tire may blow out
of the rim, which may damage the bicycle and cause injury to the cyclist and nearby
people.
If the pressure is too low, the wheel may be damaged, or the inner tube may be
squeezed, causing the tire to leak air.
Please wear helmets and riding gear that meet the requirements in accordance with
regulations.
Avoid traveling in severe weather such as heavy rain.
Carry people or objects in accordance with the requirements of laws and regulations,
and the load of the entire bike should not exceed 120kg.
Obey the traffic rules.
●
●
●
●
●
●
●
●
●
After riding
After heavy use, do not touch the hot surface, such as the disc brake rotor or the side edge
of the brake rim.
When folding the kickstand, always make sure that the stand is secure and the base is firm
to prevent the bicycle from falling.
If the bicycle is splashed with moisture, please wipe it dry and clean in time.
●
●
●

ANCHEER
8
Bike Usage
Shifting Recommendations
Brake Adjustment
In order to increase the range, we recommend shifting according to the speed.
For starting and low-speed riding, it is best to use a low-speed gear.
At higher speeds, a higher gear should be selected.
If the brake is not sensitive, loosen the
anchor bolt of the brake cable to shorten
the brake distance of the brake cable and
then tighten the bolt. Or, lengthen the
distance of the brake cable when the brake
is too sensitive.
If the rotor always rubs against the
brake pad or the gap is too large, loose
the two centering adjustment screws,
but do not remove them. Slowly rotate
the wheel and check the space between
the rotor and the brake pad; adjust the
position of the brake pad and the rotor.
Centering the rotor and the pads to
avoid friction. After the adjustment is
complete, tighten the screws.
Ensure that the brake cables are properly inserted into the brake levers before aligning a
mechanical disc brake. If the disc rotor is bent or damaged, replace the rotor first.
2.
1.
Leave the same clearance on
both sides of the disc rotor
Brake pad
Disc rotor
Adjust caliper to
center the rotor
Centering
adjustment screws

ANCHEER
9
Installation And Adjustment
Open the package of the bike, take out the electric bike and all the parts inside and use the
tool to cut off the packing rope.
1. Install Kickstand
2. Install the Stem and Handlebar
1.1
2.1
2.2
1.2
Unscrew the screw in the kickstand,and install
the kickstand.
Install the stem and tighten the screw.
Using the wrench from tool kit to loosen the four screws and put the stem into
the bike in balance and you can adjust the handlebar in a property angel and
position.If you find the handlebars are not in the right direction, loosen the top
bolt, adjust the angle of the handlebar to keep it in horizontal direction, then
tighten the top bolt.
Then tighten with tool.

ANCHEER
10
Installation And Adjustment
3. Install the front wheel
3.2
3.1
Take out the quick release from Wheel and unscrew the bolt from the quick release.
Remember to take out the protective gasket from the brake before installing the
front wheel.
Using the tool to loosen the fixing rod of the front fork and remove it (this
accessory is to prevent the front fork from being deformed during delivery).
Front fork
Quick-release
lever
Inner
spring
Disc
rotor
Caliper
Skewer
Outer
spring
Adjustment
nut

ANCHEER
11
3.3 Set front wheel into front fork. Make sure fork hanger hold onto wheel axle,
and make sure the disc put into middle of brake.
Installation And Adjustment
4. Assemble the front fender and headlight
4.1
3.4
Loosen the screw on the corresponding position of the front wheel, as shown
in the figure below. Put the fender and light in this position. Tighten the screw
that secures the fender.
Insert quick-release axle into spring and tighten screw(Quick release nut to be at
the same end as the brake).
Attention:
Tighten the quick release
with the adjustment nut
only!
Quick release
lever in the
closed position
Quick release
lever in the open
position

ANCHEER
12
Installation And Adjustment

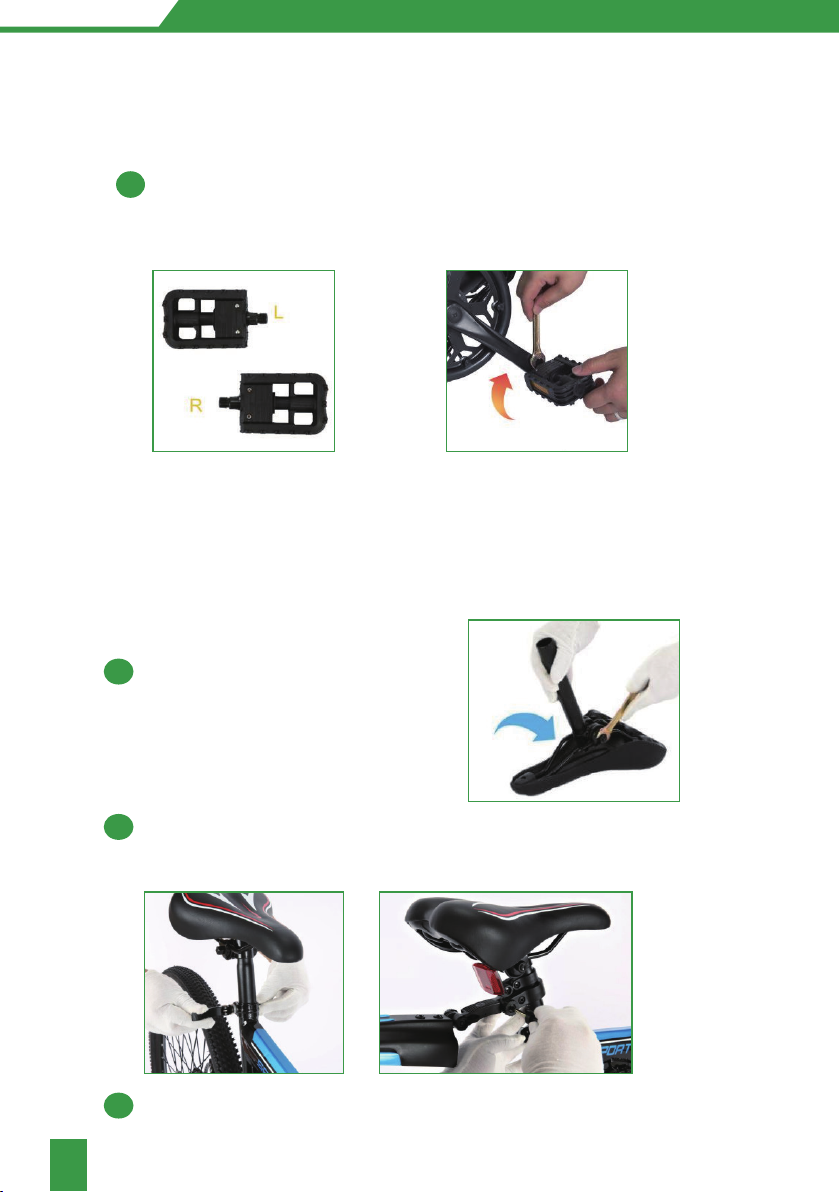

6. Assemble the saddle tube and rear fender
First connect the seat and the seat tube.
Install the rear Fender.
Install the saddle tube into post receiver. Set right its position and adjust height to
fit your ridding habit. (Note: please be careful not to exceed the limit line) and then
tighten the seat with the clamp.
6.1
6.3
6.2
5. Install the pedals
5.1 Ensure that the thread of each pedal is fully inserted into the crank arm. Tighten
the pedals completely with a wrench. (Counterclockwise screw the pedal marked
"L" on the left side crank. Clockwise screw the pedal marked "R" on the right side
crank.)

ANCHEER
13
Installation And Adjustment
7. Adjust angle of brake lever, meter, gear shifter, throttle and louder
controller on handlebar, then tightens them with tools.

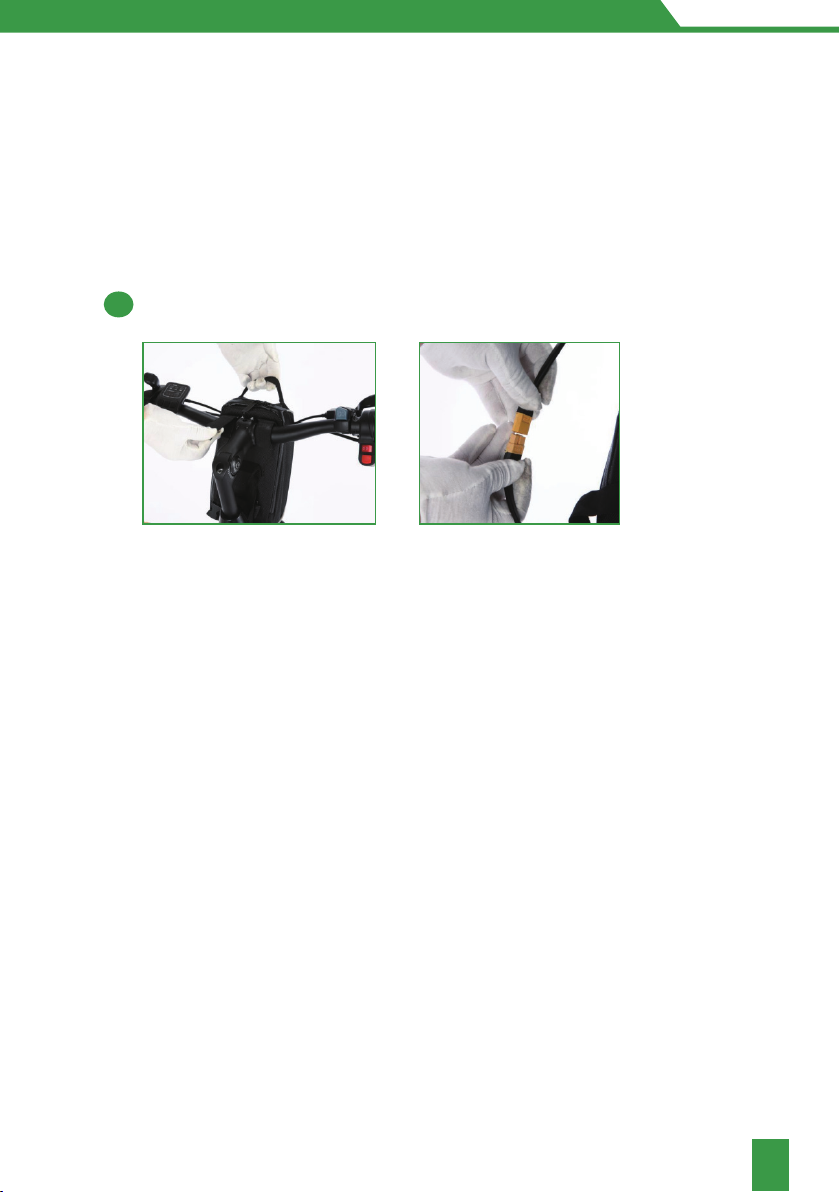

8. Install Battery
Open the box of battery. Connect the connectors. Put the battery in bag and lock
tighten the belts.
8.1
So far, congratulations! You have completed the assembly of the entire bike.

ANCHEER
14

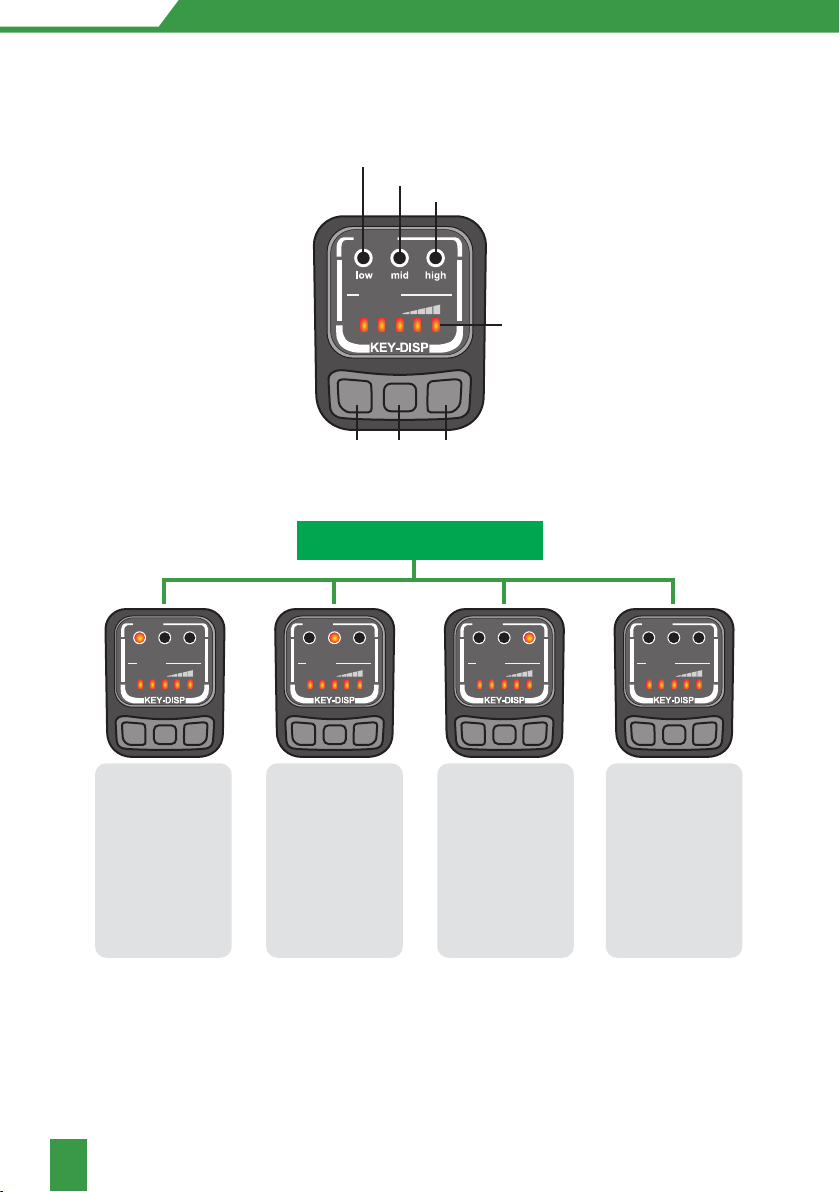

Meter Operation
1. Meter Instruction
2. Meter Operation
3. Operation Cautions
MODE
POWER
M
+ -
Assistance Level:Low
Assistance Level:Mid
Assistance Level:High
Battery Indicator
DOWN UPON/OFF
Operating instructions
To switch on/
off the E-Bike
system, hold
the “M” key for
2s. The default
value is “low”
pedal assist
level.
Press “+” again
to move into
pedal assist
level “high”.
“high” is the
maximum
power of PAS.
Full Electric
Function (Pure
electric mode):
Press“-”, until
all the three
“low”,“mid”,
“high” indicators
are off.
Press “+” to
crease into
pedal assist
level “mid”.
Avoid the risk of collision.
Don’t modify system parameters to avoid parameters disorder.
Contact the seller when error code appears.
●
●
●
MODE
POWE R
high
M + -
MODE
POWER
M + -
MODE
POWER
M + -
MODE
POWER
M + -
midlow highmidlow highmidlow highmidlow

ANCHEER
15
Battery And Charging: Further Information
Battery: Further information
Keep the battery out of reach of children.
Charging at 0°C~40°C/ 32°F~104°F, and discharging at -5°C~40°C/ 23°F~104°F. Please do
not store the battery in temperatures above 35°C/ 95°F or below -5°C/ 23°F.
Keep the battery dry, do not put the battery in acidic or alkaline liquid, keep away from
rain, fire and high temperature environment.
It is strictly forbidden to connect the positive and negative poles of the battery reversely,
and it is strictly forbidden to damage, disassemble or short-circuit the battery.
Used batteries are hazardous chemicals, and the used batteries should not be
disassembled without authorization, and recycled by relevant professional departments.
It is forbidden to modify the battery, electronic control system and the frame structure of
the bike, etc. Otherwise, it may cause safety hazards and void the warranty service. If you
continue to do so, all will be at your own peril.
Use the original battery. Do not replace it with other brand’s or product’s battery.
●
●
●
●
●
●
●
Charging port
Please follow the instructions for use, otherwise the consequences are at his own risk.
Please use the original special charger. It is strictly prohibited to use other chargers.
Pay attention to the battery type and applicable voltage that the charger can charge,
and it is strictly forbidden to mix them. The charging time shall not exceed 12 hours,
and the charging current shall not exceed 2A.

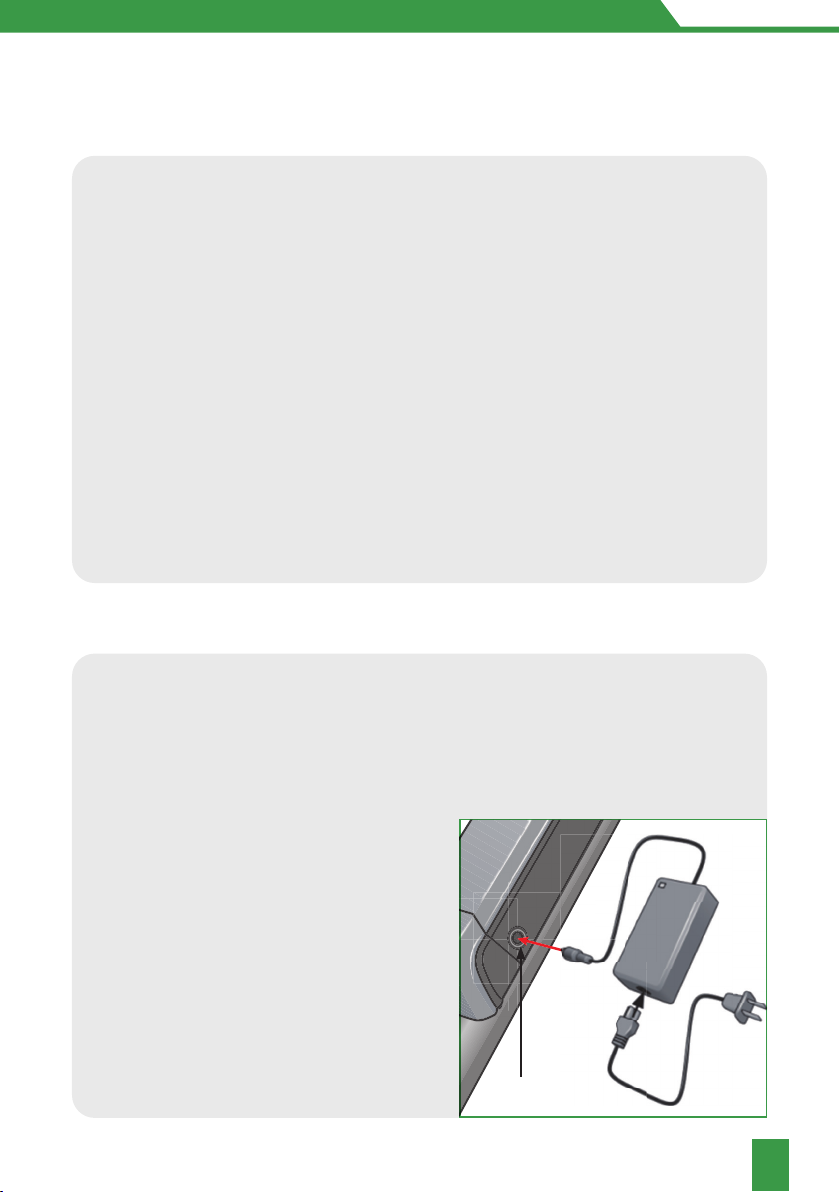

WHEN CHARGING THE BATTERY
●
●
●
Charging: Safe operation guide
❶
❷
❸
❹
Insert the charger probe into the charger port
on the e-bike battery. As shown in the figure.
Insert the pronged end of the battery cord
into the battery charger.
Insert the AC plug into an AC outlet.
The red indicator light turns on and will
remain red until it is fully charged. The
indicator light turns green once the battery is
fully charged.

ANCHEER
16
Battery and charging: Further Information
Reminder
Battery must be recycled or disposed of in an environmentally sound manner.
Do not dispose of the battery in a fire. The battery may explode or leak.
Do not dispose of a battery in your regular household trash.
It is recommended to charge the battery in the fireproof battery charging
cover when charging. And the battery should be stored in the fireproof
battery charging cover when not in use.
●
●
●
Battery Disposal
Charge a new battery 4-6 hours before you use it in your product for the first time.
If the battery is dropped or damaged due to a bicycle accident, there may be a danger of
electrolyte leakage. Please stop using it immediately.
It is better not to wait until the power is completely exhausted before charging, which
can more effectively extend the battery life. Besides, Overheating or undercharging the
battery may shorten battery life.
How far can a fully charged battery go?
It depends on the load weight, road conditions and battery capacity. But under the same
conditions, the average speed can last longer riding distances. Using pedal assist mode
allows you to go further.
When charging, it should be placed in a ventilated environment, and it is strictly
forbidden to charge in a confined space, residential building or in a hot environment.
The charger should not be carried with the ebike as much as possible. If it is really
necessary to carry it, it should be placed in the toolbox after the shock absorption
treatment is done. It is not allowed to disassemble or replace the components in the
charger by yourself.
When not in use for a long time, keep the battery in a cool and dry place, and charge
the battery for two hours a month.
●
●
●

ANCHEER
17
Maintenance
The front and rear wheels of the vehicle should be located in the center of the front
fork or frame.
After riding, please store the bike in a place without sunlight and rain.
Water showering is forbidden, and the surface of the car body can be wiped with a
semi-dry cloth.
Do not touch the charging hole on the bicycle, or touch it with metal, otherwise, it
may cause an accident due to an instantaneous short circuit of the current.
Check all cables and cable housings for fraying, breaks, rust, or corrosion and replace
if necessary.
Check the motor and brake frequently, and do not fill the brake area with oil.
Additionally, check the brake pads for any damage as they will be worn over time
and eventually need replacement.
Regularly check the various screws of the car and the places that need to be fastened,
and regularly reinforce to prevent injury and unnecessary wear and tear on your
e-bike.
Recommended torque (unit: kgf.cm): the horizontal screw 60-80, the stem screw
175- 200, the seat cushion screw 175-250, the wheel screw 320-450.
Regularly check the tension of the chain, which can be adjusted by the chain
regulator.
Always check the tire for scratches, cracks, or excessive wear. The inner tube and
the valve should be perpendicular to the wheel hub and not crooked. Accidentally
punctured, damaged or excessively worn inner and outer tires need to be replaced
immediately, please seek professional technicians to repair or replace your tires.
It is forbidden to modify key structural parts such as the frame, front fork, standpipe,
and electrical function parts. If damaged, use the original parts to replace it.
Otherwise, the guarantee service will not be provided. Any loss or damage caused
by the modification shall be solely responsible.
●
●
●
●
●
●
●
●
●
●
●

ANCHEER
18
Warranty
One-Year Limited Hardware Warranty
Your electric bike includes a One Year Limited Hardware Warranty. ANCHEER provides
warranty service for the electric bikes. If there is a hardware defect and a valid claim is
received during the warranty period, we will resend new parts within the scope permitted
by law.
The Warranty covers product defects in materials and workmanship under normal use. This
Warranty is limited to original purchasers and is not assignable or transferable.
The Warranty starts on the date of your purchase and lasts for one year (the "Warranty
Period") and the Warranty Period is not extended if the product is repaired or replaced.
The Warranty does not cover any damage due to: improper use; failure to follow the product
instructions or to perform any preventive maintenance; unauthorized repair; external causes
such as accidents, abuse, or other actions or events beyond our reasonable control.
Customer Services
We provide lifetime customer support services. For any questions about the product, please
contact customer service from where you brought the equipment. We will be happy to
answer your questions.
Accessories WarrantyPeriod Service Content Quality Problem
A year
A year
A year
A year
A year
Motor
Controller
Charger
Lithium
Battery
Accelerator
Free delivery of parts
Free delivery of parts
Free delivery of parts
Free delivery of parts
Free delivery of parts
Motor will not be able to
use
Natural conditions (such
as impact force cannot be
used except damage)
Failure occurs under normal
use
Failure occurs under normal
use
Can't charge discharge
under normal use
