ANS MIDA-EVSE-PA32S User manual

Chengdu Honors Technology Co., Ltd.
--make this planet greener and cleaner
1
32A Portable EV Charger
(Level 2)
Product Manual
Please read all instructions before using, operating or maintaining.

Chengdu Honors Technology Co., Ltd.
--make this planet greener and cleaner
2
Contents
PRODUCT DESCRIPTION....................................................3
APPEARANCE.....................................................................3
SPECIFICATION.................................................................. 4
LED INDICATION................................................................ 5
OPEARATING INSTRUCTION............................................. 6
CONNECTING..............................................................7
How to start charging................................................ 7
How to stop charging.................................................8
SECURITY STATEMENT............................................ 8
WARRANTY........................................................................8

Portable EV Charger (level 2)
3
PRODUCT DESCRIPTION
Portable EV Charger is much convenient, portable, plug-and-play. This
product is independently researched and accordance with the latest
international standards. They apply to more than 95% standard EV cars. It
has good performance when charging. There are more electrical protections
and direct human-computer interaction interface. Control box is durable by
adopting ergonomic surface design which makes the shell become solider
and stronger. It is also small and exquisite.

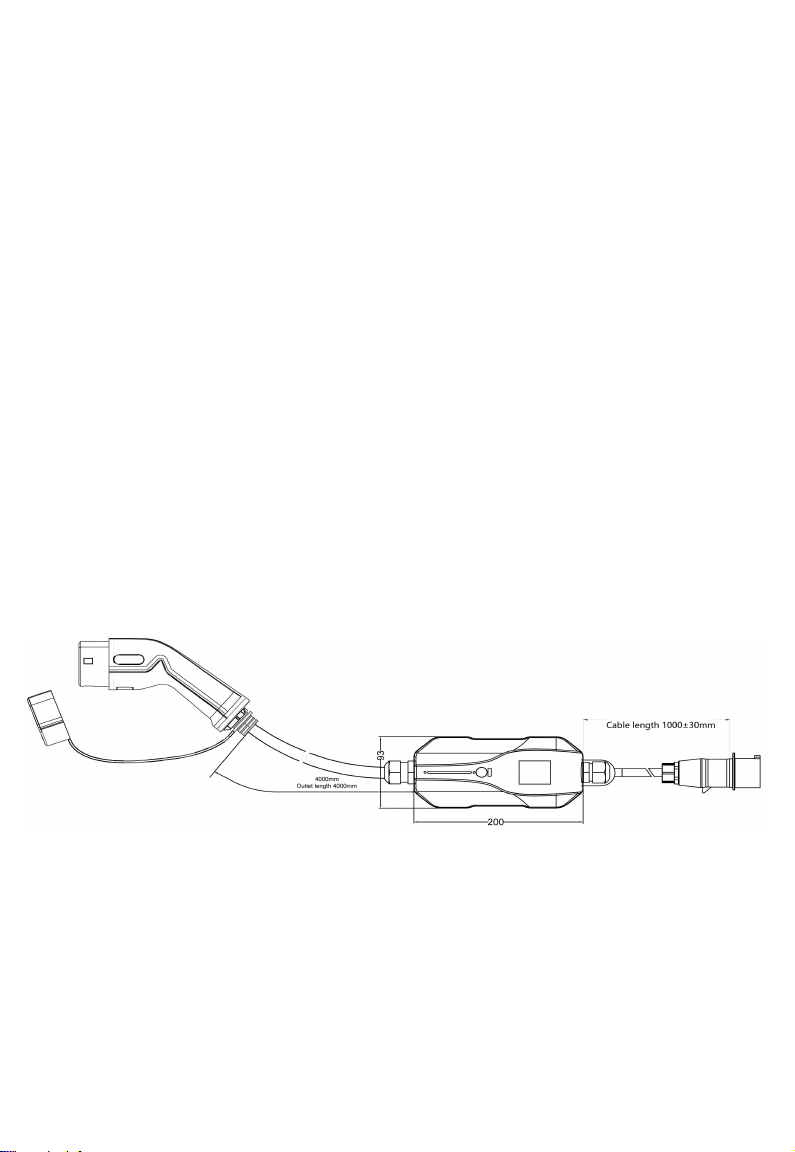

Appearance

4
SPECIFICATION
Item
Mode 2 EV Charger portable charger
Model
MIDA-EVSE-PA32S , MIDA-EVSE-PE32S
Install
Portable, plug and Play
Output Current
10A ,16A ,20A, 24A ,32A Max.
Rated power
7.6kW Max
Input Voltage AC
110-250V 50Hz/60Hz
International
Protection Marking
IP66
Output Detection
1.Short circuit protection
2.Over and under frequency protection
3. Over and under Current Protection
4.Leakage Current Protection (restart recover）
5.Over Temperature Protection
6.Overload protection (self-checking recover)
7. Ground Protection
8.Over voltage and under-voltage protection
9.Lighting Protection
Operating
Temperature
-25℃~+55℃
Storage Temperature
-40℃~+80℃
Operating Humidity
20%-85%
Dimension
Control Box:200mm(L) X 93mm(W)X51.5mm(H)
Regular length: 5Meter or Customized (L)
Weight
2.8kg
Standard
IEC 62752 , IEC 61851
Carton Measure
340*300*110MM

Portable EV Charger (level 2)
5
LED INDICATION
Condition
LED Display Status
Green
(One)
Green
(Two)
Green
(Three)
Fault
(Red)
Initial Mode
Light on
Lights Off
Lights Off
Lights Off
Connected mode
Light on
Twinkle (1S)
Lights Off
Lights Off
Charging Mode
Racing
light
Racing light
Racing light
Lights Off
Finished Mode
Light On
Lights On
Lights On
Lights Off
Fault Mode
Light Off
Lights Off
Lights Off
Twinkle

6
CAUTION
a. Please check if the device is intact and items are accordance with the
packing list when you receive the package. If there are any
abnormalities, please contact the sales timely or reject the goods.
b. Power-supply side input cable should be at least 3x6mm ² It is
suggested that the power distribution is done by the professionals.
c. Do not submerge the control box or charging connector in water, and
don't step on, pull, fold or knot the cable.
d. Ensure charging connector, plug, cable and control box are free of any
abnormalities such as scratches, rusts, cracks, etc.
e. Don't charge if the socket is damaged, rusted, cracked or loosely
connected, then contact the professionals to dispose.
f. Wipe with a clean and dry cloth if the plug gets dirty or wet.
g. Ensure power plug and socket are consistent before charging ，
especially the Current & Voltage.
h. Please check the input current and make sure to reduce charging
current to below the input current.
i. Do not place the charging cable near high temperature object when it
is working.

Portable EV Charger (level 2)
7
CONNECTING
How to start charging
Step 1. Take out the charger and firmly insert the plug into socket-outlet.
Step 2. Pull cap lightly, completely plug the vehicle connector into your
vehicle inlet.
Step 3. Factory default current is 32A, please press the button of "CURRENT
SETTING" to adjust your required current. amperes to max. 32 ampere cycles.
The device will default to the last current setting when you charge next time.
Step 4. The device start charging automatically while the READY/CHARGE,
POWER indicators are all green.
How to stop charging
Step 1. Disconnect the vehicle connector from the vehicle inlet.
Step 2. Close protective cap of vehicle inlet, put on the protective cap of
vehicle connector.
Step 3. Disconnect the plug from the socket-outlet.
Step 4. Pack up the EV charger cable and put into the bag.

8
SECURITY STATEMENT
Charging equipment has high pressure inspection before they go out test,
during the product trial, consumer can be at ease use.
WARRANTY
Chengdu Honors EVSE(ANS EVSE), ensure the production of portable
charging line are through strict quality inspection, within one year from the
date of purchase under the correct use of caused by product quality
problems, the company will give users the quality maintenance.
Any user due to their improper handling, installation, use and maintenance,
secretly negligence or because of natural disasters, lead to products direct
damage or cannot be used properly, are out of place in the product
warranty.This warranty does not include the freight returned to the factory
maintenance.The warranty is only valid to the original purchaser and is not
transferable
