ANTAIRA IMC-100A Series User manual

Antaira Technologies - Industrial Media Converter
LNP-0500G Series User Manual V1.0
i
IMC-100A Series
10/100Tx to 100Fx Industrial Media Converter
Version 1.0
User Manual

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
ii
© Copyright 2015 Antaira Technologies, LLC.
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are
the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the
registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered
trademarks of their respective owners.
Notice: Copyrights © 2015 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the
copyright laws.
Disclaimer
Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC. may make improvements and/or changes to the product and/or specifications of the product described in
this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
iii
FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industrial Ethernet Media Converters
Industrial Grade Unmanaged Ethernet Media Converters
User Manual
Version 1.0 (November 2015)
This manual supports the following models:
IMC-100A-M(-T)
IMC-100A-S3(-T)
IMC-100A-S5(-T)
IMC-100A-ST-M(-T)
IMC-100A-ST-S3(-T)
IMC-100A-WA-M(-T)
IMC-100A-WB-M(-T)
IMC-100A-WA-S2(-T)
IMC-100A-WB-S2(-T)
This document is the current official release manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
ii
Table of Contents
1.Overview....................................................................... 1
1.1 Key Features...................................................... 1
1.2Package Contents.............................................. 1
1.3 Safety Precaution............................................... 2
2.Hardware Description ................................................. 3
2.1Physical Dimensions .......................................... 3
2.2 Front Panel ........................................................ 4
2.3 Top View............................................................ 4
2.4 LED Indicators ................................................... 5
2.5 Ethernet Ports.................................................... 5
2.6 Cabling............................................................... 6
2.7 Wiring the Power Inputs..................................... 7
2.8 Wiring the Fault Alarm Contact.......................... 7
3. Mounting Installation.................................................. 9
3.1 DIN-Rail Mounting.............................................. 9
3.2 Wall Mounting .................................................. 11
4. Hardware Installation................................................ 12
4.1 Installation Steps.............................................. 12
5. Network Application ................................................. 13
6. Trouble Shooting ...................................................... 14
7. Technical Specifications.......................................... 15

Antaira Technologies - Industrial Media Converter
LNP-0500G Series User Manual V1.0
1
1. Overview
Antaira Technologies’ IMC-100A series is an industrial grade unmanaged Ethernet media
converter featuring a simple plug-and-play operation to quickly convert between Ethernet and
fiber optics. The IMC-100A series supports fast Ethernet speeds of 100Mbps, featuring
1*10/100Tx Ethernet port and 1*100Fx fiber port. This unit is an ideal solution for applications
looking to convert between an RJ45 Ethernet connection and a fiber connection.
Antaira’s IMC-100A series is IP30 rated and DIN-rail mountable. This product series supports a
low voltage power input range of 12~48VDC. Also, there are two operating temperature models
for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range
(EOT: -40°C to 75°C). It also provides Ethernet and fiber optic connectivity for outdoor or harsh
industrial environment applications, such as, security surveillance, ITS-traffic monitoring systems,
oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and
lastly, automated production lines in factory automation.
1.1 Key Features
System Interface/Performance
RJ-45 ports support the auto MDI function
Embedded 1*10/100Tx and 1*100Fx
Store-and-forward switching architecture
Power Input
DC 12~48V redundant power, with a 6-pin removal terminal block
Operating Temperature
Standard operating temperature model: -10°C ~ 70°C
Extended operating temperature model (–T): -40°C ~ 80°C
Case/Installation
IP-30 protection
DIN-Rail and wall mount design
1.2 Package Contents
1 –IMC-100A Series Media Converter: 10/100Tx to 100Fx Industrial Media Converter
1 - Product CD
2 - Wall mounting brackets and screws

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
2
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet media converter’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
3
2. Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ IMC-100A series:
10/100Tx to 100Fx industrial media converter.
(W x D x H) is 30mm x 99mm x 140mm
Figure 2.1
IMC-100A Series Physical Dimensions

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
4
2.2 Front Panel
The front panel of the IMC-100A series: 10/100Tx to 100Fx industrial media converter (Figure 2.2).
2.3 Top View
Figure 2.3, below, shows the top panel of the IMC-100A series media converter that is
equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC).
Figure 2.2
Front Panel of the IMC-100A Series
Figure 2.3
Top Panel View of IMC-100A Series
6-Pin Removal Terminal Block (Power Input)
Grounding Screw
LED for PWR1, PWR2, and Fault
LED for Fiber FDX/COL and Link/ACT
Fiber Port –100Fx
Dip Switches
LAN Port (1~4) 10/100Tx
LED for RJ45 10/100Tx network speed Status
10/100Tx RJ45 Port

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet media
converter that display the power status and network status. Each LED indicator has a different
color and has its own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Power input 1 is active
Off
Power input 1 is inactive
P2
Green
On
Power input 2 is active
Off
Power input 2 is inactive
Fault
Red
On
Power input 1 or 2 is inactive
Off
Power input 1 and 2 are both functional, or no power
inputs
Fiber Port
Yellow
Green
FDX/COL
Solid: Full Duplex Mode Flashing: Packet Collision
Green
Link/ACT
Networking is active
Off
Not connected to network
RJ45 Ethernet
Port
Green
100M
Linked to network at 100Mbps
LINK/ACT
Networking is active
Off
Not connected to network
2.5 Ethernet Ports
RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 port is auto-sensing for 10/100Base-T, or 100Base-Tx
device connections. Auto MDI/MDIX means that the media converter can connect to another
switch or workstation without changing the straight-through or crossover cabling. See the figures
shown below for the straight-through and crossover cabling schematics.
RJ-45 Pin Assignments (Table 2.2)
Pin Number
Assignment
1
Rx+
2
Rx-
3
Tx+
6
Tx-
Table 2.2
RJ45 Pin Assignments
Table 2.1
LED Indicators for IMC-100A Series

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
6
The RJ45 port on this industrial Ethernet media converter supports automatic MDI operations. Users
can use straight-through cables (Figure 2.4 & Figure 2.5) for all network connections to PCs, servers,
and other switches or hubs. With a straight-through cable, pins 1, 2, 3, and 6, at one end of the cable,
are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI port pin outs.
The following figures show the cabling schematics for straight-through and crossover cables.
2.6 Cabling
Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded
twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 100Base TX standard
(e.g. Category 5, 5e, or 6). The cable between the equipment and the link partner (media
converter, switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
Note:
The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
Pin MDI-X
Signal Name
MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
Table 2.3
Ethernet Signal Pin Outs
Figure 2.4 Figure 2.5
Straight-Through Cables Schematic Crossover Cables Schematic

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
7
2.7 Wiring the Power Inputs
Please follow the steps below to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.6.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure
2.7.
**Note:
Only use copper conductors, 60/75°C, tighten to 5 lbs.
The wire gauge for the terminal block should range between 18~20 AWG.

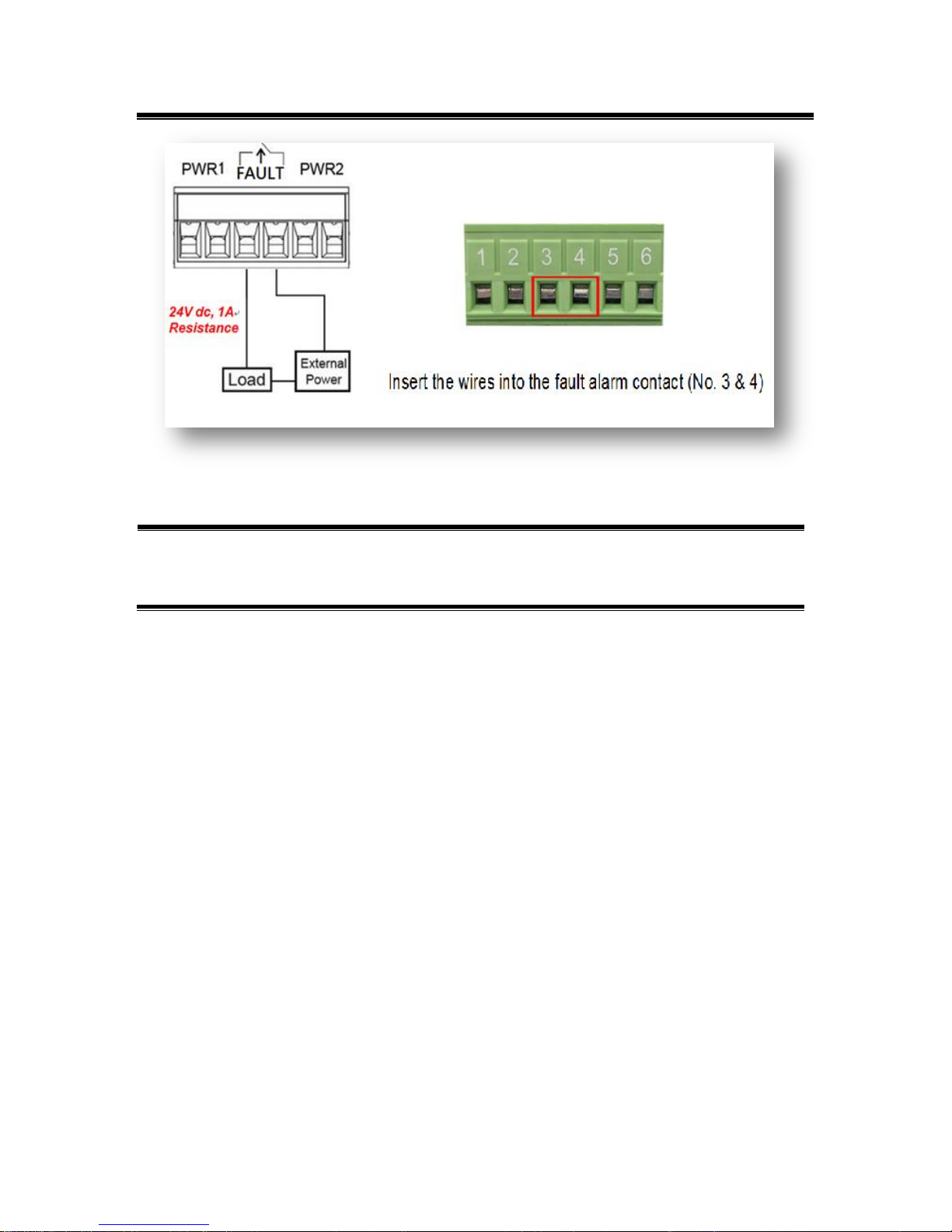

2.8 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as shown in Figure 2.8. By
inserting the wires, it will detect the fault status including any power failures and form a normal open
circuit. An example is shown in Figure 2.8.
Figure 2.7
Power Terminal Block
Figure 2.6
Power Terminal Block

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
8
**Note:
The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to
eliminate the power fault alarm.
Figure 2.8
Wiring the Fault Alarm Contact

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
9
3. Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet media converter from the factory. If the
DIN-Rail is not on the industrial Ethernet media converter, please refer to Figure 3.1 to learn how
to install the DIN-Rail on the media converter.
Figure 3.1
The Rear Side of the Media Converter and DIN-Rail Bracket

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
10
Follow the steps below to learn how to hang the industrial Ethernet media converter.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet media
converter.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the media converter, insert the top of
the DIN-Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
media converter from the rail, do the opposite from the above
steps.
Figure 3.3
Stabilize the Media Converter on the DIN-Rail
Figure 3.2
Insert the Media Converter on the DIN-Rail

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
11
3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
media converter using the wall mounting
bracket as shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the industrial media converter by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial media converter.
3. Use the screws to screw the wall mounting bracket on the industrial media converter.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
media converter on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5
Wall Mounting Bracket Dimensions
Figure 3.4
Remove DIN-Rail Bracket from the Media Converter

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
12
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira Technologies’ IMC-100A (T) series: 10/100Tx to
100Fx industrial media converter.
Installation Steps
1. Unpack the industrial Ethernet media converter from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet media converter.
If the DIN-Rail is not screwed on the industrial Ethernet media converter, please refer
to the DIN-Rail Mounting section for DIN-Rail installation.
If it is required to wall mount the industrial Ethernet media converter, please refer to
the Wall Mounting section for wall mounting installation.
3. To hang the industrial Ethernet media converter on a DIN-Rail or wall, please refer to the
Mounting Installation section.
4. Power on the industrial Ethernet media converter and then the power LED light will turn on.
For the help on how to wire power, please refer to the Wiring the Power Inputs
section.
Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ-45 cable into the media converters Ethernet port and on the other
side into the networking device’s Ethernet port, e.g. switch PC or server.
The Ethernet port’s (RJ-45) LED on the industrial Ethernet media converter will turn on
when the cable is connected to the networking device.
Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
13
5. Network Application
This segment provides an example of an industrial Ethernet media converter application (Figure 5.1).
Figure 5.1
Networking Application Example

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
14
6. Trouble Shooting
Always verify the right power cord or adapter is being used. Never use a power supply or
adapter with a non-compliant DC output voltage or it will burn the equipment.
Select the proper UTP or STP cable in order to construct the network. Use an unshielded
twisted-pair (UTP) or shield twisted-pair (STP) cable for RJ-45 connections: 100Ω Category
5e for 10/100/1000Mbps. Also be sure that the length of any twisted-pair connection does
not exceed 100 meters (328 feet).
Diagnosing LED Indicators: To assist in identifying problems, the media converter can be
easily monitored with the LED indicators which help to identity if any problems exist.
oPlease refer to the LED Indicators section for LED light indication.
If the power indicator LED does not turn on when the power cord is plugged in, the user
may have a problem with the power cord. Check for loose power connections, power losses
or surges at the power outlet.
oPlease contact Antaira for technical support service, if the problem still cannot
be resolved.
If the industrial media converter LED indicators are normal and the connected cables are
correct but the packets still cannot transmit, please check the system’s Ethernet devices’
configuration or status.

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
15
7. Technical Specifications
Table 7.1 has the technical specifications for Antaira Technologies’IMC-100A series: 10/100Tx to
100Fx industrial media converter.
Standards
IEEE 802.3
10Base-T 10Mbit/s Ethernet
IEEE 802.3u
100Base-Tx, 100Base-Fx, Fast Ethernet
IEEE 802.3x
Back pressure flow control
Technology
Protocol
CSMA/CD
Data Process
Store and Forward
Transfer Rate
14,880 pps for 10Base-T Ethernet port
148,800 pps for 100Base-TX Fast Ethernet port
Transmission Distance
Up to 100M (Fast Ethernet)
Transmission Speed
Up to 100Mbps
Port Interface
Ethernet (RJ45) Port
1*10/100Tx auto negotiation speed, full/half duplex mode, and auto MDI
connection
Fiber Port
1*100Fx
LED Indicator
Per unit: Power1(Green), Power2(Green), Fault(Red)
Per port: Link/Activity (Green)
Network Cable
10BaseT: 2-pair UTP/STP Cat.3,4,5 cable EIA/TIA-568 100-ohm (100m)
100BaseTX: 2-pair UTP/STP Cat.5 cable EIA/TIA-568 100-ohm (100m)
Mechanical
Characteristics
Housing
Metal IP30 protection
Dimension
30 x 140 x 95 mm
Weight
Unit Weight: 0.95 lbs. Shipping Weight: 1.4 lbs.
Mounting
DIN-Rail Mounting, wall-mounting (optional)
Power
Requirement
Input Voltage
12~48VDC Redundant Input
Power Connection
1 removable 6-contact terminal block
Fault Output
1 Relay output
Power Consumption
3 Watts
Environmental
Limits
Operating Temperature
Standard: -10 to 70˚C (14 to 158F)
EOT: -40 to 75˚C (-40 to 167F)
Operating Humidity
5% to 95% (Non-Condensing)
Storage Temperature
-40 to 85˚C (-40 ~ 185F)
Regulatory
Approvals
EMI
FCC Class A
IEC61000-4-2/3/4/5/6/8
IEC61000-6-2
IEC61000-6-4
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Safety
UL, CE, FCC
Table 7.1
IMC-100A Series Technical Specifications

Antaira Technologies - Industrial Media Converter
IMC-100A Series User Manual V1.0
16
Antaira Customer Service and Support
(Antaira US Headquarter) + 844-268-2472
(Antaira Europe Office) + 48-22-862-88-81
(Antaira Asia Office) + 886-2-2218-9733
Please report any problems to Antaira:
www.antaira.com / [e-mail]
www.antaira.eu / inf[email protected]
www.antaira.com.tw / [e-mail]
Any changes to this material will be announced on the Antaira website.
