ANTAIRA Optolinx IMP-100A User manual

10/100TX to 100FX w/ 1 PoE Injector
Industrial Media Converter
User Manual
v1.02

FCC Warning
This Equipment has been tested and found to comply with the limits for a
Class-A digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. It may cause harmful interference to radio
communications if this equipment is not installed and used in accordance
with the instructions. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

Content
Introduction................................................................ 1
Features................................................................... 1
Package Contents.................................................... 2
Hardware Description ............................................... 3
Physical Dimension.................................................. 3
Front Panel .............................................................. 3
Top View.................................................................. 4
LED Indicators ......................................................... 5
DIP-Switch ............................................................... 6
Ports......................................................................... 7
Cabling..................................................................... 9
Wiring the Power Inputs......................................... 10
Wiring the Fault Alarm Contact.............................. 11
Mounting Installation .............................................. 12
DIN-Rail Mounting.................................................. 12
Wall Mount Plate Mounting.................................... 14
Hardware Installation .............................................. 15
Installation Steps.................................................... 15
Network Application................................................ 16
Troubles shooting ................................................... 17
Technical Specification........................................... 18

1
Introduction
The 1 10/100TX + 100FX w/ 1 PoE Injector Industrial Media Converter is a cost-effective
solution and meets the high reliability requirements demanded by industrial applications.
Use of the fiber port can extend the connection distance and increase the network
elasticity and performance. The industrial media converter also provides the PoE
function for various kinds of Powered Devices that can receive power as well as data
over the RJ-45 cable.
Features
System Interface/Performance
RJ-45 ports support Auto MDI/MDI-X Function
Embedded 1-port PoE Injection
Store-and-Forward Switching Architecture
Built-in Link Loss Forwarding Technology
Supports Wide Operating Temperature (-40oC ~ 80oC)
Power Supply
DC 48V Redundant Power
Case/Installation
IP-30 Protection
DIN Rail and Wall Mount Design
Provides EFT protection 3,000 VDC for power line
Supports 6,000 VDC Ethernet ESD protection

2
Package Contents
Please refer to the package content list below to verify with package.
1 10/100TX + 100FX w/ 1 PoE Injector Industrial Media Converter
User manual
Pluggable Terminal Block
2 wall mount plates with screws
One DIN-Rail (attached on the unit)
Compare the contents of the industrial media converter with the checklist above. If any
items are damaged or missing, please contact your local dealer for service.

3
Hardware Description
In this section, the Industrial Media Converter’s hardware specifications, port, cabling,
and wiring installation will be provided.
Physical Dimension
1 10/100TX + 100FX w/ 1 PoE Injector Industrial Media Converter dimension (W x D x H)
is 30mm x 95mm x 140mm
Front Panel
The Front Panel of the 1 10/100TX + 100FX w/ 1 PoE Injector Industrial Media
Converter is shown as below:
Front Panel of the PoE Injectors Industrial Media Converter

4

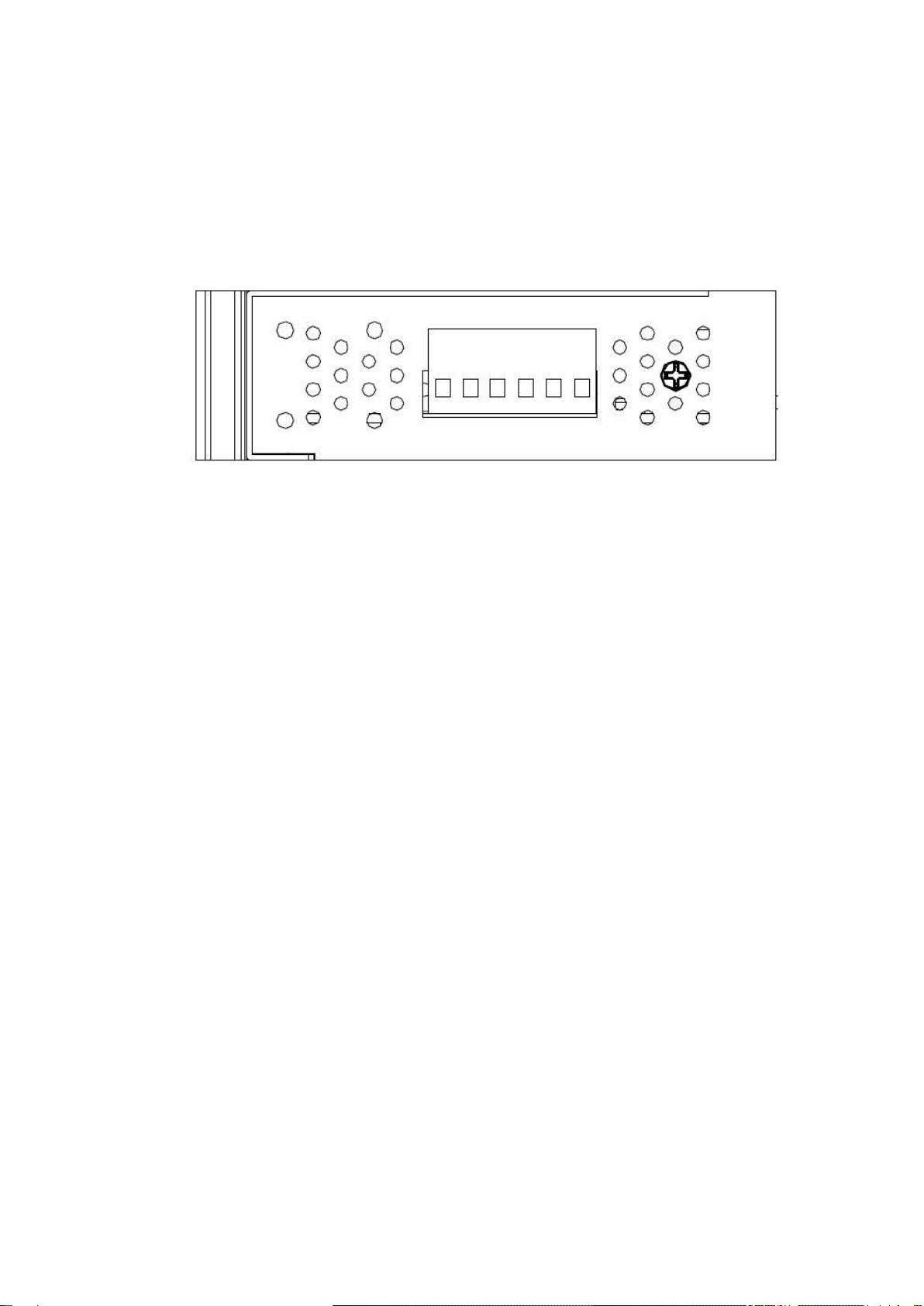

Top View
The top view of the 1 10/100TX + 100FX w/ 1 PoE Injector Industrial Media Converter
has one terminal block connector of two DC power inputs.
Top View of the PoE Injectors Industrial Media Converter

5
LED Indicators
The diagnostic LEDs located on the front panel of the industrial media converter provide
real-time system information and optional status. The table below describes the LED
status and their meaning for the media converter.
LED Color Description
P1 Green On Power input 1 is active
Off Power input 1 is inactive
P2 Green On Power input 2 is active
Off Power input 2 is inactive
Fault Red
On Power input 1/2 or port connections failed
Off Power input 1/2 and port connections are functional, or
no power inputs
FDX/COL
(fiber port) Yellow On Full-duplex mode
Flashing Collision occurs
LNK/ACT
(fiber port) Green
On Connected to network
Flashing Networking is active
Off Not connected to network
100M (RJ-45) Yellow On Linking to 100Mbps network
Off Linking to 10Mbps network or disconnected
LNK/ACT (RJ-
45) Green
On Connected to network
Flashing Networking is active
Off Not connected to network
FWD Green On The port is supplying power to the powered-device
Off No powered-device attached or power supplying failed

6
DIP-Switch
The DIP-Switch is used to configure operation mode for LLF (Link Loss
Forwarding)/LFP (Link Fault Pass-Through), and operation mode for UTP/Fiber port.
The default value of the DIP-switch is OFF.
S/W No Status Description
1 ON Enables Port/Power Alarm
OFF Disable Port/Power Alarm
2 ON Enables LLF/LFP
OFF Disables LLF/LFP
3 ON 100Base-FX Half-mode
OFF 100Base-FX Full-mode
4 ON Media mode (100TX to 100FX)
OFF Switching mode
LLF/LFP (DIP-Switch 2): Enabling LLF/LFP allows UTP/STP link failures to be
reported to the fiber side and also allow Fiber link failures to be reported to the
UTP/STP side. Therefore, the LLF/LFP feature is available in both UTP/STP and Fiber
side.
Media mode (DIP-Switch 4): When media mode is enabled (ON), it operates with
minimum latency. The transmission flow does not wait until the entire frame is ready,
but instead forwards the received data immediately while data is being received. The
TP port should be forced at 100M in this application. When the DIP-Switch is set at
switching mode (OFF), the function is the same as a Switch/Hub.
Note
Please don’t change the DIP-switch setting when UTP/STP or
fiber port is transmitting or receiving data. It may cause data
errors. If you change the DIP-switch setting, please power off the
media converter and power on again to make the setting
effective.

7
Ports
RJ-45 ports
The UTP (RJ-45) Fast Ethernet ports will auto-sense 10Base-T or 100Base-TX
connections. Auto MDI/MDIX means that the media converter can connect to another
switch or workstation without changing straight through or crossover cabling. See the
figures below for straight through and crossover cable schematic.
RJ-45 Pin Assignments
Pin Number
Assignment
1 Tx+
2
Tx-
3
Rx+
6
Rx-
Note
“+” and “-” signs represent the polarity of the wires that make up each wire
pair.
All ports on this industrial media converter supports automatic MDI/MDI-X operation,
user can use straight-through cables (See figure below) for all network connections to
PCs/servers, or to switches/hubs. For straight-through cable, pins 1, 2, 3, and 6, at one
end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of
the cable. The table below shows the 10BASE-T/100BASE-TX MDI and MDI-X port pin
outs.
Pin MDI-X Signal Name MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)

8
Straight Through Cable Schematic
Cross Over Cable Schematic
Fiber Port
The fiber port is an SC type connector that is either multi mode (2Km) or single mode
(30Km).
When you connect the fiber port to another device, please follow the figure below to
connect accordingly. Wrong connection will cause the port to not work correctly.
ATTENTION This is a Class 1 Laser/LED product. Don’t stare into
the Laser/LED Beam.

9
Cabling
Twisted-pair segments can be connected with unshielded twisted pair (UTP) or
shielded twisted pair (STP) cable. The cable must comply with the IEEE 802.3u
100Base TX standard for Category 5. The cable between the converter and the link
partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
Fiber segments using single-mode connector type must use 9/125µm single-mode
fiber cable. Users can connect two devices at a distance up to 30 Kilometers.
Fiber segments using multi-mode connector type must use 50 or 62.5/125 µm
multi-mode fiber cable. Users can connect two devices up to 2 Kilometers.

10
Wiring the Power Inputs
Please follow the steps below to insert the power wires.
Insert the positive and negative wires into the V+ and V- contacts on the terminal block
connector.
Tighten the wire-clamp screws to prevent wires from loosening.

11
Wiring the Fault Alarm Contact
The fault alarm contacts are in the middle of terminal block connector as the picture
shows below. Inserting the wires, it will detect the fault status including power failure or
port link failure (managed industrial switch only) and form an open circuit. An application
example for the fault alarm contact is shown below:
Insert the wires into the fault alarm contacts.
Note
The wire gauge for the terminal block should be in the range
between 12~ 24 AWG.

12
Mounting Installation
DIN-Rail Mounting
The DIN-Rail is pre-screwed on the industrial media converter from the factory. If the
DIN-Rail is not screwed on the unit, please follow the instructions below on how to install
the DIN-Rail on the unit. Follow the steps below to mount the industrial media converter.
1. Use the screws to install the DIN-Rail on the rear side of the unit.
2. To remove the DIN-Rail, reverse the step 1.

13

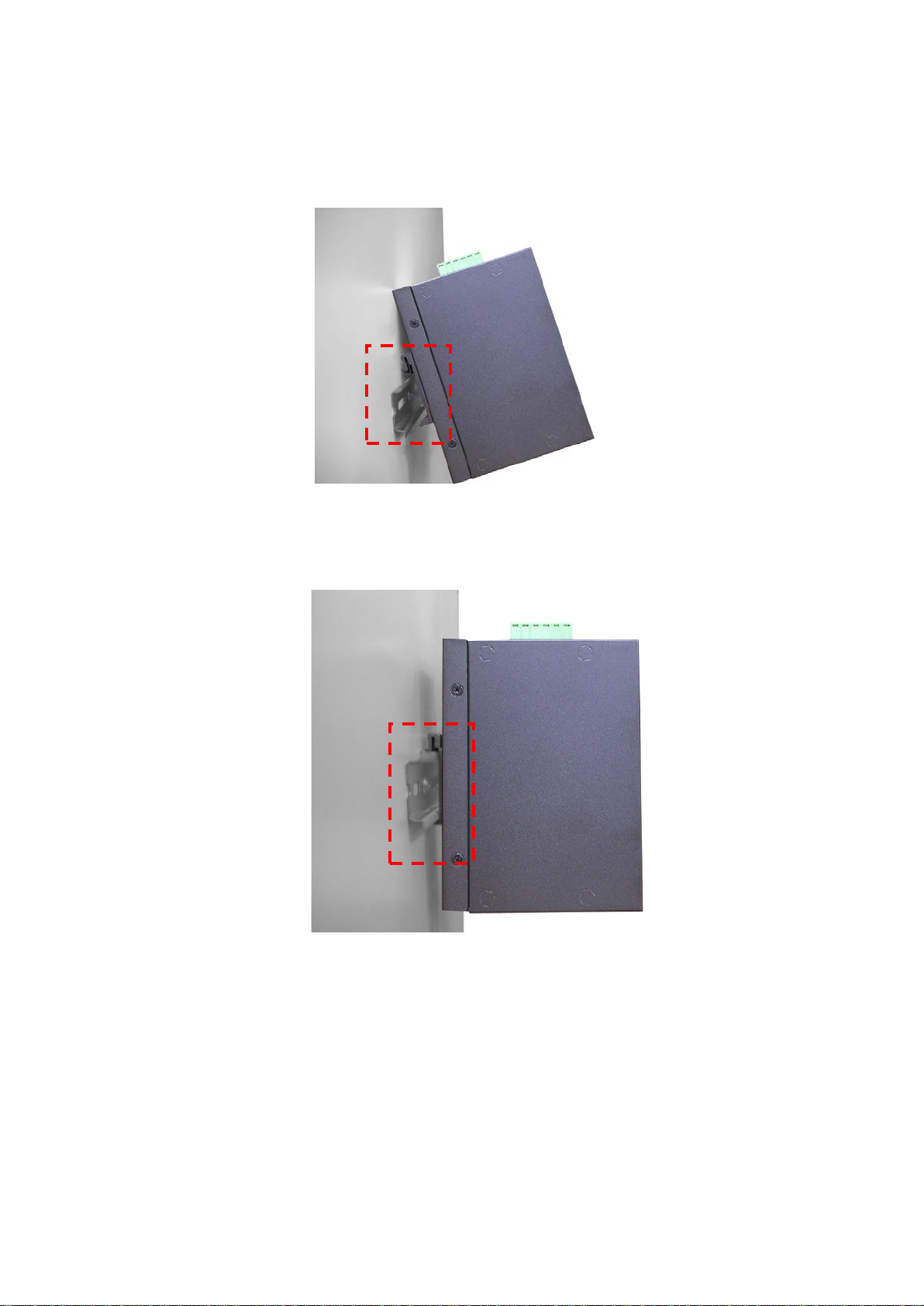

3. After the DIN-Rail is screwed on the rear side of the unit, insert the top of DIN-Rail
into the track.
4. Then, lightly push the DIN-Rail into the track.
5. Check if the DIN-Rail is securely mounted on the track.
6. To remove the industrial media converter from the track, reverse steps above.

14

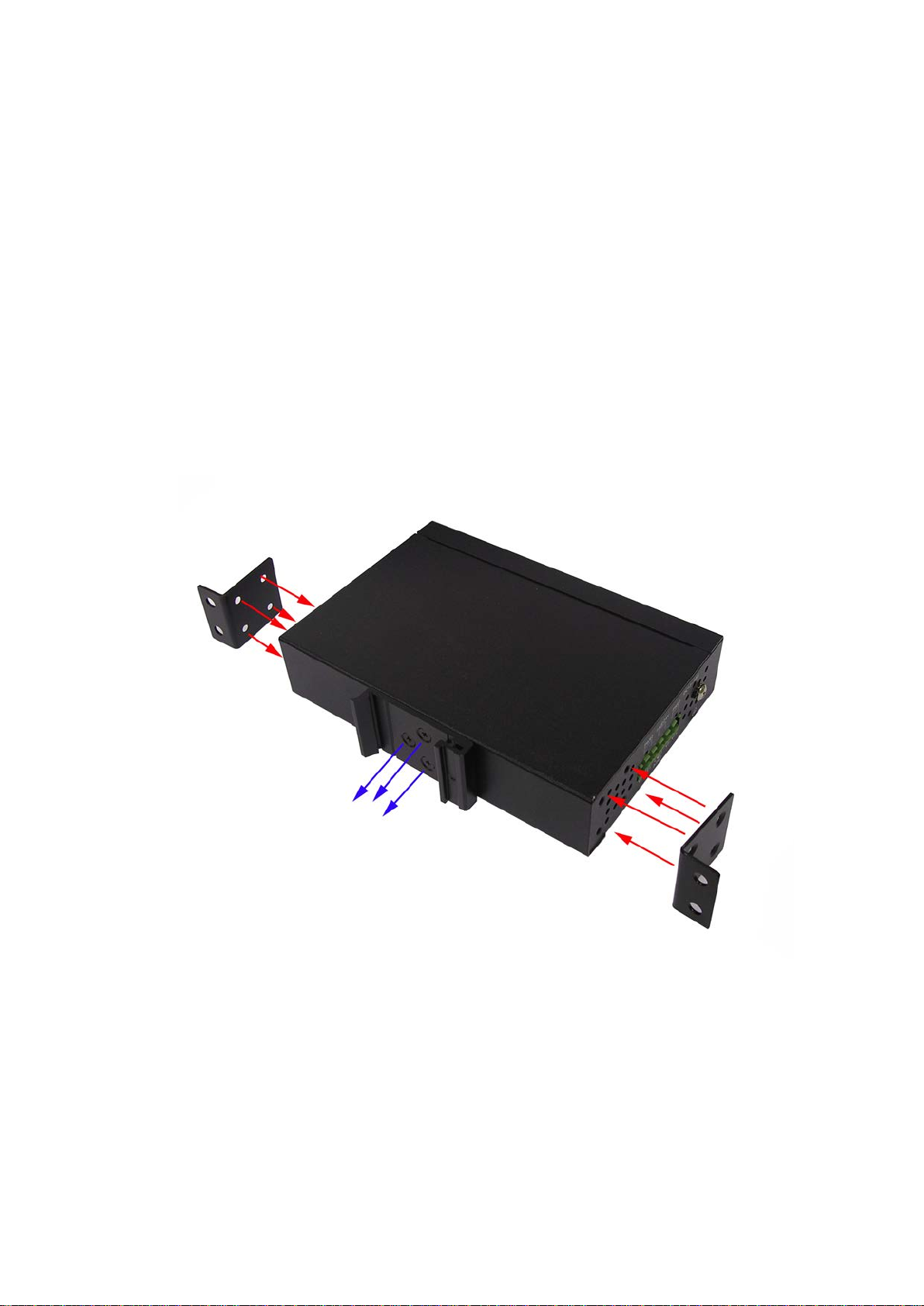

Wall Mount Plate Mounting
Follow the steps below to mount the industrial media converter with wall mount plate.
1. Remove the DIN-Rail from the industrial media converter; loosen the screws to
remove the DIN-Rail.
2. Place the wall mount plate on the top & bottom side of the industrial media converter.
3. Use the screws to install the wall mount plate on the unit.
4. Use the hook holes at the corners of the wall mount plate to mount the industrial
media converter on the wall.
5. To remove the wall mount plate, reverse steps above.

15
Hardware Installation
In this section, instructions on how to install the 1 10/100TX + 100FX w/ 1 PoE Injector
Industrial Media Converter will be provided.
Installation Steps
1. Unpack the Industrial Media Converter.
2. Check if the DIN-Rail is installed on the Industrial Media Converter. If the DIN-Rail is
not attached on the Industrial Media Converter, please refer to the DIN-Rail
Mounting section for DIN-Rail installation. If wall mounting is desired, please refer to
Wall Mount Plate Mounting section for wall mount plate installation.
3. To mount the Industrial Media Converter on a DIN-Rail track or wall, please refer to
the Mounting Installation section.
4. Power on the Industrial Media Converter. Please refer to the Wiring the Power
Inputs section for information on how to wire for power. The power LED on the
Industrial Media Converter will light. Please refer to the LED Indicators section for
LED light indication.
5. Prepare the twisted-pair, straight through Category 5e/above cable for Ethernet
connection.
6. Insert one side of the RJ-45 cable into the Industrial Media Converter Ethernet port
and the other side to a network device Ethernet port, e.g. Switch, PC or Server. The
UTP/STP port (RJ-45) LED on the Industrial Media Converter will light when the
cable is connected to the network device. Please refer to the LED Indicators section
for LED light indication.
7. When all connections are set and all LED lights are normal, the installation is
complete.

16
Network Application
This segment provides an example to help users understand an industrial media
converter application. For a sample application using the industrial media converter,
see figure below.

17
Troubles shooting
Verify that the right power cord/adapter (DC 48V) is being used, please do not use a
power adapter with DC output voltage higher than 48V, or it will burn the converter.
Select the proper UTP/STP cable to construct your network. Please check that the
right cable is being used. Use unshielded twisted-pair (UTP) or shield twisted-pair
(STP) cable for RJ-45 connections: 100ΩCategory 3, 4 or 5 cable for 10Mbps
connections, 100ΩCategory 5 cable for 100Mbps connections, or 100ΩCategory
5e/above cable for 1000Mbps. Also, be sure that the length of any twisted-pair
connection does not exceed 100 meters (328 feet).
Diagnosing LED Indicators:To assist in identifying problems, the Media Converter
can be easily monitored through panel indicators, which describe common problems
users may encounter and where users can find possible solutions.
If the power indicator does not light up when the power cord is plugged in, users
may have a problem with the power cord. Check for loose power connections,
power losses or surges at power outlet. If you still cannot resolve the problem,
contact the local dealer for assistance.
If the Industrial Media Converter LED indicators are normal and the connected
cables are correct but the packets still do not transmit. Please check your system’s
Ethernet devices’ configuration or status.
