1.Overview
Antaira Technologies’ IMC-C1000-XX series is a compact IP30 rated gigabit Ethernet-to-Fiber media
converter featuring a 10/100/1000TX Ethernet port and a fixed fiber interface supporting ST and SC
connectors depending on model. There are models that support Multimode and Single-Mode to support
applications with a variety of fiber distances. It is perfectly designed to fulfill industrial applications that
require distance extension and high bandwidth capabilities.
The IMC-C1000-XX series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF)
function with 12~48VDC redundant power inputs with reverse polarity and overload current protection.
This product series supports DIN-rail as well as wall mountable orientations and provides operating
temperature range models in STD: -10°C to 70°C and EOT: -40°C to 80°C
1.1 Key Features
◼System Interface/Performance
•RJ-45 ports support the auto MDI function
•Embedded 1*10/100/1000Tx and 1*1000x fixed fiber port
•Store-and-forward switching architecture
•8k MAC Address Table
•Supports 10kbytes Jumbo Frame
•1Mbits memory buffer
◼Power Input
•DC 12~48V redundant power with a 4-pin removal terminal block
•Max. current 0.18A
•The power input specification is complied with the requirements of SELV (Safety Extra Low
Voltage), and the power supply should be complied with UL 61010-1 & UL 61010-2-201.
◼Operating Temperature
•Standard operating temperature model: -10°C ~ 70°C
•Extended operating temperature model (–T): -40°C ~ 80°C
◼Case/Installation
•IP-30 protection
•Installation in a Pollution Degree 2 industrial environment
•DIN-Rail and wall mount design
1.2 Package Contents
•1 - Quick Installation Guide
•1 - IMC-C1000-XX series Industrial Gigabit Media Converter
•1 - Wall mounting bracket set with screws
•1 - DC cable - 18 AWG & DC jack 5.5x2.1mm

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
6
1.3 Safety Precaution
Attention
If the DC voltage is supplied by an external circuit, please use a protection device on the
power supply input. Supply by UL Listed industrial use power. The industrial media converter’s
hardware specs, ports, cabling information, and wiring installation will be described within this
user manual.
Warning Labels
The caution label means that you should check the certain information on the user manual
when working with the device. (Shown in Figure 1)
Figure 1: Caution Label

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
7
2. Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ IMC-C1000-XX series:
10/100/1000Tx to 1000x compact industrial gigabit Ethernet media converter.
(W x D x H) is 26mm x 95mm x 75mm
Figure 2.1
Physical Dimensions

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
8
2.2 Front Panel

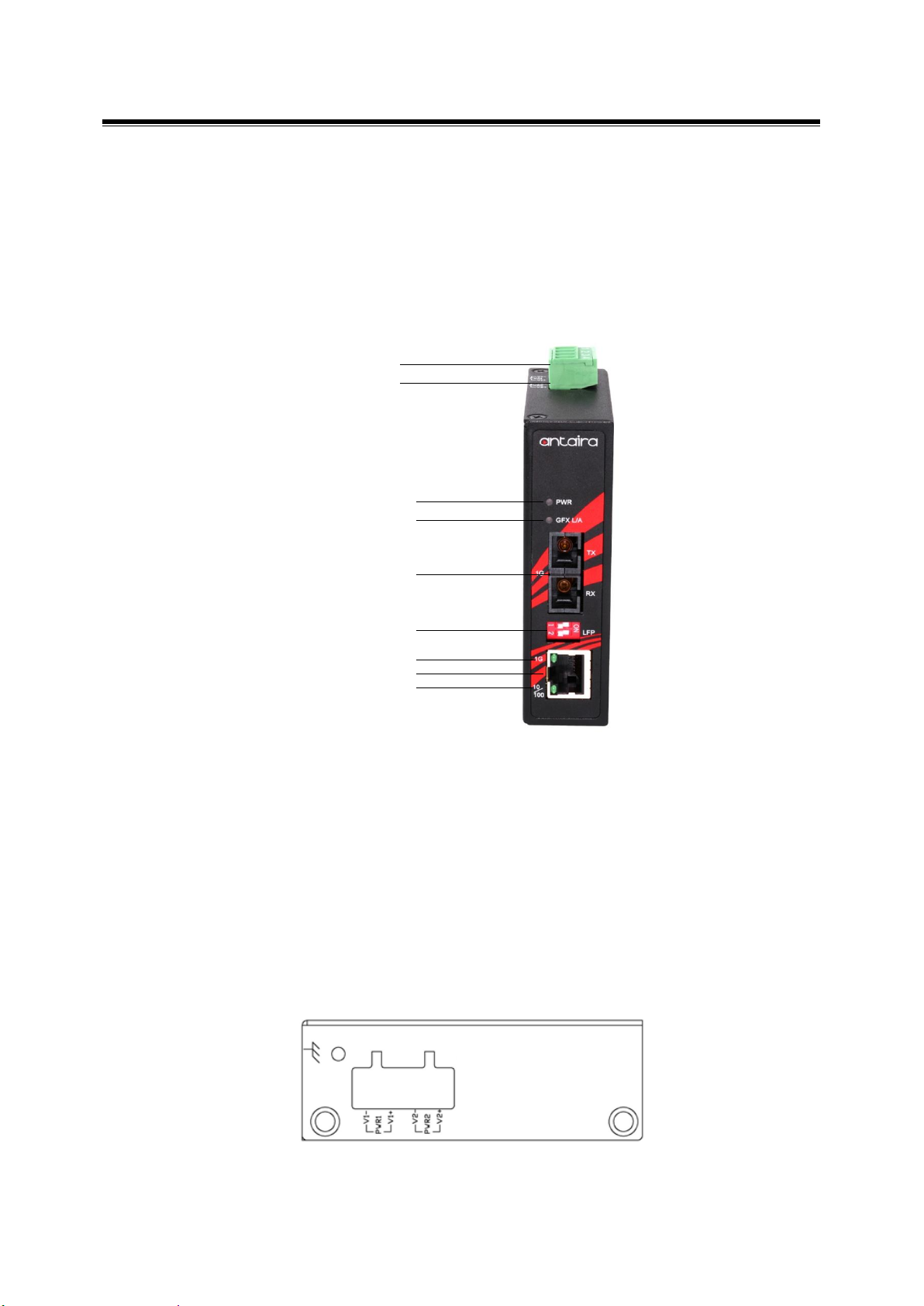

The front panel of the IMC-C1000-XX series can be seen below (Figure 2.2).
2.3 Top View
Figure 2.3, below, shows the top panel of the IMC-C1000-XX series media converter that is
equipped with one 4-pin removal terminal block connector for dual DC power inputs (12~48VDC).
Figure 2.2
Front Panel
Figure 2.3
Top Panel View
4-Pin Removal Terminal Block (Power Input)
Fiber Port –1000X
Grounding Screw
LED for PWR
DIP Switches for LFP Setting
LED for RJ45 10/100TX Network Speed Status
LED for RJ45 1000TX Network Speed Status
10/100/1000TX RJ45 Port
LED for Fiber Link/Act

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
9
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet media
converter that displays the power and network status. Each LED indicator has a different color
and has its own specific meaning, see below in Table 2.1.
LED
Color
Description
PWR
Green
On
Power input 1 or 2 is active
Off
Power input 1 and 2 are inactive
GFX L/A
Green
On
Connected to network at 1000Mbps
Flashing
Networking is active
Off
Not connected to network
RJ45 Port
(Upper LED)
Green
On
Linked to network at 1000Mbps
Flashing
Networking is active
Off
Not connected to network
RJ45 Port
(Lower LED)
Green
On
Linked to network at 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
NOTE: "PWR" is the abbreviation for "Power", "GFX" is for "Gigabit Fixed Fiber port",
and "L/A" is for "Link/Activity".
Table 2.1
LED Indicators

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
10
2.5 DIP-Switch Setting
Default setting:
There are 2 pins on DIP-switch on the front panel for setting LFP (Link Fault Pass)
function, see the Table 2.2 below for more details.
Illustration
DIP-Switch 1
DIP-Switch 2
Function Description
ON
OFF
LFP function Enable
OFF
OFF
LFP function Disable
Table 2.2
DIP-switch settings
Caution: If changing the current DIP-switch setting, the device should be powered off
and then powered on again to make the setting effective.
2.6 Ethernet Ports
◼RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 port is auto-sensing for 10/100Base-Tx or 1000Base-
Tx device connections. Auto MDI/MDIX means that the media converter can connect to another
switch or workstation without changing the straight-through or crossover cabling. See the figures

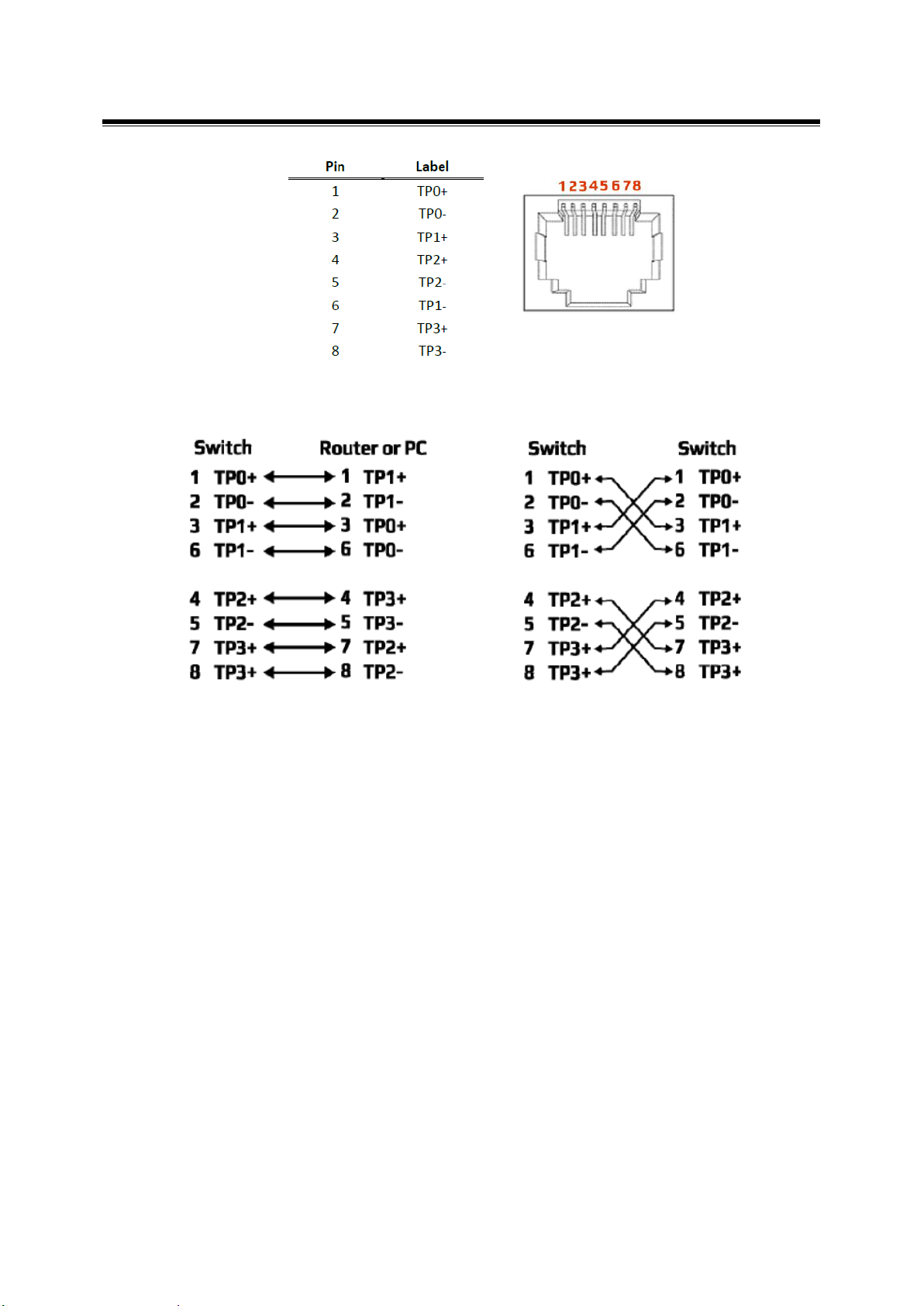

shown below for the straight-through and crossover cabling schematics.

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
11
Figure 2.4: RJ-45 Ethernet Port Pin
2.7 Cabling
◼Twisted-pair segments can be connected with an Unshielded Twisted Pair (UTP) or Shielded
Twisted Pair (STP) cable. The cable between the equipment and the link partner (media
converter, switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
◼Single-mode connector types have to use 9/125μm single-mode fiber cable, while multi-mode
connector types have to use 62.5/125μm multi-mode fiber cable.
The fiber port of SC type connector can work in multi-mode or single-mode. When connecting
the fiber port to another one, please follow the figure on the following page (Figure 2.7) to
connect accordingly. Wrong connection will cause the port to work abnormally.
Figure 2.5 Figure 2.6
Straight-Through Cables Schematic Crossover Cables Schematic

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
12
◼
Figure 2.7
SC Connector
Caution: This is a Class 1 Laser/LED product that complies with IEC 60825-1. Don’t
stare into the Laser/LED Beam.
◼
2.8 Wiring the Power Inputs
Please follow the steps below to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.8.
2. Tighten the wire-clamp screws to prevent wires from loosening as shown below in Figure 2.9.
Figure 2.9
Power Terminal Block
Figure 2.8
Power Terminal Block

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
13
Caution: Only use copper conductors, 70/80°C, tighten to 5 in-lbs (0.56 Nm).
The wire gauge for the terminal block should range between 18~20 AWG.
Grounding Note
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the ground screw to the grounding surface prior to

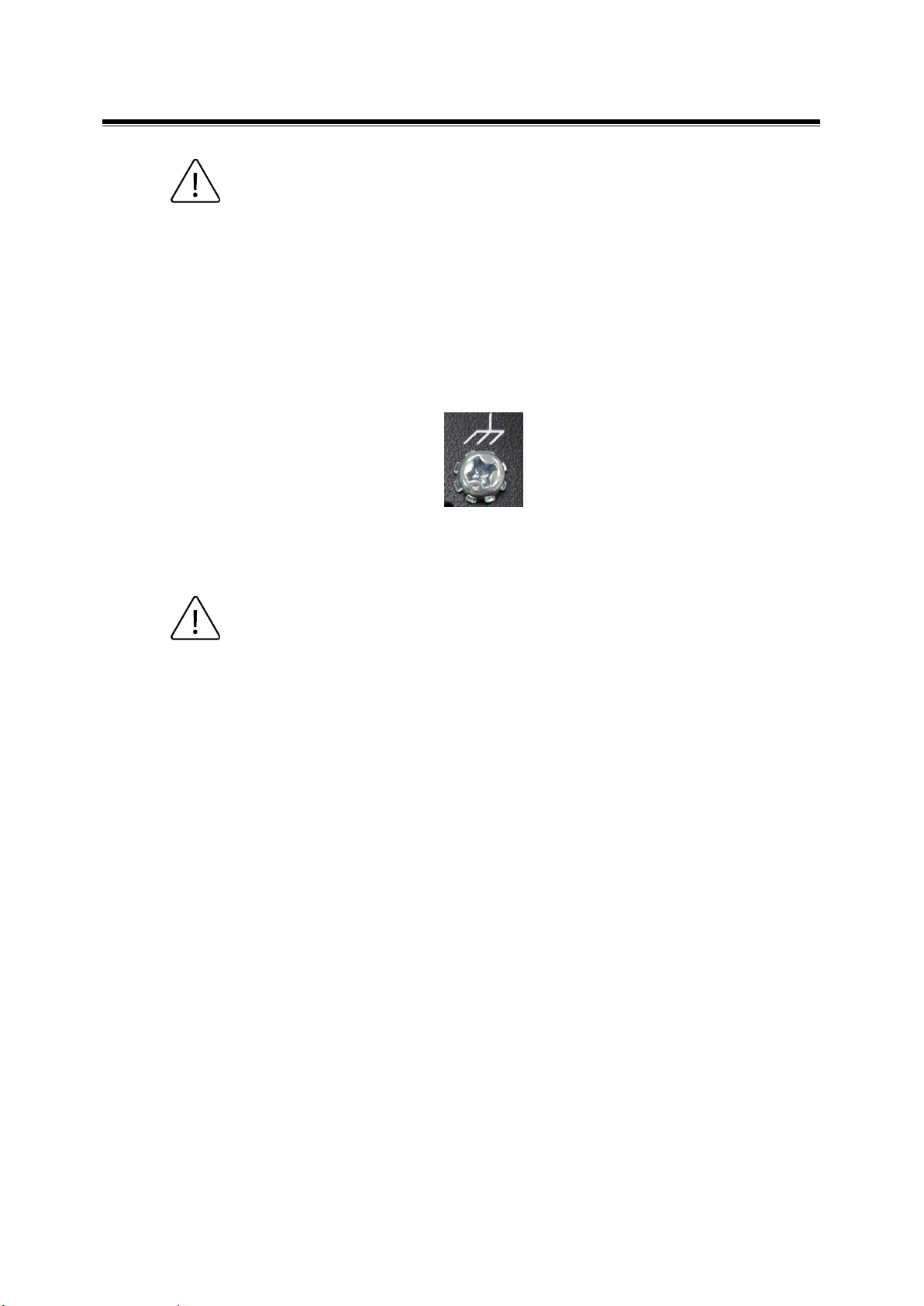

connecting devices. The grounding screw symbol is shown blow in Figure 2.10.
Figure 2.10
Grounding screw
Caution: Using a shielded cable achieves better electromagnetic compatibility.

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
14
3.Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet media converter from the factory. If the
DIN-Rail is not on the industrial Ethernet media converter, please refer to Figure 3.1 to learn how
to install the DIN-Rail on the media converter.

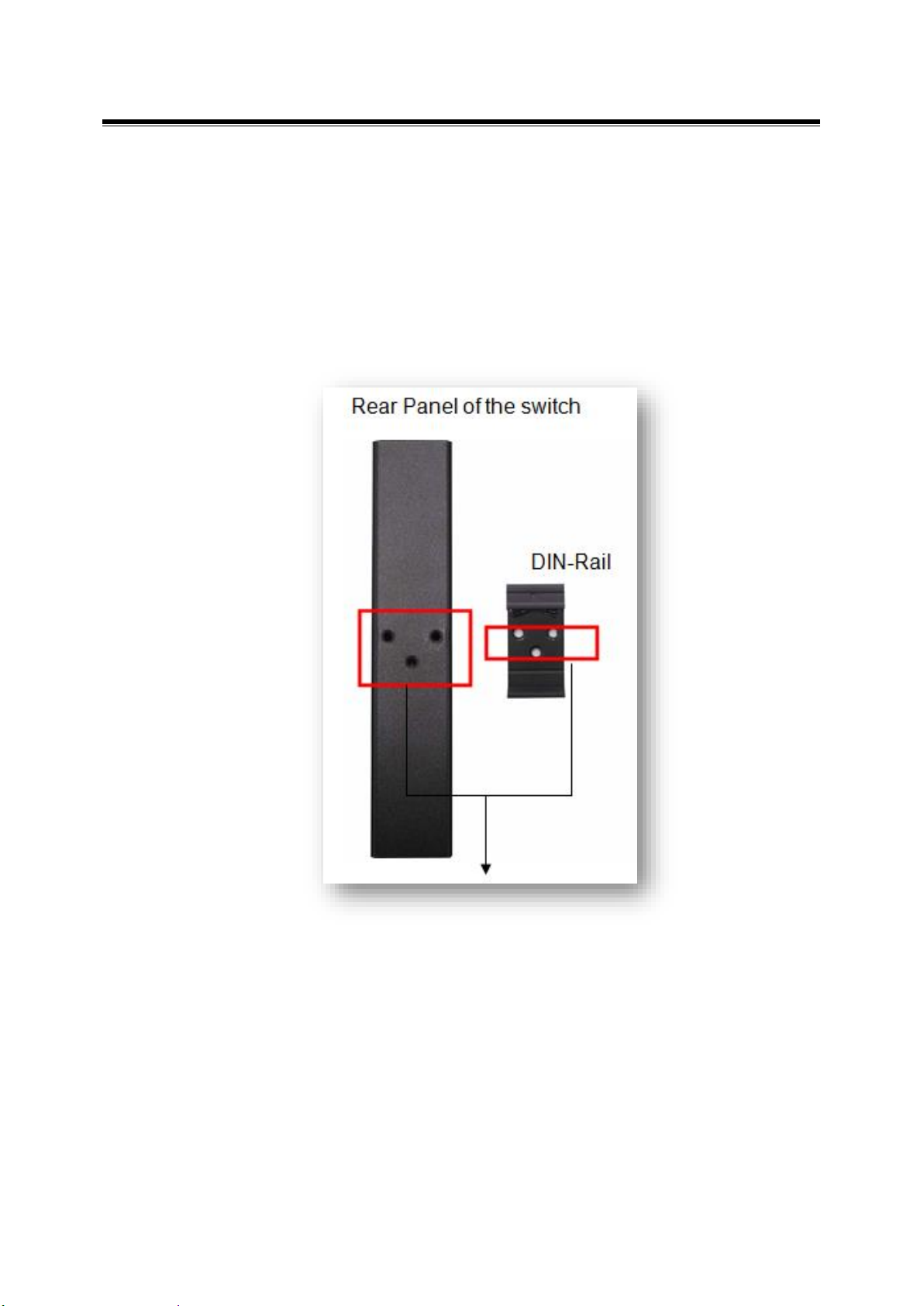

Figure 3.1
TheRear Side ofthe Media Converter and DIN-Rail Bracket

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
15
Follow the steps below to learn how to hang the industrial Ethernet media converter.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet media
converter.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the media converter, insert the top of
the DIN-Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.

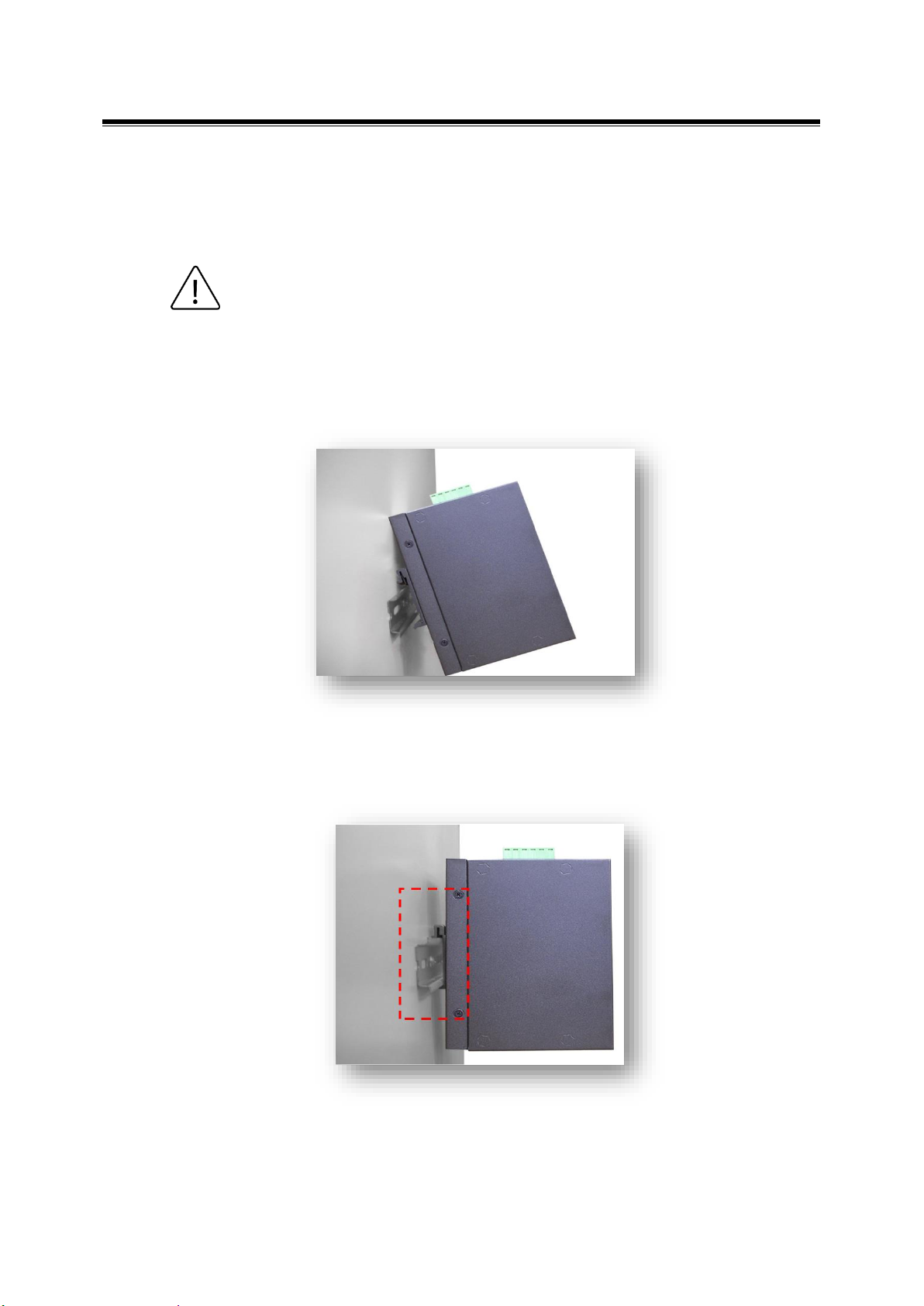

Figure 3.3
Secure on to the DIN-Rail
Figure 3.2
Insert on the DIN-Rail

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
16
6. To remove the industrial
Ethernet
media converter from the rail, do the opposite from the above
steps.
3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
media converter using the wall mounting
bracket as shown below in Figure 3.4.
Caution: “Wall” means industrial control panel wall.
1. Remove the DIN-Rail bracket from the industrial media converter by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial media converter.
3. Use the screws to screw the wall mounting bracket on the industrial media converter.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
media converter on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.

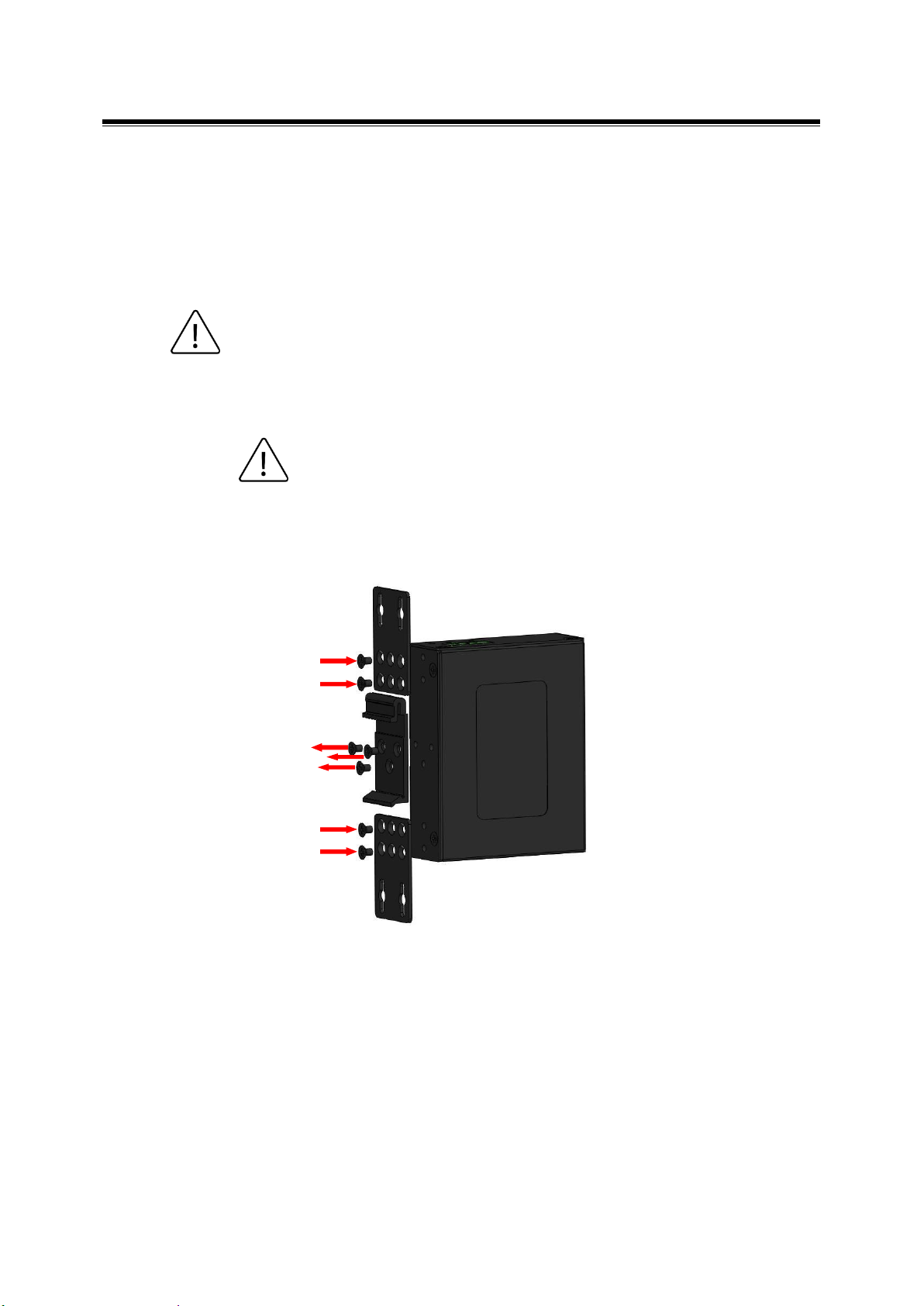

Figure 3.4
Remove DIN-Rail Bracket

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
17

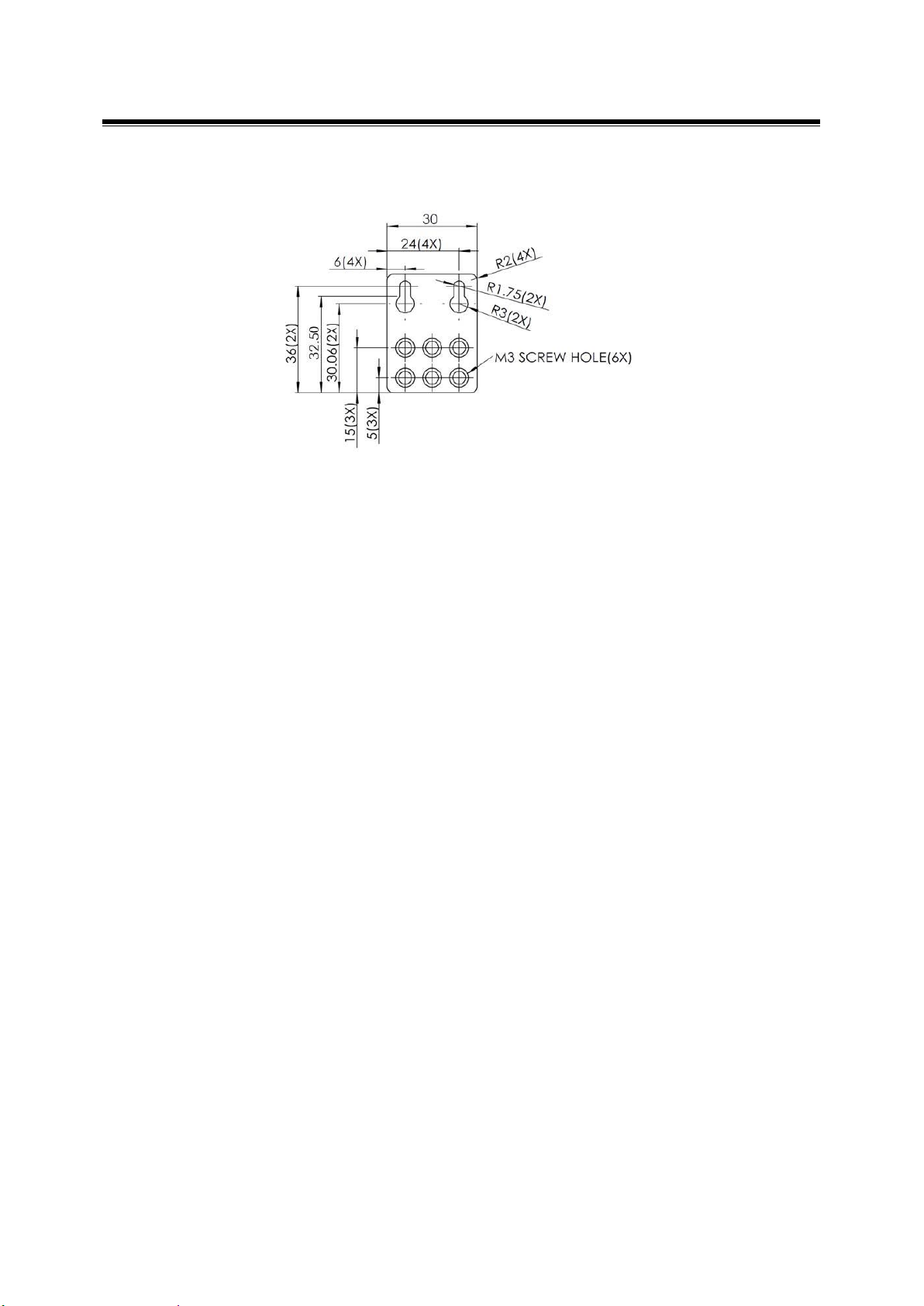

Below, in Figure 3.5, are the dimensions of the wall mounting bracket.
Figure 3.5
Wall Mounting Bracket Dimensions

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
18
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira Technologies’ IMC-C1000-XX series.
Caution:
1. This device is intended for indoor use and at altitudes up to 2000 meters.
2. This device is intended to be installed in an industrial control enclosure and panel.
Installation Steps
1. Unpack the industrial media converter from the original packing box.
2. Check if the DIN‐Rail bracket is screwed on the industrial media converter.
a. If the DIN‐Rail is not screwed on the industrial media converter, please refer to the
DIN‐Rail Mounting section for DIN‐Rail installation.
b. For wall mounting, please refer to the Wall Mounting section for wall mounting
installation.
3. For DIN‐Rail or wall mounting, please refer to the Mounting Installation section.
4. Power on the industrial media converter and then the power LED light will turn on.
a. For wiring power, please refer to the Wiring the Power Inputs section.
b. Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted‐pair, straight‐through category 5 cable for Ethernet connection.
6. Insert one side of the RJ‐45 cable into the media converter’s Ethernet port and on the other
side into the networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s
(RJ‐45) LED on the industrial media converter will turn on when the cable is connected to
the networking device.
a. Please refer to the LED Indicators section for LED light indication information.
7. Insert one side of the fiber cable into the media converter’s fiber port and on the other side
into the networking device’s fiber port, e.g. switch or server. The fiber port’s LED on the
industrial media converter will turn on when the cable is connected to the networking device.
a. Please refer to the LED Indicators section for LED light indication information.
8. When all connections are set and the LED lights all show normal, the installation process is
complete.

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
19
4.2 Maintenance and Service
•If the device requires servicing of any kind, the user is required to disconnect and remove it from
its mounting. The initial installation should be done in a way that makes this as convenient as
possible.
•Voltage/power lines should be properly insulated as well as other cables. Be careful when
handling them so as to not trip over.
•Do not under any circumstance insert foreign objects of any kind into the heat dissipation holes
located in the different faces of the device. This may not only harm the internal layout, but might
cause harm to user as well.
•Do not under any circumstance open the device for any reason. Please contact your dealer for
any repair needed or follow the instructions within the manual.
•Clean the device with dry soft cloth.

Antaira Technologies - Industrial Media Converter
IMC-C1000-XX Series User Manual V1.1
20
5. Network Application
This segment provides an example of an industrial Ethernet media converter application
(Figure 5.1).
Figure 5.1
Industrial Gigabit Media Converter
Application Example
