IMP-C1000-SFP Series User Manual V1.2
i
IMP-C1000-SFP Series
10/100/1000TX to 100/1000FX Compact Industrial Gigabit
Media Converter with SFP Slot and PoE Injector
Version 1.2
User Manual

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
ii
© Copyright 2018 Antaira Technologies, LLC.
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are
the trademarks of Microsoft Corp. All other brand and product names are trademarks or registered trademarks of
their respective owners.
Disclaimer
Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC. may make improvements and/or changes to the product and/or specifications of the product described in
this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
iii
FCC Notice
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment, this product may cause radio interference in which case
the user may be required to take adequate measures.
Industrial Ethernet Media Converters
User Manual (Feb 2020)
This manual supports the following models:
IMP-C1000-SFP
IMP-C1000-SFP-T
Please check our website (www.antaira.com) for any updated manual or contact us by e-mail
([email protected]).

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
ii
Table of Contents
1. Overview ............................................................... 1
1.1Key Features...................................................... 1
1.2Package Contents.............................................. 1
1.3Safety Precaution............................................... 2
2. Hardware Description.......................................... 3
2.1 Physical Dimensions.......................................... 3
2.2 Front Panel ........................................................ 4
2.3 Top View............................................................ 4
2.4 LED Indicators ................................................... 5
2.5 DIP-Switch Setting............................................. 5
2.6 Ethernet Ports.................................................... 6
2.7 Cabling............................................................... 6
2.8 Wiring the Power Inputs..................................... 9
3. Mounting Installation......................................... 10
3.1 DIN-Rail Mounting............................................ 10
3.2 Wall Mounting .................................................. 12
4. Hardware Installation................................................ 13
4.1 Installation Steps.............................................. 13
5. Network Application ................................................. 14
6. Trouble Shooting ...................................................... 15
7. Technical Specifications.......................................... 16

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
1
1.Overview
Antaira Technologies’ IMP-C1000-SFP series is a compact IP-30 rated gigabit Ethernet-to-fiber
media converter featuring a 10/100/1000TX Ethernet port that supports IEEE 802.3at high power
PoE that can supply up to 30 watts, and a dual rate 100/1000 SFP slot. It is perfectly designed to
fulfill industrial applications that require distance extension and high bandwidth capabilities. This
small form factor is ideal for saving space in outdoor applications such as factory automation,
security, ITS transportation, power/utility, water wastewater treatment plants, and any other
extreme ambient weather environments.
The IMP-C1000-SFP series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault”
(FEF) function with 48~55VDC redundant power inputs with reverse polarity and overload current
protection. This product series supports DIN-rail as well as wall mountable orientations. There are
two operating temperature range models in STD: -10°C to 70°C and EOT: -40°C to 80°C.
1.1 Key Features
System Interface/Performance
RJ-45 ports support the auto MDI function
Embedded 1-port PoE injection
Embedded 1*10/100/1000Tx (PSE 30W) and 1*100/1000Fx
Store-and-forward switching architecture
Power Input
DC 48~55V redundant power with a 4-pin removal terminal block
Operating Temperature
Standard operating temperature model: -10°C ~ 70°C
Extended operating temperature model (–T): -40°C ~ 80°C
Case/Installation
IP-30 protection
DIN-Rail and wall mount design
1.2 Package Contents
1 - Quick Installation Guide
1 - IMP-C1000-SFP Industrial Gigabit Media Converter
1 - Wall mounting bracket set with screws
1 - DC cable - 18 AWG & DC jack 5.5x2.1mm

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
2
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection device
on the power supply input. The industrial Ethernet media converter’s hardware
specs, ports, cabling information, and wiring installation will be described within this
user manual.

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
3
2. Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ IMP-C1000-SFP series:
10/100/1000Tx to 100/1000Fx compact industrial gigabit Ethernet media converter.
(W x D x H) is 26mm x 95mm x 75mm
Figure 2.1
Physical Dimensions

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
4
2.2 Front Panel
The front panel of the IMP-C1000-SFP series: 10/100/1000Tx to 100/1000Fx industrial compact
gigabit Ethernet media converter can be seen below (Figure 2.2).
2.3 Top View
Figure 2.3, below, shows the top panel of the IMP-C1000-SFP series media converter that is
equipped with one 4-pin removal terminal block connector for dual DC power inputs (48~55VDC).
Figure 2.2
Front Panel
Figure 2.3
Top Panel View
4-Pin Removal Terminal Block (Power Input)
Fiber Port –100/1000FX
Grounding Screw
LED for PWR
DIP Switches for LFP Setting
LED for RJ45 10/100TX Network Speed Status
LED for RJ45 1000TX Network Speed Status
10/100/1000TX RJ45 Port
LED for Network Fiber Connection
LED for PoE

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet media
converter that displays the power and network status. Each LED indicator has a different color
and has its own specific meaning, see below in Table 2.1.
LED
Color
Description
Power
Green
On
Power input 1 or 2 is active
Off
Power input 1 and 2 are inactive
LINK/ACT
(SFP Slot)
On
Connected to network at 100/1000Mbps
Green
Flashing
Networking is active
Off
Not connected to network
RJ45 Port
(Upper LED)
Green
On
Linked to network at 1000Mbps
Flashing
Networking is active
Off
Not connected to network
RJ45 Port
(Lower LED)
Green
On
Linked to network at 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
PoE
Green
On
The port is supplying power to the powered-device
Off
No powered-device attached or power supplying fails
2.5 DIP-Switch Setting
There are 2‐sets of DIP‐switches on the front panel that can be utilized as an SFP (link
fault pass) function and as an SFP transmission rate (see below in Table 2.2).
DIP 1
DIP 2
Description
ON
ON
LFP Enable and Set SFP to 100Mbps
ON
OFF
LFP Enable and Set SFP to 1000Mbps
OFF
ON
LFP Disable and Set SFP to 100Mbps
OFF
OFF
LFP Disable and Set SFP to 1000Mbps (Default)
Table 2.1
LED Indicators
Table 2.2
Note: After any DIP switch changes have been
made, it is required to power cycle the unit for the
changes to take effect.

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
6

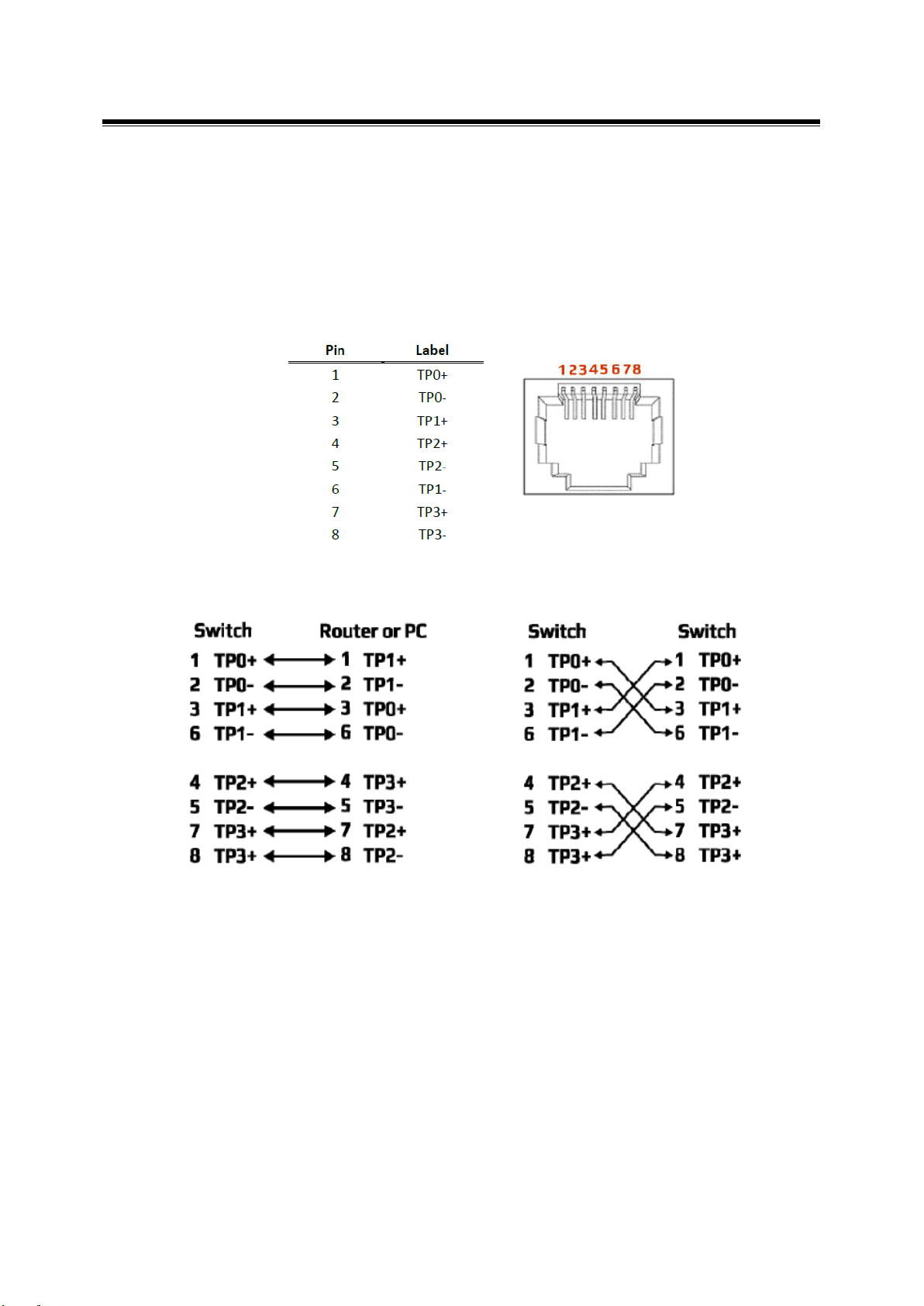

2.6 Ethernet Ports
RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 port is auto-sensing for 10/100Base-Tx or 1000Base-
Tx device connections. Auto MDI/MDIX means that the media converter can connect to another
switch or workstation without changing the straight-through or crossover cabling. See the figures
shown below for the straight-through and crossover cabling schematics.
Figure 2.4: RJ-45 Ethernet Port Pin
2.7 Cabling
Twisted-pair segments can be connected with an Unshielded Twisted Pair (UTP) or Shielded
Twisted Pair (STP) cable. The cable between the equipment and the link partner (media
converter, switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
The Small Form Factor pluggable (SFP) is a compact optical transceiver used in optical
communications for both telecommunication and data communication applications.
Figure 2.5 Figure 2.6
Straight-Through Cables Schematic Crossover Cables Schematic

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
7

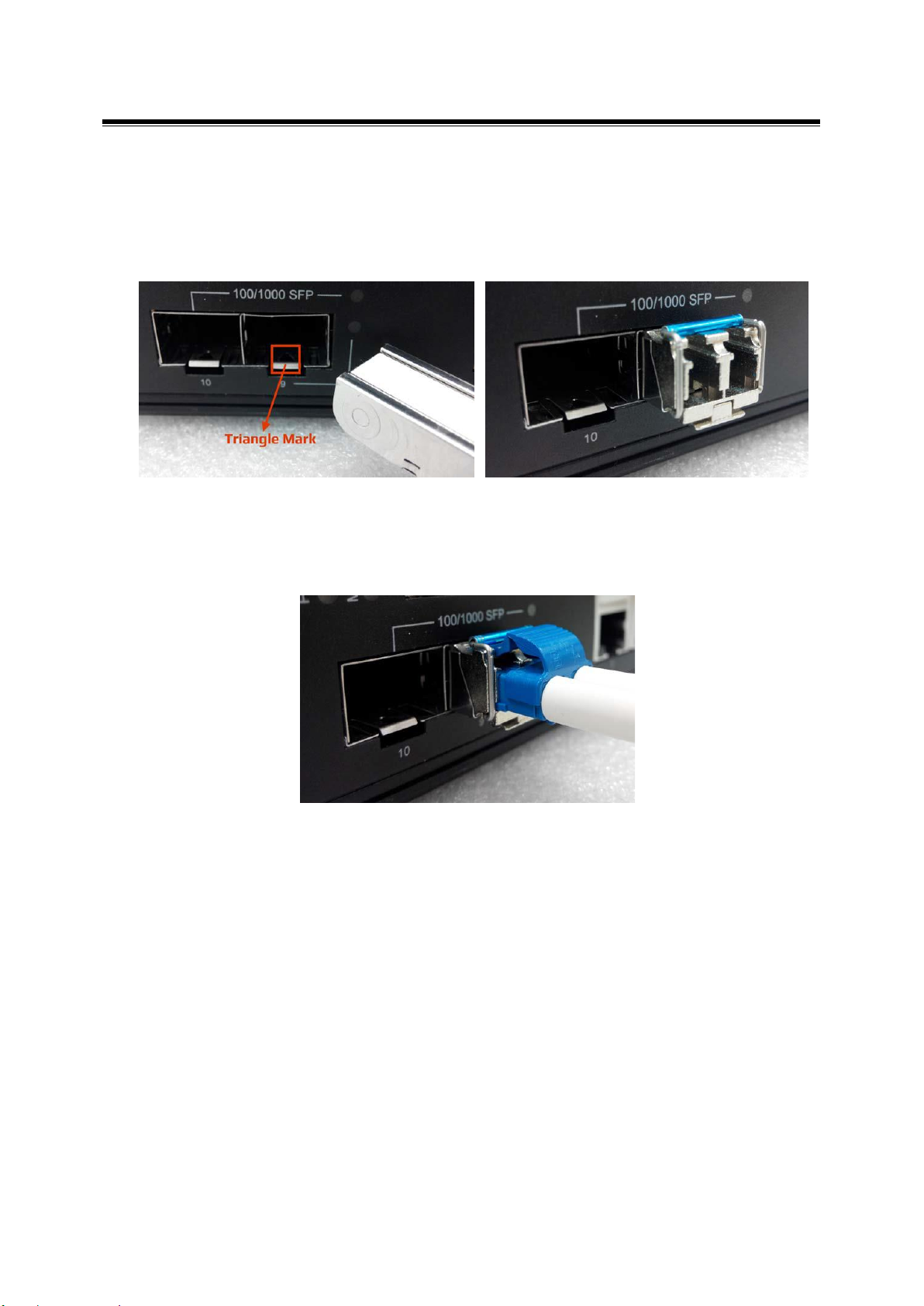

To connect the transceiver and LC cable, please follow the steps below:
oStep 1 - Insert the SFP transceiver module into the SFP slot as shown below in
Figure 2.7. Notice that the triangle mark is at the bottom of the SFP slot.
Figure2.8shows the SFP transceiver module was inserted.
oStep 2 - Insert the fiber cable of the LC connector into the transceiver as shown
below in Figure 2.9.
Figure 2.7 - Transceiver to the SFP Slot
Figure 2.8 - Transceiver Inserted
Figure 2.9 - LC Connector to the Transceiver

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
8

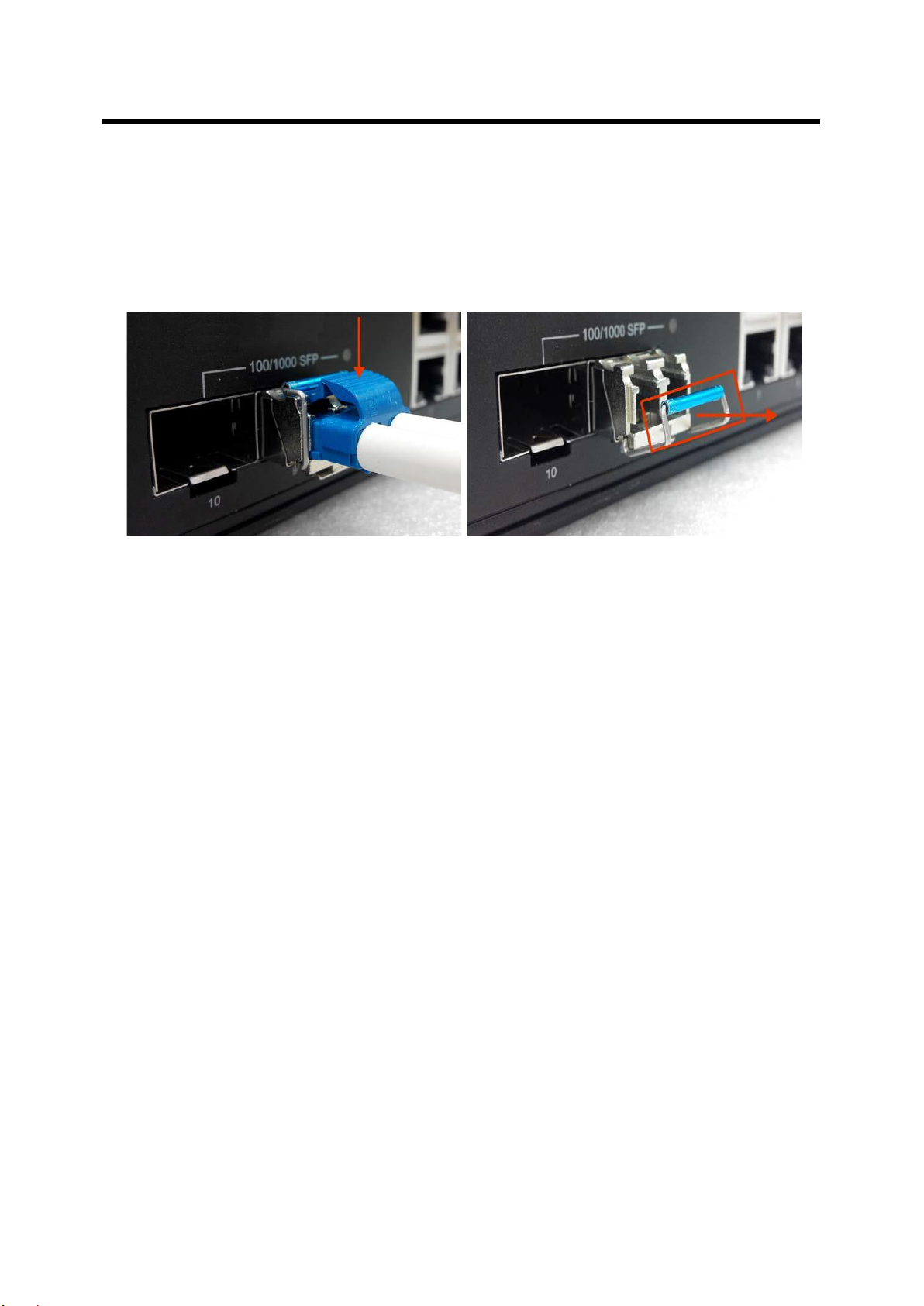

To remove the LC connector from the transceiver, please follow the steps shown below:
oStep 1 -Press the upper side of the LC connector from the transceiver and pull it
out to release as shown below in Figure 2.10.
oStep 2 - Push down the metal clasp and pull the transceiver out by the plastic part
as shown below in Figure 2.11.
Figure 2.10 –Remove LC Connector
Figure 2.11 –Pull Out from SFP Slot

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
9
2.8 Wiring the Power Inputs
Please follow the steps below to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.12.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure
2.13.
**Note:
Only use copper conductors, 60/75°C, tighten to 5 lbs.
The wire gauge for the terminal block should range between 18~20 AWG.
Figure 2.13
Power Terminal Block
Figure 2.12
Power Terminal Block

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
10
3.Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial Ethernet media converter from the factory. If the
DIN-Rail is not on the industrial Ethernet media converter, please refer to Figure 3.1 to learn how
to install the DIN-Rail on the media converter.
Figure 3.1
TheRear Side ofthe Media Converter and DIN-Rail Bracket

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
11
Follow the steps below to learn how to hang the industrial Ethernet media converter.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet media
converter.
2. To remove the DIN-Rail bracket, do the opposite from step 1.

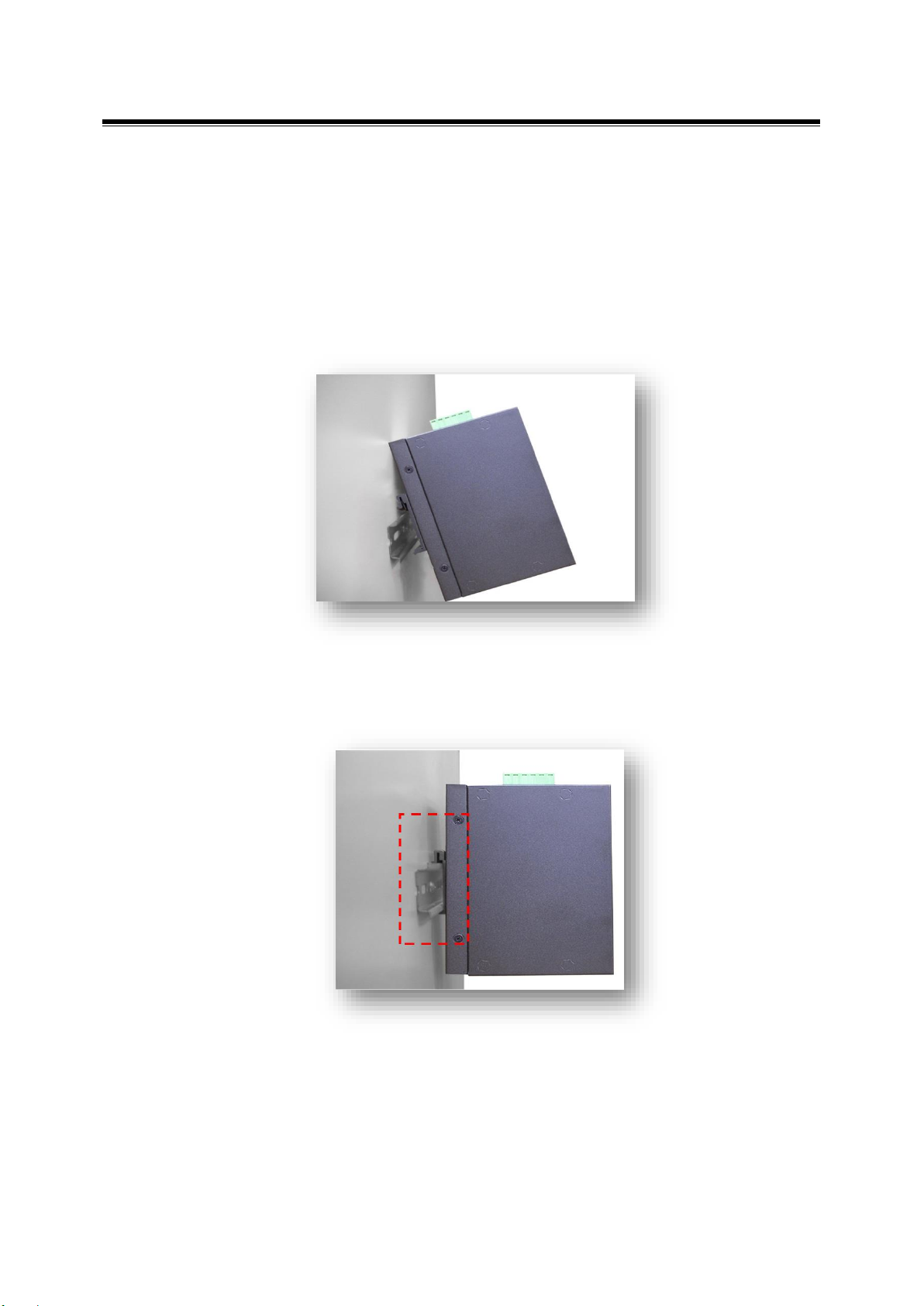

3. After the DIN-Rail bracket is installed on the rear side of the media converter, insert the top of
the DIN-Rail onto the track as shown below in Figure 3.2.
4. Lightly pull down the bracket onto the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
media converter from the rail, do the opposite from the above
steps.
Figure 3.3
Secure on to the DIN-Rail
Figure 3.2
Insert on the DIN-Rail

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
12
3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
media converter using the wall mounting
bracket as shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the industrial media converter by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial media converter.
3. Use the screws to screw the wall mounting bracket on the industrial media converter.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
media converter on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.4
Remove DIN-Rail Bracket
Figure 3.5
Wall Mounting Bracket Dimensions

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
13
4. Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira Technologies’ IMP-C1000-SFP (-T) series:
10/100/1000Tx to 100/1000Fx industrial compact gigabit Ethernet media converter.
Installation Steps
1. Unpack the industrial media converter from the original packing box.
2. Check if the DIN‐Rail bracket is screwed on the industrial media converter.
a. If the DIN‐Rail is not screwed on the industrial media converter, please refer to the
DIN‐Rail Mounting section for DIN‐Rail installation.
b. For wall mounting, please refer to the Wall Mounting section for wall mounting
installation.
3. For DIN‐Rail or wall mounting, please refer to the Mounting Installation section.
4. Power on the industrial media converter; the power LED light will turn on.
a. For wiring power, please refer to the Wiring the Power Inputs section.
b. Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted‐pair, straight‐through category 5 cable for Ethernet connection.
6. Insert one side of the RJ‐45 cable into the media converter’s Ethernet port and on the other
side into the networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s
(RJ‐45) LED on the industrial media converter will turn on when the cable is connected to
the networking device.
a. Please refer to the LED Indicators section for LED light indication information.
7. Insert one side of the SFP cable into the media converter’s SFP port and on the other side
into the networking device’s SFP port, e.g. switch or server. The SFP port’s LED on the
industrial media converter will turn on when the cable is connected to the networking device.
a. Please refer to the LED Indicators section for LED light indication information.
8. When all connections are set and the LED lights all show normal, the installation process is
complete.

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
14
5. Network Application
This segment provides an example of an industrial Ethernet media converter application
(Figure 5.1).
Figure 5.1
Industrial Gigabit Media Converter
Application Example

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
15
6. Trouble Shooting
Always verify the right power cord or adapter is being used. Never use a power supply or
adapter with a non-compliant DC output voltage or it will burn the equipment.
Select the proper UTP or STP cable in order to construct the network. Use an Unshielded
Twisted-Pair (UTP) or Shield Twisted-Pair (STP) cable for RJ-45 connections: 100Ω
Category 5e for 10/100/1000Mbps. Also be sure that the length of any twisted-pair
connection does not exceed 100 meters (328 feet).
Diagnosing LED Indicators: To assist in identifying problems, the media converter can be
easily monitored with the LED indicators which help to identity if any problems exist.
oPlease refer to the LED Indicators section for LED light indication information.
If the power indicator LED does not turn on when the power cord is plugged in, the user
may have a problem with the power cord. Check for loose power connections, power losses
or surges at the power outlet.
oPlease contact Antaira for technical support if the problem cannot be resolved.
If the industrial media converter LED indicators are normal and the connected cables are
correct but the packets still cannot transmit, please check the system’s Ethernet devices’
configuration or status.

Antaira Technologies - Industrial Media Converter
IMP-C1000-SFP Series User Manual V1.2
16
7. Technical Specifications
Table 7.1 has the technical specifications for Antaira Technologies’IMP-C1000-SFP series:
10/100/1000Tx to 100/1000Fx w/ 1 PoE injector industrial compact Gigabit Ethernet media converter.
Standards
IEEE 802.3
10Base-T 10Mbit/s Ethernet
IEEE 802.3u
100Base-TX, Fast Ethernet
IEEE 802.3ab
1000Base-TX Gigabit Ethernet
IEEE 802.3af
Power-over-Ethernet
IEEE 802.3at
Power-over-Ethernet Plus (Enhanced)
IEEE 802.3u
100Base-FX, Fast Fiber
IEEE 802.3z
1000Base-X Gigabit Fiber
Technology
Protocol
CSMA/CD
Data Process
Store and Forward
Transfer Rate
14,880 pps for 10Base-T Ethernet port
148,800 pps for 100Base-TX Fast Ethernet port
1,4888,000 pps for Gigabit Ethernet port
Transmission Distance
Up to 100m (Ethernet) ; Up to 120Km for fiber dependent on SFP
Transmission Speed
Up to 1000Mbps
Port Interface
Ethernet (RJ45) Port
1*10/100/1000Tx auto negotiation speed, full/half duplex mode, and auto
MDI connection
Fiber Port
1*100/1000Fx SFP Slot
Fiber Wavelength
Refer to SFP Module
DIP Switch
DIP Switch 1: LFP(Link Fault Pass) Enable/Disable
DIP Switch 2: 1000Mbps / 100Mbps
LED Indicator
1000: On (Ethernet 1000Mbps Link). Flashing (networking is active)
10/100: On (Ethernet 10/100Mbps Link). Flashing (networking is active)
L/A: SFP Link/Active
Network Cable
10BaseT: 2-pair UTP/STP Cat.3,4,5 cable EIA/TIA-568 100-ohm (100m)
100BaseTX: 2-pair UTP/STP Cat.5 cable EIA/TIA-568 100-ohm (100m)
1000BaseTX: UTP/STP Cat. 5/5e cable EIA/TIA-568 100-ohm (100m)
PoE Pin Assignment
RJ-45 port # 1~# 4 support IEEE 802.3af End-point, Alternative A mode.
Positive (VCC+): RJ-45 pin 1, 2. Negative (VCC-): RJ-45 pin 3, 6. Data
(1,2,3,6 )
Mechanical
Characteristics
Housing
Metal IP30 protection
Dimension
26 x 95 x 75 mm
Weight
Unit Weight: 0.55 lbs. Shipping Weight: 0.99 lbs.
Mounting
DIN-Rail Mounting, wall-mounting (optional)
Power
Requirement
Input Voltage
48~55VDC Redundant Input
Power Connection
1 removable 4-contact terminal block
Power Consumption
3 Watts
Environmental
Limits
Operating Temperature
Standard: -10˚C to 70˚C (14°F to 158°F)
EOT: -40˚C to 80˚C (-40°F to 176°F)
Operating Humidity
5% to 95% (Non-Condensing)
Storage Temperature
-40˚C to 85˚C (-40°F ~ 185°F)
