ANTAIRA FCU-1802P Series User manual

100Base-FX to 10/100Base-TX
PoE
Media Converter
FCU-1802Px
User’s Manual

Trademarks
Copyright © Antaira Technologies 2013.
Contents subject to revision without prior notice.
Antaira is a registered trademark of Antaira Technologies. The
information in this manual is subject to change without notice.
All other trademarks belongs to their respective owners.
Disclaimer
Antaira Technologies does not warrant that the hardware will
work properly in all environments and applications, and makes
no warranty and representation, either implied or expressed,
with respect to the quality, performance, merchantability, or
tness for a particular purpose.
Antaira has made every effort to ensure that this User’s Manual
is accurate; Antaira disclaims liability for any inaccuracies or
omissions that may have occurred.
Information in this User’s Manual is subject to change without
notice and does not represent a commitment on the part of
Antaira. Antaira assumes no responsibility for any inaccuracies
that may be contained in this User’s Manual. Antaira makes no
commitment to update or keep current the information in this
User’s Manual, and reserves the right to make improvements
to this User’s Manual and/or to the products described in this
User’s Manual, at any time without notice.
If you nd information in this manual that is incorrect,
misleading, or incomplete, we would appreciate your comments
and suggestions.

FCC Warning
This equipment has been tested and found to comply with the
regulations for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with this user’s guide, may
cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct
the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference, in which case the user
may be required to take adequate measures.
Energy Saving Note of the Device
This power required device does not support Standby mode
operation.
For energy saving, please remove the DC-plug or push the
hardware Power Switch to OFF position to disconnect the device
from the power circuit.
Without removing the DC-Plug or switching to OFF, the device
will still consume power from the power source. In the view of
Saving Energy and reducing unnecessary power consumption, it
is strongly suggested to power off or to remove the DC-plug for
the device if this device is not intended to be active.

WEEE Warning
To avoid the potential effects on the environment and
human health as a result of the presence of hazardous
substances in electrical and electronic equipment, end
users of electrical and electronic equipment should
understand the meaning of the crossed-out wheeled bin symbol.
Do not dispose of WEEE as unsorted municipal waste and have
to collect such WEEE separately.
Revision
User’s manual for Antaira 100Base-FX to 10/100Base-TX PoE
Media Converter
Rev 1.1 (April 2013)
Part No. 2350-AA3540-470

Table of Contents
1. Overview ......................................................................... 6
2. Model List ........................................................................ 7
3. Checklist .......................................................................... 7
4. Product Outlook................................................................ 8
5. Link Fault Pass through (LFP)........................................... 10
6. Installing the Converter................................................... 13
7. PoE function ................................................................... 14
8. LED indication ................................................................ 15
9. Cable Connection Parameter ............................................ 16
10. FCU-1802Px Technical Specications ............................... 17
APPENDIX A ....................................................................... 18
A.1 Device's RJ-45 Pin Assignments ................................. 18
A.2 RJ-45 cable pin assignment ....................................... 18
A.3 Fiber Optical Cable Connection Parameter ................... 19

6
1. Overview
Thank you for purchasing Antaira's FCU-1802Px family of
10/100Mbps Ethernet Twisted pair to 100Base-FX Fiber-optic
PoE Bridge Converter. This converter is used to convert one type
media signal to another easily, efciently and inexpensively. The
converter provides Power over Ethernet power injector function
which is able to drive one IEEE 802.3af compliant powered
devices.

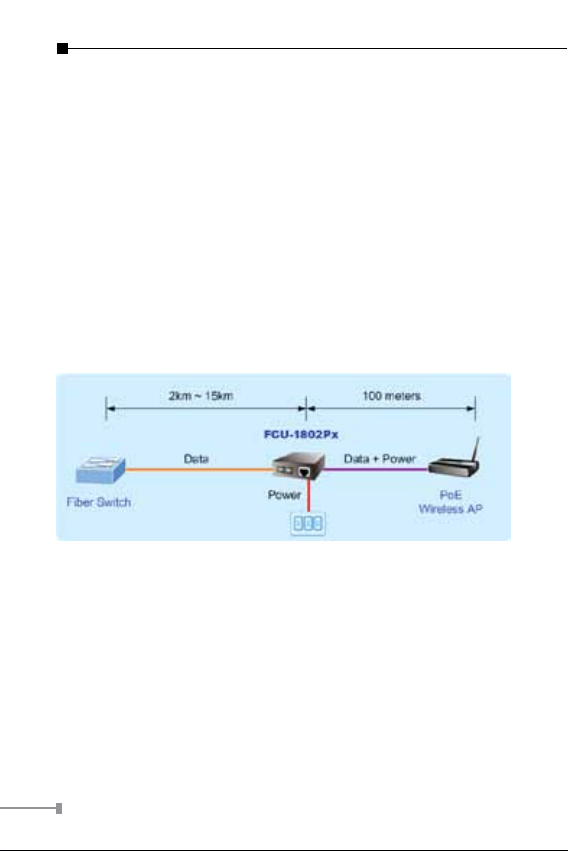

About the Power over Ethernet Injector
The FCU-1802Px has an IEEE 802.3af Power over Ethernet
Injector that provides DC 48V over Ethernet cables. The
FCU-1802Px IEEE 802.3af Power over Ethernet Injector inserts
DC Voltage into Cat.5 cable, allowing the cable between the
Injector (FCU-1802Px) and PoE PD (Powered Device) to transfer
data and power simultaneously. The maximum distance between
the Injector (FCU-1802Px) and PoE PD is 100 meters. With
the FCU-1802Px installed, it combines the Ethernet digital data
with power over the twisted pair cables as an IEEE 802.3af
Power over Ethernet Injector. And the IEEE 802.3af Power over
Ethernet splitter shall separate the digital data and the power
into two outputs.
With IEEE 802.3af Power over Ethernet devices installed, the
system administrator only has to use a single RJ-45 Ethernet
cable to carriy both power and data to each device. Aside from
connecting through the FCU-1802Px and PoE PD, you can also
have the benet of cost saving, easy for networking planning,
and higher reliability. Moreover, upon any IEEE 802.3af device
installation, the FCU-1802Px or PD can make the connection
while migrating the Ethernet digital packets, such as connecting
the FCU-1802Px to an IEEE 802.3af complied devices, AP or IP
Camera.

7
2. Checklist
Your FCU-1802Px package should contain the following items:
●100Base-FX to 10/100Base-TX PoE Media Converter x 1
●AC-DC Power Adapter (Input: 48V DC, 0.4A max.) x 1
●User’s Manual x 1
If any items are missing or damaged, please consult the dealer
from which you purchased your PoE Media Converter.

8
3. Product Outlook
Overview
Layout of the FCU-1802Px.
Bottom
Rear Panel
TOP Panel
Front Panel
48V DC
OFF
LFP
ON

9
Left View
There are one RJ-45 Twisted-Pair jack (Auto-MDI/MDI-X), one
ber-optic connector (vary by model) and four LED indicators.
PWR
TX RX
FX TP
PoE
In Use 10/100Base-TX
PoE Media Converter
10/100Base-TX to 100Base-FX
LNK/
ACT
Right View
One DIP switch for Link Fault Pass Through (LFP) feature,
“ON” to turn-on the LLCF and LLR detection. And “OFF” to turn
–off this feature. Please refer to the following sections for more.
Also one DC 48V power socket for the PoE Media Converter.
48V DC
OFF
LFP
ON

10
4. Link Fault Pass through (LFP)
The LFP function includes the Link Fault Pass Through
function (LLCF/LLR) and the DIP Switch design. LLCF/LLR can
immediately alert administrators about problems with the link
media and provide an efcient solution to monitor the net. The
DIP Switch can disable or enable the LFP function.
With LLCF (Link Loss Carry Forward), when a device connected
to the converter loses the TP line link, the converter’s ber will
disconnect the link of transmit. With LLR (Link Loss Return),
when a device connected to the converter and loses the ber
line link, the converter’s ber will disconnect the link of transmit.
Both can immediately alert administrators about link media
problems and provide an efcient solution to monitor the net.
Link Loss Carry Forward (LLCF)
The FCU-1802Px incorporates an LLCF function for
troubleshooting a remote connection. When LFP function is
enabled, the FL/TP ports do not transmit a link signal until they
receive a link signal from the opposite port.

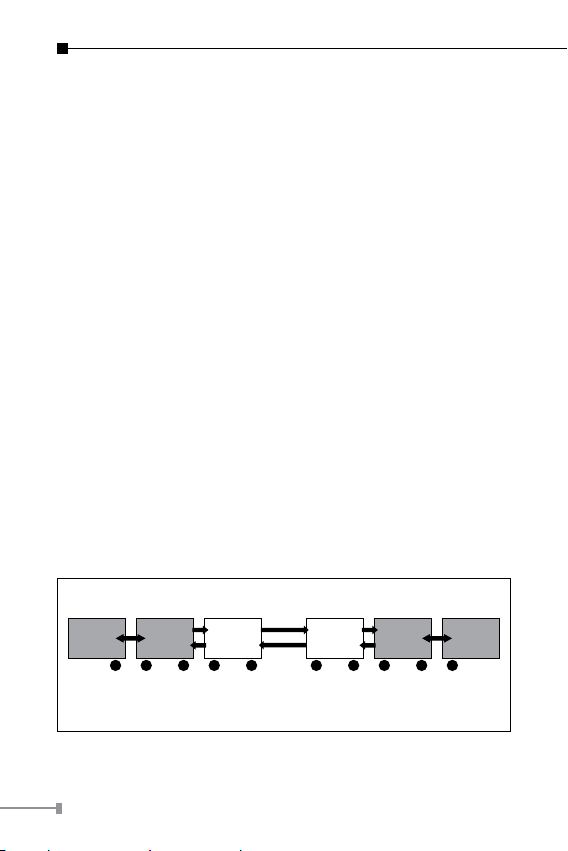

The diagram below shows a typical network conguration with a
good link status using the FCU-1802Px for remote connectivity.
Media
Converter
Management
Station
Switch/Hub
w/SNMP
Management
Station
Media
Converter
Switch/Hub
w/SNMP
TP TP
Fiber
Cable
LFP ONLFP ON
lLED lit = established link °LED unlit = no link
Media
Converter
Management
Station
Switch/Hub
w/SNMP
Management
Station
Media
Converter
Switch/Hub
w/SNMP
TP TP
Broken
Fiber
Cable
LFP ONLFP ON
lLED lit = established link °LED unlit = no link

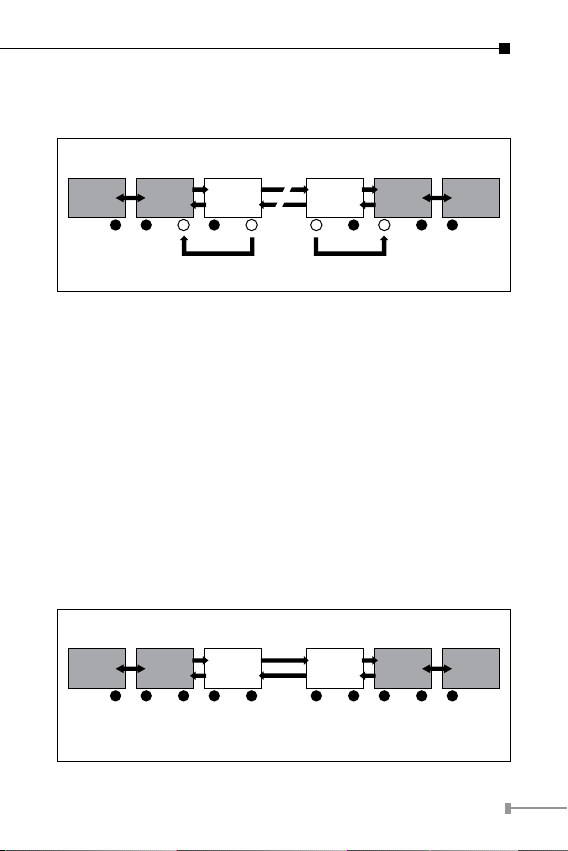

If the connection breaks, the FCU-1802Px link loss forwards
to the switch/hub that generates a trap to the management

11
station. The administrator can then determine the source of the
problem.
Media
Converter
Management
Station
Switch/Hub
w/SNMP
Management
Station
Media
Converter
Switch/Hub
w/SNMP
TP TP
Fiber
Cable
LFP ONLFP ON
lLED lit = established link °LED unlit = no link
Media
Converter
Management
Station
Switch/Hub
w/SNMP
Management
Station
Media
Converter
Switch/Hub
w/SNMP
TP TP
Broken
Fiber
Cable
LFP ONLFP ON
lLED lit = established link °LED unlit = no link
*Units are shipped with the LFP function disable (OFF).
Link Loss Return (LLR)
The ber ports of the FCU-1802Px have been designed with an
LLR function for troubleshooting a remote connection. LLR works
in conjunction with LLCF.
When LFP function is enabled, the port’s transmitter shuts down
when its receiver fails to detect a valid receive link. LLR should
only be enabled on one end of the link and is typically enabled
on either the unmanaged or remote device.
The diagram below shows a typical network conguration with a
good link status using the FCU-1802Px for remote connectivity.
Note that LLR and LLCF are enabled as indicated in the diagram.
Media
Converter
Management
Station
Switch/Hub
w/SNMP Station
Media
Converter Switch/Hub
Fiber
Cable
LFP OFFLFP ON
lLED lit = established link °LED unlit = no link
Media
Converter
Management
Station
Switch/Hub
w/SNMP Station
Media
Converter
Management
Switch/Hub
TP TP
Broken
Fiber
LFP ONLFP ON
lLED lit = established link °LED unlit = no link
Port 2 Port 1
Link Loss Carried Forward
Link Loss Returned
Link Loss Carried Forward

12
If one of the optical conductors is bad (as shown in the diagram
box below), the converter with LLR function will return a no-link
condition to its link partner. With LLCF function also enabled,
the no-link condition is carried forward to the switch/hub
where a trap is generated to the management station, and the
administrator can then determine the source of the loss.
Media
Converter
Management
Station
Switch/Hub
w/SNMP Station
Media
Converter Switch/Hub
Fiber
Cable
LFP OFFLFP ON
lLED lit = established link °LED unlit = no link
Media
Converter
Management
Station
Switch/Hub
w/SNMP Station
Media
Converter
Management
Switch/Hub
TP TP
Broken
Fiber
LFP ONLFP ON
lLED lit = established link °LED unlit = no link
Port 2 Port 1
Link Loss Carried Forward
Link Loss Returned
Link Loss Carried Forward
Note
LFP function is turned on by default. This feature
can also be turned off via the side DIP-switch.
If you are familiar with the network installa-
tion, for diagnostic purpose (i.e. check which
end is broken), you can turn it off and reset the
converter to make it take effect. Otherwise, please
leave it at the default position.

13

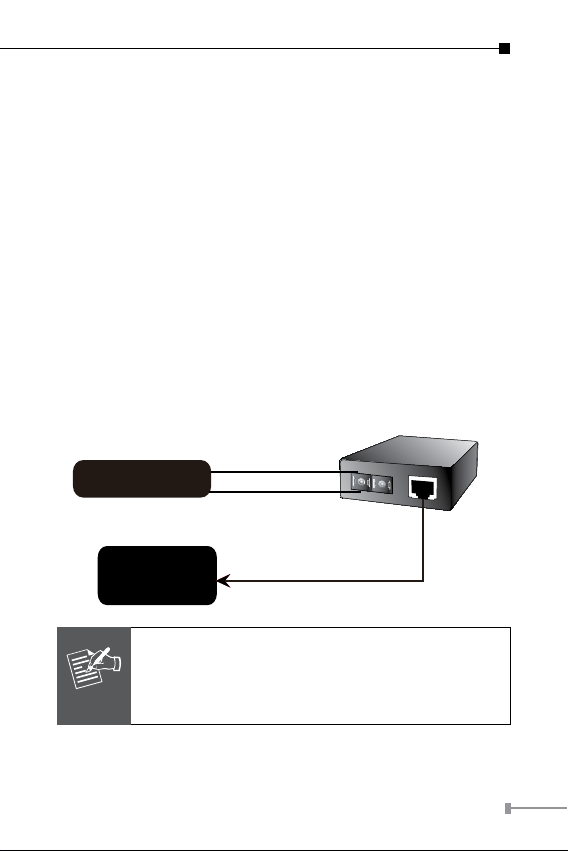

5. Installing the Converter
Please follow these steps to install the PoE Media converter:
●Turn off the power of the device/station on the network to
which the FCU-1802Px will be attached.
●Ensure that there is no activity in the network.
●Attach ber cable from the FCU-1802Px to the ber network.
TX, RX must be paired at both ends.
●Attach a Cat. 5 UTP cable from the 10/100Base-TX network to
the RJ-45 port on the FCU-1802Px.
●Connect the 48V DC power adapter to the FCU-1802Px and
verify that the Power LED is lit.
●Turn on the power of the device/station, the TX Link and FX
Link LEDs should light when all cables are attached.
FCU-1802Px
10/100Base-TX
Cat. 5/5e TP
Cable Network
100Base-FX Fiber
Network
TX
TXRX
RX
Note
● RJ-45/STP, UTP Cat 5, straight /crossover cable
is accepted.
● Please refer to section 9 for more about the
wiring distance of your TP, Optic-fiber networks.

14
6. PoE function
FCU-1802Px and the IEEE 802.3af Injector / Splitter
equipment installation:
Before your installation, it is recommended to check your
network environment. If there is any IEEE 802.3af devices that
need to power on, the FCU-1802Px can provide a way to supply
power for this Ethernet device conveniently and easily. The
FCU-1802Px comes with an AC-DC adapter with DC 48V input
and injects this DC power into the pin of the twisted pair cable
(pair 1, 2 and pair 3, 6).

15
7. LED indication
• System
LED Color Function
PWR Green Lit: Indicate the device is powered.
• 10/100Base-TX Port
LED Color Function
LNK/ACT Green
Blink
Indicate that the Media Converter
is actively sending or receiving data
over that port.
Lit Indicate that the port is link up.
Off Indicate that the port is link down.
PoE in
Use Green
Lit Indicate that the port is providing
48VDC to remote powered device.
Off Indicate that the port is not providing
48VDC to remote powered device.
• 100Base-FX SC Port
LED Color Function
LNK/ACT Green
Blink
Indicate that the Media Converter
is actively sending or receiving data
over that port.
Lit Indicate that the port is link up.
Off Indicate that the port is link down.
Note
Fiber-optic Partner should be set to the correct
mode according to this FDX indicator for optimal
network performance.

16
8. Cable Connection Parameter
The limitations are as below:
Duplex Connection Limitation (max.)
Twisted Pair
Half / Full Node to Node
Node to Switch/Hub 100 meters
Multi-Mode Converters
MM Half Node to Node
Node to Switch 412 meters
MM Full Node to Node
Node to Switch 2 kilometers
Single-Mode Converters
SM Full Node to Node
Node to Switch 15 kilometers

17
9. FCU-1802Px Technical Specications
The FCU-1802Px comes with the following standard features:
●Standard: IEEE 802.3u, 10/100Base-TX ,100Base-FX
IEEE 802.3af Power over Ethernet
●Connectors:
• One RJ-45 (Auto-MDI/MDI-X) Twisted Pair, EIA568 with PoE
• One Fiber-optic, 1310nm wavelength, connector-type vary
with model
●Data Transfer Rate: 10/100Mbps (TP), 100Mbps (FX)
●Duplex mode support: Full or half-duplex mode by Auto-
Negotiation (TP)
●LED indicators: PWR, FX LNK/ACT, TX LNK/ACT, PoE in Use
●PoE Power Output: 48V DC, Max. 15.4 watts, 350mA
●Power Pin Assignment: 1/2(+), 3/6(-) / End-Span
●Power Supply: 48V DC, 0.4A, external AC-DC adapter
●Ambient Temperature: 0° to 50°C (operating)
●Humidity: 5% to 90% (non-condensing)
●Dimension: 26 x 70 x 97mm (H x W x D)
●Cable:
• UTP: Cat 5 UTP cable
• Fiber: MM: 50/125 µm or 62.5/125 µm optic ber
• Fiber: SM: 9/125 µm optic ber
Connecting to Router, Bridge, or Switch, Hub, please refer to the
device’s Technical Manual.

18
APPENDIX A
A.1 Device's RJ-45 Pin Assignments
• 10/100Mbps, 10/100Base-TX
Contact MDI MDI-X
11 (TX +) 3
22 (TX -) 6
33 (RX +) 1
66 (RX -) 2
4, 5, 7, 8 Not used Not used
Implicit implementation of the crossover function within a
twisted-pair cable, or at a wiring panel, while not expressly
forbidden, is beyond the scope of this standard.
A.2 RJ-45 cable pin assignment
There are 8 wires on a standard UTP/STP cable and each wire is
color-coded. The following shows the pin allocation and color of
straight cable and crossover cable connection:

19
Figure A-1: Straight-Through and Crossover Cable
Please make sure your connected cables are with the same pin
assignment and color as the above picture before deploying the
cables into your network.
A.3 Fiber Optical Cable Connection Parameter
The wiring details are as below:
• Fiber Optical patch Cables:
Standard Fiber Type Cable Specication
100Base-FX
(1310nm) Multi-mode 50/125μm or 62.5/125μm
100Base-FX
(1310nm) Single-mode 9/125μm

This page is intentionally left blank
