ANTAIRA Lanolinx LNX-1002GN User manual

8-port 10/100TX + 2-port Gigabit
Copper/Mini GBIC
SNMP Managed Industrial Ethernet Switch
with Xtreme Ring
User Manual

The contents in this manual were based on the listed versions
shown on the table below (software kernel version, hardware
version, and firmware version). If there are any discrepancies
between the switch functions and the manual content
descriptions, please contact your local distributor for more
information.
Firmware Version V1.06
Kernel Version V1.15
Hardware Version ----------
Notice

FCC Warning
This Equipment has been tested and found to comply with the limits for a
Class-A digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Contact local Sales Dealer Distributors or an experienced radio/TV
technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

Content
Introduction................................................................ 1
Features................................................................... 1
Package Contents.................................................... 3
Hardware Description ............................................... 4
Physical Dimension.................................................. 4
Front Panel .............................................................. 4
Bottom View............................................................. 5
LED Indicators ......................................................... 5
Ports......................................................................... 7
Cabling..................................................................... 8
Wiring the Power Inputs........................................... 9
Wiring the Fault Alarm Contact................................ 9
Wiring the Fault Alarm Contact.............................. 10
Mounting Installation .............................................. 11
DIN-Rail Mounting.................................................. 11
Wall Mount Plate Mounting.................................... 13
Hardware Installation .............................................. 14
Installation Steps.................................................... 14
Network Application................................................ 15
Xtreme Ring Application ........................................ 15
Coupling Ring Application...................................... 16
Dual Homing Application........................................ 17
Console Management ............................................. 18
Connecting to the Console Port............................. 18

Login in the Console Interface............................... 18
CLI Management ................................................... 19
Commands Level............................................................ 20
Commands Set List......................................................... 22
Web-Based Management........................................ 45
About Web-based Management............................ 45
Preparing for Web Management............................ 45
System Login ......................................................... 46
Main interface ........................................................ 47
Main interface ........................................................ 47
System Information................................................ 48
IP Configuration ..................................................... 48
DHCP Server – System configuration.................... 49
DHCP Client – System Configuration.................... 50
DHCP Server - Port and IP Bindings..................... 51
TFTP - Update Firmware ....................................... 51
TFTP – Restore Configuration............................... 52
TFTP - Backup Configuration ................................ 52
System Event Log – Syslog Configuration............. 53
System Event Log - SMTP Configuration.............. 54
System Event Log - Event Configuration............... 55
Fault Relay Alarm .................................................. 57
SNTP Configuration............................................... 58
IP Security.............................................................. 60
User Authentication................................................ 61

Port Statistics......................................................... 62
Port Control............................................................ 63
Port Trunk .............................................................. 64
Aggregator setting .......................................................... 64
Aggregator Information................................................... 66
State Activity................................................................... 66
Port Mirroring ......................................................... 67
Rate Limiting.......................................................... 68
VLAN configuration................................................ 69
VLAN configuration - Port-based VLAN.......................... 70
802.1Q VLAN.................................................................. 72
802.1Q VLAN.................................................................. 73
Rapid Spanning Tree............................................. 76
RSTP - System Configuration......................................... 76
RSTP - Port Configuration.............................................. 77
SNMP Configuration.............................................. 78
System Configuration...................................................... 78
Trap Configuration.......................................................... 79
SNMPV3 Configuration................................................... 80
QoS Configuration ................................................. 84
QoS Policy and Priority Type.......................................... 84
Port Base Priority............................................................ 85
COS Configuration.......................................................... 86
TOS Configuration.......................................................... 86
IGMP Configuration ............................................... 86
Xtreme Ring........................................................... 88
802.1X/Radius Configuration.......................................... 90

MAC Address Table........................................................ 92
Factory Default....................................................... 95
Save Configuration ................................................ 95
System Reboot ...................................................... 96
Troubles shooting ................................................... 97
Technical Specification........................................... 98

1
Introduction
The 8 10/100TX plus 2 Gigabit Copper/Mini GBIC managed industrial switch is a cost-
effective solution and meets the high reliability requirements demanded by industrial
applications. The 8 10/100TX plus 2 Gigabit Copper/Mini GBIC managed industrial
switch can be easily managed through the Web GUI. By using fiber port can extend the
connection distance that increases the network elasticity and performance. It also
provides the Xtreme Ring function that can prevent the network connection failure.
Features
System Interface/Performance
RJ-45 port support Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
Back-plane (Switching Fabric): 5.6Gbps
1Mbits Packet Buffer
8K MAC Address Table
Power Supply
Input Power Isolation design for Telcom application, Pass Hi-Pot test~1.5KV
Wide-range Redundant Power Design
Power Polarity Reverse Protect
VLAN
Port Based VLAN
Support 802.1 Q Tag VLAN
GVRP
Port Trunk with LACP
QoS (Quality of Service)
Support IEEE 802.1p Class of Service,
Per port provides 4 priority queues
Port Base, Tag Base and Type of Service Priority
Port Mirror: Monitor traffic in switched networks.

2
TX Packet only
RX Packet only
Both of TX and RX Packet
Security
Port Security: MAC address entries/filter
IP Security: IP address security management to prevent unauthorized intruder.
Login Security: IEEE802.1X/RADIUS
IGMP with Query mode for Multi Media Application
Case/Installation
IP-30 Protection
DIN Rail and Wall Mount Design
Spanning Tree
Support IEEE802.1d Spanning Tree
Support IEEE802.1w Rapid Spanning Tree
Xtreme Ring
Xtreme Ring, Dual Homing, and Couple Ring Topology
Provide redundant backup feature and the recovery time below 20ms
Bandwidth Control
Ingress Packet Filter and Egress Rate Limit
Broadcast/Multicast Packet Filter Control
System Event Log
System Log Server/Client
SMTP e-mail Alert
Relay Alarm Output System Events
SNMP Trap
Device cold start
Power status
Authentication failure
Xtreme Ring topology changed
Port Link up/Link down
TFTP Firmware Update and System Configure Restore and Backup

3
Package Contents

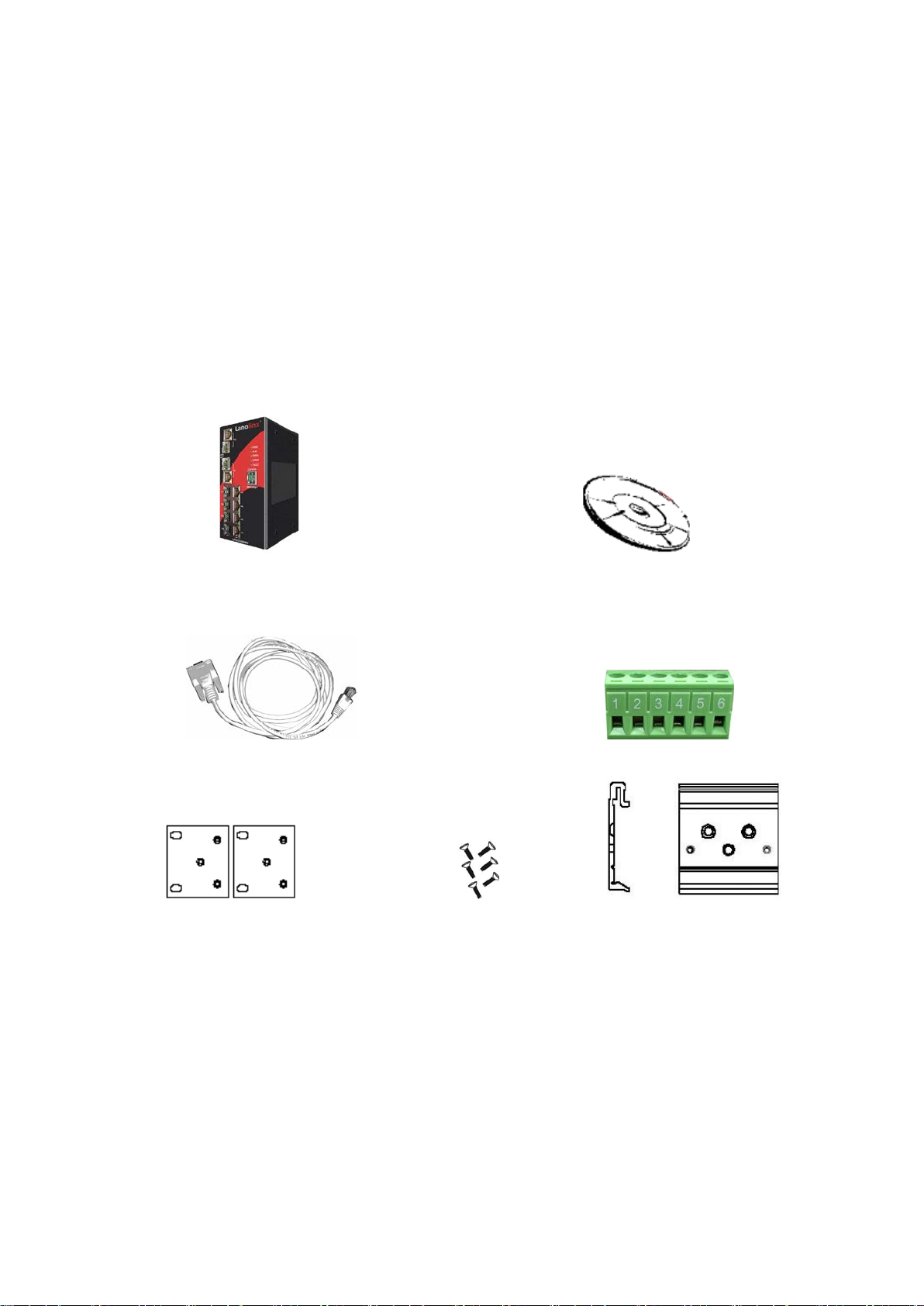

Please refer to the package content list below to verify them against the checklist.
8 10/100TX plus 2 Gigabit Copper/Mini GBIC managed industrial switch
User manual
RS-232/RJ-45 cable
Block connector
2 wall mount plates and 6 screws
One DIN-Rail (attached on the switch)
8 10/100TX plus 2 Gigabit Copper/Mini GBIC User Manual
managed industrial switch
RS-232/RJ-45 connector cable block connector
Wall Mount Plate Screws DIN-Rail
Compare the contents of the industrial switch with the standard checklist above. If any
item is damaged or missing, please contact the local dealer for service.

4
Hardware Description
In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling
information, and wiring installation.
Physical Dimension
8 10/100TX plus 2 Gigabit Copper/Mini GBIC managed industrial switch dimension (W x
D x H) is 72mm x 105mm x 152mm
Front Panel

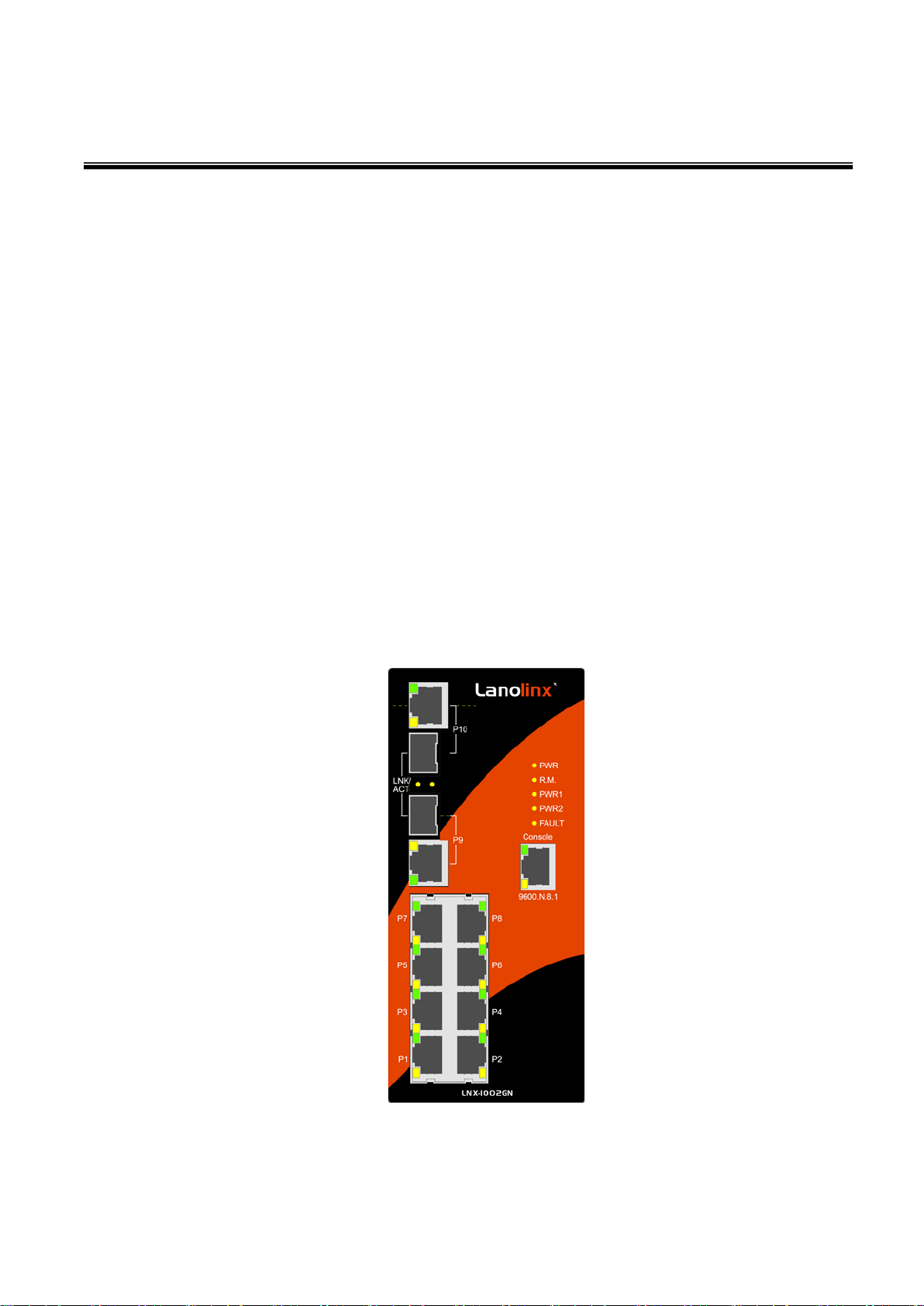

The Front Panel of the 8 10/100TX plus 2 Gigabit Copper/Mini GBIC managed industrial
switch is showed as below:
Front Panel of the industrial switch

5
Bottom View

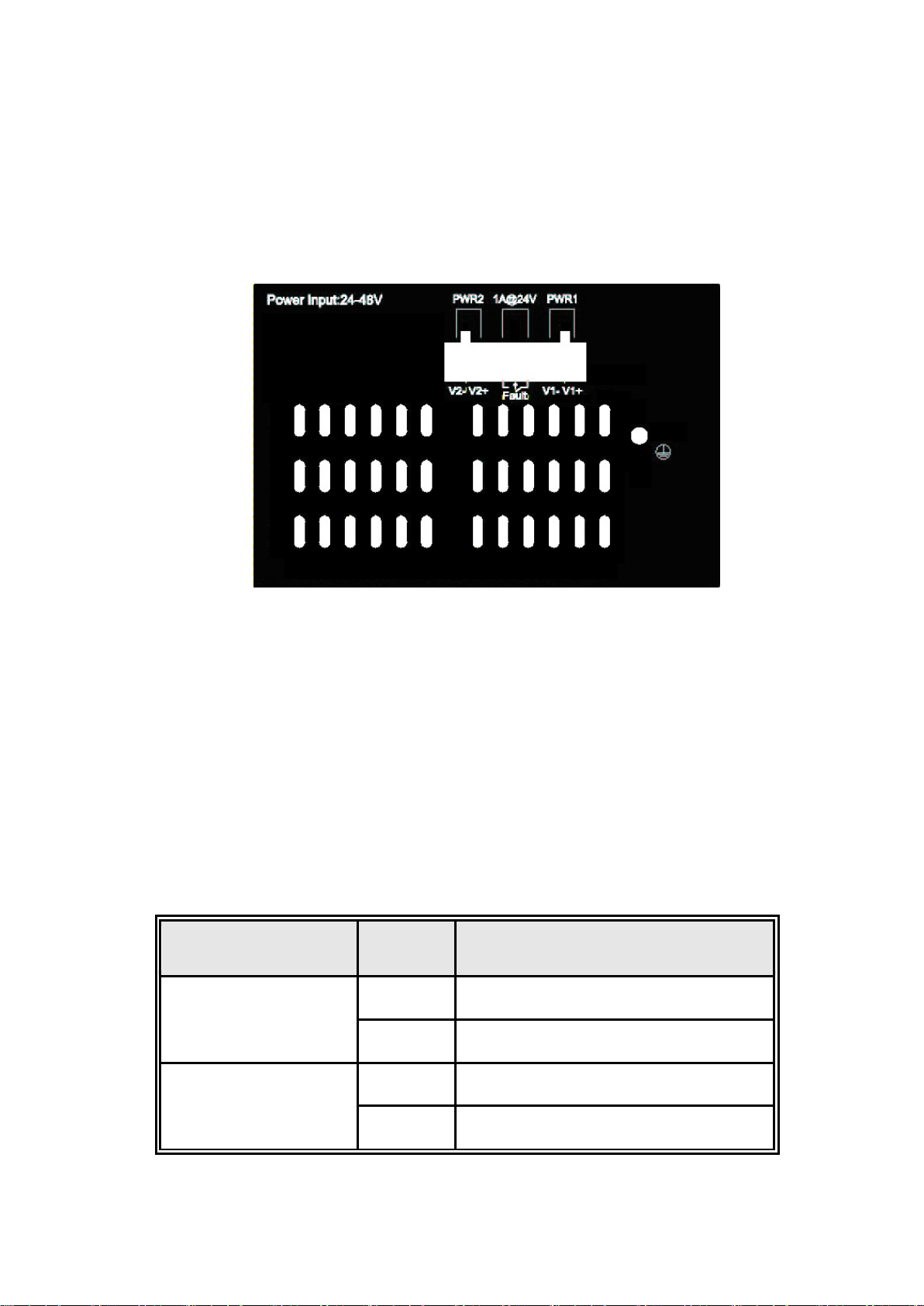

The bottom panel of the 8 10/100TX plus 2 Gigabit Copper/Mini GBIC managed
industrial switch has one terminal block connector of two DC power inputs.
Bottom Panel of the industrial switch
LED Indicators
There are 7 diagnostic LEDs located on the front panel of the industrial switch. They
provide real-time information of system and optional status. The following table provides
description of the LED status and their meanings for the switch.
LED Status Meaning
PWR
Green
The switch unit is power on
Off
The switch unit is no power input
PWR1
Green
Power on
Off
No power inputs

6
PWR2
Green
Power on
Off
No power inputs
Fault
Orange
Power failure or UTP port failure or
Fiber port failure
Off
No Power failure or UTP port failure
or Fiber port failure occurs
R.M.
Green
The industrial switch is the master
of Xtreme Ring group
Off
The industrial switch is not a ring
master in Xtreme Ring group
LNK/ACT
Green
The fiber port is linking
Blinks
The port is transmitting or receiving
packets from the TX device.
Off
No device attached
1 ~ 8
Orange
The port is operating in full-duplex
mode.
Blinking
(Orange) Collision of Packets occurs.
Off
The port is in half-duplex mode or
no device is attached.
Green A network device is detected.
Blinking
(Green) The port is transmitting or receiving packets from the TX device.
Off
No device attached

7
Ports
RJ-45 ports
There are 8x 10/100Mbps auto-sensing ports for 10Base-T or 100Base-TX devices
connection. The UTP ports will auto-sense for 10Base-T or 100Base-TX connections.
Auto MDI/MDIX means that the switch can connect to another switch or workstation
without changing straight through or crossover cabling. See the below figures for straight
through and crossover cable schematic.
RJ-45 Pin Assignments
Pin Number
Assignment
1
Tx+
2
Tx-
3
Rx+
6
Rx-
[NOTE] “+” and “-” signs represent the polarity of the wires that make up each wire pair.
All ports on this industrial switch support automatic MDI/MDI-X operation, user can use
straight-through cables (See figure below) for all network connections to PCs or servers,
or to other switches or hubs. In straight-through cable, pins 1, 2, 3, and 6, at one end of
the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of the
cable. The table below shows the 10BASE-T/100BASE-TX MDI and MDI-X port pin outs.
Pin MDI-X Signal Name MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)

8

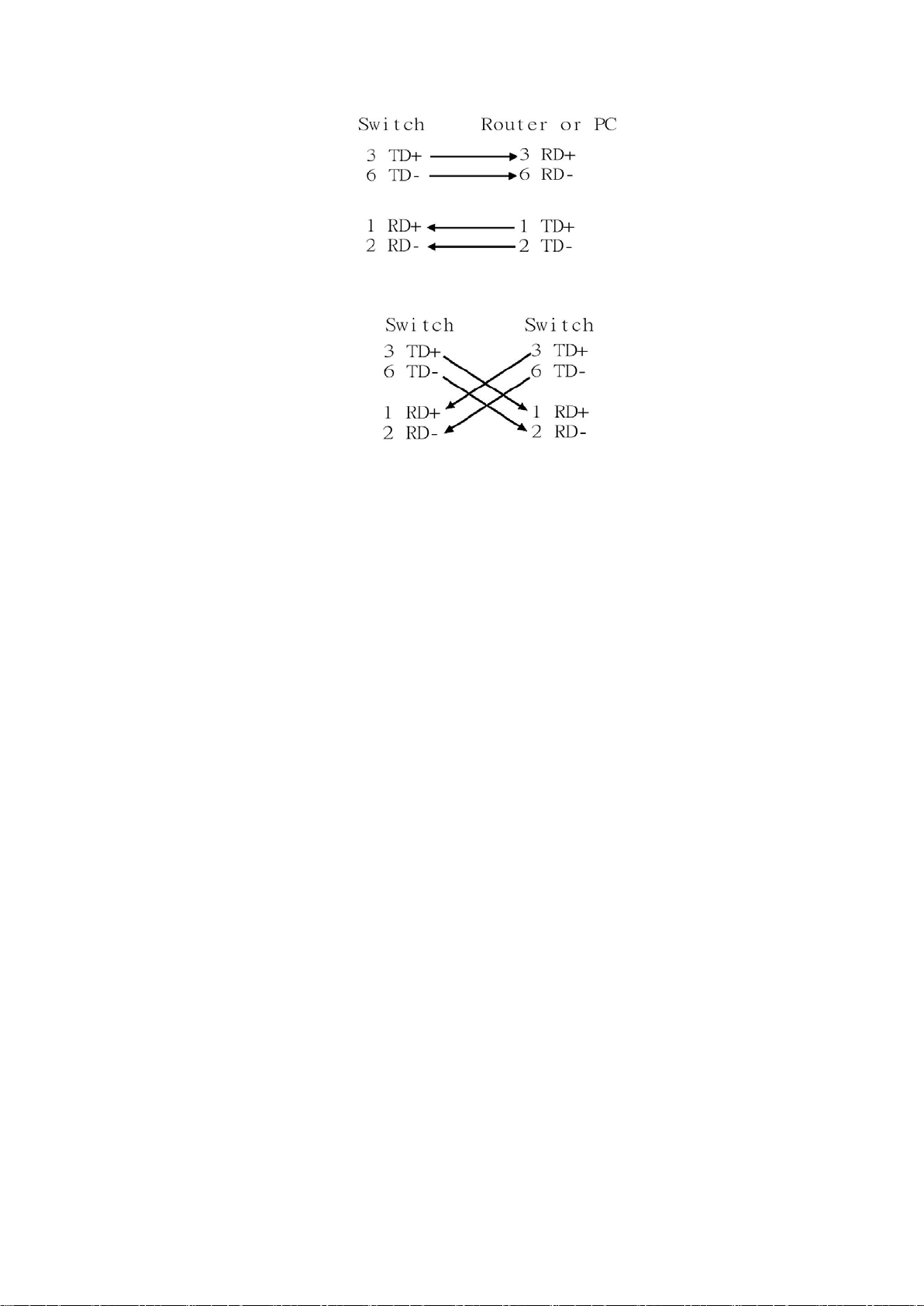

Straight Through Cable Schematic
Cross Over Cable Schematic
2 Mini GBIC/Giga copper combo port:2 auto-detect Giga port—UTP or fiber.
Giga fiber is the mini GBIC module that is optional.
Cabling
Using four twisted-pair, Category 5 cabling for RJ-45 port connection. The cable
between the converter and the link partner (switch, hub, workstation, etc.) must be
less than 100 meters (328 ft.) long.
Fiber segment using single-mode connector type must use 8/125 or 9/125 µm
single-mode fiber cable. User can connect two devices in the distance up to 10
Kilometers.
Fiber segment using multi-mode connector type must use 50 or 62.5/125 µm multi-
mode fiber cable. User can connect two devices up to 550 meters distances.

9
Wiring the Power Inputs
Please follow the below steps to insert the power wire.
[NOTE] The wire range of terminal block is from 12~ 24 AWG.
V- V+
V- V+
1. Insert the positive and negative wires into the V+ and V-
contacts on the terminal block connector.
2. To tighten the wire-clamp screws for preventing the DC
wires to loose.

10
Wiring the Fault Alarm Contact

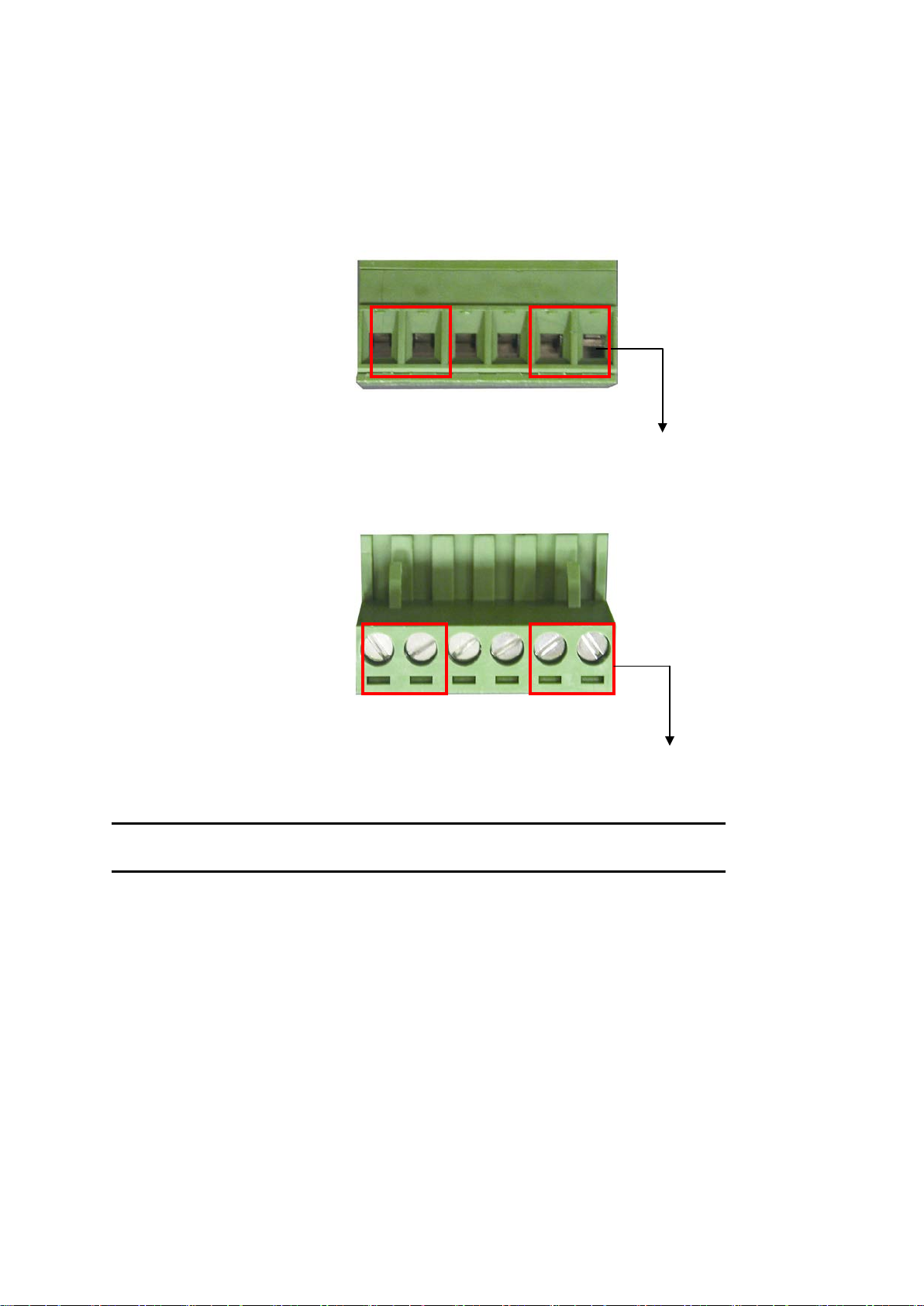

The fault alarm contact is in the middle of terminal block connector as below picture
shows. By inserting the wires, it will detect the fault status which the power is failure or
port link failure and form a closed circuit. And, application example for the fault alarm
contact as below:
[NOTE] The wire gauge for the terminal block should be in the range between 12~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to
eliminate power fault alarm.
Fault Alarm Contact
24V DC Buzzer 24V Battery
The closed circuit will form when the
power failure or port link failure.
The fault alarm device will send a
warning signal to warn the user, ex:
alarm sound or flash light.
Insert the wires into the fault alarm contact
1A@24V

11
Mounting Installation
DIN-Rail Mounting
The DIN-Rail is screwed on the industrial switch when out of factory. If the DIN-Rail is
not screwed on the industrial switch, please see the following pictures to screw the DIN-
Rail on the switch. Follow the below steps to hang the industrial switch.

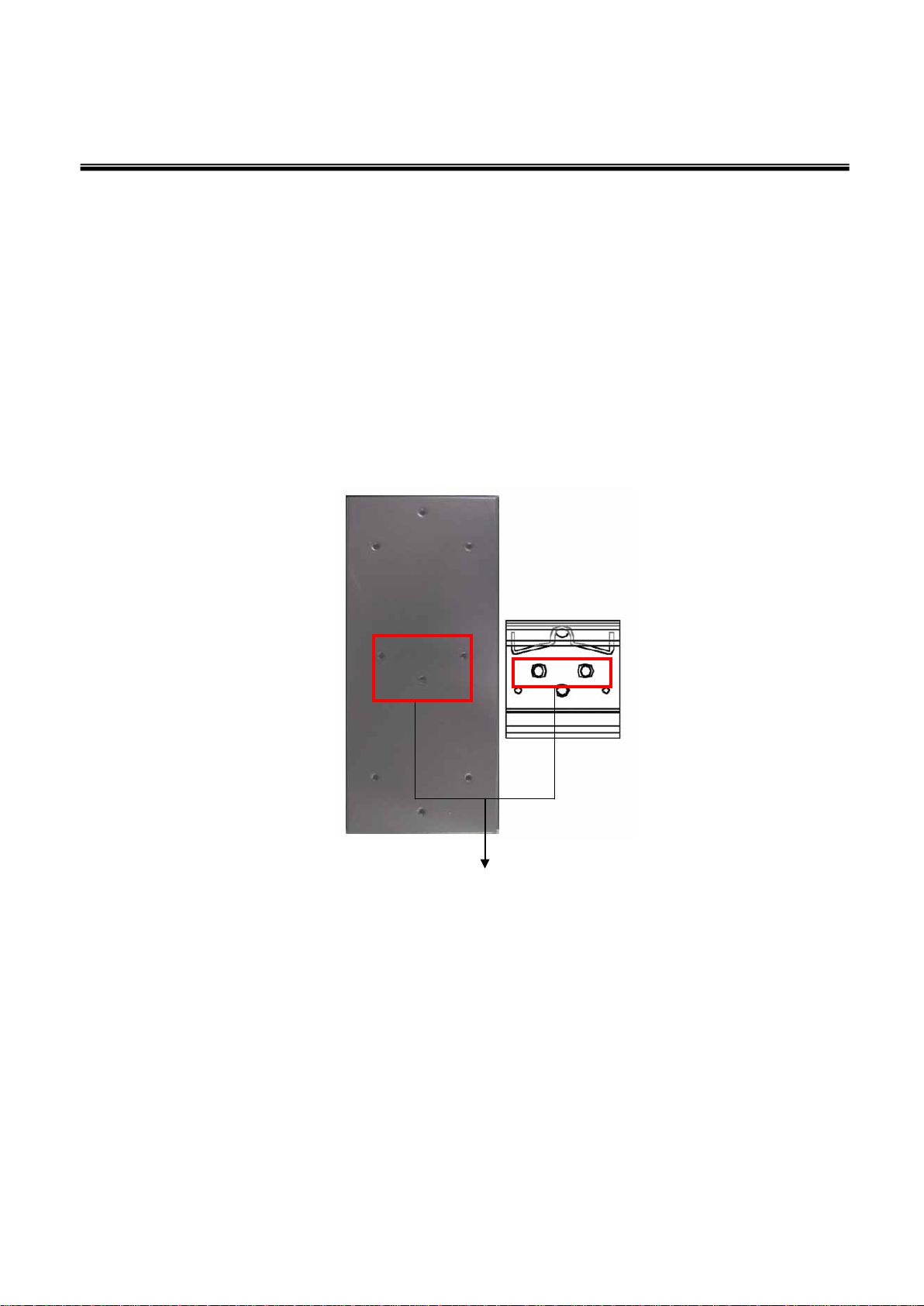

1. Use the screws to screw the DIN-Rail on the industrial
switch
2. To remove the DIN-Rail, reverse the step 1.
Rear Panel of
the switch
DIN-Rail

12

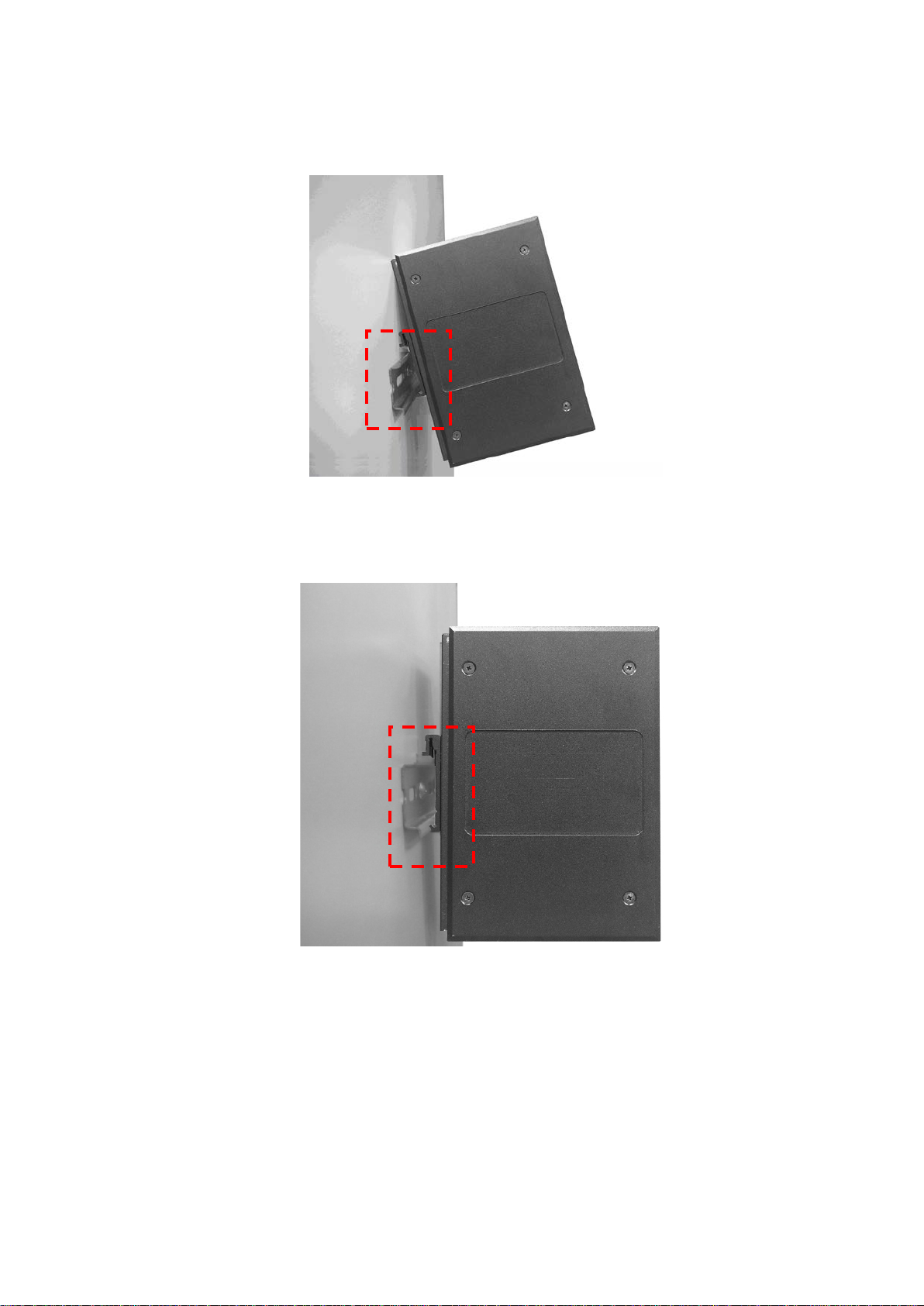

1. First, insert the top of DIN-Rail into the track.
2. Then, lightly push the DIN-Rail into the track.
3. Check if the DIN-Rail is tightened on the track or not.
4. To remove the industrial switch from the track, reverse steps above.

13
Wall Mount Plate Mounting
Follow the below steps to mount the industrial switch with wall mount plate.
1. Remove the DIN-Rail from the industrial switch; loose the screws to remove the DIN-
Rail.
2. Place the wall mount plate on the rear panel of the industrial switch.
3. Use the screws to screw the wall mount plate on the industrial switch.
4. Use the hook holes at the corners of the wall mount plate to hang the industrial
switch on the wall.
5. To remove the wall mount plate, reverse the steps above.

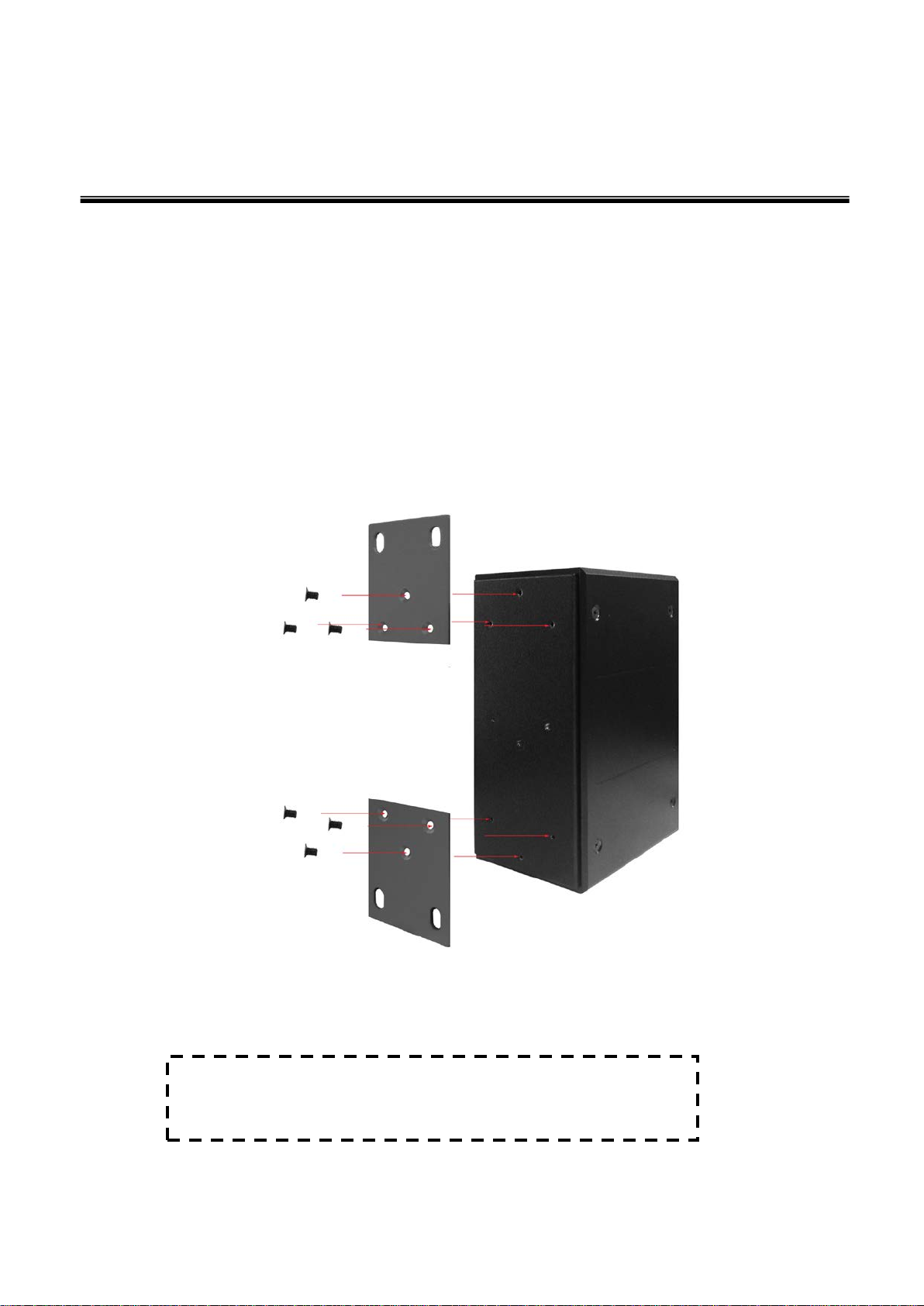

Screwing the wall mount plate on the Industrial media
converter
