ANTAIRA LNP-C501G-SFP-bt Series User manual

Antaira Technologies
LNP-C501G-SFP-bt Series
5-Port Industrial Compact Gigabit IEEE 802.3bt PoE++
Unmanaged Ethernet Switch, 4*10/100/1000TX (90W/Port),
1*100/1000 SFP Slot
Quick Installation Guide
Version 1.0
(May 2022)
Tel: [phone]
Fax: [phone]
www.antaira.com
19020000000193
Package Checklist
The package contains the following items:
• 1 – Quick installation guide
• 1 – LNP-C501G-SFP-bt(-T)
• 1 – Wall mounting bracket set with screws
• 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
• 1 – Dust cover set
Front Panel Layout
Product Overview
System Interface/Performance
• All RJ45 ports support the auto MDI/MDI-X function
• Embedded 4*10/100/1000Tx (90W/Port) RJ45 ports and
1*100/1000 SFP slots
• Store-and-Forward switching architecture
• 8K MAC address table
• Supports 10Kbytes jumbo frame
• 1Mbits memory buffer
Power Input & Connection
• DC 48 to 55V redundant power, with a 6-pin removal
terminal block
• It is recommended to use a UL listed industrial power supply
• For bt PoE application(s), the recommended power input
should be not less than 53VDC
Operating Temperature
• Standard operating temperature model: -10°C to 65°C
• Extended operating temperature model: -40°C to 75°C
Case/Installation
• IP40 protection
• DIN-Rail and wall mount design
LED Indicators
LED Color Description
Power 1 Green
On Power input 1 is active
Off Power input 1 is inactive
Power 2 Green
On Power input 2 is active
Off Power input 2 is inactive
Fault Red
Off No event happened
On
Any of the listed trigger events occur
1. Power 1 or Power 2 is inactive
2. Total PoE loading is > 100% PoE Budget
3. PoE over current (per port)
4. Cable short (per port)
5. One of the channels in Dual PD fail
PoE Load
- Off PoE Load ≤50%
Blue On PoE Load 51~70%
Blue & Red On PoE Load 71~90%
Blue & Red
(Red flashing) On PoE Load 91~100%
SFP Port Green
On Connected to network, 100 or 1000Mbps
Flashing Networking is active
Off Not connected to network
LAN Port 2~5
LNK/ACT
(Upper LED)
Green
On Connected to network, 10/100/1000Mbps
Flashing Networking is active, 10/100/1000Mbps
Off Not connected to network
LAN Port 2~5
PoE Mode
(Lower LED)
Green
On
IEEE 802.3bt connection
(Single Signature PD Class 5~8/Dual
Signature PD Channel Class 1~5)
Off No powered-device attached or power
supplying fails
Amber
On IEEE 802.3af/at connection
(Single Signature PD Class 0~4)
Off No powered-device attached or power
supplying fails
DIP Switch
The 4-pin DIP switch on the front panel of the Ethernet switch
works as the PoE controller for PoE port 2~5.
DIP Switch Number ON (Default) OFF
PoE DIP Switch 1 Enable Port 2 PoE Function Disable Port 2 PoE Function
PoE DIP Switch 2 Enable Port 3 PoE Function Disable Port 3 PoE Function
PoE DIP Switch 3 Enable Port 4 PoE Function Disable Port 4 PoE Function
PoE DIP Switch 4 Enable Port 5 PoE Function Disable Port 5 PoE Function
The 2-pin DIP switch is used to enable/disable PD Remote Reset
Technology (PRRT) and control SFP speed.
DIP Switch Number ON OFF (Default)
DIP Switch 1 Enable PRRT Function Disable PRRT Function
DIP Switch 2 Control SFP speed at 100Mbps Control SFP speed at 1Gbps
NOTE: The device will reboot when the Dip switch of PRRT and
SFP setting is changed.
SFP# 1 – 100/1000
SFP# 1 – LED for Link/Activity Status
LAN# 2~5 LED for PoE Status
LAN# 2~5 – 10/100/1000Tx RJ45
LAN# 2~5 LED for Link/Activity
Status 10/100/1000Mbps
DIP Switch Setting for PRRT and
SFP Speed
Grounding Screw
LED for PoE Load Status – 90%, 70%
PoE DIP Switch
LED for Power 1, Power 2, Fault
6-Pin Removal Terminal Block (Power Input)

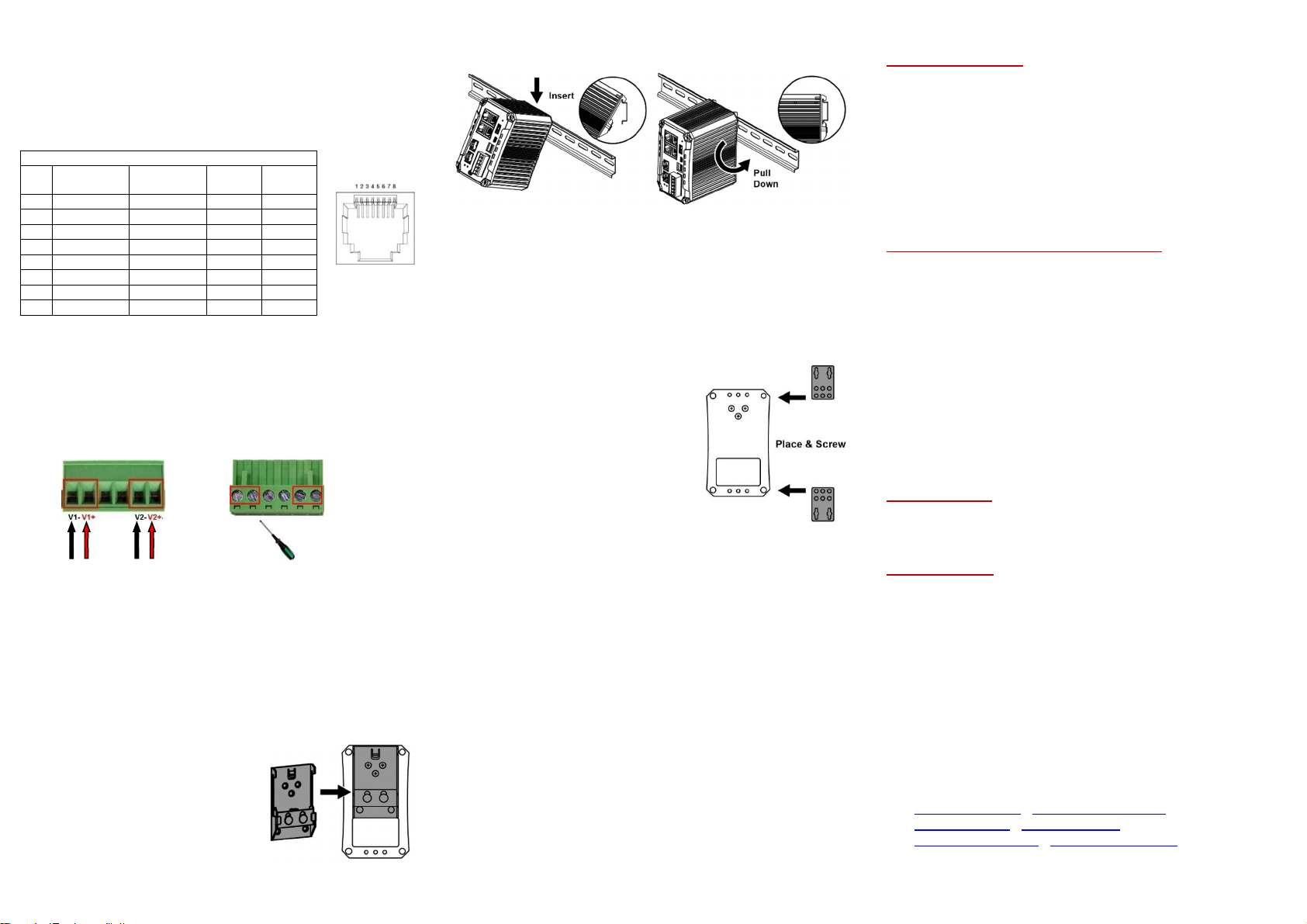

Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI/MDI-X)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
RJ45 Ethernet Port Pin Outs
Pins T568A Color T568B Color 10Base-T,
100Base-TX
1000
Base-T(X)
Pin 1 white/green stripe white/orange stripe Rx+ TP0+
Pin 2 green solid orange solid Rx- TP0-
Pin 3 white/orange stripe white/green stripe Tx+ TP1+
Pin 4 blue solid blue solid unused TP2+
Pin 5 white/blue stripe white/blue stripe unused TP2-
Pin 6 orange solid green solid Tx- TP1-
Pin 7 white/brown stripe white/brown stripe unused TP3+
Pin 8 brown solid brown solid unused TP3-
Power Input Wiring
Please follow the steps below to insert the power wire:
1. Insert the positive and negative wires into the PWR1
(V1+, V1-) and PWR2 (V2+, V2-) contacts on the
terminal block connector as shown below in Figure 1.
2. Tighten the wire-clamp screws to prevent the wires
from loosening, as shown below in Figure 2.
Figure 1 Figure 2
Industrial Switch Mounting
DIN-Rail Mounting
The DIN-Rail bracket is pre-installed on the industrial Ethernet
switch from the factory. Please refer to Figure 3 for a DIN-Rail
bracket installation reference.
Follow the steps below for installing the industrial switch on the
DIN-Rail track:
1. Insert the top of the DIN-Rail
onto the track as shown below in
Figure 4.
2. Lightly pull down the bracket
onto the rail as shown below in
Figure 5.
3. Check if the bracket is mounted
tightly on the rail.
4. To remove the industrial Ethernet switch from the rail, do the
opposite from the steps above.
Figure 4
Wall Mounting
Follow the steps below to mount the industrial Ethernet switch
using the wall mounting bracket as shown below in Figure 6.
1. Remove the DIN-Rail bracket from the industrial Ethernet
switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of
the industrial Ethernet switch.
3. Use the screws to screw the
wall mounting bracket on the
industrial Ethernet switch.
4. Use the hook holes at the
corners of the wall mounting
bracket to hang the industrial
Ethernet switch on the wall.
5. To remove the wall mount
bracket, do the opposite from
the steps above.
Field Maintenance and Service
● If the device requires servicing of any kind, the user is
required to disconnect and remove it from its mounting. The
initial installation should be done in a way that makes this as
convenient as possible.
● Voltage/power lines should be properly insulated as well as
other cables. Be careful when handling them to not trip over
them.
● Do not under any circumstance insert foreign objects of any
kind into the heat dissipation holes located in the different
faces of the device. This may not only harm the internal
layout but might cause harm to the user as well.
● Do not under any circumstance open the device for any
reason. Please contact your dealer for any repair needed or
follow the instructions within the manual.
Warranty Policy
Warranty Conditions
Products supplied by Antaira Technologies are covered in this
warranty for sub-standard performance or defective
workmanship. The warranty is not, however, extended to goods
damaged in the following circumstances:
(a) Excessive forces or impacts
(b) War or an Act of God: wind storm, fire, flood, electric
shock, earthquake
(c) Use of unqualified power supply, connectors, or
unauthorized parts/kits
(d) Replacement with unauthorized parts
RMA and Shipping Costs Reimbursement
Customers shall always obtain an authorized "RMA" number
from Antaira before shipping the goods for repair or
replacement.
● Within the warranty period (based on the invoice date), all
parts and labor are free of charge to the customers.
● Customers are responsible for the cost of parts and labor if
the products are out of warranty.
● For RMA service, customers are responsible for the
shipping expense for shipping the RMA unit(s) to Antaira.
Antaira is responsible for the shipping expense via a ground
service for the return repair/replacement unit(s) to
customers.
Limited Liability
Antaira would not be held responsible for any consequential
losses from using Antaira’s product.
Warranty Period
5-Year Warranty
Antaira’s Customer Service and Support
● Antaira’s Technical Service & Support Centers:
+ 844-268-2472 (Antaira US Headquarter)
+ 48-22-862-88-81 (Antaira Europe Office)
+ 886-2-2218-9733 (Antaira Asia Office)
● Antaira’s Web Sites & Repair/Support Emails:
www.antaira.com / [email protected]
www.antaira.eu / [email protected]
www.antaira.com.tw / [e-mail]
*Any changes will be announced on the Antaira website.
