Antari X FOGGER User manual

Congratulations on the purchase of your new
ANTARI XFogger
Introduction
Thank you for choosing an ANTARI X Fogger. You now
own a rugged and powerful state-of-the-art machine. Prior to
use, we suggest that you carefully read all of the instructions.
By following the suggestions found in this user manual, you
can look forward to the reliable and satisfactory performance
of your ANTARI Fog Machine for years to come.
Please follow these operation, safety and maintenance
instructions to ensure a long and safe life for your fog
machine.
Cautions
Risk of electric shock. Disconnect the appliance from the
electric supply before removing the cover.
Note: there are no user serviceable parts inside.
Important Safeguards
Danger of Electric Shock
!Keep this device dry.
!For inside use only. Not designed for outside use.
!For the 110V models, use 3-prong grounded electrical outlet
only. Prior to use take care to determine that the unit is
installed at the rated voltage.
!Always unplug your ANTARI Fog Machine before filling its
tank.
!Keep fog machine upright.
!Unplug the machine when not in use.
!This machine is not water- or splash-proof. If moisture,
water, or fog liquid gets inside the housing, immediately
unplug the unit and contact a service technician or your
ANTARI dealer before using it again.
!No user serviceable parts inside. Refer to your ANTARI
dealer or other qualified service personnel.

Danger of Burns
!For adult use only. Never leave the unit running
unattended.
!Never aim the output nozzle directly at people.
!Fog machine output area is very hot. Avoid coming within
60 cm of the output nozzle during operation.
!Locate the fog machine in a well-ventilated area. Never
cover the unit's vents. In order to guarantee adequate
ventilation, allow a free air space of at least 20 cm around
the sides and top of the unit.
!Never aim the output nozzle at open flames.
!If the supply cord is damaged, it must be replaced by
manufacturer or its service agent or similarly qualified
personnel in order to avoid a hazard.
!The output nozzle becomes very hot during operation
0
(300 C). Keep flammable materials at least 50 cm away
from the nozzle.
!Always allow your ANTARI X Fogger to cool down before
attempting to clean or service it.
Danger of Explosion
!Never add flammable liquids of any kind (oil, gas, perfume)
to the fog liquid.
!Use only the high-quality, water-basedANTARI fog liquid.
Other fog liquids may cause clogging or "spitting".
!Always make sure there is sufficient liquid in the fog liquid
tank. Operating this unit without liquid will cause damage
to the pump as well as over-heating of the heater.
!If your ANTARI Fog Machine fails to work properly,
discontinue use immediately. Drain all fog liquid from the
tank, pack the unit securely (preferably in the original
packing material), and return it to your ANTARI dealer for
service.
!Always drain tank before mailing or transporting this unit.
!Never drink fog liquid. If it is ingested, call a doctor
immediately. If fog liquid comes in contact with skin or
eyes, rinse thoroughly with water.
Important:
Pay attention to all warning labels and instructions printed on
the exterior of your ANTARI X Fogger.
Unpacking &Inspection
Open the shipping carton and verify that all equipment
necessary to operate the system has arrived intact.
Before beginning initial setup of your ANTARI Fog Machine,
make sure that there is no evident damage caused by
transportation. In the event that the unit's housing or cable is
damaged, do not plug it in and do not attempt to use it until

after contacting your ANTARI dealer for assistance.
Setup
!Remove all packing materials from shipping box. Check
that all foam and plastic padding is removed, especially in
the nozzle area.
!Place fog machine on a flat surface and remove fog liquid
tank cap.
!Fill with only ANTARI Fog Fluid. ANTARI X Fogger only
works with uncontaminated ANTARI Fog Fluid. Other
fluids may cause spitting and serious clogging problem and
could result in the production of an unhealthful fog. The use
of other fluids voids the warranty of the ANTARI X Fogger.
When filled, place cap back on liquid tank.
!Firmly attach the control module cable to the connector
inside the rear chamber of the machine.
WARNING:
Use of any fluid other than ANTARI fog fluid or
modification or attempted to unauthorized repair of the X
Fogger will immediately invalidate the warranty.
Operation
!The plug is positioned that the plug is accessible when used
machine.
!Plug power cord into a grounded electrical outlet. Turn
power switch on rear of unit to " ON" position. Warm-up is
complete when the display on control module shows "
Ready to Fog."
!To emit fog, press the appropriate button on the control
module for the desired length of time.
!The control unit's display will cycle " Warming up" and "
Ready to Fog " as the machine re-heats to the proper
operating temperature.
!When the fluid is running low, the LED inside the tank
chamber starts blinking for two minutes and then stop
operation to protect the pump from running dry..
!Always monitor liquid level to prevent interrupted
operation.
!For further information on operating your ANTARI X
Fogger, see the section titled, "Control Module Operation"
on page 4.
Caution: "Visibility during operation is reduced"
If your model includes a mounting bracket designed for
overhead installation, it may be installed at floor level or
suspended overhead. If the unit is to be mounted using the
bracket, it is important that the fog does not shoot directly at

any one's face. Whatever installation method you choose, do
not allow the unit to have more than a 15 degree angle of
inclination.
Important:
Always monitor tank fluid level as you are fogging. Running
a fog machine with no fluid can permanently damage the
unit.
If you experience low output, pump noise or no output at all,
unplug immediately. Check fluid level, the external fuse,
control module connection, and power from the wall. If all of
the above appears to be O.K., plug the unit in again. If fog
does not come out after holding the control module button
down for 30 seconds, check the hose attached to the tank to
make sure there is fluid going through the hose. If you are
unable to determine the cause of the problem, do not simply
continue pushing the control module button, as this may
damage the unit. Return the machine to your ANTARI dealer
immediately.

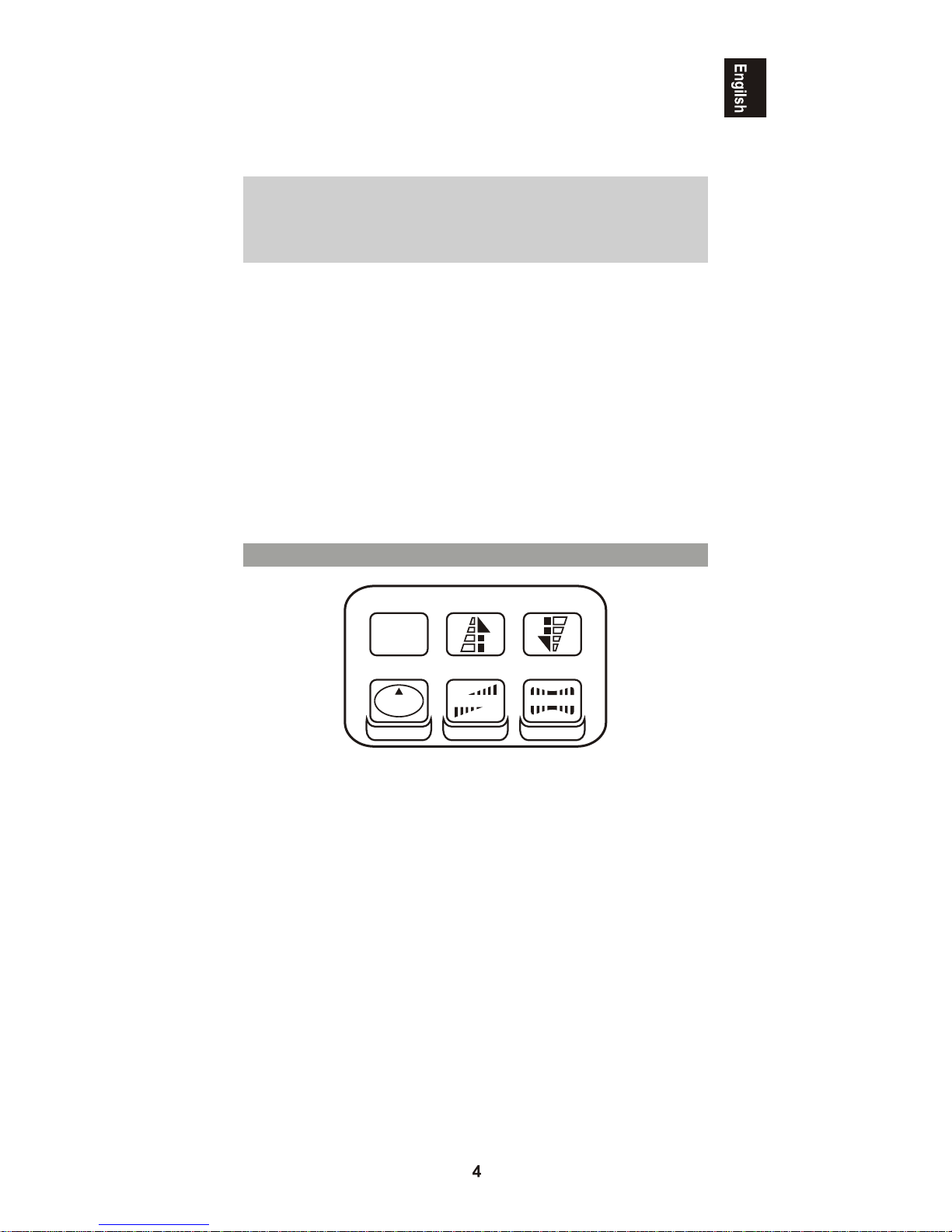

Control Module Operation
!X-10: 10 meter wired multi-function remote control module
with 5-pin XLR connector for ANTARI X Series models X-
310, X-510, X-515, X-530. Its interface allows the operator
to customize fog machine functions by adjusting fogging
duration, interval and volume. Its LCD displays current
operating parameters, which are automatically stored in
non-volatile memory, allowing the machine to be powered
down without losing function settings. Instructions below:
1.Via the Function key, you can adjust the desired settings.
Pressing the Function key will cycle through different
options including Volume, Timer, Heat & Fan. The Enter
(Volume) Key is used to select the desired option. To adjust
fog output volume setting, simply go into Volume option.
Adjust the volume percentage (within the range of 1% to
nonstop burst) by means of Up / Down keys. To adjust
timer setting, go into Timer option. Cycle through Interval
(within the range of 1 to 900 seconds), Duration (within the
FUNCITON
VOLUME
ESC ENTER ON / OFF
TIMER MANUAL

range of 1 to 200 seconds), and Volume (within the range of
1% to nonstop burst) by means of Up / Down keys. Use
Enter (Volume) Key to select each option and make changes
as desired. To turn off the heater and fan, go into Heat &
Fan option. Use Enter (Volume) Key to confirm the
selection. Use On/Off (Manual) Key to turn it on.
2.Always press Enter(Volume) key to confirm setting.
3.Press ESC(Timer) key to exit current menu level and move
to an upper(previous) level.
4.Press the Timer key to activate the timer function. The
display shows the adjusted interval and the device counts
the seconds down to "0". After that, the fog emission is
triggered at the volume adjusted under " Timer "Option.
The duration depends on the settings adjusted under
"Duration". If you wish to deactivate the timer function,
press the Timer key once more.
5.Press the Volume key for immediate triggering of the fog
emission at the volume adjusted under "Volume " Option.
Press the Volume switch once more in order to stop the fog
emission.
6.Press the Manual key for immediate triggering of the fog
emission at 100 % volume. Let the Manual key loose in
order to stop the fog emission.
7.When in standby mode, press On/Off key to reactive the
machine.
!X-20II: DMX Interface module. Please refer to the section
on Page 5 titled X-20II DMX Module Settings.
!X-30: All the X-10 features plus wireless capability.
Wireless operation is possible up to a distance of 50 meters.
The address can be set from 0 to 8, which means total 9
different units can be controlled separately or in any
combination desired. Press function to cycle to RF mode to
select desired address number. Make sure the address
setting on the X-30 matches the address setting on the
transmitter. There are two buttons on the transmitter. Blue
one is to emit fog and Red one is to stop the operation.
ANTARI X-20II DMX Module Settings
On X Fogger such as X-510, X-515 and X-530, X-20II uses
only 1 channel to control volume output operation. On X
Fogger such as X-310, X-20II uses 2 channels to control both
0 - 5
6 - 249
250 - 255
OFF
Volume Control( 5% - 95%)
Maximum Volume Output ( 100%)
Value Function

fog volume and fan volume. Whatever channel you select on
the unit, the channel next to it will be selected automatically
for fan volume control. Each channel has a value range of 0
to 225. Timer functions such as duration and interval can be
programmed using the DMX controller or the DMX control
software being used by lighting and effects operator.
If Channel has a value from 0 to 5, the unit is OFF.
Between the values 6 to 249 the volume of fog output is
regulated. With 6 being the minimum volume of fog
produced and 249 approaching the maximum. The volume
output rises as the DMX value is increased.
If Channel has a value from 250 TO 255, the machine will
operate at maximum output.
Note: In the example above, if the machine were assigned the
DMX address of 124, Channel would correspond to DMX
address 124.
In general, ANTARI X Fogger with X-20II DMX Module
conform to the following performance specifications:
0
1.Average Operating temperature = 250 C
2.X Fogger can maintain maximum output for 60 seconds or
more
Maintenance
Do not allow the fog liquid to become contaminated. Always
replace the caps on the fog liquid container and the fog
machine liquid tank immediately after filling.
After every 40 hours of continuous operation, it is
recommended to run a cleaning solution composed of 80%
distilled water and 20% white vinegar through the system to
prevent the accumulation of particulate matter in the heating
Note: All fog machines are prone to clogging due to the thick
consistency of fog fluid and the high temperature at which it
vaporizes. However, a properly maintained fog machine
should provide years of reliable use.
Clean with a dry cloth only. Store dry.
element. The recommended cleaning regimen is as follows:
1.Empty all fog fluid from machine. Add cleaning solution to
tank. Plug unit in and begin warm up.
2.Run unit in a well-ventilated area until tank is empty.
3.Cleaning is now complete. Refill with fog liquid.

Cleaning your fog machine regularly will help reduce costly
parts replacement and repair charges.
Performance Notes
!Set the volume to "Nonstop Burst" to have continuous
output. When in such setting, the thermostat keep detecting
heater temperature and adjust output automatically.
!All fog machines have a recycling period after long bursts
when the machine will shut itself down for a short period in
order to heat up again. During this time, no fog can be
produced.
!All fog machines may sputter small amounts of fog
occasionally during operation and for a minute or so after
being turned off.
!All fog machines have a recycling period after long bursts
when the machine will shut itself down for a short period in
order to heat up again. During this time, no fog can be
produced.
Please read and save these instructions
Specifications
MODELS X-510 X-515 X-530
POWER
HEATER
OUTPUT
HEAT UP TIME
FLUID
CONSUMPTION
RATE
TANK CAPACITY
WEIGHT
DIMENSIONS(mm)
AC100V/120V/230V/240V,
50-60Hz
1,000W
10,000cu.ft/min
12Min
24Min./Liter
(100% Output)
2.5Liter
13kg
L550 W230 H155
1,500W
20,000cu.ft/min
11Min
13Min./Liter
(100% Output)
6Liter
15.5kg
L646 W240 H190
3,000W
40,000cu.ft/min
12Min
6Min./Liter
(100% Output)
6Liter
22.5kg
L700 W260 H228
AC230V/240V,
50-60Hz
OUTPUT PRESSURE
0.686bar 0.49bar 0.175bar

LIMITED WARRANTY
ANTARI Lighting and Effect Ltd. warrants to the original
purchaser that the ANTARI XFogger will be free from
original defects in workmanship and material for a
period of six months from the date of purchase. During
the warranty period, machines will be repaired or
replaced at the option of ANTARI or its designated
dealer.
The warranty does not extend to any parts of the
ANTARI XFogger that have been subject to misuse or
accident. Neither does the warranty cover any ANTARI
XFogger that has been opened, modified or repaired
other than by ANTARI or its designated dealer.
The warranty will not apply if procedures described in
the Instruction Manual are not followed. It is the user's
obligation to clean and maintain the ANTARI XFogger
according to these instructions, and to follow
acceptable practices for handling electrical devices with
heating elements.
NOTE: USE OF ANY FLUID OTHER THAN ANTARI
FOG FLUID WILL VOID WARRANTY.

MACHINE A FUMEE X-510, X-515, X-530
NOTICE D'UTILISATION
Lisez bien toutes ces informations avant de mettre en marche
votre machine àfumée. De sérieux dommages peuvent
survenir si ces instructions ne sont pas suivies.
Soyez également attentifs aux recommandations mentionnées
sur les étiquettes ou imprimées sur l'appareil .
ATTENTION !
DANGER DE CHOC ELECTRIQUE
!Veilleztoujours àce que cet appareil soit bien sec.
!Cette machine n'est pas étanche. Si de la moisissure, de l'eau
ou du liquide s'infiltre àl'intérieur de l'appareil, débranchez-
la immédiatement et contactez une personne d'un service
qualifié avant de l'utiliser ànouveau ;Elle doit toujours être
utilisée àl'intérieur Elle n'a pas été conçue pour une
utilisation extérieure.
!Bien s'assurer que la machine àfumée est installée dans de
bonnes conditions et que la tension d'alimentation est
correcte.
!La machine àfumée ne doit en aucun cas être branchée
lorsque vous remplissez le réservoir.
!Les machines àfumée non utilisées doivent être
déconnectées de l'alimentation électrique, en débranchant la
prise.
DANGER DE BLESSURES
!L'utilisation de cette machine àfumée est strictement
réservée àl'usage des adultes. Elle doit être installée hors de
la portée des enfants ne jamais laisser sans surveillance la
machine àfumée en fonctionnement.
!Ne jamais diriger la buse en direction d'un individu, ou
d'une source inflammable.
!Placez la machine àfumée dans un endroit très ventilé ne
couvrez jamais les trous d'aération de la machine Afin de
garantir une bonne ventilation, respectez un espace d'au
