ANYKIT AKS400 User manual

Otoscope User Manual
Model No.: AKS400
AKS 400

READ BEFORE USE
By using this product, you signify that
you have read, understand, and
accept the terms and conditions here.
Please keep the user manual for future
reference.
You can also scan this QR code to
download the PDF user manual, view
and enlarge on your device.
It is recommended to watch all tutorial videos on the official Anykit
website and read safety guidelines before using for the first time.
Prepare for your first use by reviewing the quick start guide and refer to
this user manual for more information. It is recommended to watch
tutorial videos and notices before using for the first time.
scan the QR code to watch the
AKS400 tutorial videos, which
demonstrates how to use the
AKS400 safely.
Video Tutorials
Read the following documents before using.
(1）Safety Guidelines
(2）Quick Start Guide
(3）User Manual
U.S. Local Customer Support
Tel: [phone]丨Mon.-Fri. 8:00-5:00 PST

SAFETY WARNING
You must read the instruction manual carefully before using.
Keep out of reach of children. Children are not allowed to use this
product.
You must put the protective cover onto the otoscope before using,
then sanitize all the areas that contact the skin.
Please take great care when using ear spoon accessories to clean
earwax. DO NOT insert them too far into the ear canal.
Don't clean your ear canal' excessively. Prolonged use may cause
discomfort or damage to the ear canal.
Stop using the otoscope if it overheats.
When using this product be aware of people around you. Be careful
that nobody bumps into your hand while holding the device in your ear.
Stop using this product immediately if you experience any discomfort.
This product can NOT replace a doctor or medical provider's diagnosis
or treatment. Contact your doctor immediately if you experience any
discomfort.T
1.
2.
3.
4.
5.
6.
7.
8.
9.

ABOUT ANYKIT-----------------------------
FUNCTIONS--------------------------------
SPECIFICATIONS-----------------------------
USING YOUR INSPECTION CAMERA----------------
INSTRUCTIONS------------------------------
LANGUAGE SETTINGS-------------------------
NOTICE-----------------------------------
USER INTERFACE----------------------------
USER MODE--------------------------------
TF CARD INSTRUCTION------------------------
MAINTENANCE------------------------------
CHARGING--------------------------------
TROUBLESHOOTING--------------------------
WARRANTY--------------------------------
1
2
3
4
5
6
7
8
9
10
11
12
13
14
TABLE OF CONTENTS

- 1 -
ABOUT ANYKIT
Anykit is a trendy and practical tool brand. We focuse on simplicity and
ease of use, providing people with convenience in their everyday lives. Our
products including otoscopes, endoscopes, and a variety of household
tools to enable DIY enthusiasts to embrace creativity and convenience.
Follow Anykit on Amazon for More

FUNCTIONS
- 2 -
Light Control
Take Photo/
Video Recording
UpMode
Settings
Left/Right
Camera Probe Port
Power On/Off
OK
Down, Gyro/Normal
Reset
Charging
Indicator
TF Card
Charging Port
Stand

SPECIFICATIONS
-3 -
Capacity
2500mAh
Input Camera Dia.
3.9mm
Camera
Resolution
1.0 MP
View Angle
70°
Depth of Field
10-20mm
Screen
4 Inch
Image Resolution
1920*1080
Video Resolution
1280*720
LED light
6 Adjustable LEDs
Operating
Temperature
-4°F to 140°F
(-20°C to 60°C)
Operating Hours
About 4h
vHD
1920*1080
1280*720
5V 1A

USING YOUR INSPECTION CAMERA
- 4 -
Remove the plastic screen cover before use.
Connect the camera probe to the monitor (Make sure the camera is
connected firmly to prevent the “no camera” error message.)
Stand Installation

INSTRUCTIONS
-5 -
Tip on the speculum
Tip on the ear spoon
AKS 400
AKS 400
1
2
1
2
3
For safer and cleaner ears, please install
the speculum or ear spoon before use.
AKS 400
Disinfect the specula or ear spoon by
wiping them with 75% alcohol solution
before and after EVERY use.
F
°
212
AKS 400
AKS 400
AKS 400

SETTINGS
- 6 -

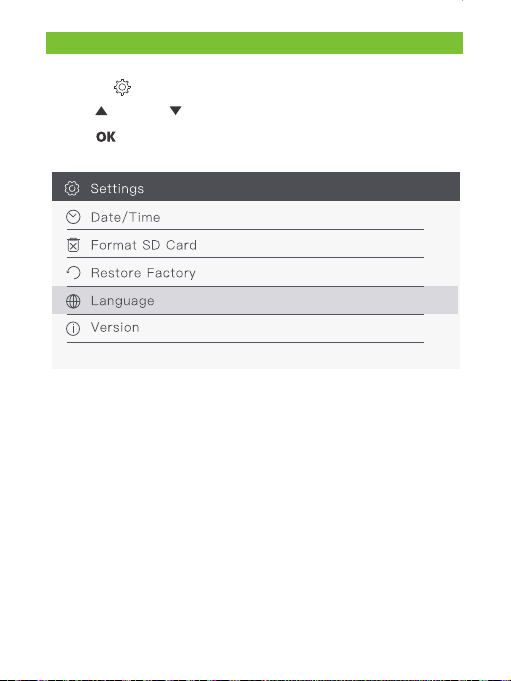

Press the “ ” button to enter settings page.
�
Press “ ” and “ ” to select the items you need.�
Press “ ” to save your choice.

NOTICE
- 7 -
1 . Connect the camera probe before turning on the device. Restart the
device after replacing the camera probe.
2 . Please ensure that your USB-C camera probe is connected to the TOP
of the monitor and not to the charging port on the BOTTOM.
3 . When using the otoscope, don’t hold the lens in a vertical, up and
down. position or else the gyroscope may fail.
4 . Disinfect the surface of the device and accessories before contacting
skin.
5 . Please keep the camera clean to avoid blurry image.（Refer to
maintenance how to clean the camera).
6 . Please keep a focal length of about 10mm-20mm (0.4-0.8 inch) to
achieve the best quality image ( placing the scope too far from your focal
point may result in blurry images).
7 . The ear canal is not perfectly straight, gently adjust the position of the
otoscope and gently pull the top of your ear up and back to help view your
eardrum easily.
0.4-0.8 inch

USER INTERFACE
- 8 -
2023-01-01 08:00
Left/Right BatteryGyro/Normal
Date and time: modify the date and time in Settings menu
TF card status: TF card inserted/no card
Mode: Press “ M ” to switch the three modes:
“ ” photo taking/ “ ” video recording/ “ ”playback

- 9 -
Press “ ” to take a photo or start recording.
At playback mode, press “ ” to select photo or video to view ,
and press “ ” to delete photo or video.
Take Photos
Press M to switch to the take
photos, and press to take
a photo.
Press M to switch to video
recording mode, press to
start recording.
Video Recording
2023-01-01 08:00 2023-01-01 08:00
USER MODE
Normal
Press to switch to the take
Notmal Mode
2023-01-01 08:00
Gyro Mode
2023-01-01 08:00
Press to switch to the take
Gyro Mode
Left
2023-01-01 08:00
Right
Press to switch to the take
Right Mode
2023-01-01 08:00
Press to switch to the take
Left Mode

TF CARD INSTRUCTION
- 10 -
The device comes with a 32G TF card inserted in.
① Without the TF card, you can only preview the video stream.�
② Power off the device before installing or removing the TF card.
③ To ensure the device works properly, please use a Class 10
high-speed TF card.

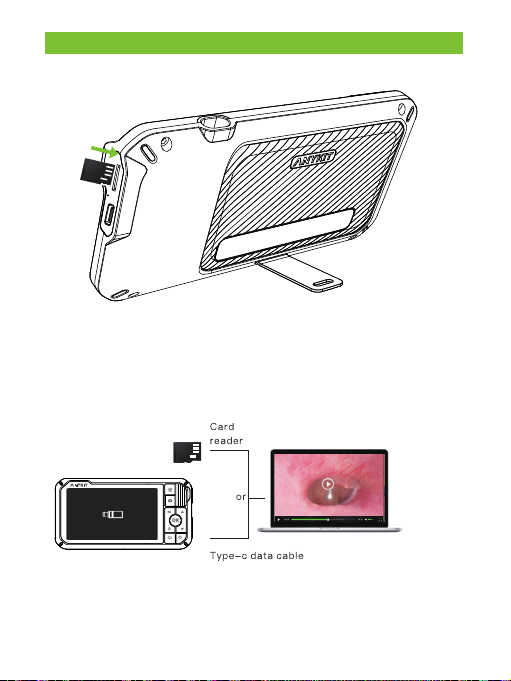

Copy photo and video files to computer
①Use a TF card reader to copy data directly.�
②Connect the device to a computer with a Type-C data cable, power it
on for U-disk mode.

MAINTENANCE
- 11 -
To extend battery life, please refer the following tips：
Please use a 5V household charger that meets the safety regulations to
charge this device.
This device does not support PD charger.
This device can work while charging.
If you do not use the device for a long time, please ensure that it is
charged at least once every 3 months to prevent irreparable damage
caused by excessive battery discharge.
To optimize the image quality and maintain personal hygiene, please
following these tips to clean the camera before and after EACH use:
1. Clean the lens carefully with alcohol pads.
2. Wipe the lens grooves with alcohol-soaked Q-tip.
This can prevent ear wax from sticking to the tip of the camera and
causing blurry images. You can apply pressure when cleaning the
camera to remove stubborn ear wax completely.
Alcohol Q-tip

CHARGING
- 12 -
Please usea 5V household charger that meets the safety requlations to
charge this device.
This device does not support PD charger.
Please press the reset button if the screen freezes or the
buttons does not respond.

TROUBLESHOOTING
- 13 -
No camera
Please make sure you have pluged the camera probe in completely until
you hera a snap. lf it still does not work please feel free to respond via
[email protected] or contact our support line at 877-899-8809,
Mon.-Fri. 8:00-5:00 PST
Blurry image
The focal length is fixed at 10mm-20mm (0.4-0.8 inch), so please
adjust the distance between the camera lens and your ear to get
focused if you cannot see the image clearly.
Blurry image after several uses
Please clean the camera before and after every use to avoid blurry
image. Blurred images after a period of use are caused by the earwax
on the camera lens. (In general, earwax is oily and can cause glare,
unclear image) .
Cannot thoroughly clean the lens
Please follow the steps：
1.Clean the lens carefully with alcohol pads.
2.Wipe the lens grooves with alcohol-soaked cotton swab.

- 14 -
WARRANTY
30-Day Guarantee We will give you a full refund if you are not
satisfied with the product.
We offer alimited warranty that commences
from the date of purchase of the product.
One-Year Warranty
Visit anykit.com or scan the QR code for more details.

CUSTOMER SUPPORT
If you have any questions or comcerns about your product,
please contact our Customer Support Team
Facebook Messenger
1-877-888-7979
Mon.-Fri. 8:00-5:00 PST(US)
[email protected]
www.anykit.com
@anykit
@anykit
