AOK BC168 User manual

Super Speed Balance Charger
BC168
User Manual

- 1 -
Thank you to purchase BC168 Super Speed Balance charger. Please read the
Insruction Manual carefully to ensure well use the product.
Parameter
Input Voltage Range 11~15V DC
Input Power Range 300W
Charge Power 201.6 W (33.6W x 6Cells@Cells=4.2V)
Discharge Power 75.6 W (12.6 W x 6Cells@Cells=4.2V)
Balance Power 201.6 W (33.6W x 6Cells@Cells=4.2V)
Charge Voltage Adjustable range 1.50V~4.20V (default value 4.2V)
Charge Current Adjustable range 0.1A~8.0A (default value 3.0A)
Discharge Voltage Adjustable range 2.00V~4.20V (default value 3.80V)
Discharge Current Adjustable range 0.1A~3.0A (default value 3.0 A)
Balance Voltage Adjustable range 2.00V~4.20V (default value 3.80V)
Balance Current Adjustable range 0.1A~8.0A (default value 3.0 A)
Charge temperature alarm
adjustable range
20℃~80℃ (default value 80℃)
Display backlight brightness
adjustable range
0~5 (default value 5)
Display backlight off time
adjustable range
-：-- ~ 0:05 ~ 5:00 (default value 0:30)
Charge Voltage Precision ±0.001V
Discharge Voltage Precision ±0.001V
Balance voltage Prcision ±0.001V
Charge shift efficiency ≥ 80%
Charger consumed power ≤ 1.8W（12V 0.15A）
Suitable battery type
1Cells ~ 6Cells
( Working well with LiPo/ Lilo / Life)
Weight 1Kg
Dimension 165X123X52mm

- 2 -
Product Function Characteristic:
a. The charger is design for Li-polymer and Lithium Cell. Available to charge,
balance, discharge, measure the series batteries accurately.
b. The charger will use big LCD screen, available to indicate 6 Cell battery
statuses.
c. The charger use 4 button controls all function. 3 of the buttons are shortcut
key, only need to press and then can finish charge, fast charge, balance,
discharge all functions.
d. This charger use high-precision battery detects PCB, the voltage control
accuracy reach ±0.001V. the current control accuracy reach ±0.1A based
on any situation of the battery. Once finished the discharge, the voltage
tolerance of battery will be ≤0.002V.
e. There is no conflit between each circuit. The power can maintain 8A output,
all voltage, current will be display accordingly.
f. Well designed for protection of whole circuit. The product will be stop
working if there is exceed or overload.
g. Automatic heat protection & thermal protection designed.
h. The rate voltage for DC is 11V-15V when input voltage less 11V or over
15V, the charger will be under protection status and then indicate the error
of wrong input voltage.
This charger working with free option input current. The current formula as
followings:
Maximum Power / Input Voltage = Input current.
Warning: The power supply can not work under full load; we need to
work 10% tolerence space for input current.
Caution
a. The product must be working visible to see during the charging. Please
take out the battery when away.
b. Make sure the battery charge voltage factors all correct to avoid any
problems ( Specially Ni-cd battery can not over charge, otherwise will
cause fire)
c. Please don’t disassemble or modify the battery personally.
d. Please don’t cover the heat sink or put it working under sunshine, seal
space or high temperature environment. It will effect the charger can not
work properly.
e. Please don’t put metal or other conductive material to connect to the
charger.
f. Please stop to use while the battery with leaking, expand, peeling off, color
change or other non-common situation.
g. Please ote the case outside temperature will be high while working for high
power.

- 3 -
h. Different battery parameter:
LiPo LiIo LiFe
Battery standard voltage 3.7V/Cell 3.6V/Cell 3.3V/Cell
Maximum charge voltage 4.2V/ Cell 4.1V/Cell 3.6V/Cell
Super speed charge current <1C <1C <4C
Discharge cut-off voltage >3.0V/Cell
>2.5V/Cell
>2.0V/Cell

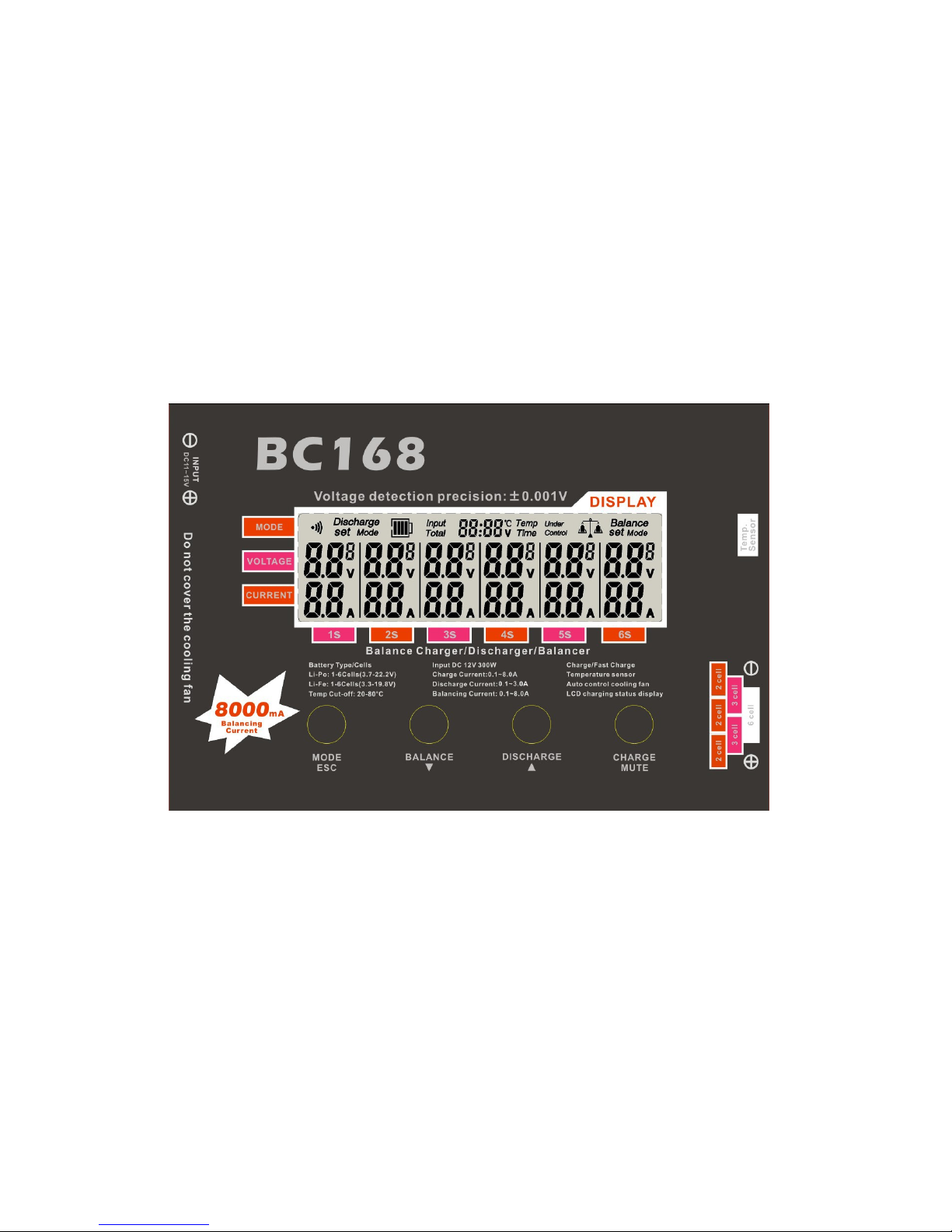

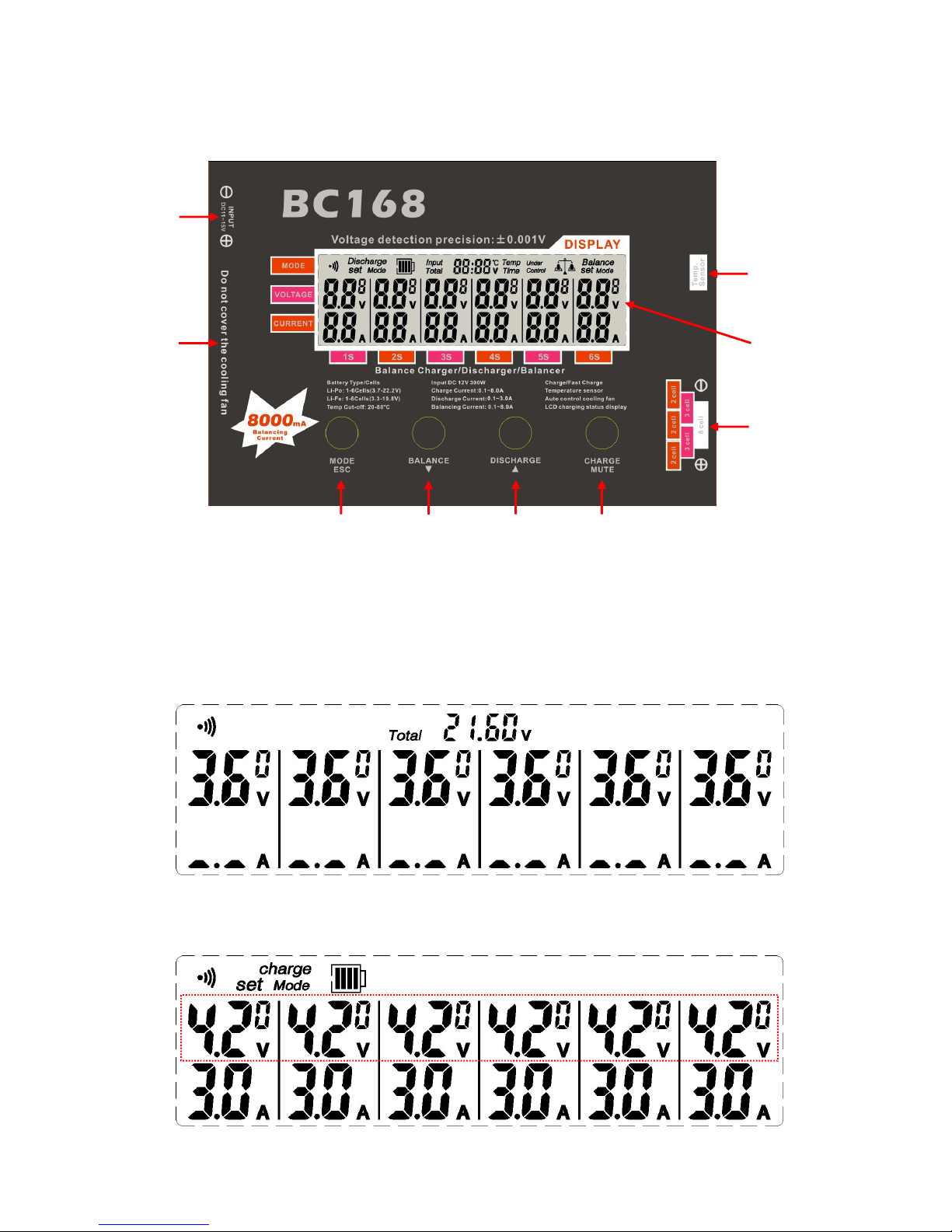

1. Charger screen / button diagram
1. DC input 2. LCD screen 3. Function button 4. Cooling Fan
5. Temperature sensor port/Control Port 6. Output port/Balance socket
Please read the Instruction Manual carefully before use.
①
④
③
②
⑤
⑥

- 4 -
2.Set up:
information tips: Long press the mode button to return to the standby mode.
a. Under standard mode, push MODE to enter charge cut-off voltage set up
mode.
b. Unde charge cut-off voltage mode, Push ↑ or ↓ to set up the cut-off voltage.
After that and then push MODE to enter charge current set up mode.
(setting range: 1.50V ~ 4.20V, default value: 4.20V, this only suitable Lipo
batteries, LiFe need to double check with the battery manufacturer.)
c. Under charge current mode, push ↑ or ↓, and then set up charge current.
After that and then push MODE to enter discharge cut-off voltage mode.
(setting range: 0.1A ~ 8.0A, default value 3.0A)

- 5 -

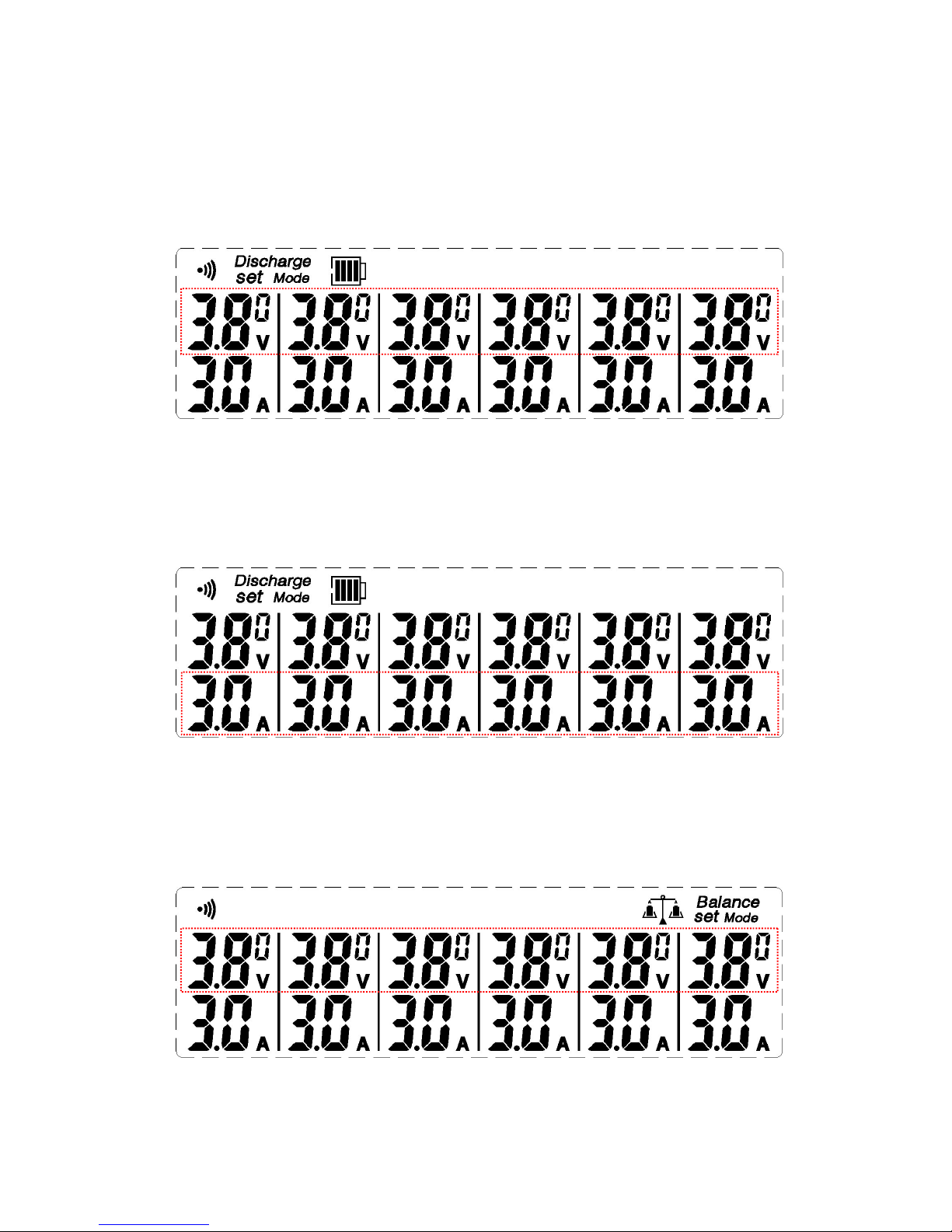

d. Under discharge cut-off voltage mode, Push ↑ or ↓, and then set up
discharge cut-off voltage, after than push MODE to enter discharge current
set up MODE. (setting range: 2.00v ~ 4.20V, default value 3.80V)
e. Under discharge curent set up Mode, Push ↑ or ↓, and then set up
dicharge current, after than push MODE to enter balance minimum voltage
set up mode. (setting range: 0.1A ~ 3.0A, default value 3.0A)
f. Under Balance minimum voltage set up MODE, Push ↑ or ↓ to set up
balance minimum voltage, after than push MODE to enter balance current
set up mode. (setting range: 2.00V ~ 4.20V, default value 3.80V)

- 6 -
g. Under Balance current set up mode, push ↑ or ↓ to set up balance current,
after that push MODE to enter charge trickle frequency set up mode.
(setting range: 0.1A ~ 8.0A, default value 3.0A)
h. Under charge trickle frequency set up mode, push ↑ or ↓ to adjust the
trickle speed. After that and then push MODE to enter charge time set up
mode. (setting range: 5 ~ 30, default value 5)
i. Under charge time set up mode, push ↑ or ↓ to set up maximum charge
time, after that push MODE to enter charge time (minute) set up. (setting
range: 01:00 ~ 99: 00, default value 2:00)

- 7 -
j. Under charge time (minute) set up mode, push ↑ or ↓ to set up maximum
charge time (minutes), after that push MODE to enter Maximum
Temperature set up mode. (setting range: 00:01 ~ 00:59, default value
2:00)
k. Under Maximum Temperature set up mode, push ↑ or ↓ to set up Maximum
battery temperature, after that push MODE to enter power input warning
set up mode. (setting range: 20℃~ 80℃, default value 80℃)
l. Under power input voltage warning mode, push ↑ or ↓ to set up power input
voltage warning, after that push MODE back to standard mode. (setting
range: 11.0V ~ 15.0V, default value 12.0V)

- 8 -

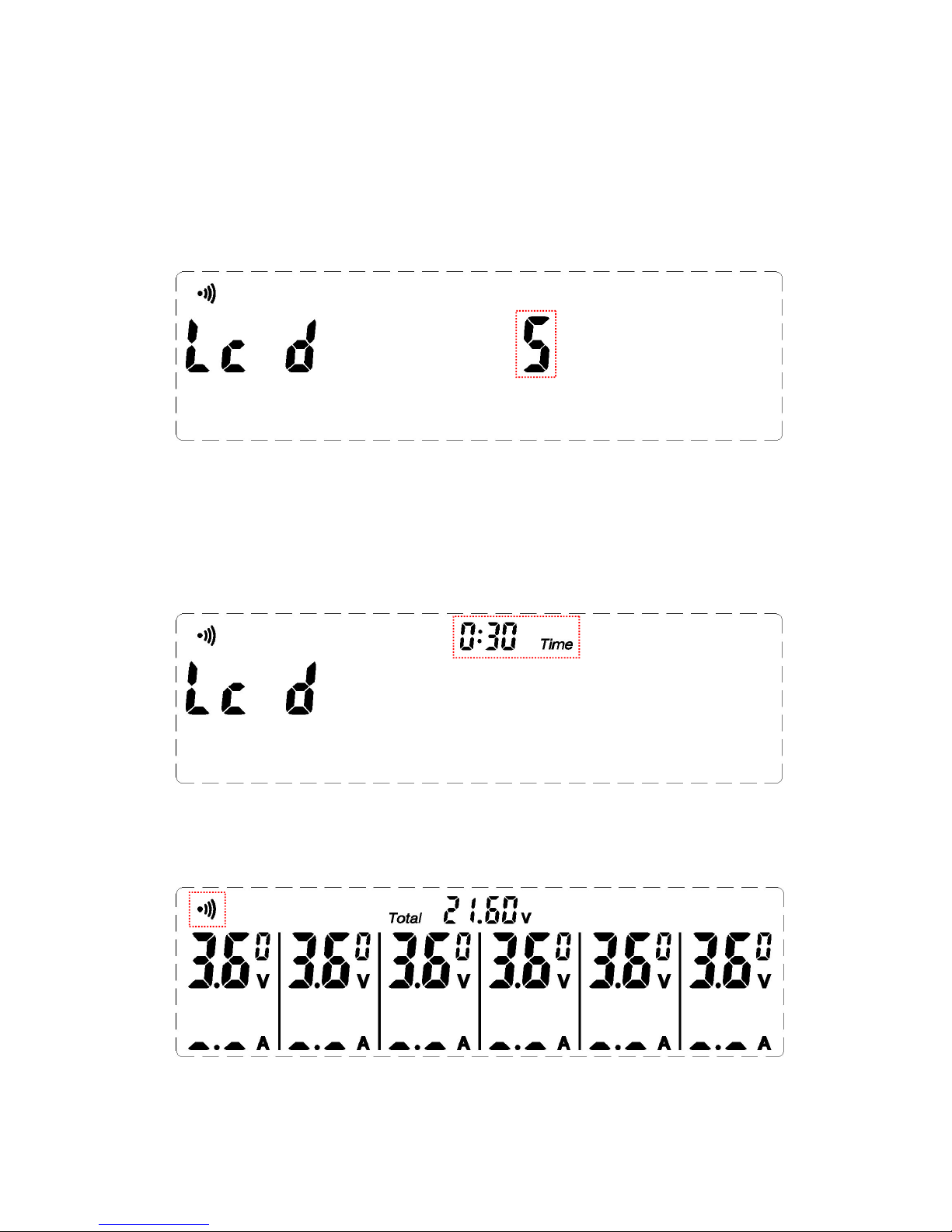

m. setting mode in the brightness of the display screen, press the up or down
arrow keys, you can set the screen brightness set, press the MODE button
to enter the display backlight off time setting mode. (setting range: 0~5,
default value 5)
n. Set mode display backlight off time，Press the up or down arrow keys，You
can set the display backlight off time，Press the MODE key to return to
the set standard mode。（setting range：-:-- ~ 0:05~5:00，-:-- open display
backlight，default value ：0:30，Unit: seconds.）
o. Under any mode, push MUTE to switch off or switch on.

- 9 -
3．Charge:
a. Standard charge:
Under standard charge mode, put battery into the charger, short push
charge button and then go to charge mode.
b. Super speed charge
Under standard mode, connect the battery to charge port, push charge
botton 3 seconds and then go to super speed charge mode. There is a
different icon display between standard charge mode and super speed
charge mode.
(Remark: Super Speed Charge mode comply with no good quality battery
or the situation need fast charge)
c. Pause Charge:
Push charge function button during charge, and the pause charge status
will affect the indicator light flashing.

- 10 -
d. Charge Power
Short push balance function button or discharge function bottom to charge
power indication system during the charge. Unit as mAh. And then short
push balance function button or discharge function button back to charge
voltage / current indication.
(Under charge mode, will automatically back to charge voltage / current
mode 10 seconds late)
e. Exit discharge
Push ESC to exit charge mode and back to standard mode.
The system will automatic back to standard mode while the charge
finished.
4. Discharge
a. Short push the discharge button to discharge the batteries. Push ESC during
the discharge to exit the discharge mode. And then back to standard mode.

- 11 -

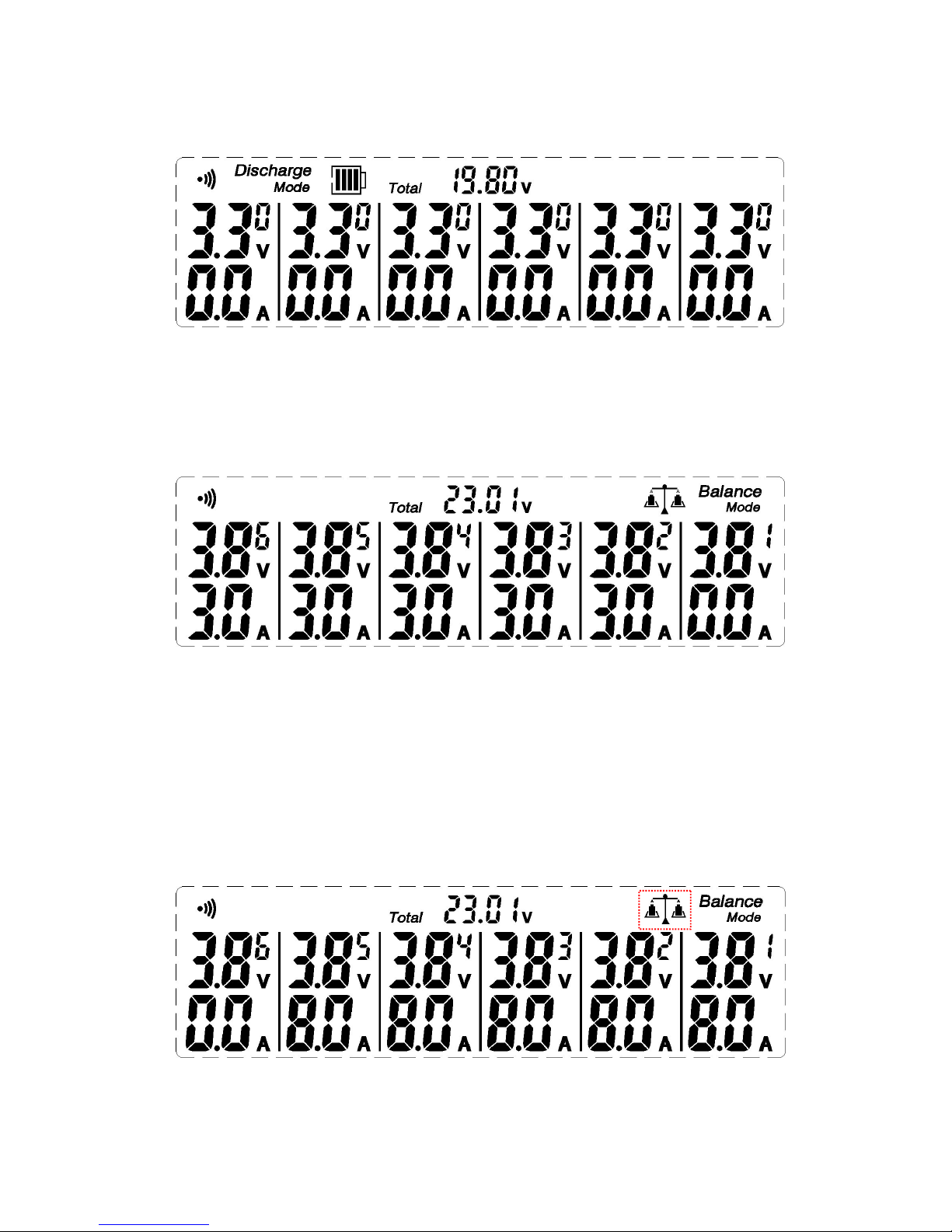

b. Discharge finished indication
5. Balance
a. Under standard mode, and Insert the balance voltage battery to charger.
Short push the balance function button to achieve voltage balance.
Remark:
The maximum balance current is 3.0 based on this mode. Will keep the
minimum batteries voltage as standard. And use the discharge status to
balance the batteries.
b. Under standard mode, insert the balance voltage batteries to charger; push
the balance button at 3 seconds to super speed balance mode.
There is different indication between super speed balance mode and normal
balance mode.
Fast Balance mode Maximum current is 8.0A.

- 12 -
c. Press (ESC) to exit the Balance mode during any of the balance mode. Back
to standard mode, It will be indicate as below after balance finished.

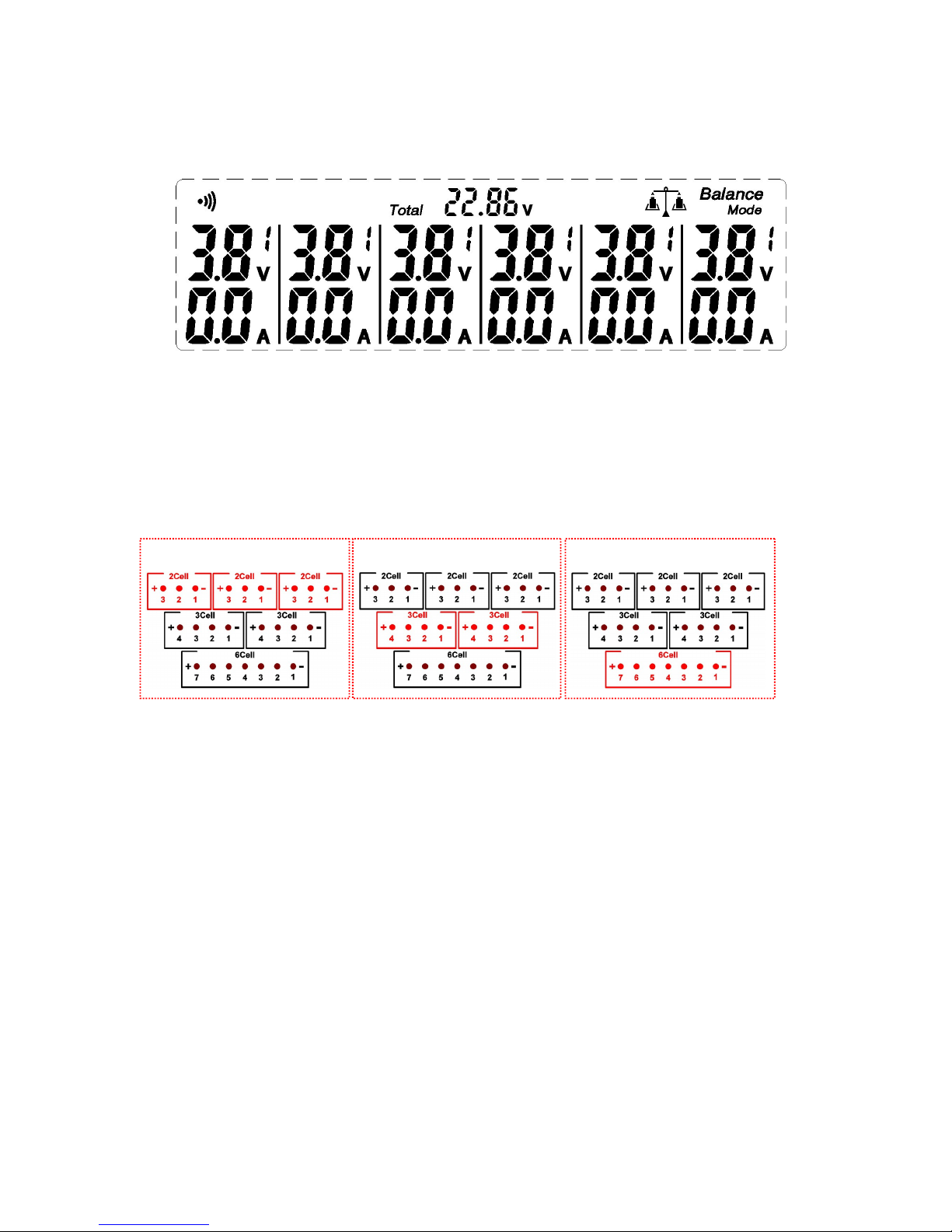

6.Battery’s connection diagram.
2Cell x 3Pcs 3Cell x 2Pcs 6Cell x 1Pcs
Warning: 3 pieces 2 Cell Battery Pile or 2 pieces 3 Cell Battery Pile or 1 piece 6
Cell Battery Pile available connect one time Maximum. Otherwise, it will
burn the charger and battery pile.
1 Cell, 4 Cell, 5 Cell battery pile direct insert 6 Cell Port to use. Please bear in
mind the Positive and Negative.

- 13 -

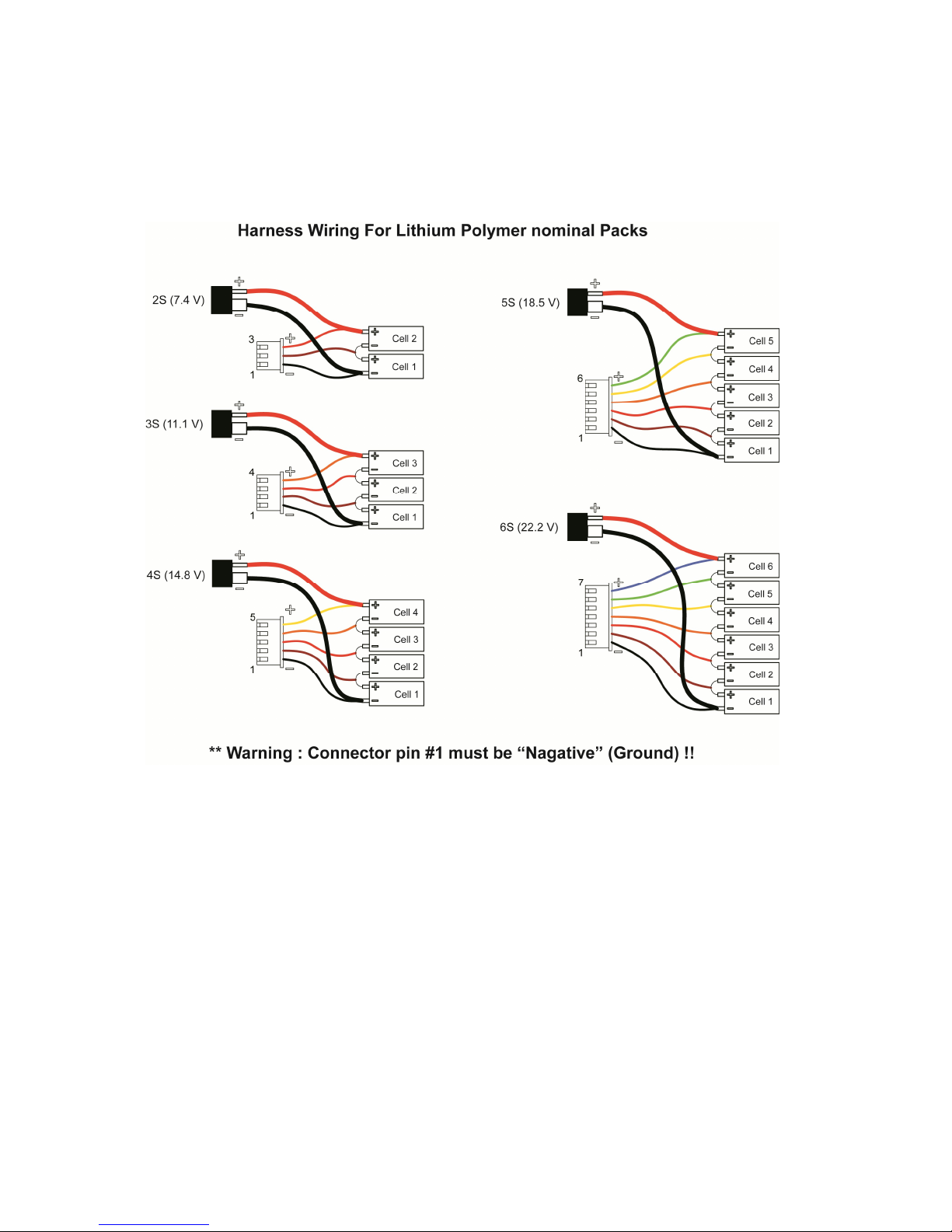

7. Battery pile 1 Cell ~ 6 Cell Connection Diagram

超高速平衡充電器
Super Speed Balance Charger
BC168
用戶使用說明書

- 1 -
感謝您購買BC168超高速平衡充電器，使用前請仔細閱讀本說明書，以便您能更好地使用本產
品。
參數指標
輸入電源電壓 11~15V DC
輸入電源功率 300W
充電功率 201.6 W (33.6W x 6Cells@Cells=4.2V)
放電功率 75.6 W (12.6 W x 6Cells@Cells=4.2V)
平衡功率 201.6 W (33.6W x 6Cells@Cells=4.2V)
充電電壓調節範圍 1.50V~4.20V (預設4.20V)
充電電流調節範圍 0.1A~8.0A (預設3.0A)
充電溫度報警調節範圍 20℃~80℃ (預設80℃)
放電電壓調節範圍 2.00V~4.20V (預設3.80V)
放電電流調節範圍 0.1A~3.0A (預設3.0A)
平衡電壓調節範圍 2.00V~4.20V (預設3.80V)
平衡電流調節範圍 0.1A~8.0A (預設3.0A)
充電電壓精度 ±0.001V
放電電壓精度 ±0.001V
平衡電壓精度 ±0.001V
充電轉換效率 ≥ 80%
充電器待機消耗功率 ≤ 1.2W（12V 0.1A）
支援電池類型 1Cells ~ 6Cells（支持LiPo/Lilo/LiFe）
充電器重量 1Kg
充電器尺寸 165X123X52mm
產品性能特點
a. 本充電器專為鋰電池及鋰鐵電池設計，可精確對多顆串聯電池執行充電、平衡、放電、
測量等工作。
b. 本充電器使用大尺寸液晶螢幕，可同時顯示 6Cell 電池狀況。
c. 本充電器採用四個按鍵控制所有功能，其中有三個按鍵為快速鍵，只需按壓一次按鍵即
可快捷執行充電、快速充電、平衡、放電四項功能。

- 2 -
d. 採用了高精度的電池電壓檢測電路， 電壓控制精度為±0.001V，電流控制精度為±0.1A，
無論每路充電電池的特性如何，充電結束時各路電池電壓偏差≤0.002V。
e. 真正的六路獨立充電互不干涉，動力強勁可以持續 8A 的電流輸出，即時顯示六路電池
的電壓和充電電流，對電池的充電狀態一目了然。
f. 全面的保護電路，輸入過壓、反接保護，輸出反接保護。當充電器檢測到某路電壓已經
到達預設值時，這路充電電路將被鎖定使其停止工作，讓你的電池沒有過充的擔憂。
g. 全自動溫控散熱設計，充電器內部溫度過高時，充電器自動啟動散熱風扇，而且轉速隨
溫度的變化自動調整。如果因為某種原因散熱不良超過了極限溫度，充電器會暫停充電
(防止器件損壞)，待溫度回落之後自動恢復充電。
h. 充電器輸入的工作電壓為直流 11V~15V，當輸入電壓低於 11V 或高於 15V 時，充電器
則將進入保護狀態，在有報警音提示的同時，螢幕會以閃爍的方式顯示當前不正常的輸
入電壓，並自動暫停對電池的充電，待輸入電壓恢復到正常範圍時，充電器會自動繼續
執行充電工作。（充電器輸入電壓值在設置功能表下使用者可自行設置，設置範圍：
11V~15V，預設值為：12V）
i. 充電器的輸入電流可任意選擇，根據使用者需要的最大充電電流來決定，用以下公式可
以計算出來。例如輸入電壓為 12V，最大充電電流為 3A，同時充 6S 的電池，輸入電
流為：最大輸出功率 3A*4.2V*6/0.85=88W，88W/輸入電壓 12V≈7A 的輸入電流，考
慮到電源不應該滿載運行，應該增加 10%的餘量，輸入 8A 即可。
又如輸入電壓為 12V，最大充電電流為 5A，同時充 6S 的電池，輸入電流為：最大輸
出功率 5A*4.2V*6/0.85=148 瓦，148 瓦/輸入電壓 12V≈12A 的輸入電流。
注意事項
a. 為確保安全，充放電時請務必在視線範圍內進行。若需離開，應將電池取出，以免產生
不可預期的危險及損失。
b. 保證電池的充電電壓參數設置正確，如果選擇錯誤不僅可能損壞電池，還可能產生危險
（特別是鋰電池不能過充過放，電池可能會引起火災）。
c. 請勿改造或拆卸充電器。
d. 請不要遮蓋充電器上的風扇口，不要在陽光直射、密閉空間或者高溫的環境中使用。在
以上這些情況下，充電器內部的溫度保護機制可能起作用，使充放電不能正常進行。
e. 請勿將金屬絲或者其他導電的物體落入充電器中。
f. 若電池出現漏液、漲鼓、外皮脫落、顏色改變或者變形等異常，請勿進行充放電。
g. 本充電器通過風扇強制散熱，進行大功率充放電時，外殼溫度會升高，敬請留意。
h. 下表為各類電池的指標：
LiPo LiIo LiFe
電池標稱電壓 3.7V/節 3.6V/節 3.3V/節
充電最大極限電壓 4.2V/節 4.1V/節 3.6V/節
快速充電電流 <1C
<1C
<4C
放電截止電壓 >3.0V/節
>2.5V/節
>2.0V/節

- 3 -
1. 充電器螢幕及按鍵位置圖
由於鋰聚合物電池及鋰鐵電池均為高能量密度並具高放電能力之儲能裝置，故使用本充電
器前務必耐心詳細閱讀本說明書，以免因錯誤操作、設定而導致危險或損壞電池！
2. 充電器設置
提示：在任何參數設置模式下長按 MODE 鍵即可返回待機模式。
a. 在待機模式下，按下 MODE 鍵即進入充電截止電壓設置模式。
b. 在充電截止電壓設置模式下，按下↑或↓鍵，可以設置充電截止電壓，設置完成按下
MODE 鍵進入充電電流設置模式。（設置範圍：1.50V~4.20V，預設值為 4.20V，僅適
用一般聚合物電池，鋰鐵電池請查詢電池供應商。）
電源
輸入
散熱
風扇
設置模式鍵
返回鍵
平衡功能鍵
減小鍵
放電功能鍵
增加鍵
充電功能鍵
靜音鍵
液晶顯示視窗
溫度感測器接口
保姆擴展接口
電池接口

- 4 -
c. 在充電電流設置模式下，按下↑或↓鍵，可以設置充電電流，設置完成按下 MODE 鍵進
入放電截止電壓模式。（設置範圍：0.1A~8.0A，預設值為 3.0A。）
d. 在放電截止電壓設置模式下，按下↑或↓鍵，可以設置放電截止電壓，設置完成按下
MODE 鍵進入放電電流設置模式。（設置範圍：2.00V~4.20V，預設值為 3.80V。）
e. 在放電電流設置模式下，按下↑或↓鍵，可以設置放電電流，設置完成按下 MODE 鍵進
入平衡最低電壓設置模式。（設置範圍：0.1A~3.0A，預設值為 3.0A。）
f. 在平衡最低電壓設置模式下，按下↑或↓鍵，可以設置平衡最低電壓，設置完成按下
MODE 鍵進入平衡電流設置模式。（設置範圍：2.00V~4.20V，預設值為 3.80V。）

- 5 -
g. 在平衡電流設置模式下，按下↑或↓鍵，可以設置平衡電流，設置完成按下 MODE 鍵進
入充電涓流次數設置模式。（設置範圍：0.1A~8.0A，預設值為 3.0A。）
h. 在充電涓流速度設置模式下，按下↑或↓鍵，可以設置充電涓流速度，設置完成按下
MODE 鍵進入充電時間（時）設置模式。（設置範圍：5~30，預設值為 5。）
i. 在充電時間（時）設置模式下，按下↑或↓鍵，可以設置最大充電時間（時），設置完成
按下 MODE 鍵進入充電時間（分）設置模式。（設置範圍：01:00~99：00，預設值為
2:00。）
j. 在充電時間（分）設置模式下，按下↑或↓鍵，可以設置最大充電時間（分），設置完成
按下 MODE 鍵進入充電最大電池溫度設置模式。（設置範圍：00:01~00：59，預設值
為2:00。）
